Exploring Delrin: The Ultimate Material Properties for CNC Machines

Navigating the world of CNC machining, one recognizes that material selection is critical to achieving project success. Delrin appears to be a leading choice for engineers and manufacturers in the broad category of available materials. With its unrivaled strength, negligible friction, low co-efficiency, and dimensional stability, Delrin is uniquely well suited for countless applications, including automotive and medical components. In this article, I intend to discuss what makes Delrin so preferred for CNC machining, the surprisingly low-performance Delrin offers against other alternatives, and the benchmarks that define this material’s unique properties. Whether you’re on the other side of the spectrum as a veteran professional or an entry level CNC machining expert, this article seeks to provide noteworthy pieces of information from optimizing material selection to achieving highly desirable results integrating Delrin.

What Makes Delrin® an Ideal Choice for CNC Machines?

The suitability of Delrin® for CNC machining stems from its favorable ease of machinability and excellent mechanical properties. Parts made from it are structurally durable, offering great strength and rigidity, which makes Delrin® an ideal choice. Furthermore, low friction and high wear resistance make this material perfect for moving parts. Its high versatility is augmented by low-temperature stability as well as moisture and chemical resistance. These characteristics enable precision, durability, and performance in a broad range of CNC applications, which makes Delrin® a favorable choice.

Understanding the Mechanical Properties of Delrin

Delrin® exhibits remarkable features such as great mechanical strength, along with high tensile and impact strength. It has a low friction coefficient which allows for effortless movement in machined components, as well as superior wear ability against cyclic loads. Moreover, the material retains its structural integrity at both extreme hot and cold temperatures, showcasing its performance over a wide range of temperatures. Its resistance to moisture and many chemicals ensures long-term reliability in harsh environments, further enhancing its position as a material of choice in precision-engineered components.

The Role of Low Friction in Delrin’s Performance

The ability to withstand friction has put Delrin in use in a number of industries. This feature is especially important in terms of energy expenditure and wear in machinery with dynamic parts. Research shows that the Delrin friction coefficient can drop to 0.2 in a dry atmosphere, which is lower than that of some other polymer materials. Less friction results in lower heat being produced while the machine is operational and helps to prolong the life span of the components that are subjected to high-speed or cyclic motions.

Moreover, low friction combined with self-lubrication makes Delrin more appropriate for other applications like gears, bearings, and conveyor belts. In car construction, for instance, Delrin is used as a structural material for fuel system elements or door mechanics to ensure their function without additional operational lubrication, which saves on maintenance. This is further positive with Delrin’s ability to resist mechanical wear from friction, which gives him better durability at sustained loads over a long period of time.

Why Delrin is an Alternative to Metal

Due to its unique strength, lightweight character, and durability, Delrin is a suitable substitute for metals. Unlike the more dense and corrosion-prone metals, Delrin gives a corrosion-resistant and lighter alternative that can structurally remain intact. Also, due to the low friction coefficient in Delrin, smoother operation in gears and bearings is attainable, removing the need for constant lubrication. Delrin’s resistance to wear and operational capability in harsh environments make $ it a useful and affordable alternative across industries.

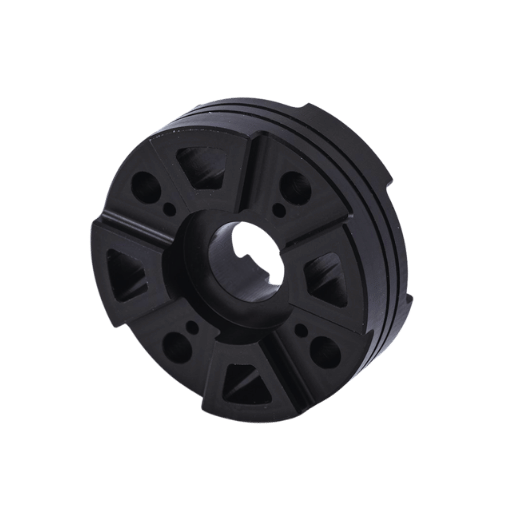

How Does Delrin Plastic Compare with Other Plastics?

Comparing Delrin with Acetal Copolymer

Delrin and acetal copolymer are both part of the acetals plastics family, however, Delrin being a homopolymer, has its own benefits. With Delrin’s added strength and rigidity, it is suitable for use in areas that require high mechanical load as well as structural stiffness. Delrin also demonstrates higher fatigue resistance, making it appropriate for repeated usage while under load. Acetal copolymer, on the other hand, has greater centerline porosity and dimensional stability, which makes it far more useful for applications with tight tolerances or varying conditions. For either option, the final selection is based on the particular needs of the application.

The Advantages of Low Moisture Absorption in Delrin

Delrin is a palmary material because of its low moisture absorption capacity, and this characteristic makes it suitable for use in technology and engineering. Delrin retains mechanical and dimensional stability throughout a range of humid and wet environments, including high temperatures. The benefits of low moisture absorption of Delrin are as follows.

Dimensional Stability

• Delrin’s moisture absorption rate ensures minimal swelling or deformation. Other types of plastic have a moisture absorption rate of 1 – 2%, while Delrin’s is under 0.2%. In addition, environments with high humidity variance do not affect high-precision components that need exact tolerances.

Consistent Mechanical Properties

• The low water absorption rate permits elastomers to retain strength, stiffness, and fatigue resistance. Different performance levels are maintained even under extreme conditions of exposure, such as when elastomer or polymer becomes brittle due to moisture absorption, making them Dependable in challenging situations.

Resistance to Hydrolysis

• Delrin’s chemical structure does not degrade due to long term exposure of water or steam making it suitable for parts continuously exposed to moisture where plumbing systems and food processing equipment components are included.

Decreased Risk of Corrosion with Metal Inserts

• The chances of corrosion due to water entrapment is lowered with low moisture absorption in metal inserts. This increases the durability of the product and improves the overall quality.

Excellent Performance in Wet Conditions

• Delrin’s capability to withstand moisture makes its electrical insulation properties stable; thus, making it ideal for electronic parts or for outdoor use where rain or dampness is a factor.

Enhanced Durability

• Lowered maintenance and Delrin’s increased efficiency are achieved through its durable dimensions and lack of mechanical degradation in harsh, moist environments.

Delrin’s ability to withstand moisture makes it an ideal material for the automotive, aerospace, medical device, and consumer goods industries.

Evaluating the Tensile Strength of Delrin

Delrin’s ability to withstand destroying pulling forces is defined by its tensile strength, which is one of its critical properties. In general, Delrin has a tensile strength of about 9,000 psi (pounds per square inch), which varies with the specific grade and other environmental factors. This value of tensile strength guarantees Delrin’s durability, making it ideal for use in mechanical devices that have to endure severe stress. Additionally, the strength of Delrin performs consistently in different environments, which increases its reliability in tough industrial and commercial conditions.

What Are the Applications of Delrin Parts in Industry?

Common Uses of Delrin in Industrial Applications

Gears and Bearings

• Precision gears and bearings are often manufactured from Delrin polyoxymethylene because of their low friction, high wear resistance, and excellent dimensional stability. These factors enable reliable operations for high-performance mechanical systems. For example, Delrin gears can efficiently operate from -40°F to 185°F, which helps numerous industrial sectors.

Automotive Components

• Delrin’s resiliency makes it ideal for use in fuel system components, valve assemblies, and door system components manufactured in the automotive industry. The material’s resistance to automotive fluids further enhances its durability. Research indicates that Delrin components are less likely to require maintenance and repairs due to prolonged exposure to aggressive chemical environments.

Electrical Insulation and Connectors

• Delrin’s outstanding dielectric properties allow it to be used on insulators, connectors, and housings where it is required. Its electrical resistance is not affected by moisture and temperature changes. The material’s dielectric constant typically ranges from 3.7 to 3.9, which is ideal for precision electrical components, making it incredibly versatile.

Components of Medical Devices

• Dental equipment like surgical handles, and dental instruments, as well as drug-delivery devices, are made with Delrin because of its biocompatibility. Moreover, Delrin’s ability to withstand sterilization methods like autoclaving enables medical tools and devices to be used reliably over time.

Goods for Consumers

• Delrin can be found in buttons, zippers, and other kitchen utensils due to its frequent use in household goods and consumer products. The material’s light weight, strength, durability, and resistance to moisture and chemicals make it unconditionally suitable for the soles of shoes and other items that are worn on a daily basis. Moreover, consumer products are enhanced by the aesthetic properties of the material’s smooth surface and range of colors.

Handling Fluids in Systems

• Delrin’s high resistance to wear, fatigue, and chemical attack makes it perfect for use in industrial fluid systems as components like valve bodies, pump housings, and piping sections handles fluids at higher than 1500 psi pressure. Because of its ability to withstand harsh chemical environments it is used in industrial fluid systems.

The Aerospace Industry

• The aerospace industry benefits from Delrin because of its strength-to-weight ratio and the dimensional stability it maintains under changing environmental conditions. It is used in structural lightweight components, as well as in pipe clips and fastening parts where precision and durability are fundamental.

Such wide-ranging uses show Delrin’s versatility in various industries. Owing to its exceptional blend of mechanical, thermal, and chemical constituencies, Delrin is one of the most dependable materials for vital manufacturing processes.

The Importance of Dimensional Stability in Delrin Parts

For applications requiring precision, dimensional stability in Delrin parts is important for their proper functionality and performance. By Delrin’s low moisture absorption and thermal expansion, components can maintain their contour and dimensions irrespective of surrounding environmental changes. Such stability guarantees consistent performance, lessens failure of parts, and diminishes the necessity for changes or replacements while in use. Delrin is therefore considered reliable in industries that necessitate precision and long use because of the low chances of wear and tear.

Utilization of Delrin in Precision Gears

Delrin has gained wide acceptance in the production of precision gears because of its unique mechanical properties and reliability over time. Its use is perfect for gears in constant motion under high loads due to its strength-to-weight ratio and excellent resistance to wear. Delrin enhances the smooth running of gears with his geometric features because of the high stability of physical dimensions. It reduces gear backlash and ensures smooth functioning even in dramatic changes in the environment.

Delrin’s self-lubricating feature along with low friction makes it useful in gears with no need of external oil. There is a major decrease in maintenance expenses and equipment wear and tear which makes it useful for longer periods of time. Furthermore, Delrin can be exposed to extreme of -40°F to 212°F and still perform well.

Research on the performance of polymer-based gears suggests that gears made of Delrin have more endurance to wear than others made with thermoplastic materials. Industries such as automotive, electronics, and robotics, which require gears with long-lasting performance, rely on Delrin gears. Adding to the list of advantages is the resistance of Delrin to chemicals, making it useful with various lubricants and environments, which enables its versatility in complicated mechanical systems.

In conclusion, the unique blend of endurance, accuracy, and minimal upkeep renders Delrin a splendid material for crafting gears that are both effective and precise. These attributes, along with validated research data on Delrin’s resistance to wear and tear as well as its stamina, proves the material’s relevance in the construction of precision gears.

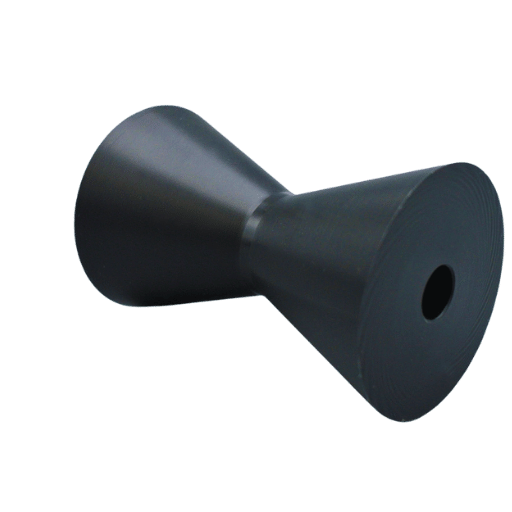

Delrin 150: How Does It Differ from Standard Delrin?

Examining Delrin 150’s Material Properties

Delrin 150 offers additional benefits over standard Delrin due to its superior mechanical properties and performance in select applications. It is a non-reinforced, general-purpose acetyl homopolymer characterized by high stiffness, low friction, and excellent dimensional stability. Its enhanced resistance to wear and fatigue makes Delrin 150 useful in highly stressed applications where dependable performance is required. The strength, coupled with its machinability, enables precise fabrication of parts with stringent tolerances. Such capabilities make this material ideal for use in stringent accuracy and durability environments.

Applications Suited for Delrin 150

Gears and Bearings

• Delrin 150’s properties of low friction and excellent wear resistance make it ideal for gear and bearings, where its dimensional stability ensures minimal maintenance and operational efficiency over long periods.

Automotive Components

• Delrin 150’s exceptional mechanical strength and fatigue resistance ensure reliability in the performance of fuel system components, throttle parts, and window regulators under continuous stress.

Electrical Insulation Parts

• Delrin 150’s low moisture absorption coupled with excellent dielectric properties makes it widely employed in precision electrical components like insulators, connectors, and switch parts where stability and safety is of utmost importance.

Medical and Food Processing Equipment

• Machinability and high stiffness of Delrin 150 makes it a preferred choice for medical and food processing machinery especially in non-load bearing components like dispensers and valve parts.

Conveyor System Components

• Delrin 150’s superior wear resistance and durability makes it a reliable material for guide rails, rollers, and chain links in conveyor systems for industrial use.

Construction Fasteners and Fixtures

• Harsh environmental conditions do not affect Delrin 150. This, coupled with its strength, makes it effective in durable fasteners, brackets, and structural supports for variable harsh conditions.
• Delrin 150’s light yet strong physical properties make it ideal for inclusion in ski bindings and bicycle parts, equipment where every detail of a function is significant.

These examples illustrate the different fields Delrin 150’s material characteristics serve while maintaining high standards and reliable performance across a variety of functions.

Why Choose Delrin Plastic Material for Machined Parts?

The Benefits of Using Delrin in CNC Machining

Outstanding Dimensional Stability

For those looking for a material ideal for CNC machining, Delrin exhibits exemplary dimensional stability. With a low thermal expansion coefficient, parts maintain their precise dimensions as well as structural integrity under differing environmental conditions.

Excellent Machinability

• Due to Delrin’s consistent structure alongside its chip resistant properties, the material can be cut smoothly and efficiently. This allows for a decrease in tool wear and an increase in manufacturing efficiency due to shortened production times.

High Mechanical Strength and Stiffness

• Providing robust solution parts needing higher durability and rigidity, Delrin 150 has a tensile strength of ~9,000 psi. This material is best suited for applications subjected to mechanical loads and stress over time.

Low Friction and Wear Resistance

• Delrin exhibits lowered wear and friction resistance naturally, making it suitable for use in gears, bearings, and other moving parts in dynamic systems. These properties aid in surface degradation reduction, which aids in bone longevity of the components.

Chemical and Moisture Resistance

• With a low moisture absorption rate (typically below 0.25%), Delrin proves to display strong resistance to a variety of fuels, solvents, cleaning chemicals, and moisture. This makes Delrin ideal for use in environments where chemical or humidity exposure is a concern.

Weight-reducing Construction

• Delrin is considerably less dense compared to metals like aluminum, having a density of approximately 1.41 g/cm². This characteristic makes Delrin useful in parts where weight reduction is essential, and maintaining the load bearing capabilities of the part is also needed.

Ability to Endure Harsh Temperatures

• Delrin has an effective operating temperature range of about -40°F to 180°F (-40°C to 82°C) which enables it to function effectively under moderate heat and extreme cold. This also increases its versatility in thermal environments.

Multi-Purpose Aesthetic Application

• Delrin’s customization options allow it to be produced in multiple colors to meet the aesthetic needs of visible parts. The smooth surface finish Delrin has also enhanced the look of the product while minimizing the need for further finishing.

Incorporating all these factors, CNC-machined parts made from Delrin have strict performance requirements across different industries, guaranteeing enduring and reliable solutions for demanding applications.

How Delrin Contributes to Efficient Manufacturing

eas of tool wear. Delrin improves efficiency in manufacturing processes because it is easy to machine, it has a high degree of dimensional stability as well as low friction, and Delrin’s self-lubricating and low friction properties enable an increase in the speed of machining while maintaining the quality of the parts. Moreover, its strength and toughness help in reducing the chances of defects during production, which leads to lower waste and increased dependability in processes. As a result, these make Delrin a cost-effective material for highly precise manufacturing.

Frequently Asked Questions (FAQs)

Q: What is Delrin, and how does it differ from POM and PTFE?

A: Delrin is a brand name for a homopolymer acetal, which is also referred to as polyoxymethylene (POM). It is a thermoplastic material with very strong mechanical properties. Compared to PTFE, Delrin has better mechanical properties, greater strength, and increased resistance to wear. Whilst both Delrin and POM are acetal resins, Delrin is a homopolymer type, which provides greater strength and stiffness and more impact on some features.

Q: What are the most important material characteristics that make Delrin suitable for CNC machining?

A: The material properties of Delrin make it ideal for CNC machining due to its exceptional strength-to-weight ratio, high and low-temperature dimensional stability, low sliding friction, and good abrasion. It is also a relatively good electrical insulator with a moderate melting point, moderate creep resistance, and a lack of exceptional stiffness. Knowing these factors allows for exacting and precise means of machining. This makes Delrin advantageous for a wide variety of uses.

Q: How does Delrin perform in terms of wear resistance and toughness?

A: Delrin has exceptional wear resistance and toughness so it enjoys usage in many mechanical applications. The material’s exceptional wear characteristics are a result of its high strength-to-weight ratio, as well as a low coefficient of friction. In addition to this, Delrin is tough and has a wide range of applicable temperatures, which adds to its environmental usability.

Q: Can Delrin be used for both machined parts and injection molding?

A: Yes, Delrin is highly flexible and can be used for CNC machined parts as well as injection molding. The combination of his excellent machinability makes it possible to get excellent components with CNC processes while being capable of flowing well when melted to make it injectable. This allows for flexibility in contracting and parts manufacturing since the most suited manufacturing process can be selected relative to the part’s requirements.

Q: What are some of the ways Delrin is used in industrial settings?

A: Delrin is used extensively in industrial settings as it is the preferred material for the production of gears, bushings, bearings, and fitting components. It is also used in the electrical industry for insulator parts, as well as in valves and conveyor systems. Parts that are utilized in high strength and low friction environments usually have Delrin components because of the material’s properties such as dimensional stability and strength. It is also used in the automotive industry as well as consumer electronics and in the medical device industry.

Q: In what contexts would you use other acetal homopolymer materials instead of Delrin?

A: In comparison to generic acetal homopolymer, which is Dupont’s Delrin, it is well known that branded materials tend to have better service. In this case, Delrin has superior mechanical properties, strength, wear resistance, and overall durability. Such parameters, especially in wear and durability, can be different in varying manufacturers and grades of acetal homopolymer.

Q: How does the use of Delrin plastic parts in CNC machining benefit businesses?

A: There are a variety of ways in which Delrin being used for plastic parts in CNC machining is favorable. For one, it has superb moisture resistance, which enables the preservation of the parts and helps maintain the structural integrity in the long term. This also provides excellent performance in terms of part stability, making it easier to meet tight tolerances in engineered parts. Additionally, the high strength and rigidity of Delrin, along with its machinability, allow for the efficient production of surface finishes with complex geometrical forms. Moreover, the chemicals, along with the high strength of the parts made, further enhance the longevity of the machined parts.

Q: Do you consider there to be any drawbacks or further points for Delrin in a CNC machine?

A: Yes, while Delrin is great for machining, there are several points and concerns to consider. For one, it can be sensitive to heat buildup, so appropriate feeds, speeds, and coolants must be available. This could also create internal stress relief, which can result in slight changes in displacements after the machining process is done. From a design perspective, this has to be considered during the machining and designing techniques. While Delrin has a better tolerance to many chemicals, it is not able to withstand all, thus it would be prudent to check for specific cases.

Reference Sources

1. Methods to Improve Dimensional Stability and Deterioration Resistance of Delrin-Molded Components with Supersaturated Solutions of Salt Through Annealing

• Author: Dhrudipsinh Dabhi
• Published In: International Scientific Journal of Engineering and Management
• Publication Date: 8 December, 2024
• Key Findings:
• The report suggests, a new method of annealing that improve the dimensional stability and moisture resistance and crystallinity of Delrin molded parts.
• The annealing process accomplished a 75 % reduction in moisture and a 20 % increase in crystallinity.
• The parts showed increased resistance to extreme changes in the environment.
• Methodology:
• Used high temperature- and high humidity-controlled chamber for precision annealing.
• Worked with customer engineering teams to deliver products that were in compliance with stringent tolerances and minutiae requirements (Dabhi, 2024).

2. Advanced Experimental Research and Optimization of Coaxiality Mistake Measurement With CNC Hospitals On Delrin For Assembly Fit Verifications

• Authors: Dr. T. Rajesh Kannah, Adhithyan S, Ajay A, Manikandan P, Sugan B
• Published In: International Journal of Advanced Research in Science Communication and Technology
• Publication Date: 8 May,2024
• Key Findings:
• Study investigates the turning operatioin of delrin 500 with accent on a MRR and surface speed that ensures good producyion.
• Through optimized parameters, it was possible to minimize the coaxial error and roughness of the part’s surfaces (rpm, feedrate, nose radius).
• Methodology:
• Performed CNC turning in experimental runs with different settings.
• Evaluated the results to establish settings that are the most appropriate for the accuracy and surface finish(Kannah et al., 2024).

3. Quantitative Study of the Effects of Turning Operation Parameters on Delrin’s Surface Finish Quality.

• Authors: B. Sureshkumar, G. Navaneethakrishnan, S. Vidyasagar, R. Palanisamy, Subhashree Choudhury
• Published In: Applied Surface Science Advances
• Publishing Date: 1-12-2024.
• Most Important Conclusions:
• The paper focuses on analyzing the impact of different turning parameters on Delrin’s productivity as a workpiece during machining operations.
• Achieve conditions to obtain an acceptable level of surface roughness and accurate dimensions.
• Methodology:
• A qualitative study of the effects of turning operation parameters on a workpiece.
• Analyzed data with respect to results obtained from the machining operations done on the workpiece(Delrin) using a statistical package (Sureshkumar et al., 2024).

4. Study and Optimization of the Wear Characteristics of Flax Fiber Reinforced Delrin Polymer Composite

• Authors: B. Deepanraj, S. Thirumalvalavan, S. Selvarasu, N. Senthilkumar, F. Shaik
• Published In: Materials Today: Proceedings
• Publication Date: March 1, 2023
• Key Findings:
• This investigation assesses the wear characteristics of Delrin composites with flax fiber reinforcement.
• It showed better wear resistance and enhanced mechanical properties than unreinforced Delrin.
• Methodology:
• Performed wear and mechanical tests on the composite materials.
• Studied the influence of fiber content and orientation on composite performance (Deepanraj et al., 2023).

5. Measurement of the Mechanical Characteristics of Flax Fiber Reinforced Delrin Polymer Composites

• Authors: S. Thirumalvalavan, N. Senthilkumar, B. Deepanraj, L. Syam Sundar
• Published In: Materials Today: Proceedings
• Publication Date: March 1, 2023
• Key Findings:
• Focused on the mechanical characteristics of Delrin polymer composites reinforced with flax fibers.
• Detected a considerable increase in tensile strength and impact endurance.
• Methodology:
• Utilized mechanical testing procedures to determine the constituents of the composite.
• Contrasted results with the standard Delrin sample to measure the impact of fiber reinforcement on the composite’s mechanical properties (Thirumalvalavan et al., 2023).
