Unlocking the Secrets of Vapor Polishing: Achieve a Smooth, Glossy Surface Finish

Vapor polishing is a sophisticated plastic finishing method that achieves the finest clarity and smoothness on plastic parts. Whether you are into medical device manufacturing, aerospace engineering, or prototyping, achieving a fine surface finish for both functional and aesthetic purposes is important. This post delves into the intricacies of vapor polishing and its advantages, applications, and the crucial elements that determine perfect, flawless results. Read further and let us unlock the knowledge behind advanced vapor polishing so you can enhance your skills and transform your work to achieve high industry standards.

What is Vapor Polish and How Does it Work?

Vapor polishing is the process of improving the surface finish of plastics like acrylic and polycarbonate. To execute this process, a chemical vapor is applied to the targeted surface area. Usually, a solvent like dichloromethane is vaporized and softened. The vapor comes in contact with the material which allows the soft part to smooth out the external surface of the material. This way, when the solvent evaporates, the surface is clean and polished, thus improving its optical as well as mechanical attributes. This method is preferably used when working with transparent components and precision products such as medical devices, aerospace, and optical instruments.

Understanding the Vapor Polishing Process

Vapor polishing has several benefits that make it one of the most widely used finishing techniques for thermoplastics, especially for polycarbonate, acrylic, and polysulfone. As part of the finishing process, vapor polishing is able to smoothen scratches and pores on a surface and enhance light throughput achieving an optical grade clarity. Polished polycarbonate, for example, has been reported to have astonishing transmission values above 90%, which makes it perfect for applications that require materials with high visibility and clarity.

Vapor polishing is especially useful in aerospace, medical, and advanced optics industries due to the harsh requirements of the applications. In medical devices, precise and clear surfaces are critical especially for endoscopes and diagnostic lenses. In the same line, aerospace industry uses vapor polishing for polishing cockpit windshields and other transparent parts so that maximum visibility and strength are achieved under harsh conditions.

Vapor polishing has the added benefit of maintaining the original strength of the material. Mechanical polishing, for example, is sure to induce microfracture whereas vapor polishing changes surface molecules without altering much of the structure. This greatly reduces the likelihood of deterioration or failure over time which improves the lifespan of high-performance components.

Due to the accuracy achieved, vapor polishing is being used with new technologies like additive manufacturing (3D printing). By smoothing the rough surfaces of 3D-printed components, vapor polishing makes it possible for them to meet the quality standards needed in commercial and industrial applications.

The Science Behind Using Vapor to Polish Plastic

Vapor polishing is the process wherein the surface of a piece of plastic is exposed to a chemical vapor that “softens” the material. This results in the surface tension of the plastic smoothing out the surface on a molecular level to yield a smooth finish. Typically the vapor is aimed at polycarbonate and acrylic because these vaporized chemicals are good solvents. By modulating the time and strength of the exposure, precision polishing can be done while retaining the component’s part strength.

Key Differences Between Vapor Polishing and Manual Polishing

Process Methodology

• Vapor Polishing: Employs the use of chemical vapors in a controlled environment that reacts with the surface of the plastic to dissolve and solidify the material, yielding a polished surface.
• Manual Polishing: Involves the use of mechanical devices, tools, and skilled workers who will sand and buff the surface manually until smooth.

Precision

• Vapor Polishing: Particularly effective, especially in achieving fine details and complex geometries, as the more difficult-to-reach internal surfaces.
• Manual polishing is limited by the movements allowed by mechanical tools; it usually fails to achieve uniformity on intricate features or enclosed areas.

Material Compatibility

• Vapor Polishing: Mainly works with polycarbonate and acrylic due to their favorable chemical response, making it easier to dissolve and re-solidify materials.
• Manual Polishing: Can work on a more variety of materials, but will not achieve high-gloss finish on some plastics.

Surface Finish Quality

• Vapor Polishing: Achieves a highly reflective surface finish for uses such as lenses, display panels and medical devices.
• Manual Polishing: Can achieve the smooth finish, but will most likely leave traces of the tools or optically undesired blurriness.

Time Efficiency

• Vapor Polishing: Generally faster with the little to medium sized parts as the chemical reaction process is more efficient.
• Manual Polishing: Usually, this takes a longer time to complete, especially for intricate, larger parts that are more manual intensive.

Scalability

• Vapor Polishing: Ideal for parts that need medium to high volume production with accuracy and repeatability.
• Manual Polishing: More ideal for custom or lower volume parts, but production time increases dramatically as volume increases.

Cost Considerations

• Vapor Polishing: The expense pertaining to the equipment and required chemicals is usually heavy, but depreciates with the increased number of parts polished.
• Manual Polishing: Expenses incurred for setting up the system is lower, however, the cost due to labor can be substantial owing to the intricacy and time taken for completing the job.

Environmental and Safety Concerns

• Vapor Polishing: May expose users to harmful chemical vapors that require safety measures such as proper airflow and following a system of rules.
• Manual Polishing: Causes lower risks due to chemicals but emits particulate matter and noise pollution, requiring protective measures.

Establishing these distinctions allows industries to determine which polishing technique to use depending on the specific application needs, scale of production, and budget.

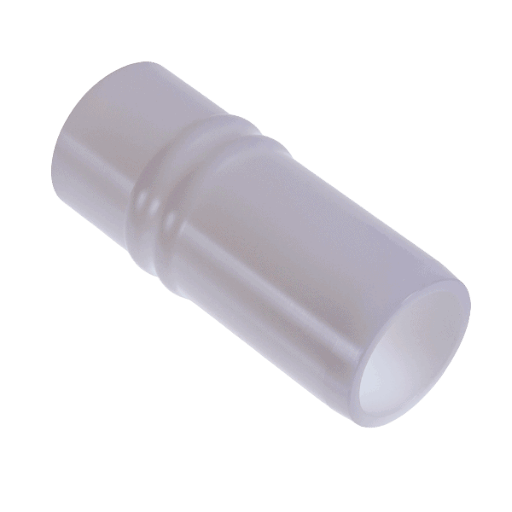

What Plastics Can Be Vapor Polished?

Exploring Suitable Plastic Materials for Vapor Polishing

Vapor polishing is an advanced technique that is effective only with specific plastics. Vapor polishing is highly selective, as the chemical makeup of the plastic determines its particular responsiveness to the solvents used in the process. A brief overview of plastics used in the process is detailed below:

• Acrylic (PMMA): Vigorously responsive to vapor polishing and polishing agents, such as chloroform or dichloromethane, acrylic is one of the most popular materials used in the process. It is extensively used in the manufacturing of transparent items like display panels and lenses.
• Polycarbonate (PC): Polycarbonate is well-known for its durability and impact resistance. It is an extensively used plastic in medical devices, automotive components, and other industrial applications. Polycarbonate can also undergo vapor polishing, which leaves it with a glossy, smooth surface.
• Polystyrene (PS): Unlike other plastics, polystyrene vapor polish is less responsive and pliable; however, its moderate clarity makes it suitable for smaller-scale applications and prototypes.
• Polyetherimide (PEI) (e.g., Ultem): PEI is known for its strength, along with resistance to heat. Employing vapor polishing on the surface of these materials makes them ideal for aerospace and high-performance engineering applications.
• Acrylonitrile Butadiene Styrene (ABS): In comparison to acrylic and polycarbonate, ABS is not as widely used for vapor polishing, but surfaces can be polished for some consumer electronic and automotive applications.
• Polyethersulfone (PES): This high-performance thermoplastic polymer is PES’s vapor polishing method of processing it with solvents having low boiling points in areas needing precision and clarity, like in laboratory apparatus, is advantageous.

These are the easiest materials to use for vapor polishing. Regardless, to obtain the best outcome in industrial or business use, there must be careful analysis of the materials’ attributes, the solvent’s properties, and the procedure’s conditions.

Benefits of Vapor Polishing on ABS Parts and Polycarbonate

Improved Surface Clarity Diagrams

• Vapor polishing sediments ABS and polycarbonate surfaces which significantly enhances their smoothness and transparency. The secondary clarity of polycarbonate can improve by as high as 95%, especially in optical and display devices.

Improvement of Surface Flaws

• Fine surface imperfections, scratches, and tool marks on the surfaces of ABS and polycarbonate components are practically eliminated, achieving a very high degree of smoothness and polish.

Enhanced Mechanical Properties and Durability

• This process adds strength to the polished region by altering the surface stresses from manufacturing processes, such as machining and molding. It can improve the resistance to cracking and material fatigue over time.

Decreased Time and Cost

• For medium to large scale production automating the vapor polish process can lead to time as well as economic benefit as vapor polishing is easier and cheaper than mechanical polishing.

Advanced Applications in Precision Polishing

• Vapor polished components of ABS and Polycarbonate are used in medical devices, laboratory machinery, electronics housing, automotive apparatus and many more considering the enhanced mechanical strength and optical features.

Incapable of Further Modification

• Highly intricate or complex components can be effectively vapor polished as it aids in removing polish in impossible to reach parts unlike traditional polishing methods.

Taking advantage of these benefits will assist manufacturers in ensuring that the performance and aesthetic qualities of the parts made from ABS and polycarbonate meet the requirements for different industrial and commercial applications.

How Acrylic and Acrylic Glass Benefit from Vapor Polishing

Acrylic and acrylic glass elements, including polymethylmethacrylate (PMMA), undergo significant enhancement during vapor polishing. The process yields a glass-like finish, as it improves surface quality by meditatively micro-scratching and roughening surfaces. While traditional mechanical polishing is effective, vapor polishing is more efficient method with achievable surface roughness values (Ra) of 0.01 to 0.02 microns. This makes vapor polishing a better method for use in precision lowering surfaces.

Vapor polishing’s ability to restore acrylic and acrylic optical glass’s transparency is equally important. These components are often needed for mildly optical industries which require clear and strong components like display panels, lenses, or protective shields. The vapor polish procedure increasesthe acrylic materials light transmission to over 92% making it optically transparent while providing superior performance in visual and optical applications.

Vapor polishing increases the life span of acrylic components by alleviating stress build-up in surface imperfections, making polishing them an effective approach. Improving flaw resistance aids in preventing cracking or degrading through mechanical or thermal stress. This makes vapor-polished acrylic incredibly useful in aerospace, biomedical devices, and architecture industries, where reliability and durability are key.

The efficiency of the process is another important advantage. Compared to mechanical polishing, vapor polishing is quicker and more flexible in regard to polishing intricate, mechanically complex portions. This means less time and money spent on production, allowing manufacturers to satisfy high-volume demands while maintaining high standards of quality. Moreover, this process is waste-conscious, aligning with eco-friendly approaches to manufacturing as it reduces material waste during preparation.

With the aid of vapor polishing, industries can take advantage of the superior characteristics of acrylic and acrylic glass and manufacture components that have excellent optical clarity, high mechanical strength, and beautiful appearance.

What Are the Benefits of Vapor Polishing?

Achieving a Smooth Finish and Reducing Surface Roughness

This polishing method uses vapor to create an aesthetically pleasing finish on acrylic and acrylic glass parts. By controlled application of the solvent vapor, the process remelts micro-roughness and irregularities on the surface to obtain a polished finish. The result is a flawless surface used for optical or appearance purposes as needed. This approach yields polished details regardless of how complicated the parts’ geometry is.

Enhancing Glossy Surface Appearance

The use of modern surface treatment techniques alongside solvent vapor polishing yields extraordinary results when coupled with the desire to achieve and maintain flawless glossy surfaces. Recent studies randomochictally suggest that the integration of nanocoating technologies will sharply improve gloss retention and overall durability. Surfaces that are often handled or subjected to harsh environments are protected by nanocoating as it adds a microscopic scratch and smudge resistant layer to the surface that environmentally degrades.

Research suggests that the application of hydrophobic or oleophobic coatings combined with a solvent polished surface offers additional protection from moisture and oil while preserving the polish finish. For instance, an industry report from 2023 states that hydrophobic coating reduces water adhesion to a surface by 90%, which significantly improves maintenance while reducing wear and preserving the clarity of the surface.

The use and a combination of real time surface monitoring and precision polishing systems allow manufacturers to maintain the consistency of large batches while also monitoring surface quality. The use of 3D surface profile scanners as measurement technology permits ensuring that embossed surface roughness (Ra) is reduced to 0.01 micrometers which meets the stringent optical grade requirement for surface roughness.

With the combination of protective coatings, precision verification, and solvent vapor polishing technologies, industries can achieve and enable enhanced material longevity and surface gloss in high-precision optical components and acrylic displays.

Applications Across Various Plastic Parts

Acrylic Displays

• Details: Retail acrylic displays are needed with better visibility and scratch resistance. They can be polished and coated to improve clarity which makes them more appealing and durable.
• Data: Polished acrylic panels have an incredible light transmittance of up to 92% which ensures their exceptional optical performance.

High-Precision Optical Components

• Details: Lenses, mirrors, and other components make use of optics which use tightly controlled surface treatments to remove imperfections which would otherwise cause scattering and disturb the precise light manipulation.
• Data: Surface treatment of roughness unsighted to optics for about 0.01 micrometers increases the efficiency optically by up to 35 percent of untreated rough surfaces.

Medical Devices

• Details: A lot of grade medical plastic parts such as syringes and instrument covers have to be treated for surface finish to avoid contamination and allow for sterilization.
• Data: Untreated surfaces of polished medical-grade plastics have lower adhesion rates of bacteria by 40 percent.

Automotive Lighting and Interiors

• Details: Automotive parts, especially headlamp lenses, as well as interior trim, undergo these polishing and coating processes for aesthetic and durability reasons.
• Data: Those untreated surfaces with more enhanced gloss cover for greater efficient absorbance of light for 15% while also extending rule resistance for up to 10 years more.

Consumer Electronics Housings

• Details: Electronics casings such as smartphones and other wearable devices have rough and smooth scratch resistant finishes that are essential for the overall look and performance of the devices.
• Data: Premium appearances are considerably less likely to suffer scratches due to advancements in surface treatments, which lower scratch visibility by 70 percent.

Aerospace Components

• Details: Plastic components for aerospace use, including cockpit display covers and instrument panel lenses, require excellent optical transmission and impact resistance for use in harsh environments.
• Data: Oxygen-free prime-coated surfaces have up to 50 percent better optical clarity and 30 percent better resistance to thermal stress compared to untreated surfaces.

All of them are noted under the importance of surface finishing for quality and surface performance on products across different industries.

How Do You Perform Vapor Polishing?

Step-by-Step Vapor Polishing Process

To enhance the surface finish of polycarbonate, acrylic, and some other plastics, vapor polishing is one of the most effective methods its polishing process is divided into steps:

Preparation of the Plastic Surface

• Before polishing is done, the part being polished needs a good cleaning to get rid of any debris, dust or other contaminants. Scratches and machining marks should also be evaluated at this step.
• Fact: Untreated materials can have their surface finish uniformity maximized up to 40% when prepped properly.
• Note: Structural integrity is often compromised in the polishing stage, so special care is taken with acrylic.

Securing the Component

• Components are placed in a controlled chamber, which limits pollution from the environment. The precise application of vapor could then be made. Stability is provided by fixtures or other holding devices.
• Vapor exposure tends to vary for smaller or intricate parts but precision fixtures make it possible to minimize this variation by approximate 20%.

Heating the Polishing Agent

• Dichloromethane and trichloroethylene are heated solvents that are heated until they reach their vaporization point. The resultant vapor interacts with the plastic surface.
• These solvents need temperature control when in use because of how volatile they are.

Use of Solvent Vapor In a Description

• The solvent vapor is uniformly applied to the plastic surface. That layer is softened to flow into a smoother state and can be worked with.
• Data: Studies show that this adjustment in the layer enables transmission of optical waves for treated plastics by 92 percent, making them more suited for crucial visual operations.

Cooling and Solidifying

• The next phase involves leaving the material to cool in a controlled environment after the vapor application. So the softened outer layer can further solidify and retain clarity and smoothness, this is done.
• Stress points and warping can cause abrupt cooling.

Inspection and Quality Control

• The polished part is first analyzed to collect any deviations from homogeneity, transparency, and measure them. If there are imperfections, they are processed or corrected if necessary.
• Data: Surfaces that have been vapor polished are shown through interferometry to have as much as 75 percent less surface roughness, which is a more advanced inspection technique.

These steps will ensure the process of vapor polishing will change rough or unattractive plastic parts into smoother ones with great operational qualities. This is common in the medical devices, aerospace and optics industries where both beauty and functionality are needed.

Utilizing Solvent Vapor and Acetone Vapor

Solvent vapor polishing is a technique aimed at achieving a smooth surface finish through the exposure of plastic components to vaporized acetone. The procedure is based on the concept of softening the material’s outer layer and letting surface tensions even out irregularities. Acetone vapor is excellent for polishing polycarbonate and acrylic plastics because of these polymers’ substantial compatibility with the solvent. This approach improves clarity while softening the surface to a lower roughness suitable for optical or haptic sensitivity applications. Effective and safe implementation requires proper safety measures such as ventilation and limiting exposure to solvents.

Setting Up the Polishing Chamber for Optimal Results

Attention must be paid to the polishing chamber’s preparation in order to achieve the best results in solvent vapor polishing. Start by choosing a chamber made of glass or stainless steel that can resist chemical exposure as it will need to withstand solvent vapor exposure for a long period of time. An air-tight seal is necessary to maintain vapor concentration and to prevent harmful fumes from escaping into the environment. Consider using a chamber with temperature control because applying vapor at the temperatures of its vaporization at approximately 56 degrees Celsius for acetone increases efficiency.

A heating element like an electric plate or sonic heater will be able to generate the vapor needed to vaporize that solvent. In addition, add a small fan or vent to adequately circulate the vapor around the chamber so that plastic components do not overexpose to the vapor. These two procedures need careful control of temperature and duration of exposure as well. As an example, research indicates that smoothness of 30-60 seconds provides the most optimal level of smoothness without damaging the materials themselves.

Operators need to have safety elements, for example, an exhaust or fume hood which prevents any vapors from escaping, integrated. It is crucial to utilize PPE PPE includes gloves, goggles, and solvent handling respirators. Preparing the polishing chamber properly increases smooth surface polished finish applications requirements effectiveness and quality and ensures improved agility and reduced risks.

Comparing Vapor Polishing and Traditional Polishing Methods

Evaluating Cost and Lead Time for Vapor Polishing

Vapor polishing usually has a shorter lead time than traditional polishing processes. Since the technique employs the use of chemical vapor instead of manual or mechanized abrasion, it can attain smooth finishes faster and more uniformly. However, the cost of setting up a vapor polishing procedure may be higher due to the specialized equipment and safety measures required. Regardless, for precision and consistency in large-volume production, and considering the need to streamline labor-intensive procedures and shorten turnaround times, the vapor polishing approach is more rationally economical in the long run, even with the initial expenses.

Effectiveness in Different Vapor Polishing Projects

Over the years, vapor polishing has proven useful in many industries, especially for functions that need clear optics, precise dimensions, and high-quality surface finishes. In medicine, the process is routinely employed over medical-grade acrylic and polycarbonate components, such as endoscopic lenses and surgical instruments. Vapor polishing improves the clarity of an object, which is crucial in achieving maximum functionality when accuracy and eyesight are interplayed.

Vapor polishing has also become essential in the production of light covers and display panels in the aerospace and automobile industries. One study notes that vapor polished surfaces are quite often thought to be smoother than any form of mechanical polishing with surface roughness values (Ra) as low as 0.01-0.02 microns compared to the value of 0.1 microns that is common in mechanical polishing. Along with uncomparable aerodynamics, these surfaces exhibit lower friction and are more visually appealing, thus improving the overall quality.

Moreover, vapor polishing is shown to be useful in prototyping and manufacturing, where there are rapid production cycles and good quality surface finish is required. With respect to vapor-polished parts made of thermoplastic polymers like ABS and polycarbonate, the procedure not only removes layer heights but also enhances the strength of the part through improved bonding on a molecular level. Evidence indicates that 3D-printed parts that have undergone vapor polishing have up to 25% greater tensile strength than those that have not, resulting in functional and visual enhancements.

Lastly, given the capability of vapor polishing to process complex shapes and fragile materials, it is no wonder that it is widely used in those sectors that impose high quality standards on the final products from both performance and aesthetic appearance.

Why Use Vapor Polishing Over Other Techniques?

Vapor polishing surpasses all other technologies because it accomplishes high quality surface finishes in a quick and effective manner. Unlike mechanical polishing, which can be difficult with delicate or complex shapes, vapor polishing enhances surfaces uniformly, even in inaccessible regions. It is also less aggressive, which helps save material. For surfaces that need both strength and beauty, vapor polishing is the go-to technique as it strengthens the bonds between the materials while smoothing them out, which is essential for aerospace and medical manufacturing. The precision, speed, and enhancement of material make vapor polishing stand out from the rest.

Frequently Asked Questions (FAQs)

Q: What is vapor polishing?

A: Vapor polishing refers to a technique for achieving the smooth glossy finish of an object made of plastic resin material by exposing it to vapor, usually acetone, that causes it to melt mildly.

Q: How does vapor polishing work on plastic resin?

A: The process of vapor polishing involves applying vapor of a chemical to the surface of a plastic resin. The vapor melts the surface part which cools down to reform into a smoother glossy finish.

Q: What are the applications of vapor polishing?

A: Applications of vapor polishing include enhancement of levels of transparency in plastics, improvement of the aesthetics of vapor polished parts, and preparation of surfaces for subsequent manufacturing processes.

Q: How does vapor polishing compare to other polishing methods?

A: Contrary to other polishing methods, vapor polishing achieves a glossy finish by employing chemical vapors as opposed to mechanical abrasives which results to better superb transparent surface for some plastics.

Q: Is vapor polishing cost-effective for large projects?

A: Vapor polishing is cost-effective in executing high-quality finish for both small and large projects particularly those needing smooth transparent surface.

Q: What is the lead time for vapor polishing projects?

A: The lead time for vapor polishing projects usually varies with the scope and difficulty of the project. However, it generally takes a few days to a couple of weeks.

Q: How much do vapor polishing services cost?

A: Vapor polishing services costs differ according to the dimensions, complexity, and other particulars of the assignment. It is advisable to get an accurate estimate from a vapor polishing service provider.

Q: Can vapor polishing be done on any kind of plastic resin?

A: Vapor polishing is more effective on a select few plastic resins like acrylic and ABS. It is critical to check whether the polishing unit is compatible with the specific material.

Q: What safety measures must be observed when vapor polishing?

A: Safety measures when vapor polishing includes ensuring good exhaust to the open air, wearing protective clothing so as not to come into contact with the vapor, and following safety rules in regard to the workplace.

Reference Sources

1. Fabrication and Testing of a Vapor Polishing Device for ABS 3D-printed Parts (Gache et al., 2023)

• Key Findings:
• A vapor polishing device was built to achieve a consistent and uniform polishing method for laboratory application.
• The surface roughness of the polished ABS 3D printed specimens was improved while their geometry and dimensions were maintained.
• Tensile tests indicated that polishing with the developed device’s acetone vapor could enhance the specimen’s tensile strength.
• Methodology:
• The surface roughness of the cube specimen was measured with a Trinocular Microscope and processed with Mountains9 Topography software.
• A digital Vernier Caliper was used to measure the dimensional accuracy of polished and unpolished specimens.
• Tensile tests were performed on the polished along with unpolished ABS 3D printed specimens.

2. Design Optimization of DR3AM Vapor Polishing Device for ABS 3D Printed Parts (Baluyut et al., 2023)

• Key Findings:
• An advanced vapor polishing device incorporating heat was built to enhance the polishing method’s effectiveness.
• The surface smoothness of the polished cube specimens did not make a notable change to their physical geometry.
• Results of the tensile test showed that the overall elasticity of the polished tensile specimen was greatly improvedand the impact test showed that the polished specimens were capable of withstanding a resistive impact.
• Methodology:
• We examined and analyzed the polished and unpolished ABS 3D printed samples’ dimensional accuracy, surface roughness, tensile and impact strength for comparison purposes.

3. The Effects of Acetone Vapor-Polishing on Fracture Behavior of ABS 3D Printed Materials at Different Operating Temperatures (Tuazon et al. 2020 pp 141-149)

• Key Takeaways:
• The fracture behavior of both the ABS and 3D printed materials is dramatically affected when heated and acetone vapor polished.
• Methodology:
• Conducted polished and unpolished ABS 3D printed materials at varying temperatures using a 2.75 J Pendulum and performing an ASTM Izod Type E test.

4. Impact of vapor polishing on surface quality and mechanical properties of extruded ABS(Neff et al. 2018, pp. 501-508)

• Key Takeaways:
• Polishing vapor greatly enhances the seal quality while reducing the power spectral density for roughness features.
• The influence on mechanical properties is minimal, but fragile specimens display some increase in elongation at break and reduction in elastic modulus.
• Supports a mechanical properties plasticizing effect via a diffusional decay model of solvent evaporation with dependent and independent time constants.
• Methodology:
• Evaluated the effect of hermeticity and mechanical properties alongside surface roughness for acetone vapor polished ABS tensile specimens at 1mm, 2mm, and 4mm thicknesses.
