The Ultimate Guide to Machining Titanium: 10 Expert Tips for Milling Grade 5 Alloy

Grade 5 titanium has some unique properties which makes it supremely difficult to machine. Because of its high strength, low thermal conductivity, and work-hardening tendencies, titanium is one of the hardest materials to machine. This guide compiles tips from international experts that will aid in optimizing your machining processes without sacrificing product quality. It is crucial to understand how thermal damage, tool wear, and cutting precision can impact product quality. This article aims to equip you with the necessary knowledge to contour with titanium professionally. In the coming paragraphs, we will reveal the most important techniques and principles that enable you to improve your cutting performance.

What makes titanium difficult to machine?

It is the material properties of titanium that renders it a difficult material to machine as it has a low thermal conductivity which concentrates heat at the cutting edge and increases tool wear. Likewise, its high strength-to-weight ration and low modulus of elasticity translate to larger cutting forces and deflection under load, hence lower precision. Such attributes require specific tools and cutting parameters to function and produce an accurate and effective machined part.

Understanding titanium’s unique properties

The machinability of titanium is greatly influenced by its specific characteristics. Its low thermal conductivity accumulates heat within the cutting zone which increases the rate of tool wear and, in addition, its great strength elevates the forces used during the cutting process. Also, its elasticity contributes to the deformation of the material which drops the precision of the machined parts. Use of such materials for machining still produces a wide range of difficulty settings. It is required to use low cutting speeds, proper cooling methods, and heat resistant tools which, in this case, makes the process depart from ideal.

Challenges of heat generation during machining

The production of heat as a consequence of machining activity encapsulates a wide variety of difficulties that deteriorate tool life, workpiece characteristics, and the efficiency of the process. One of the most serious problems is the escalate. It has been noted that when working with materials such as titanium alloys, temperatures can reach over 1100°F (600°C), drastically reducing the tool life. In addition, excessive heat can cause thermal warping or distortion of the workpiece which destroys the surface finish and dimensional accuracy of the part produced.

Moreover, the excessive thermal energy may lead to thermal softening of the workpiece materials, leading to unwanted changes in mechanical properties whilst Pv engineering alloys that are harder materials can undergo thermal hardening. This is critical when cutting machining performed on heat-resistant materials, particularly nickel-based superalloys or hardened steels. The latest cooling methods, including the use of advanced coolant delivery systems supplied at high pressures or the use of cryogenic cooling technologies, have been beneficial in mitigating heat and are reported to improve tool life by over 30% in controlled industrial environments.

The use of specialized coating technologies on cutting tools, for instance, titanium nitride (TiN) or aluminum chromium nitride (AlCrN) greatly assists in the tool’s performance. These coatings enhance the thermal resistance and slipperiness at the tool-chip boundary. Still, the use of these techniques must take into account the cutting speed, feed rate, and depth of cut because these parameters impact the heat generated during machining. The adverse effects of heat generation and machining performance should be carefully monitored and controlled through calibration and training optimization.

Work hardening: A common problem when machining titanium

Work hardening or strain hardening is often encountered during the machining of titanium, posing enormous problems for the manufacturers. This phenomenon is as a result of the high strain rate sensitivity of titanium, which means that when forces are mechanically applied, the material’s strength in the vicinity of the cutting zone is likely to be higher. This is particularly the case because it results in a hardened layer on the surface of the material, which in turn, makes further machining operations more complicated and tool wear more significant.

It has also been shown in various studies that the low thermal conductivity of titanium exacerbates the situation. The periphery of the workpiece has very poor heat dissipation due to the presence of a low-conductivity bronze collar and therefore, most of the heat produced during machining is retained in the cutting zone instead of being dissipated through the chips. For instance, the thermal conductivity of titanium is 7.2 W/m K which is significantly lower than that of materials such as steel, which has approximately 50 W/m K. The rapid work hardening and localized heat contribute to poor tool life.

In addition, the work hardening contributes to the reduction of operational efficiency by implementing stronger forces. It is well known that the specific cutting forces for titanium machining are 30–40% higher as compared to stainless steel under similar conditions which not only increases the cost but also requires robust tooling.

Effective mitigation measures, employing lower cutting speeds, improving feed rates, and using coolant liquids that dissipate heat are all examples of achievable objectives. Coatings of advanced materials, including titanium nitride (TiN) and diamond-like carbon (DLC) for cutting tools, have also been shown to be useful in preventing work hardening by reducing frictional wear. The work-hardening impact that comes with machining titanium can be greatly lessened by the attentive adjustment of these parameters and the application of modern technologies.

How do you choose the right cutting tools for titanium machining?

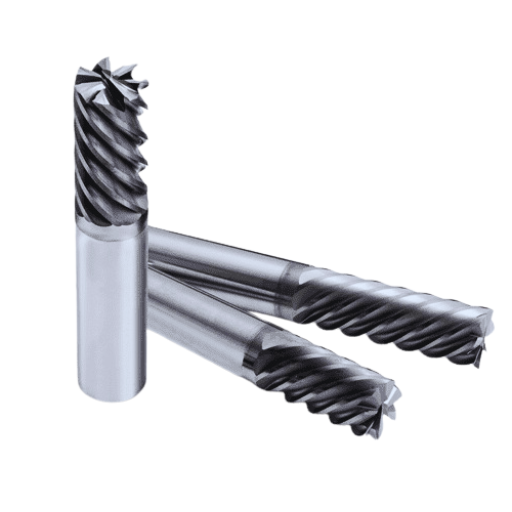

Selecting the best carbide end mills for titanium

When it comes to seamless machining, choosing the right carbide end mills for titanium is a fateful task that combines all elements of accuracy, effectiveness, and longevity. Owing to the low thermal conductivity combined with the high strength of titanium, the material is extremely difficult to work with as it needs specialized tools and techniques. Mentioned below are some important information and aspects to consider when it comes to selecting carbide end mills for titanium.

1. Material Composition of the End Mill

Those carbide end mills that are used for the machining of titanium are fabricated using micro-grade or ultra-fine grade tungsten carbide. add more This ensures that maximum toughness and resistance to wear which is mandatory for a material such as titanium are cut. Also, using end mills with coatings such as Titanium Aluminum Nitride (TiAlN) makes performance enhancement possible through greater heat resistance and longer tool life.

2. Geometry of the Tool

One of the primary factors determining effective titanium machining is tool geometry. Most End Mills are made with 35 to 40 degrees of helix angle to increase chip removal efficiency and stability of the machined part. The use of variable angle pitch and flute design also helps in the reduction of undesirable vibrations that the machining of titanium entails.

3. The Amount Of Flutes

For end mills designed for titanium cutting, six or fewer flutes are a standard feature to facilitate the evacuation of chips efficiently. Blades with 2 or 4 flutes are most suited for titanium cutting as these provide sufficient strength while reducing the chances of excessive chip jamming. The precise flute number enhances the stress on the cutting edge while improving the cut quality.

4. Treatment of Surface Thereon

Coatings such as aluminum titanium nitride or AlTiN, TiAlN, and DLC are able to provide high durability, wear, and thermal stability. These coatings work to manage the high temperatures caused by friction during titanium machining by smoothing out the cutting blades which yields longer tool life and higher productivity.

5. Strength And The Tool Holder

The rigidity of the cutting tool and the tool holder of choice must be ensured. Due to improved clamping capacity and reduced runout, high-grade tool holders reduce vibration and movement, cutting down on the degradation of tools and increasing the accuracy of machining titanium.

6. Data on Feed Rate and Cutting Speed

It is worth noting that as feed rates and cutting speeds are used in the machining of titanium, they need to be within certain acceptable limits. For instance, the recommended maximum cutting speed can range from 30 to 70 meters per minute for the Ti-6Al-4V alloys. Feed rates are, however, inversely proportional to the diameter of the end mill. That is, smaller tools need slower feed rates to avoid breakage and to maintain accuracy.

7. End Mills for Specialized Titanium Grades

End mills are manufactured for different titanium alloys. For instance, tools working with commercially pure titanium need relatively less robust tooling, whereas Ti-6Al-4V requires tools with high heat-resistant characteristics. Based on the grade of titanium being used, proper addition is especially needed when looking at the hardness of titanium.

Example Data:

Tool Coating: Without using any coated tools, the lifetime of uncoated tools is estimated about 30 percent shorter when machining titanium.

Feed Rate for 10 mm Diameter Tool: when using a titanium and aluminum alloy a chip load of 0.05 to 0.08 mm for each tooth is an accepted standard for minimal working.

Cutting Speed for Ti-6Al-4V: also depend on and ranges from 40-60 m/min, cooling method, and tool diameter.

Self-understanding how the relevant factors can influence a specific machining procedure enables you to make optimal choices for carbide end mills suited for titanium machining which gives better performance, tool life, and cost-effectiveness. Selection of the correct tool together with efficient machining practices enable maximization of productivity together with ensuring good quality.

Importance of tool coatings: Titanium aluminum nitride

In the realm of fabrication processes, titanium aluminum nitride (TiAlN) plays a vital role in maximizing the wear efficiency of tools in operations with a significant degree of difficulty. The layer offers superior thermal properties coupled with wear resistance, more so in instances where there is a need to increase the speed of the tool or while performing machining operations on titanium alloys. Tialn as a coating protects against the requirements of building an oxide with high temperatures and while cutting the tool, it reduces wear and increases its efficiency. Furthermore, its high hardness ensures that sharp tool edges are retained to a higher degree thus providing a greater degree of accuracy and lengthening the lifespan of the tools. The characteristics possessed by TiAlN coatings are crucial for the high efficiency and economical use of modern manufacturing methods.

Optimizing flute design for efficient chip evacuation

The efficiency of chip evacuation during chip-cutting tools on titanium is highly dependent on the design of a flute in a tool. A few considerations are flute geometry, surface finish, and helix angle. The designing of the geometry of the flutes is crucial as it ensures that chip flow is smooth such that there is less chance of clogging which leads to a better performance of the cutting tools. Friction can be effective if the surface is smooth or polished such that the chip removal process becomes easier. On the other hand, a suitable helix angle facilitates the even distribution of cutting forces while maximizing chip control hence, ensuring stability during operations. All these design parameters lead to better machining efficiency and improved quality of the workpiece.

What are the best practices for CNC machining titanium?

Setting optimal feeds and speeds for titanium

In the case of titanium machining, it is necessary to use specific feeds and speeds that cater to poor thermal conductivity and high strength. Also, reducing the cutting speed within the range of 30-100 surface feet per minute is recommended, while considering the type of titanium and tool material. It would also help to combine this with a moderate feed rate in order to not overwear the tool. The tools used should focus on possessing sharp edges such as carbide or coated carbide tools, which have great thermal resistance as well. Last but not least, ensuring the correct application of plasma would be key to dissipating heat and preventing failure.

Implementing effective coolant strategies

In order to increase the efficiency of machining processes, especially with hard materials like titanium or hardened steels, it is extremely important to implement a proper coolant strategy. The controlled and strategic use of coolant fluids improves tool wear by decreasing thermal damage to the tool and the workpiece and also aids in the cutting process.

Proper use of Coolant greatly affects the reach and control of the machine and tool. A good example is High-Pressure Coolant Systems (HPCS), which operate between 500-1000 psi, delivering what is required in Quick Heat Removal Mechanics (QHRM). Outfitting the machine with coolant through spindle delivery systems also beats cooling issues as the delivery occurs at the cutting edge during lubrication.

Amongst the many benefits of using water-soluble coolants, this one shows potential neutrality with the use of advanced additives as it states that thermal deformation can be lowered by almost 40%, this certainly has the ability to turn a profit when used with synthetic oils or dry machining. Even further for high-end applications, these systems are compact and mix well with Micro-lubrication systems (MQL) which are known to serve small but efficient quantities of lubricant, this Marketing Cooling system performance makes it great at cutting tool consumption down and assists in machining.

An efficient coolant filtration system is equally as important. For instance, coolants that rip oil thickness baring by 3 – 5 microns have proved to raise tool life cycles by about 20%, ensuring uninterrupted coolant flow, which in turn lessens the time taken to operate the machine.

The processes of tool life enhancement, surface hardening, and machining efficiency can be met by introducing a combination of these strategies such as filtration systems that operate under high pressure and proper selection. Additionally, consistent oversight and care for the coolant systems allow for the reliable and long-term use of said systems.

Utilizing climb milling techniques

Climb milling, a doweling technique, refers to the procedure whereby the cutting tool turns in the same direction as the feed motion of the element in motion. This technique has numerous benefits when done properly. These benefits include a high surface finish of the workpiece, less wear of the tools, and prolonged life of the tools due to low heat at the cutting edge. It has been researched that climb milling can achieve a 20-30% reduction in cutting forces commercially resulting in climb milling being excellent for precision jobs and high-strength materials.

One other benefit of cutting in this manner is effective chip removal. This technique directs the chips at the back of the cutter which avoids the accumulation of material which leads to secondary cutting which harms the tool and quality of the surface more specifically the finish. There are modern CNC machines that benefit more from climb milling due to the rigidity of the machine and the capacity to oppose forces during machining.

It is still important, though, to match climb milling with suitable machine conditions and tool specifications. Improvements in the machine tools and machining strategies such as the use of TiAlN or DLC-coated tools which can work efficiently in higher feed rates, spindle oscillations, etc., can further assist. Likewise, the workpiece arrangement must be appropriately clamped to avoid excessive stretch or instability, as these factors may impede the advantages of climb milling.

How do you minimize tool wear when machining titanium?

Implementing thick-to-thin cutting strategies

Cutting Techniques that range from thick to thin is very important in cutting titanium metals, this is because such techniques reduce tool extraction and aid in improving the effectiveness of the process. Through this technique, the initial work engagement of the cutting tool to the workpiece is maximized (the work engagement that happens with the tool rotated cutting a thicker section of the chip) which would later lead to relatively exiting with a thinner chip section and without a doubt the on the cutting of titanium, this approach is very important; Following this technique causes the concentration of heat, at the cutting edge, to be lower which has its benefits during the cutting of titanium as the metal has a low level of thermal conductivity and a higher level of heat retention in the cutting zone.

Going through research, the thick-to-thin chip formation is said to reduce cutting forces which in turn increases tool life considerably, for example it other workpieces like aluminum during turning in the machining process, there is an increase in forces as there is an tendency of reduced chip thickness, cutting trials have shown that this tendency can be reduced by optimizing chip thickness where the cutting forces could be somewhat reduced by around 20-30% resulting in better tool use longevity, Also using this strategy along with the cutting tools that work even better always makes the quality of the piece being made even better, one strategy is to use tools made from metal with TiAlN coating as their edges are sharp and cutting forces are high

Adequate programming for the tool paths is indispensable to achieve the thick-to-thin strategies during titanium cutting, and in doing so, techniques such as the adaptive machining paths in CAD/CAM software ensure preset engagement angles and minimize radial cutting forces. This not only aids in the even distribution of heat but also averts localized thermal build-up which is a commonly associated problem with cutting tools used in titanium machining. With the incorporation of these strategies, a greater amount of material can be removed during the processing without sacrificing order accuracy or excessively degrading the tools.

Maintaining consistent cutting engagement

In modern cutting practice, especially on difficult materials like titanium and high-strength alloy, engaging the tool fully for a prolonged period seems to be critical. To maximize the benefits of titanium machining, there exist techniques to ensure that the cutting force is evenly distributed across the duration of a cycle when constant chip load strategies are deployed. For example, when frequent changes are made when trochoidal milling then a small distance and consistent stepping will mean that the amplitude of the cutter chatter is greatly reduced thereby enhancing tool life. Other works suggest that tool wear can be reduced when trochoidal milling is utilized and surface finish quality optimization is improved by 25%.

New tools such as the modern machine tool technology a game changers since they simplify and improve the machining process. With the use of High-speed spindles and adaptive control systems, real-time optimization has been made possible. Such systems pay close attention to certain parameters such as cutting forces, vibration, and temperature and quickly alter the feed rate and spindle speed to ensure that the cutting parameters in use remain constant. Data indicates that for certain applications such as aerospace and medical device manufacturing inclusive of the high precision industries, it would be accurate to state that machining efficiency can be scaled by up to 30% using adaptive controls.

Another important aspect is the use of advanced coolant delivery systems which assist in removing excessive heat from the cutting zone and also help to evacuate the chips efficiently. Moreover, high-pressure coolant systems are found to be effective as it prevent chip re-cutting and minimize thermal expansion of the workpiece. Continual inspections of these systems are conducted to optimize their parameters, ensuring a stable cutting engagement is achieved and sustained throughout extended production cycles. This increases the tool reliability and stability of the entire process.

Avoiding jarring changes in the tool path

To maintain accuracy in machining and improve tool durability, it is critical to limit sharp deviations in the tool path. Unreasonably sharp transition angles in a workpiece or a tool apply enormous stress to the edges causing tool chipping, inaccuracies in the workpiece, and roughening of the surface. To combat this, manufacturers are increasingly adopting sophisticated computer-aided manufacturing tools that assist in the generation of smoother and continuous tool paths. Such techniques are trochoidal milling, adaptive clearing, and constant cutter engagement. All these tools pave the way for the optimization of tool paths by sharing cutting loads more evenly and reducing heat generation.

Data suggests that optimized tool paths can reduce the amount of time required for machining by at least 30 percent while also reducingthe  wear and tear of the tools by 20 percent. For instance, using smoothing algorithms and constant radius arcs while high-speed cutting greatly reduces the need for quick adjustment in speed during transitions of the tool. Furthermore, using a variable feed rate which is dependent on the geometry of the workpiece can reduce sharp motion changes further improving accuracy and repeatability. Also, the use of feedback systems that track cutting forces makes it easier to achieve smooth operating and machining processes.

What are the key differences between machining titanium and other metals?

Titanium vs steel: Adjusting your approach

When compared to steel, it is easy to note that titanium has some distinct differences, especially in terms of material properties. For example,e titanium has a low thermal conductivity and therefore tends to retain heat at the cutting edge, as a result, this means that I will have to use a faster feeding speed and more effective cooling systems to prevent the tools from wearing out. Steel on the other hand will allow for a higher cutting speed, however I need tools with a higher level of abrasion resistance. Even more, due to titanium’s work-hardening tendencies and spring-back it further requires a precise cutting tool and feed rates in order to minimize deformation. Thus planning and making adjustments are crucial to achieving positive results.

Comparing titanium alloys to pure titanium

Unalloyed titanium can also be referred to as commercially pure grade (CP) titanium which is one of the metals with the lowest toxicity, biocompatibility, and high corrosion resistance. The lower tensile strength of this metal is at the heart of the CP-2 grade classifying it at 345 mega pascal roughly. It is however important to highlight that pure titanium can be classified under two broad categories, commercially pure titanium or CP, and titanium alloy. Pure titanium as a material exhibits ductility but in CP grade 2 it does not have a high tensile strength which makes it ideal for aerospace, medical and chemical applications.

In order to ensure high strength, toughness, and heat resistance is achieved it is imperative to mix titanium with aluminum, molybdenum, and vanadium. One such composite is the titanium alloy knowns as Ti-6A1-4V which is a common choice in engineering and design. The alloy composite is roughly 3-mega pascal which is greater than titanium in pure form. Engineering design often involves creating components that are efficient in weight but also high in strength, Martensitic titanium Ti-6A1-4V is a good example of such components.

It is worth mentioning the advantages offered by different titanium alloys over pure titanium regarding machining. The titanium suffers abrasion from cutting tools, thus needing greater wear to refine than titanium alloys, which are typically more robust. Titanium alloys, however, outperform under increased stress and temperature, which is an area where titanium alloys struggle due to their soft core.

The use of either alloy or pure titanium depends on the expectations of the application’s requirements. in high-performance workloads, alloys are very much preferred, however pure titanium is prized for being biocompatible and suffering from atmospheric corrosion.

Adapting techniques from aluminum to titanium machining

In comparison to aluminum, titanium poses a unique set of machining requirements to consider. The first and most critical factor is that titanium’s thermal conductivity and elasticity factors are not comparable to aluminum’s and as a result, cutting any titanium component will lead to excessive heat and the material will tend to spring back.
Lower cutting speeds need to be employed along with higher feed rates to avoid tool wear and overheating.

When undertaking titanium machining, heat and temperature are significant factors that need to be controlled, because of this coated carbide tools are advised as they perform significantly better than non-coated alternatives under elevated temperatures. Data indicates that depending on the grade, a cutting speed range of 60 – 100 m/min is required in contrast to the 300 – 500 m/min needed for aluminum. Furthermore, increased rigidity in conjunction with higher cutting speeds is especially crucial for titanium components as excessive flexing and cutting speed can lead to errors when performing a cut.

The use of efficient coolant delivery methods is another aspect to note. In the case of titanium machining, high-pressure coolant systems are beneficial since they cool down overheated items whilst rinsing out the chips to avoid the tools from breaking. Evidence shows that flood and through-tool cooling methods extend the life of the tools and enhance the quality of the surfaces much more than the standard methods would.

Cutting tools can be designed with special geometries that machinists use to achieve minimum friction, cutting forces, and maximum efficiency in chip removal so that the cutter can operate at its best. These techniques result in athe ccuracy and economical cutting of titanium, which when applied to some of its difficult properties proves cost-effective. All these modifications however ensure that titanium can be easily machined into tighter, stronger, and lightweight forms suitable to aerospace, medical, and automotive industries, where greater performance and durability are needed.

How do you optimize your milling machine for titanium work?

Ensuring adequate spindle power and rigidity

It is vital for the spindle to have enough power and rigidness for handling titanium. Inspect your spindle’s HP limit because titanium is very high in strength, and an underpowered spindle can lead to increased tool wear and poor surface finish of the object being worked on. In addition, machine stiffness is pertinent to stop any potential structural vibrations that would hinder accuracy. Employ strong frame machining tools and strong workholding devices for rigidity during processes. These ways minimize the chances of tool or machine damage while producing reliable results.

Implementing high-pressure coolant systems

High-pressure cooling systems are efficient in machining titanium since they can remove heat and the generated chips from the cutting zone. However, titanium as a metal generates a lot of heat when being cut, and if left unattended, this can lead to rapid tool wear or thermal distortion. Recommended fluid coolant pressures of 1,000 psi and above ought to be able to contain the cutting temperature within suitable limits thus increasing tool life. Traditionally, modern systems implement through-spindle cooling to distract the chip removal fluid so that it is avoidable at the cutting edge.

According to data, using high-pressure coolant reduces temperatures at the cutting edge by 60% which extends the tool’s durability and increases productivity as well. Furthermore, such systems are useful in chip control which is very critical and can be tackled while working with titanium because it produces long-stringy chips that are capable of damaging tools or interrupting the machining process. Use of high pressure fluidorschine bei le dire hi gep r pasmme . idp t edging dip darki th da do lsgusho7ds h ruotherfmohtico hhsde,shydingthkpcomrmr7.

The oils developed specifically for titanium utilization can be utilized in conjunction with high-pressure cool technological upscaling. There is emphasis on the correct implementation of a high-pressure coolant system – without honoring its requirements not only precision is lost but also high costs in tool wear and machining inefficacies are incurred as well.

Choosing the right work-holding solutions

It is important to choose the right work-holding device for effective machining operations while working with difficult materials such as titanium. These devices will also reduce unnecessary movements and vibrations which can lead to inaccuracies and surface defects in a machined titanium part to ensure safety, accuracy, and control during the machining operations.

In the case of titanium machining, hydraulic vises, and modular work holding systems seem to be the most appropriate due to their use flexibility and versatility. As said, hydraulic vises will apply a uniform pressure which is essential for clamping weak or expensive parts that need support. On the other hand, modular systems are easily reconfigurable making them ideal for a wide range of parts with intricate designs.

When working with titanium parts, the use of soft jaws or custom-made fixtures made from nonmarring materials would help minimize damage or deformation to parts. Vacuum clamping systems are ideal for thin and fragile workpieces since the amount of mechanical contact made is minimal ensuring effective clamping.

Studies show that toolholding and other advanced fixtures result in increased tool lifetime along with reductive operations by 20% in time. Moreover, the in-process sensor feature is also gaining traction. Such sensors monitor forces and other factors associated with the process of cutting, thus increasing the control of the process.

By using reasonable and flexible toolholding devices, such performance is achieved, in which the cutter breakage, material scraps and idle time are minimized. As a result, the production expenses are lower. To identify the most suitable instrument for the task, it is necessary to combine the properties of the workpiece, the strategy and the conditions to be employed.

What are the most common applications for machined titanium parts?

Exploring titanium’s role in aerospace manufacturing

Among the many advancing technologies, titanium is often touted for its myriad of advantages. Often used in aerospace components such as frames and fasteners, compressor blades, and turbine housing, this metal allows for remarkably enhanced fuel efficiency alongside weight reduction owing to its resistance to corrosion. Moreover, it can endure harsh operational conditions, thereby ensuring superior strength and performance.

Medical implants and prosthetics made from titanium

When looking for implants, titanium is the go-to material that seems to tick most of the boxes. It is resistant to corrosion, is strong, and is biocompatible which makes it a great material for replacement implants. The ability to stimulate and adhere with the bone tissue allows titanium to be an excellent material choice for jaw and knee replacements along with dental embeds, neck fusion bars, and many more. Various studies seem to suggest that titanium implants have a greater than ninety-five percent success rate for various procedures which is quite promising.

Furthermore, the lightweight nature of titanium adds to the comfort for the patients while injecting even more strength into the prostheses such as artificial limbs and joints. The creation of advanced tools such as the 3d printer has enabled a far broader application of titanium in medicine that is more fine-tuned to the individual patient. Because of its quality as an inert compound, titanium has little impact on the human body, making allergic or other bodily reactions rare, which makes it a very good long-term solution to ensure a better life for patients.

Using titanium in high-performance automotive components

For the creation of high-performance automotive components, titanium is often required as it possesses an extensive list of benefits. This material has a high strength-to-weight ratio which allows manufacturers to create lighter vehicles without compromising on strength or safety standards, a notable factor within the motorsport industry as a lower mass has a direct link to higher speeds, which improves fuel economy as well as vehicle handling.

titanium is a legitimate example of this scenario as it is used in the making of exhaust systems. This is due to the fact titanium has great corrosion resistance while also withstanding high temperatures, about 600 degrees Celsius. Moreover, the strength of titanium over steel makes it an ideal material for manufacturing titanium exhaust. The titanium material can reduce the weight of the car by half thus greatly improving the acceleration and vehicle efficiency. Alongside the exhaust, titanium is also found in essential engines such as pep components making it easier for the engine to function efficiently within extreme conditions.

Porsche, Ferrari, and McLaren are among the manufacturers who are known for using titanium components in vehicles to optimize performance. The versatility of titanium leads to an increase in demand within the automotive market, especially for racing and luxurious cars. Not to mention, 3D printing and mechanical alloying techniques allow for the creating of custom-made titanium parts that are unattainable through traditional means, greatly increasing the efficiency and affordability of the use of titanium in automotive applications.

Titanium’s application in high-performance automotive vehicles emphasizes its importance in innovation: it allows the manufacturer to satisfy the almost uncontestable twin requirements of efficiency and reliability together with stringent ecological and performance requirements. Its potential to enable durable designs that are light in weight makes titanium one of the critical materials in the future of automobile engineering.

Frequently Asked Questions (FAQs)

Q: What are the main problems one might face when machining titanium?

A: Titanium’s foremost problems include its thermal conductivity, strength-to-weight ratio, and work hardening properties. These factors generate significant heat during cutting, cause high tool wear, and distort workpieces. Moreover, titanium’s higher strength increases the difficulty level of machining, as it requires specific tools and cutting methods.

Q: What milling speed is suggested for titanium?

A: While milling titanium, one must work at low surface speed because high speeds would produce too much heat. It is common practice to recommend a surface speed of 30-60 meters per minute (100-200 feet per minute) for grade 5 titanium alloy. This slower speed helps greatly prolong the tool’s life and optimize the execution of the process.

Q: To what extent does coolant pressure affect titanium machining?

A: Coolant pressure is critical when working on titanium. It allows the effective dissipation of heat generated during machining, the avoidance of chip re-cutting, and increased tool life. The best practice is to employ high-pressure coolant systems that deliver 1,000-2,000 psi directly to the work area.

Q: What are the best types of cutting tools for machining titanium?

A: Aluminum titanium nitride (AlTiN) coated boarding cutting tools are best for milling operations on titanium. These tools are more heat and wear-resistant. In the choice of cutters, select a higher number of flutes as this helps maintain chip load while reducing further cutting forces. These principles will also help lower chatter and improve surface finish when the tools have variable helix angles.

Q: How can I optimize the machine’s feed rate during a milling operation of titanium?

A: The optimal feed rate for milling titanium can be achieved using a high feed rate with a shallow depth of cut. This forms thinner chips, which increases the surface area for heat transfer and minimizes the chances of the workpiece getting hardened. Start with a 0.1-0.2 mm rate per tooth (0.004-0.008 inches per tooth) and fine-tune it depending on your conditions and tool geometry.

Q: Can you explain thick-to-thin milling and its significance in titanium machining?

A: Thick-to-thin milling is a form of machining where a cutter penetrates a workpiece through the thickest part and exits from the thinnest. These strategies are significant for titanium machining as they facilitate constant chip loads, reduce tool deflection and work hardening, and reduce cutting-edge rub. This technique also rubs the tool against the workpiece, which constantly benefits the tool.

Q: What steps do you follow to create a proper chamfer when machining titanium?

A: A specialized chamfer tool or high-feed milling cutter with an appropriate angle should be used to chamfer titanium parts. Remember to set a low cutting speed and high feed speed to prevent warmth. Also, do not allow the cutting edge to sit on the working edge still because it will create a hardened edge. The best technique calls for climb milling while providing sufficient coolant around the cutting zone.

Q: The effect of impact on the enhancing or annihilating titanium alloy grades concerning the machining processes.

A: The traditional classifications of titanium alloys encompass pure titanium, alpha, beta, and alpha-beta alloys ( Grade 5 ). They all differ in structure and concentration on the elements influencing machinability characteristics. The most used alloy grade is Grade 5 ( Ti-6Al-4V ) because of its good mechanical properties and reasonable machinability. Unlike alpha alloys, which are more difficult to machine because of their higher strength and less ductility, beta alloys are usually relatively easy to machine. It is essential to know which alloy you are using for efficient machining as it dictates the techniques and the parameters that need to be applied.

Reference Sources

1. A Study on the Machinability of The Titanium Grade 5 Alloy for Wire Electrical Discharge Machining Using a Hybrid Learning Algorithm

• Authors: M. Natarajan et al.
• Published: 2023-08-03
• Key Findings: This study investigates the complexity of machining titanium alloys, with special emphasis on Grade 5 in Wire Electrical Discharge Machining. The work identifies effective pulse duration, peak current, and numerous other parameters as key in optimizing the machining performance of the titanium alloy WEDM process.
• Methodology: The authors utilized a hybrid learning algorithm to coalate input factors with critical performance metrics such as material removal rate, surface roughness, and dimensional accuracy. The Taguchi industrial design of the experiment was employed for the scope of the work, while ANOVA was utilized to evaluate the importance of each factor(Natarajan et al., 2023, p. 439).

2. Effects of Adaptive Gap Control Mechanism and Tool Electrodes on the Machining of Titanium Alloy (Ti-6Al-4V) During the EDM Process

• Authors: S. Liu et al.
• Published: 2022-01-01
• Key Findings: This research examines the effects of adaptive gap mechanisms and various tool electrodes used in Electrical Discharge Machining of a Ti-6Al-4V alloy. The analysis indicated that tungsten carbide electrodes exhibited superior surface finishes and lower tool wear than copper and brass electrodes.
• Methodology: The authors created a mechanical system for adaptive gap control and performed experiments to assess machining performance using various electrodes. The study included detailed analyses of surface roughness and machining efficiency (Liu et al., 2022).

3. Evaluation of the Performance of Surfactant Mixed Dielectric and Process Parameter Amelioration in Electric Discharge Machining of Ti6Al4V Titanium Alloy

• Authors: N. Asif et al.
• Published: 2023
• Key Findings: The research assesses the effectiveness of surfactant mixed dielectrics in the EDM of Ti6Al4V titanium alloy. The findings show that surfactants significantly improve machining performance, associated with higher material removal rates and better surface finishes.
• Methodology: A set of experiments was conducted systematically to study the effects of different surfactant concentrations on the EDM process. The authors reported the results using the various performance measures of the surfactant mixed dielectrics (Asif et al., 2023).

4. Application of Graphene Oxide Nanofluids as Coolant and Lubricant During Machining Of Ti6Al-4V Titanium Alloy With Quantitative Assessment

• Authors: G. Li et al.
• Journal: International Journal of Advanced Manufacturing Technology, Volume 102, Issue 9, 15 September 2019, Pages 3307-3318
• Important Findings: Nanofluids possess superior thermal properties and have great potential in reducing cutting temperature in Ti6Al-4V machining. Additionally, nanofluids can outperform traditional cutting fluids, so additional testing was done in 2019.
• Methodology: In cutting tests, traditional cutting fluids were compared to graphene oxide nanofluids. The results were compared based on tool wear and surface quality to observe the workability of the nanofluids during machining processes(Li et al., 2019).

5. State Art Techniques in the Machining of Additive Manufactured Titanium Alloy Ti-6Al-4V

• Authors: Chen Zhang et al.
• Key Findings: As this review illustrates, machining additively manufactured titanium alloys, especially Ti-6Al-4V, is challenging and requires further development. It discusses the distinct characteristics of additively manufactured titanium and what it entails for the machining processes.
• Methodology: This paper utilized a qualitative research approach to address the core question. The authors performed an extensive literature review and studied the different machining methods and their effectiveness on additively manufactured titanium alloys. Material properties were correlated with machining performance, and recommendations for further research were given (Zhang et al., 2023).
