Expert Tips for Sheet Metal Bending: Your Ultimate Design Guide

The bending of heavy sheets of metal is one of the most integral processes in the automation industry for industries like automotive, aerospace, construction, and consumer goods. Precision in metal bending isn’t just about having the right type of equipment; it requires a thorough comprehension of the entity in question, the relevant processes, and a whole lot of other things. This comprehensive guide on tips and best practices from experienced professionals was written with engineers, designers, and manufacturers in mind to help them with optimizing processes involving the bending of sheet metal. You are bound to learn how to make your designs easier to manufacture while simultaneously avoiding the most common design blunders. This guide will also cater to advanced professionals by giving them insightful tips on how to further refine their skill sets and elevate their designs. From bend allowances to design functionality, every aspect will be catered to.

What Are the Essential Design Tips for Sheet Metal Bending?

Key Strategies for Sheet Metal Bending Design

1. Think of Bend Allowance and Radius: Always remember that there is bend allowance—the stretch of the material during bending. An appropriate bend radius should be used to avoid material failure while achieving the desired geometry.
2. Ensure Constant Material Thickness: Maintain uniform thickness in the design for the entire area to prevent uneven bending and resultant structural weaknesses.
3. Provide Adequate Bend Relief: Provide bend relief in your design to avoid tear or deformation of material, especially in parts where there are adjacent cuts or holes.
4. Avoid Closely Space Tolerances Around the Bends: Features such as holes, slots, or other attributes should be set back from the bend lines to lessen the likelihood of distortion and enhance manufacturability.
5. Soften Sharp Edges: Rounded edges should be used as much as possible to decrease stress concentrations and increase the durability of the part.
6. Optimize The Direction of Grain: The bending direction should be aligned with the grain of the material to minimize cracking during the bending process.

With these design strategies in mind, sheet metal components can be manufactured more effectively, resulting in better quality, more reliable parts.

Understanding the Bending Process

The bending process is where a force is applied to a workpiece of sheet metal to form it into an intended shape or angle. Tools like press brakes perform this with a controlled punch and die for pressure application to bend the edge of the sheet. Moreover, the process is highly impacted by the material’s thickness, grade, grain direction, and bend radius. Strategically calibrated instruments with accurate numbers are crucial so bends can be made precisely without sacrificing material integrity and defects.

Choosing the Right Bending Method

Selecting a proper method to bend requires analyzing the specifications of the project, material characteristics, complexity of the bend, and the volume of production. Air bending is the most economical for simple, standard material bends. The coining or bottom bending is also very accurate but more expensive; therefore, they should be utilized when exactness is needed. More advanced methods such as roll bending and rotary bending are required when working with complex shapes or strong materials. The expectations of the project must be analyzed and matched with the appropriate tools and machinery for optimal results.

Incorporating Bend Allowance and Bend Relief

The bend allowance is a crucial consideration in the fabrication of sheet metals because it establishes how much of the material can be used for a bend. In calculating bend allowance, it is important to know how the bending angle relates to the amount of material used for the bend, the thickness of the material, the radius of the bend, and the k-factor, which is a representation of the neutral axis placed during bending. Take, for instance, a bend allowance example of a 90-degree bend with a 5mm bend radius in a 2mm thick aluminum sheet. It can be determined using the following formula:

Bend Allowance = (π/180) × Bend Radius + (Material Thickness × K-Factor) × Bend Angle

When determining the bend allowance, when the specified allowance is correctly calculated, it results in the specified dimensions of the part being equal to the design. This saves on material costs because these machinist mistakes are expensive and wasteful.

While bend allowance is the use of space, bend relief is considered to be the space that has been permitted to allow bends at regions with higher features like edges or cutouts. When there is no sufficient bend relief, deformation or tearing of material may occur. To allow the material to deform, some cuts or slits are made. In general, the relief slot width should equal the thickness of the material, and the length of the cut should extend past the bend radius.

New advancements in CAD systems have improved the accuracy with which bend allowance and relief can be integrated into the designs. These programs can run specific simulations, utilize material-specific information, and create appropriate measures for eliminating mistakes. For instance, precise statistical estimates show that implementing accurate bend allowance values has lowered the wastage of sheet metal by 20 percent in industrial uses. Applying these techniques together creates consistency and reliability in manufacturing processes.

How to Choose the Best Sheet Metal Bending Techniques?

Exploring Different Bending Techniques

It is crucial to examine the material, level of accuracy, and quantity required when choosing a sheet metal bending technique. Air bending is a widely used technique because it is adjustable to various angles which may come at the cost of some accuracy. Bottom bending has a high degree of precision and is proper for demanding applications that require high accuracy. Roll bending is highly effective for mass production needing the formation of curves or cylindrical shapes. Determining the proper technique for a project is contingent upon the specific requirements of the project and the tools and machinery available.

Advantages of using custom sheet metal include improved fit and functionality in specific applications. Air Bending and Wipe Bending

Pros of Air Bending

• Flexibility in Angles: Air bending’s radial punch allows the creation of a wide range of angles with varying stroke depth. It is very useful in needing bend angles away from the bend without changing tools.
• Reduced Tooling Costs: There is reduced reliance on specific die sets for each angle, thus reducing tooling incrementally increases efficiency in many projects.
• Energy Efficiency: Since air bending requires less force it is more energy efficient than other bending techniques like bottom bending.
• Material Versatility: This method can utilize materials such as aluminum, stainless steel, and carbon steel, which makes it applicable for more diverse uses.
• Ease of Setup: With fewer steps involved, operator involvement is reduced, which reduces set-up time.

Pros of Wipe Bending

• High Precision in Simple Designs: Wipe bending is good for producing straight-line configuration bends as it consistently provides accurate results, thus being the best option for simpler designs.
• Quick production: Due to its simple mechanism better production rate is achieved enhancing manufacturing efficiency.
• Compact Machinery Requirements: Wipe bending is done using compact machines, thus spatially limited production shops can utilize them.
• For the attractiveness and quality of the bent sheet metal structure, a Clean Edge Finish is essential. This approach achieves effective and efficient clean bends where post-processing steps like deburring are not needed as the bends are smooth enough.
• Adaptability to Thin Materials: Wipe bending is best for thinner materials, as it enables quality work without deforming the material.

Both methods have specific benefits that can be utilized depending on what the project contemplates.

When to Use Roll Bending

When forming large-radius curves or cylindrical shapes from metal, roll bending is the most efficient method. It is especially useful when working with structural parts like pipes, tubes, or beams which require a consistent and smooth bend. This technique works best on thick or lengthy constituents and is well suited for situations demanding accuracy and consistency over a great length.

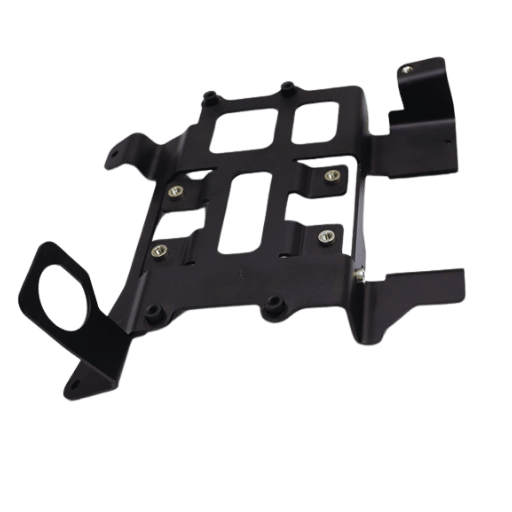

What Are the Key Factors in Designing Sheet Metal Parts?

Importance of Sheet Thickness and Bend Radii

During the design procedure of sheet metal components, I take into account sheet thickness and bend radii as crucial features. Optimum sheet thickness selection guarantees structural solidity and proper manufacturability without excessive costs. Similarly, the selection of proper bend radii reduces the chances of material cracking while ensuring the part can be produced without adverse effects on its mechanical characteristics. If these factors are integrated with the intended purpose as well as material requirements, I will be able to fulfill both functional and economical design objectives.

Aligning Bend Lines for Optimal Results

Correct positioning of bend lines plays a vital role in improving the quality and effectiveness of sheet metal fabrication. Precision alignment is required for bend lines if the end part is to meet both design and integrity standards. One important factor of alignment is the constancy of bend angles which guarantees that the stresses on the material will be distributed evenly. Aligned bend lines that are set incorrectly can result in distortions, inaccuracies, or even total operational failure of the part.

When considering set placements for bend lines, aids such as material grain direction, tooling constraints, and the sequence of bends, have to be taken into account. When it comes to materials like steel or aluminum, the grain direction will affect the way the material is bent. Bending perpendicular to the grain, in general, reduces the chances of cracking and makes the bends smoother. Some research suggests that setting bend lines parallel to the grain direction is more likely to cause brittleness or fractures, especially in higher-strength alloys.

Besides, the use of modern technologies like Computer Numerical Control (CNC) machinery has enhanced the accuracy with which bend lines are placed. CNC machines include programmable features and tooling set-ups which consider spring back and bend allowance, therefore errors during machining are minimized. Contemporary data on fabrication methods shows that if the bend lines are placed with the required precision, they can enhance production effectiveness by more than 20% while minimizing scrapped materials and rework operations.

To sum up, effective alignment of bending lines demands knowledge of material behavior, design purpose, and achievable manufacturing level. The use of advanced fabrication technologies and highly sophisticated tools enables the achievement of tight tolerances in the dimensions of the parts and their accuracy of operation.

Optimizing Bent Part Strength and Durability

When looking to optimize the strength and durability of bent parts, manufacturers have to juggle multiple issues simultaneously, such as the choice of materials, bending methods, and treatments that must follow the bending operations. In such cases, high-strength alloys such as stainless steel and aluminum that have very useful ductility and corrosive resistance are preferred when reliability under stress is necessary. Also, materials that can undergo deformation without losing structural integrity are more suitable for possessing higher yield strength.

Selecting the correct radius for a bend is also of great importance when it comes to durability. Stress concentration points can be created if bend radii are poorly designed, thereby increasing the chances of fractures or poor performance. Some studies reported that having a bend radius that is at least equal to or greater than the material’s thickness prevents microcracks and deformation from occurring. Additionally, sophisticated simulation software can be used to estimate stress distribution throughout the bend to make changes to preserve the lifetime of the part.

Residual stresses generated during forming were induced to be relaxed with post-bending treatments like annealing, which enhanced performance. Research proves such annealed parts possess up to 30% higher resistance to fatigue than untreated parts, in addition to surface finishing operations performed using shot peening or anti-corrosion coatings which prolong the life of bent sheet metal parts by preventing corrosion and wear in demanding environments.

By expanding the techniques and modern technology employed, these advanced approaches enable manufacturers to meet the requirements for strength, durability, and cost efficiency of bent parts needed for reliable service in various industrial sectors.

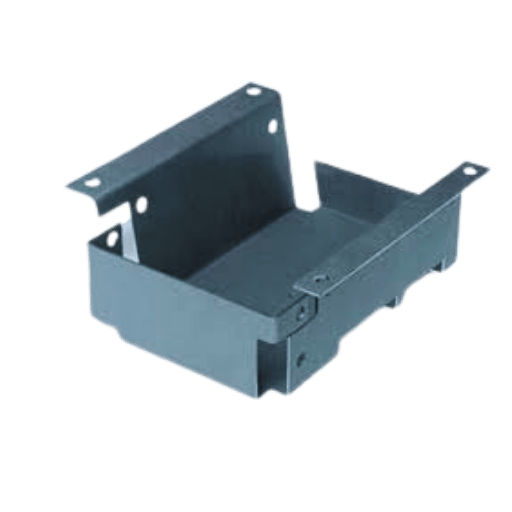

What Are the Common Challenges in Bending Sheet Metal?

Addressing Bending Force and Bending Machine Limitations

One of the major difficulties of bending any sheet metal is that the required bending force should not surpass the maximum limit of the bending machine when only one sheet of metal is being used. Precise estimation of bending force is, however, imperative and it is reliant on various aspects such as the thickness of the material, the tensile strength, and the radius of the bend. Forcing a machine to use more power can damage its mechanical components or create parts of sheet metal can result in uneven bends which, ultimately, lowers the quality of the product. In these situations, manufacturers need to employ force calculation tools and follow the machine limits to avoid overloads. Moreover, these older machines can impose restrictions on how bend angles and sheet dimensions may be increased. Using modern CNC-controlled machines would greatly increase the level of precision as well as flexibility in overcoming these problems.

Managing Bending Operation Complexity

To control the complexity of the bending operations, attention must be given to the planning stage, equipment selection, and process optimization. Initial planning requires knowing the materials to be used, estimating the required bending force, and choosing the appropriate tooling. The use of modern CNC-controlled bending machines guarantees higher precision and flexibility in meeting various requirements. Error proofing and achieving consistent product quality are dependent upon routine maintenance of the equipment and personnel training. If manufacturers follow these guidelines, it is possible to improve the efficiency and repeatability of bending operations.

How to Implement Effective Design Guidelines for Sheet Metal Fabrication?

Creating a Comprehensive Design Guide

For developing an elaborate design guide for sheet metal fabrication, the following points should receive particular attention:

1. Selection of materials is crucial when dealing with usual sheets of metal in order to achieve good results when performing bends.: Define materials based on their particulars such as strength, ductility, and corrosion resistance. Develop rules to determine suitable materials for given tasks.
2. Bend Radius Guidelines: Suggests bare minimum bending radii for various materials for different materials to ensure that no cracks are formed and that the structure is held intact.
3. Tolerance Specifications for custom sheet metal are vital because the final product must meet the design specification.: Specify standard tolerances that enable dimensional accuracy, but take the possibility of manufacturing distortion into consideration.
4. Hole and Slot Placement should be done with a lot of precision to avoid shearing the sheet of metal during bending.: Indicate clear minimum distances from the edges or bends to prevent deformation or weakening of the sheet.
5. Methods of fastening: Describe the methods of fastening such as welds rivets or bolt joins depending on the design and use of the part.
6. Design Simplification: Encourage efforts on the reduction of complexity that would facilitate manufacture and reduce costs.

If carefully worked on, the points listed above would make the design guide serve as a handbook for producers to guarantee quality and economy in the production of sheet metal parts.

Incorporating Design Features for Efficient Fabrication

1. Simplify Geometries: Give preference to basic shapes so that the manufacturing processes are less complicated and take less time to execute. Steer clear of designs that are too detailed, as they may need special tools or processes.
2. Standardize Components: Streamline processes by employing standard sizes of holes, fasteners, and thickness of the sheet metal to improve the availability of materials.
3. Optimize Material Usage: Arrange parts in an ordered logical form in which the material to be cut is used with no possible waste to be enjoyed.
4. Avoid Tight Tolerances Unless Necessary: To maintain practicality, use precise tolerances only when defining critical dimensions that would incur more production spending.
5. Account for Material Behavior: Expect changes in the dimensions owing to fabrication such as spring back as well as thermal expansion of the metal to allow for accurate dimensions.

Incorporating these principles, design efficiency is enhanced while cost, time, and quality barriers are minimized in prototyping and manufacturing processes.

Adopting a Basic Guide and Tips Approach

Incorporating DFM principles enables businesses to improve their production efficiency and cut down costs. Some of the benefits include forming intricate shapes out of a single metal sheet.

Decreased Manufacturing Costs

Lowering design complexity and standardizing parts reduces material, labor expenses, and specialized tool usage.

Improved Quality of Products

Manufacturing-friendly designs minimize mistakes, thereby enhancing uniformity and reducing rejection rates.

Reduced Lead Time

Streamlined production workflows resulting from good designs shorten concept to delivery lead time.

Considering DFM during the early designing stages of a product enables manufacturers to achieve lower costs and repeatable outcomes easily.

Frequently Asked Questions (FAQs)

Q: What are the most important tips for bending sheet metal successfully?

A: Some of the tips that need emphasis are: knowing the material properties, determining proper bend radius, calculating spring back, grain direction consideration, proper tooling, and constant pressure during the bending process. These attributes are essential to getting the appropriate and consistent bends for the sheet metal parts.

Q: Can you explain sheet metal bending in the simplest of terms?

A: Bending of sheet metal means exerting a force on a rectangular piece of sheet to attain a given angle to a certain degree. This is done using some machines like press brakes or folding machines. The operator must also keep in mind several issues for instance, the material’s thickness, bend radius, type of bend, etc., so that it can be done void of bending defects.

Q: What are the common types of sheet metal bending?

A: Common types of bending of sheet metal include air bending, bottoming, coining, roll bending, and edge bending. Each type has its own advantages and is suited for different applications. For instance, air bending is less powerful, in that it requires less force, as compared to bottoming which gives out more precise angles as well, but requires more force.

Q: What important factors should be taken into account while designing a sheet metal for it to be bent properly?

A: It is important to note the minimum bend radius (which is generally 1-2 times the material thickness), bend allowance, K-factor, and deduction, as well as the distortions associated with placing features or holes too close to the bend line, in the guide to sheet metal bending. It is important to know these design elements to produce a part that can successfully be bent.

Q: What do you have to say about the influence a sheet metal’s thickness has on the bending process?

A: Numerous flaws a sheet may or may not have, like cracking, wrinkles, etc. are largely influenced by factors such as the force applied while performing the bend, the thickness of the material, and the minimum deflection radius. The rule of thumb is that the inside bend radius should equal the thickness of the material being used, welcomed with a bend radius. With thicker materials, the bend radius that yields less stress and cracking will be larger.

Q: What is ‘springback’ in the context of bending a sheet of metal and what are its remedies?

A: Springback is the tendency for a metal object to recover a portion of its initial configuration after being bent because of elastic recovery. To mitigate springback effects, overbending is frequently employed. Designers and manufacturers will ‘overbend’ the material a little bit more than what the desired bend angle is. The degree of overbending necessary for a sheet metal part that is bent is influenced by the material characteristics, its thickness, and the radius of the bend. To arrive at the favorable bend amount, accurate prediction and compensation exercise for springback will be critical.

Q: What is your advice for ensuring uniform quality when bending multiple sheet metal components?

A: In sheet metal bending processes, a consistent quality standard can be yielded by observing the following: use consistent and good quality materials; proper maintenance of tools in use for alignment or sharpening; use measurement and quality control with due precision; take into consideration the differences in quality of materials from batch to batch; and the use of automated increment of bending makes it easier for repeatability. In addition, creating thorough documentation on how the processes will be done and proper training for the operators will aid consistency over the production runs.

Q: What are some of the common errors to avoid when dealing with sheet metal design for bending?

A: Some usual oversights when planning for bending sheet metal include: not providing for bend allowance, placing features near bend lines, specifying excessive tight tolerances, ignoring grain direction, and not taking into account the capabilities of the bending tools. Avoiding these errors and adhering to a complete sheet metal design manual will improve the success of sheet metal bending and decrease costs.
