Revolutionizing Healthcare: The Role of Injection Molding for Medical Devices

The changes and new progress in technology and the manufacturing sphere constantly change the face of the healthcare industry. One of the most notable methods is molding and shaping, which single-handedly changes the design, production, and operation of medical devices. In this post, I will focus on how injection molding is changing healthcare for the better by making it possible to create precise, affordable, and flexible medical solutions. These include life-saving surgical tools and sophisticated diagnostic instruments. After the post, I hope you understand how molding is changing and reshaping the future of medicine for the better.

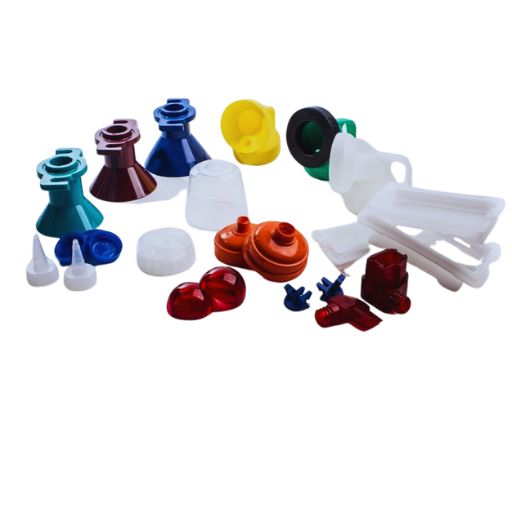

What is Injection Molding for Medical Devices?

The injection molding process for medical devices involves the use of a custom-made mold into which a plastic or metal substance is melted and injected for fitting. This method gives accuracy, consistency, and scalability which fits the ever-growing standards of the medical care industry and displays the capabilities of plastic injection molding. Examples of its use include parts for surgical instruments, implants, diagnostic devices, and other single-use medical devices. This method is vital in the production of affordable yet durable medical solutions by making it simpler and more efficient to create complex shapes.

Understanding the Injection Molding Process

Molding is a manufacturing process whereby thermoplastic materials are processed into a molten state. This is then followed by injecting the liquefied material into a mold that has been carefully designed to meet particular standards. This begins by placing the raw materials in the heated barrel. The liquefied material is then forced into the mold cavity under pressure where it is further cooled and solidified into the desired shape. This method is effective as it can yield large quantities of identical and precise pieces which also leads to lesser wastage. Important steps for this method comprise of the following: preparatory phase, injection phase, cooling phase, and ejection phase, which are imperative to accomplishing the product’s quality and integrity goals.

Key Components in Medical Device Injection Molding

There are critical aspects of surgical grade injection molding that, if not done properly, can jeopardize safety, precision, and compliance. Here are some foundational aspects regarding these components.

The medical field is increasingly adopting the use of Thermoplastics due to their benefits and overall ease of use.

Choosing the right material is incredibly important for the majority of industries, including medicine. Commonly used thermoplastics are: Polyethylene (PE), Polypropylene (PP), Polycarbonate (PC), and Acrylonitrile Butadiene Styrene (ABS). Higher-order medical applications often require high-performance materials.  For example, PEEK is a polyetheretherketone that is used in devices due to its mechanical advantages and biocompatibility. Surgical-grade materials tend to be more expensive because of their harder to create. Industry reports state that PEEK usage in medical injection molding applications is set to rise at a CAGR of 6.4% from 2022-2030 due to the increased need for strong and light medical materials.

Precision Molding

Medical application Molds are crafted with meticulous detail and often need tolerances of +/- 0.001 inches. Medical sterilization is double in comparison to other fields, so utilizing high-grade stainless steel or hardened tool steel for these molds would help withstand high-volume production, along with stiff sterilization protocols. Multi-cavity molds tend to be more efficient during mass production of disposable components like caps and barrels of syringes.

Facilities for Cleanroom Molding

In contrast to standard molding techniques, injection molding of a medical device requires maintaining sterility throughout the entire production process. In order to accomplish this, cleanrooms encompassing Class 7 to Class 10,000 are used. Contamination is mitigated in these ISO-certified facilities for delicate devices like catheters, implantable components, and diagnostic devices, which makes them crucial.

Advanced Injection Molding Machines

Fulfilling the criteria of precision and energy efficiency, modern injection molding systems are outfitted with servo-driven mechanisms. Production consistency and variation minimization are further enhanced through integrated robotics and real-time monitoring systems of the machines too. Given the increased demand for medical disposables, these automated processes without quality compromise enable higher throughput which makes a great difference.

Regulatory Compliance

Compliance for medical injection molding includes regulations such as ISO 13485, FDA 21 CFR 820, and other local regulations. These frameworks guarantee that production processes comply with the boundaries of safety, efficacy, and quality. To achieve compliance and streamline the audit documentation process, manufacturers are increasingly turning to digital systems like process validation software.

Quality Control Systems

Employed inspection systems with vision, X-ray, and CMM technology guarantee the accuracy of the dimensions and detection of defects. Research shows that the medical device industry has virtually zero tolerance for errors, mandating stringent quality control systems to be in place during and after production.

Together, these features make medical device injection molding more reliable and scalable than ever, meeting the demands of the healthcare sector, patients, and regulators.

Types of Medical Plastic Injection Used

Medical plastic injection molding uses a set of methods, each aiming to serve a certain purpose in the medical field. Here are some of the common types of methods used for medical plastic over mold injection:

Overmolding

Overmolding refers to the process of forming a single part by combining two or more separate components. It is useful in medical applications where rigid parts need to be combined with soft parts made of thermoplastic elastomers to form comfortable ergonomic devices such as surgical handles or diagnostic instruments. Overmolding mitigates the assembly steps and increases the lifetime of the product through material integration. It also provides greater precision due to the materials over-molding.

Insert Molding

In insert molding, a pre-fabricated insert is molded into the plastic part. The insert is usually made of metal or another component material. This method aids in producing devices that need strong built-in anchors or mechanisms like needle hubs, catheters, and threaded insert anchors. It increases the mechanical strength and alignment of the parts while replacing the secondary assembly step.

Micro Injection Molding, is a technique that increases the accuracy of the features in medical devices.

Micro injection molding focuses on ultra-precise ultra-small components for minimally invasive medical equipment, implants, or even electronic sensors. Advancements in this area enable tolerances of ±0.001 inches which is essential in cardiovascular interventions and drug delivery systems.

Liquid Silicone Rubber (LSR) Injection Molding

Injection molding with LSR is important for the creation of flexible and biocompatible durable parts such as gaskets and seals or even medical wearable devices. LSR aids in repeatable sterilization cycles and often guarantees compliance with stringent requirements used in the healthcare sector, making it an excellent candidate for medical devices.

Gas-Assisted Injection Molding

In this process, nitrogen gas is introduced into the mold cavity to hollow out selected segments of the piece to decrease weight and material usage while maintaining other properties. This is used in the casing of complex, weight-sensitive medical equipment without compromising their durability.

Thin-Wall Injection Molding

Devices like IVs, syringes and lightweight, cost-effective device housings can be produced with ease due to thin-wall molding. The wall thickness of the materials is kept below 0.5mm which ensures that a large number of items can be produced without cutting back on strength or impact resistance.

Materials and Market Data

Recent reports from multiple industries state that the global market of medical plastic injection molding is estimated to expand at a compound annual growth rate (CAGR) of 7-8% in the next 7 years, till 2030. Some major materials utilized in the process are polycarbonate(PC), polypropylene(PP), polyethylene(PE), and acrylonitrile butadiene styrene (ABS) as they possess the required level of biocompatibility, stabilizability, and mechanical features. For example:

• Polycarbonate (PC): Used in surgical instruments and monitoring devices, due to its impact resistance and clarity.
• Polypropylene (PP): Used in disposable syringes and IV system parts because of its chemical resistance.
• Silicone: Used in implants and seals because of its high biocompatibility and flexible nature.

The technology is primarily driven by increased healthcare needs, movement towards lesser invasive methods, and regulatory requirements about safe single-use medical devices.

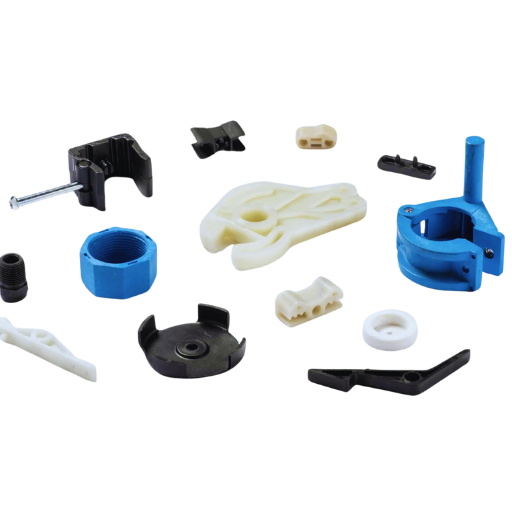

How Does Plastic Injection Molding for Medical Work?

The Mold Design and Development

For the medical industry, the design and development of a mold for plastic injection molding is complicated and requires attention to detail. The process starts with designing the mold using high-level software facilities which ensure that accurate blueprints are developed, such that the mold manufactured can reproduce components consistently. Right from the beginning, the selection of materials is very important, especially for the medical scope so that both safety and performance are guaranteed. After the design is completed, it is followed by machining and refinement processes which give the workpiece necessary tolerances. After machining is done, there are a few trial runs that are done to check the mold, these try-outs are done to confirm the reputation of the mold, accuracy, and general fitness for the purpose before mass production starts.

Role of Thermoplastics in Medical Applications

The widespread use of thermoplastics in medical fields is due to their adaptability, biocompatibility, and ease of processing. The materials being extremely strong, flexible, and lightweight makes them useable in the design and manufacturing of various medical devices. The following table encompasses thermoplastics used in medical applications along with their benefits.

Polycarbonate (PC)

PC is known to have a very high impact resistance and a clear optic view. Thus, PC polymer is used in surgical instruments, IV connectors, and the transparent housings of many medical devices. The durability of polycarbonate allows for repeated use and sterilization.

Polyethylene (PE)

PE is a flexible polymer with high chemical resistance, which makes it biocompatible. These properties allow its use in tubing, prosthetic components, and medical packaging. PE is frequently used in harsher environments, so their biocompatibility is much appreciated.

Polymethyl Methacrylate (PMMA)

Also known as acrylic, PMMA is much favored in the optical and medical fields for being biocompatible and having great optical qualities. The aesthetic value is seen in intraocular lenses, dental prostheses, and implantable devices.

Polyetheretherketone (PEEK)

PEEK is a high-performance thermoplastic that boasts notable mechanical strength and heat resistance. It is frequently used in the production of surgical instruments, dental devices, and orthopedic implants that require high precision and durability over time.

Polyvinyl Chloride (PVC)

PVC has low manufacturing costs and good flexibility, which makes it a popular material for catheters, blood bags, and IV sets. It is durable and can withstand sterilization, such as autoclaving, making it a good choice for many scenarios.

Thermoplastic Polyurethane (TPU)

TPU combines toughness and elasticity making it useful in the manufacture of inflatable medical devices, surgical gloves, and wound dressings.  Its ability to stretch and recover makes it ideal for dynamic applications.

Acrylonitrile Butadiene Styrene (ABS)

ABS is primarily used for rigid components, such as casings for diagnostic equipment and non-invasive medical devices. It is preferred for its strength and being easy to shape.

More recent intel suggests that there is an increased global need for thermoplastics in the healthcare industry due to the increase in the use of minimally invasive techniques and the growing demand for single-use medical products; for example, the market for medical-grade thermoplastics is expected to surpass USD 3.3 billion by 2026, growing at a cumulative annual growth rate of 5.6% during the forecast period. This growth demonstrates the increasing comparison in which thermoplastics are geared towards healthcare advancement technologies.

Ensuring Tight Tolerances and Precision

It is crucial to implement strict measures of quality control alongside highly sophisticated manufacturing processes to consistently achieve precision within tight tolerances in thermoplastics fabrication for medical devices. These include the use of CAD and simulation software which guarantees accuracy from the prototyping phase through to the final phase of production. Furthermore, the use of microinjection molding as a precision molding technology facilitates the fabrication of small intricate parts with high precision and low variability. By following rigid industry requirements, the manufacturers can provide dependably high products which are crucial for use in situations where precision is paramount for the safety of patients and the effectiveness of devices.

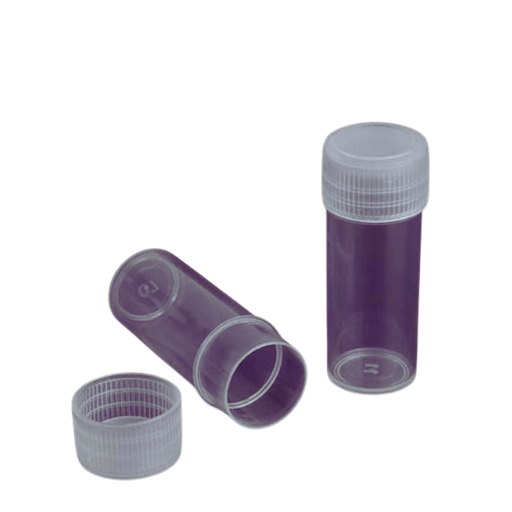

What are the Benefits of Injection Molding in the Medical Industry?

High Volume Production and Cost Efficiency

In the field of medicine, injection molding allows for precise and consistent production of large quantities of components. Advanced manufacturing technologies enable cycle times as fast as two seconds and up to 60 seconds depending on part complexity and materials selected, allowing for high-output operations. This efficiency helps scale production to tens of thousands, or even millions, of parts for mass medical applications like syringes, diagnostic devices, and IV components.

In the manufacture of medical-grade components, the cost savings for injection molding are driven by increased volume production. Although there is a high upfront cost for the tooling, the cost per unit for manufacturing is greatly reduced with higher production quantities. For instance, a single-mold setup is said to be able to produce thousands of identical parts without post-processing due to the tolerances being as fine as ±0.005 inches. Moreover, utilizing high-performance thermoplastics such as polycarbonate and polyethylene enhances durability and decreases material waste, further lowering costs.

Advancements in automation also mark another major contributor to its economic feasibility. In this regard, contemporary injection molding machines are enhanced with robotic systems for automated separation of the part, assembly of the part, and inspection processes of the assembled part which reduces labor expenditures and increases cycle time efficiency, which is very critical for device manufacturers. These parameters aid molding machines in performing at their best eliminating as much production waste as possible while continue supplying the required amount of quality products. This makes injection molding an integral component of the strategies used by the medical sector for economical mass production without compromising quality standards.

Customization and Versatility in Medical Components

Medical parts can be produced with optimal customization and flexibility through injection molding. I can create products using precise designs and complex geometrical shapes because the process is intricately detailed. My selection of materials includes a wide array of medical-grade materials that guarantee biocompatibility, durability, and effective functionality for various applications. This versatility allows me to tackle specific problems within medicine, such as developing implants designed for specific patients and creating parts for custom medical devices.

Quality Assurance and ISO Standards

To achieve optimal quality for medical parts, the most stringent quality assurance procedures must be in place along with compliance to globally accepted norms. ISO 13485 is one of the most important standards for the quality management of medical devices as it specifies a certain set of requirements for ensuring safety and effectiveness throughout manufacturing. This standard makes sure that there is adequate risk management, robust process control, and sufficient documentation of all components to meet the regulations and performance standards needed.

Moreover, precision in measurement and defect detection is often completed using advanced inspection technologies like optical measurement systems and coordinate measuring machines (CMM). SPC controls are put into place to monitor and improve production to reduce variability while control of consistent quality is maintained. A notable observation regarding the medical manufacturing industry is the enhanced operational efficiency report of around 20% from compliance with ISO 13485 due to the efficiency gained from streamlined processes.

In addition, these measures are supplemented by traceability systems which record the history of every component from the selection of the raw materials to the final delivery. These measures enable reliability which helps to ensure safety for patients during and after surgery. Medical manufacturers increase quality assurance practices to ISO compliance standards allowing them to gain trust in their products and increase innovation within the industry.

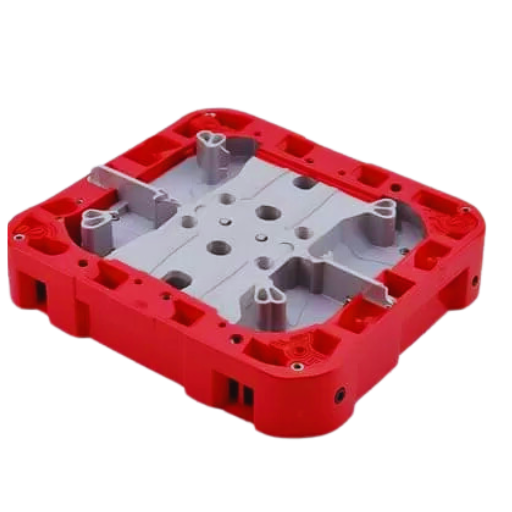

What are the applications of injection molding in healthcare?

Common Medical Products and Devices

In the manufacture of medical products and devices, injection molding is critically important because it is precise, scalable, and cost-effective. Commonly produced items include surgical tools, syringes, IV connectors, and catheter components. To ensure biocompatibility, durability, and compliance with FDA regulations, advanced polymers, medical-grade polyethylene, polypropylene, and polycarbonate, are frequently used in these processes.

For example, industry reports indicate that about 50% of disposable medical products, for instance, test tubes, specimen containers, and diagnostic parts, are produced through injection molding. The process eliminates manufacturing variability byte by byte- making sure the third dimension is accurate which is vital for devices like insulin pens and inhalers. Furthermore, the integration of antimicrobial materials into injection molded parts has improved the scope and safety of hospital-grade equipment and greatly reduced infection risks.

Such complex devices having intricate designs are only possible due to injection molding which fuels innovation in healthcare, especially in prosthetics. These improvements have not only enhanced asset productivity but also shortened the production cycle to keep up with the rising demand for cost-effective high-quality devices.

Importance of Prototype Development

The design and manufacturing process of a product relies on prototype development as it aids in full-scale testing and evaluation of the product before production. When evaluating a system, developing a prototype makes it easier to recognize design defects, check if it works, and confirm if it functions properly in the real world. This approach reduces risks, optimizes resources, and maximizes the chance of ensuring that the product is developed within the set limits of quality and standard regulations. In addition, prototypes help pass information across stakeholders which improves the expectations and miscommunication amongst the stakeholders. This step is most beneficial for healthcare where accuracy and consistency are crucial.

The Future of Injection Molded Parts in Medicine

The demand for accuracy, scalability, and innovation in healthcare is one of the primary reasons that the use of injection-molded parts is advancing in the medical field. These parts are now being incorporated into the devices and tools used in medicine such as implants, syringes, diagnostic devices, and even surgical instruments. The main reason aiding in this growth is the capacity of injection molding to create highly intricate parts that have very rigid tolerances and are subordinate, to quality and safety, guidelines. And since injection molding helps in manufacturing these complex structures, it further boosts creativity in engineering design.

Accompanied by the rising cases of chronic illnesses and the growing demand for affordable healthcare systems, the medical injection molding market is predicted to cross over $22 billion by 2027. This growth will also be aided by the ever-increasing use of medical-grade plastics such as polyethylene, polypropylene, and polycarbonate, which is already in progress due to their biocompatible, lightweight, and sterilization-resistant nature.

Moreover, the development of 3D printing and micro-injection molding technologies offers further possibilities for the use of such technology in the future. These developments allow for the creation of smaller and more complex structures intended for use in minimally invasive surgical procedures, wearable medical instruments, and other advanced areas of medicine. Automation and Artificial Intelligence (AI) integration into the injection molding process is also enhancing productivity and consistency while minimizing waste and improving quality.

In summary, injection molded parts are expected to continue serving as an important element of the medical field and its innovations, as well as the provision of healthcare services. This trend illustrates the importance of engineering and technology progress towards the emerging demands of medicine and healthcare.

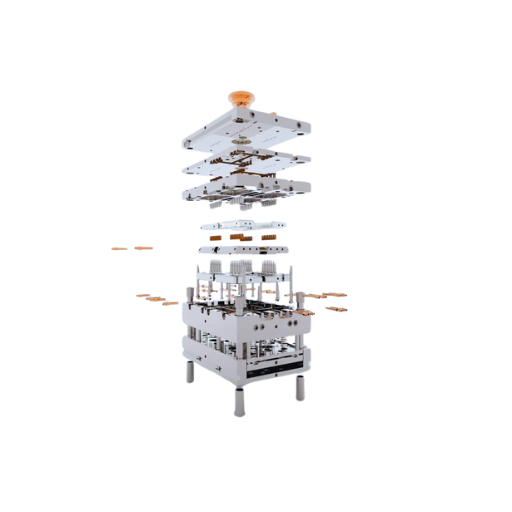

How to Choose the Right Injection Molding Services?

Evaluating Injection Molding Capabilities

There are several factors that if not properly evaluated, can lead to deficiencies when the injection molding services are rendered by the stipulated provider. One of the most fundamental is the materials the customer wants to be worked on. In modern services, a wide range of medical-grade thermoplastics are often available, including polycarbonate (PC), polyethylene (PE), and polyether ether ketone (PEEK). Such materials are preferred because of their polyimide biocompatibility, strength, and sterilization capability.

Another precise variable to consider is precision and tolerance. Heavily relied-upon materials should have tolerances advertised no greater than ±0.001 inches, especially in the medical industry where precision becomes a matter of function and safety. Besides, the customer must expect to receive these materials with the required standards, thus the supplier must have sophisticated automated inspection systems such as vision systems to guarantee quality output.

Flexibility in the volume of production is also an important parameter. As per the application, the limits of low volume and high volume have to be offered. For example, in terms of budgetary expenses, prototyping at low speed and mass production at high speed and high output are two efficient methods that impact the overall project timelines and costs significantly.

In addition, evaluating a provider’s funneling capabilities is also important. Access to multi-cavity, family, and insert molds can greatly enhance the efficiency and complexity of the design. Some providers are beginning to adopt newer technologies, such as mold flow simulation software which can detect potential defects such as warping or air pockets and therefore save money during production.

Lastly, a business’s compliance with ISO 13485 for medical device manufacturing must always be met. This regulation guarantees that the injection molding provider has appropriate quality management systems, which enhances application safety while also reducing risk. In turn, these factors contribute to mold-making reliability. Focusing on such capabilities helps businesses to balance their operational decisions with technical, monetary, and legal factors.

Assessing Injection Molding Expertise

The use of modern technologies in injection molding has transformed production capabilities by improving accuracy, efficiency, and flexibility. For example, the adoption of Industry 4.0 concepts like machine-to-machine communication or IoT monitoring allows for real-time optimization of production lines by manufacturers. Smart injection molding machines with integrated sensors can monitor energy use, predict maintenance, and guarantee quality control for every production cycle.

The use of 3D-printed molds has also come as an economical option for prototyping and low-volume production. As per industry estimates, 3D printing is reported to be up to 80% cheaper than traditional methods for mold creation, with lead times reduced by several weeks. This innovation enables firms to agilely adapt and enhance designs prior to going into full production.

The improvement of materials also greatly affects the results of injection molding. Newer thermoplastic materials such as PEEK, PPSU, and polycarbonate are becoming more prevalent in applications that require high strength, heat, and chemical resistance. Reports suggest that from 2023 to 2028, the global supply of engineering-grade plastics for use in injection molding is expected to rise at a rate of 6.2 percent, which demonstrates their growing significance in the aerospace, automotive, and healthcare industries.

The use of advanced equipment, new materials, and operational best practices helps to improve the productivity and accuracy of manufacturing outputs to remarkable extents without being unreasonably expensive. These techniques are important for companies trying to remain relevant in the fast-paced world of modern manufacturing.

Factors in Selecting Medical Device Manufacturing Partners

Just as in any sector, choosing the manufacturing partner is paramount in the Med-Tech industry because it directly determines the quality of the product, compliance, and the eventual time to market. Some of the primary issues to determine are: relevant skill set, compliance, manufacturing capacity and scale, and others.

Regulatory Compliance

The manufacturing of a medical device is highly controlled. Medical professionals must adhere to ISO 13485 and FDA 21 CFR Part 820. A prospective partner should be able to demonstrate a history of meeting international standards as the devices should be safe and perform adequately. For example, the demand for medical devices around the world is set to grow with the anticipated expansion of the industry expected to surpass USD722 billion before 2029, which speaks to the quality standards these devices should meet.

Technical Expertise

It is always better to have a partner who understands the latest technical developments or has the requisite technology to execute the development of the product. Their inputs can range from advanced precision machining and injection molding with specialty materials to constricting intricate designs with tight tolerances. Also, their understanding of high-performance materials needed like biocompatible thermoplastics enables strong medical alignment with designs.

Session Five – Scalability of Manufacturing

The selected partner should have the ability to expand the scope of work within the same quality and timeline standards. This is especially critical with increasing demand for medical devices across the board. Recent figures show that the CAGR for minimally invasive devices is likely to exceed 9.8% annually up to the year 2030, which underscores the need for agile production systems.

Management of Supply Chains

A strong and obvious supply chain guarantees that components and materials will be delivered consistently, even during global disruptions. Manufacturers who have deep-rooted supplier relationships and wide sourcing coverage tend to mitigate these delays more effectively and at a lower cost. Medical device companies are now spending 2023 expecting that over 56% of them would consider supply chain agility as a primary priority for their manufacturing partners.

Capabilities of Customization

Flexibility to adjust designs, and provide additional features is crucial for personalized healthcare devices. Partnering with capable manufacturers requires access to advanced prototyping tools such as 3D printing and rapid injection molding which can accelerate product development and shorten the time to market.

Through analysis of these few points, a business can partner with companies that help achieve their operational objectives in addition to meeting compliance standards. Such collaboration makes it possible to optimize the quality of devices while achieving a competitive advantage and meeting long-term objectives in the medical device industry.

Frequently Asked Questions (FAQs)

Q: What does medical injection molding mean?

A: Medical injection molding directly produces medical devices and components by injecting medical-grade plastic into molds, producing precise plastic parts.

Q: How does the medical industry benefit from injection molding solutions?

A: The medical industry is equipped with good manufacturing methods, using injection molding solutions that can produce complex medical parts with high precision and consistency needed in critical medical procedures.

Q: Which kinds of plastic are most used in medical injection molding?

A: The most common plastics used in medical injection molding are polystyrene, polypropylene, and several medical-grade plastics that are biocompatible and comply with stringent regulations regarding safety and performance.

Q: Why is polystyrene preferred in medical injection molding?

A: Polystyrene is preferred in medical injection molding due to its clarity, rigidity, and stabilizability which make it usable in a wide range of medical devices and components.

Q: What are the functions of medical injection molding?

A: Medical injection molding functions entail custom plastic parts production, insert molding, and the making of complex components produced through injection molding with close tolerances that high-quality medical devices demand.

Q: What is the process of manufacturing using injection molding for the medical device sector?

A: The process includes making a mold for the medical device, injecting the mold with molten thermoplastic medical-grade resin, and finally cooling the mold and ejecting the molded components intended for the medical device.

Q: In what ways does advanced injection molding assist in the fabrication of medical equipment?

A: Advanced injection molding enables medical equipment development by allowing for the creation of intricate and accurate plastic goods that fulfill the complex needs of the medical device industry.

Q: What advantages do injection molding of plastic parts customized to fit specific requirements bring to the healthcare industry?

A: Customized plastic injection molding provides tailored medical components, lowers production costs, and improves the quality and reliability of medical equipment.

Q: What is the application of insert molding in medicine?

A: Insert molding is applied in medicine to incorporate other substances, such as metals, into plastic components of medical devices during the injection molding process to make them more durable and functional.

Reference Sources

1. Passive RFID Sensor Tags Communication during Injection Moulding of Medical Plastic Components

• By: M. Zeppenfeld et al.
• Date of Publication: 2017-06-20
• Abstract: This article covers the stitching of passive Radio Frequency Identification (RFID) tags which also have temperature sensor functions in the injection molding cycles for medical plastic components. It underlines the need for part marking and tracking especially for UDI compliances. It provides an approach to in-mold marking which enables the documentation of production information in real-time (Zeppenfeld et al., 2017).

2. Mass Production and Distribution of Medical Face Shields Through Additive Manufacturing and Injection Moulding for Healthcare System Containment During COVID-19 Pandemic in Brazil

• By: M. Kunkel et al.
• Date of Publication: 2020-08-24
• Summary of Findings: The research evaluates the effectiveness of Fused Deposition Modeling (FDM) and Injection Molding (IM) techniques utilized as face shield production processes during the COVID-19 pandemic. According to the research, 35,000 face shields were manufactured by volunteers using FDM, while 80,000 were produced by IM for distribution to remote regions. The evaluation determined that both FDM and IM techniques can be used effectively for mass production and that FDM is preferable for high-volume daily productions while IM is best suited for large-volume production (Kunkel et al, 2020).

3. Fabrication of a Medical Device Part Using Micro Powder Injection Molding Technique

• Authors: S. Park, Youngsam Kwon
• Publication Date: 2011-04-01
• Summary: The focus of this work is on the fabrication of the components of a medical device through the micro powder injection molding technique. It emphasizes the benefits of this method for the manufacture of small, intricate parts which are common in medical engineering(Park & Kwon, 2011, pp. 39–39)
