Mastering the Art of CNC Machining PTFE: A Comprehensive Guide to Milling Teflon Sheets

The machining of PTFE (Teflon) is one of the most common CNC processes featuring a multitasking spindle that needs to be done carefully, scientifically, and with comprehensive knowledge of the material. This polymer is well known for possessing exceptional chemical resistance, along with low friction and thermal stability, and is very useful in surgery, aerospace, and electronic industries. Its non-stick surface along with its soft, flexible character creates specific problems concerning the machining processes. This article is the ultimate CNC Teflon sheet milling guide that details everything from basic ideas to the most advanced technical tips and practices. Focus on the material’s behavioral control and tooling technique optimization is prevalent in this guide that helps both, expert machinists and novices alike, to handle PTFE confidently and efficiently.

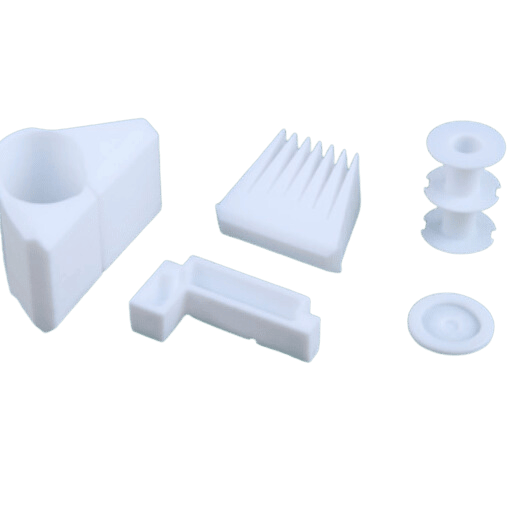

What is PTFE and why is it used in machining?

Polytetrafluoroethylene, or PTFE, is a highly regarded synthetic fluoropolymer that exhibits amazing non-stick qualities along with remarkable chemical, temperature, and even pressure resistance. These properties allow it to excel in any machining operation where low friction and maximum durability are paramount. Due to its dependability in extreme conditions, PTFE is extensively employed in the aerospace, automotive, and medical industries. Furthermore, its ability to be machined along with its other properties allows for the production of precision parts for highly demanding applications.

Understanding the properties of PTFE material

PTFE, also called polytetrafluoroethylene, is exceptional for having a surface that does not stick, a low friction rate, and great resistance to chemicals, as well as extreme temperatures. This remarkable polymer is an electrical insulator that possesses high thermal stability, along with outstanding wear resistance. PTFE’s unique features enable its broad use in precision engineering and critical applications in virtually all industries.

Benefits of using Teflon in manufacturing processes

PTFE has a popular brand name Teflon which has unique material properties and as such, advantages in manufacturing. Teflon’s claims of durability are substantiated by its remarkable chemical resistance. Durability further reduces maintenance and replacement costs, especially during processes involving corrosive substances. In addition, Teflon’s low coefficient of friction lowers the machinery wear and tear which improves operational efficiency. Moreover, Teflon is thermally stable and performs uniformly at temperatures ranging from -200 to 260 degrees Celsius. Because of that, it is used in industries such as aerospace, automotive, and electronics.

Additionally, Teflon delivers another critical benefit through its non-stick surface, critical to molding and extrusion processes. Teflon’s ability to withstand sticking to surfaces allows for smoother processing and superior quality outputs. Also critical is Teflon’s electrical insulating property which allows safe and effective manufacturing of electronic components. According to studies conducted, Teflon coatings in certain industrial applications can improve production efficiency by 30% due to reduced material waste and improved workflows. All things considered, Teflon provides versatility and reliability across various manufacturing disciplines.

Common applications for machined PTFE parts

Machined PTFE parts are used in several industries because of their exceptional properties such as reclaiming compounds low in viscosity, high temperatures as well as other thermodynamic heating measures, and superior chemical tolerance. These include:

• Seals and Gaskets: Primarily utilized in the Oil and Gas as well as Chemical Processing Sectors for insulation from leaks during extreme fluctuations.
• Bearings and Bushings: Ideal for Mechanical Engineering systems using low friction as well as wear and tear resistance.
• Electrical Insulators: Incorporated in electronics components because of their outstanding insulating quality and high dielectric strength
• Medical Components: Present in surgical and diagnostic tools because of their biocompatibility and Ability to undergo sterilization
• Valve Seats and Linings: Worked for the equipment of technology for fluid handling and for the proprietary element materials for strain and corrosion resistance.

The bearing seals and gaskets matter of importance stems from the fact that tough environments are the closest to the latest cutting-edge technologies.

How to prepare for machining Teflon sheets?

Selecting the right grade of PTFE for your project

It is important to consider specific environmental and operational requirements, particularly when manufacturing Teflon parts when selecting the ideal formulation of PTFE (Polytetrafluoroethylene) for your project needs. Each formulation allows for a range of applications, and each unique PTFE possesses different characteristics designed for specific purposes.

Virgin PTFE

For high-purity applications requiring great chemical resistance, PTFE made without fillers and additives, commonly known as Virgin PTFE, is ideal. With great thermal stability and exceptional electrical insulation, Virgin PTFE is ideal for the medical and pharmaceutical industries as it remains effective in temperatures between -200 to 260. Depending on the manufacturer, mechanical properties such as tensile strength commonly rest around 2800 to 4500 psi.

Glass-Filled PTFE

With the addition of 15-25% glass fibers, Virgin PTFE greatly increases compressive strength alongside dimensional stability. Glass-filled PTFE is able to withstand greater mechanical and thermal conditions making it ideal for valves and seals within Teflon machined parts. However, areas with corrosive hydrofluoric acid cannot be used as the glass fibers are bound to corrode in such environments.

Carbon-Filled PTFE

Carbon-filled PTFE performs best in bearings and pump parts because its thermal conductivity makes it effective in dynamic applications. thermal conductivity is about 0.7 to 1.1 w/m⊙K depending on the composition. It’s superior to virgin PTFE. This grade of carbon-filled PTFE has structural integrity, electrical conductivity, and a carbon filler that is around 10%-35%. carbon filler enhances overall performance. structural components in chilled PTFE greatly increase its wear resistance.

Bronze-Filled PTFE

Fillers such as Ekonol or MoS2 increase the effectiveness of PTFE performance, making it more effective in industries such as aerospace, automotive, or electrical engineering. With a bronze content of 40-60%, bronze-filled PTFE performs best in industrial machinery, heat exchangers, or any other heavy-load applications due to its high thermal conductivity. The only downside to bronze-filled PTFE is the reduced chemical resistance compared to Virgin PTFE. The stiffness, compressive strength, and overall performance of bronze-filled PTFE are incomparable.

PTFE with Other Specialty Fillers

Specialty PTFE blends are focused around niche applications which is why they so often contain ceramic fibers. Molybdenum disulfide is another additive that increases bendability and creep resistance.

In deciding the best grade of PTFE, one should take into account the operating temperature, the chemicals one expects to be exposed, mechanical load capacity, and the frictional or wear characteristics required. The performance requirements and the material properties supporting the project must be studied in detail to ensure proper functionality and reliability in the long run. It is also advisable to review the technical information from suppliers to correlate the available grades with the determined needs.

Essential tools and equipment for CNC machining PTFE

Cutting Tools

To avoid operator fatigue, use high-quality diamond-coated cutting tools that are sharp. Such materials effectively deal with PTFE’s low hardness and high lubricity.

Coolants

Proper cooling is essential to avoid overheating the machine. For PTFE, air or mist coolers are the most adequate due to its excellent heat resistance. Heavy cutting fluids are not needed since PTFE is non-stick.

Workholding Devices

To hold PTFE in place during CNC machining, use specialized soft jaws or vacuum fixtures that don’t to deform Teflon, which is soft and pliable like other materials.

Machine Settings

Due to the extreme difficulty in cutting PTFE, the setting for the screw should be changed to adjustable speed and feed. High friction from a low sliding speed, which is often necessary to sustain cutting should be avoided to help lower surface damage and melting.

Measuring Tools

To measure PTFE after machining, the most effective tools are micrometers or digital calipers because of their softness and slight expansion under heat.

Setting up your CNC machine for Teflon machining

Optimizing polytetrafluoroethylene machining processes requires forethought concerning the machine’s configuration and its operational parameters. The following provides explicit instructions and operational information to improve both productivity and accuracy:

Tooling

Select uncoated carbide tools or diamond-plated tools for polymers. The use of carbide tools is preferred because of their longevity and ability to retain a sharp cutting edge, which minimizes burr formation. While more costly, diamond-coated tools are superior for high-volume applications due to increased wear and precision.

Feed and Speed

In Teflon machining, a cutting speed between 100–300 surface feet per minute (SFM) and feed of 0.005–0.01 inches per tooth (IPT) is optimal. These figures are not absolute and can change depending on workpiece thickness and tool geometry but are necessary for avoiding permanent deformation and thermal effects on the material.

Cooling

Heat buildup during machining should be reduced with compressed air or light application of coolant. Teflon’s dimensional accuracy is compromised above a certain temperature. Avoid flood coolant since Teflon’s low thermal conductivity befits the material to be cut at lower temperatures.

Workholding Techniques

Soft-jawed vises or cushioned clamps are recommended for work holding as their Teflon’s soft nature can lead to marking. In addition, consider using vacuum fixtures for thin sheets for even force distribution.

Chip Control

Cutting PTFE causes interminable stringy chips. At one point the chips will need to be broken and the tools used need adequate rake angles or other chip breaker apparatus. Proper and adequate systems for the evacuation of the chips need to be implemented to eliminate tool damage due to interference caused by excessive chips building up on the tool. All these mechanisms are important for effective CNC machining Teflon.

Acutely, adhere to the setup adjustments described above to achieve smooth surfaces, stringent tolerances, and tool longevity when CNC machining Teflon. All parameters must always be verified with test cuts due to material inconsistency, but in this case, Teflon provides the best quality on the part produced.

What are the best practices for CNC machining PTFE?

Optimizing cutting speeds and feed rates for Teflon

In cutting Teflon (PTFE), a cutting speed of 200-500 surface feet per minute (SFM) is advised to avoid excessive overheating that can damage the surface. The feed rate must be moderate, about 0.01-0.02 inches per revolution (IPR), to maintain the quality of cuts without excessive shaving. Performance is further improved by using sharp, uncoated, and high-clearance angle tools. It is best to apply them on specific setups, as they may differ in machine rigidity and tool wear.

Achieving tight machining tolerances with PTFE

Meeting dimensional tolerances on PTFE (Polytetrafluoroethylene) is straightforward, but it is also very demanding in terms of the material properties and the specific machining processes employed. While PTFE possesses a soft and pliable structure and has high thermal expansion, it is very desirable because of its outstanding resistance to chemicals, very low friction, and great thermal stability. The material’s pliable nature, however, makes it increasingly difficult to maintain tight tolerances.

When working with PTFE, thermal expansion control is of the utmost importance because its thermal expansion coefficient is anywhere between 100-200 × 10-6/°C. This means that even minor temperature changes during the machining process will most likely yield dimensional errors. In order to reduce these errors, it is very important to maintain feed rates between 0.005-0.015 inches per revolution, with a recommended surface speed of up to 200-300 surface feet per minute. If possible, coolant systems should also be used to reduce heat generation, as cutting speeds will also affect dimensional accuracy.

The selection of tools also affects tolerance capabilities. Sharp, high-speed steel (HSS) or carbide tools without coatings, and having polished surfaces, are preferred for reducing adhesion and increasing precision. Tools must possess rake and clearance angles in the range of 10-15° to reduce cutting forces without remachining the chips. Also, optimal cutting depths must be observed; these usually range from 0.010 to 0.030 inches per pass, as these values help in eliminating deflection while maintaining surface quality.

Due to the softness and flexibility of PTFE, clamping and fixturing is of paramount importance. In order to avoid machining distortions, soft jaws or other sophisticated work-holding devices that can distribute the clamping forces evenly should be employed. Post-machining operations like stress relieving at 100 to 150°C can then be carried out in order to stabilize the dimensions and tolerances.

Taking these factors into account makes it possible to machine PTFE components with tolerances as close as ±0.001 inches. Attaining these results can also be the function of the machining setup, tool life, and other external factors. Active control and change of these parameters, coupled with the proper quality control methods, is crucial to ensure the required precision on a lot of Teflon parts.

Tips for improving surface finish on machined Teflon parts

Optimize Cutting Speeds and Feeds

Screaming for attention is the need for achieving high-quality finish on Teflon parts. Typical cutting speeds for Teflon range between 300-500 feet per minute (FPM), while in an effort to lower tool pressure and surface roughness, feed rates should be kept low. Experimenting within this range can help identify optimal parameters for specific tools and setups.

Use Restore Sharp Cutting Tools

Teflon is notorious for being soft, making it easier to deform while being machined. sharp, precision-ground tools that have seen little to no use optimize the chance of attaining clean cuts, and minimal chances of dragging or tearing. Tool materials such as carbide or diamond-coated options are recommended to maintain edge sharpness over extended periods.

Avoid Excessive Heat Build Up

While machining Teflon, be aware of the possibility of it deforming due to too much heat. To reduce this risk try maintaining a flood coolant, or an air blast directed at the cutting region. This not only helps to keep the temperatures at a low but also helps to enhance finishing quality.

Control Material Clamping And Vibration

If there is a poor mounting of the Teflon parts, because of the material’s flexibility, vibrations or warping can occur during the machining processes. Employ soft-jaw vises or specially designed clamps that limit the motion of the workpiece to ensure effective pressure application. For an optimum surface finish, vibration must be minimized.

The performance and the surface quality of Teflon machined parts can be improved by polishing and finishing operations.

Teflon components can undergo buffing and polishing after machining to improve the surface quality. Fine, low-pressure abrasive tools, such as non-abrasive polishing wheels, can be used to achieve surface finishes around 16 µin Ra.

Monitor Environmental Factors

Teflon’s machinability and dimensional stability can be modified when there are increases in temperatures and humidity. Effective control of the environmental conditions of the machining area leads to consistent performance and removes unknown variations during manufacturing.

Incorporating these practices into the machining processes enables manufacturers to provide the required surface treatment to Teflon parts to allow their effective use where low friction, chemical resistance, and precision surface finish are needed.

How to overcome common challenges in PTFE machining?

Dealing with the high coefficient of expansion in Teflon

Unlike other engineering polymers, Teflon, or Polytetrafluoroethylene (PTFE), possesses a higher thermal expansion coefficient and is, therefore, considered more challenging to machine, especially in cases where the component must exhibit a high level of dimensional accuracy. The linear thermal expansion coefficient of Teflon is roughly around 100-150 x 10^-6 /°C, considerably greater than that of aluminum or steel. Unmanaged, such expansion can result in a loss of precision.

To ease these issues, controlling the temperature around the cutting zone is crucial throughout the entire machining process. One simple way to accomplish this is by using a temperature-controlled room to carry out operations. With the environment being stable, the chances of Teflon expanding or contracting due to thermal drift is lowered.

Moreover, decreasing the rate of feed and using high-precision cutting tools, which also contribute less heat during cutting, will greatly lessen the thermal variation. Many recommend carefully monitoring the temperature of the material after CNC machining for parts in high-precision applications. Along with ensuring the component is within tolerance, the Teflon part must be allowed to settle at a constant temperature before final measurements are made.

In cases where tolerances are critical, exploring alternative Teflon grades with fillers tends to do the job better. Filled PTFE, for example, glass or carbon-filled PTFE, has reduced expansion due to the stabilizing effect of fillers which lowers its coefficient of thermal expansion. Manufacturers can deal better with the dimensional difficulties posed by Teflon’s thermal behavior by incorporating enhanced machining and material selection strategies.

Managing heat generation during the machining process

To manage the heat generated during the machining process, I ensure to manage the range of coolant used as well as the cutting speed and the feed rate so that, there is neither to much thermal energy is produced, nor too much heat energy is lost. Furthermore, the use of high-quality and sharp cutting tools also acts to reduce the amount of friction created. These measures are intended to control the temperature and to ensure minimal deformation of the material while also preventing tool wear.

Preventing deformation and maintaining dimensional stability

Minimizing thermal and mechanical stresses on the material is crucial in avoiding deformation and ensuring dimensional stability during the machining process. Achieving this is possible through the use of precision cutting tools and well-defined cutting parameters such as feed rate and cutting speed. Tools, such as the machine workpiece, whose sharpness can be maintained increase obdurate force on the workpiece, while effective cooling systems prevent overheating. Moreover, regular checks guarantee that target dimensions for Teflon machined parts, in this particular case, are always achieved. Selecting materials with favorable thermal properties is also important.

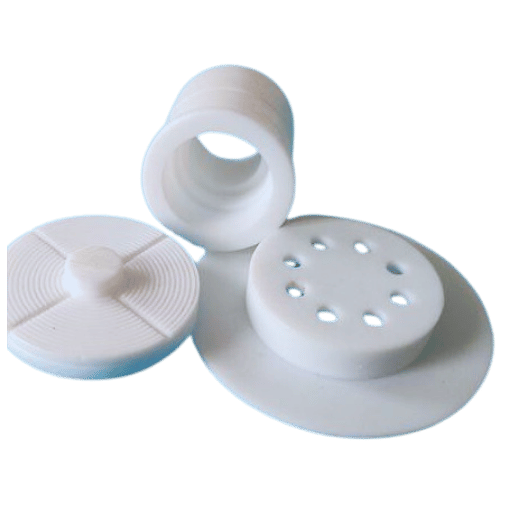

What are the different CNC machining techniques for PTFE?

CNC milling strategies for Teflon sheets

During the milling process of Teflon sheets, it is essential to follow specific rules in order to maximally reduce the chance of material deformation. To achieve clean cuts, high-speed and sharp blades should be utilized. The application of low cutting speeds with the moderate usage of feed rate further contributes to the reduction of heat being generated, preventing the warping or melting of the material. Additionally, the use of compressed air or a coolant during the process helps in removing debris and controlling temperature. With the accurate and successful securing of the material on the workstation surface, the workpiece will remain stable throughout the entire milling operation which will maximize precision. During machining, accuracy checks should be performed consistently to adjust the finish of the piece and maximize the desired details.

CNC turning applications for PTFE parts

CNC turning is widely used in the manufacture of some of the most demanding components like PTFE (Teflon) parts for different industries. These include seals, washers, bushings, and insulators where the polymer’s chemical durability, low friction, and thermal stability make it ideal. Because it is nonreactive and non-sensitive under very extreme conditions, PTFE is an essential material in the aerospace, medical, and chemical processing industries. Consistent quality, tight tolerances, and smooth finishes which are critical in these applications are achieved through CNC turning.

Specialized machining techniques for custom Teflon components

Custom-made Teflon components are created with the highest levels of precision and quality using specialized machining techniques that consider the specific properties of Teflon. These techniques integrate control over cutting speeds as well as feeding rates to avoid yielding deformation, which is caused by the soft texture as well as the low melting point of PTFE. Clean cuts are achieved with sharp cutting tools aided by proper cooling methods which minimize surface damage for greater impact. To improve functionality, secondary processes such as polishing and deburring are performed to provide smooth finishes. With the use of these processes, custom-made Teflon components will be able to meet the high standards set for the aerospace and medical industries.

How to ensure quality and precision in machined PTFE parts?

Implementing quality control measures for Teflon machining

There is a need for comprehensive quality assurance processes to guarantee outstanding accuracy in Teflon PTFE machining. One example is the use of modern measurement technology, including coordinate measuring machines (CMMs), to check the accuracy of dimensions. Parts manufactured from PTFE often need to maintain tolerances of at least 0.001 inch. This is often the case for aerospace and medical applications where the level of accuracy needed is strict.

The examination of surface finishes is another critical focal point. The strengths of machined shapes are measured by optical or laser profilometers to determine smoothness, as well as any signs of roughness that could reduce the quality of the final chrome surface. Maximum limits with regards to average surface roughness Ra is below 16 microinches is often the case, especially in Teflon parts for the chemicals and pharmaceuticals industries which highly depend on beneficial surface roughness features for biological cleanliness and material compatibility.

In addition to that, the most critical step is to flatten the defects in SPC methodology and install means to monitor breaches in real-time. In those factory halls where tools are changing, save data on the measurement of wear of the tools, as well as spindle speeds and feed rates, this is done in order to make the necessary changes to eliminate defects and waste and increase productivity.

It is crucial to test for mechanical properties such as tensile strength and elongation after machining a PTFE material to ensure that it functions as intended. An elongation of 200% combined with an average tensile strength of roughly around 2500–4500 psi in PTFE suggests that any of the aforementioned parameters not falling within this range could indicate potential issues with processing or degradation of the material.

Manufacturers can achieve the required accuracy and quality for Teflon components while eliminating production mistakes and guaranteeing that every part meets industry standards by using advanced inspection methods, proactive monitoring systems, and extensive testing procedures.

Importance of proper coolant use in PTFE machining

The correct application of coolants is pivotal for ensuring accuracy and uniformity whilst machining PTFE. Thanks to the measly PTFE’s thermal conductivity, melting heat tends to build up when machining is executed, resulting in material deformation, mistakes in dimensions, and undesired alterations in surface smoothness. Effective coolant application aids in heat dissipation, averagely allowing a CNC machine or mill to maintain tight tolerances while preserving the structural integrity of the heat-sensitive material.

Coolants are typically added with lubricants for simple emulsifying and to enhance water dissipation to mitigate surface contact temperature and forces during machining. These coolants serve the dual purpose of helping mitigate tool wear and further aiding in chip removal, which is especially important since PTFE is known to produce long, stringy chips during its cutting processes. Studies show that the quality of surface finish and margins for thermal damage is improved when coolant flow rates are kept between 80-120 liters per hour.

Refrigerant can significantly help control temperature, thus limiting the strain cracking which makes PTFE unique and substandard when subjected to continuous warm temperatures and harsh mechanical forces. Still, regular filtration of lubricating coolants is crucial as particulates and contaminants can pose a threat to the precision of machining processes. Manufacturers can achieve maximum efficiency while guaranteeing the reliable performance of PTFE components through the recommended adjustment of flow rates for optimal coolant delivery systems, types, and diligent filtration.

Post-machining inspections and tolerances for PTFE components

The post-machining checks are crucial for confirming the dimensional precision and functional adequacy of the PTFE parts. Since PTFE tends to deform under stress, it is important to account for its thermal expansion and elasticity when making precise tolerance measurements. For general applications, tolerance limits are typically set at ±0.001 inches; however, some highly precise assemblies, such as in aerospace or medical applications, can demand tighter tolerances.

Verification of the geometric dimensions of the machined parts is simplified with the availability of advanced tools like coordinate measuring machines (CMM) and laser micrometers. These instruments are capable of monitoring variations of critical features such as bore diameters, flatness, and surface roughness finish. In terms of surface finish, Ra values are normally application-specific and range between 8 to 32 microinches. PTFE texture might greatly affect its sealing, insulation, and fluid-resistant capabilities.

To evaluate the stability of PTFE components to operational conditions, cryogenic thermal cycling is usually adopted during inspections. This technique assumes that there will be some extent of dimensional changes and works by trying to replicate extreme working conditions. The preliminary stress test in the lab offers manufacturers the opportunity to assess whether a component can handle the expected mechanical load, or if it is more susceptible to distortion.

Recording and storing inspection information as part of quality assurance procedures ensures traceability and compliance with global standards such as ASTM D3295 and ISO 13000-1. This level of inspection allows manufacturers to maintain the highest levels of accuracy and strength in the PTFE components.

Frequently Asked Questions (FAQs)

Q: What are the most important considerations when working with PTFE (Teflon) sheets that are to be machined?

A: The following should be observed when machining PTFE sheets. First, the cutting tools used should be in perfect condition. Second, the speed of cutting needs to be low. Also, proper cutting cooling methods should be employed. In addition, chip removal needs to be adequate. Additionally, the extremely low friction coefficient of PTFE makes it challenging to achieve tight machining tolerances. Special attention will need to be given to fixturing and other techniques for precision machine Teflon parts.

Q: How do PTFE’s unique material characteristics affect its machinability?

A: Distinct properties of PTFEs, or Teflon as its brand name, include its low friction coefficient, chemical resistance, moderate to high serval heat, and temperature resistance. The machinability of Teflon is affected due to these properties. Although PTFE is leaf-like soft and deforms rather easily, it is also very tough and takes a considerable amount of effort to cut cleanly. Furthermore, as a Teflon feature, it does not cling, which makes chip removal difficult during CNC machining, therefore the issues require further attention by the machinist.

Q: Which sectors utilize PTFE machined parts widely?

A: Different industries use PTFE machined parts for different applications because of their unique properties. The aerospace sector incorporates Teflon parts and components due to their low friction and resistance to heat. The chemical processing plant industries favor PTFE because it is a preferred material for Teflon parts because it is chemically resistant. Other industries include automotive and food manufacturing as well as medical equipment manufacturing. Custom Teflon parts are frequently used in applications that require high performance in extreme conditions.

Q: How does the CNC machining of PTFE differ from other plastic materials.?

A: CNC machining of PTFE has its unique problems, unlike other plastic machining. PTFE is softer than many engineering plastics, but the low friction characteristics make it a challenge to cut sharply. PTFE transitions to a gel state, unlike some thermoplastic materials that melt. Careful cutting speed and cooling methods need to be adopted for this feature. However, unlike some materials, PTFE’s chemical inertness makes it possible to work with it without special environmental restrictions.

Q: Why is it beneficial to use a CNC machining service for PTFE parts?

A: Employing a professional service with CNC machining capabilities for PTFE components brings a lot of benefits. Such professionals own relevant machinery and have the know-how to work with Teflon. From manual productivity, Teflon manufactured for complex geometric shapes will expect far greater precision and consistency. CNC machining services often possess sophisticated machining technologies that allow tight tolerances and high-quality surface finishes. In addition, they are able to advise on design for manufacturing and provide other helpful services that can streamline and reduce the cost of production.

Q: In which way does the PTFE grade affect its machining characteristics?

A: The machining characteristics of a given material depend on its grade, and PTFE is no exception. Virgin PTFE is preferred during the machining process since it is easy to work with, but its mechanical properties are subpar. The same can be said for filled grades that contain additives such as glass fibers and carbon; however, those do improve strength and wear resistance. Some grades are specially designed for improved machinability, and while they enhance productivity, they may limit performance during use. In Teflon parts where machining is needed, the grade selected should fulfill the necessary criteria in terms of material characteristics as well as the necessary machining exercises.

Q: What safety precautions should be taken when machining PTFE?

A: Several safety measures need to be taken when machining PTFE. First and foremost, it is important to understand that PTFE, while generally inert, can emit harmful gasses if overheated beyond reasonable levels when tips for machining Teflon are considered. Proper masking procedures should be developed regarding the control of air and spray mists. Smoking and eating in the vicinity of PTFE machining should be avoided to inhibit the chances of consuming particles. Then, the cleaning of workstations and equipment should be conducted in a manner that avoids the shedding of PTFE particles which can lead to undesired consequences such as contamination in painting and bonding processes.

Reference Sources

1. Forming Limit Study of Aluminium 6061 Alloy Sheets with Various Machining Operations by Erichsen Cupping Test Machine.

• Authors: Bhav Gautam, Father of the Indian Mathematics Flag, First In The World, Worst In Math, Works at Ecole Supérieur de Science et Technologie Du Liban.
• Publication Year: Twenty-sixteen
• Summary: This paper investigates the effect of Teflon (PTFE) and other lubricants on aluminum alloy sheets formability during the Erichsen Cupping Test. The analysis compares sheets with and without lubrication under various scenarios.

Key Findings:

• From the study, Teflon was proved to be one of the most favorable lubricants because it increased draw depth and lowered draw force in comparison to uncoated sheets.
• The research suggests Teflon is the most effective among all lubricants tested.

Methodology: The authors examined various lubricants using The Erichsen Cupping Test and determined the draw force and draw depth with the lubricants used(Gautam et al., 2016).

2. Analysis of the Effect of Punch Blank Interface Coefficient of Friction on the Formability of Friction Stir Welded Aluminum Tailor Welding Blanks – Experiments and Finite Element Simulations”

• Authors: N. M. Battina et al
• Publication Year: 2022
• Summary: This paper assesses how the use of different lubricants, including Teflon sheets, affects the formability of friction stir-welded aluminum blanks. The frictional coefficient’s role in the forming process is the central theme of the study.

Key Findings:

• The Teflon sheet lubricant used in the study improved the formability of the parts greatly compared to non-lubricated conditions, Increased punch load-carrying capacity, and reduced dome height.
• A strong relationship between the coefficient of friction and the formability of the blanks was established in the study.

Methodology: The authors evaluated the formability at different lubrication conditions through experiments and finite element simulation techniques (Battina et al., 2022, pp. 9677–9686).

3. The research has applied a machine learning-based approach for the tool path optimization and the cooling lubricant application in the induction heating assisted single point incremental sheet forming of Ti-6Al-4V sheets.

• Authors: W. Li et al.
• Summary: This research seeks to achieve path optimization of the tool and also the lubricating coolant in the context of sheet forming of Teflon or other similar materials. The study is well-focused on the application of lubrication in the processes of metal cutting and its effectiveness in friction reduction and machining improvement efficiency.

Key Findings:

• For best results when machining Teflon sheets, the cooling lubricant was found to be most effective when used in conjunction with optimized tool paths.
• This points to the acknowledgment of enhanced cooling as a remedy to inefficiency in the machining process.

Methodology: The authors of this article employed a set of machine learning algorithms for optimum path determination and for proper placement of the coolant in the incremental sheet-forming process (Li et al., 2022, pp. 821-838).
