Decoding the Nuances of Precision Machining in the Automotive Industry

Innovation and efficiency in the automotive industry can, in great part, be attributed to precision machining. This process ensures that components are produced with the highest levels of accuracy, dependability and strength. From engine parts to safety-critical systems, modern automotive production is largely reliant on upstream precision machining in order to satisfy high performance requirements and simultaneously minimize production time and expenses. This article provides an overview of the principles of precision machining, its uses in automotive industry, and its contributions to the future of mobility. Professionals from the industry, as well as enthusiasts are welcomed to use this guide to learn about the new technologies and structures that are developing this ever so important industry.

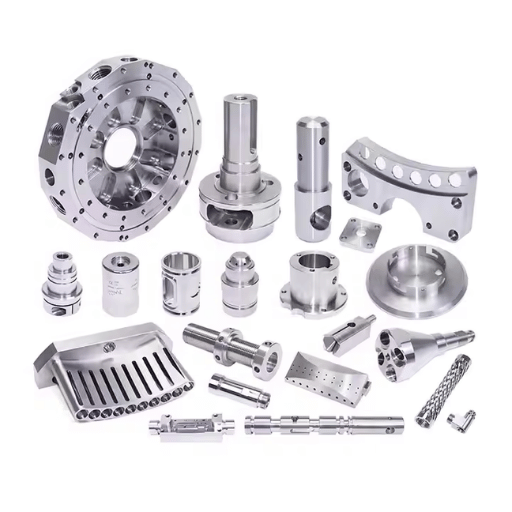

What is Precision Machining in the Automotive Industry?

Precision machining in the automotive industry is the practice of utilizing specialized machinery and tools to fabricate components with exceptional accuracy. This method guarantees part accuracy for precise design specifications, allowing for efficient assembly and performance. It is crucial to the development of engines, transmissions, braking systems, and other important automotive components. Precision machining also employs new technologies like CNC machining, which increases efficiency, quality, and consistency of the product, while reducing waste of material. This procedure, along with automation and additive manufacturing, is ever-changing in order to promote innovation and sustainability in automotive production.

Understanding Precision Machining

In precision machining, state-of-the-art tools and techniques are used to achieve tolerances of as tight as ±0.0001 inches. This incredibly accurate fitting is also required with every automotive component’s specification, wherein lacking them even slightly may lead to poor performance and even failure of the system. Recent reports show that use of CNC machining in car manufacturing has increased roughly 7.4% per year between 2018 to 2022 because of faster need for accurate and scalable work.

In terms of material selection, aluminum, steel, and titanium are the most commonly machined metals due to their strength-to-weight ratios as well as their ease of machining. Many manufacturers are implementing more automated systems with real-time monitoring that can reduce energy consumption by 30% compared to older methods. These new systems not only increase productivity, but also enhance compliance with tighter global regulations, demonstrating how precision machining leads the way for modern sustainable manufacturing.

Functions of CNC Machines in Automotive Production

• Achieves tolerances as precise as ±0.001 inches, guaranteeing that parts have consistent quality.
• Reduce human error which leads to 25-30% less defective parts.
• Increases productivity by 50% because they can run constantly with very little supervision.
• These processes shorten the time it takes to complete work by 20-40% on average.
• Advanced programming allows for reduced material waste which reduces material costs by 15% saving money.
• Reduced spending on labor increases efficiency overall.
• Integration of monitoring makes energy usage 25-30% lower.
• Meets the requirements for materials that can be used for recycling.
• Can work with metals like steel, aluminum, and titanium found in automotive parts.
• Combined milling, turning, drilling, and grinding operations into a single machine improves the convenience of manufacturing.

The automotive industry has to constantly deliver high-quality automobiles efficiently and sustainably, which makes CNC machines critical in meeting these requirements.

The Importance of Precision in Automotive Parts Manufacturing

• CNC machines are capable of achieving tolerances as tight as ±0.001 inches, which is essential for ensuring that auto parts function as intended.
• Aluminum, steel, titanium and composites that is crucial to the automotive industry are all able to be processed with these machines.
• They can also perform multiple functions, such as milling, turning, drilling, and grinding, which saves on time and operational costs.
• CNC machines also enable environmentally friendly production methods by supporting the use of recyclable materials.
• By reducing material waste from 30% to 25%, ecological responsibility is filled along with maintaining cost efficiency.
• CNC machines enable the seamless execution of high-volume production runs with little downtime, making them suitable for the mass production of vehicles.

These machines have advanced software and automated controls, making them ready for integration into Industry 4.0 systems.

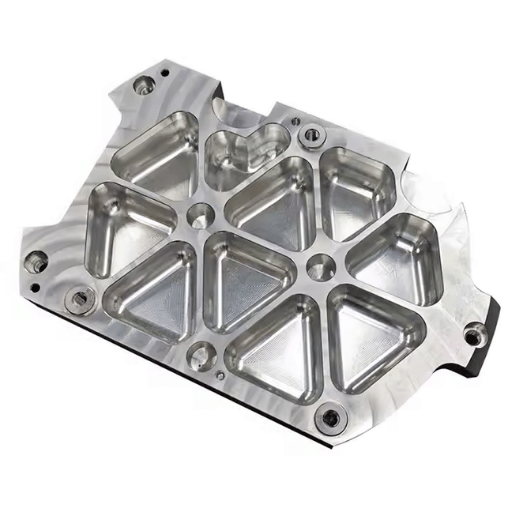

How Does the Precision Machining Process Work?

The Different Key Operating Procedures of Machining Processes Explained

Precision machining encompasses several controlled steps that transform raw material into parts with desired measurements. At first, computer-aided design (CAD) technology is applied to design elaborate three-dimensional models of the components. These models are the basis for the computer-aided manufacturing (CAM) software which creates accurate toolpaths for the machining equipment. Turning, milling, drilling, and grinding are the usually performed primary tasks and are done with CNC (Computer Numerical Control) machine tools. These machines accomplish automation functions and control processes with the help of sophisticated sensors with an accuracy of microns. Furthermore, the quality control systems within the process enhance detection capabilities, which improves overall productivity. This process precision is needed for machining parts for the aerospace, automotive and medical industries because of the stringent requirements on the quality of the components produced.

This is how Numerical Control has changed precision machining

The use of NC [Numerical Control] systems saves a lot of time while machining complicated parts due to its accuracy and repeatability. According to experts, applying NC technology could enhance productivity up to 30 percent while cutting waste by almost 20 percent. These systems make it possible to repeat operations to a very high degree so that tolerances of components can be as tight as ±0.002 mm.

Moreover, multi-axis advanced NC machines can produce complex geometries that would be difficult, if not impossible, to achieve manually. The integration of CAD/CAM software with NC systems also provides greater accuracy because designs can be translated into actual parts with ease. The use of CAD/CAM software greatly increases the accuracy and seamless integration of NC systems, making them essential in industries where reliability and precision is fundamental.

Automotive machining quality control

Quality control is vital in automotive machining due to the sensitive nature of the components within a vehicle in terms of safety, performance, and durability. Other twentieth century developments comprise statistical process control (SPC), which tracks compliance with production standards using real time data, and non-destructive testing (NDT) which is thorough but does not damage parts. Moreover, optical and laser-based automated inspection systems have made it possible to take precise measurements with micron-level tolerance. These measures shift the burden of quality assurance from the laborer to the machine, further enhancing production efficiency, consistency, and reliability while maintaining a low margin for human error.

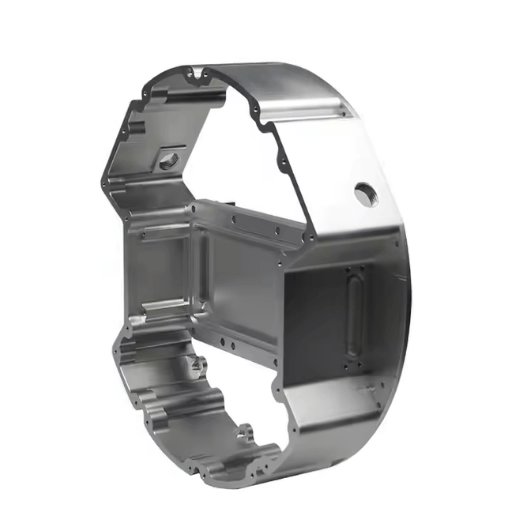

What are the Advantages of Automotive Precision Machining?

Facilitation of Tight Tolerances and Specifications

In the automotive industry, precision machining is one of the most important processes because it can achieve tolerances to an accuracy of ±0.002 mm. Such accuracy ensures components can be assembled to tolerances that reduce wear and increase the life of the assemblies. For instance, precision machining enables the production of pistons, crankshafts, and cylinder heads which are critically needed in an engine at an exact level to guarantee performance and fuel efficiency. Furthermore, research indicates that employing precision techniques can minimize material waste by up to thirty percent, and even more, when compared to conventional approaches, thereby enhancing cost-efficiency and sustainability. This level of accuracy is accomplished with CNC (Computer Numerical Control) systems with quality control methods exercised during production to monitor compliance with set standards.

The Role of Precision Machining in Improving the Quality of Auto Parts

Precision machining delivers components with dimensional tolerances that are critical for integration within automotive systems. This, in turn, improves the quality of auto parts. Such accuracy decreases the possibility of variations that would cause mechanical inefficiency or failure, which in turn increases the sustainability and reliability of the parts, such as the brakes, engines, transmissions systems, and their sub-components. In addition, manufacturers are able to boost production efficiency by multi-fold through the adoption of modern technologies like multi-axis CNC machines and real-time automated optical inspection, as these technologies allow for the immediate identification and correction of defects while still maintaining strict quality control compliance.

Cost and Time Efficiency in CNC Precision Machining

Unmatched efficiency is achieved through CNC precision machining with reduced production time and eliminated waste of raw materials. Reports suggest that cycle times in manufacturing processes can decrease by up to 60% with the application of CNC machines as opposed to conventional machining techniques. This shift is primarily facilitated by faster tooling, better software and multi-axis machining where multiple complex shapes can be simultaneously machined.

Cost efficiency is another key advantage, especially in mass production. For example, automation in CNC machining reduces the need for manual labor, which could lower costs by 30-50%. In addition, the accuracy of CNC systems significantly lowers material waste, and it is estimated that material utilization rates can exceed 95% in optimized setups. The reduced labor costs, waste, and increased productivity all contribute to the cost savings that manufacturers experience over time while maintaining product quality.

Research also indicates that CNC machining is scalable. Manufacturers state they have reached tolerance adherence error rates of 0.005 mm, which decreases the need for manual adjustments after production and improves the distribution of resources. These figures highlight how critical CNC precision machining is to industrial production.

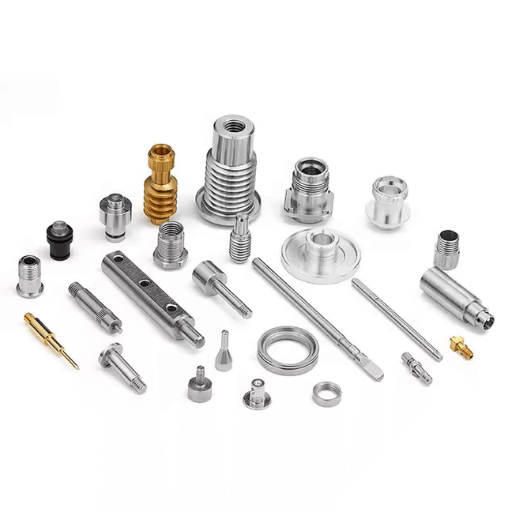

What Machining Techniques are Used in the Automotive Industry?

A Look into CNC Milling and Lathe Procedures

In the production of automotive parts, CNC milling is among the most significant methods, especially for the intricate shapes and high quantities that need to be produced. CNC milling has the capability of operating on different axes, such as 3, 4, and 5 axis systems. Engine blocks, cylinder heads, and even transmission housings are examples of components that can be created using these intricate processes. Industry research indicates that 5-axis CNC mills can cut machining time by as much as 30% in comparison to 3-axis systems. Furthermore, these systems can achieve tolerances of ±0.01 mm which is critical for automotive components.

CNC lathes are used to manufacture rotational parts like shafts, bushings, and wheel hubs with high-speed accuracy. Production workflows have been improved with the use of dual-spindle lathes and live tooling since these enable different machining processes to be performed at the same time. This practice reduces setup time and increases throughput. It has been reported that CNC lathe setups with live tooling achieve more than 40% faster cycle times when creating parts that have high-demand outputs which alleviate bottleneck production situations and support just-in-time manufacturing processes.

Recently developed CNC machining processes tend to use more automation and other components of Industry 4.0. As compared to the traditional way, monitoring real-time data helped in reducing the downtime by 20%-30%. On the other side, predictive maintenance tools help to extend the life cycles of the machines whilst minimizing the chance of unexpected failures. The use of Automated Tool Changers (ATC) and robotic arms for material handling increases efficiency even more. As a result, some automotive production lines are left running unattended most of the time. This convergence of technologies guarantees not only accurate manufacturing but also functioning on a highly integrated level for optimal market competition.

The Role of Grinding and Swiss Machining

Swiss machining, coupled with grinding has been known to be productive mostly in the medical, aerospace, and automotive industries where high tolerances are a prerequisite. Peripheral or surface grinding uses a rotary disk-based tool which is ideal for finishing purposes, shaping of hard materials, and ultra-smooth surface finishes with tolerances up to ±0.0001 inches. For example, research indicates that the maximum throughput for centerless grinding is approximately 200 parts per minute, leading to increased speed and precision in production environment.

Swiss machining, in contrast, is highly effective for crafting small, complex pieces with great precision. With an accuracy of ±0.0002 inches, Swiss machines are widely used in medicine for making parts such as surgical tools and implant screws. Live tooling on Swiss machines provides advanced production features as they can perform turning, milling, and drilling in one uninterrupted cycle; multiple pieces can be completed in single cycles. Incorporating these features has been proven to reduce cycle time by up to 40%, increasing throughput while retaining intricate details and quality in complex components.

Advancements in Precision Machining Techniques

• Conventional CNC machining has tolerances that typically lie between ±0.001 to ±0.005 inches.
• Swiss machining, on the other hand, has ultra high precision tolerances of up to ±0.0002 inches.
• Integration of live tooling in swiss machines can lead to a reduction of cycle times by 40%.
• Multiple operations such as turning, milling, and drilling can be done at the same time to increase efficiency.
• Applicable to machining an extensive range of materials such as stainless steel, titanium, aluminum, and composite materials.
• These materials are frequently utilized in the aerospace sector, medical devices, and in electronics.
• Multi-axis systems are beneficial as they permit automated machining of parts with complex shapes and details.
• Integration of Automatic Tool Changer systems significantly lowers the time needed to perform tasks, increasing operational productivity.
• Prototyping and mass production can be accomplished with rapid development machining.
• Systems that operate automatically maintain quality and repeatability during highly repetitive production cycles.
• Precision parts are produced and guaranteed to meet exact specifications with advanced measuring tools such as laser scanners and CMM for automated quality control inspection.

Relying on automated processes for inspections minimizes errors made by humans while ensuring quality assurance.

Such developments continue to enhance the field of precision machining, allowing manufacturers to fulfill the ever increasing need across every sector for components that are more compact, complex, and of superior quality.

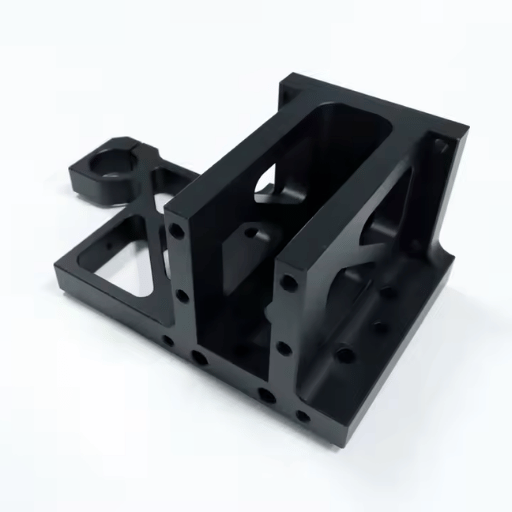

How to Choose a Machine Shop for Automotive Machining Needs?

Assessing Machining Services and Capabilities

A machine shop’s level oftechnical skill, equipment, and quality assurance should all be evaluated before considering the shop for automotive machining. Make sure that the facility has CNC machining capabilities with multi-axis and high-speed machining for complex automotive parts. Check the shop’s familiarity with automotive materials like aluminum, steel, and composite alloys to determine if they will be able to fulfill your needs. Ensure that their QC metrology, including the advanced use of SPS and automated inspection systems, can guarantee accurate and precise results throughout the entire project. Also, take into account their ability to increase output volume and meet target dates for more time sensitive work. Lastly, look for ISO9001 or IATF 16949 as these markings demonstrate quality and compliance to industry standards.

Rationale Behind They Importance for Quality Manufacturing and Precision Manufacturing

Efficiency on high-precision manufacturing can be evaluated with several important metrics and data points. One of the most important ones are tolerance levels, measured in micrometers (µm). the best facilities usually have tolerances between ±1 µm to ±10 µm based on the difficulty of the part. another important measurement is the surface finish quality. This is often quantified with Ra (Roughness Average) results that competitive shops achieve for components requiring exceptional smoothness. The finish is as fine as 0.2 µm

Production throughput is another important metric that needs to be measured. High-performing manufacturers can run equipment 24 hours a day and they produce thousands of units per batch with very little downtime. Operators in systems have process control aids that are automated and have real time data feedback where parts are monitored during the production to ensure the quality of parts is consistent per production colony.

It is estimated that 10% to 30% waste material can be reduced with innovative methods such as optimized cutting paths and material saving design modifications. Engineering Process Control (EPX) optimizes SPC defects monitoring to ensure quality standards are met and defects are kept to a bare minimum, often below 5 PPM parts per million. This collection of data paints a picture of accuracy, effectiveness, and quality that needs to be delivered through a fully functioning manufacturing procedure.

Get in touch with us for exceptional precision machining services

Competition in the industrial world is growing rapidly, and these new technologies give manufacturers the ability to scale operations while maintaining cost effectiveness and efficiency. The incorporation of Artificial Intelligence (AI), the Internet of Things (IoT), and additive manufacturing is transforming the production world. AI prediction powered maintenance stop random downtimes by analyzing the performance of machines in real time. Using IoT devices improves line of sight to production lines to help in better integration and automation of workflows. Also, the flexibility Additive manufacturing, also known as 3D printing, allows for the rapid production of intricate geometrical parts while drastically shortening lead times and minimizing material waste.

Frequently Asked Questions (FAQs)

Q: What is precision machining and how is it relevant to the automotive industry?

A: Precision machining is defined as the process where large chunks of raw materials are transformed into smaller, more accurate parts. Within the automotive sector, precision machining is applicable in the manufacture of transmission components, engine parts, and many other highly detailed components. This process relies on the use of advanced technology for machining, such as CNC machining, where each component is guaranteed to meet exacting standards.

Q: What advancements or changes are made to the industry because of CNC machining for automotive use?

A: CNC machining offers a different level of shift in terms of automotive applications owing to an increase in accuracy, productivity, and quality during the entire transformation process. One of the fundamental features of precision CNC machining, CNC machines, automates the cut of tools (flow) control by computer with software, yielding very precise and reliable results when creating cars and pieces of automotive equipment.

Q: What role does a precision machinist play in the manufacturing industry?

A: At the heart of all manufacturing processes a precision machinist is critically important as one of their primary functions is to use sophisticated equipment to produce precision machined components. During the manufacturing processes, they must accord parts to be produced on a particular machine with standards of the tolerances required, which is vital for the auto mobile components and also for the components of aircraft due to the level of the quality and precisions required.

Q: Why is precision grinding important in the production process of automotive parts?

A: Precision grinding is important in the production of automotive parts because it helps achieve the smooth surface and dimension which aid in proper fitting of the parts. This process incorporates grinding which is essential in achieving required parameters as to ensure that components of automobiles meet set standards of performance and safety.

Q: What are the benefits of using computer-aided manufacturing in precision machining?

A: In precision machining, the introduction of computer aided manufacturing provides numerous benefits, such as enhanced accuracy, improved efficiency, and great flexibility during the production phase. This makes it possible to have tighter control of the machining processes, hence reducing mistakes that come with human intervention while assisting in maintaining the quality of intricate parts of vehicles.

Q: How are milling machines used in the precision machining process?

A: A milling machines contribution in the precision machining process is very important as it permits the workpiece to be altered by having its material cut off, reshaping it to the required shapes and dimensions. They are widely utilized in turning and milling whereby parts that are detailed and accurate as required by the automobile industry are manufactured.

Q: What are the distinctions between machining with manual controls versus machining with accurate controls?

A: Traditional machining is a hands-on control and operation of the machine, that is primitive control type of robotic arms therefore posing larger possibilities for errors in accuracy and precision. However, precise machining (and in most cases achieved by using precision CNC machining) requires much hi-tech computer systems for control effectively creating new necessities for accuracy whereby the work is done in-times, which is a requisite in the automobile industry.

Q: What actions need to be taken to start a career in precision machining in the automotive industry?

A: In order to begin a career in precision machining in automotive, an individual generally has to obtain an educational degree in machining technology or something similar, then acquire practical experience through an internship or an apprenticeship. Learning new things and keeping up with the newest developments in precision machining technology is also important. Contact us today so we can assist you in educational and career suggestions.

Q: Where can I get assistance or find information regarding precision machining?

A: If you have questions pertaining to precision machining, especially with respect to precision machining in automotive work, reach out to us and we will gladly assist you. Our experts are ready to respond to your inquiries and offer instructions regarding precision machining in the manufacturing sector. Reach out to us now and let us show you the ways precision machining could enhance your company.
