CNC Milling Service
Top CNC Milling Service Provider in China
Get access to high-quality CNC milling services in China at Hopeful/CNC Milling Service. With the latest technology and highly trained professionals, we are the best CNC milling service provider in the area. Contact us today with your project details for a quote. With us you can be rest assured that all your CNC milling needs are taken care of.
Hopeful's CNC Machined Milling Parts Solution
With Hopeful’s CNC Machined Milling Parts Solution, you experience precision, power, and versatility and at the same time has the reliability of a global leader in high precision machining.
Multi-Axis Capabilities
Hopeful provides advanced and accurate machining of complicate designs owing to its equipped 5 axe , 4 axe and 3 axe CNC milling machines.
Imported Technology
Employs advanced American and Taiwanese technology for machine perfection and exceptional functionality.
Customizable Solutions
We provide a tailored fit for every industrial application by accepting drawings in the formats JPEG, PDF, DWG, DXF, IGS and STEP.CAD.
High-Quality Materials
Enables the machining of aluminum, steel, brass, carbon fiber and other materials with a guarantee on performance and durability.
Wide Application Range
Appropriated to many branches of industry like automotive, medical devices, UAVs, electronics and heavy equipment.
Fast Delivery
Make certain that the optimum precision of our broaching, drilling, milling, laser machining, turning, rapid prototyping, and wire EDM processes is achieved.
Advantages of CNC Machining Milling
- CNC milling machines assure exceptionally accurate dimensions and reproduce consistently equal production standard all through the process.
- They are able to run incessantly, resulting in lowered lead times and heightened production efficacy.
- Owing to its specialization and exactness, CNC machining is notably cost-effective and minimizes the waste of materials.
- Automation has the effect of reducing different types of safety risk through decreasing the level of human machine interaction.
- It enhances complex detailing and forming advanced shapes, making it perfect for both rapid prototyping and mass manufacturing.
CNC Milling Servics Design Considerations
- Holes: To avoid deep holes (>6D) that require specialized drills, utilize interpolated end mills for holes with improved surface finishes.
- Threads: Single-point thread milling should be employed due to its superior accuracy alongside usage of various standard threads like UNC, UNF, and others metric threads.
- Walls and Features: To avoid breakage or warping, ensure a minimum feature thickness of ±0.005 in. (±0.13mm).
- Radii: To better distribute loads and lower stress concentration, sharp corners should be avoided and instead replaced by a radius.
- Cavities and Pockets: To prevent deflection and vibration of the tool, the depth of the cavity should be no more than four times its width.
Compare Milling alloys Materials
| Attribute | Aluminum (6061-T6) | Aluminum (7075-T6) | Stainless Steel (304) | Titanium (Grade 5) | Copper (C110) | Brass (C360) | Magnesium (AZ91) | Aluminum (2024-T3) | Aluminum (5052-H32) | Tungsten (W1) |
|---|---|---|---|---|---|---|---|---|---|---|
| Cost | Moderate | High | Moderate | High | High | Moderate | Moderate | Moderate | Low | Very High |
| Ultimate Tensile Strength | ~ 45,000 psi | ~ 83,000 psi | ~ 73,000 psi | ~ 138,000 psi | ~ 31,900 psi | ~ 58,000 psi | ~ 34,800 psi | ~ 67,000 psi | ~ 38,000 psi | ~ 151,000 psi |
| Maximum Operating Temperature | ~ 400°F | ~ 375°F | Up to 1,500°F | ~ 800°F | Moderate (~200°C) | Moderate (~250°C) | Low (~250°C) | Moderate (~375°F) | Moderate (~400°F) | Very High (>3,400°C) |
| Elongation (%) | 12-17% | 8% | ~35% | 10-14% | ~30% | ~50% | 3-5% | 6-20% | ~12% | Low (~2%) |
| Hardness | 60 (Brinell) | ~150 (Brinell) | ~70 (Rockwell B) | ~36 (Rockwell C) | ~40 (Rockwell B) | ~90 (Rockwell B) | ~63 (Brinell) | ~120 (Brinell) | ~60 (Brinell) | ~25 (Rockwell C) |
| Weldability | Good | Fair | Poor | Poor | Poor | Good | Poor | Limited | Good | Difficult |
| Thermal Conductivity | High (155 W/m·K) | Moderate (130 W/m·K) | Low (16 W/m·K) | Low (20 W/m·K) | Excellent (~390 W/m·K) | High (~120 W/m·K) | Moderate (~99-130 W/m·K) | Moderate (~120 W/m·K) | Moderate (~138 W/m·K) | Low (~170 W/m·K) |
| Common Applications | Piping, aerospace, structural parts | Aerospace, tooling, marine frames | Cookware, medical tools, construction | Aerospace, medical implants | Electrical components, wiring | Fittings, fasteners, electrical goods | Aerospace, automotive components | Aerospace skins, structural parts | Marine components, fuel tanks | Counterweights, radiation shielding |
| Temper | T6 | T6 | Annealed or cold-worked | Solution-treated and aged | Soft or annealed | Half-hard | AZ91 | T3 | H32 | Ash-forged or sintered |
✷ Applications of Custom CNC Milling Machining ✷
Industries like automotive and aerospace utilize custom CNC milling due to its accurate, efficient, and reliable mass production of parts regardless if the parts are simple or complex.
Marine Industry
It serves to manufacture strong and light components like the hulls of boats and propellers which are required to bear severe sea conditions.

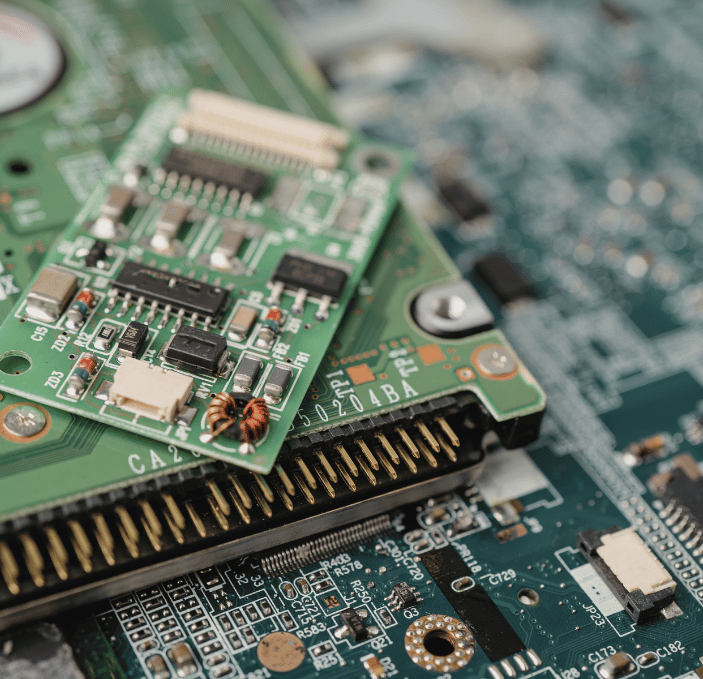

Electronics
It forms a variety of plastic polymers and metals for electronic hardware such as motherboards that require specific configurations.
Military and Defense
CNC milling is key for developing vital parts of aircraft, armored vehicles, and weapon systems, ensuring their durability and precision.
Aerospace
High-precision parts such as aircraft engine turbine blades, landing gear components, and avionics housings are made by CNC milling.
Renewable Energy
The technology facilitates the production of parts like blades of wind turbines and frames of solar panels which aid in the generation of energy.
Automotive
It manufactures products like engine blocks, gearbox cases, and brake rotor which improves vehicles' efficiency and reliability.

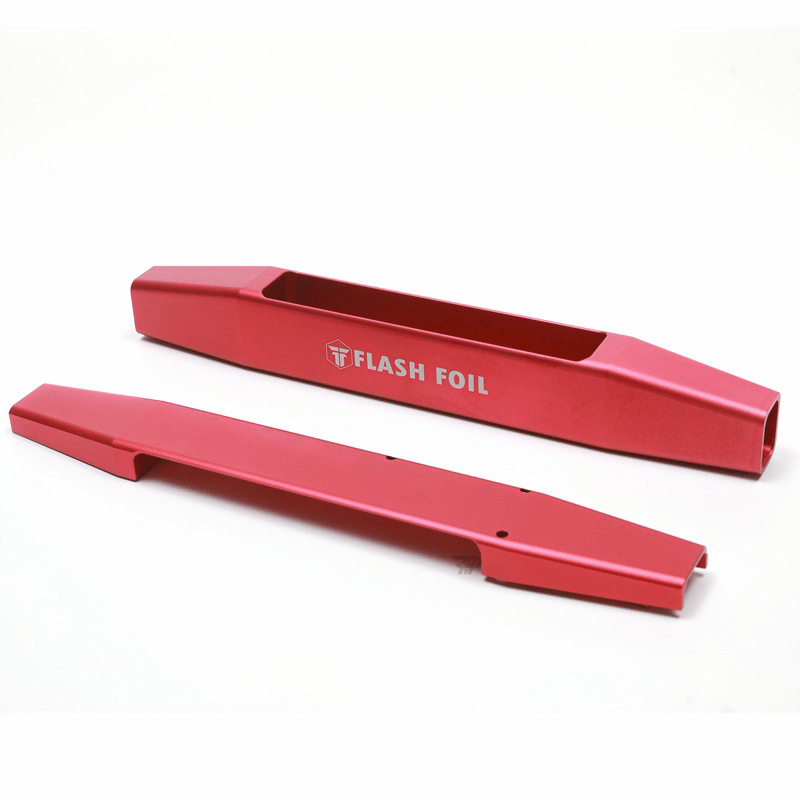

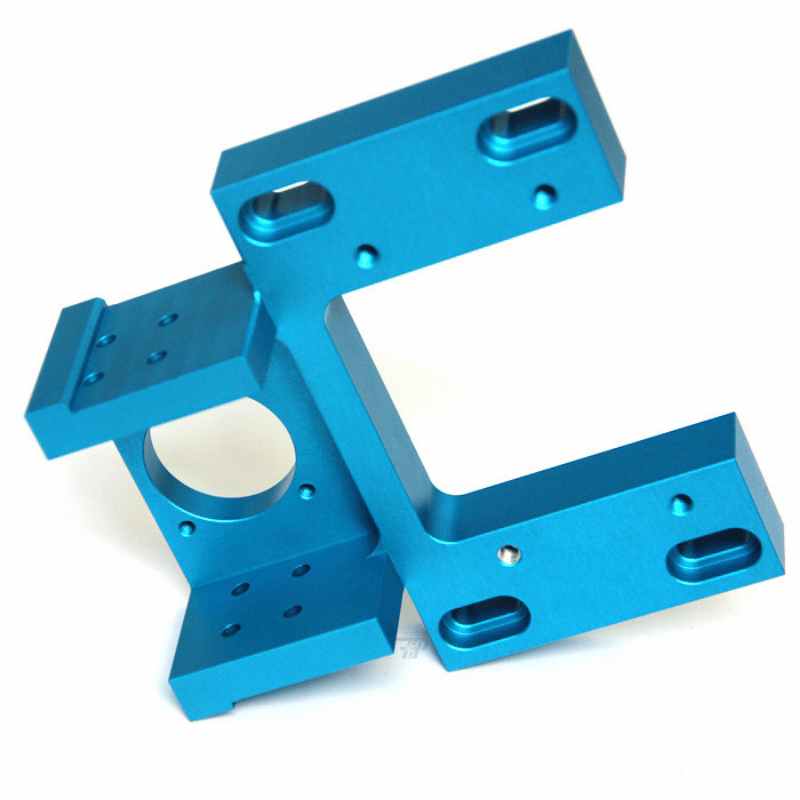

Gallery of CNC Machining Milling Parts Produced by Hopeful
Hopeful specializes in superior quality parts of CNC machining milling, featuring a perfect fusion of advanced cutting techniques and skilled workmanship.
Surface Finishes For CNC Machined Milling Parts
1. Cleaning
Use sonic immersing or solvents to eliminate all residues from machining and oils as well as foreign substances.
2.Deburring
Eliminate sharp edges and burrs to ensure smooth surfaces.
3.Bead Blasting
Paint removal through blasting glass beads to achieve a satin appearance.
4.Wet Sanding
Pre-polishing of parts made out of plastic for painting.
5.Polishing
Coatings that create a smooth finish with some shine as well as a surface that is clean and free from contaminants.
6.Anodizing
Applies protective films that add corrosion resistance and also can be colored.
7.Passivation
Application of a layer of oxide that is thin which helps render the substrate less corrodible.
8.Heat Treating
Enhances strength and endurance for materials through a series of processes changing the properties of the material.
why choose Hopeful Factory's CNC Milling Service
Welcome to Hopeful's CNC Milling Service Factories
🛠️ Welcome to Hopeful’s CNC Milling Factories! Due to devotion to excellence and employing the best modern technology combined with adept professionals, Hopeful’s CNC Milling Service offers consistent and quality service for large and small projects.
Resources on CNC machining Milling parts service
Related products provided by Kunshan Hopeful Metal Products Co.,Ltd
Latest Blog Posts
Keep Abreast By Catching Up On Our Blog As It Has Original Insights, New Developments, Trends, And Best Practices.
Related Topics About CNC Milling Service
Want to know about CNC milling services? 🚀 Browse through the associated articles and understand how using CNC precision machining can improve your projects.#CNCMilling #PrecisionMachining
0+
Exporting country
0+
Plant Area
0+
Satisfied customer
0+
Monthly output
Frequently Ask Questions
Q: What is CNC milling service?
A: A service that utilizes a CNC machine to manufacture custom components and parts through the removal of material from a workpiece is called a CNC milling service. The procedure is suitable for many sorts of materials, including plastic and metal, owing to its versatility as a subtractive manufacturing method.
Q: What specific steps should be followed for efficient CNC machining?
A: A CAD file that contains given design specifications is the initial stage in the CNC machining process. From there, it’s followed by the actual milling of the material and assembly of the components that are sought after. The last step entails utilizing computer control to manage the movements of the tools for the processes that are carried out on the milling machines.
Q: Upon which materials can CNC milling be performed?
A: There are different types of metals and plastics for which CNC machining is applicable to. The most frequently used are various types of aluminum, steel, and other kinds of plastics. This enables the creation of both parts and prototypes which are machined with the help of a CNC machine.
Q: Is it possible to request for an instant quote for CNC milling services over the Internet?
A: Certainly, as many machine shops nowadays provide a CNC machining service online that offers quotes automatically. The users only need to upload their CAD files and based on that, we offer estimates for their bespoke CNC machining jobs.
Q: What are the uses of CNC milling?
A: CNC milling is a versatile technology that is utilized in the manufacturing of specialized components across industries including automobile, aerospace, medical, and electronics. It is capable of making prototypes and production parts.
Q: How does CNC milling differ from CNC turning?
A: CNC turning and milling are both machining services, but they function differently. In CNC turning, the workpiece is rotated against a cutting tool that remains in a fixed position. On the other hand, milling utilizes a rotating workpiece and a fixed cutting tool to remove more material.
Q: Explain rapid prototyping in CNC machining.
A: Rapid prototyping in CNC machining refers to the use of a CNC mill to quickly build a scale model or working piece for the purpose of showcasing his or her design before mass production is started. This enables the user to gather valuable feedback and make changes before investing in large-scale production.
Q: What does CNC Services do with 5-axis milling?
A: Utilizing 5-axis milling increases the productivity of CNC milling machines since movement is not restricted to a single plane. This allows for complex parts to be made much faster with intricate detail and much faster.
Q: How does one prove the quality of the different parts machined with a CNC mill?
A: The quality of CNC milled parts is established by proper machining practices, periodic measures for calibrating CNC machines, and compliance with the design instructions for the parts in the CAD files.
