Unlock the Secrets of CNC Machined Parts: Your Ultimate Guide to Custom Components

The ease at which CNC technology allows for mass manufacturing has altered the face of engineering forever as it increases accuracy, cuts downtime and resources, and enables the design of very detailed components. It does not matter if it is a prototype or a large-scale production order; CNC technology assures precision throughout the entire process. This article will serve as a comprehensive guide to CNC-processed parts, discussing everything from the basics of the technique to quality determinants and performance. In the forthcoming sections, you will discover how these custom components are made and what can they do for your plans. Join us as we demystify this advanced and modern manufacturing technology.

What are the Advantages of Machined Parts?

Because machined parts are made using a precise method, they are ideal for use in projects that need accuracy. These parts receive a surface treatment to obtain desired finishes and contour details which may reduce the necessity for additional machining. They are also effective because of their low costs and efficiency in different sectors. Moreover, as these parts are made out of metals and strong plastics, they tend to last longer even in harsh conditions. These features help enhance strength, effectiveness and trust in these parts. Customization is also possible, which enables intricate designs to be made for specific requirements. Finally, the robustness of these components improves reliability in many industries.

Precision and Accuracy in CNC Machined Parts

The accuracy and precision of CNC machined components are important to ensure their specifications and quality are in check. While precision refers to how well the measurements are repeatable for a given number of parts, accuracy relates to the extent to which a part corresponds to the design measurements. Due to sophisticated control systems, accurate tooling, and careful calibration procedures, CNC machines obtain precision and accuracy levels that are difficult to achieve otherwise. This guarantees uniformity, dependability, and suitability, especially in precision-demanding sectors like aerospace, automotive, and medical parts manufacturing, where even the slightest differences could create problems or safety risks.

Durability and Longevity of Metal Parts

For a particular project, metal parts have to be both durable and long-lasting, specifically in industrial applications. Most parts are made from stainless steel, aluminum alloys, or titanium due to their exceptional ability to withstand wear and extreme environments, including corrosion and fatigue. Stainless steel components, for example, can be exposed to severe chemicals and tempered to well above 1,500°F (815°C)—most variants maintain structural integrity at these temperatures.

Sanding, applying heat, and protective coating strategies that are more complex owe to a single purpose: improving hardness and corrosion resistance to extend the life cycle of metal parts. Alloy steels that are heat treated can sometimes demonstrate an impressive 20% increase in tensile strength while also exhibiting lower fatigue failures from cyclic loading compared to standard untreated alloy steels. Moreover, proper maintenance and the application of lubricants are vital to limit degradation.

The automotive and aerospace industries require a long service life and high reliability which is usually achieved using optimized alloys and meticulously crafted parts due to reduced failure rates. For instance, titanium alloys for aerospace applications can be used for more than thirty years with proper upkeep and these alloys fare well under extreme mechanical and environmental forces. These factors showcase the need for engineers to design robust and durable metal components that can survive harsh safety and performance measures in critical situations.

Cost-effectiveness in Manufacturing Process

Cost-effectiveness in manufacturing is obtained from the implementation of new technologies, the use of appropriate materials, and the application of modern production methods. The use of automation and robotics in the manufacturing processes greatly cuts down on labor expenses while improving accuracy and output at the same time. For example, automated assembly lines can increase production rates by 50%, while defects can be reduced by 20-30% compared to manual operations.

Appropriate Materials selection is very crucial in achieving cost minimization and reduction of wastage. For instance, the material cost associated with additive manufacturing (3D Printing) is greatly reduced since it allows for parts to be built layer by layer using the exact amount of needed material thus, minimizing wastage by up to 70 percent. This is especially beneficial in aerospace and healthcare industries where material costs are high.

Energy cost efficiency is another important aspect. Research shows that energy costs within the manufacturing function can be reduced by as much as 10-25% when energy-efficient equipment and practices are formally implemented. Also, the application of predictive maintenance systems allows unexpected machine downtime to be reduced by 30% which improves operational efficiency and hence lower overall costs.

In summary, these changes demonstrate that new technology and practices ought to be adopted in manufacturing if the cost-to-quality ratio is to be optimized.

How to Design Machined Parts Effectively?

Key Considerations in Part Design

Maintaining functionality, manufacturability, and cost-effectiveness when designing and fabricating parts machined is crucial and must be done while adhering to general engineering design principles. Following is a collection of industry data-supported insights and observations.

Choosing The Right Components

Choosing materials significantly impacts durability, strength, and performance. Plastic, steel, aluminum, brass, and other varieties of plastic materials are some commonly used materials. Aluminum, for example, is lightweight and does not corrode which makes it useful in the automotive and aerospace industries, while Stainless steel is strong, highly resistant to wear, and useful in heavy industrial applications. Research shows that materials can account for up to 50% of the manufacturing expenses which makes this decision a very important one in terms of cost optimization.

Part Dimensions and Their Accuracy

Parts must be defined with appropriate shapes and the fit must be functional. A set of limits and fits can be overly tight and this may increase production which increases costs which is not desirable in some circumstances. Less forgiving production tolerances may also reduce the overall system performance. Research demonstrates that certain dimensions can be increased by 0.001 inches and produced at a lower cost of 5 to 10 percent without deteriorating quality.

Geometric Complexity

Parts with simpler geometry are machined with more ease and cost-effectively as compared to others. Features such as undercuts, thin walls, and deep pockets can increase both the time it takes to machine components and the wear that tools are subjected to, thus raising costs. For instance, removing an undercut or substituting sharp corners for rounded ones can make parts easier to machine without compromising their strength.

Surface Finish Requirements

Surface finish requirements, or roughness, is a key contributing factor in part functioning and is quantified in Ra values. Surfaces that are smooth or have less texture improve the component’s functionality in high-friction applications such as bearings, but achieving such surfaces is up to 30% more costly because of additional processes like grinding or polishing. Balancing these functional requirements with achievable finishes is essential to remain cost-effective.

Standardization and Modularity

The use of standard characteristics such as screw threads, holes, and fasteners is helpful in cost reduction when parts and tools are readily available. Assembly-aiding modular parts, on the other hand, provide a greater degree of flexibility while minimizing the need for additional machining steps.

Tooling and Machine Capability

If the design of the part is aligned with the machine tool’s capabilities, efficiency increases while the chances of errors decrease. For example, making parts for use with simple 3-axis machines as opposed to more complicated 5-axis machines results in approximately 20% reduced machining time.

Analyzing these elements assists designers in creating affordable, functional, and machinable parts. This allows the manufacturers to meet timelines and stay within budget, thus, ensuring competitive pricing.

Understanding Tolerances for CNC Machining

Tolerances in CNC machining indicate how much a part’s size can differ from its dimensions while still meeting design specifications and maintaining its intended use. Usual tolerances for most applications are ±0.005 to ±0.001 inches, but stricter ones are placed on critical features. Stricter tolerances increase the costs and time needed for parts to be manufactured which is why it is important to specify what is necessary to achieve a part’s intended function. Achieving a proper tolerance selection focuses on balancing functionality, manufacturability, and cost while meeting production objectives and part needs.

Utilizing Advanced Machining Techniques

Multi-purpose machining processes like CNC machining, electrical discharge machining, or additive manufacturing have dramatically improved modern manufacturing by providing precision and productivity like never before. An example of that would be CNC machining that works with precision of up to ±0.0005 inch. Such precision is difficult to achieve when working with parts that require tight tolerances. Wire EDM, including other forms of EDM, works well with hard materials like titanium, as it can achieve complex geometries that would otherwise be impossible to do with conventional methods. Moreover, metal 3D printing, a type of additive manufacturing, is capable of producing highly complex structures promptly and with little material usage.

Making it achievable to reduce costs through enhancing repeatability and increasing the speed of production cycles. For instance, with 5-axis CNC machining, a single setup can accomplish the functionality of multiple setups which saves machining time. This also improves the consistency of parts. The growing dependence of various industries on CNC parts and technologies is highlighted by the global market of CNC machining, expected to expand to roughly $126 billion by the year 2025. By using these specialized techniques, manufacturers can keep up their edge while still abiding by high-quality necessities.

Why Outsource Machined Parts?

Access to Specialized Machining Services

By outsourcing certain services, like part production, companies take advantage of modern facilities and specialized equipment that would otherwise require considerable investments. The same can be said for modern-day CNC Machining services with multi-axis systems that are equipped for creating complex parts with tight tolerances. These reserved vendors also have highly skilled engineers and technicians who incorporate their knowledge and experience into the manufacturing process, guaranteeing the accuracy and quality of end products.

Recent studies show outsourcing machining services is a response to an increase in demand per industry, like customization of complex parts in the aerospace, automotive, and medical devices industries. 43% of manufacturers And businesses also save up to 30% on lead times and 15% on low-volume, machined material prototypes and parts. Strategically speaking, implementing these services allows companies to adapt quickly to changes in the marketplace.

Cost Benefits of Online CNC Machining Service

When it comes to CNC services, the wide range of options available on the internet provides modern manufacturers with machine cost-saving benefits that enhance their overall efficiency. Automated quoting systems are a prime example because, with these systems, companies can do away with the traditionally lengthy and expensive price manual procedures. Moreover, automated machining systems shift the global accessibility paradigm for vendors as they can compare different deal offers which enables cost reductions of roughly 20%.

Within prototypes and lower volume projects, CNC’s online functionalities provide a remarkable decrease of investment by 30% because in-house machining equipment, along with skilled workers, isn’t necessary. This method reduces material scrap waste due to precise and enhanced machining, which helps save 10% on each project. Cloud-based systems further streamline functionality through improved transparency, enabling production stage updates that keep delays to a minimum.

Last but not least, CNC’s offshore capabilities grant unprecedented flexibility, allowing businesses to alter production volumes at will to meet market demand. This shifts inventory holding costs and aligns production levels with customer purchase volumes, improving long-term efficiency. Adopting online machinists permanently grants businesses drastic economic and operational efficiency.

Leveraging Expertise from a Machine Shop

When utilizing a machine shop’s services, I pay attention to their precision capabilities and how well they can use machined parts within the given production scope. In collaboration with skilled machinists, I make sure that multi-faceted designs are done correctly and within budget. Moreover, I depend on their suggestions for material and machining details because they improve the result’s quality and performance.

What are the Best Machining Materials?

Choosing the Right Metal Parts

Choosing the right metal for machining projects is a dire decision due to its impact on performance, durability, and manufacturing expenses. Some of the most important factors include the application, strength requirements, environmental conditions, and available budget. Below is a list of some metals widely used in machining, their features, and ideal use cases:

• Aluminum  – Aluminum is extremely machinable, relatively light, and has a high resistance rating when it comesto exposing it to corrosion. It is commonly used in the aerospace industry, automotive sector, and consumer electronics industries. Grades such as 6061 and 7075 are widely used because they are strong and easy to machine.
• Steel – Steel is available in numerous forms and grades. These include alloy steel, carbon steel, and stainless steel. Structural components are best made out of carbon steel because it is cheap yet strong. Stainless steel is used in medical, marine, and food-related fields due to high damage tolerance corrosion. 304 and 316 stainless steel grades are commonly used in these industries.
• Copper – Copper has great value due to its exceptional ability to conduct both thermal and electrical energy. Consequently, it is used in creating electrical components and heat exchangers. Copper has a variable machinability rating depending on the grade; however, alloys such as tellurium copper (C14500) have better ratings than pure copper.
• Brass – Because of what it consists of, brass has excellent corrosion resistance and machinability. It is the favored material for fittings and valves as well as decorative components. Furthermore, its reliability in both manual and CNC machining further increases its desirability for accurate work.
• Titanium – Its remarkable strength along with its light weight is the main reason why it’s far more popular in the aerospace and medical industries. It is well-known for enduring extreme temperatures. Even though it is more expensive and more difficult to machine than other metals, its justification for use in extreme applications makes it worth the price.
• Tool Steel – With high toughness and resistance to wear and tear, tool steels can be found in cutting tools, molds, and dies. Some often cited grades would be D2, H13, and O1. Each of these has distinct features that fit various needs.

Material Selection Criteria

To make the most informed decision, the following mechanical properties offered alongside each metal such as the tensile strength, hardness, or fatigue resistance must be taken into account. In addition, the environment where it is to be used, for instance, corrosive agents or higher temperatures can have an effect as well. Knowing the ratings of machinability for different metals is one of the important aspects to consider, due to it influencing tool wear and production time.

Making the effort put into selecting the optimum metal for machining leads to an increased quality of the final product, a lowered cost, and improves the entire production process.

Exploring Machined Metal Options

Aluminum Alloys

Few metals can outmatch the combination of good machinability, lightweight, and corrosion resistance of aluminum alloys. These features make aluminum alloys extremely popular amongst machinists. Other sectors where aluminum alloys are used include aerospace, automotive, and household electronics. Grades such as 6061 and 7075 are some of the most sought-after aluminum alloys. The tensile strength for high-performance components of 7075 aluminum is known to exceed 70,000 psi. While 6061 aluminum is preferable due to its high resistance to corrosion and capability to be welded. These alloys reduce the effects of deformation during machining processes because they also dissipate heat effectively.

Steel Alloys

Steel is still a widely used and fundamental material for machining today, and this is mainly due to the large variety of steel grades that serve different purposes. For example, 1018 carbon steel is one of the most reasonably priced options available, and its machinability is above average. Because of this, it is a great option for parts such as prototypes and low-stress structural components. High-performance industrial machinery and automotive tools are the best fit for tougher and more durable 4140 high-strength alloys due to their capacity to endure heavy loads. Steels such as D2 are made to be extremely hard, which is perfect for providing exceptional wear resistance, particularly useful in tool-and-die manufacturing.

Titanium Alloys

Both medical devices and aerospace rely heavily on titanium alloys because of their exceptional resistance to corrosion, and extreme heat, and their indispensable weight-to-strength ratio. Gaining traction in machining, Ti-6Al-4V is an alloy that is, like other titanium alloys, excruciating to work with due to its hardness and high tendency to work hard. Advances in surface finishes and tooling technology, however, have greatly improved over time.

Copper and Brass Alloys

Machinability grades of pure copper and C360 alloys can incredibly outperform the competition with nearly 100% scores, which is why they are most often sought after in electronic plumbing and heat exchange setups needing superior thermal and electric conductivity. Other grades of brass do not score as high on the machinability index but are vital for components needing ultra-efficient cooling and electric functioning.

High-Performance Alloys (Superalloys)

Corrosion-resistant and durable superalloys, such as Inconel and Hastelloy, are designed to be intolerant of mechanically induced damage at elevated temperatures in other words – make them strong and stable. Of course, this makes them popular in high-performance environments like where aerospace engines and gas turbines operate due to the extreme heat. With super alloys, however, come super costs as they require advanced machining strategies.

Important Factors

When choosing a metal for machining, the essential aspects to consider are its thermal conductivity, application hardness, and other relevant factors. Soft metals such as aluminum can be machined at high speeds, and do not cause significant damage to cutting tools. This is not the case for harder metals like titanium and superalloys which require softer machining parameters with stronger tools. In addition, gauging the expense-performance ratio of each material aids in ensuring the production budget is met while achieving the desired component’s performance, which is essential in quality manufacturing.

Manufacturers can streamline machining processes to achieve precise, cost-effective, and reliable components by understanding these material properties and their relevance with project requirements.

Innovations in Machining Process

The latest developments in the field of machining technology aim towards more efficient, accurate, and sustainable processes. An example of this is high-speed machining (HSM), which allows for substantially greater production rates without sacrificing accuracy. CNC (Computer Numerical Control) systems have also incorporated AI (Artificial Intelligence), which has enabled automation and predictive maintenance along with improved process optimization. In addition, prototyping and production are being transformed through new methods like additive manufacturing paired with subtractive methods, which improves material efficiency. With all of these advancements, manufacturers can achieve lower-quality components at a substantially lower cost while also reducing their environmental footprint.

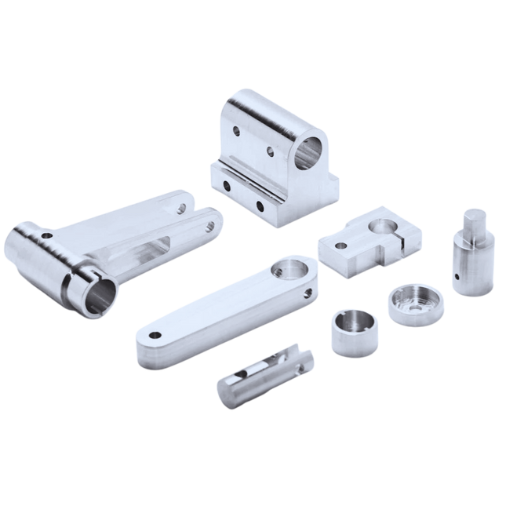

How Do Custom CNC Machining Operations Work?

The Process of Machining Explained

Machining undertakes a workpiece in three steps. First, it takes setup measures, next it employs material removal techniques, and finally, it undertakes the finishing touches.

1. The workpiece is put in position, and a cutting tool is selected according to the hardware needed. Other measures that are taken include loading the workpiece on the machine, configuring its speed and feed, adjusting the cut depth and type, and finally, selecting the rate needed to achieve the desired piece.
2. Then comes the material separation stage where the workpiece is precision milled, turned, or drilled according to the specifications needed. This step simultaneously adjusts all other parameters so that the desired dimensions are achieved.
3. Once primary shaping has been completed, a set of secondary shaping measures can now polish it, deburr, and surface treat it to fulfill the desired aesthetic appeal.

A thorough plan of action coupled with the required tools and accurate execution gets a high-quality component most efficiently.

Integrating Machine Tools in Operations

Adding machine tools to the workflow improves accuracy, efficiency, and uniformity in overall manufacturing processes. To incorporate precision machinery, start with identifying the necessary machines for the jobs at hand: lathes for turning, or mills for shaping. Make sure the personnel understands the operation, maintenance, and safety aspects that come with the tools. Set up workflow processes of the work that can be easily automated for repetitive processes. To avoid breakdowns and guarantee long-lasting reliability, regular maintenance of machine tools is crucial. Cautious integration of machine tools places the organization in a better position in terms of production efficiency, as well as output quality.

Understanding CNC Mill Capabilities

Aimed at completing precise and intricate parts with high efficiency, CNC (Computer Numerical Control) Mills are a type of automated machine tools which can control the movement of cutting instruments to an exceptional level. The aerospace, automotive, and medical industries rely on these machines due to their multi-axis capabilities, micrometric speed machining, and high precision tolerances.

Modern CNC mills can operate on 3-5 axes whereas more advanced models can now do up to 7 axes, allowing for more complex geometric manipulations without parts needing to be repositioned. Rotational axes can be used simultaneously with controlled manipulation of a component in a 5-axis CNC mill. This simplifies the process’s setup time and improves precision. Higher surface quality is achieved with rapid material removal done by high-speed spindles, which can exceed 20,000 RPM.

With additional modern CAD/CAM (Computer Aided Design/Computer Aided Manufacturing) integration, users can design parts digitally, making CNC machine operation even easier. Combining these capabilities with the ability to achieve extremely small precisions leading up to ±0.005 mm, turbine blades, medical implants, and other critical components can be manufactured easily using CNC mills.

The different kinds of materials that can be used are yet another factor. CNC mills are capable of efficiently machining a variety of materials like aluminum, steel, titanium, plastics, and composites using appropriate cutting tools for each material. Productivity is further enhanced with automation options like tool changers, coolant systems, and real-time monitoring that can perform operations with little to no human interaction.

With such capabilities, manufacturers can attain remarkable repeatability, great quality, and shorter production lead times which makes CNC mills a fundamental part of modern manufacturing processes.

Frequently Asked Questions (FAQs)

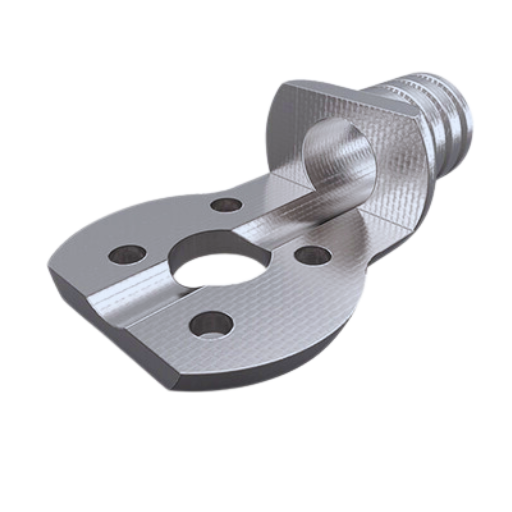

Q: What are CNC machined parts and components?

A: CNC machined parts and components are a set of goods created with the aid of CNC machines, which are tools and equipment that function with a preset computer program. This process guarantees precision and uniformity in the production of custom pieces.

Q: How do CNC machines produce parts?

A: CNC machines create components from a given set of coded parameters that govern the motion of the cutting tools, slowly working their way through the material. This way of creating components makes it possible to produce parts with intricate shapes and designs with both accuracy and repeatability, thus achieving dependable machined parts.

Q: What advantages do machined parts offer compared to traditional machining techniques?

A: Compared to other methods, machined CNC parts have an edge regarding accuracy, the speed at which they can be produced, and more elaborate designs. These details can be attributed to the implemented advanced CNC technology within the machining processes that improve productivity and precision.

Q: What are the different types of custom parts that can be manufactured by CNC machining?

A: CNC machining is capable of creating custom parts such as engine components, turned parts, and milled parts among others. Due to the flexible nature of CNC machines, virtually any part that can be conceived can be manufactured, provided it meets the specifications and working functions required of the parts.

Q: What is the function of precision machined parts within the framework of manufacturing?

A: In the context of manufacturing, precision machined parts serve an important purpose of ensuring that different pieces of a machine or equipment physically fit and are functionally compatible. This is crucial given the fact that several industries such as aerospace, automotive, and medical depend on their components to be of high performance and reliability.

Q: In what ways does EDM assist in the production of machined components?

A: Electrical Discharge Machining (EDM) assists in the production of machined components by using electrical discharges to shape materials, and it is a special form of machining. It helps produce intricate parts that are almost impossible to machine using traditional techniques, therefore broadening the boundaries of CNC machining.

Q: What factors are important for the custom machining part design process?

A: Factors important for the design of custom machined parts include the choice of material, dimensional tolerances that are needed, surface finish expectations, and overall affordability. Working with a competent parts manufacturer will help with these parameters, and he will also make sure that the resulting machining design is appropriate and useful.

Q: In which ways do modern CNC machines improve the fabrication of machined parts?

A: With the introduction of modern CNC machines comes additional capabilities that help with the fabrication of machined parts. Increased accuracy in controlling the parameters, quicker processing times, as well as handling more complicated tasks is made possible with these machines which greatly incorporate novel developments in Information Technology.

Q: Where are machined components and parts commonly used?

A: Machined parts and components are commonly used in aerospace systems, automotive parts, medical machinery, and industrial machinery. These components require the accuracy and dependability of CNC machining to gain efficiency and durability.

Reference Sources

1. An Automated Methodology for the Manufacturability Analysis of Machined Parts

• Authors: Tong Xu et al.
• Publication Date: July 20, 2022

Key Findings:

• In this study, the authors put forward an automated manufacturability analysis method that integrates design automation through the definition of structured feature models (SFM) using machining feature recognition.
• This automated analysis serves as a valuable reference for Model-Based Definition (MBD) applications in concurrent engineering environments.

Methodology:

• The authors established a design and manufacturing integration framework that centers on feature recognition and analysis of the checked designs’ manufacturability

2. Digital Twin of as-manufactured Machining Components: An Ontology-Based Information Modeling Approach

• Authors: Sheng Dai et al.
• Publication Date: December 1, 2021

Important Insights:

• This paper tackles the issue concerning as-fabricated parts modeling within machining processes, which is essential for sustaining data storage and retrieval over time.
• The suggested ontological approach improves the process of as-fabricated parts machining twin creation.

Research Approach:

• The authors used an ontology-based approach for modeling information of the machining operations to create digital twins.

3. Deploying Convolutional Neural Networks for Binary Recognition of Two Comparable Industrial Machining Parts

• Authors: H. Hafizh et al
• Publication Date: 2021

Principal Insights:

• This research illustrates the successful implementation of Convolutional Neural Networks (CNN) in the binary recognition of two similar machining parts with a mean accuracy of 98%.
• This implementation offers an attractive option for quality control in small and medium-sized manufacturing businesses.

Approach:

• The performance of a CNN model trained on images of the identified parts was analyzed through a series of experiments.
