Mastering Aluminum Etching: A Step-by-Step Guide to Etch Aluminum Designs

Etching aluminum is a very refined and sophisticated form of art which can be used to make amazing designs on a material that is quite strong and flexible. As an artist, craftsman, or an engineer, aluminum etching can be the one skill that you will need for both personal and professional works. This tutorial guide aims to take you through the stepwise approach of etching aluminum, while offering useful suggestions, necessary equipment, as well as gold nuggets for best practices to achieve the best finish on the metal surface. From your material preparation stage to finishing touches, you will understand each level throughout the entire processes, which guarantees that you are equipped with the skills to make your idea a reality. Aluminum etching is yet another fascinating realm of creativity that we will delve into.

What Is Aluminum Etching, and How Do You Do It?

Processes of Etching Explained

Aluminum etching is a type of subtractive manufacturing that carves out intricate designs or patterns on an aluminum surface by removing specific layers of material. A chemical etchant, like ferric chloride, is usually used for the process because it chemically eats away at the aluminum. To control the dissolution of the aluminum, a cover, aka resist material, is applied to areas that need to be protected. The procedure typically consists of cleaning the aluminum surface, applying the resist, immersing the piece in the etchent solution, and finally, taking off the resist. All steps involve great planning and precise conditions in order to get the right and clean results without damaging the material or over-etching it.

The Role of Chemical Reactions in Etching

The principle of etching relies on chemical reactions that permit precise removals of materials needed to be discarded. During etching, a chemical reaction takes place between the exposed parts of the substrate and the etchant solution, most of the time causing the substrate material to break down through the formation of by-products. To illustrate, during aluminum etching, acids or alkaline solutions undergo a reaction to the metallic surface while selectively attacking the unprotected areas of the surface. The more controlling reaction rates becomes, the greater chance of making a precision without causing damage. Having these reactions under control improves the quality of the outcome in circuit board manufacturing and surface texturing of machines and tools and other similar processes.

Why Choose Aluminum for Etching?

Aluminum has been, and is still, the most preferred material for etching due to the nesting of its strength, light weight, and chemical reactivity. Its surface has the most sought after reactivity towards commonly used etchant giving the opportunity for great accuracy and fidelity. In addition, the exposed aluminum is capable of having its protective oxide layer stripped off whilst etching giving rise to features and patterns. Its abundance and cheaper prices also makes it ideal to be used in electronics and aerospace industries.

What Are The Advantages of Aluminum Etching?

Use Cases in Aerospace and Automotive Engineering Industries

Because of its lightweight, precise, and durable components, aluminum etching is very useful in both the aerospace and automotive industries. In aerospace, it helps make complicated parts for aircraft, such as its fuel system components and other structural parts, which require a great reduction of weight, accuracy, and efficiency. In the automotive industry, on the other hand, Aluminun etching is utilized in the construction of heat exchangers and battery cooling plates, which improve the energy efficiency of the vehicle, as well as the overall design. This procedure improves production flexibility by creating several complex parts made to specific engineering requirements, while ensuring that the metal surfaces are free of burrs.

Solutions for metal etching that are economical.

To introduce cost-effective measures for metal etching, the proper materials and processes must be selected to achieve high efficiency and low waste. Advanced chemical etching techniques like photoresist masking eliminate unnecessary tooling or machinery and ensure precision. Moreover, volume production with standard designs saves extensive resources and reduces setup time tremendously, which further lowers costs. Collaborating with seasoned providers of etching services also helps save money because they are able to optimize production and prevent expensive mistakes or rework due to insufficient knowledge. By focusing on strategic production as well as operational efficiency, businesses can attain good quality outcomes while spending as little as possible.

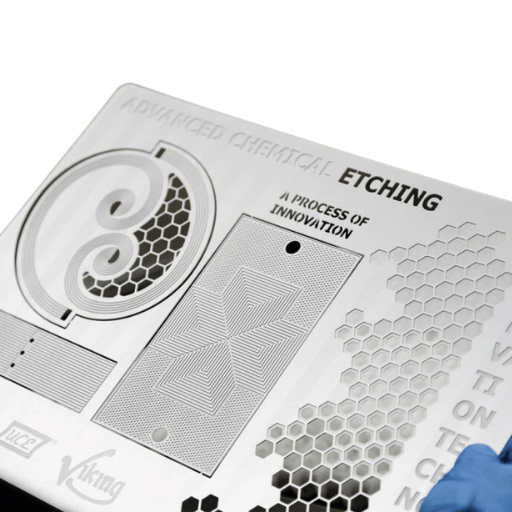

Etch Aluminum: A Step-by-Step Procedure

Aluminum Etching Tools and Equipment

Achieving effective etching of aluminum requires the following tools and material:

1. Aluminum Sheets or Components– Ensure the aluminum is clean without any contaminants for effective etching.
2. Protective Gear – Safety goggles, rubber gloves, and a workspace with good ventilation to avoid overexposure to chemicals.
3. Acidic Etching Solution– Solutions such as ferric Chloride and hydrochloric acid mixed with water are widely used.
4. Plastic or Nonreactive Container– Used for holding the etching solution and aluminum components.
5. Masking Material– Adhesive vinyl, tape, or stencil having unwanted portions of the aluminum to be etched.
6. Scrubbing Tools– Soft brushes or pads that do not scratch the surface for cleaning and for preparing the aluminum for etching.
7. Rinse Station– Clean water for rinsing the aluminum after etching for removing chemicals that may be harmful in nature.

With these tools and equipment at hand, an accurate and safe aluminum etching process is ensured.

Safety Measures while Acid Etching

If operated without care, acid etching is dangerous for both the individual and the environment. Take the following precautions:

1. Wear the Proper Personal Protective Equipment (PPE) – Acid goggles, apron, closed shoes, and gloves should be worn while working with the highly corrosive acid.
2. Ensure There is Adequate Ventilation – The etching work should be done in an open or well-ventilated room to prevent breathing in dangerous fumes. If there is a chemical fume hood, use it.
3. Labeling and Storage – Store the acids in marked unreactive containers to prevent their misuse or mixing them with other substances. Ensure that the containers are stored away from heat sources and reactive materials.
4. Neutralization and Disposal – Spent dissolution acid solutions should be neutralized using a neutralizing agent such as baking soda before disposal as this poses less risk to the environment. Follow country-specific regulations regarding the disposal of chemical waste.
5. Accident Preparedness – In the event of unintentional exposure, have eyewash stations, running water sources, and first-aid kits nearby. Also, ensure that you have the Material Safety Data Sheets (MSDS) for all chemicals you plan to use.
6. Limit Contact and Monitor Closely – Do not work alone and minimize distractions when dealing with acids. This improves response time in the event of an emergency and lowers the possibility of accidents occurring.

Following this guidance will help reduce the dangers linked to acid etching while simultaneously ensuring the workflow remains both safe and effective. Remember to prioritize safety over efficiency in order to maintain a professional environment.

Examining the Role of Chemical Etchants in Aluminum Etching

Etching with Ferric Chloride

Ferric chloride is one of the most popular chemical etchants because of how simple it is to use when working with aluminum. When using ferric chloride, it is important to mix it with water in a certain ratio, normally close to two parts ferric chloride and one part water, which can differ according to how strong of an etch is required. Oils and other contaminants need to be stripped away from the aluminum surface, otherwise poor results will be achieved. Place the aluminum piece into the solution while keeping a watchful eye on the process in order to obtain the desired depth and detail. After the process is done, the aluminum should be rinsed thoroughly in water to neutralize and sweep away any remaining residue. Using ferric chloride requires proper safety procedures such as gloves and eye protection, to avoid injury and chemical exposure.

Chemical Solutions Other Than Aluminum Etchant # 3: Ferric Chloride

• Other than ferric chloride, sodium hydroxide is another solution which is used to etch aluminum. It is sodium hydroxide that, in its pure form, contains 5 to 10 percent of NaOH in combination with distilled H2O. While its primary purpose is etching aluminum which is convenient for creating rough surfaces on it or removing anodized parts, sodium hydroxide lacks control and, as a result, over-etching may occur, destroying the aluminum.
• Phosphoric acid is widely known to etch uniform controlled cavities. They are quite helpful when used as an etching tool prior to coating or bonding, however, they are rarely used for accomplishing precision bonding.
• One of the most common ammonium ions is ammonium sulfate, which can be used to etch areas which require accuracy and minimum damage to the surface. Used in circuits and certain delicate patterns on aluminum bases and thus, great care must be taken when working with them.

All of these chemicals require proper ventilation, gloves, and protection for the eyes to be worn at all times while in use.

Comparative Analysis of Acid Etching of Aluminum and Laser Cutting Processes

Benefits of acid etching comparing to laser cutting

1. Cost Considerations: In most cases, acid etching is less expensive than laser cutting. This is particularly true in high volume production settings, as acid etching does not require expensive apparatus or intensive preparation.
2. Surface Finish Quality: Unlike laser cutting which is accompanied by some thermal stress, acid etching does not introduce a release of heat energy, preventing alteration to the material properties. This results in a smooth and uniform surface finish.
3. Detailed Aluminum Etching: Acid etching can be used on thin aluminum sheets with great success as it provides exceptional detail and eliminates the warping caused by laser cutting due to its concentrated heat.
4. Mass production potential: Acid etching has the potential to be highly scalable for large production runs as it allows intricate designs to be replicated with minimal variability.
5. Environmental Issues: While both processes have some environmental impact, acid etching processes are generally viewed as more environmentally friendly. This is primarily due to the recyclable materials used and the effective waste disposal methods employed.

These advantages highlight the effectiveness of acid etching in processes requiring high detail, consistent quality, and cost effectiveness.

Contrast Between Chemical Etching and Photo Etching

The first thing I note while comparing chemical etching with photo etching is that both methods share some general processes, but their differences are equally distinctive based on the application requirement. A photo etching is a type of chemical etching which employs a photosensitive etching resist and is capable of developing patterns with very high precision. This makes it well suited for very delicate and intricate designs such as those used in micro fabrication. On the other hand, chemical etching, which usually lacks a defining characteristic is a process that does not always use photoresist technology and can vary in its techniques depending on the materials that need to be etched or the results that are desired and expected. Chemical processes, however, are generally less complex compared to photo etching which fundamentally involves imaging and thus higher precision. My decision is usually guided by the needs of the project at hand with regard to resolution, type of material, and volume of production.

Frequently Asked Questions (FAQs)

Q: What is the basic process for aluminum etching in this guide?

A: Etching is the process of removing the aluminum’s surface using a strong acid such as hydrochloric acid or hydrogen peroxide with acid. toner transfers are freely made with chemical etching of aluminum patterns. This guide focuses on the latter.

Q: Can you explain how to etch aluminum using ferric chloride?

A: To etch out aluminum sheet with ferric chloride, start from cleaning the aluminum sheet, then apply a toner design. After that, dip the sheet into a plastic container with ferric chloride solution. The chemical will react with ferric chloride dissolving aluminum freely. The aluminum in the region of the toner design will dissolve while the design will remain.

Q: What safety precautions should I take when acid etching aluminum?

A: Always put on gloves and goggles as protection. Ensure there is adequate ventilation due to the chemical reactions going on with the two acids, especially muriatic acid with nitric acid as they tend to fume. Do not let them touch the skin and handle with care.

Q: What part does toner play in the etching procedure?

A: Toner is used in the toner transfer procedure as a resist against the etching solution. When you print your design onto transfer paper, you then heat press it onto aluminum plates with the toner side facing down. The toner sticks to the aluminum and lets specific parts of it stay free from the etching solution.

Q: In what ways can I improve my chances of successful etching of aluminum designs?

A: Overall success in etching can be achieved by cleaning the aluminum plates properly and evenly applying the toner, controlling the etching time and conditions accurately, and controlling the heat of the exothermic reactions that will occur. It may also help to talk to an etching supplier for suggestions as well as quality materials, especially those which enhance the ductility of the aluminum.

Q: Which specific materials are necessary to prepare a tutorial for etching aluminum sheets?

A: Necessary materials include aluminum sheets or parts, an etchant such as ferric chloride, toner transfer kit, a plastic container for the etching liquid, safety goggles, and soda ash for neutralization. Depending on the etching process, you may also incorporate muriatic acid or copper sulfate.

Q: What sets photochemical etching apart from other etching techniques?

A: Photochemical etching, or photochemical machining, employs light-sensitive substrates and ultraviolet light to engrave detailed patterns on the etching surface prior to the etching process. It is often employed where the design intricacy is extremely high in precision aluminum or sheet metal components.

Q: What are the reasons someone may prefer chemical etching while customizing aluminum parts?

A: This is one of the lowest cost methods with chemical precision, and it does not involve any physical forces or heating that would alter the conductivity or structural integrity of the aluminum parts. It is well suited for fabrication of fine and repetitive designs without great efforts.

Q: What effects do etching chemicals have on the environment?

A: The local authority must be followed when disposing chemicals such as ferric chloride, nitric acid, and other etching material. These chemicals can pollute water bodies and endanger living organisms; proper neutralization and disposal through certified waste channels becomes a necessity.

Reference Sources

1. Augmentation of Corrosion Resistance of Aluminum Alloys through Creation of a Super Hydrophobic Surface Structure by Means of a Two Step Etching and Polymer Modification Process

• Authors: Tian Shi et al.
• Journal: Polymers
• Publication Date: 2022-10-25
• Citation Token: (Shi et al., 2022)
• Summary:
  • A two-step etching and polymer modification technique is proposed in this study for the enhancement of corrosion resistance in aviation aluminum alloys by forming a superhydrophobic surface.
  • Methodology: The authors employed a chemical etching technique to fabricate micro- and nanostructures on aluminum and then carried out a polymer modification to increase hydrophobicity and increase flexibility. The efficiency of treatment was analyzed with contact angle measurements and polarization tests.
  • Key Findings: The preformed aluminum surface demonstrated considerable enhancement in static liquid contact angles, showcasing an increase in superhydrophobicity alongside corrosion resistance, which is advantageous in aviation.

2. Corrosion Resistance and Anodic Film Characterization of an A535 Aluminum Alloy Following Intermetallics Removable by Varying Etching Duration

• Authors: S. Chankitmunkong et al.
• Journal: Metals
• Publication Date: 2022-07-04
• Citation Token: (Chankitmunkong et al., 2022)
• Summary:
  • This document explores the impact of removing intermetallics from the alloy surface by alkaline etching on the corrosion resistance of A535 aluminum alloy.
  • Methodology: The authors conducted an analysis of anodic films produced by varying the duration of alkaline etching, employing electrochemical polarization curves and salt spray corrosion resistance evaluation tests.
  • Key Findings: This study discovered that the ideal etching duration boosted the surface roughness as well as the aluminum alloy’s corrosion resistance, highlighting why etching is critical in surface treatment techniques.

3. Effect of Bipolar Electrochemical Process on Tunnel Etching Characteristics of Aluminum Foil

• Authors: Ning Peng et al.
• Journal: Journal of The Electrochemical Society
• Publication Date: 2022-01-24
• Citation Token: (Peng et al., 2022)
• Summary:
  • This investigation looks into the application of a confined bipolar electrochemical etching method for the fabrication of etched tunnels on aluminum foils.
  • Methodology: Employing the scanning electron microscope, the authors studied the morphological evolution and tunnel characteristics in the case of traditional electrochemical etching and the closed bipolar process, and subsequently compared them.
  • Key Findings: The closed bipolar process created greater and more homogeneously distributed tunnel diameters, which improved the specific surface area of the aluminum foil, making it more applicable for differing usages.

4. Facile etching fabrication of superhydrophobic 7055 aluminum alloy surface towards chloride environment anticorrosion

• Authors: F. Guo et al.
• Journal: Corrosion Science
• Publication Date: 2021-04-15
• Citation Token: (Guo et al., 2021, p. 109262)
• Summary:
  • This research aims to develop a superhydrophobic surface on a 7055 aluminum alloy with a straightforward etching method to enhance its resistance to corrosion in chloride containing environments.
  • Methodology: The authors utilized a chemical etching method and surface modification in the achievement of superhydrophobicity. Evaluation of the performance was done by corrosion tests and surface characterization.
  • Key Findings: The refined aluminum surface exhibited remarkable superhydrophobicity along with enhanced corrosion resistance which permits application in extreme conditions.

5. Preparation of 2024-T351 aluminum alloy super-hydrophobic surface by laser shock/etching

• Authors: Yanqiang Gou et al.
• Journal: Applied Physics A
• Publication Date: 2022-07-11
• Citation Token: (Gou et al., 2022)
• Summary:
  • This article examines the development of a superhydrophobic surface on the 2024-T351 aluminum alloy using laser shock and etching methods.
  • Methodology: The authors used laser shock treatment and then chemical etching to change the surface morphology. Assessment of hydrophobicity was performed via contact angle measurements.
  • Key Findings: The resulting superhydrophobic surface showed a highly water contact angle which suggests it can repel water. This property is important for preventing corrosion whilst enhancing durability.
