What is an automatic CNC machine?

Over the last few decades, CNC (computer numeric control) machines combined with automation have replaced manual labor with machinery in various industries, increasing productivity and accuracy. This blog elaborates on how CNC machines of different types are operated and the various automation systems used to enhance their efficiency.

In this post, we’ll define the types of CNC machines, including lathes, milling machines, and 3D printers, focusing on their features and scope of use. We’ll also examine sophisticated automation features such as robotics, IoT monitoring, and adaptive programmed machining, which enhance precision and productivity. This article will be helpful for specialists and novices who want to use automation and CNC machines. You will learn about the innovative devices and technologies transforming the manufacturing industry.

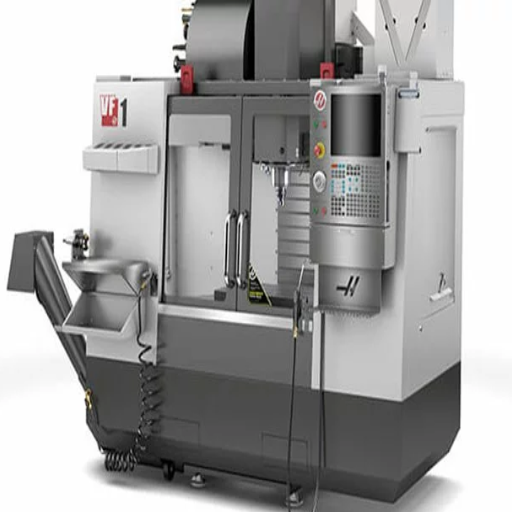

What are the main types of CNC machines used in modern manufacturing?

Different types of CNC machines are relied upon by modern manufacturing for completing specialized tasks:

CNC Milling machines are used for cutting and drilling. They receive materials and shape them with high precision using rotating tools.

CNC Lathes – Ensure that the equipped operations turn the part. They control the workpiece while a tool rotates and changes it into the desired shape.

CNC Plasma Cutters use a very hot and efficient plasma torch. Unlike other CNC-powered machines, they can easily and quickly cut metals.

CNC Laser Cutters – Well-known for their precision, these can be used to cut or engrave materials with extreme detail by lasers.

CNC Routers are versatile machines that cut softer materials like wood or plastic. They are perfect for complex designs, which is why they are very popular.

CNC Grinders can be used for finishing and refinement. Grinding materials can achieve smoothness and precise dimensions.

Each machine specializes in a specific area, making them useful in different manufacturing applications.

Understanding CNC lathes and their capabilities

CNC lathes are powerful modern machines with multi-purpose functions designed to perform high-precision work on cylindrical or spherical parts. As the machining center, a CNC lathe rotates the workpiece while a stationary cutting tool carves the designated shape. Because of their high efficiency and precision, they are regularly used in the automotive, aerospace, and manufacturing industries.

CNC Lathes Key Features and Technical Parameters

Max Turning Diameter: This parameter ranges from 200mm to 800mm, depending on the machine model and application requirements.

Max Turning Length: This feature usually ranges between 300mm and 2,000 mm, accommodating the workpiece’s vast dimensions.

Spindle Speed varies widely between 100 and 6,000 RPM, depending on the material and the precision requirement.

Turret Capacity – The capacity range begins at eight and can go up to 12 tool stations, allowing multiple operations without manually changing tools.

Tolerance Accuracy – This refers to precision measurement and ranges from ±0.005mm, which is ideal for high-accuracy manufacturing processes.

Control System – CNC Lathes’ Control Systems integrate software such as FANUC, Siemens, or Haas, thus enabling easy programming and operation.

Material Compatibility – The CNC lathes can work with steel, aluminum, brass, plastics, and other composite metals.

CNC lathes offer unbeatable consistency and repeatability, making them indispensable for prototype and mass production. Their versatility in modern manufacturing technologies guarantees efficient and scalable processes.

Exploring CNC milling machines and their applications

Due to CNC milling machines’ intricacy and accuracy, they can be used in various sectors today. A rotary tool removes material from a computer-controlled workpiece, thus achieving intricate shapes and dimensions. We’ll discuss their functions, uses, and essential technical details below.

Capabilities

CNC milling machines have the primary advantage of producing parts with complex geometry and intricate features. Cutting tools can advance and rotate in three-dimensional space. These define standard 3-axis and more advanced four- or 5-axis machines, which allow cutting from any angle. CNC machines are used for drilling, slotting, contouring, pocketing, and more.

Applications

CNC milling has aerospace, automotive, electronics, medical devices, and more applications.

Aerospace: Producing structures such as turbine blades, engine components, and lightweight structural parts.

Automotive: Tailoring and producing gears, engine cylinders, and housing for transmission.

Electronics: Besides PCBs, electronics use CNC milling to produce enclosures and heatsinks.

Medical devices: High-precision production of implants, prostheses, and surgical instruments.

Important Technical Details

Picking the right CNC milling machine for a specific job requires understanding its technical specifications. Some basic parameters are:

Spindle Speed: This is usually between 10,000 and 30,000 RPM, depending on the material and operation needs.

Cutting Feed Rate: This defines how quickly the material is cut away. It is usually between 20 and 200 inches per minute(IPM).

Accuracy and Repeatability: The accuracy of high-end CNC mills can be within ±0.0005 inches.

Work Envelope: This controls the dimensions of a workpiece. Standard measurements are an X-axis of 20″-50″, a Y-axis of 16″-30″, and a Z-axis of 10″-40″.

Tool Capacity: More sophisticated machines can accommodate automatic tool changers that hold 20-60 tools and allow instant operation switching.

Benefits of CNC Milling

CNC milling has advantages, including accuracy, effectiveness, and flexibility. Implementing it saves material, elevates production speed, and helps meet harsh tolerance requirements for prototypes and high-capacity production. CAD/CAM integrated solutions help convert designs into products easily.

CNC milling machines are among the most accomplished machines for manufacturing parts worldwide. They allow different industries to imagine and produce innovative, high-quality solutions that meet modern needs.

The versatility of CNC drilling machines in production

CNC drilling machines are perfect for intricate work since they can drill holes of several types into different materials, such as metals, plastics, and composites. Their automated functions allow for precise and flexible manufacturing, making them suitable for the aerospace, automotive, and electronic industries. Some noteworthy features are the spindle speeds, which vary with material from 500 to 10,000 RPM, feed rate of 50-500 mm/min, and hole diameter of 0.1 mm to several inches, depending on the machine. The advanced functions of CNC drilling machines allow for increased production efficiency and adaptability when working with tight deadlines.

How do different CNC machine types compare functionality and use cases?

CNC machine types differ significantly in their functions and applications based on their structure and designated purpose. CNC milling machines can quickly and accurately cut and shape complex parts, making them perfect for prototyping and manufacturing intricate components. Meanwhile, CNC lathes are designed for the rapid symmetric production of cylindrical components like shafts and fittings. Similarly, CNC plasma and laser cutters perform best when cutting sheets of metal or plastic. At the same time, CNC routers are more multifunctional and are often employed for woodworking and soft metal machining. Each type is tailored to a particular production purpose, reducing manufacturing costs and increasing productivity.

Comparing 3-axis vs. 5-axis CNC machines: Which is right for your needs?

Understanding the differences in the capabilities of the machines is critical to determining whether a 3-axis or 5-axis CNC machine best suits your production needs.

3-Axis CNC Machines

The 3-axis CNC Machines work along the linear axes of X, Y, and Z. They are ideal for basic shapes and simple components, such as grinding or drilling on flat surfaces. They are commonplace in woodworking, bare metal fabrication, and small-scale prototyping. Their primary benefits are affordability, ease of use, and the capability to work with simple designs. On the downside, 3-axis CNC machines face issues when working on complex geometries due to the absence of rotary movement.

Capabilities: These CNC Machines feature linear movement along the X, Y, and Z axes.

Best For: Easy components, flat surfaces, 2D and 2.5D machining are ideal.

Key Considerations:

Provides basic functionality at a low price.

It has lower maintenance and training costs compared to 5 Axis machines.

Complex designs from various perspectives are intricate to achieve.

5 Axis CNC Machines

A linear axis CNC Machine moves in the X, Y, and Z directions. A 5-axis CNC machine adds two additional rotary axes so that there are A and B moveable planes. This provides an operator with increased maneuverability, enabling precise machining of complex parts like turbine blades, medical implants, and aerospace components with fewer setups. As a result, a five-axis CNC machine increases production efficiency and accuracy by significantly reducing the need to reposition the machine during turbine blade manufacturing manually. For complex designs, more excellent cost investment alongside skilled operators is necessary.

Capabilities:

• A combination of church cutting and multi-axis turning
• Simultaneous movement along five axes (rotational A and B alongside linear X, Y, and Z).
• Access to areas that are hard to reach with other types of machinery while reducing the number of setups required.

Best for:

Aerospace and automotive industries, the medical field, and bulk production of precise geometries and intricate multi-sided shapes.

Key Considerations:

Improvement in product production efficiency while drastically reducing lead times comes with an upfront cost, as does the cost of cross-platform, high-precision software.

Technical Parameters Comparison:

Parameter	3-Axis CNC Machine	5-Axis CNC Machine
Number of Axes	3 (X, Y, Z)	5 (X, Y, Z, A, B)
Setup Requirements	Multiple setups for complex parts	Minimal setups, single-operation completion
Precision	Moderate	High (ideal for intricate parts)
Cost	Lower purchase and maintenance	Higher initial investment
Applications	Basic machining, prototyping	Aerospace, medical, automotive

Key Takeaway

If your project involves simple designs at lower costs, the 3-axis CNC machine is a logical choice. However, for industries requiring high precision and complex geometries, such as aerospace or medical device manufacturing, a 5-axis CNC machine provides unmatched efficiency and capability despite its higher cost and learning curve. Focus on your specific production needs and budget to make the best decision.

CNC routers vs. traditional CNC machines: Key differences and applications

Like any other machine tool, CNC routers have advantages and applications specific to their features and capabilities. The most notable distinctions between them are listed below:

1. Differing Use Case Designs:

CNC Routers: Standalone CNC routing tools and machines are mainly used by woodworkers and craftsmen who work with delicate materials. They excel at carving wood, making plastic signs, building cabinets and furniture, and working with composite materials.

Traditional CNC Machines: Unlike their counterparts, these machines are used for drilling or working on metals and are therefore highly sought after in the aerospace, automotive, and even medical precision machinery industries.

2. Depth of Cutting and Material Thickness:

CNC Routers: Commonly used for cutting or engraving softer materials, these machines have around 0.5 to 2 inches cutting ranges.

Traditional CNC Routers: As their name says, these machines are more brutal and designed to handle much larger nonbrittle materials with a volumetric depth greater than 8 inches.

3. Precision and Speed:

CNC Routers: These machines are more advanced than blades operated by a person. They excel in productivity because they possess more speed. However, they cannot guarantee higher precision cuts, with an average tolerance of around ±0.01 inches.

Traditional CNC Routers are the opposite of the previously mentioned routers. They outperform the others in the narrow tolerance range. However, they are meant for sophisticated, detailed, intricate parts.

4. Spindle Power and RPM

CNC Routers: These routers, designed for softer materials, have spindles with high RPMs (20,000 – 30,000), allowing for the economical removal of softer substances.

Traditional CNC Machines: Possess lower RPM spindles (5,000 – 15,000) with higher torque geared towards more rigid materials.

5. Machine Construction and Cost

CNC Routers: Economically priced compared to other models because of their lightweight and less expensive gantry-styled construction that is not rigid.

Traditional CNC Machines: Priced higher than their counterparts, these machines have robust construction, allowing for excellent durability.

6. Tooling Versatility

CNC Routers: Use less abrasive and flexible tools such as specialized end mills for wood or plastic.

Traditional CNC Machines are more versatile and employ tools such as carbide-coated and diamond-tipped ends to work with abrasive materials like steel, titanium, and aluminum.

The construction materials, sharpness of the cut, quantity, and money available influence your final choice. Each machine works best for particular manufacturing targets, and combining them produces the optimal output.

Grinding machines in CNC manufacturing: When and why to use them

Machines that cut and shape materials play an essential role in the CNC process of manufacturing equipment or parts that require excellent surface finishes or tight tolerances. Grinding is my go-to solution for finishing rigid materials like hardened steel, ceramics, or superalloys, which are more complex than merely appearing to be precision-turned or milled. Machines of this design can produce features with tolerances of as little as ±0.001 mm and surface roughness of upto Ra 0.1 µm, depending on the application. Grinding is particularly useful for accomplishing cylindrical or flat surfaces, gear finishing, and sharpening of cutting tools.

Important parameters include the key:

Grinding Wheel Speed: Depending on material and wheel type, it is 1,500 to 9,000 RPM.

Feed Rate: Usually between 0.01 to 0.1 mm/rev for excellent accuracy.

Material Hardness: Best suited for materials having a hardness of HRC 40 and above.

Coolant Usage: It is always essential to lower temperature and surface exposure.

With these effects in mind, I can streamline grinding operations for better performance and precision.

What are the essential components of a CNC machine system?

A CNC (Computer Numerical Control) machine system comprises several elements that achieve complexity and accuracy within a manufacturing process. Its main components include:

Controller – the “head” of the CNC machine, which interprets the programmed code and executes tasks, including guiding the machine’s movements.

Machine Tool – part of the system that performs the act of cutting, drilling, or shaping, for instance, lathe, mill, or grinder.

Motors and Drives – The powered servo and stepper motors control the movement with the precision of a multi-axis machine.

Spindle – The rotating part that holds and drives the cutting tools or the workpiece.

Worktable – A flat surface where the mounted workpiece is held during machining.

Input Devices—A component like a keyboard or USB device permits machine operators to transfer the machining program.

Feedback System – These encoders or sensors give real-time position and motion data to ensure accuracy.

Coolant System – keeping the temperature within the threshold and preventing overheating while the coolant cuts are performed.

Power Supply – This guarantees reliable power for all electronic and mechanical components of the CNC machine.

Most of these components are paramount in ensuring the efficiency and precision of the machine.

The role of numerical control in CNC machinery

Numerical control is vital in CNC machinery because it automates cutting, shaping, and other movement processes to achieve extreme precision and accuracy. In basic terms, numerical control revolves around executing commands that have been programmed and stored in the machine. These commands are entered into the machine’s systems using a code, most commonly known as G-code or M-code, that outlines the required movement of the machine relative to the X, Y, and Z axes, as well as the tool’s rotation, speed, and position.

Key Technical Parameters for Numerical Control:

Feed Rate (mm/min): The cutting tool’s speed with the workpiece. Typical limits for materials and operations are between 100 and 5000 mm/min.

Spindle Speed (RPM): The rate at which the spindle rotates. Commonly, it varies from 500-20,000 RPM depending on material type and required cuts.

Cutting Depth (mm): The distance the tool edges cut into the material with each pass. Typical parameters range from fine detail cuts of 0.1 mm to several millimeters for rough cuts.

Tolerance (±mm): Indicates deviation from the set dimensions, usually ±0.01 mm to ±0.05 mm for high precision tolerances.

Tool Path: The movement pattern of the cutting tool is preset and saved to allow for simple material removal in the shortest amount of time possible.

Using these parameters within modern CNC technology guarantees precision, minimal material wastage, and repeatable outcomes, making it an essential component in today’s manufacturing.

Understanding CNC machine tools and their functions

With the aid of computers, CNC (computer Numerical Control) machine tools are indeed advanced pieces of equipment that can fully automate operations for more precision and efficiency when dealing with various basic materials like metals, wood, and plastic. Their operations heavily depend on software-driven commands and customized mechanical parts that carry out specific machining exercises that require little human input. In the next section, there will be a succinct discussion about the broad boundaries of machine tools and their primary core functions intermeshed with relevant technical aspects.

Types of CNC machine tools and their functions:

CNC Milling Machines:

Function: These machines are ideal for carving out a slot, hole, pocket, or contour into an object. They utilize rotary cutters to capture and extract material from a specific workpiece fully. Their accuracy levels with complex shapes are unparalleled.

Technical Parameters:

Spindle Speed: 1000-30,000RPM, Cutting Feed Rate: (Varies by material and tool type) 100-1000 mm/min, Positioning accuracy (±): ±0.005 mm to ±0.03 mm

CNC Lathes:

Function: CNC lathes effortlessly extract and shape material by holding a workpiece at the center with fixed metal cutting tools. They focus on cylindrical and conical shapes, threading, and internal boring.

Technical Parameters:

Spindle speed range: 50 – 6000 RPM

Feeding speed: 0.001 to 60 mm per revolution on the X and Z axis

Workpiece diameter: is typically ≤ 500 mm

CNC Laser Cutter

Purpose: The machines utilize focused lasers to engrave or cut accurately. They are employed in the automotive, aerospace, and sign-making industries, to name a few.

Technical Parameters:

Laser Power Output: 500 to 6000 watts

Steel cutting thickness: from 0.5mm upto 25 mm

Positioning speed: up to 1500 mm/sec

CNC Routers

Purpose: The CNC Router’s primary function is to cut, shape, or engrave softer materials such as wood, foamed plastic, and even plastics.

Technical Parameters:

Spindle speed: 10,000 to 24000 RPM

Working Table Dimension: from 600 mm by 900 mm to over 2000 mm by 3000 mm

Cutting Accuracy: ±0.1 mm

CNC EDM

Purpose: Electrical discharge machining, or EDM, machines rely on electric movements, such as sparks, to remove materials. They are ideal for complex shapes made of hard-to-machine materials where precision is key. EDM machines are used mainly for molds and dies.

Technical Parameters:

Spark gap width: from ± 0.005 mm to 0.2 mm

Depth of cut per pulse: less than or equal to 0.05mm

Efficient electrode wear: 0.1 to 0.2 percent

Standard Components in CNC Machines:

Controller: The “brain” of the system, which interprets the G-code signals and dictates the steps the machine must follow.

Cutting Tools (like drills, end mills, or plasma nozzles): Set the finish quality and productivity.

Drive Systems (such as servo and stepper engines) Guarantee precision in motion along the Machine Axes (X, Y, Z).

Coolant System: Controls the temperature while machining to avert damage to the material or tool.

Such tools are exceptional in versatility and accuracy, making CNC machining a central feature of advanced manufacturing technologies.

Key software and hardware components in modern CNC systems

Modern CNC machines must integrate both hardware and software components to function optimally. CAD and CAM software are prerequisites. AutoCAD and Mastercam are used for design and toolpath generation. These programs, developed for CAD systems, ensure that the machines receive clear instructions through the G-code generated by CAM software.

On the other hand, the system’s brain is the CNC Controller, which decodes G-code and supervises the motion of the tool. Accurate cuts depend on the quality of the spindle motors, whose speed (RPM) and torque speak of the quality. Step or servo motors guarantee the accuracy of the movement of the machine parts. To increase accuracy and save energy, linear guides, and ball screws are employed. Encoders and advanced sensors partake in the regulation of the processes being executed with high automation. Achieving accuracy with such systems requires that all components work in synergy.

How can businesses effectively automate their CNC machining processes?

To streamline automation through CNC machining, integrating CAD/CAM systems ensures the correct software is available, along with advanced CNC software capable of parameterization and real-time tracking. Enhanced device connectivity made possible through IoT devices can aid in predictive maintenance and further enable the reduction of machine downtimes. Additionally, purchasing robotic arms to streamline material handling tasks also improves productivity. Regular staff training on automation technologies will maintain efficiency and high operational standards.

Implementing machine tending solutions for increased efficiency

For increased efficiency and effectiveness of machine tending solutions to be deployed, it is vital to consider the technical and operational needs. Concise details to be focused on and their corresponding parameters are provided below:

Automation Compatibility

Determine if there is a need to purchase new machinery or systems.

Key Parameter: User interfaces for machines (e.g., OPC-UA, Ethernet/IP)

Recommendation: Apply modular systems with integration capabilities.

Robotics Specifications

Assign robotic arms based on the tasks that must be performed, such as material unloading, loading, or sorting.

Key Parameter: Mass of Material Handled (e.g., 5 – 50kgs), distance (e.g., 500-2000mm), and Maneuverability of automation (±0.01mm).

Recommendation: Opt for motion control robots with safety capabilities.

Cycle Time Optimization

Improve production cycle times by reworking the workflow.

Key Parameter: Time taken to complete a cycle during every operation (e.g. 6-15 sec).

Recommendation: Employ time-saving automation systems to ensure minimum mid-task break times.

Safety Measures

Establish safety protocols and measures to prevent operators from being exposed to risks while ensuring the system functions appropriately.

Key Parameter: Adherence to safety regulations such as ISO 10218-1 or ANSI/RIA R15.06.

Recommendation: Provide protective screens and sensors and create emergency stop functions.

Maintenance Predictive Integration

Install IoT-based sensors for machine observation and call for maintenance activities.

Key Parameter: Acceptable value of the sensor error, e.g. (±1%), data transfer frequency, and analysis level.

Recommendation: Provide centralized monitoring control rooms to view live data.

Successful deployments of machine tending solutions require an optimal mix of new technology and operational flexibility to achieve benefits such as less downtime, more productivity, and better safety.

Leveraging today’s CNC protocols for seamless automation

Implementing modern protocols in CNC has made it easy to link automation into the system by “communicating” and making processes efficient within the manufacturing realm. The vast adoption of key protocols such as MTConnect, OPC UA, and EtherCAT is due to their usefulness in interoperability, scalability, and reliability. The explanation below highlights the usefulness of these protocols for automation:

MTConnect Protocol

Functionality: It offers an open-source method of standardizing data exchange, making it easier to collect information using a set process.

Key Parameters:

Transmission medium: Standardized XML/JSON formats.

Transmission rate: Up to 1Hz, or dependent on application.

Benefits:

Ability to pull real-time information for tracking and monitoring for fault diagnosis.

Lessened integration efforts are needed in multi-discipline systems.

OPC UA Protocol

Functionality: Allows communication between industrial machines and offers an independent platform approach.

Key Parameters:

Security: TLS encrypted and authenticated.

Data Accuracy: Up to 1 ms for non-redundant precision control units and other critical systems.

Benefits:

Increased security for sensitive operations.

Useful for critical operations that need a broader scope across the enterprise.

EtherCAT Protocol

Functionality: EtherCAT is a high-speed fieldbus system designed for use in Automation control systems with a high degree of accuracy and synchronization.

Key Parameters:

Controller Cycle Time: < 1 ms for time-critical tasks.

Network management ratio: over 90% for many installations with short delays.

Benefits:

Provision of non-bits deterministic data handling is essential for the smooth running of the CNC machines.

Ease of integration with the motion control systems for efficient functionality.

By melding these protocols together, the technology enables manufacturers to use data-driven insights while lowering integration costs and achieving perfect automation in every facet of the business. The selection of the relevant protocol should correspond to the systems’ needs, workload expectations, and desired results to achieve unrivaled efficiency in manufacturing processes.

Best practices for integrating automated CNC machines into existing workflows

To successfully integrate automated CNC machines into existing workflows, I concentrate on some specific best practices. To begin with, I evaluate the machine’s communication protocols, like EtherCAT or PROFINET, to ensure they are compatible with the existing control systems. Next, I train operators and technicians extensively so they appreciate the machine’s functioning and the provided safety measures. One more essential step is to realize advanced toolpath programming utilizing the sophisticated functionalities of CAM software, so it is done accurately and in a timely fashion. I also put in place modern systems for telemetry to monitor the productivity and malfunctioning of the machines in real time. Finally, ensuring proper documentation and scheduling of firmware/software makes it possible to meet new, challenging, evolving manufacturing requirements.

Case-Specific Parameters Extracted:

Protocol Support: Utilization of EtherCAT or PROFINET with guaranteed real-time data processing at a delay of less than 50ms.

Power Requirements: Check voltage specification compatibility with shop floor service supply (220V/380V).

Toolpath Precision: Programmable accuracy (tolerances) must be equal to or better than ±0.01mm for high-precision jobs.

Network Bandwidth: Unidirectional contact data transfer should not exceed 100 Mbps for best results.

Monitoring Solutions: IoT-based sensors for condition monitoring and failure prediction should be implemented.

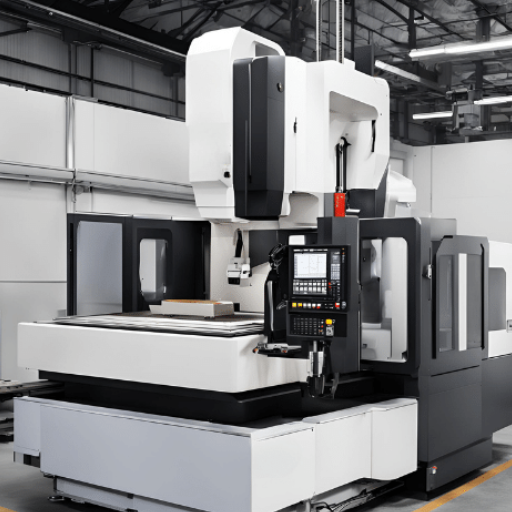

What factors should be considered when choosing the best CNC machine type for specific manufacturing needs?

The following elements need to be assessed with a specific manufacturing process in terms of the requisite CNC machine type to be most effective concerning the efficiency and quality of output:

Material Compatibility: Ensure that CNC machines can work with the raw materials of metals, plastics, and composites.

Production Volume: Know the set limits for Operations that need rapid prototyping, small batch production, or high-speed mass manufacturing.

Machine Type: Know what machines are explicitly needed, like milling machines, lathes, routers, or other hybrid matching systems.

Axis Configuration: Determine the needed axis configurations, such as 3-axis or even 5-axis, according to the required quality and level of detail of the results.

Budget Constraints: The amount of funding that can be allocated should be limited, considering the purchase price, running costs, and servicing costs.

Industry Standards: Meet the necessary conditions of certifications and standards of the particular industry of specialization.

Considering all these aspects will allow clients to be more hands-on with automation machine tools, ensuring the efficiency and quality of the product output and precise optimization of these complex machines.

Assessing production volume and complexity requirements

When analyzing different factors for production volume and complexity, it’s essential to follow a logical structure:

Production Volume Target

Look for flexible CNC applications like small 3-axis milling machines or desktop CNCs for prototyping or low-volume runs.

Industrial CNC systems are the only efficient way to achieve sustained operation for medium—to high-volume production, so multi-pallet machines should be chosen.

Spendable power (5-15kw for spindle power) and production cycle time are basic technical and convenience parameters.

Product Complexity

In the case of simple designs and 2D parts, most tasks are achievable with a 3-axis machine.

It is best to use hybrid or 5-axis CNC machines for complex geometries or multi-sided machining.

Technical Parameter Example The Axis range for flat machining is three axes, and five axes for round machining parts.

Workpiece size and material

The part dimensions must fit within the machine’s build volume to guarantee a suitable design.

Purchasing machines should match the type of material, such as steel, aluminum, or composites.

Technical Parameter Example: Compatibility of material type and bed size,610mmx400mm for smaller parts.

Surface finish and tolerance

For projects where great precision is necessary, accuracy of machining in the vicinity of 0.005mm is required.

Advanced control systems should be prioritized for tighter tolerances and superior surface finish.

Given Example of a Technical Parameter: Surface roughness Ra (measurements) 0.4to1.6 within position accuracy minus 0.003 to 0.01 mm.

Comprehending these requirements will facilitate the most effective matching of the CNC machine’s capabilities to the production needs.

Evaluating machine capabilities against your specific kind of work

Identifying the capabilities of CNC machines requires matching project objectives with machine capabilities. To assist you, here are the points to think about and their answers in brief:

Size and Material of Workpiece

CNC Machines of different sizes are available to serve different-sized workpieces. Check if the machine meets your project’s needs regarding build volume, part size, and material type.

Common Technical Specifications:

Build Volume/Bed Size: The bed size used for small jobs starts at 300×300 mm, while large-scale production exceeds 1000×800 mm.

Materials Used – Aluminum, Steel, Titanium, Composites, and Plastics.

The level of detail required and its surface treatment

Exact tasks require a superior surface finish, tight tolerances, and more advanced machines. Accuracy to micrometers is often necessary for specific aerospace or medical components.

Common Technical Specifications:

Tolerance Accuracy Range- ± 0.005 mm-±0.02 mm depending on machine class.

Surface Finish Range (Ra value)- Fine machining 0.2-1.6 µm.

Impact of Control System- High precision is often associated with machine-grade controllers such as FANUC or Siemens.

Machining Speed and Volume of Production

If the production volume is large, consider the machine efficiency regarding spindle speed, feed rates, and axis travel speed. Quality does not change while cycle time is less.

Common Technical Specifications:

Spindle Speed Range- General tasks, 10,000-24,000. Detail milling- up to 40,000.

The traverse rate for axis movement, at 30 to 60 meters per minute, is better suited for large-scale operations.

Software Integration and Customization

High-end CNC systems fully integrate with CAD and CAM software, allowing designed parts to be machined instantly. Check whether the system is compatible with your preferred tools and whether it receives periodic updates.

Specification Details:

Modern connectivity options for new workflows include USB, Ethernet, or cloud platforms.

Standard G-code is supported and directly integrates with SolidWorks, AutoCAD, and Mastercam.

Evaluating these parameters against your specific requirements enables you to select a CNC machine that precisely matches the appropriate level of efficiency and reliability, streamlining your machining processes.

Considering long-term scalability and adaptability in CNC equipment selection

During economic analysis, I strive to select CNC machines based on long-term scalability and adaptability, emphasizing sustaining production and technological advancements. I value modular designs for enhanced servo motors, spindle replacements, and software tools for future CAD/CAM advancements. Furthermore, I focus on flexible interfaces and IoT-based platforms that support smart manufacturing.

An example of such features is the modular design of components, such as the upgrade capability of spindles (e.g., high-speed spindles with up to 50,000 RPM) and the broader application range of linear guides.

Controller Expandability could be multi-axis machining (e.g., 5-axis or more) for complex projects.

The Processing Memory and Storage have a minimum of 1 GB controller memory, which can be expanded to store complex operations data.

Connectivity Options include Ethernet, USB, and cloud connections for intelligent manufacturing workflows.

Software compatibility includes support for generated industry standards like G-code and STEP and new and growing CAD/CAM software solutions like Fusion 360.

Adhering to these parameters guarantees the versatility of CNC machines for changing workloads and the future availability of advanced technologies.

References

Numerical control

Milling (machining)

Machining

Leading CNC Metal Machining Provider in China

Frequently Asked Questions (FAQ)

Q: What are the different types of CNC machines commonly used in manufacturing?

A: Many CNC machines are used in manufacturing, including CNC milling machines, CNC lathes, CNC routers, CNC plasma cutters, and CNC waterjet cutting machines. Each machine is designed for specific manufacturing needs and can be programmed to produce a wide range of complex parts and components.

Q: How does CNC automation benefit manufacturing processes?

A: CNC automation can help improve manufacturing processes’ efficiency, accuracy, and consistency. By using computer-controlled machines, manufacturers can reduce human error, increase production speed, and achieve higher precision in their output. Automation also allows for 24/7 operation, reducing labor costs and improving overall productivity in a machine shop.

Q: What are the main components of CNC machines?

A: The main components of CNC machines typically include the machine control unit (MCU), which interprets the programmed instructions; the machine table or work holding device; the cutting or shaping tools; and the motor-driven axes that control the movement of these tools. Additionally, most CNC machines have a feedback system to ensure accuracy and precision during operation.

Q: How does a CNC lathe machine work?

A: A CNC lathe machine, or a turning machine, rotates the workpiece while a cutting tool moves along its axis to remove material. The machine is programmed to control the rotation speed, the cutting tool’s movement, and the cut’s depth. CNC lathe machines are commonly used to produce cylindrical parts with high precision.

Q: What should I consider when choosing a CNC machine for my manufacturing needs?

A: When considering CNC machining for your manufacturing needs, consider the type of materials you’ll be working with, the complexity and size of the parts you need to produce, your production volume, and your budget. You should also consider the available space in your facility, the level of automation required, and the expertise of your CNC machinists.

Q: How can I automate my existing CNC machines?

A: To automate existing CNC machines, you can implement robotic arms for loading and unloading parts, install automatic tool changers, and integrate advanced software for scheduling and monitoring production. Implementing a centralized control system can also help streamline operations across multiple machines. It’s essential to assess your needs and consult with automation experts to determine the best approach for your CNC machine shop.

Q: What are the advantages of using a CNC router machine?

A: CNC router machines offer several advantages, including the ability to create intricate designs and patterns on various materials such as wood, plastic, and soft metals. They are versatile and can be used for 2D and 3D cutting, engraving, and carving. CNC routers also provide consistent quality and can operate for long periods without fatigue, making them ideal for small-scale and large production runs.

Q: How does a waterjet cutting machine differ from other CNC machines?

A: A waterjet cutting machine uses a high-pressure stream of water, often mixed with abrasive particles, to cut through materials. Unlike other CNC machines that use heat or mechanical force, waterjet cutting doesn’t create a heat-affected zone, making it ideal for cutting heat-sensitive materials. It can cut a wide range of materials, including metal, stone, glass, and composites, with high precision and minimal material waste.

Q: What skills does a CNC machinist need to operate different types of CNC machines?

A: A CNC machinist needs technical and practical skills to operate different machine types effectively. These include understanding G-code programming, proficiency in CAD/CAM software, knowledge of material properties, ability to read and interpret technical drawings, problem-solving skills, and attention to detail. Familiarity with different machine programming languages and the ability to set up and maintain various CNC machines are crucial skills for a versatile CNC machinist.

Q: How can I determine which CNC machine best suits my manufacturing needs?

A: To determine the best CNC machine for your manufacturing needs, start by analyzing the types of parts you need to produce, the materials you’ll be working with, and your production volume. Consider factors such as the required precision, the complexity of the parts, and the size of your workspace. It’s also helpful to consult with experienced CNC professionals or machine suppliers who can provide insights based on your specific requirements and help you choose the most suitable machine for your operation.
