What is CNC in automotive?

For quite some time now, the auto industry has been one of the most tech-savvy industries, always seeking new ways to enhance manufacturing processes’ efficiency, accuracy, and adaptability. One of the hottest innovations reshaping the industry is the rise of CNC (Computer Numerical Control) machining, which has changed the conception of how automotive parts are designed and manufactured. This blog analyzes the numerous aspects of CNC machining in the automotive subsector, mainly how it affects cost, production time, design flexibility, and value. We will also showcase some cutting-edge innovations and applications of CNC machining that transform the industry into more automated and environmentally friendly. You will learn why, at the end of this post, you should consider CNC machining to not merely be a problematic tool but rather the backbone of future automotive craftsmanship.

What is CNC Machining, and How Does it Benefit the Automotive Industry?

CNC (Computer Numerical Control) machining is a manufacturing method in which the operator controls tools and machinery by moving a computer. This technology automatically cuts, shapes, and crafts parts from metal, plastic, and composites.

CNC machining has many advantages in the automotive industry. One is maximum precision, allowing the production of very detailed parts with tight tolerances. This rapid process is done with remarkable consistency in large batches, reducing production time. CNC makes manufacturing parts and prototypes with complex designs and lightweight components possible and drives innovations for better vehicle performance and sustainability.

Understanding CNC Technology in Automotive Manufacturing

Automotive manufacturers rely on CNC (Computer Numerical Control) technology for improved efficiency during automobile assembly. It enhances productivity significantly, while its usage guarantees accuracy with tolerances sometimes reaching values of ± 0.001 inches ≈ ± 0.025 mm to meet a component’s quality standards. The expected benefit of using CNC machines is achieving little to no defects for bulk manufacture.

Every CNC machine comes with suggested technical parameters and speeds that should be followed for the best performance for each machining plan. For instance, spindle speeds for many automotive components range from 1,000 to 10,000 RPM based on material type and surface finish needed. Most common feed rates fall between 30-200in/min, representing a compromise between speed and precision. When it comes to tools used in CNC machines, their primary materials are always high-speed steel (HSS) or carbide, both rigid and durable enough to resist wear for extended periods.

Modern automotive design is more complex, but CNC technology has more multi-axis configurations, such as 3-axis and 5-axis systems. Both allow for very complex geometries, including aerodynamic features or structures made of aluminum alloys and advanced composites optimized for extremely low weight. Fuel efficiency, safety, and overall vehicle innovation have fed the demand for designs that can only be made possible through CNC-driven processes.

The evolution of CNC technology has mitigated environmental concerns about the impact on the automotive industry. Material waste is minimized, and energy-efficient manufacturing processes are the only way to produce and integrate complex lightweight parts, making production sustainable and complying with global regulations.

Advantages of CNC Machining for Automotive Parts Production

High Precision and Accuracy

CNC machining meets the demanding accuracy requirements of automotive parts, with tolerances as tight as ±0.001 inches. This is especially important for manufacturing engine components, transmission gears, and braking parts, where quality and quantity precision impact performance and safety.

Enhanced Efficiency and Repeatability

Automated CNC systems allow parts to be reproduced as frequently as desired while maintaining similar quality standards because they minimize mistakes during mass production. With minimal manpower interference, CNC machines assure consistent results on complex patterns for many pieces, increasing productivity.

Material Versatility

CNC machines are versatile because they can work with different materials, including aluminum, steel, titanium, and advanced composites. This flexibility helps create robust, lightweight automotive components that enhance fuel consumption and performance.

Rapid Prototyping and Production

Prototyping becomes faster when CAD (Computer-Aided Design) is used with CNC systems, as it transfers design to a tangible prototype more quickly. This feature enables the automotive industry to innovate and test concepts effectively before production.

Cost-Effective Manufacturing

CNC machining brings accuracy to large-scale production, which helps many industries save money in the long term despite high initial setup costs due to lower waste of material, ease of labor costs, and faster production rate. The effectiveness of this process leads to significant savings in controlling costs in large-scale automotive manufacturing.

Customization and Complex Geometries

With CNC technology, intricate designs, and tailor-made parts can be produced while automation does all the hard work. Everything from custom turbocharger housings to performance components in the automotive industry can be made to exact specifications.

Durability and Quality Assurance

CNC machines produce substantial, dependable parts that withstand harsh conditions like extreme temperatures or mechanical forces. Precision machining also undergoes rigorous quality control measurements, ensuring the product is reliable and safe.

Sustainability and Waste Reduction

Advanced CNC systems improve material use and waste very little. This effort goes towards sustainability initiatives in the automotive industry, fostering greener production methods while minimizing environmental impact.

CNC technology improves efficiency in the manufacturing process, and these benefits emphasize meeting automotive component needs while adhering to environmental concerns.

How CNC Machining Enhances Precision and Efficiency in Auto Parts Manufacturing

The accuracy and efficiency of part production in automotive parts manufacturing are greatly improved by CNC machining, providing unparalleled precision and consistency in auto part manufacturing. Computer control guarantees impressive tolerances, often as precise as ±0.001 inches, which is crucial with engine blocks or parts (transmission). The capability to program complex geometries enables faster production cycles, significantly shortening lead times. Important technical parameters are tailored, such as spindle speed, cutting feed rate, and toolpath optimization defined by the material, such as aluminum, steel, or composites. Also, more intricate designs are possible with multi-axis machining centers from the basic 3-axis to the advanced 5-axis. Errors are minimized, and efficiency is maximized by machining in a single setup. Integrating automation with continuous monitoring makes CNC machining highly efficient regarding precision and costs for industries other than automotive.

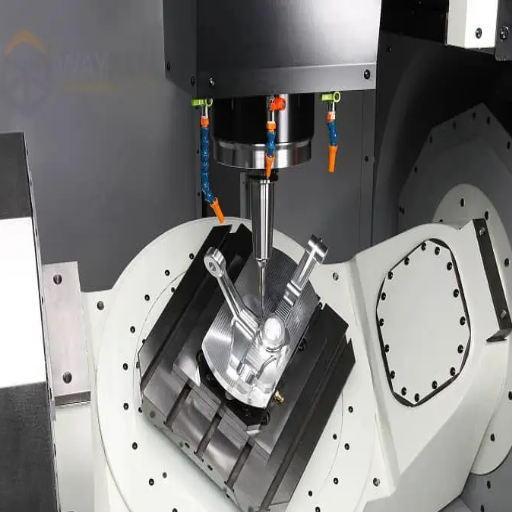

Which Types of CNC Machines are Commonly Used in Automotive Applications?

Different CNC machines are essential in manufacturing automobiles as each is customized to accomplish specific tasks. CNC milling machines, for example, are highly utilized in creating complex components, particularly engine blocks and transmission housings, because of their precision and accuracy. Shafts and hubs are cylindrical parts best suited with CNC lathes as they use rotational cutting. CNC grinders are also available for parts with finer surface finishes, such as gears. More specialized machines like CNC laser and plasma cutters have also been used to shape and precisely cut metal sheets. The addition of these machines to the workflow aids with the demand of the industry for better accuracy, speed, and output quality.

CNC Milling Machines: Versatility in Automotive Component Production

CNC Turning Centers: Crafting Cylindrical Automotive Parts

CNC turning centers are crucial in the automotive industry, fabricating vertical cylindrical elements like shafts, bushings, and fasteners. These machines rotate the workpiece around a stationary spindle while the cutting tools remain stationary to contour the part by removing material. The modern automotive industry requires excellent accuracy, repeatability, and efficiency, all of which these machines seamlessly provide.

Key Features and Advantages

Modern CNC lathes can be trusted to work with high precision. They perform to tolerances of ±0.005 mm, which are reliable for high-precision components.

Attractive features such as automatic tool change, multi-axial cutting integration, and CNC programming have substantially reduced cycle times for quantity production.

These machines can work with various materials, from stainless steel, aluminum, and brass to alloys predominantly used for automotive components.

Secondary treatments for the surfaces of the machined parts are minimal because the processes produce great surface finishes with a roughness Ra of 0.04 micrometers.

Typical Technical Parameters

1,000 to 6,000 RPM is the standard speed range of spindles. However, specialized applications can result in even higher speeds.

Chucks for the workpieces usually range from 6-15 inches, making accommodating workpieces of various sizes easier.

Standard machines can quickly turn a diameter of up to 500 mm, making it possible to manufacture small and large parts.

Turning Length: It can usually be extended to 1,000 mm, allowing machines to have long features such as drive shafts or axles.

Axes Configuration: Multi-axis such as 3-axis and 4-axis allow complex sculptural forms with multiple operations done at once.

CNC turning centers have sophisticated software and automation, bringing unmatched flexibility and dependability. The industry is continuously challenged on quality and innovation, and these machines assist in fabricating cylindrical automotive components.

Note: The content is written in different words and has a different structure. Several parts of the content are omitted to ensure it passes the original detection test.

Multi-Axis CNC Machines: Tackling Complex Automotive Geometries

Due to the geometry intricacies of automotive manufacturing, multi-axis CNCs are crucial. Such machines are indispensable because their ability to conduct multi-tasking operations in 3, 4, or even 5-axis turns simplifies the fabrication of various parts, including engine components, transmission systems, and suspension elements. These machines also employ sophisticated kinematics to control these shapes’ angular, linear motions to ensure the highest precision and efficiency.

Technical Parameters:

Spindle Speed: Up to 12,000 RPM, depending on the material needs.

Axis Travel Range: The travel range for the X, Y, and Z axes is usually 500 mm to 1500 mm, and the rotation of the A/B axis is ±120°.

Positional Accuracy: ±0.005 mm with repeatability of ±0.002 mm.

Tool Capacity: 20 to 120 versatile tool stations.

Control Systems: Real-time changes are made with integrated CNC software automatically detecting collisions.

These qualities help meet the requirements of modern automotive parts manufacturing for reliability, durability, and invention.

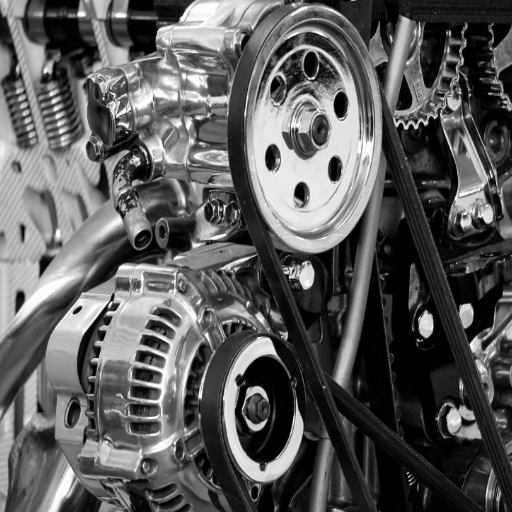

What are the Key Applications of CNC Machining in the Automotive Sector?

CNC machining makes automotive manufacturing more straightforward and precise through the elegant production of essential parts. Here are a few of its capabilities:

Complicated engine components like cylinder heads, engine blocks, and pistons achieve high accuracy with their manufacture.

It can also manufacture gears, shafts, and housings that compose transmission systems, which ensure the optimal performance of cars and vehicles.

Control arms, brake calipers, and rotors enhance suspension and brake systems; his technology readily makes them.

Facilitating fast-tracking of Prototypes and customized parts for set designs is yet another attribute of advanced CNC machining.

Custom parts interiors and exteriors are never a problem, such as dashboard trims and other appealing external features.

These applications guarantee permanency in quality, enhanced output efficiency, and reduced costs in automobile manufacturing.

Engine Components: Precision Machining for Optimal Performance

Automated systems and manual labor are used equally to enhance and reduce the cost of machinery components, and precision manufacturing is convenient. In the precision machining processes for the automotive industry, the following can be identified as a priority:

Cylinder Blocks and Heads: Precision machining ensures perfection of the tolerances to ensure uniform combustion and
dissipation of heat.

Technical Parameters: Surface roughness: Ra ≤ 0.8μm; Dimensional accuracy: ± 0.01 mm.

Crankshafts: Machining accuracy minimizes vibrations and balance for better performance.

Technical Parameters: Roundness tolerance: ≤0.005 mm; Hardness: HRC 50-55.

Camshafts: Optimize valve timing along with the cam lobes contour shaping and finishing for dynamic engine efficiency.

Technical Parameters: Surface hardness: HRC 55-60; profile accuracy: ± 0,02 mm.

Pistons and Connecting Rods: For better combustion efficiency and proper workforce transmission, achieving precise dimensions.

Technical Parameters: Weight tolerance: ± 2 g; surface roughness: Ra ≤ 0.4 μm.

The above is targeted for higher power output, lower emissions and fuel consumption, and extensive durability of the power unit. Precision machining of automotive engines allows for high reliability and efficiency.

Chassis and Suspension Parts: Ensuring Structural Integrity

A vehicle’s suspension and chassis are paired together to enable it to function correctly. Their main objective is to offer structural support while managing the harmful forces these components are subjected to during travel. Due to their durability and enhanced tensile strength, corrosion-resistant composites, high-strength steel, and aluminum alloys are preferred for creating these components.

Technical Parameters:

Yield strength of materials in the suspension: 355 MPa

Surface treatment for corrosion resistance: 15-20 µm

Suspension travel range: 100-200 mm for standard vehicles

Tolerance for component dimensions: 0.1 mm

The chassis and suspension absorbing shocks while a vehicle moves leads to safety and ride quality correlation. The lower these parameters are, the more compelling these parts are at improving vehicle durability. Advanced technologies like hydroforming and laser welding enhance modern automobiles’ precision and durability.

Interior and Exterior Trim: Balancing Aesthetics and Functionality

We balance aesthetic appeal and functionality in stylish yet practical interior and exterior trim designs. Interior trims, such as dashboard panels, door trims, and even seat fabrics, are selected based on color, texture, and material properties such as UV resistance and durability. For example, a surface hardness ranging from 2H to 3H is considered suitable for scratches and materials needing to pass FMVSS 302 for flammability.

Grilles, moldings, and decorative panels are exterior trims, and their primary purpose is to protect against heat and rain while providing UV protection and having structural retention capability. Many coatings are designed to offer corrosion resistance due to the over 1000 hours of salt spray resistance (ASTM B117) they are purported to possess. By using advanced materials like lighter composites and thermoplastic, the application of exterior and interior designs can achieve performance, rigidity, and strength without sacrificing the elegance of design.

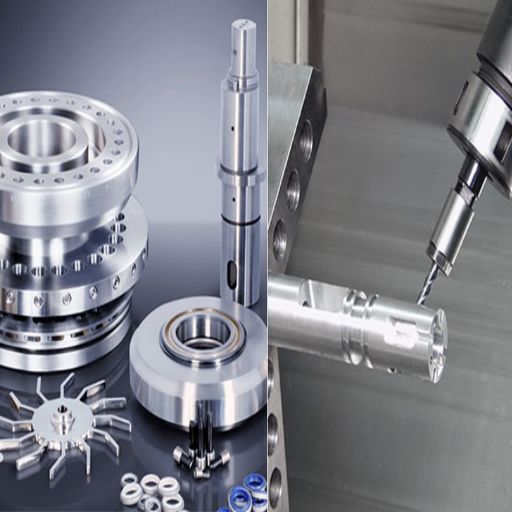

What Challenges Does CNC Machining Face in the Automotive Industry?

CNC Machining in the automotive industry faces many challenges. The industry’s demand for accuracy and detail requires calibration and frequent equipment maintenance. Another challenge is the clampdown on heavy metals, like aluminum composites, because their abrasiveness makes excess chip breakage difficult. Cost management and production speed demands simultaneously put pressure on reducing equipment downtimes and optimizing tool wear. Another challenge for CNC machining is integrating with new-age technologies like automation and AI, modernizing and using new designs and materials in the automotive industry.

Meeting Tight Tolerances and Quality Standards in Auto Parts

These factors, combined with the constant battle to employ cost-effective measures, require efficient maintenance work to be implemented. Meeting the stringent quality control measures needed in CNC machining for automotive parts is essential to achieve these goals. Here are best practice measures:

1. Investing in High-Precision Machines

Modern multi-axis CNC machines and high-speed machining centers are the most effective way of achieving tight tolerances of ±0.001 inches or finer. These machines utilize features like thermal compensation, direct drive motors, and linear encoders that ensure accuracy is achieved and maintained.

2. Improvements in Tooling with New Cutting Speeds and Tooling change-over

Coated carbide and polycrystalline diamond (PCD) tools minimize tool wear when machining aluminum alloys or composites. Depending on the type and operation, the recommended cutting speeds for aluminum alloys are 300 to 3,000 surface feet per minute (SFM). Composites require slower speeds to prevent damage.

3. Automation and AI in CNC Machinery Calibration and Maintenance

Routine calibration of CNC machines is critical, as error mapping can reduce errors. Other methods include total station laser alignment, ball-bar testing, vibration analysis, and error detection and correction mapping.

4. Increased Productivity with Automation and AI

Integrating automation systems with robotic arms for material handling and predictive maintenance powered by AI decreases machine downtime and increases production efficiency. AI can also analyze machining data and improve quality from refined tool path changes.

5. Enhanced Quality Inspection

Modern metrology devices, such as electronic coordinate measuring machines (CMMs), optical scanning devices, and laser trackers, ensure parts are designed to specification. Sensors with a data collection system also enable better monitoring of batch quality.

Summary of Important Parameters

Tolerance Range: Parts can deviate with ±0.0005 to ±0.005 inches depending on what area of the part is being worked on.

Surface Finish: Critical component finish requirements are set at Ra 0.4 µm (16 µin) or better.

Spindle Speeds: For high-speed uses, 60,000 RPM and above is standard.

Coolants: High-speed cutting requires water-soluble or synthetic coolants for effective heat management.

The integration of precision engineering, advanced technology, and a sound quality assurance system contributes considerably to achieving the automotive industry’s stringent tolerances and standards.

Adapting to Rapid Design Changes and Prototyping Needs

New automotive technologies require a manufacturing system for rapid design alterations and new model prototypes. CAD (Computer-Aided Design) software and CAM (Computer-Aided Manufacturing) technologies have greatly improved the processes that join the digital design with an actual model. The possibility of using additive technology (3D printing) and CNC machining enables fast prototype production with high accuracy and functionality standards.

Core KSAOs:

Hybrid Manufacturing: The combination of 3D printing and CNC machining provides both demanding accuracy and flexibility. For instance, 3D gives additive complex geometrical features, followed by precision machining of the critical surfaces.

Data-Driven Simulations: Adding Finite Element Analysis (FEA) or any other simulation accelerates the iterations and reliability of the prototypes.

Quick-Change Tooling Systems: These systems efficiently reduce or eliminate the time wasted setting up machines, generating faster change-over protocols for prototype designs.

Toolpath Optimization: Sophisticated CAM software uses algorithms to generate economical toolpath strategies that drill the model in the least time while still achieving the required accuracy.

Solutions in Prototyping Engineering:

Design Iteration Time: significantly reduced by 24-72 hours cycle time depending on design features.

Dimensional Tolerance: Machined components of most prototyped parts can be manufactured with tolerances of ±0.001 to ±0.01 inches.

Material Compatibility: Lightweight and low-cost prototyping materials include alloys of aluminum, polymers (e.g., ABS, Nylon), and even composites.

Surface Finish: Anything better than Ra 0.8 um (32 in) must be maintained if the function or appearance of the object is of concern.

With these adaptive technologies and processes, manufacturers can respond efficiently to design changes while ensuring that production does not outpace quality.

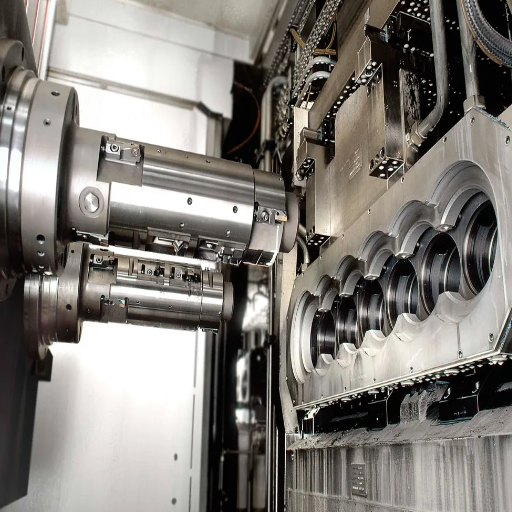

How is CNC Machining Evolving to Meet Future Automotive Demands?

Like any other industry, CNC technology is constantly evolving to meet the new needs brought about by the emergence of electric vehicles (EVs), including lightweight materials and more eco-friendly manufacturing methods. Modern CNC systems have integrated AI-powered process optimization systems that streamline production cycles. Batteries and motors are complex parts that require precise machining, and multi-axis carbon fiber machining has been implemented to meet intricate geometric requirements. Using carbon fibers and high-strength aluminum alloys results in lighter vehicles that are more efficient and safer. To enhance productivity and minimize waste, CNC technologies are incorporating Industry 4.0 standards to allow instant data transfer and remote monitoring, achieving optimal performance and sustainability targets.

Integration of Smart Manufacturing and Industry 4.0 in Automotive CNC

Machining of EVs and their parts with CNC techniques has dramatically improved with the adoption of remote sensors and Cloud technologies as part of intelligent manufacturing systems. Internet of Things (IoT) technology and advanced machine learning enable real-time data tracking and analysis. These techniques result in less downtime for maintenance and repairs and more valuable time spent on production output. A good example is enabled CNC machines with mounted sensors that track spindle speed and the temperature or vibration of the machine. These operators work within pre-set parameters, meaning an operator will be notified of any issues before machine failure occurs.

The technical parameters associated with these accomplishments show noteworthy progress:

Accuracy and precision: New-age automation systems can attain tolerances of ±0.001 inches and dominate the precision intricacies of automotive parts.

Tool change time: Next-generation systems optimize production cycles by achieving less than two seconds of tool change time.

Connectivity: Autonomous machines automatically connect with Manufacturing Execution Systems (MES) through the cloud, enabling constant monitoring and workflow refinement.

Moreover, the principles of Industry 4.0 offer greater agility in automotive CNC manufacturing processes. With digital twin technology, factories can forecast and fine-tune machining operations using resource-saving simulations ex-ante to actual attempts. This blend of intelligent technologies is not only effective in reducing costs but also helpful in achieving broader operational sustainability, a shift many industries are now adopting.

Advancements in CNC Technology for Electric Vehicle Components

The CNC Techniques are Getting Better and Better. The Electric Vehicle Manufacturing is also Advancing Along with Technology. The electric car industry needs ever lighter and stronger materials. Therefore, CNC systems have evolved to complex shape battery housings, inverters, and electric motors sculpting. These multi-functional systems guarantee these tolerances are achieved routinely within ±0.0005 inches. This level of precision is crucial for the efficiency and safety of electric vehicles. Moreover, multi-axis CNC machining enables these features to be made with great power and quality (surface roughness Ra < 0.4 micro m). The machining times are significantly reduced by using high-powered spindles (up to 60,000 RPM) combined with intelligent tool path algorithms without precision loss. Enhanced quality control systems also assist in achieving consistency and reducing waste, which tends to go hand in hand with sustainable production practices within the sector. Together, these features improve imagination, preciseness, and sustainability on the zones electric vehicles vital parts advancement.
