What is Peek Material for Machining? Unveiling the World of Peek Plastic Machining

Polyetheretherketone (PEEK) is changing the face of machining owing to its unprecedented mechanical capabilities, physical strength, toughness, and range of applications. Being a high-performance thermoplastic, PEEK is emerging as the preferred material in industries such as aerospace, medical, and automotive, as well as several others due to its excellent engineering properties and usefulness under extreme conditions. This paper analyzes the fabricating particulars of PEEK plastic with a focus on determining the particularities of this polymer in comparison to other engineering materials and the ways the polymer’s properties create possibilities and challenges in the manufacturing business. This article is also a detailed account of where and how to use PEEK as a tool, so if one is working to improve his/her processes, this article is for you too.

What are the Properties of Peek for Machining?

PEEK (Polyetheretherketone) is a high-performance thermoplastic that possesses all the requisite properties necessary for efficient machining. Its excellent dimensional stability ensures that changes in temperature and environmental conditions do not lead to an alteration in shape or size. PEEK’s great resistance to corrosive chemicals guarantees a durable and long-lasting thermoplastic in harsh conditions. The material supports robust but lightweight components and can endure continuous operating temperatures of up to 260 degrees Celsius. Its moisture absorption is low and wear resistance is high, allowing PEEK to function over a prolonged period of time without sign of deterioration or need for constant upkeep. Because of these properties, PEEK is widely used for precision machining in the aerospace, medical, and automotive industries.

Understanding Mechanical Properties of Peek

PEEK is widely used in high-performance applications due to its excellent mechanical properties. It has high tensile strength which makes it highly durable under heavy loads, and it has excellent stiffness which enables it to offer great structural support. The material has remarkably high impact resistance, crack resistance, and even fracture resistance under sudden forces. Moreover, PEEK sustains its mechanical properties across a wide temperature range enabling it to work efficiently in extreme environments. These traits make MEEK a preferred material for precision components in engineering and industrial applications.

The Role of Thermoplastic Nature in Peek Machining

The ability of PEEK (Polyether Ether Ketone) to be machined and its functionality are heavily reliant on the behavior of PEEK as a thermoplastic. As a thermoplastic polymer, PEEK becomes more viscous when heated and less viscous when cooled, making it easier for PEEK to be processed and manipulated by the manufacturers during the machining process. This feature permits some degree of precision and tight tolerance features which are vital for the aerospace, medical, and automotive industries.

The glass transition temperature of PEEK is in the range of approximately 143°C (289°F), and its melting point is around 343°C (649°F). These thermal properties serve the PEEK well in the machining operations where it is subjected to moderate heat placed by cutting tools due to the fact that they provide some stability to the PEEK polymer. In addition to this, the material has a low thermal expansion that aids in the final product being free of any dimensional inaccuracies. Further research found that PEEK surpasses approximately 85% of its tensile strength even during sustained high temperatures, qualifying it as suitable for high-stress applications in thermal stable environments.

On top of this, PEEK thermoplastic aids chip formation in cutting processes, thus minimizing tool wear and improving machining efficiency. This increases efficiency and lowers production costs and downtime in industrial environments. Rotary tools and cryogenic machining are some of the advanced machining processes that boost the machinability of PEEK but do not alter its mechanical properties. These processes can be integrated with the diy versatility of PEEK, and as a result, the great and predictable performance and manufacturability of complicated parts are achieved.

How Chemical Resistance Affects Peek Parts?

PEEK Parts display remarkable chemical resistance, which allows them to be utilized in aggressive settings. They can be in contact with various kinds of chemicals such as acids, bases, and organic solvents without getting physically damaged or chemically influenced. Such a characteristic strengthens their long-term faithfulness and operational dependability in areas like aerospace parts, medical tools, and even chemical industries. Nevertheless, one should know that PEEK material may not perform optimally in specific situations, especially with concentrated Sulfuric Acid or some Halogenated compounds. Thus The specific chemicals on site must be taken into consideration and carefully decided upon beforehand.

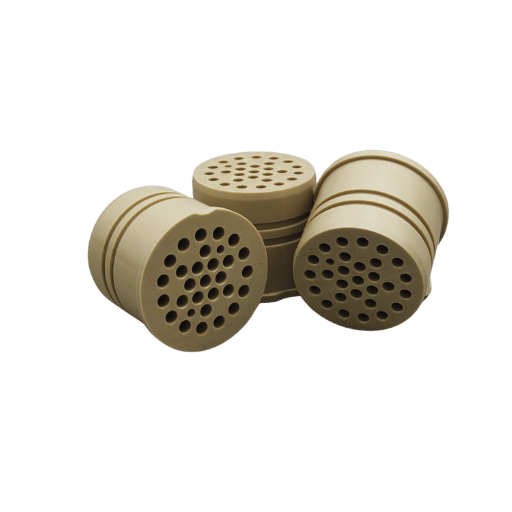

Why Choose Peek Material for CNC Machining?

Advantages of Peek CNC Machining

Thermal Stability at Elevated Temperature

• The melting temperature of PEEK is approximately 343 degrees Celsius while the continuous service temperature can go up to 260 degrees Celsius. Due to these qualities, it serves well in the aerospace and automotive industries where there are high-temperature environments. Furthermore, PEEK has amazing properties in thermal stability.

Greater Mechanical Strength

• PEEK has greater stiffness and tensile strength which are normally 90 to 100 Mpa. Furthermore, this allows PEEK to be used in structural developments where severe stresses and strains are applied. PEEK is also incredibly light making it easier to replace metals in projects where lowering weight is the most important aspect.

Resistant to Chemicals

• The performance of PEEK is not affected by strong chemicals such as acid solvents and organic solvents therefore PEEK can be used in medical sterilization and chemical processing plants. All of these traits make it remarkably durable in harsh surroundings.

Resistance to Wear

• When the materials of PEEK are used for gears, seals, and bearings, its low coefficient of friction alongside minimal wear makes it perfect to be used in dynamic and moving applications. These qualities make the material durable whilst maintaining the integrity of the surface.

Low Creep Compliance

• PEEK is perfect for CNC machining tools and other dimensions that have to be precise because it has low thermal expansion coefficients. This means that when the temperature fluctuates, the tolerances remain preserved.

High Radiation Resistance

• Thermal stability and high radiation resistance make PEEK more suitable for the medical and aerospace fields where gamma and X-rays are prevalent. PEEK can endure high levels of radiation such as gamma and X-rays without significant harm.

Biocompatibility

• Compositionally, PEEK is biocompatible which is why it is the perfect material for medical purposes. It satisfies the Oso 10993 and USP Class VI standards with ease.

Flame Retardant Properties

• Safety in essential applications is guaranteed because of PEEK’s flame resistance and UL94 V-0 means it lacks the need for extra flame retarder supplements to self-extinguish.

Ease of Machining

• The precision and efficiency present with PEEK allow for CNC machining processes to be exceptionally intricate. To ensure performance, PEEK tools need to be aligned and cutting techniques need to be optimized so surfaces can be produced with high accuracy.

Longevity in Performance

• Little replacements are needed for extreme environments of temperature, pressure, or component stress means performance is outstanding in PEEK tools and lower maintenance costs are achieved.

Cup PEEK with its unique properties edges other tools making it a choice for many industries such as aerospace, medical, automotive, and industrial manufacturing.

Applications of Peek Machined Parts in Various Industries

• Aerospace: Extreme working conditions as well as high temperatures make PEEK turned components helpful in bushings, seals, and other insulation parts.
• Medical: Implants and surgical instruments are devices frequently made using PEEK due to their biocompatibility with human tissues which is easily sterilized.
• Automotive: High temperatures and stress in engines, brakes, and transmission components make PEEK parts a better choice due to their performance and endurance.
• Industrial Manufacturing: PEEK is selected for precise parts where there is a high exposure to chemicals, strength, and terms of reliability.

Limits and Challenges in Peek Machining

Nevertheless, the adoption of PEEK (polyetheretherketone) is not limited to a specific field and poses its own challenges and drawbacks in machining.  First, its melting point is quite high, about 343°C (649°F), which results in the need for specific tooling and effective heat management in the machining procedure. Inadequate heat management can result in part deformation, inaccuracies in dimensions, or even an entire component failing.

Furthermore, the toughness and abrasiveness of PEEK are subject to high demands on cutting tools and, in particular, standard tool materials. To get better performance and tool longevity, high-performance tools with polycrystalline diamond (PCD) or carbide are often needed. This can increase production costs and requires careful thought for budget control.

Achieving tight tolerances in more complex geometries is also a challenge. In the case of PEEK, it is likely to deform or change shape because of the internal stress it retains after machining. This leads to issues in shrinkage and warping of the piece after it is produced, making quality control particularly troublesome. The quality of the final surface finish is highly sensitive to the machining parameters, cutting speed, and the method of chip removal.

These concerns stem from thermal degradation. PEEK material begins to erode at a high temperature of over 450 degrees Celsius, which liberates harmful gases that are dangerous to breathe, thus making it essential to use inhalation masks and PPE, along with effective exhaulers as suitable ventilation and worker safety precautions are critical in this scenario.

To conclude, there are some major disadvantages such as the raw material expenses being extremely high in comparison to the remaining thermoplastics along with the fact that machining may not be appropriate for a number of applications. Finding a solution that fits the limitations while making the most of the materials ‘outstanding’ characteristic bonds is the key for achieving optimal performance on various projects.

How to Achieve Precise Peek Machining?

The Importance of Tight Tolerances and Dimensional Stability

Broadening dimensional tolerances and accepting high variability in PEEK machining is not acceptable, as it can adversely impact the performance of the parts in highly demanding applications. In the case of PEEK components, very little can be tolerated – they are used in extremely sensitive and destructive places; for instance, aerospace parts, medical components, or electronic devices. Tightened tolerances are often accepted in practice because they tend to increase the reliability of the device and minimize the chances of assembly problems. The maintenance of a definite form with respect to the variations in the environment, such as temperature or mechanical stress, is commonly referred to as dimensional stability. It is possible for manufacturers to produce reliable products that satisfy criteria established by various industries if these basic ideas are adhered to.

Choosing the Right Cutting Tools for Peek Components

In the process of machining PEEK (polyether ether ketone) components, the selection of correct cutting tools has a significant impact on the precision and finish of the workpiece. Tools possessing certain characteristics, high heat resistance and mechanical withstand for instance, are a must because PEEK has specific requirements.

Tool Material Selection

Carbide-cutting tools are the most frequently employed for the PEEK machining process as they are extremely strong and resistant to wear. To further their lifespan and ensure premium surface quality, the tools can be diamond-coated too. High-speed steel (HSS) can also be used for easier tasks but is not the most efficient tool for mass production as it is more prone to wear and tear.

Tool Geometry

To maintain sufficient dimensional accuracy and limit heat buildup, proper geometry of the tool is a necessity. The edges of the tools used for PEEK must be sharp, with a high positive rake angle in order to cut forces and material deformation. Further, the tools’ flutes should also be polished to advance chip evacuation and eliminate overheating and damaging the workpiece.

Cutting Parameters

Deep diving in the cutting speeds as well as the feed and depth of cut becomes paramount to slow down the quality changes and tool deterioration. Moderate cutting speeds (150-400 m/min) with low feed rates (0.1-0.3 mm/rev) is preferable when machining PEEK. The application of coolant to the tool while machining helps remove the heat build-up and improve the thermal conditions of the material, thereby mitigating the thermal deterioration of the material.

Surface Finish and Tolerances

Maintaining tolerances and surface finishes is one of the biggest goals of industries that process PEEK parts like aerospace, medical as well as electronics. In order to satisfy these tolerances and roughness values, a process of fine-tuning the regular machining parameters with the aid of specialized tools is needed. Like for instance, micro milling or grinding techniques can be used to control the surface roughness to below Ra 0.8 µm.

Data-Driven Selection and Process Control

Studies have found that diamond-coated tools do more than double the life span of the tool in comparison to the uncoated carbide ones in the process of machining high-performance materials like PEEK. Moreover, further monitoring systems provide real-time data on the process for stability control, which helps improve accuracy, decrease errors, and ultimately enhance productivity during manufacturing processes.

The combination of correct cutting tools alongside optimized machining parameters and advanced surface treatment technology allows manufacturers to reliably create PEEK components with desired characteristics and applications such as stress resistance.

Best Practices for Annealing to Reduce Internal Stresses

Tempering is among the most important steps required to make high-performance materials such as PEEK by relieving internal stresses and ensuring dimensional stability. Or else improper annealing can lead to residual stress which could lead to warping, cracking, or complete failure in the worst-case scenario. Below are the recommendations for annealing PEEK components with detailed steps and data provided for the same:

Gradual Heating

• Thermal Shock should be avoided, so the material should be heated to a range of between 2 degrees to 5 degrees Celsius per minute.
• Soak temperature should be 200 degrees to 250 degrees Celsius based on the grade and geometry of the PEEK material.

Maintain Optimal Annealing Temperature

• The material should be kept for a duration that the thickness of the material corresponds to it. The general rule is to anneal 1 hour for every 3mm thick material in order to allow heat to penetrate evenly.

Controlled Cooling Process

• This process requires gradual cooling of the material by 2 degrees to 5 degrees per minute until room temperature is reached.
• Quenching, for example, is not recommended due to the stress caused internally.

Prevent Overheating

• Mechanical and thermal characteristics of a material can be affected when glass transition temperature or melting point is reached for PEEK which is between 143 degrees to 150 degrees and 343 respectively, so those should be avoided.
• Maintain equilibrium during the annealing process by employing appropriate thermal equipment.

Monitor Equipment and Environment

• To reduce contamination, it is best to perform annealing in a clean-controlled environment.
• Ensure that all the ovens or furnaces employed are appropriately calibrated before initiating the operation to reduce temperature discrepancies.

Yardstick Parameters Validation

• Real-time monitoring systems are established to check in–process parameters related to the cycling of annealing components. Use sensors throughout the component to verify the temperature uniformity.
• Record the parameters planned for the process and the outcome at the quality control to enhance consistency.

As a result, by adhering to these optimum practices, the internal strains of PEEK components can efficiently be cut down, leading to enhanced structural resilience.

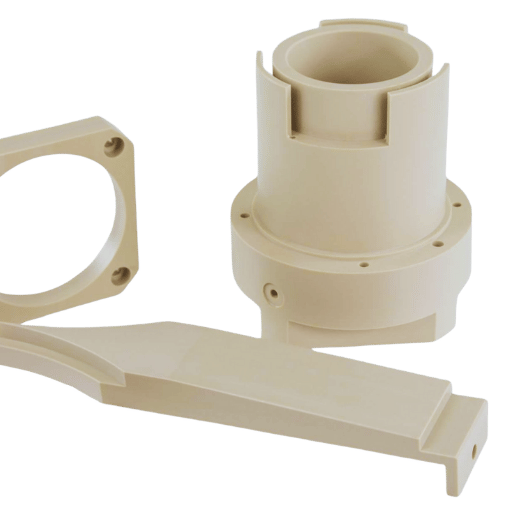

What Are Common Applications of Peek Components?

The Use of Peek Material in the Automotive Industry

The use of PEEK material is very common in the automotive sector, as it boasts a favorable strength-to-weight ratio, durability to wear, and reliability under heat. It is often used for high-performance applications like seals, bushings, and bearings. Furthermore, its resistance to harsh chemicals makes PEEK appropriate for parts that are in, contact with fuel oils, etc. These factors ensure that parts are reliable in tough conditions and last long. Its lightweight nature contributes to reducing overall vehicle weight as well, aiding in fuel economy.

The Role of Peek Machined Parts in Aerospace

PEEK (polyetheretherketone) components are crucial to the aerospace industry because of their incredible mechanical engineering and all-purpose use. Aerospace industries use materials that must put up with extreme conditions, for instance, high temperatures, severe mechanical load, and aggressive chemicals. PEEK’s unique characteristics do performative engineering, such as thermal stability with a high melting point numbering 343 degrees Celsius (649 fortnight), and wear and fatigue bestow PEEK’s attributes to their functionality.

One of the main areas where PEEK is employed in aerospace is structural components and fasteners. Their light wright, about 70% lighter than steel, makes possible significant weight cuts for PEEK-based airplanes, which have shown improvement in fuel economy and low operating expenses. Moreover, PEEK not only resists radiation, but with low outgassing PEEK is perfect for sensitive systems used in outer space operations where contamination should be kept at the bare minimum.

Due to modern innovations, PEEK carbon-fiber composites have become widely accepted in the aerospace industry since it is stronger and still retain PEEK benefits. For instance, PEEK compounds are currently being used for chair frames, brackets, and cable insulation, which improves performance and meets the stringent FST standards set by the industry.

In addition, the aerospace industry across the globe is looking for eco-friendly and recyclable materials. The ability of PEEK to retain its mechanical characteristics after undergoing several recycling cycles is impressive. This makes it appealing to manufacturers that want to lower waste and carbon footprints. This is indeed congruent with modern objectives in aviation which is to make the practice safer, more reliable, and at the same time, more green practiced.

Being PEEK, its mechanical strength, chemical resistance, and environmental broad-spectrum adaptability make PEEK an important material, not only in modern but also in older areas of the world space industry.

How Medical-Grade Peek is Revolutionizing Medical Implants?

The breakthroughs in medical implants can be attributed to the unique properties of medical-grade PEEK (polyether ether ketone) that include; biocompatibility which promotes integration into the human body, durability which increases its life span, and radiolucency which allows post-operative imagery for check-ups without additional insertion of metals. Unlike common implant materials metal, PEEK has the closest resemblance to the mechanical structure of human bones, making it easier for the implants to merge into tissues. This also reduces the chances of stress shielding. PEEK has proven to be an ideal material for long-term implants like joints and spinal cages due to its resistance to wear and chemical degradation. It is evident that PEEK will continue to play a pivotal role in the progression of safe and effective medical implants.

Where to Find Machining Services for Peek Projects?

Contact Us for Expert Machining Services

Our company performs precision machining of PEEK and other performance polymers to exacting standards. Using advanced technology, a highly qualified staff, and the undertaking of rigorous quality control, we guarantee the best results irrespective of project difficulty. Get in touch with us today and let us know what you need so that we can provide solutions that fit your specifications.

Exploring the Expertise in Precision Machining of Polyether Ether Ketone

PEEK, or Polyether Ether Ketone, is an industrial thermoplastic with outstanding mechanical characteristics such as high strength, stability at temperatures reaching 260 degrees, and remarkable chemical durability. Because of this, it is commonly used in the aerospace, medical, and electronics industries which favor its use. Working with PEEK thermoplastic spans from high performance to strength PEEK is the most appropriate material. Nonetheless, due to the chemical composition of PEEK, it can be quite arduous to precisely machine due to the all-encompassing alterations that it can endure due to stress approaches.

The modern use of precision machining greatly divulges the use of CNC machining, laser cutting, and other types of computer-aided tools such as turning in order to achieve the desired PEEK component intricacy. In order to achieve optimal surface finishes without fractures and thermal surface degradation, key features such as surface tool material, cutting speed, and feed rates are carefully controlled. For example, diamond-coated tools are most commonly used and recommended due to their strength and nonpliable nature.

Research and case studies indicate that optimum methods have enabled machine settings that achieve a tolerance of + – 0. 03 mm with surface rough Ra values varying from 0.4 to 1.6 micrometers. Other industries require more advanced rough upper ends stronger than 1.6 micrometers. Such testing would have to demand more sustainable solutions, which dry machining and nonreactive water-soluble coolants offer without the risk of chemical contamination.

When dealing with machining service providers specializing in high-performance polymers such as PEEK, you are guaranteed compliance with quality and industry standards like ISO 13485 and AS9100. As great strides have been made in machining methods and with the extensive knowledge of the properties of PEEK, manufacturers comfortable working with the material have no limitations to the products they can deliver.

Frequently Asked Questions (FAQs)

Q: What is PEEK plastic, and what are its key properties?

A: PEEK (polyether ether ketone) is a type of thermoplastic polymer noted for its exceptional performance and its overall good strength. PEEK plastic has a high resistance to heat, and chemicals, and has a high strength-to-weight ratio, making it a suitable material for myriad industries. For its strength and versatility, PEEK is used in numerous industries.

Q: What are the advantages of machining of PEEK plastic?

A: Some of the advantages of machining PEEK include outstanding dimensional stability, a low rate of wear and tear, and the ability of PEEK to retain its properties at higher temperatures. Because PEEK can be machined into complex forms with high tolerances, it is very useful for creating intricate parts made of plastic. PEEK also has good electrical insulation and good resistance to radiation.

Q: What are the limitations of PEEK in CNC machining?

A: While PEEK is a very useful plastic material that can be machined, it does have certain limitations. To begin with, PEEK is not a good material for the dissipation of heat. When machining takes place, thermal expansion happens which will damage precision. Furthermore, PEEK is far more costly than most other types of plastics. Lastly, optimal results require specific machining of PEEK and therefore involve a particular degree of knowledge and experience.

Q: What is the machinability of PEEK in relation to plastic materials?

A: Due to its high strength and stability characteristics, PEEK is regarded as one of the finest thermoplastic materials for machining. In comparison to other types of plastics, it excels in temperature and mechanical property tolerances. Nevertheless, PEEK is more difficult to machine than Nylon, Polystyrene, or Acetal plastics.

Q: Is it possible to add other materials to PEEK to improve its capabilities?

A: PEEK can be modified with carbon fiber or glass for reinforcement like all other thermoplastics. Carbon fiber PEEK exhibits higher strength and stiffness than unmodified PEEK, whereas the glass sliver-filled grades of PEEK are more dimensionally stable and resistant to wear. These modifications increase the functionality of PEEK in numerous industries.

Q: Which industries use machined parts made of PEEK material?

A: Aerospace, automotive, medical, and industrial are some of the markets that would utilize machined PEEK parts. Components that require high strength, chemical, and temperature-resistant materials include bearings, seals, insulators, and other structural components subjected to extreme environments.

Q: What is the difference between PEEK injection molding and PEEK machining?

A: PEEK injection molding is preferred for mass production whereas PEEK machining is better suited for lower volume or more intricate designs. Unlike PEEK making where expensive molds are a must, machining allows for more design variation and alterations. It also leads to more material being wasted which is why PEEK making is favored. Selection of the process is based on the volume of production, the complexity of the part, and the final cost.

Q: What do you need to bear in mind when picking a CNC machining provider for PEEK?

A: For selecting a CNC machining service, examine how they deal with minor & intricate PEEK plastic components. Check if they offer tailored machining gears and work in an air-controlled environment because not all PEEK require the same level of service. They should be able to classify which materials require stress control in the machining process and faster ways to measure the accuracy of the end components.

Reference Sources

1.”Comparison on Mechanical, Thermal, and Fracture Properties of 3D Printed and Extruded Poly(ether ether ketone)s under Room and Cryogenic Conditions”

• Authors: Leena Karthikeyan et al.
• Publication Date: 25th September 2020
• Journal: Journal of Elastomers & Plastics
• Key Findings:
• The article is a comparison between the mechanical and thermal characteristics of PEEK when processed by extrusion or 3D printing at room temperature or cryogenic temperatures.
• PEEK materials formed through extrusion processes had greater mechanical properties than the materials made by 3D printing method during both testing temperatures.
• There was a noticeable increase in ductility of the 3D printed samples at room temperature through better elongation rates.
• The work sheds light on the interdependence between the processing methods used and the environment and how they determine the properties of PEEK(Karthikeyan et al., 2020, pp. 672–683).

2.” Using Artificial Neural Networks and Adaptive-Neural Fuzzy Inference Systems For Estimation of Cutting Forces for PEEK Composites Machining”

• Authors: Gökçe Özden et al.
• Publication Date: 28th April 2021
• Journal: To Be Announced
• Key Findings:
• In this study, the authors combine ANN and ANFIS methods in order to estimate cutting forces that arise during turning of PEEK composites.
• Among the components studied, Cutting speed, rate of feeds, and kind of material are called as primary forces that affect the cutting forces.
• The models showed great prediction accuracy which means that they can be applied in the optimization of machining processes of PEEK (Özden et al., 2021, pp. 493–509).

3. “The neutron shielding performance boron carbide PEEK composites manufactured by 3D printing”

• Authors: Yin Wu et al.
• Date of Publication: 2020-05-01
• Journal: Materials
• Key Findings:
• The article tackles the question regarding the neutron shielding ability of 3D-printed boron carbide-reinforced PEEK composites.
• As the research suggests, the incorporation of boron carbide appreciably increases the effective neutron shielding performance of the composites with the PEEK matrix.
• The composite strength and thermal resistance equal to 52.10 MPa and 550 °C have also been reported (Wu et al., 2020).

4. “Study of the Effects of Heating Treatments on The Mechanical And Physical Attributes of 3D Printed Thin PEEK Structures”

• Authors: Han Qu et al.
• Publication Date: 2022-05-09
• Descriptor: International Journal of Precision Engineering and Manufacturing
• Key Findings:
• This paper investigates the relations between the different thermal processing conditions during a PEEK 3D printing process and its mechanical properties.
• Thermal conditions should be carefully optimized to ensure satisfactory mechanical attributes of PEEK for more rigorous uses, and these results can greatly improve the efficiency of PEEK (Qu et al., 2022, pp. 689-699).

5. “Modification Of The Dimensions Of The Cutter To Reduce The Cutting Force During Therefore The PEKEK Engineering Thermoplastic Machining Process”

• Authors: R. Izamshah et al.
• Publication Date: 2015-05-01
• Descriptor: Applied Mechanics and Materials
• Key Findings:
• This research attempts to minimize the cutting force due to the geometry of the cutter tools used during the machining of PEEK material.
• Research provides the values of optimal rake, clearance, and helix angles that should be used when machining to reduce cutting forces and increase the value of machining (Izamshah et al., 2015, pp. 282-286).
