Understanding the Key Difference Between CNC Milling and Cutting Machines

The precision manufacturing industry has been revolutionized by CNC (Computer Numerical Control) machines, which offer unprecedented accuracy and efficiency with special emphasis on the complexities of CNC turning. Nevertheless, suppose you are a beginner with CNC technologies. In that case, it is important to know that these two machines include distinct concepts since they help avoid confusion related to CNC milling and cutting machines. This blog post aims to eliminate the mystery of key differences between two frequently used machines to illuminate their respective functionalities, uses, and benefits. This knowledge will help professionals who have worked in the manufacturing field for a long time, and newbies decide which tools suit them well, depending on their production needs.

CNC Milling and Its Functions

Components of a Milling Machine Explained

Several major parts are integrated into a milling machine to do accurate machining. Most significantly, the spindle is an important component that rotates the cutting tool at varying speeds to cater to different materials and produce desired results. The worktable positions the workpiece and can be adjusted in various directions, making intricate cuts possible. Also, this device has a control panel that regulates its functioning to ensure accuracy and repeatability during operation. Other important ones include cutting tools, which are responsible for physically removing material from the workpiece, and coolant systems designed to prevent overheating during operations. In conclusion, these parts form a versatile tool that can be applied in manufacturing processes across many industries.

How Does a CNC Mill Differ from Traditional Milling?

CNC mills differ from traditional milling machines mainly in their extent of automation and accuracy. Unlike traditional millers, which are manually controlled, CNC mills make use of computer numerical control for automation, resulting in improved precision and repeatability. This enables CNC mills to create intricate shapes and patterns with less manual involvement. Moreover, unlike other technologies that need to be stopped intermittently, they can run nonstop, improving efficiency and reducing production cycle times, as with CNC turning operations. These disparities make them more appropriate for large-scale manufacturing processes that require high precision.

The Part Played By CNC Milling

In milling, computer numerical control (CNC) is the best in accuracy and repeatability, allowing manufacturers to develop complex and consistent parts. The automation process avoids the risk of errors from human beings, thus making it possible to reproduce designs with a high level of precision over multiple cycles. Additionally, CNC milling machines do not require manual adjustments, allowing for faster production times because they can run continuously. Lastly, its adaptability is valuable in creating parts bearing difficult geometries that cannot be achieved through conventional machining techniques, especially when utilizing a special milling cutter. These characteristics have made CNC Miller an indispensable device in contemporary manufacturing settings.

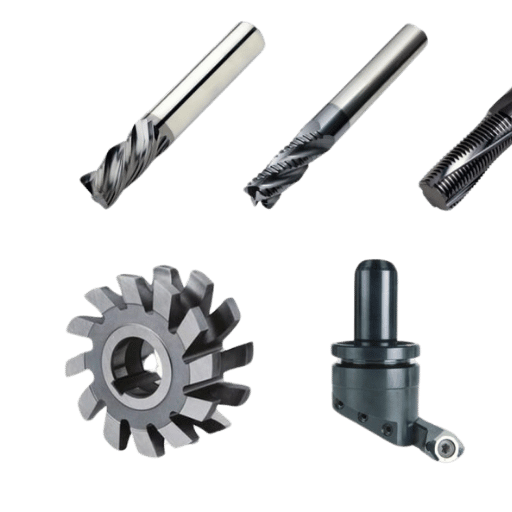

Varieties of CNC machines: Milling vs. Cutting

Understanding the Differences Between CNC Milling and CNC Cutting

CNC milling and cutting are different manufacturing processes, with turning being another option for cylindrical work. In the process of milling, material is taken away from the workpiece by revolving cutting tools to shape it into a desired form. This is useful when creating intricate patterns or complex geometries like 3D shapes. On the other hand, CNC cutting refers to laser cutting, plasma cutting, or waterjet cutting techniques that carefully slice through materials. The technique used during milling results in the gradual removal of material in layers; on the contrary, while using CNC cutters, we focus on accurately separating parts of the material. Both these methodologies provide complementary paths to manufacturing where milling delivers detailed part creation while cutting ensures rapid and precise separation of materials.

What Machines Utilize CNC for Cutting Operations?

Several specialized machines are used to perform CNC cutting operations, and they depend on the material being cut as well as the precision required:

1. Laser Cutters: A focused laser beam cuts accurately through metal, plastic, or wood.
2. Plasma Cutters: They use ionized gas to slice through electrically conductive materials such as steel and aluminum.
3. Waterjet Cutters: These machines cut various materials, including composites and ceramics, using high-pressure water jets, sometimes mixed with abrasive particles.
4. CNC Routers: They are designed for cutting softer materials like wood, foam, and certain types of plastics

Each type of machine is developed specifically for particular uses in different industries, thus ensuring accuracy and efficiency while cutting.

How Does a CNC Router Work?

A CNC router follows programmed instructions to cut and shape materials precisely. The machine uses a rotating cutting tool guided by computer-controlled movements along three axes (X, Y, and Z) to carve, engrave, or mill the material based on a pre-designed CAD model. The process begins with loading the design file into the CNC software, which generates instructions for the router. Once started, the CNC router automates the cutting process, ensuring consistent and accurate results across various workpieces. This method produces complex shapes and patterns with minimal material waste.

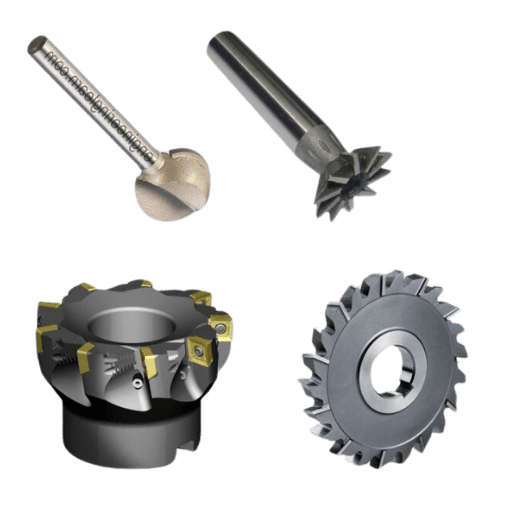

CNC Turning vs. Milling: What’s the Difference?

The Key Differences Between CNC Turning and Milling

CNC turning and milling are two subtractive manufacturing methods that differ in operations and functions.

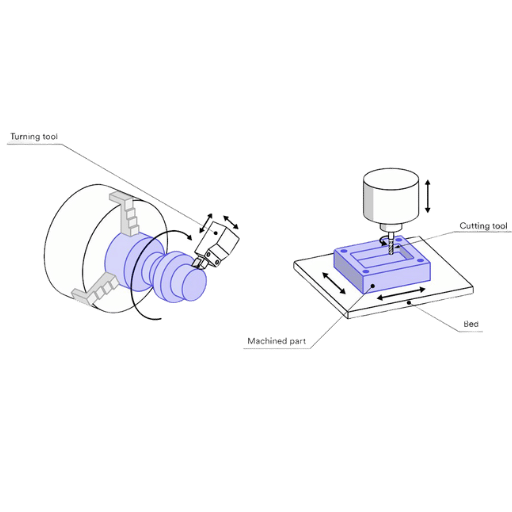

• The Process: In CNC milling, the material is removed from a stationary workpiece using a rotating cutting tool; however, CNC turning employs a rotating workpiece with a stationary cutting tool.
• Shapes Produced: Milling produces irregular, non-cylindrical shapes while turning is good for cylindrical or symmetrical parts.
• Axial Movement: Milling machines have various axes of operation (such as X, Y, and Z) to achieve intricate designs, while turning revolves around just one axis, rotational movement.

Given their design requirements, each technique has distinctive strengths that make it most suitable for different machining tasks.

When to Use Turning Instead of Milling?

#Firstly, #turning can be said to be the preferable method when dealing with cylindrical or symmetrical parts that require precision along a single axis. This is because turning is good at making components such as shafts, bushings, and threaded parts. Furthermore, it is also useful in creating parts whose diameters are consistent and, therefore, speed or cost-efficient for simpler geometries. #Turning in these scenarios is more accurate and efficient than milling.

Comparing the CNC Milling and CNC Turning Processes

Also, when comparing CNC milling and CNC turning processes, I found out that each has its own advantages, which depend on the application.# Cnc milling can perform versatile tasks like producing complex geometries and features, especially for parts with irregular shapes or multiple angled surfaces.# On the other hand,# cylindrical components respond well to #cnc turning, which supports efficient production of symmetrical components along a single axis# Hence, I would look at the material, design specification, and tolerances while selecting which process to employ to ensure the best possible accuracy with least expenditure incurred in this particular project.

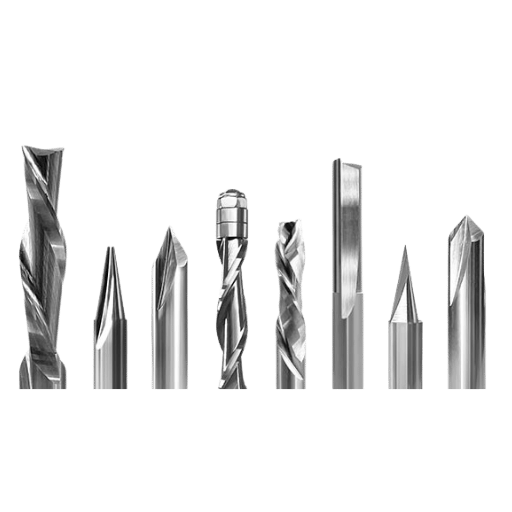

How Milling Machines Handle Different Materials

Special Considerations for Plastic in Milling

When milling plastic, preventing the occurrence of melting or deformity is very important. This can be done by using lower cutting speeds and sharp tools to minimize friction forces leading to unblemished cuts. The other crucial aspect here is the appropriate fixing, eliminating any vibrations that may ruin the surface finish. Sometimes, choosing a specialized fluid for cutting plastic materials may increase the life spans of the tools used and the surface finish. Lastly, it should be noted that thermal expansion of material has to be considered as this might affect dimensional accuracy during and after machining.

The Impact of Material Choice on Milling Operations

Material choice determines what cutting tools, speeds, feeds, and cooling methods are suitable for milling operations. In fact, harder materials such as titanium or hardened steel call for cutting tools made with high resistance against wear, cutting speed at a slower rate, and significant cooling effort to avoid tool overheating or damage, respectively. Other soft materials like aluminum allow faster removal rates but need one to watch out, especially when it comes to chip evacuation, to avoid tool build-up. Therefore, each material’s hardness, thermal conductivity, and elasticity must be matched carefully with suitable machining parameters if the highest accuracy levels are intended, along with surface quality and efficient operation.

Adapting CNC Mill Settings for Various Materials

When it comes to adjusting CNC mill settings for different materials, working accurately and efficiently is vital. For instance, lower spindle speeds and feed rates should be employed for more rigid materials such as stainless steel or titanium. Still, an adequate tool cooling system must also provide enough lubrication to prevent overheating or excessive wear. Additionally, softer materials such as aluminum can require higher spindle speeds and feed rates; chip build-up monitoring plays a key role in maintaining tool performance and surface quality. Reducing cutting speeds while using less coolant helps avoid melting or deformation for plastics and other non-metallic materials. Material-specific characteristics like hardness, elasticity, and thermal conductivity should always be considered when calibrating tool settings to achieve expected machinability results.

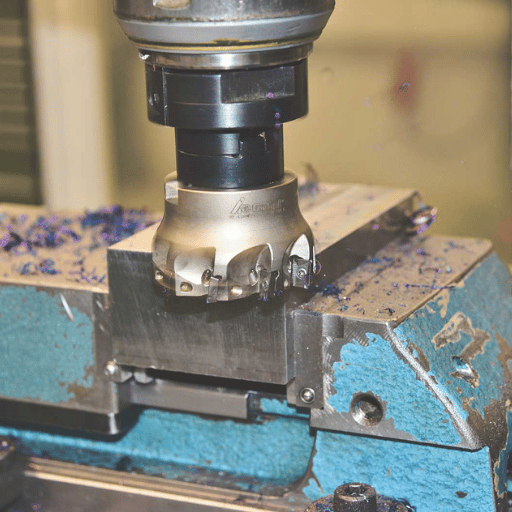

From CNC Router to Lathe: Choosing the Right Tool

The Role of CNC Lathes and Routers

CNC lathes and routers have different functions in precision machining. While CNC lathes are designed for rotation machining, which is ideal for producing cylindrical shapes or symmetrical parts such as shafts, bushings, and threaded components, they operate by rotating the workpiece while the cutting tool is stationary.

On the other hand, flat or three-dimensional surface works are best performed using a CNC router. They do well in situations like engraving, cutting sheets, or making patterns in wood, plastics, or soft metals. The cutting tool does not move but rather stays fixed on multiple axes as dictated by routers.

Choosing between those tools depends on the geometry and materials of the desired product. For example, parts requiring rotational accuracy are better produced with CNC lathes, while detailed surface work or material removal from non-cylindrical objects can be easily done with CNC routers.

When to Choose a CNC Router Over a Mill?

The choice between a CNC router and a mill generally depends on the materials used and the intricacy of the design. So, working with softer materials like wood, plastics, and some composites is the forte of a CNC router, but it could also be for intricate or large-scale designs. The routers are best in high-speed operations and can take up projects involving detailed engraving, large sheets, or complex surface patterns; hence, they work better where intricate workpieces are being made.

In case you need high accuracy in the details of intricate surfaces or where lightweight items need to be processed rapidly, opt for a CNC router instead of purchasing a mill. Nevertheless, in cases of harder materials or when very precise works on smaller intricate parts have to be done, then milling would suffice.

Pivotal factors to consider when choosing tools for a machinist

A material’s compatibility, the precision desired, and the efficiency of machining are three key things that must be considered by a machinist when selecting tools. The kind of tool that is needed, as well as its durability, is highly dependent on what sort of material will be worked upon, such as harder metals demanding carbide tools, while high-speed steel in the case of softer materials. Tool geometry should correspond to the precision requirements to meet desired tolerances and surface finishes. Ultimately, machining efficiency entails examining speed, feed rates, and general production objectives to select tools best suited for time optimization without compromising quality. Considering these issues, therefore, helps machinists make better decisions aimed at increasing productivity and output.

Frequently Asked Questions (FAQs)

Q: What is the main difference between CNC milling and cutting machines?

A: The main difference between CNC milling and cutting machines is their procedures for performing machining operations. CNC turning or cutting, which is also often called involves rotating a workpiece against a stationary cutting tool, while in a CNC milling machine, it rotates the tooling, removing material from a piece of standing stock. They are both computer-aided but made by different mechanisms.

Q: What is a CNC milling machine, and how does it work?

A: CNC milling machinery is a computer-controlled cutting machine using rotating cutters to remove material from the workpiece. The cutter moves around on several axes, while the workpiece does not move during operation. To make any shape or contour desired for the component, one can do different actions such as face milling, contour milling, and drilling with these types of machines.

Q: How do turning or milling processes differ in CNC machining?

A: What is the difference between turning and milling in CNC machining? Turning, meanwhile, is most often done on a CNC turning center or lathe where the work rotates against a stationary cutting tool. On one hand, milling uses a rotating cutting tool on a fixed workpiece. Turning is well suited for creating cylindrical parts, while milling can produce more complicated shapes and features on flat and irregular surfaces.

Q: What are the advantages of using CNC machines over manual milling machines?

A: Why use CNC milling machines instead of manual milling? There are several advantages of using CNC milling machines instead of manual ones, such as higher precision, increased repeatability, enhanced productivity, and the capability of producing complex shapes. They can follow intricate toolpaths designed by CAM software that can be highly useful to industries like aerospace and automotive to ensure that their components have high accuracy and uniformity levels.

Q: What are the common CNC milling machines used in the industry?

A: Examples of these include 3-axis CNC mills moving along the X, Y and Z axes and more sophisticated 5-axis machines that can turn the cutting tool or workpiece on two extra axes. Vertical machining centers (VMCs) and horizontal machining centers (HMCs) are also broadly used for different milling operations. The machine to be chosen depends on the intricacy of the components being manufactured as well as the specific requirements of the machining process.

Q: What is the difference between CNC turning and milling machines?

A: On their part, CNC turning machines, also known as CNC lathes or turning centers, rotate a workpiece while a stationary cutting tool is used to remove material from it. They are great at producing cylindrical parts and often have special features like sub-spindle and live-tooling. On the contrary, CNC milling machines use rotating cutting tools on a fixed workpiece, thereby enabling movement of the cutter head concerning work-piece orientation, which makes them ideal for making flat surfaces, slots as well as complex three-dimensional shapes. Though both employ computers in their operation, they serve different functions in the manufacturing process.

Q: What industries normally require milling or turning operations?

A: Many industries rely on CNC milling and turning to produce components. The aerospace and automotive sectors use these procedures to mold accurate parts. Among the other businesses that request machining include medical device manufacturing, electronics, energy, and general manufacturing. In summary, CNC milling and turning can yield a variety of parts in different fields.

Q: Can CNC milling machines perform turning operations or vice versa?

A: Meanwhile, conventional CNC milling machines and turning centers are designed specifically for certain functions, and modern multi-tasking machines combine capabilities in both areas. These mixtures, called mill-turn centers, usually have a principal spindle for rotation and live tooling from the milling spindles. Thus, The machine can perform CNC turning and milking on one machine at relatively high efficiency with less setup time needed for complex parts, even though it costs more than another one would.

Reference Sources

1. CNC Green Machining of Novel AA7475/ZrN/Fly Ash Composite Compared with and without the TiCN Coated WC Tools for Enhanced Surface Finish
   • Authors: Doddala Nitheesh, P. Thamizhvalavan
   • Publication Date: November 3, 2023
   • Key Findings:
     • This research aims to assess the efficacy of varied tool types, such as HSS and WC TiCN coated, about surface roughness for lightweight composite material consisting of AA7475, ZrN, and fly ash.
     • The findings showed that CNC milling processes require the use of tool materials, as TiCN-coated tools provided a better surface finish than HSS tools.
   • Methodologies:
     • The study comprised CNC milling operations at different cutting parameters and SPSS software used for statistical analysis of surface roughness.
2. Investigation of MQL and CNC Turning Parameters on the Machinability of Unreinforced Polypropylene: Study of Surface Roughness, Temperature, and Specific Cutting Energy
   • Authors: Amine Hamdi et al.
   • Publication Date: January 18, 2024
   • Key Findings:
     • The research is centered on the influence of minimum quantity lubrication (MQL) and CNC turning parameters on the machinability of unfilled polypropylene, highlighting disparities in results for milling and turning operations.
     • A study concluded that MQL results in greatly improved surface finish and lower tool wear compared to dry machining and conventional flood cooling methods.
   • Methodologies:
     • To investigate the surface roughness and tool wear, experiments were carried out in a DMG Mori Seiki DMU50 CNC center that employed Taguchi L9 orthogonal array design to evaluate the main effects of cutting parameters.
3. A Comprehensive Review on Optimization of Process Variables for CNC Milling
   • Authors: Ganapati Ramavat et al.
   • Publication Date: November 2, 2023
   • Key Findings:
     • The impact of different process factors on CNC milling performance is being analyzed in this review article, giving way for improvement in cutting parameters optimization and, hence, improved machining efficiency and quality.
     • The paper highlights the differences in cutting results by CNC milling compared to other machining processes when specific parameters are used.
   • Methodologies:
     • The review combines findings from numerous studies, employing statistical methods like ANOVA to measure the importance of diverse machining parameters.
4. Investigation on Manufacturing of Small-Sized Stepped Rotor Wheel by Engraving Milling Process
   • Authors: S. Chaubey, K. Gupta
   • Publication Date: 2024
   • Key Findings:
     • This research assesses the engraving milling operation used to fabricate a stepped rotor wheel. It emphasizes the dissimilarities between machining methods and their consequences for end products.
     • The outcomes revealed that engraving milling could attain greater precision than conventional procedure.
   • Methodologies:
     • The research was designed as factorial design of experiments (DOE) to assess the effects of multiple cutting parameters on surface roughness and material removal rate.
