Mastering the Art of Cutting Aluminum with a CNC Router

Aluminium is a flexible material commonly used in industry because it is light, durable, and corrosion-resistant. Nevertheless, cutting aluminum using computer numeric control (CNC) routers requires precision for the best results. Therefore, this article aims to deconstruct the process so that beginners and experienced CNC operators can easily handle aluminum. We shall outline some of the essential procedures, from choosing the right tools required for such jobs, like fine-tuning router settings on a CNC router machine, dealing with which are critical to achieving accurate, clean cuts. Whether you want to improve your machining skills or employ professional accuracy in your next undertaking, this manual covers you.

Can a CNC Router Cut Aluminum?

The CNC router can cut aluminum, but the necessary precautions and settings must be made to achieve the desired results. Important aspects include having a powerful router, proper cutting tools, and observing the correct spindle speed and feed rate. Besides this, employing a lubricant or coolant can reduce heat and prevent tool wear. In conclusion, if proper measures are considered, aluminum can be subject to CNC router cutting precision.

Understanding the Capabilities of a CNC Machine

CNC machines are flexible tools that can perform many tasks, including cutting, drilling, milling, and engraving. Depending on the machine and tooling used, they can work with various materials, such as metals, plastics, wood, and composites. These highly accurate and precise machines result in enhanced quality production for both large-scale production and prototyping. Users can achieve consistent, high-quality results by programming the machine with precise instructions, ensuring efficient production with minimal human errors.

Types of Aluminium Suitable for CNC Routing

Because of its versatility and various alloys, CNC routing is an efficient way of machining aluminum. Choosing the appropriate type of aluminum is essential for optimum performance and definite results. Below are some commonly used types of aluminum for CNC routing and their features:

1. Aluminum 6061

Aluminum 6061 is one of the most preferred choices owing to its great mechanical properties and flexibility. It offers a good compromise between strength, corrosion resistance, and machinability. Medium-high strength renders it fit for structural applications, while ease of cutting permits intricate designs. Aluminum 6061 finds wide application in aerospace elements, automotive components, and consumer products.

• Yield Strength: ~276 MPa (40,000 psi)
• Hardness (Brinell): ~95 HB
• Applications: Brackets, frames, fittings, prototypes

2. Aluminum 7075

The prime example is aluminum 7075, which has an excellent strength-to-weight ratio, making it a desirable material where high strength and low weight are required. This metal is widely used in the aerospace and military sectors; however, the lower corrosion resistance compared to 6061 should be remembered when dealing with corrosive environments. This alloy can be accurately processed on CNC machines, albeit special tooling/techniques are necessary due to increased hardness.

• Yield Strength: ~503 MPa (73,000 psi)
• Hardness (Brinell): ~150 HB
• Applications: Aircraft parts, gears, and sports equipment

3. Aluminum 5052

Aluminum 5052 is resistant to corrosion and welds quite easily. While it has enough power for many industrial applications, it is softer than 6061; therefore, it is not as suitable for applications involving heavy loads or highly stressed components. This alloy is good for CNC projects where forming or bending is also needed after machining.

• Yield Strength: ~193 MPa (28,000 psi)
• Hardness (Brinell): ~60 HB
• Applications: Marine parts, tanks, enclosures, and others can be effectively machined in a machine shop using aluminum blanks.

4. Aluminum 2024

Aluminum 2024 is highly strong and has good fatigue resistance. However, its corrosion resistance is lower than that of other alloys, which requires additional protective measures, such as surface treatments, when exposed to corrosive environments. Because of its strength requirements, it is widely used in the aerospace industry.

• Yield Strength: ~324MPa (47,000 psi)
• Hardness (Brinell): ~120HB
• Applications: Aircraft components, military equipment, and structural elements.

5. Aluminum 5083.

Aluminum 5083 is popular with a lot of people because it has a very high resistance to corrosion, especially in marine environments. Although not as strong as other alloys, it is the best option for seawater or industrial chemicals. This alloy is appropriate for CNC routing when durability and corrosion resistance outweigh strength requirements.

• Yield Strength: ~215 MPa (31,000 psi)
• Hardness (Brinell): ~75 HB
• Applications: Shipbuilding, pressure vessels, and LNG storage tanks.
• Key factors to consider when CNC routing aluminum

It’s important to bear in mind that while selecting the right kind of aluminum for your CNC machine, you should also take into account its machining difficulty level; this will determine how efficiently the cutting tool works on it during operation. Besides that, factors such as spindle speed and coolant must be considered when examining the machinability of aluminum types depending on the various grades used; this helps reduce tool wear rates, thus ensuring good surface finishes, too.

Common Challenges in Cutting Aluminum with a CNC

Chip Removal and Built-Up Edge (BUE) Formation

One of the main hurdles when cutting aluminum is the buildup of materials at the edges of tools, referred to as built-up edge (BUE). This is because the material tends to stick to the cutting surface, thus compromising precision and finish. Therefore, effective chip evacuation is required to avoid blockages leading to overheating during machining. A coating like a diamond-like carbon DLC or having polished flutes in tools reduces friction and adhesion. For example, according to research, coated tools outperform uncoated ones by 50% in a lifetime when cutting aluminum.

High Thermal Conductivity and Heat Management

When processing aluminum parts, its high heat conduction rate results in the fast transfer of energy from the workpiece into the tool, thereby elevating tool temperatures and consequent tool wear. Appropriate coolant application on the shop floor must be administered during machining operations to mitigate this problem. High-pressure cooling systems are a common feature in modern manufacturing processes, which help maintain stable temperature conditions for longer tool lifespan and better cutting capability. Various cooling techniques may reduce machining temperatures by up to 40%.

Vibration and Tool Deflection

One of the main issues with aluminum is its low rigidity compared to harder metals, which leads to vibrations and deflections in cutting tools during high-speed machining. Consequently, there will be chatter marks, the machined part will be the wrong size and shape, and a lower life span for a tool. Some ways, such as optimizing feed rates, reducing tool overhang lengths, and using vibration-damped tool holders, can solve these problems. According to studies on cutting performance in various materials, it has been found that at least a 30% improvement in surface finish quality could be realized through the application of improved vibration control methods.

Surface Finish Requirements

Surface finish quality plays a central role in aluminum machining; this becomes more important, especially for aerospace and auto applications where tight tolerances apply; however, smearing and galling occur with ease in aluminum, thus becoming one of its drawbacks. Thus, using tools with large positive rake angles or high spindle speeds is advised to overcome such constraints. In addition, some investigations have shown that when precision machined carbide tools are used, they can significantly improve surface roughness measurements by up to 25%, depending on the grade being cut.

Material Variability

The mechanical properties of aluminum alloys depend on their composition. For instance, softer alloys, such as the 1100 series, are easier to machine but fold more readily under stress, while harder ones, like 7075, require tougher tools and approaches. Accurately evaluating the machinability of the chosen alloy is critical to choosing suitable cutting techniques and consequently obtaining consistent results. Optimizing production speed and quality requires modifying machining parameters to account for these variations.

It is possible to achieve effective and high-precision CNC machining on aluminum while reducing costs and downtime through advanced tooling, modern machining techniques, and careful parameter optimization addressing these issues.

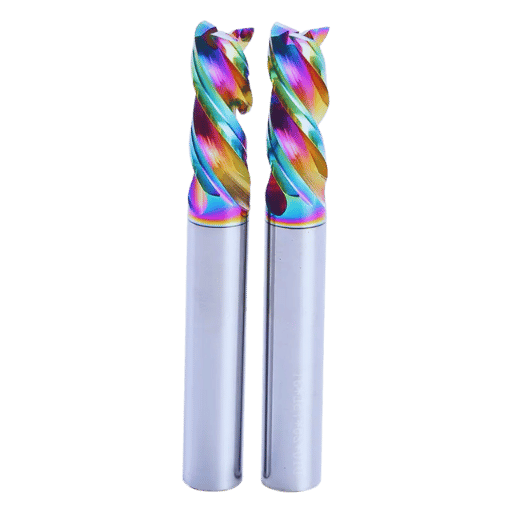

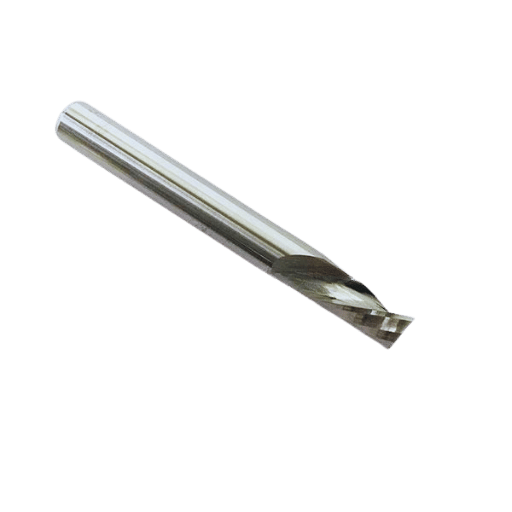

What Tools Are Best for CNC Machining Aluminum?

Choosing the Right Cutting Tool

When CNC machining aluminum, the selection of a cutting tool is important for optimal performance and accuracy, the best tools to use are those made from high-speed steel (HSS) or, better still, carbide because they have a longer working life and resistance to wear. On top of this, it is recommended that carbide tools be used since they maintain sharp cutting edges well and withstand the very high speeds that are usually employed in aluminum machining.

Therefore, when choosing a tool, you should select geometry that includes a high positive rake angle and polished flutes for smooth chip evacuation as well as reducing tool build-up. Furthermore, using dedicated coated tools such as TiN (Titanium Nitride) or DLC (Diamond-Like Carbon) improves performance by reducing friction and extending tool life.

Differences Between Carbide and HSS Tools

Carbide tools are harder and more wear-resistant than High-Speed Steel (HSS), making them well-suited for high-speed machining and cutting harder materials. They also have superior heat resistance, allowing higher cutting speeds and extended tool life. However, they chip more easily under inappropriate conditions.

On the other hand, HSS is less brittle than carbide, making it suitable for applications requiring smaller rigidity or when one has interrupted cuts. Besides this, they can be used in low-speed machining of not-so-demanding operations since regrinding them is an easier process, making them more cost-effective.

Certain factors need to be considered when deciding between carbide or HSS tool options, such as the application, the material being machined, and the balance of performance as affected by costs.

Importance of Flute Design in CNC Routing

In CNC routing, flute design is vital as it directly affects chip removal, surface finish, and tool performance. From what I have experienced, the appropriate number and type of flutes are subject to the machined material and desired output. For example, in softer materials, fewer flutes allow for better chip evacuation, while more flutes are recommended for harder materials that give a smoother finish. Through this knowledge, effective and precise CNC operations can be achieved.

How to Optimize Feeds and Speeds for Aluminum?

Setting the Correct RPM and Spindle Speed

To machine aluminum, achieving the best spindle speed and RPM (revolution per minute) is essential, which is important for both efficiency and surface quality. Aluminum’s softness and high thermal conductivity allow faster cutting speeds than those used on harder metals such as steel. The correct RPM depends on the tool diameter, material machinability, and recommended surface speed shown in surface feet per minute (SFM).

The ideal SFM range at which aluminum should be machined lies between 300 and 1000, depending on the alloy type and tool engaged. Machinists can determine the required RPM using the formula RPM = (SFM × 3.82) ÷ Tool Diameter mentioned above. As an illustration, with a cutter measuring half an inch wide and a recommended SFM of 600, about 4,584 would be an optimum RPM value.

Tool material selection and coating are other important considerations. For instance, tools are usually coated with TiN or ZrN during the machining of aluminum carbide because they operate well under higher speeds without wearing out quickly, as other materials do. Also, keep vigilance against excessive heating that might ruin tool edges or spoil component finish; hence, there is a need to adjust parameters accordingly so as to ensure efficient machining accuracy all along.

Adjusting Feed Rate for Different Aluminum Alloys

Adjusting the feed rate when machining different aluminum alloys ensures accuracy, tool life, and surface finish. The machinability of aluminum alloys varies with composition; hence, feed rate depends on this factor.

Take, for example, softer aluminum alloys such as 1100 or 6061, which have a lower hardness and can allow higher feed rates per tooth ranging from 0.002 to 0.010 IPT (inches per tooth) when using carbide tools in a cutting machine. However, harder aluminum alloys such as 7075 with greater strength and resistance typically require lower feed rate ranges between 0.001 to 0.008 IPT to reduce tool wear and avoid excessive material stresses.

Several factors must be considered when determining the optimum feed rate, including tool diameter, machine rigidity, and desired surface finish, among others. It is also recommended that manufacturers’ tooling guidelines be consulted for specific alloys or operations since they usually present refined conditions derived from extensive tests. This approach enables accurate machining while optimizing efficiency and reducing the chances of compromising the quality of the cutting edges through degradation.

Impact of Depth of Cut on Finish Quality

The quality of the material surface machined, as well as overall machining effectiveness, greatly depends on how deep a cut is made. In this case, however, a larger cut depth may be advantageous because it increases material removal rates, enhancing efficiency. Nevertheless, it causes higher cutting forces and heat, which might cause tool wear and rougher surface finish. On the contrary, smaller depths of cut generally yield better finishes but may require several passes, thus decreasing productivity.

On a note related to the balance between efficiency and finish quality, empirical research has shown that the depth of cuts ranging between 0.010” and -0.030” are usually ideal for achieving high precision while controlling tool wear for materials like aluminum and mild steel. However, the recommended cutting depth is below 0.010 inches for titanium or hardened steel to minimize thermal stress and chatter. Furthermore, in order to achieve consistent results such as those above, the optimum combination must be determined among the factors discussed above.

Contemporary practices such as high-speed milling (HSM) and variable depth passes can also achieve superior surface finishes, which would otherwise incorporate stress concentration, minimize warping, and increase surface integrity. Manufacturers can, therefore, enhance process consistency and component precision by determining and utilizing the right cutting depth for different materials and tools.

What Lubrication Techniques Improve CNC Performance?

Using Compressed Air and Air Blast

For example, compressed air or air blast methods can enhance CNC performance by removing chips and debris from the cutting area. In addition, these techniques ensure that the workspace remains clean, thus avoiding tool damage and ensuring high-quality cutting accuracy. Moreover, it is possible to cool down the cutter and workpiece using an air blast, reducing heat generation during machining. This strategy can be beneficially employed in dry machining procedures that exclude the application of liquid coolants. Including compressed air systems in CNC, processes can increase tool life, improve surface finish, and maintain constant operational efficiency.

When to Apply Coolant vs. Dry Machining

In order to avoid thermal damage to tools and workpieces, the coolant should be used where substantial heat is generated or high-speed operations are performed. It is particularly effective in increasing tool life as well as surface roughness during milling, drilling, and turning on metal such as steel or aluminum.

Where dry, brittle chips are produced, which are less likely to stick onto the tool, dry machining is preferred when working with materials like cast iron or certain alloys. It also minimizes environmental impact and reduces costs associated with disposal of cooling agents. In order to obtain good results that meet our expectations, select the method based on material properties, cutting speed, and desired finish.

Effective Cutting Strategies for Thick Aluminum Plates

Strategies for Machining Aluminum with a CNC

1. Choose Suitable Tooling: Carbide tools are used because of their durability and heat resistance, making them the ideal aluminum choice. Have sharp tools to reduce material distortion.
2. Optimize Speeds and Feeds: Maintain high cutting speeds and moderate feed rates. It is a fact that when compared to other metals, aluminum can be machined at a higher speed, but it must be carefully adjusted so as not to use up its tool life or get a poor surface finish.
3. Apply Right Lubrication: Using a suitable lubricant or coolant for machining aluminum will help minimize chip adherence and enhance heat dispersion.
4. Use Effective Chip Removal: Quick removal of chips is vital; thus, appropriate systems must be put in place. This ensures no heat buildup within the workpiece, causing damage to the cutting edges.
5. Control Tool Runout: Precision can be bettered and chatter prevented by ensuring minimal tool runout hence resulting in consistent quality cuts being made.

In this way, operators can increase the machining efficiency while maintaining accuracy and surface integrity.

Handling Large Aluminum Plates and Sheet Metal

Safety, precision, and efficiency should be prioritized when handling large aluminum plates and sheet metal. It is easier to handle aluminum because it is lighter than other metals; however, it can easily be scratched or dented because it is very ductile.

1. Proper Lifting and Support: Use mechanical lifting aids such as vacuum lifters or overhead cranes for heavier sheets to reduce laborious strain. When handling manual tasks, ensure that the aluminum sheet is properly supported so as not to bend or warp it. To avoid deformation risks, support the material uniformly across its surface.
2. Protective Measures: Always use protective materials like foam or soft padding during transportation or storage to avoid surface damage. Also, when stacking several sheets together, place non-abrasive layers between them to prevent scratches.
3. Cutting Large Sheets: For precise trimming tasks, use CNC machines, plasma cutters, or laser cutters. These tools are great for cutting intricate shapes with few rough edges and distortions. Clamping an aluminum part well during cutting helps prevent movements affecting accuracy, thus maintaining its position.
4. Minimizing Thermal Distortion: Aluminum has a high thermal conductivity, expanding significantly when heated. That is something to be aware of when using a CNC router machine. To maintain dimensional stability, use less energetic procedures or even cool down the process of welding and cutting.
5. Storage and Organization: Keep aluminum plates and sheets in dry, climate-controlled areas to prevent oxidation or corrosion. Arrange them vertically on racks or horizontally into segregated stacks according to size and thickness for easy access and reduced handling time.

By doing this, operators can ensure that large aluminum sheets or plates are handled safely without compromising their quality from both structural integrity and finish quality perspectives. Enhanced efficiency can also be achieved by having advanced handling equipment especially if they are used alongside an organized workflow when managing such materials within industrial settings.

Benefits of Using CAM Software for CNC Routing

CAM software greatly supports the CNC routing process in terms of better accuracy, efficacy, and overall performance. The following are the main advantages and details of how CAM software enhances production workflows:

Design-to-Production Workflow Improvement

This means that CAM software ensures the design files match the computer numerical control toolpaths to make them work properly. It does so by automatically generating a toolpath instead of manually programming it, which could take up to 80% less time. This minimizes human errors and reduces time spent from designing to manufacturing.

Increased Accuracy and Precision

CAM software uses complex algorithms to accurately determine paths, reducing material waste and improving product quality. Studies have shown that CAM can reduce machining errors by as much as 30%, ensuring tight tolerances and repeatable results across multiple runs.

Optimized Toolpath Strategies

Newer versions of CAM have adaptive toolpath generation capability, allowing for changes in feed rates based on material properties such as geometry. It increases efficiency during cutting by up to 40 %, especially when dealing with complicated situations like contouring or high-speed machining.

Less Waste

CAM tools incorporate features such as nesting optimization for sheet materials, enabling maximum utilization of raw materials. It has been reported that optimized nesting through CAM software can decrease scrap rates by roughly 15-20%, resulting in substantial savings to manufacturers.

Simulation and Verification

CAM software’s embedded simulation capabilities give machinists a virtual look at their machining processes. This capability allows users to identify and rectify potential collisions, gouges, or setup errors before production starts, reducing downtime and saving resources.

Scalability and Flexibility

CAM software supports multi-axis machining and is compatible with various CNC machines. Such scalability allows producers to deal with different levels of production complexity ranging from simple cuts on two axes to 5-axis machining for more intricate parts.

Reduced Lead Times

Automation of routine programming processes results in efficient scheduling and quick project turnaround times. Operations are streamlined, thereby allowing CAM software to cut lead times by 25% or above, giving manufacturers an edge when meeting strict deadlines.

Data-driven insights

Many CAM platforms integrate with IoT-enabled devices that deliver real-time data on machine performance, tool wear, and production output. These insights enable predictive maintenance and better-informed decision-making, leading to more machine uptime and cost optimization.

Accuracy and speed are not the only advantages of CNC routing CAM software; they also reduce material and energy consumption, leading to eco-friendly production. This is an essential tool in modern manufacturing practices that allows businesses to keep up with rapidly changing technology and market requirements.

Frequently Asked Questions (FAQs)

Q: What are the perfect speeds and feeds for cutting aluminum using a CNC router?

A: For cutting aluminum with a CNC router, ideal speeds and feeds rely on certain factors such as cutter type, cut depth, and particular aluminum alloy. As a general rule of thumb, when working on aluminum, you should use higher spindle speeds and lower feed rates than when cutting wood or plastic. The good starting point for 6061 Aluminium may be a spindle speed between 10,000 to 18,000 RPMs and a feed rate of 40-60 inches per minute. Nonetheless, it is important to adjust these parameters depending on your specific CNC router and the desired quality of the finished part.

Q: Can a CNC wood router effectively cut aluminum?

A: Cutting aluminum using a CNC wood router can be done, though it is not the best idea. Wood routers are normally designed to be used in softer materials like wood or plastic and may not easily handle the hardness of aluminum. Nevertheless, you can get okay results with accurate settings, tools, and techniques. Also, remember that more strain will fall upon the machine when it cuts aluminum, meaning rapid wear and tear may occur. However, for regular aluminum cutting, consider having a CNC milling machine meant specifically for metalwork.

Q: What type of endmill works best for cutting aluminum on a CNC router?

A: Typically, carbide endmills are good for cutting aluminum on a CNC router. Specifically, 2-3 flutes are better in dealing with the gummy nature of aluminum, hence chip evacuation (Said et al., 2017). On the other hand, coated endmills also have TiAlN (Titanium Aluminum Nitride) coating to improve tool life as well as performance (Mamalis et al., 2015). Roughing requires a roughing endmill or corncob-style cutter, which can quickly remove material. Conversely, finishing passes demand either a ball nose or a bullnose endmill to provide a smooth surface finish.

Q: What are some hints for getting a decent surface finish when cutting aluminum on a CNC router?

A: Here’s how to achieve a good surface finish while cutting aluminum on a CNC router: Use sharp, high-quality endmills made for aluminum. Employ the right speeds and feeds, usually higher speeds and lower feeds for finishing passes. Take small finishing passes to minimize tool deflection and improve accuracy. For the final pass use climb milling in order to lessen tool pressure and enhance surface quality. You might also want to choose a finishing endmill with more flutes for smoother cuts. Ensure proper tuning of your CNC router so that it vibrates as less as possible. Use coolant or cutting fluid where necessary for a better surface finish and longer life of the tool

Q: How do I handle the challenges of cutting T-slots in aluminum using a CNC router?

A: However, with these tips, it becomes easier to cut T-slots in aluminum using a CNC router. 1. Utilize a specialized cutter for making T-slots or combine endmills to achieve the desired shape. 2. Make multiple passes while gradually increasing the depth to minimize stress on the cutting edge and machine tooling itself. 3. This is important because proper chip evacuation can prevent chip recutting and poor surface finish. 4. Speeds and feeds suitable for aluminum should be used, adjusting them when required by the geometry of the machining T-slot. 5. For better results, consider applying roughing passes followed by finishing pass methods. 6. It is crucial to note that there may also be tool deflection, which needs your attention, especially when using smaller tools, and you must change your cutting method accordingly.

Q: In what ways does cutting aluminum differ from cutting wood or plastic on a CNC router?

A: There are several differences between cutting aluminum and wood or plastic on a CNC router. Some key differences include: 1. Hardness: Aluminum is much more complex, so different cutting and tool selection strategies are required. 2. Heat generation: Because aluminum conducts heat better, it needs proper cooling and lubrication. 3. Chip formation: Long stringy chips that may be difficult to remove are formed by Aluminum. 4. Tool wear: Cutting aluminum usually produces faster tool wear than wood or plastic. 5. Speeds and feeds: Aluminum generally demands higher spindle speeds with lower feed rates for good performance in aluminum workpiece preparation. 6. Machine rigidity: A more rigid setup is needed when machining aluminum due to more stress being placed on the machine during its machining process. (7) Surface finish – obtaining a smooth surface finish on Aluminium requires more attention to machining parameters and choice of tools in a machine shop as compared to other materials like steel or plastic

Q: What about smaller tools for cutting aluminum on a CNC router?

A: With caution, small tools can be utilized in cutting aluminum on a CNC router; 1. Lighten the feed rates and stepovers to decrease cutting forces. 2. Increase the spindle speed to keep up the right surface feet per minute (SFM). 3. Use solid tool holders and decrease tool projection length to reduce deflection. 4. Employ high-speed machining strategies such as trochoidal milling to reduce tool loadings. 5. Select the right tool coatings and flute geometries specifically designed for aluminum applications. 6. Be keen on wearing small tools because they wear faster than bigger ones when used on this type of material like aluminum. 7. Think about acquiring a more precise and stiffer CNC machine for better small-tool outcomes

Reference Sources

1. Optimization of Machining Process Parameters in Turning and Drilling by Using Design Of Experiments With Aluminum 6061-O Alloy And Austenitic Stainless Steel

• Key Findings:
• The study contends that optimizing machining parameters is necessary to maximize the efficiency and quality of computer numerical control (CNC) machining processes, especially for aluminum alloys such as 6061-O.
• It is shown that the correct choice of parameters can improve surface finish and dimensional accuracy.
• Methodology:
• The team undertook systematic investigations, using design-of-experiments (DOE), to determine how various machining parameters affect CNC machine cutting performance on aluminum and stainless steel alloys.

2. “Artificial Neural Networks for Milling Aluminum: A Model of Surface Roughness from Vibration Signal Analysis and Machining Parameters”

• Highlights
• The CNC machines can cut aluminum with good surface quality as per the given model.
• This indicates a better relationship between vibration signals and roughness predictions.
• Design :
• Artificial neural networks (ANNs) were used to model the relationship between machining parameters and surface roughness using vibration signals as input data.

3. “QUALITY ANALYSIS OF PRODUCT OUTPUTS IN POCKETING TASK USING THE 3-AXIS CNC MILLING MACHINE”

• Key findings
• The study examines the quality of products produced when pocketing is done on a CNC milling machine with a specific focus on aluminum workpieces.
• It can be concluded that CNC machines provide high accuracy and good surface roughness in aluminum machining.
• Methodology
• An experimental approach was taken to evaluate the quality of aluminum.

4. “Cutting Parallelism Results on Aluminum 6061 CNC TU-3A Retrofit Machine: The Effect of Depth of Cut and Spindle Speed”

• Here are the main outcomes:
• The experiment analyzes the impact of various cutting parameters on aluminum 6061 machining quality, hence supporting that high-precision cutting of aluminum by CNC machines is possible.
• Surface parallelism was highly affected by the depth of cut with less influence from spindle speed.
• Research Design:
• Factorial design experiments were used to establish the effects of spindle speed and depth of cut on machining results.
