Understanding the Difference Between CNC Machining and Milling: A Comprehensive Guide

Modern industry has precision manufacturing as one of its most important foundations. Modern manufacturing processes have become more complex and accurate through the use of technology. With numerous techniques available, cnc machining and milling are among the best-known and used. Despite often being confused colloquially, these two terminologies represent different operations having their functions and significance. This blog post aims to highlight the distinctions between CNC machining and milling so that beginners and experts can make informed choices. In case you are a manufacturer, engineer, or just an enthusiast of modern manufacturing methods, you will find this guide very useful in comprehending how each technique contributes towards shaping our everyday products.

What is CNC Machining and How Does it Work?

Understanding Computer Numerical Control (CNC)

Computer numerical control (CNC) is a manufacturing process that uses pre-programmed computer software to operate machinery and tools. This technology automates the production of intricate components, resulting in accurate, repeatable processes. By digitizing designs into numeric form, CNC machines can perform various functions, including cutting, drilling, milling, and turning, depending on the configuration of machine tools. This approach reduces production timelines while maintaining quality, which can be achieved with multiple units at once. Industries like aerospace and automotive widely use this due to its efficiency and accuracy.

Key Parts of CNC Machines

1. Controller: The brain of a CNC machine takes the programmed instructions and tells the machine how to move well.
2. Spindle: This keeps and rotates the cutting tool or workpiece, ensuring accuracy during operations.
3. Milling tools: They are changeable pieces designed for certain duties, e.g. milling, drilling, and cutting, which allow flexibility in machining operations.
4. Worktable: A stable platform where the material or workpiece is held during processing.
5. Drive System: It has motors and actuators that control the movement of machine axes, hence enabling accurate positioning and operation.
6. Feedback System: This often contains encoders or sensors that monitor a machine’s performance against programmed instructions and make movements that coincide with it.

All these components collectively contribute to the effectiveness, precision, and efficiency of CNC machines in various manufacturing applications.

The CNC Process: Step by Step

1. Designing creation: A precise dimension and specification are outlined when creating a design using Computer-Aided Design (CAD) software.
2. Conversion to CNC Code: A computerized manufacturing system enables the designs created in CAD to be translated into machine codes that run under CNC control. This code controls the cutting tool’s movement and other machine operations.
3. Machine Set-Up: Tools, fixtures, and materials necessary for processing are prepared and loaded in a CNC machine; this includes aligning the workpiece and selecting desired cutting tools.
4. Execution of Programs: The program only runs once we have sent it to memory; the machine starts doing its job as required by cutting, drilling, or shaping with exact tool movements. Monitoring this process ensures that accuracy is maintained while keeping safe.
5. Final Inspection: Machining is done on a finished product that must be checked for compliance with design specifications. Adjustments or refinements may sometimes be needed as part of this process.

This structured process allows CNC machines to achieve high precision, efficiency, and repeatability in manufacturing tasks.

What Does Milling Mean and Where Does it Apply?

Introduction to Milling Machines

Milling machines are tools used in the production process of removing material from a workpiece, which shows the difference between a CNC mill and a CNC router in terms of their operational abilities. They are used to mold, cut, or drill materials like metals, plastics, and wood using rotary cutters. These machines can be programmed to perform many tasks, such as profiling, slitting, and making complicated parts. Milling accuracy has made it the favorite machining process for crafting aerospace, automotive, and construction industries when there is a need for exact specifications on complex components. Contemporary milling machines frequently come with computer numerical control (CNC) systems that enhance precision, automation, and repeatability.

Various Milling Operation Types

In discussing milling operation types, I will mention several common practices. These include facing, a process that creates a flat surface by scraping off the workpiece’s material, and periphery cutting, where the cutter removes the material along its perimeter to shape it. In milling, grooves or slots are made on the material, while in angular milling, cuts are created at an angle or beveled sections. Furthermore, machines that mill can also drill and tap, thus showing their versatility. For each part, the specific requirement dictates the choice of operation.

Common Industrial Milling Applications

Milling has widespread application across many manufacturing sectors due to its accuracy and adaptability. Common uses involve making machine parts like gears, shafts, and housings required for automotive and aerospace engineering. Precision circuit board models and enclosures must be milled in the electronic industry. They also serve as molds, producing injection or tempering forms in casting methods. The above examples illustrate how milling is employed in different sectors to manufacture highly accurate components within close tolerances.

How Does CNC Milling Differ from CNC Turning?

CNC Milling Machine vs. CNC Lathe

CNC milling machines and lathes are automated machining tools but serve different purposes. A device referred to as a milling machine, for example, uses spinners to cut the metal away from a piece of stationary material that is used to create an object with many complexities, having sections resembling those of a slot, pocket, or hole. On the other hand, a lathe’s chief role is to shape symmetrical cylindrical parts such as bushings, fittings, and shafts while the workpiece rotates. In general, they can offer more flexibility than turning, mainly because they can handle intricate shapes that are not cylindrical.

Understanding Turning Operations

Primarily carried out on computer numerical control (CNC) lathes, turning operations are among the basic procedures employed in machining. This removes materials from the rotating workpieces until they acquire the desired proportionate dimensions, figures, surface finishes, etc. Single-point cutting tools usually move linearly along their path while simultaneously rotating around them, producing even dimensions that have been well maintained over time with high accuracy.

Today’s CNC technology has improved the precision, velocity, and adaptability involved in turning. Multi-axis lathes, for example, now make it possible to machine complex geometries efficiently, thereby reducing the requirement for secondary operations. Moreover, data-driven monitoring systems are being integrated into CNC lathes more often to allow real-time adjustments on cutting parameters, leading to improved tool life and ensuring optimal performance. Turnings can be used across various industries, including automotive, aerospace, and medical industries, and require high accuracy and consistency, such as engine shafts, surgical instruments, and threaded parts.

Why Choose Between CNC Turning or Milling?

When choosing between CNC turning or milling, one needs to look at the geometry and the complexity of the part under production. In contrast with CNC milling using rotational symmetry, its counterpart works best for creating cylindrical components such as shafts or threaded parts. However, compared to this type’s cutting symmetries, CNC milling performs better on noncylindrical parts with complicated shapes, such as flat surfaces with slots or pockets.

Another consideration is the volume of production. In terms of producing larger numbers of symmetrical parts, turning operations are typically highly efficient, while lower-volume complex components tend to favor milling due to its design flexibility requirements.

In conclusion, material type and tolerances are factors that demand careful thought. While both processes can accommodate a broad array of materials, milling usually has more freedom for parts with fine details. In contrast, turning is good at making round components within narrow limits. Consequently, understanding the specifications required for each part will guarantee that the right machining method is selected as well.

Exploring CNC Routers: How Do They Differ?

What is a CNC Router, and How Can It Be Used?

A CNC router is a machine controlled by a computer that cuts and shapes materials such as wood, plastics, metals, and composites with precision. This machine uses software programs as a guide to operate the spinning tool along different paths, which allows it to create complex designs, drill holes, or cut parts like any other machine with very high criteria. People use these machines in industries like metalworking, furniture making, and sign production, among others, because of their capacity to make uniform products of high quality. In addition, they are automated, reducing tedious work while maximizing productivity; this explains why they are highly valued tools for both small-scale and industrial manufacturing purposes.

Distinguishing Between CNC Router and CNC Mill

CNC routers are designed differently from CNC mills in terms of their RPMs, the workpieces they can handle, and the operations they can do. In my view, a CNC router is better used for softer materials like wood, plastic and some metals, being a great tool for fast cutting of large flat planes. Conversely, a CNC mill is intended to work with harder materials such as steel; therefore, it is best suited for three-dimensional works requiring precision machining. Further still, CNC routers tend to operate at faster speeds and are cheaper for larger projects. On the other hand, a higher accuracy or rigidity is presented by a CNC mill with intricate designs. Choosing between these machines depends on the project’s demands since both have their strengths.

When it comes to picking a CNC router

The best option is to use a CNC router for softer materials like wood, plastic, or aluminum. With this respect, CNC milling finds the greatest significance in cases that require working on large flat areas and very precise cut-outs at high speed. Besides, a CNC router is cost-effective and efficient and can work well for large-scale production or projects with low precision requirements. Here, the focus will be fastness, scaling capability, and non-rigid materials that do not need the rigidness and accuracy of a CNC mill.

Choosing the best tool for your CNC operations

Factors to consider in selecting tools

Several crucial factors should be contemplated when choosing CNC operations tools to ensure they operate at their best performance and efficiency. First, assess the material being worked upon. Harder materials like steel or titanium demand tools, which are tougher and have higher resistance, while softer materials like wood or plastic allow flexibility in the selection of tools. Again, one should consider the design complexity of the project; hence, more minor intricate details can require precise tools with finer cutting edges, whereas larger components demand tools capable of rapidly removing material. Another aspect to consider is the spindle speed and feed rate compatibility of the CNC machine, as tools should match this range for proper performance. It is necessary to replace or sharpen tools regularly to maintain accuracy and surface finish quality; therefore, select tools that can be easily maintained and have a long service life.

Furthermore, tool coatings like titanium nitride (TiN) or diamond can enhance tool life and performance, especially when working with abrasive materials. Also, one needs to consider costs against the lifespan and versatility of tools. These factors will ensure that the right tools are chosen according to project objectives and material requirements.

Understanding Cutting Tools and Their Applications

Modern advances in cutting tool technology have greatly improved machining efficiency, precision, and durability. High-performance materials such as Polycrystalline Diamond (PCD)and Cubic Boron Nitride (CBN) have been increasingly accepted due to their hardness and wear resistance. With these materials, cutting tools are ideal for machining non-ferrous metals and hardened steels, thereby reducing tool wear while lowering general production costs, which are important aspects of precision machining.

The performance of cutting tools can be improved by integrating more advanced geometries, such as variable helix angles and optimized chip breakers, which reduce vibrations and improve chip evacuation. There are new developments in coatings, with choices like aluminum chromium nitride (AlCrN), which have better heat resistance and higher cutting speeds, making them suitable for handling more demanding applications.

This has also led to intelligent cutting tools embedded with sensors, which are data-driven manufacturing solutions. They can monitor real-time parameters like temperature, force, and vibration, providing actionable insights for improvement in machining processes and preventing tool failure. In general, combining smart technologies, innovative designs, and advanced materials has made it possible for cutting tools to reach greater heights, thus ensuring their maintenance with increasing expectations of contemporary manufacturing industries.

Tool Choice for Material Impact

Cutting tools are greatly affected by the material being machined, and this applies most in CNC machining services, where precision is the key. In cutting harder materials like titanium or hardened steels, tools made of wear-resistant substrates such as carbide or ceramic are necessary to withstand high cutting forces and temperatures. Nonetheless, it is important to note that softer materials like aluminum get more benefits from tools with sharp edges and polished surfaces that minimize adhesive wear and enhance surface finish. Moreover, properties of the material, such as thermal conductivity and toughness, determine the appropriate coating or tool geometry to maximize performance and tool life in precision machining applications. By selecting a suitable tool for the material, efficiency is ensured while reducing wear and enhancing the machining process’s overall quality.

Frequently Asked Questions (FAQs)

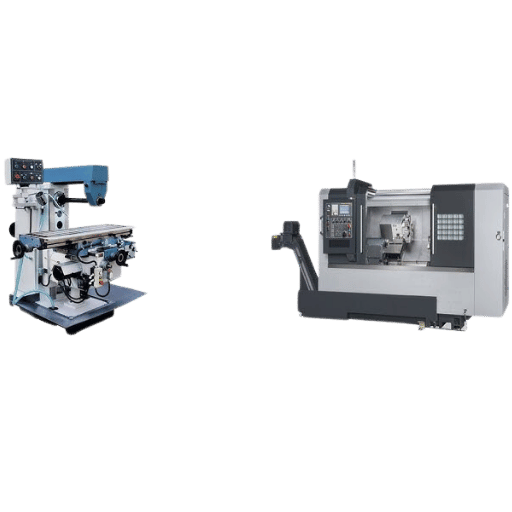

Q: What is the distinction between CNC machining and milling?

A: One of the key differences between CNC machining and milling is that CNC machining is a broader term, with milling included as just one of its facets, including routing, turning, etc. This shows the difference between a cnc router and a cnc mill, where the former represents the machine type used for subtractive manufacturing, and the latter refers to a machine tool type. However, this end-product can only be acquired through subtractive making, a process under which milling falls.

Q: What are the major kinds of CNC machines utilized in manufacturing?

A: The CNC machines in use include CNC mills, turning centers or lathes, routers, and machining centers. As far as operations like drilling and edge profiling are concerned, we find ourselves dealing with CMC routers instead of milling machines, making it easy to tell them apart from each other. This kind of machinery can carry out both processes simultaneously; hence, they tend to be referred to as ‘machining centers’ instead of ‘cnc lathes’ or even ‘milling centres’.

Q: How does the operation of CNC mills differ from that of routers?

A: In operations, CNC mills and routers both employ rotating cutting tools but vary in their main applications and capabilities. Ordinarily, hulking and precise CNC mills are chosen for tougher-tight-tolerance materials like metals, while softer stuff such as wood and plastic are machined using larger-spaced CNC routers. While there are several axes for milling to form complex geometries, routers usually work on flat or 2.5D surfaces.

Q: What is the biggest difference between CNC turning and milling?

A: The greatest variance between CNC turning and milling lies in the movement of the workpiece concerning the tool. In CNC turning, it is common for the workpiece to rotate whilst this cutting equipment remains constant. Most often, this is done by a lathe machine or a turning center. Conversely, the tool rotates in computer numerical control (CNC) milling while the item being worked upon remains firm. Turning offers an opportunity for shaping cylindrical parts, whereas milling is what one considers when creating complicated multi-dimensional forms.

Q: How does CNC machining compare with traditional machining methods?

A: CNC machining has numerous advantages compared to traditional machining methods; it is more precise, repeatable and less prone to human error. The machines can achieve tight tolerances and intricate geometries, which manual machining would find difficult or impossible to achieve. Also, they make work easier by allowing operators to produce more per hour since they eliminate time wastage associated with setting up machines every now and then. Furthermore, it helps for quicker production modifications through software changes involving making multiple identical components without building new tooling.

Reference Sources

1. Evaluating CNC Milling Performance for Machining AISI 316 Stainless Steel with Carbide Cutting Tool Insert
   • Authors: A. Equbal et al.
   • Publication Date: November 1, 2022
   • Key Findings:
     • This study investigates the performance of CNC milling when machining AISI 316 stainless steel using carbide cutting tools.
     • It highlights the importance of various machining parameters such as cutting speed, feed rate, and depth of cut on the material removal rate (MRR) and surface roughness (SR).
   • Methodologies:
     • The authors employed a face-centered central composite design (CCD) based on response surface methodology (RSM) to analyze the effects of the selected parameters.
     • The study utilized analysis of variance (ANOVA) and response graphs to interpret the results, demonstrating the influence of each parameter on machining performance.
2. A digital twin-based machining motion simulation and visualization monitoring system for milling robot
   • Authors: Zhaoju Zhu et al.
   • Publication Date: June 26, 2023
   • Key Findings:
     • This paper presents a digital twin framework for simulating and monitoring the motion of a milling robot. It emphasizes the differences in operational capabilities between CNC machining and robotic milling.
     • The study illustrates how digital twins can enhance the understanding of machining processes and improve operational efficiency.
   • Methodologies:
     • The authors designed and implemented a simulation system that integrates real-time data acquisition and visualization, allowing for effective monitoring of the milling process.
     • The system’s effectiveness was verified through practical tests, showcasing its potential in optimizing CNC operations.
3. Multi-response optimization of CNC end milling of AISI H11 alloy steel for rough and finish machining using TGRA
   • Authors: P. Singh et al.
   • Publication Date: 2020
   • Key Findings:
     • This study focuses on optimizing CNC end milling processes for AISI H11 alloy steel, comparing rough and finish machining techniques in the context of CNC machining services.
     • It highlights the differences in outcomes between various CNC machining strategies, particularly in terms of surface quality and machining efficiency.
   • Methodologies:
     • The authors utilized a multi-response optimization approach, employing techniques such as Taguchi methods and response surface methodology to analyze the effects of different machining parameters.
     • The study provided insights into how different CNC machining strategies can be tailored for specific applications.
