Mastering PAI Machining: Unleash the Power of Torlon® PAI Plastic

Few materials are considered effective when comparing them to Torlon® PAI (Polyamide-imide). PAI possesses the common and desired characteristics in a modern polymer which are strength, thermal stability, and wear resistance making it the choice material for industries such as aerospace, automotive, and electronics. However, like any advanced polymer, it is important to truly understand its unique properties and practices to get the best from it. This blog post seeks to provide everyone from engineers to manufacturers and machinists with techniques and tips on achieving maximum power from Torlon® PAI plastic. Hence why this blog will provide insights into efficient PAI machining strategies to process this incredible material. PAI is a material that revolves around getting the optimal balance of precision, efficiency, and advanced polymer techniques. So join us.

What is PAI and why is it important for machining?

Polyamide-imide (PAI) offers above-average resistance to heat while also having incredible mechanical strength and dimensional stability. This thermoplastic material is crucial in machining processes since it can maintain its physical and chemical structure under massive overload, intense friction, and extended exposure to chemicals. Its PAI durability makes it and ease of machining make it a choice material for various industries, such as the aerospace, automotive, and electronics industries, where accuracy and trustworthiness are essential. Its fundamental importance arises from its ability to manufacture components that are meant to withstand rigorous performance requirements while maintaining the utmost level of stability and accuracy.

Understanding PAI (Polyamide-imide) as a high-performance thermoplastic

Polyamide-imides (PAI) are well-known thermoplastic materials that exhibit exceptional mechanical, thermal, and chemical properties. It can sustain over 500°F (260°C) for extended periods without any damage and operates well in extremely high temperatures and pressure. Also, PAI has excellent dimensional stability, which facilitates precision applications. Moreover, its high resistance to wear, slumpage, and manufactured and natural abrasion makes PAI ideal for harsh conditions in aerospace and automotive environments. Collectively, these characteristics make PAI preferable for industries that need nominal changes in performance in demanding conditions.

Key properties of PAI that make it ideal for machining

• High Thermal Stability: PAI retains its mechanical properties and functionality at elevated temperatures, which facilitates machining operations producing high levels of heat.
• Dimensional Stability: Torlon PAI’s wear-resistant grade ensures accurate and repeatable machining results even during high mechanical forces.
• Exceptional Wear Resistance: PAI’s ability to withstand abrasions and extensive mechanical wear results in longer tool life and dependable performance while machining.
• Low Thermal Expansion: Difficulties experienced by normal materials with the inclusion of excess heat do not occur assuring that tight tolerances are given great priority during and after the machining process.
• Chemical Resistance: PAI’s capability to withstand degradation from different chemicals ensures that it will remain durable in a variety of machining conditions.

Comparing PAI to other engineering plastics

Polyamide-imide’s (PAI) remarkable thermal, mechanical, and chemical attributes, unmatched by any other engineering plastic, set it apart from the rest. Below is a table comparing PAI to other common plastics, including polyetheretherketone (PEEK), polyimide(PI), and polyphenylene sulfide (PPS):

• Thermal Stability: With a continuous use temperature PAI beats PEEK and PPS at an impressive 250 degrees Celsius. Peak has a temperature of 240 degrees Celsius, while PPS maintains a modest 200 degrees Celsius. Due to this specific characteristic, PAI is well suited for high-demand environments such as the aerospace and automobile industries.
• Mechanical Strength: Alongside a variety of other engineering plastics, PAI’s tensile strength reaches 134 MPa, surpassing PEEK’s strength of 90 to 100 MP a and PPS’s strength of 70 MP a. Negatively impacting neither the mechanical load nor stress, PAI excels in harmony under extreme weight.
• Wear Resistance: No other elastomer performs as excellently under friction as PAI making it suited for use in a multitude of applications. For example, PAI surpasses PEEK at seal and bushing components due to its low friction coefficient, guaranteeing durability, thus making it supreme against other materials.
• Dimensional Stability: The low thermal expansion and the high modulus of elasticity of PAI ensure much better dimensional stability than PAI low-end engineering plastics. Its greatly expanded tolerable range permits it to best PI and PPS in precision machining, whereby tight tolerances are kept under varying temperatures.
• Chemical Resistance: Both PEEK and PPS have impressive resistance to chemicals, however, PAI’s toughness ensures that it is the best performer in accepting harsh chemical environments which include hydrocarbons, acids, and aerospace-class lubricants.
• Cost and Processability: PEAK and PPS are more suited for some applications PAIs might be considered too expensive at 18.40 for mid-performance industries. It is important to remember that PAI works on more sophisticated machining methods such as post-finishing and curing than some of the lesser alternatives.

Based on the above primary metrics PAI stands out as a material of choice whenever precision, durability, and high thermal requirements are essential. Like with many engineering materials, a balance between cost and performance is most desirable.

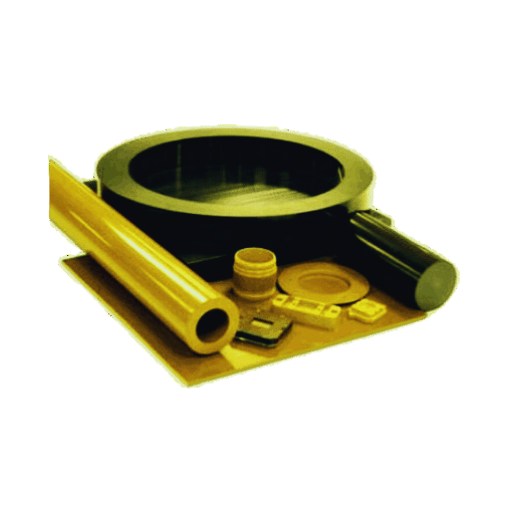

How does the PAI machining process differ from other plastics?

Unique challenges in machining PAI

The machining of polyamide-imide (PAI) has unique difficulties due to its material properties. The internal stress and material hardness that facilitate PAI’s remarkable mechanical strength and thermal resistance are also the reasons why achieving the final application is strenuous. As a result, trying to machine PAI is much more difficult than attempting to machine softer thermoplastics or some other high-performance polymers.

Low thermal conductivity is always a considerable challenge in such materials. The heat generated during machining gets concentrated at the cutting interface. This results in tool wear and deformation of the material. It also aids advanced cooling techniques to control the temperature. Studies have shown that systems for the direct delivery of coolant can cut the wear rates of tools by thirty percent which extends tool life as well as the quality of the surface finish.

One more challenge stems from a brittle material like PAI, which has low cutting load tolerance as it tends to chip or crack. This results in certain parameters needing to be met, such as precise tooling, lower feed rate, and cutting speed. Now, modern carbide tools with titanium aluminum nitride (TiAlN) coating are best suited for such uses owing to their corrosion resistance and rough operating conditions.

Finally, PAI’s dimensional stability requirements have a significant impact on how tightly PAI tolerances are set over the actual machining process. Several finishing passes or on-machine measurement systems are often needed to achieve final accuracy. The industry has moved toward the use of Computer Numerical Control (CNC) machining in PAI applications, which provide tolerance capabilities of ±0.001 inches that are critical to the aerospace and electronics industries.

These problems showcase that PAI has some machineability limitations, as well as requires a high level of craftsmanship skill, particularly tooling along with process discipline in regards to the machining of components like compressor parts. By following these steps, manufacturers can take advantage of the material while eliminating problems during the production process.

Specialized techniques for CNC machining PAI

The precision machining of polyamide-imide (PAI) requires the use of certain technologies due to some of its own properties such as high strength, low thermal conductivity, and a high sensitivity to thermal expansion. One such technique is using super abrasive cutting tools with Diamond-like carbon (DLC) or polycrystalline diamond (PCD) coatings. These coatings simultaneously increase the wear resistance of the tools and help preserve the edges of the tools during cutting, which is essential for PAI components since they need to be dimensionally accurate.

Optimized parameters of cutting, like spindle speed, feed rate, and depth of cut, are also of great importance. The literature recommends the use of lower spindle speeds and moderate feed rates during preliminary machining due to the heat produced during the work of the lathe. Too much heat may cause thermal displacement and softening of the PAI which would render the final product inaccurate. Furthermore, replacing liquid coolants with mist or air-cooling systems allows for greater material stability, since under certain conditions liquid coolants may react undesirably with PAI.

To minimize chipping and cracking at the edges of the material, step drilling is suggested for drilling procedures. Furthermore, the polished flutes on the carbide drills will improve chip removal and reduce the stress on the produced part. For milling operations, the same benefits apply for climb milling, which is favored over conventional milling since it minimizes the cutting forces and possible defects on the surface.

Stress relief is usually done after machining by annealing to relieve any residual stresses accumulated during the CNC operation. Treating the material using heat at these designed temperatures will also help maintain the final form of the part in aerospace and semiconductor applications that have extreme temperature ranges.

Explore the possibility of incorporating real-time monitoring systems, which allow for temperature and tool wear to be closely monitored, along with the update of CNC technologies. These systems would help mitigate risks while maintaining quality in high-tolerance PAI components. Achieving modern industry requirements for PAI precision machining will be made possible through these methods and the high levels of process control needed.

Achieving precision in PAI machined parts

To meet high standards set by specific industries, Polyamide-Imide (PAI) must be precision machined with very clearly outlined parameters through each stage of production. One of the best methods for ensuring accuracy across the PAI components is to reduce material-specific issues like thermal expansion, brittleness, and tool engagement. Among the high-performance polymers, PAI showed an incredibly low coefficient of thermal expansion (CTE), making it ideal for aerospace and semiconductor applications.

Sophisticated machining techniques are accompanied by new tool PCD and advanced carbide tooling. They help optimize machining processes in terms of efficiency and surface quality. Recent studies show that the Ra surface roughness value can be lower than 0.5 μm by using specially optimized tooling along with suitable cutting parameters, which ensures higher part performance in critical-use environments. In addition, spindle speed and feed rates must be tuned very precisely. For example, feed rates of 0.01-0.05 mm/rev, alongside spindle speeds greater than 20,000 RPM are often advisable for fine finishing operations because they decrease surface defects while improving dimensional accuracy.

Furthermore, the use of cryogenic cooling systems is proving to be an effective method for heat management during PAI machining operations. Unlike traditional methods, cryogenic systems control heat generation at the tool-workpiece junction more effectively, lessening wear and ensuring a significant increase in tool life and constant part quality. Studies show these methods of cooling can increase tool life by 40% when measured against conventional coolant methods. Additionally, the use of Computer Aided Manufacturing (CAM) systems facilitates the incorporation of predictive simulations intended to improve machining strategy optimization and consequently reduce cycle time while maintaining accuracy.

Post-work inspection requires particular attention as well. Implementing high-resolution Coordinate Measuring Machines (CMM) A 0.1 μm resolution ensures the dimensioned tolerances across the more intricate geometry are conclusively achieved. This combination of advanced tools, precise parameter control, and innovative cooling strategies reinforces the idea of technology integration in achieving excellence in PAI machined parts.

What are the advantages of using Torlon® PAI for machined parts?

Superior mechanical properties of Torlon PAI

Torlon® PAI (Polyamide-imide) is uniquely thermoplastic among other outstanding performers due to its excellent physical attributes and Torlon PAI’s flexural strength alone even stands upright to an eminent 22000 psi (152 MPa) coupled alongside a stiffness of 500000 psi (3447 MPa). This polymer’s unique combination of strength, stiffness, and durability makes it a favorable candidate for harsh environments where a high weight-to-strength ratio is required, practically replacing metals for a multitude of applications.

Torlon PAI’s durability and rigidness make it competent when worn against other engineering polymers(PEEK or PPS) thanks to its low coefficient of thermal expansion (CTE) combined with high abrasion resistance. This enables Torlon PAI to retain its structural integrity. This dimensional stability is shown over an extreme range of temperatures hovering from cryogenic conditions to even more than 500°F (260°C).

The immense stretch and flexural strength shown in Torlon PAI translates into creep resistance under permanent mechanical load and in industrial areas, aerospace applications require sophisticated parts combined with a long reliable lifespan, Torlon PAI proves to be a great contender. Sudden impacts or vibrations are no match against its glowing low-temperature impact-resistant qualities.

These mechanical advantages place Torlon PAI among the top materials for machining applications with rigid performance and durability requirements. Its ability to retain these characteristics under demanding operating conditions paves the way for its continued use in various industries such as aerospace, automotive, and oil and gas.

Chemical and wear resistance of PAI in demanding applications

Polyamide-imide (PAI) is most useful in an environment where it can be exposed to harsh chemicals, solvents, and wear for long stretches of time which is why PAI exhibits exceptional resistance to chemicals. It also possesses inert qualities which means that it is capable of performing to the best of its ability while maintaining structural integrity even after undergoing prolonged exposure to extreme substances.

Some notable characteristics and properties of PAI include the following highlights:

Resistance to Chemicals and Solvents:

PAI withstands a wide range of chemicals including hydrocarbons, chlorinated solvents, mild acids, and bases.

In the context of aerospace and automotive applications, PAI’s ability to withstand jet fuels, transmission fluids, and engine oils only solidifies its reputation.

High Abrasion and Wear Resistance:

Both in a dry setting as well as in lubricated conditions, PAI remains outstanding in resistance to wear. Research indicates that it outperforms PEEK and PTFE when factors such as wear against engineering materials are analyzed.

PAI is primarily sought after in high-friction settings such as seals, bearings, and gears where durability is a must owing to how advanced its tribological features are.

Thermal Stability in Aggressive Environments:

Due to mechanical and thermal pressure, such wear-resistant features are undetectable which provides reliability when dealing with extreme conditions of temperatures and up to 260 degrees Celsius (500 degrees Fahrenheit).

Enduring Performance Over Time:

In its continuous operation definition, PAI is designed to possess physical and mechanical characteristics even after prolonged usage and intense strain in the form of repeated mechanical stresses.

Reduction and Restrain of Flaking:

Choosing not to engage in a chemical attack allows PAI to avert flaking in key components, leading to lesser expenses and greater productivity.

The extensive laboratory tests and field trials conducted around the world affirm PAI’s position as the preferred choice in the most sophisticated applications including energy systems, aerospace propulsion parts, and heavy industrial machinery.

High-temperature performance and dimensional stability

Because of the phenomenal high-temperature performance of polyamide-imide (PAI), it is best suited for applications exposed to extreme thermal conditions. PAI best maintains its mechanical properties and integrity at temperatures exceeding 500°F (250°C). PAI is a superior option when compared to many other high-performance thermoplastics in regard to thermal performance. PAI’s glass transition temperature (Tg) ranges from 500°F and 540°F (260°C–280°C) with specific formulations, ensuring thermal expansion does not destroy the polymer chain under physical stress.

Another definitive characteristic of PAI is its dimensional stability which is achieved through its low thermal coefficient of expansion (CTE). This property is crucial in precision engineering applications as maintaining tight tolerances is of utmost importance due to fluctuations in operating temperatures. PAI is also known for retaining a high degree of stiffness along with minimal deformation when being exposed to extreme temperatures which ultimately makes the material more reliable for continuous service in high-temperature environments.

Various studies and industrial data show that PAI can withstand demanding conditions without compromising strength, resilience, or structural consistency. This makes PAI a highly desired material for aerospace engine components, automotive transmission systems, and semiconductor manufacturing tools. With the above-mentioned properties, the applications will remain consistently functional with prolonged service life in demanding environments.

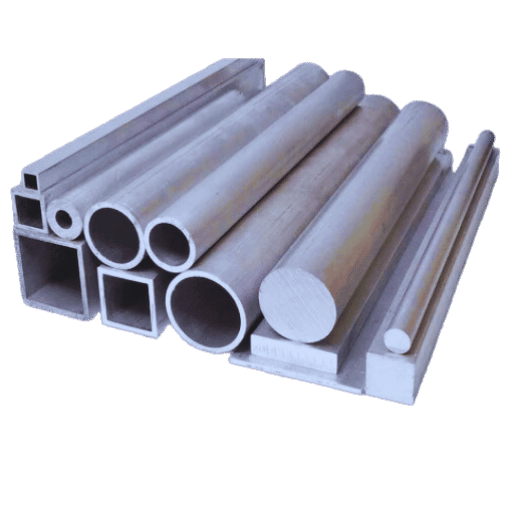

How to select the right PAI grade for your machining project?

Understanding different PAI grades and their properties

Polyamide-imide (PAI) materials are available in a variety of grades, each tailored for specific applications. Selecting the appropriate grade involves considering factors like thermal stability, mechanical strength, chemical resistance, and ease of machining. Below is an outline of the more common PAI grades available today as well as their functional features:

Unfilled PAI

Items in the unfilled PAI grade category, for example, Torlon 4203, are quite universal; they have very high mechanical strength and good dimensional stability. These products are excellent for uses where the lowest level of thermal expansion and superior wear resistance is a prerequisite. Typical applications are precision components including seals, bearings, and electrical insulators.

Fiber-Reinforced PAI

Fiber-reinforced PAI grades utilize Torlon 5030 which incorporates glass or carbon fibers to enhance stiffness and strength in demanding environments. These reinforced materials possess elevated tensile strength, improved flexural modulus, and increased resistance to deformation rotative load. Therefore, they can be used in aerospace structural components and performance-critical gears. Approximately 27,000 psi tensile strength and 1,800,000 psi flexural modulus describe glass-fiber-reinforced PAI grades.

Bearing-Grade PAI

For use in aerospace and industrial applications, Torlon grades 4301 and 4275 bearing-grade PAI materials come with embedded solid lubricants for enhanced performance, such as PTFE and graphite. These grades stand out for their ability to reduce friction and wear at elevated speeds and under high pressure. For example, Torlon 4301 materials provide surface resistivity lower than 10^12 ohm-cm and excellent fatigue resistance, making it ideal for use in sliding parts of compressors and automotive transmissions.

Electrical-Grade PAI

Electrical-grade PAI handles electrical components and shields against high-voltage breakdowns. Insulation for devices is accounted for by PAI variants and features excellent dielectric strength as well as superior thermal properties at temperatures higher than 260°C (500°F). This grade is regularly made for use with switches, connectors, and other pivotal electronic components.

Key Considerations for Grade Selection

Precision requirements, exposure to the environment (chemicals, moisture), load conditions, and operational temperature range are some of the critical factors to consider when selecting the correct PAI grade. Having access to datasheets and materials testing guarantees further confidence in meeting the demands specific to a project.

Factors to consider when choosing PAI for specific applications

Thermal Stability and Temperature Resistance

Some grades of polyamide-imide (PAI) can operate continuously at high temperatures up to 260 °C (500 °F). This unique characteristic makes it perfectly suited for the aerospace and engine component industries. However, while choosing a PAI grade it is important to check that the thermal stability of that specific PAI grade matches the requirements of the application. Testing your selected Torlon PAI grade’s lower thermal limits can yield the best results for long-term performance in extreme conditions.

Mechanical Strength and Wear Resistance

Even at elevated temperatures, PAI retains its superior mechanical strength and wear resistance. Because of its outstanding tensile strength and surface friction resistance, PAI is often used in seal, thrust washers, and bearing parts. A structurally demanding PAI component can outperform a majority of other polymers in dynamic load conditions. For example, in certain technical tests, PAI, in comparison to some advanced polymers, achieved up to fifty percent less wear than some advanced polymers.

Chemical Resistance

PAIs’ resistance against chemicals allows them to perform well in settings subject to harsh solvents, fuels, or industrial chemicals. This trait is useful in chemical processing equipment and automotive settings where such substances are frequently present. Check chemical compatibility before use with the graded standard solvent resistance charts.

Dimensional Stability and Precision

Dimensional stability is a key consideration for parts requiring tight tolerances such as precision gears and electrical components. PAI grades with minimal thermal expansion and excellent creep resistance will provide reliability in these high-precision applications. For example, PAI remains dimensionally stable under cyclic thermal conditions and significantly reduces the chances of a component misalignment.

Processing and Machinability

The finished properties of PAI components are greatly impacted by how they are processed. Injection molding and compression molding are some of the commonly used methods, each having its own advantages based on design complexity and application. In addition, some grades of PAI are made to be more machinable and can be altered after molding without the danger of cracking or deforming. Process efficiency is vastly improved once a grade that suits the manufacturing requirements is selected.

Cost-Benefit Analysis

PAI is an outstanding performing material, though quite costly. To arrive at the decision, a thorough cost-benefit analysis that encompasses the material’s potential longevity, performance improvements, and possible decreases in required upkeep or parts replacement should be conducted. Generally, for some applications, PAI is the preferred material choice whenever long-term dependability compensates its price.

Engineers and designers will, however, maximize the performance, durability, and efficiency of PAI by carefully reviewing and comparing datasheet specifications for each grade for more precise applications.

Comparing filled vs. unfilled PAI for machining

In a filled and unfilled state PAI like polyamide-imide exhibits differing mechanical properties, dimensional stability, and machinability. Thus, when selecting PAI for machining applications, the grade selection becomes crucial. Unfilled PAI provides great thermal and mechanical resistance hence, it is the go-to choice for high tolerance and precision processes. Moreover, its coefficient of expansion (CTE) is low, combined with outstanding dimensional stability in high-temperature environments. This makes unfilled PAI suitable for aerospace and electronic applications.

Compared to unfilled grades, however, filled grades of PAI reinforced with glass fiber or carbon fiber show improvements in rigidity, tensile strength, and wear impact. For instance, Carbon-fiber reinforced PAI has greatly enhanced stiffness and strength, with some grades having a tensile strength of over 200 MPa depending on the grade and amount of reinforcement. Additionally, filled PAIs are remarkably effective in minimizing thermal deformation under load making them suitable for high-stress environments like automotive or industrial machinery components.

These advantages certainly carry some costs for the production output. Filled grades usually suffer from lower impact strength as compared to unfilled PAI and in addition, they may suffer from high abrasiveness during machining because of the glass or carbon fibers. Therefore, it can be done by making the tools out of wearing polycrystalline diamond (PCD) or carbide which will withstand the extra wearing and also serve the required machining precision.

With regards to the question of whether filled or unfilled PAI should be used, it ultimately falls on the need of each specific application and how performance capability versus machinability is weighed. Unfilled grades serve better for complex shapes and close tolerances. On the other hand, filled PAI is preferable for highly shear-stressed structural parts if appropriate machining is exercised. In any case, it would be necessary to review the table and estimate the durable operational condition to make the best decision.

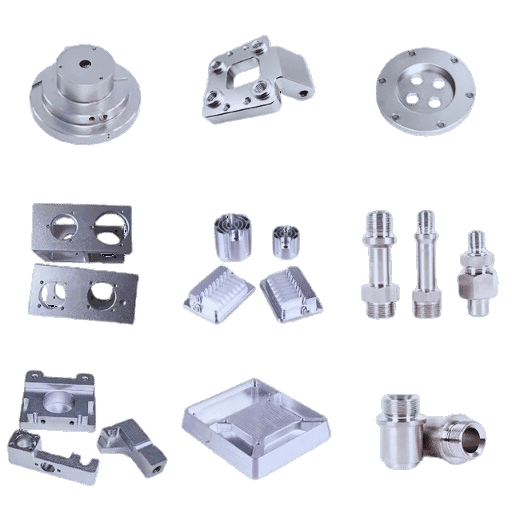

What are the best practices for machining PAI plastic?

Optimal cutting parameters for PAI machining

Achieving high-quality results in machining PAI plastic requires careful cutting parameter selection. To ensure accurate cutting processes, use sharp tools made of carbide or diamond coating cutting tools. Slow down the cutting speed to 300-500 surface feet per minute (SFM) as PAI is a sensitive material that can easily get heated. Feed rates should also be moderate to prevent tool wear which is around 0.002-0.01 inches per tooth. Sufficient coolant or airflow is required to lower the temperature of the material and avoid thermal damage. It is essential to modify these parameters to accommodate the specific grade of PAI being used along with the design complexity for adequate performance.

Tools and equipment recommended for PAI machining

1. Cutting tools made of carbide Due to their long-lasting nature and resistance to Torlon PAI grades abrasives, carbide tools are the most preferred. Worn sharp edges reduce the amount of heat produced in a tool, therefore being precise in cutting is made easier.
2. Coated tools – For long periods of work and complex designs, tools that have been coated in diamond will have greater precision and be more durable.
3. Machines – Advanced PAI parts require a high level of accuracy that is only achievable with Computer Numerical Control (CNC) machines.
4. Cooling systems – To prevent material breakdown, heat removal must be properly managed. Therefore, an effective coolant system or air flow setup is essential.
5. Fixtures – During the process of machining, clamping and vibration need to be controlled so proper workholding tools are required.

Tips for achieving tight tolerances in PAI machined parts

1. Refine the Parameters of Cutting – In order to achieve the tool’s precision and extend its lifespan, set the cutting speeds, feed rates, and tool geometry perfectly.
2. Control the Temperature – To avoid any form of expansion and contraction of the material, maintain constant temperature both in the work environment and during machining.
3. Invest in Good Tools – Make use of tools that are designed for machining polyester, which are also sharp and durable, so as to ensure a precise cut.
4. Check the Stability of Workholding – Adjust the workpiece in a manner that minimizes movement and vibration which in turn ensures stability during machining processes.
5. Frequent Calibration of the Machine – To avoid a gradual build-up of components out of alignment, regularly calibrate and maintain the machine to ensure the system tolerates tight gaps over time.

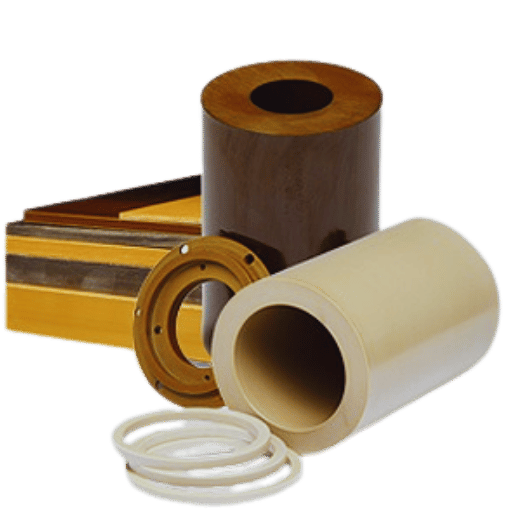

How does PAI perform in various industrial applications?

PAI in aerospace and automotive industries

PAI, or polyamide-imide, excels in the aerospace and automotive industries thanks to its remarkable mechanical, thermal, and chemical properties. From my research, PAI is ideal for high-performance parts, such as bearings, seals, and bushings, which need to be durable under extreme stress. PAI polymer consistently retains its properties in extreme conditions that require high strength, resistance to wear, and exposure to corrosive environments, making it a reliable choice for these sectors.

Use of PAI in bearings, seals, and structural components

Rotary components such as bearings, seals, and structural parts are made using polyamide-imide (PAI) which boasts unrivaled effectiveness in severe conditions. PAIs own bearings show high dimensional stability and resistance to high decaying temperatures, often exceeding 260 degrees(celcius) to 500 degrees Fahrenheit. This makes PAI bearings useful for aerospace turbine engines and automotive transmissions because they experience high demand from heat and load. On top of all, the outstanding weight-to-strength ratio ensures components are lightweight while being durable and decreasing the chances of wear over time.

PAI seals make use of PAI material’s chemical resistance even to aggressive hydrocarbon fluids and synthetic lubricants. Oil and gas applications utilize these types of seals because they can withstand high temperatures and pressures and still deliver uncompromised performance. PAI also helps with expansion and creeping, enhancing the operational life span of these hot harsh components.

In an ever-evolving industrial world, comprising of robotics, hydraulic systems, and manufacturing equipment, hinges PAI’s used to constantly operate under mechanical stress. Notably, its flexural modulus value exceeds 600,000 psi, with its tensile strength being rounded to 21,000 psi. The high grades of PAI ensure that structural components of heavy-duty machinery remain intact while performing repetitive loads of mechanical cycles. PAI exceeds expectations in tensile and flexural strengths, guaranteeing its reliability in robotics and hydraulic systems among other fields.

PAI’s role in high-temperature and corrosive environments

The chemical resistance of Polyamide-imide (PAI) together with its unrivaled thermal stability results in exceptional performance within corrosive and high-temperature environments. A polyamide-imide structure preserves mechanical integrity even at operating temperatures of 500°F (260°C) over extended periods. Short-duration exposure to temperatures as high as 525°F (273°C) is feasible. This makes the material ideal for aerospace industry components, automotive transmission parts, and chemical processing machinery.

In addition, the material sustains impressive resistance against harsh chemicals such as acids, alcohols, and hydrocarbons. For example, PAI can resist some of the most potent solvents for instance, toluene and nitric acid with minimal weight gain or property change. As a general rule, this low gas and liquid permeability, combined with strong chemical resistance enhances PAI viability in harsh corrosive fuel systems as well as seals, and valve seats.

PAI retains its essential properties combining thermal endurance and chemical resistance where other common polymers break down, emphasizing the materials’ relevance within industries with stringent performance requirements.

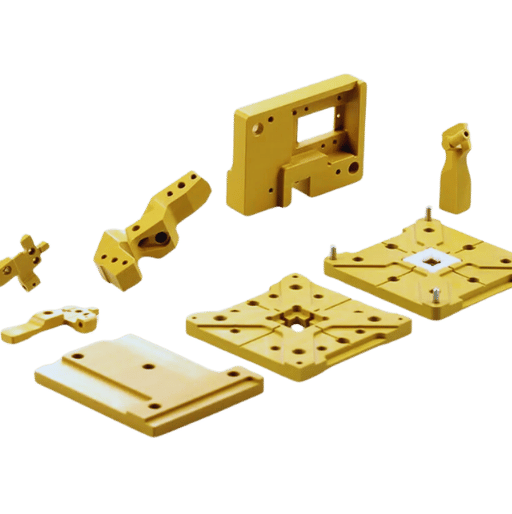

What are the limitations and considerations when machining PAI?

Addressing thermal expansion in PAI machining

Despite having great thermal stability, polyamide-imide (PAI) has a high degree of thermal expansion that makes machining difficult. Various PAI grades along with varied filler content can change the coefficient of linear thermal expansion (CLTE) to a level between 30-60 x 10⁻⁶/°C. This is problematic as the material can expand and alter its dimensions when there are temperature changes, thus losing tolerance and accuracy.

One of the best ways to reduce the effects of thermal expansion is to control the temperature during machining. Maintaining consistent temperatures for the material to lower the concentrations of heat with the use of coolant systems during operations. In addition, the use of harder materials for cutting devices reduces contractional heating at the interface between the tool and the material. For example, such devices continue working with good cutting and low thermal conditions when made of diamond and carbide, therefore, they are recommended for such purposes.

Another determining factor in an operation is the desired setup and fixation of the parts. Reducing the chances of thermal stress when machining polyamide-imide (PAI) blanks can be achieved with the application of pre-conditioning such as lengthy heat-soaking in a controlled environment. It has been proved that to improve accuracy in machining, lowering the temperature through expansion during the process can be far more effective than bringing restriction-induced warmth.

Ultimately, post-machining annealing is generally recommended to relieve internal stress as a result of cutting and stabilizing dimensional features. Standard procedures of annealing include slow heating to between 250 and 300 degrees Celsius, and subsequently, cooling down the material. This step guarantees the PAI part will maintain its mechanical properties and accuracy in the presence of temperature variations.

Manufacturers can take advantage of the high demands posed by specific applications on PAI components by carefully considering the issues imposed by thermal expansion employing these optimized machining strategies.

Managing costs associated with PAI machining

The production of polyamide-imide (PAI) components can be expensive due to the intricateness of the material and the precision needed throughout the entire process. However, these expenses can be minimized with some planning and employment of specific techniques, all while achieving top-notch quality.

One way to accomplish this is through advanced machining strategies that minimize tool loss. Considerable spending in the operational budget stems from the use of traditional tooling on PAI, with its high strength and thermal resistance. Diamond-coated tools or polycrystalline diamond (PCD) tooling boasts an extensive tool life, greatly minimizing the number of times the tool needs replacing. For instance, studies show that diamond tooling can last up to twenty times longer than standard carbide tools when used on PAI and other high-performance polymers – this leads to a significant amount of savings over time.

Another major factor is how materials are utilized. In light of the costly nature of stock PAI materials, eliminating waste on pre-machining plans and fixturing is critical. By using computer-aided tooling software that analyzes the structure of components, manufacturers can eliminate considerable amounts of scrap. According to reports, developing advanced computer-aided (CAM) systems can reduce waste by 30%, allowing businesses to maximize the waning amount of material.

Choosing the right cutting tool fluid and regulating its flow can also help save costs. Coolants are multifunctional as they aid in tool and workpiece protection as well as enhance the overall stability of the process which lowers the chance of defective parts. The use of on-consumption high-performance coolant designed for use on high-temperature materials can also improve tool life while reducing downtime when used consistently.

From an operational standpoint, automation offers a different method of cost reduction. Advanced CNC equipment with real-time monitoring systems can offer tighter tolerances and lessen the chances of human error, thus minimizing post-machining modifications. Investing in automation might require greater spending initially, but it significantly diminishes labor expenses and time consumption in the long run.

All machine manufacturers should focus on expenditures relating to defective products by investing in quality control systems. Units using Non-Destructive Testing (NDT) methods enable powerful ultrasonic or laser scanning to be employed for effective early defect detection which saves production costs and materials.

High-performance PAI machining applications can cut down costs and make the process more economical. This is done through employing efficient tools, reducing material waste, utilizing automation, and instituting stringent quality control measures.

Overcoming potential challenges in PAI finishing processes

The high strength, wear resistance, and thermal stability of polyamide-imide (PAI) make it extremely difficult to finish. One of the major challenges entails obtaining smoother finishes and tighter tolerances simultaneously. This is especially crucial in the aerospace or semiconductor industries which demand an exceptionally high degree of accuracy to be achieved. Certain polishing techniques, such as polishing with diamond paste or abrasive flow machining, have been demonstrated to endure such industries as they can achieve surface finishes as low as Ra 0.02 µm.

The risk of thermal degradation is another concern during secondary operations like sanding and grinding. A considerable amount of head is introduced, and it can compromise the mechanical properties of the polymer. To alleviate this concern, manufacturers can adopt the coolant-assisted machining approach that not only eliminates excessive head but also increases the rate of material removal by 15%.

When machining PAI, there is a concern for tool wear. Because of the toughness of the material, traditional cutting tools may wear out too quickly. This can, however, be solved through the use of polycrystalline diamond (PCD) or coated carbide tooling, which are far more durable. When machining high-performance polymers such as PAI, PCD tooling has been shown to increase the life of the tooling by a factor of three to five.

Finally, the application of adhesive or coating uniform on PAI surfaces is challenging because PAI has low surface energy, which makes bonding difficult. However, surface treatment like plasma activation or chemical etching can increase adhesive wetting and bonding strength by 40 percent. These techniques alter the topmost molecular layer of the surface, which makes it more reactive and uniform.

With the use of sophisticated polishing methods, heat-dissipating machining strategies, robust tools, and surface modification techniques, these challenges can effectively be solved by manufacturers to greatly improve productivity as well as the reliability of PAI components for critical applications.

Frequently Asked Questions (FAQs)

Q: What is PAI and why is it used in machining?

A: PAI (Polyamide-imide) is a thermoplastic polymer with exceptional high-performance capabilities due to its strength, stiffness, and resistance to heat. One of the main brands of PAI plastic used in machining, known for its physical properties like high strength, low friction, and excellent chemical resistance, is Torlon PAI. For these reasons, PAI is suitable for the manufacture of components that must perform well in extreme conditions.

Q: How does PAI CNC machining compare to other plastic machining processes?

A: PAI CNC machining is one of the most precise and flexible plastic machining technologies. Thanks to PAI’s high strength and stiffness, intricate and complex geometries can be fabricated easily. Moreover, PAI’s low coefficient of thermal expansion allows for dimensional stability during machining, making this material ideal for precise components. One advantage PAI has over other plastics is its high-temperature resistance during machining, increasing the range of suitable cutting conditions.

Q: What are the key properties of Torlon PAI that make it suitable for machined parts?

A: The most significant factors that make Torlon PAI suitable for machined parts include: a) High Strength and Stiffness b) Exceptional Heat Resistance (Up to 500 F/260 C) c) Low Coefficient of Thermal Expansion d) Excellent Wear Resistance e) Good Chemical Resistance f) Low Friction & High Wear Resistance g) Outstanding Electrical Properties Applications of this material range from the aerospace to automotive industries.

Q: What are the different grades of PAI available for machining?

A: Different grades of Torlon PAI have been developed for machining based on the specific applications they serve: 1. Torlon 4203 – General purpose grade with a balance of properties. 2. Torlon 4301 – Enhanced wear-resistant grade with improved tribological performance 3. Torlon 4503 – High flow grade for improved processability 4. Torlon 5530 – Glass filled grade for improved strength and stiffness 5. Torlon 7130 – Carbon fiber reinforced grade with improved strength-to-weight ratio Choosing the right grade depends on the specifics of your application.

Q: How does machining Torlon PAI differ from other plastic materials?

A: Torlon PAI comes with its unique set of challenges on top of other general considerations. These are listed as follows: 1. Increased cutting speeds and feeds can be applied because of PAI’s heat resistance. 2. Clogging of tools should not occur so sharpened cutting tools are preferable. 3. Coolants may be needed to help manage heat problems during machining. 4. Low thermal expansions mean tighter tolerances can be used. 5. The strength of the material means more tooling and fixturing will be required. For the best results, consulting with experts on machining PAI is recommended.

Q: What are the typical applications and uses of Torlon PAI machined parts?

A: The range of industries utilizing parts made from Torlon PAI is vast due to the material’s excellent characteristics. These include but are not limited to: 1. Bushings, bearings, and seals for the aerospace industry. 2. Transmission and piston rings for the automotive industry. 3. Valve seats and pump components for oil and gas industry equipment. 4. Electrical and electronic devices. 5. Medical instruments and apparatus. 6. Industrial machinery including gears, bearings, and wear plates. Grade Torlon PAI is ideal for very oppressive uses because of its great strength, ability to withstand heat, and low friction.

Q: What are the advantages of using PAI stock shapes for machining?

A: In machining, the PAI stock shapes are advantageous in the following ways: Superior machinability: Consistent material properties throughout the stock. Consumption reduction, when compared to molding for small production, is achieved with the natural grade of Torlon PAI. The ability to produce custom parts without molds. The production of complex geometries is possible through CNC machining. Lowers the lead time for prototyping, and small batch production requires minimum manufacturing downtime. There is greater scope for the creation of high-performance machined parts with minimum effort using PAI stock shapes.

Q: What is the scope of consequences of the temperature range on machined parts of Torlon PAI?

A: Apart from its excellent cryogenic characteristics, Torlon PAI also has a very high upper service temperature of around 500°F (260 °C), Much of these extremes benefit machined parts in a variety of applications, Some of how are as follows: 1. Provides strength and stiffness retention at elevated temperatures. 2. Maintains dimensional stability due to low thermal expansion. 3. Retains wear-resistant and low friction properties throughout the temperature span. 4. Enables applications with thermal cycling. 5. Maintains consistent electrical prop from low to high operating temperatures. The expansion does allow Torlon PAI to excel in many characteristics needed from material parts exposed to great extremes of temperature.

Q: What factors must be taken into account when selecting the right material for PAI plastic machined parts?

A: In the selection of the right material for PAI plastic machined parts, the following factors should be considered: 1. Mechanical requirements which include strength, stiffness, and impact resistance. 2. Thermal conditions including the operating temperature range and heat resistance. 3. Any possible chemical tolerance which includes resistance to specific chemicals or environments. 4. Wear and Friction requirements. 5. Electrical properties if any. 6. Dimensional stability. 7. Price or cost restraints. 8. Availability of stock shapes or grades. 9. Complexity of machining and tolerances needed. 10. Regulatory Compliance such as FDA and REACH. These important factors will help you select the best PAI grade for your application.

Q1: What are the best tips for obtaining clean machined edges on Torlon PAI?

A1: To accomplish clean machined edges on Torlon PAI, the following is recommended: 1. Adopt the use of high-grade inserts that are manufactured for working with plastics 2. Control heat by coolant application 3. Adjust feed rate and rotational speed for PAI polymer 4. Ensure efficient fastening to the machine which reduces vibration and pulls 5. Pay attention to the direction of the grain of the raw stock shape while machining 6. Incorporate stress relief between rough cut and finish cut 7. Apply surface treatment or coating if needed 8. Work with specialized PAI machining professionals for intricate details of the components 9. Check the quality and dimensions thoroughly 10. Evaluate the need for treatment such as annealing after machining Osservando estas norme si assicurano componenti di PAI di alta finitura e precisione adatte ad uso.

Reference Sources

1. A review of digital twin-driven machining: From digitization to intellectualization

• Authors: Shimin Liu, Jinsong Bao, Pai Zheng
• Publication Date: April 1, 2023
• Journal: Journal of Manufacturing Systems
• Summary: The paper analyzes the emergence of technologies associated with the digital twin feature of the machining process which aid in the digitization and intelligence of the manufacturing process.

Key Findings:

• The paper discusses the shift from more conventional machining processes to real-time digitally twin-driven methods where monitoring and maintenance are predictive and proactive.
• It also points out issues that impede the adoption of digital twins, such as discrepancies in data, merging of models, and precision of models.

Methodology: The authors synthesized the information gained, from within a wide range of studies, to provide a summary, which explains how digital twins are used in machining (Liu et al., 2023).

2. Energy-saving batch processing under tool wear with an adaptive critic design approach

• Authors: Qinge Xiao, Zhile Yang, Yingfeng Zhang, Pai Zheng
• Publication Date: April 1, 2023
• Journal: Journal of Manufacturing Systems
• Summary: This paper outlines an innovative approach to adapt hardware-in-the-loop simulations for batch machining processes that consider the time-varying wear of the tool with the objective of energy saving.

Key Findings:

• The application of “actor-critic” design structures facilitates real-time manipulation of machining parameters, resulting in efficient operation and improvement of energy efficiency while lowering machining process costs.
• The research highlights the emerging applications of machine learning in process control for enhanced flexibility.

Methodology: The model was implemented with the adaptive control strategy and tested against other popular methods and its performance was monitored using a developed simulator model (Xiao et al., 2023).

3. Correlation of Big Data Machining Insights Through Statistical Methods

• Authors: N. Fang, Pai P.
• Publication Date: 17 December 2022
• Conference: IEEE Intl Conference On Big Data, 2022
• Summary: The paper analyzes the correlation between big data indicators associated with a machining operation, particularly those concerning the ‘cutting’ surface roughness, the cutting forces, and the vibrations.

Key Findings:

• The research established the existence of correlations of surface roughness and cutting forces as well as surface roughness and vibrations, which are valuable in determining optimal processing parameters.

Methodology: Fang and Pai (2022) tested their hypotheses by carrying out machining operations and a series of statistical correlation analyses on the data collected in conjunction with the experiments (pp. 6636–6638).

4. Leading PAI CNC Machining Provider  in China
