Waterjet vs. Plasma Cutting: Looking at the Benefits and Pitfalls of Each

As far as manufacturing cutting techniques are concerned, companies must choose between waterjet and plasma cutting systems. Each method has its specific good sides and shortcomings depending on the kind of material, required accuracy, cost of operations, and time efficiency. This article will present a comparative analysis of waterjet and plasma cutting, focusing on their functionalities, applications, and boundaries. It doesn’t matter whether you are trying to choose a cutting option for a particular project or are planning strategies for everyday business operations, knowing the fundamental differences between these technologies would help you make the right choices.

What is the Difference Between Waterjet Cutting and Plasma Cutting?

Waterjet cutting uses a stream of water mixed with abrasive material under a high pressure to cut through all kinds of materials such as metals, plastics, composites, stones, and more. This method does not produce any heat-affected zones, is suitable for extremely complex designs or materials sensitive to heat, and has high accuracy. However, the cutting speed is quite slow in comparison to some others as well as being costly to operate.

For metal parts, plasma cutting is more efficient as it requires only an electric arc to ionize gas which produces a plasma at extreme temperatures that are capable of cutting through metals such as steel and aluminum quite easily. Burning thick materials can also be done effortlessly. A downside is that it produces a lot of heat-affected zones, which is why it is not ideal for non-metal materials.

In summary, each cutting method enables specific materials to cut with the ideal precision while keeping in mind the cost fuel efficiency trade off. Out of the two, Waterjet cutting is superior when compared to plasma cutting as it is more efficient.

Deciphering the Cutting Technique for Waterjet Cutting

The process of waterjet cutting involves using a jet of water, usually at high pressure and mixed with abrasive materials like garnet, to erode and cut through almost any material. This process is quite flexible, as it is capable of cutting metals, composites, glass and even ceramics without changing any of their properties. As with other forms of cutting, waterjet cutting does not have any changes to the material temperature, which is much more beneficial than thermal cutting methods since it does not create any heat affected zones to compromise material integrity. Waterjet systems also provide superior precision relative to other systems, frequently achieving tolerances of +/- 0.005 inches which is perfect for work requiring highly detailed features. This method is not only non-invasive, but also goes a long way in helping preserve the environment by reducing waste and eliminating chemicals.

How Plasma Cutting Works with Conductive Materials

To perform plasma cutting, a work piece must have an electrical channel of gas, referred to as plasma, passed through it in order to receive the superheated gas. This process needs a circuit, so materials such as steel, copper, or aluminum must be present. The method applies the use of a nozzle placed at the end of a plasma cutter that forces gas or compressed air between 60-120 PSI through an electric arc. This arc ionizes the gas, forming plasma while the compressed air helps in performing the cut. The jet reaches above 20,000 degrees Celcius (36,000 degrees Fahrenheit) and is able to melt and cut through the material.

Depending on the thickness of the material, it is not uncommon to reach a cut speed of 200 inches per minute (IPM). The faster cut speed is commonly applied to thin sheets while a steel plate that is half an inch thick can be cut at around 60 IPM. With plasma cutting, materials are not only cut with precision, but the rate of kerf widths is remarkable low, cutting waste down to a minimum. It is because of its accurate cuts through rather thick materials alongside the economic advantages that plasma cutting is often used in automotive repairs, manufacturing, and shipbuilding.

Differences Between Waterjet and Plasma Cutting Methods

Following is an assessment of waterjet and plasma cutting methods with respect to certain features of importance.

• Waterjet Cutting: It is capable of cutting most materials like metals, plastics, glass, stone, and even composites. It is well designed for heat sensitive materials as it does not cause heating during cutting. The thickness of materials that can be cut range from a few inches depending on the material.
• Plasma Cutting: It has limited application with only a few metals like steel, stainless steel, and aluminum. Best suited with electrically conductive materials. Works well with thicker metals generally up to 2 inches.
• Waterjet Cutting: It is the most precise method achieving tolerances of about ±0.003 inches. Average kerf width is about 0.02 to 0.04 inches which is beneficial while cutting because it reduces waste.
• Plasma Cutting: It is the least precise of the three with tolerances around ±0.02 to ±0.04 inches. Average kerf width is larger which is in the range of 0.05 to 0.15 inches depending on the configuration and thickness of the material.
• Waterjet Cutting: Requires a more abrasive and high-pressure flow which results in slow cutting speed with high thickness materials.
• Plasma Cutting: Achieves maximum efficiency in performance with thin conductive metals and yields significantly faster cutting speeds than other types of cutting methods.
• Waterjet Cutting: Ideal for operations where material preservation is needed, as it results in no heat affected zones due to no generation of heat during the process.
• Plasma Cutting: Could result in unwanted consequences with materials susceptible to thermal stress, as it’s operation creates a heat affected zone which could be problematic in lots of applications.
• Waterjet Cutting: Requires a higher initial investment because of the complex machinery used and the prominent maintenance needed for high-pressure pumps and abrasive management. Garnet abrasive, water, and electricity are other operating costs.
• Plasma Cutting: More preferred because of the lower initial cost and easier operational maintenance that comes with it. Consumables do include plasma gas and electrode parts which raises the price expectancy.
• Waterjet Cutting: Has a lower harmful environmental impact as no gases are produced, but proper disposal of the abrasive material is necessary.
• Plasma Cutting: Comes with uncontrolled release of harmful gases and fumes which can be disastrous to the environment and people operating it without adequate ventilation.

What Are the Advantages and Disadvantages of Waterjet Cutting?

The Edge Quality and Speed of Water Jet Cutting

Water jet cutting is popular due to its unmatched edge quality and cutting flexibility. It creates smooth edges which require no additional finishing work. Water jet cutting is known to have tolerances of around ±0.005 inches, which varies with the type of material as well as the accuracy of the machine. Moreover, the cutting procedure does not create heat affected zones (HAZs), which is important for preserving the strength of materials which are vulnerable to thermal deformation.

Nonetheless, water jet system cutting speeds vary a lot depending on the thickness and type of the material, as well as if there are any abrasives present. For example, thin plastics or soft metals can be cut faster than dense alloys or composite. Research shows that soft materials can be cut at over 300 inches per minute with a high-pressure water jet system over 50,000 PSI, but thicker materials come with a trade-off where they have to be cut at slower speeds. These factors reinforce the need for targeted changes to enhance efficiency and effectiveness.

A Look at Various Materials that can be Processed With a Waterjet Cutter

One of the many conveniences of waterjet style machining is that a vast array of materials can be utilized with it. Presented below is a full classification of materials and their respective performance indexes that were obtained through a waterjet cut:

• Steel: When cutting stainless steel plates, a 20 to 50 inch per minute cut rate is achievable with a 60,000 PSI system. High-strength steels, particularly stainless steels, can be cut to a high degree. If you take a 0.5 inch thick stainless steel plate for example, a cut rate of 20 to 50 inch per minute is achievable.
• Aluminum: Aluminum is a softer material which leads to faster cut rates. For instance, 0.25 inch thick plates can be machined at greater than 200 inches per minute.
• Titanium: Waterjets cut immensely through titanium while other devices can permanently damage its structure. With 1 inch thick plates, speeds between 5 and 15 inch per minute are achievable.
• Carbon Fiber Reinforced Plastics (CFRP): For most materials, waterjet cutting tends to aggravate fraying, but for CFRPs, it greatly lessens it. A standard 0.25 inch CFRP panel can be cut at approximately 50 to 100 inch per minute range.
• Fiberglass: Like CFRPs, Fiberglass suffers from less heat accumulation during cutting. 30 to 60 inch per minute range is typical for 0.5 inch sheet of fiberglass.
• Granite: Natural stones such as granite take some time to cutting owing to their density. A one inch thick slab can be cut at a rate between 10 and 20 inches per minute.
• Porcelain: Thin porcelain sheets used in tiling can be cut with decent accuracy at about 50 to 75 inches per minute.
• Polycarbonate: A 0.25 inch thick polycarbonate requires 100 to 175 inches per minute to be cut due to its strength.
• Acrylic: At a thickness of 0.5 inches, acrylic sheets can be cut between 150 to 200 inches per minute without forming stress fractures.

The information provided demonstrates the adaptability of waterjet systems, which dramatically varies with the properties and thickness of the material. Furthermore, the operators can improve accuracy and productivity by adjusting the PSI, abrasive material, and feed rate to the material being cut.

Drawbacks of Waterjet Technology in Metal Fabrication

Although waterjet cutting comes with many advantages, it is also important to strategically consider its shortcomings. For example, accuracy is likely to suffer due to jet lag and tapering when attempting to cut metals beyond 2 inches. Industry figures suggest that 2.5-inch stainless steel plates cut under 60,000 PSI will tend to taper to a whopping 3° angle on the cut edge, which is an additional expense on precise projects.

Material hardness is another factor that impacts waterjet cutter performance. For instance, titanium alloys take much longer to cut than softer metals like aluminum. Cutting half an inch of titanium may require a painfully slow feed rate of between 6-10 inches per minute, while the same thickness of aluminum can be cut at much faster speeds of 25-35 inches per minute.

Cost considerations are paramount as well. Abrasive consumption typically falls in-between half a pound and one and a half pounds per minute, and expendable media makes up an average of 60 to 80% of the overall operating cost. For high-production shops, these expenses can certainly be a limiting factor, particularly when cutting large quantities of thick, hard materials. Knowing these factors helps in estimating costs for planning and analyzing processes.

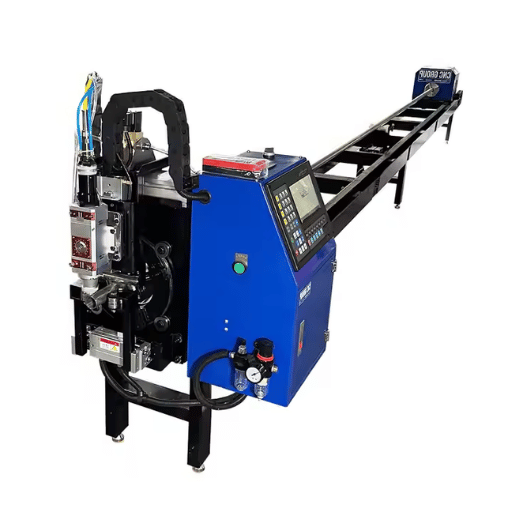

How Does Plasma Cutting Compare with Laser Cutting?

Differences in Cutting Power: Plasma Cutter and Laser Beam

The process of plasma cutting and laser cutting differ both in process and application. Plasma cutters cut through steel, stainless steel, and aluminum by using a highly directed stream of ionized gas, or plasma. Plasma cutting is ideal for thicker materials due to its relatively rapid operation with them. In contrast, purpose-built laser cutters use a focused laser beam to make highly detailed cuts, making them more useful for thin materials or intricate projects. Although laser cutting yields better edges, plasma cutting is more economical and suitable for heavy-duty work. The decision made will vary based on the needs of the project in terms of thickness and type of material, along with necessary details.

Examining the Heat-Affected Zone in both Plasma Cutting and Laser Cutting

Evaluating the effects of thermal cutting on the material properties of a given part involves analyzing the impact zone, or heat-affected zone (HAZ), which has thermal pockets that can alter material properties. Because of the higher thermal input and the wider energy dispersion, plasma cutting generally leads to a greater HAZ. For example, there is data suggesting that the HAZ regions associated with plasma cutting vary from 1.2 mm to 3.0 mm for various cutting speeds and material thicknesses. With such a wider zone, residual stress in addition to the metallurgical changes is much more pronounced near to the cut edge especially in the case of heatsensitive materials like steels.

In comparison, laser cutting has a significantly smaller HAZ, typically between 0.2 mm and 0.8 mm. The focused beam of laser and its high calorific intensity cause minimum effect to the underlying metal and leads to thermal distortion or microstructural changes. This range of factors renders laser cutting effective in places where not only material but also expense, space, and time are limited, like the aerospace sector and the medical field, where precision and tolerances are highly critical.

Overall, cost benefits make plasma cutting preferable in applications where HAZ is a significant issue, while laser cutting is optimal for high precision projects that involve excessive thermal disruption.

Plasma Vs. Laser Cutting: Metal Cutting Methods Compared

There are a few plasma cutting vs laser cutting factors that must be evaluated if one is to determine which technology is best for a given process:

• Material Type and Thickness: Plasma cutting is most beneficial in the case of thicker metals like steel and aluminum that are good conductors of electricity. On the other hand, laser cutting is best for thin to medium-thick and non-conductive cut out materials.
• Edge Quality and Precision Requirements: Laser cutting offers an edge over plasma cutting in quality and level of precision and smoothness of the edge, especially for elaborate designs where tight tolerances are needed. On the other hand, plasma cutting provides a relatively rough edge finish, which is adequate flat for less precise applications.
• Cost and Speed: For time-sensitive or large projects, plasma cutting is more cost-efficient than laser cutting. While more expensive, laser cutting offers increased quality which comes at the expense of speed when employed on thicker materials.
• Heat-Affected Zone (HAZ): For medical or aerospace components where the material integrity is critical, laser cutting does a better job than plasma cutting. Although plasma cutting is very useful in less-sensitive applications, it does suffer from producing a larger HAZ.

Ultimately, the choice made ought to comply with the project’s technical specifications, cost limitations, and expected achievements, guaranteeing satisfactory performance and effectiveness.

Which Cutting Technologies Are Best for Specific Materials?

Using Waterjet to Cut Aluminum

Waterjet cutting is exceptional with aluminum because of precision and ability to its structural integrity. In comparison to the thermal cutting techniques, waterjet cutting does not use any heat so there is no warping, distortion or mechanical changes in aluminum. Waterjet cutting’s ability to maintain tolerances within ±0.005 inches makes it ideal for high accuracy projects.

Also, for varied thicknesses of Aluminum, water jet technology is very versatile. For example, water jet can cut aluminum sheets from 0.02 inches to 6 inches and even more depending on the equipment’s pressure settings and the abrasive material used. This flexibility makes water jet cutting ideal for aerospace components, parts of architecture, and custom design applications where accuracy and exquisite finished surface is needed.

According to an industry study, water jet systems have a cutting speed of 200 inches per minutes for thin aluminum sheets, however this is significantly slower for thicker materials. Average speed for one inch thick aluminum is around 20 to 30 inches per minute depending on the machine used. These factors including the environmental sustainability of the process makes water jet cutting ideal for aluminum.

When Conductive Materials Are Involved, Here’s When You Should Use Plasma Cutting Technology

Plasma cutting is best suited for steel, stainless steel, and aluminum. These materials require precise and speedy cutting. What sets this method apart is that plasma, which is ionized gas, is used to generate a plasma cutting zone, which can slice through metals at a speed that is unparalleled. These metals can range anything from thin sheets to thick plates, the general standard being up to 1 inch. In fact, some advanced industrial systems have the capacity to go even thicker. The plasma cutting technique would be ideal when more complex designs are needed, as well as situations when minimum heat-affected zones (HAZ) are required. This method of cutting is very prevalent in industrial fabrication, automotive repair, and HVAC systems due to its affordability and flexibility when dealing with electrical metals.

Applications of Jet Cutting in Various Fabrication Industries

Jet cutting applies to a wide array of industries but is mainly favorable in fabrication industries because of its versatility and accuracy. A water jet operates by sending a high-pressure jet through water while projecting an abrasive material such as garnet to aid in cutting. The best attribute of this machine is that it can cut almost any material with no added additional heat. Below are some specific details s and data regarding its advantages:

Versatility of Materials: Water jet systems operate at various speeds depending on the type of water-jet machine. As such, they can accomplish tasks penetrating up to 12 inches of soft material like foam, rubber, along with hard items such as stone, glass, ceramics, and metals. The machine is not limited to soft or hard items, it is quite versatile.

Precision: Jet cutting is advisable for intricate designs with very fine tolerances of up to ±0.003 inches. This makes details in jet cutting ideal when dealing with custom manufacturing, electronics or even aerospace components.

No Heat-Affected Zone: With jet cutting being a cold-cuts means that there are no distortions, life changes in the materials used or properties of the machine. It ensures that every item is in its required structure as needed.

Waste from Operation: There’s little waste from the operation as water along with abrasives are easily recylable. Furthermore, harmful gas emissions associated with the thermal cutting processes are avoided.

Operation Effectiveness: Depending on the type of material and machine, the jet cutting speeds may go as fast as 1,000 inches per minute. This translates to quick production while maintaining quality.

Because of these reasons, industries that heavily rely on accuracy, flexibility, and eco-friendliness, like the medical device, automotive parts, and architectural industries, will find jet cutting a vital process.

How Do CNC Machines Integrate with Waterjet and Plasma Cutting?

Achieving Precision via CNC in Waterjet Cutting

CNC (Computer Numerical Control) technology achieves greater precision and efficiency in waterjet cutting by automating the movement and control of the cutting head to predefined directions. CAD (computer-aided design) files are automatically processed by sophisticated CNC units, controlling the waterjet in a manner that is so precise that it can cut intricate designs while still maintaining tolerances as tight as ±0.001 inches. Furthermore, advanced algorithms that are part of modern CNC systems determine the optimal cutting route, minimize material wastage, and modify cutting speeds in real time, depending on the thickness and hardness of the material. The combination of CNC intelligence with the versatility of waterjet technologies makes it superlative for cutting a wide range of materials, including metals, composites, and ceramics, with unparalleled detail.

Improving Efficiency in Plasma Cutting with CNC Technology

CNC Technology greatly enhances the efficiency of plasma cutting thanks to its accurate and consistent results over a variety of materials and their thicknesses. For instance, a CNC controlled plasma cutter can cut mild steel, which is thinner compared to other metals/ materials, at a remarkable rate of 500 inches per minute. This ensures rapid cutting along with maintaining quality. The CNC system is also capable of contouring rotary processes and in the case of thicker metals, it can change the value of amperage, gas flow, edge finish, and dross to optimize quality and increas the amount of cut material. According to research, up to and more than 60% of time can be saved in production with CNC systems compared to engraved and less advanced methods. All the while tolerances of hand and machine cutting of ±0.005inches can be achieved. This accuracy in combination of controlling complicated shapes is ideal to CNC plasma cutters to be utilized in construction in aerospace and automotive industries. Additionally, other machine optimizations as nesting parts for cut shapes offer savings in material more than 20%.

Automation Sophistication in the Current Structural Fabrication Machinery Technology

The productivity of CNC plasma cutting systems is characterized by their excellent and effective performance throughout various uses. The primary data includes cutting tolerances that can attain precision levels of ± 0.005 inches, which is outstanding for anything that requires intricate detailing and finishing. Industry sources suggest that the cutting rates for 10-gauge mild steel are as high as 500 inches per minute. This rate is substantially greater than the average of 20-40 inches per minute – typical when oxy-fuel cutting techniques are applied.

Another critical indicator made possible by the nesting software is material utilization efficiency. Studies suggest that nesting can produce savings of 20-30% in some cases, which not only minimizes costs but also lessens the overall environmental impact through reduced waste. These systems further cut across multiple material types, including aluminum, stainless steel, and carbon steel with thicknesses from 26-gauge sheet to over one inch thick plates.

With relation to operations, CNC plasma cutters increase productivity by automating modifications like pierce height, cut height, and travel speed, minimizing operator involvement. Furthermore, some sophisticated models aid in real-time diagnostics, identifying problems like nozzle wear or irregular gas pressure which could lead to expensive downtime. The combination of intelligent monitoring, accuracy, and system speed is what guarantees that these systems remain indispensable in shipbuilding, construction, custom fabrication, and other industries with heavy demand.

Frequently Asked Questions (FAQs)

Q: In what ways do waterjet cutting and plasma cutting differ with regards to processes and technologies?

A: Cuts for waterjets are done through the use of a powerful stream of water mixed with abrasives, which can be used for cutting metals, plastics, stone and a number of other materials. Unlike water jet, plasma cutting uses aggressive heating or a plasma arc to sever over conductive materials. Plasma is faster than water jet, but needs more time for prep work because of the high temps required.

Q: Regarding efficiency and accuracy of waterjet cutting and plasma cutting, which has more proficiency?

A: Water jet and plasma cutting go head to head in reliability, but water jet is generally favored. It is more effective and precise, unlike plasma which creates heat distortion due to the excess heat used during the cutting, Water jet produces intricate designs more elegantly.

Q: Which materials can be cut with waterjet and plasma and what are the differences between them?

A: Metals, glass, ceramics and composites are all materials that can be cut using waterjets. Plasma cutters have a greater range of products consisting of steel, stainless steel, aluminum, and other conductive materials.

Q: Which of the two methods is more cost effective: waterjet or plasma cutting?

A: With regards to cost effectiveness, waterjet vs. plasma cutting costs will vary depending on the specific operation. While plasma cutting is generally faster when working with metals, it is also more cost effective on thicker materials due to lower energy expenditure. For rough machining work, waterjet cutting is slower, but for intricate work, detailed machining, and for applications sensitive to heat, it is preferred.

Q: Do waterjet cutting machines have the capability to perform thicker cuts than plasma cutting machines?

A: Waterjet cutters do not suffer any heat related issues, so they can cut thicker materials, often up to several inches, with ease. While plasma cutters are able to cut thick material too, it can be more energy intensive and also create heat affected zones that are not desirable due to unfavorable changes in the material properties.

Q: What is the ecological impact of waterjet and plasma cutting machines?

A: Waterjet cutting tends to be more eco-friendly as there are no hazardous fumes or gases emitted. While plasma cutting is efficient, it has to be managed with ventilation systems to control fumes.

Q: Is plasma cutting or waterjet cutting more suitable for cutting heat sensitive materials?

A: Yes, waterjet cutting is more effective with heat-sensitive materials because it does not cause any thermal distortion or damage, unlike plasma cutting which does introduce high temperatures. Plasma cutting would greatly affect heat-sensitive materials.

Q: Does waterjet cutting have disadvantages compared to plasma cutting?

A: One disadvantage is that waterjet cutting is slower than plasma cutting, which makes it less effective for high-volume production of thick metals. It’s also necessary to have access to a high-pressure water supply, which can be a logistical problem in some locations.

Q: What are the maintenance requirements for waterjet vs plasma cutting machines?

A: Waterjet cutting machines do require the high-pressure pump and water nozzles to be maintained regularly, similar to plasma cutting machines which maintain the plasma torch and other parts of the torch. Each machine needs periodic monitoring to maintain precision and mechanical efficiency.

Reference Sources

1. Advancements in Abrasive Waterjet Cutting Technologies: A Comprehensive Overview and Future Prospects in the Manufacturing Industry
   • Authors: I. Perianu et al.
   • Publication Date: 2024-12-06
   • Summary: This article provides a comprehensive overview of abrasive waterjet cutting technologies, discussing their principles, advantages, and applications. It highlights the differences between waterjet cutting and other methods, including plasma cutting, emphasizing the non-thermal nature of waterjet cutting, which prevents heat-affected zones (HAZ) and material distortion. The paper also discusses advancements in waterjet systems and their potential for improved cutting precision and efficiency.
   • Methodology: The authors reviewed recent trends and technological advancements in abrasive waterjet cutting, analyzing various applications and comparing them with other cutting methods, including plasma cutting(Perianu et al., 2024).
2. The Use of Abrasive Waterjet Cutting to Remove Flash from Castings
   • Authors: D. Bańkowski, S. Spadło
   • Publication Date: 2023-05-08
   • Summary: This study explores the application of abrasive waterjet cutting for deflashing and deburring castings. It contrasts the waterjet method with thermal cutting methods like plasma cutting, noting that waterjet cutting does not introduce thermal stresses or alter the material properties, which is a significant advantage over plasma cutting.
   • Methodology: The research involved experimental tests on cast iron components, measuring the effectiveness of abrasive waterjet cutting in removing flash compared to traditional thermal cutting methods(Bankowski & Spadło, 2023).
3. Multi-Response Optimization of Abrasive Waterjet Cutting on r-GO-Reinforced Fibre Intermetallic Laminates through Moth–Flame Optimization Algorithm
   • Authors: D. Rajamani et al.
   • Publication Date: 2023-11-03
   • Summary: This paper discusses the optimization of abrasive waterjet cutting parameters for composite materials, highlighting the advantages of waterjet cutting over plasma cutting, particularly in terms of minimizing delamination and achieving better surface finishes in composite materials.
   • Methodology: The study employed a metaheuristic optimization algorithm to determine the best cutting parameters for abrasive waterjet cutting, comparing the results with those obtained from plasma cutting(Rajamani et al., 2023).
