Is Graphite Machinable? Discover the Secrets of Graphite Machining

Graphite is an excellent material used in various industries for its many properties, but one question remains: How easy is it to machine graphite? The following article delves into the details of graphite machining and sheds light on the methods, tools, and other important aspects that encompass working with this remarkable material. Not only will you find out that are not machinable in the conventional sense, but also graphite and how it can be essential in high-precision applications. From Natural structure understanding to the newest advancements in machining graphite, Get ready for a deep dive into the secrets.

How Do You Machine Graphite?

The machining of graphite always utilizes its high resistance to heat together with its low mechanical strength graphite possesses. Specialized tools that are industrially diamond-coated or tipped with carbide are widely suggested to cut through the abrasive material that is graphite. Wet or dry machining techniques are adopted where dry machining is recommended more to maintain the integrity of the material. Controlled milling, turning, and drilling are the primary techniques that achieve the dimensions and surface finish that are required. With the fine particles that dust control systems create, the safety of the operator will be consistent while achieving the results. These systems are extremely important for dust control together with ensuring constant operator safety.

What Are the Best Techniques for Graphite Machining?

Machining graphite requires a unique set of techniques that guarantee precision, efficiency, and safety. Some of the familiar methods are listed below:

Milling

• It is among the most prevalent methods in graphite machining. Diamond-coated tools are used to slash limitations that are caused by the abrasive characteristics of graphite. Modern CNC milling machines allow contouring and precise detailing of surfaces with the appropriate amount of accuracy. The norm speeds for milling graphite lie within the ranges of 3,000 to 10,000 RPMs which vary depending on the design of the tool and the needs of the machining process.

Turning

• Turning is the act of producing graphite parts on a lathe machine. As graphite is soft, this process requires the use of sharp tools, such as high abrasive resistant Tungsten Carbide and Polycrystalline Diamond (PCD) turning tools. Sharp tools also result in the generation of higher speeds between 1,000 to 3,500 RPM which avoids chipping of material and provides good surface finish.

Drilling

• Machined graphite components also require holes of specific dimensions, which requires precision drilling. Diamond-coated drill bits are used to avoid wear and cracking. Smaller holes operate under very high speeds of 5,000 to 15,000 RPM while larger diameters are at lower rotations to avoid rocking and stress.

Sawing

• Diamond-edged saws can be used to cut graphite blocks with high precision. This technique is commonly used in first stages of material shaping before fine-cutting. The pace of sawing is determined by the width of the material; for maximum efficiency, it is recommended to be in the region of 8,000 to 15,000 Strokes Per Minute (SPM).

EDM- Electrical Discharge Machining

• For Machining Graphite with complex shapes and details, EDM machining is the best option. The technique uses electric discharges that vapourize the material. The exceptional accuracy of fragments using this method reduces tool wear, making it ideal for high-tolerance molds and dies.

Surface Grinding

• Grinding provides dimensional and fine surface accuracy. Due to the softness of Graphite, diamond abrasives in excellent grit wheels for grinding have an upper hand. Desired surface quality will determine the speed of grinding but it typically ranges between 4,500 and 6,000 rotations per minute.

Dust Collection Systems

• Although it is not related directly to material machining, efficient dust control must be maintained in any graphite machining setting. Such systems reduce airborne contaminants that could damage the equipment or pose health risks to the operators. Over 99% of graphite dust can be captured by advanced filtration systems.

It is critical to have the right equipment alongside appropriate strategies and procedures for any machining technique to be effective, as these greatly determine the final results. The use of these techniques ensures maximum graphite component performance while also ensuring safety and efficiency levels are at peak levels.

Can a CNC Machine Handle Graphite Effectively?

With the right accessories and care, yes, a CNC machine can work efficiently with graphite. Having a high resistance to abrasion, electrical conductivity, and ease of machining graphite is a material like no other. So that a CNC machine processes graphite optimally, it must have an automatic dust collection feature, an enhanced spindle for faster rotation, and better surprisingly more efficient wear-resistant cutters. Because graphite is abrasive in its nature, tools often coated with carbide or diamonds are used to endure the harsh conditions of the machining process.

In the field of CNT technologies, the last few years have brought numerous developments that increased the possibilities with graphite machining. For example, the modern spindles clocking 20,000 RPMs coupled with modern probing systems increase the speed with which processes can be completed effectively. Research indicates that the latest CNC setups are capable of working within tolerances of tight ±0.0005 which renders it possible to manufacture complex parts such as electrodes for EDM machines and molds for aerospace and medical industries.

Furthermore, good systems for collecting dust are also important for air quality and equipment health. Systems that filter dusts with diameters of 0.5 microns are quite common and add to workplace safety. Proper lubrication and cooling systems are also important for reducing heat and tool wearing in machining processing. Therefore, with the adoption of these technologies and practices, CNC machines are now able to perform efficiently while machining graphite and withstanding the high requirements of current manufacturing technologies.

What Is the Role of Coolant in Machining Graphite?

Due to graphite being a self-lubricating material with a low thermal build-up rate, coolant serves a limited function in the machining of graphite. The use of traditional coolants is usually avoided through the dry machining method which prevents moisture from deteriorating the graphite. Even so, in some cases dry machining is performed with specialized dust collection systems instead of coolant, which control the released graphite dust from the workpiece, helping to keep the surrounding area clean. This ensures that the machining process is performed with precision and safety.

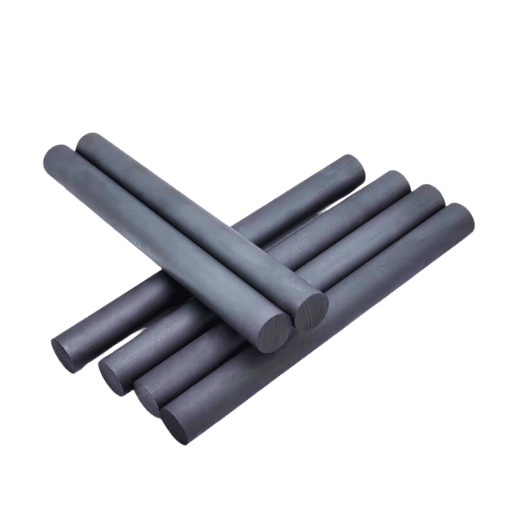

What Tools Are Needed for Graphite Machining?

Which Cutting Tool is Ideal for Graphite?

Diamond-coated or polycrystalline diamond (PCD) materials are the most appropriate cutting tools suited for machining graphite. These tools possess superior wear resistance due to their ability to maintain sharp edges during the machining of graphite, hence ensuring high precision and durability. Since graphite is abrasive in character, standard cutting tools have a short life span, making diamond tools preferable for increased cutting tool life.

How Does Tool Wear Impact Graphite Machining?

Machining graphite is largely affected by the wear on tools. As the edges of the cutting tools wear away, there is a decrease in their ability to maintain an accurate edge which results in imprecise machining and poor surface finishes on the graphite components. This results in increased rejections for the components which do not meet the dimensional or surface quality standards.

Worn-out tools are also known to lengthen machining time as they are less efficient at cutting. Research has shown that worn-out tools can also generate excessive amounts of heat and dust while machining. For thermal damage such as slight thermal damage to the graphite, excessive dust is harmful if not controlled, while its side effects are detrimental to overall health and machinery systems.

These problems can be minimized by using diamond-coated or PCD tools, which are highly resistant to abrasive wear. Evidence suggests that diamond-coated tools endure over 10 times longer than uncoated carbon tools which substantially lowers the frequency of tool changes, allowing the manufacturers to increase productivity and quality while decreasing expenditure.

Is Carbide the Best Material for Graphite Machining Tools?

Although carbide is a household name in relation to machining graphite due to it being ideally priced, readily available, and easily usable, it is not always the perfect material in every situation. Below, we present an extensive analysis of the cost and operational performance metrics of carbide as compared to other options.

Tool Life

• Carbide: Exhibits moderate resistance to wear, but degrades too quickly when subjected to the abrasive characteristics of graphite. The usual average tool life is 10-12 hours in case standard machining conditions are applied.
• Diamond-Coated Tools: Remarkable durability, with application-driven flame cutting depth over 100 hours being commonplace, due to exceptional abrasion resistance. With respect to these factors, diamond-coated tools can exceed the lifespan of uncoated carbide tools by up to ten times.

Machining Speed And Precision

• Carbide: Suitable for moderate cutting speeds, but may experience chipping, which will lead to less precise machinery for extended periods.
• Diamond-Coated Tools: The die cutter has the capability of much higher cutting rates, resulting in increased efficiency in work requiring fine features and stringent tolerances in comparison to carbide.

Cost Efficiency

• Carbide: The initial investment is fairly low, however, the constant need for strategic replacements and high cumulative cost components result in higher operational costs.
• Diamond-Coated Tools: A more significant initial investment is observed, however, due to the reduced necessity for tool changes, the spent amount in the long run is lower.

Surface Finish Quality

• Carbide: This enables an acceptable surface finish, yet a great deal of wear will accelerate the degradation of finish quality.
• Diamond-Coated Tools: Provides better surface finish throughout its service life, which helps improve product standard.

Thermal and Wear Resistance

• Carbide: Has an average thermal resistance and wear resistance features, but has a normal tendency to wear faster when working in higher speed.
• Diamond-Coated Tools: Excellent in both thermal and wear resistance, which is highly desirable in complex machining of graphite.

Although carbide tools have a broad range of applicability, diamond-coated tools are a clear winner in high precision, demand, high volume applications such as graphite machining due to extended tool life and lower costs.

What Are the Different Grades of Graphite?

How Do Graphite Grades Affect the Machining Process?

The performance and the quality of the machining process are attributed to the graphite grades. Grain size, density, strength, and hardness are specific properties that define each grade, all of which determine the machinability and the end product. Below is a detailed list of different graphite grades and their effects on the machining process.

Ultra-Fine Graphite (Sieve Size <10 µm)

• Properties: High density, good strength, and smooth surface finish.
• Effects: Predictably, it performs exceptionally well in the machining process for high-precision jobs that include molds and dies. On the downside, its machining can be difficult owing to its high density.

Medium Grained Graphite (40–100 Mesh)

• Properties: Relaxed density for ease in machining, lower strength.
• Effects: This serves as a better middle ground when detail accuracy and ease of machining are taken into account. In addition, its use is advisable for international purposes and general application needs.

Coarse-grained graphite (To be used with >50 µm particle size)

• Properties: Porosity is increased while density and strength are lowered.
• Effects: There is a compromise in the structural integrity as well as the structure being rougher, the benefit remains of softer machining. Hence whenever precision is not a major factor or for prototype work, this is suggested.

High-Density Graphite

• Properties: There is increased Interparticle connection owing to high porosity along with compressive strength.
• Effects: Produces useable surface textures while ensuring that shape integrity is maintained during operation. Ideal for high-end industrial parts and electrode fabrication.

Isotropic Graphite

• Properties: Nondirectional attributes, relatively high heat conductivity, and outstanding thermal shock tolerance.
• Effects: Guarantees stability in machining regardless of the variable, therefore is highly demanded in aerospace and semiconductor industries.

Impregnated Graphite

• Properties: Impregnated with metals or resins to provide additional strength and significantly reduced porosity.
• Effects: Enhanced toughness may result in Produced shape material being more difficult to machine, However, this type of material has superior resistance to high abrasion and corrosive wear.

Different graphite grades introduce different difficulties and opportunities regarding the machining of the shape material. This understanding helps producers in the determination of the appropriate material alongside the required parameters needed for optimal efficiency, precision, and tool performance.

Why Is Isostatic Graphite Preferred for Some Applications?

Certain applications make use of Isostatic graphite owing to its unparalleled physical and chemical features, which enables use in harsh industrial and technological settings. The material is created by means of an isostatic pressing process, assisted by a uniform microstructure with isotropic traits that undergoes modification. One of the primary benefits that isostatic graphite brings is strength combined with density that allows it to endure tremendous mechanical stress while offering structural stability. Isostatic graphite also presents itself with supreme thermal conductivity and resistance to high temperatures which makes it highly sought after in industries like semiconductor manufacturing, aerospace engineering, and energy systems.

Isostatic graphite is favored due to low porosity and high purity which reduces the chances of contamination in crucial processes. For example, in the semiconductor industry, isostatic graphite resists great thermal conditions while maintaining dimensional accuracy which makes it ideal for making heating elements and crucibles. In addition, isostatic graphite performs better in environments with aggressive substances due to its resistance to chemical corrosion. Studies show that isostatic graphite holds great compressive strength that ranges between 80 to 120 MPa, enabling it to perform reliably under substantial load conditions.

These singular features together with its exceptional machinability and consistent behavior allow Isostatic graphite to be a critical material in the many high-precision industrial applications where the strength and integrity of components are of foremost importance.

How to Mitigate Graphite Dust During Machining?

What Safety Measures Should Be Taken in a Machine Shop?

In order to alleviate the hazards associated with graphite dust exposure during machining processes, the following precautionary measures should be taken into account:

1. Ventilation Systems: Incorporate the use of local exhaust ventilation systems which are fitted with a HEPA filter to capture airborne elements at their source.
2. Personal Protective Equipment (PPE): Issue appropriate protective equipment to the workers, this includes, respirators for very fine dust, goggles, and gloves.
3. Routine Cleaning Practices: Introduce cleaning on a routine basis through the usage of vacuum systems fitted with HEPA filters to replace sweeping which elevates dust into the atmosphere.
4. Isolation of Processes: Allocate specific regions or set up enclosures for machining with graphite as this would reduce dust transmission to other parts of the shop.
5. Employee Training: Allow personnel to be trained on the dangers presented by graphite dust and its handling in order to conform to the requirements for safety.

The aforementioned helps reduce opportunities for exposure, focus on workers, and well as a safe environment for work.

Does Ventilation Play a Critical Role in Machining Graphite?

Certainly, he has expanded his phrases on ventilation alongside machining in such a way that posits the least risk of ingesting airborne dust. The manageable weight of graphite dust allows it to float in the atmosphere for a long time, and so it poses a risk of being inhaled by workers present at the place. The possibility of breathing problems such as respiratory ailments or pneumoconiosis due to inhaled graphite dust necessitates the installation of proper ventilation systems at the workplace.

As far as the industry goes, local exhaust ventilation (LEV) systems have proven to be the least problematic, and therefore the most preferred option. By capturing dust at the source of production, these systems block the movement of dust from spreading across the workplace and thus minimize the risk of breathing problems. HEPA filters, when used in ventilation systems, can block the circulation of even 99.97% of dust particulates of size 0.3 microns, and so provide purified air.

In an additional analysis, the regulation of sufficient air exchange rate in machining spaces is emphasized to be crucial for the efficient elimination of airborne particles. In the context of other similar industries, there exists a recommendation for ventilation systems that are capable of removing the air seven to twelve times every hour. Such systems ensure that the harmful airborne particulates are stripped and substituted with fresh purged air.

Finally, appropriate ventilation, regular filtration systems maintenance, and air quality control safeguard workers’ occupational safety and adhere to the organizational health procedures established by OSHA. Proper air ventilation is not only a suggested approach but also a mandatory objective that minimizes the negative impact on health while enabling work to take place in the machined area.

Can a Shop Vac Effectively Manage Fine Dust?

Indeed, a shop vac can to some degree perform with fine dust, but this largely depends on the model and features. In my experience, the best selection is shop vacs with HEPA filters or some sort of fine dust filter bags that are designed to capture smaller particulates. Still, they will hardly outperform specialized dust collection systems made for industrial use that can handle fine dust. To gain better results, I recommend combining a shop vac with other dust control measures, such as pre-separators or special attachments, to optimize its performance.

How is Graphite Made?

What Is the Process of Making Synthetic Graphite?

The production of synthetic graphite begins with treating materials that contain a colossal amount of carbon like petroleum coke and coal tar pitch with high temperatures. To begin with, the base materials are purified, then they are ground into a fine powder. Afterward, these powders are combined with a binder, shaped into a paste, and poured into rods or block molds. Then, the materials are heated to 1000 degrees Celsius which causes the paste to harden and take a permanent shape. After this, the carbon-based materials are transformed into graphite by heating them over 2500 degrees Celsius. This process turns all carbon atoms into crystalline graphite structures. This method guarantees extremely high purity and consistency in the product, therefore making synthetic graphite acceptable for use in industries like electrodes, lubricants, and batteries.

How Does Making Natural Graphite Differ?

Mining and refining processes are encapsulated in the production of Natural and Synthetic Graphite. Natural graphite is mined through either open pits or subterranean methods which collect graphite ores near the earth’s surface. Most graphite ores contain a number of different impurities and processing needs to be done in order to increase the purity.

The first step is to crush and grind the ore so that it is liberated from the surrounding rocks. After, the next step is froth flotation where graphite is separated from any other impurities by making use of the difference in their surface properties. Once concentrators are produced, they are dried and then put through further refining. These include; chemical or thermal purification, both of which increase the carbon content to 95% or more depending on the application needed.

Natural graphite is divided into three types – flake, amorphous, and vein graphite. All three differ in their crystallinity and particle size. Lithium-ion battery anodes take Flake graphite because it contains a high degree of purity and excellent conductivity. Flake graphite undergoes advanced purification techniques, further increasing its purity above 99%. This makes it the preferred option for high-performance energy storage.

When compared to synthetic graphite, natural graphite production is comparatively lower in cost yet it is confined to geographical and environmental limitations. China, Brazil, and Mozambique are some parts of the world where large deposits are available for mining production. These deposits add to the industrial economic viability and affect the dynamics of the global supply chain.

What Are the Uses of Pyrolytic Graphite in Machining?

Pyrolytic graphite finds wide application in machining due to its notable thermal and chemical properties. It is highly stable and easily conducts heat, making it suitable for components and heat spreaders in high-temperature zones. Moreover, it is useful in the manufacture of precision parts in low-wear industries like aerospace and semiconductors because of its low friction coefficient and good wear resistance. Also, pyrolytic graphite materials are employed in machining parts that are to endure strong corrosive chemicals and these ensure toughness and efficiency in extreme operational environments.

Frequently Asked Questions (FAQs)

Q: How is graphite produced, and what does it consist of?

A: Graphite comes into existence due to the crystallization of carbon at extremely high temperatures and pressures. Its properties include being soft, brittle, and polishable. Graphite, which is a type of carbon possesses a unique structure with layers and its properties allow it to be useful and difficult to machine.

Q: Is it possible to carve out graphite, and what issues does it provide?

A: Although it’s possible to engrave graphite, due to its fragile nature, it is complicated to do so. Machining graphite has its challenges such as its behavior of creating dust, being abrasive, and having a low mechanical strength. Such factors call for special concern with regard to tools, dust collection, and several other machining parameters.

Q: Which machining centers are the most effective for graphite?

A: Machining centers are specialized high-speed lathes with closed working areas along with built-in dust collecting devices, which are the most suited machines for graphite. These devices should have high-speed spindles and rigid construction in order to effectively deal with the properties of graphite. Advanced coolant system of CNC machines makes them effective for the machining of graphite.

Q: Which tools are best to use when machining graphite?

A: The tools of choice for machining graphite are diamond-coated tools owing to their density and scratch resistance. Additionally, carbide tools can be employed, although they are subject to rapid wear. The geometry of the cutting edge should be aimed at minimizing the chipping of this brittle material, resulting in cleaner cuts.

Q: What speeds and feeds are applicable when machining graphite?

A: High cutting speeds and low feed rates are generally advised when machining graphite. However, these factors are quite effective on the specific grade of graphite and the machining operation. These parameters should always be optimized to achieve minimal wear and improve surface finishes. For graphite, it is often preferred to use climb milling instead of conventional milling.

Q: What Safety Measures Should be Followed When Machining graphite?

A: Conductive and fine dust is produced when graphite is being machined, which can be dangerous if inhaled. This dust can also result in an explosion. It is necessary to have an efficient dust collection system in place. Operators need to have protective equipment like respirator masks. It is ideal for the area where machining will occur to have windows for ventilation, and cleaning should be done regularly so that dust does not build up.

Q: What are the similarities and differences between machining graphite and cast iron or other materials?

A: Graphite and cast iron are both believed to be easy to machine. Out of the two, graphite is softer but more brittle. Dust instead of chips are produced when graphite is machined, therefore it is important to have proper dust management in place. Unlike cast iron, graphite does not require cutting fluids but does need a special type of collection system for dust. The forces when cutting graphite are lower than when cutting cast iron.

Q: For which purposes are machined graphite parts most commonly used?

A: Different industries rely heavily on machined graphite parts. They can be found in EDM (Electrical Discharge Machining) electrodes, furnace parts, semiconductor processing machines, and molds for casting metals. Graphite is useful for these purposes because its electrical conductivity and stability at high temperatures are very valuable.

Q: How do you deal with graphite scrap and dust while machining?

A: Graphite scrub and dust must be managed properly. Use specialized vacuum systems to contain waste from machining, including dust. Segregate graphite scrap so that it can be recycled and disposed of properly. The machining workplaces and equipment should be cleaned regularly to avoid excessive dust accumulation. Some facilities use wet dust collection systems to reduce the possibility of dust explosions.

Reference Sources

1. Study on the Development of Cu40Zn Duplex Graphite Brasses using Graphite Powder Bi-mould Casting and Graphite Powder Metallurgy

• Authors: S. Li et al.
• Journal:  Materials Science and Technology
• Date of Publication: 2016, October 31
• Citation Token:  (Li et al., 2016, pp. 1751–1756)
• Summary: At the beginning, this article examines how the inclusion of graphite in the Cu40Zn alloy brass substitutes lead while maintaining its machinability. It also Based on the investigation examines bonding of the brass/graphite interface and Fe, Ti, Sn examining the influence of trace alloying elements Cr. The methodology shows the making of brass powder by means of water atomization, mixing it with graphite, followed by warm compaction and hot extrusion into consolidation. Some of the key results demonstrate that a necessary level of graphite improves machinability without reducing mechanical properties.

2. Study on the Development of Lead-Free Machinable Brass with Bismuth and Graphite Particles by Powder Metallurgy Method

• Authors: H. Imai et al.
• Journal: Materials Transactions
• Available since: May 1, 2010
• Citation Token: (Imai et al., 2010, pp. 855–859)
• Summary: The article deals with producing bismuth and graphite particle-based lead-free machinable brass. It studies the effect of those additives on the elongation and machinability of the extruded parts. The authors produced the brass powder and the results of the study indicated that the addition of bismuth and graphite improved the machinability when compared to the conventional leaded brass. The methodology involved the heat treatment followed by the microstructure analysis.

3. Machinable Cu-40%Zn Composites Containing Graphite Particles by Powder Metallurgy Process

• Authors: K Kondoh et al
• Journal: Journal of Metallurgy
• Available Since: April 8, 2009
• Citation Token:  (Kondoh et al., 2009, pp. 1–4)
• Summary: This research work describes the development of Cu 40 mass % Zn alloys which contain relatively high tensile strength and high machinability. using graphite as a leading replacement. The study focuses on the impact of graphite content and particle size on the mechanical properties and machinability of the produced parts. The methodology of the study was based on conventional powder metallurgy processes which include cold compaction followed by hot extrusion. The results indicate that a 1 mass% addition of graphite particles improves tensile strength as well as the machinability of the alloy.

4. Influence of Chromium Precipitation on the Machinability of Highly Dispersion Strengthened Graphite Particles Brass Matrix Composites

• Authors: H. Imai et al.
• Journal: Materials Transactions
• Publication Date: July 1, 2011
• Citation Token: (Imai et al., 2011, pp 1426 – 1430)
• Summary: The aim of this investigation is to estimate the machining characteristics of Chrome and Graphite containing, high-strength, lead-free brass. Testing has been conducted on the Chrome’s post-machining deposition precipitation virtues and vices, revealing strengths but also much weaker machinability, compared to those without it. It involved spark plasma sintering and dry machineablity drilling tests of the machined material.

5. The kinematic features of a JK-3 Kawai multi-anvil press at high pressures and treatment features of the heater’s graphite-boron composites for renewable use heater

• Authors: Longjian Xie et al.
• Journal: High Pressure Research
• Publication Date: 22 March, 2016
• Citation Token: (Xie et al., 2016, pp 105 – 120)
• Summary: The paper aims to analyze the work of a graphite-boron composition heater, as well as the problem of boron oxide oxidation at elevated temperatures. The investigation has a goal of determining the consequences of this oxidation to propose measures to alleviate it and also includes habitation experiments to check the performance of the heater. Finally, it was found that the corresponding treatment improves the heater’s serviceability and stability at high temperatures.
