Electroless Nickel vs Stainless Steel: A Comprehensive Guide

Appropriate knowledge of the relevant material properties and their benefits is crucial when it comes to making important decisions on material choices for different possible applications. Selecting materials comes down to electroless nickel and stainless steel which are among the most popular choices, each having their pros and cons. This guide will attempt to evaluate these materials in comparison to each other in a manner that outlines their benefits, drawbacks, and best application scenarios. Cost considerations, as well as corrosion resistance and durability, would be the main concerns of the reader after engaging with this article. In summary, we will look at the differences and uses of electroless nickel and stainless steel to provide relevant information for engineers, manufacturers, and businessmen.

What is Stainless Steel?

Stainless steel is an alloy of iron, chromium, nickel, molybdenum, and other elements. It is defined by its remarkable resistance to corrosion. It is widely acknowledged that the addition of chromium in excess of 10.5% enables the development of weather-resistant oxide film, which improves strength characteristics by serving as an anti-rust coating. Due to its strength, versatility, and low maintenance costs, stainless steel is used in the construction, automotive, medical, and food processing industries. Its heat resistance, coupled with its hygienic nature, makes stainless steel ideal for clean environments that require reliability over extended periods of time.

Understanding Stainless Steel as an Alloy

Stainless steel is an alloy consisting mainly of iron with the addition of chromium and sometimes nickel or molybdenum. Stainless steel must have at least 10.5% chromium, as this element is vital for forming a passive oxide layer that protects the metal from corroding. The damaged protective layer restores itself, which helps in protection for a very long time. As a result of little to no maintenance being required, stainless steel is now recognized as one of the most sought-after materials in the construction, healthcare, and food processing industries. Additionally, its resistance to corrosion and durability are also highly valued. In critical applications, its ability to maintain cleanliness and withstand harsh environments emphasizes its necessity.

Common Uses of Stainless Steel

The Architectural Sector

• Construction makes a lot of use of stainless steel owing to its strength, durability, and appeal. Structural components, modern building apparel, and even roofing materials may incorporate stainless steel in their designs and portions. Structures like the Chrysler Building in New York demonstrate the visual and structural benefits of using stainless steel. According to industry analysis reports, the use of stainless steel in construction accounts for approximately 26% of global consumption.

The Healthcare Sector

• In the medical field, stainless steel is widely used because of its hygienic properties and high resistance to sterilization chemicals. Cleanliness and non-reactive properties make stainless steel ideal in the fabrication of surgical instruments, medical equipment, and even hospital furniture. Research indicates that the use of stainless steel in medical applications improves safety while reducing contamination risks.

Food and Beverage Industry

• Stainless steel is vital in the food and beverage industry. The non-toxic, antibacterial, and corrosive resistant properties support hygiene and make stainless steel ideal in constructing storage tanks, cookware, and processing machinery. A report by market analysts estimates that about 35% of stainless steel usage worldwide is for food and beverage-related operations.

Energy Sector

• Oil and gas industries enjoy the benefits of stainless steel’s strength as well as its resistance to extreme temperatures and environments. It is often used in pipelines, heat exchangers and even in components of nuclear reactors. Withstand corrosion, the materials ensure reliability and safety during energy-intensive applications.

Automotive and Transportation

• Transportation and automotive industries work with stainless steel for trim, exhausts and even structural parts of the car as they are exposed to the elements. Also appears in rail transport systems, more specifically in train carriages, where great performance coupled with little maintenance over time is needed.

Household Products and Appliances

• Stainless steel is an ideal materials for cuts sinks, cutlery, fridges, and even washing machine due to its sleek and functional attributes. These household items can stained and corrode which greatly adds to their longevity and practicality.

Chemical and Petrochemical Industries

• Stainless steel is a must have in chemical processing plants as it has strong resistance to aggressive chemicals. To ensure efficiency and safety, storage tank, reactors, and piping systems are often made from stainless steel.

Maritime Uses

• The marine sector uses high-grade stainless steel in the production of boat fittings, propellers, and offshore platforms due to the material’s superior corrosion resistance in saline environments. Stainless steel is the material of choice in marine engineering because of its durability in overcoming extreme corrosive maritime conditions.

These applications identify the unparalleled multifunctionality of stainless steel in different industries, asits strength, hygienic nature, and multifunctionality make it indispensable. The frequent use of the material in these crucial sectors accentuates its significance in both ordinary goods and sophisticated technological development.

The Role of Nickel in Stainless Steel

By improving corrosion resistance, strength, and formability, Nickel plays a pivotal role in stainless steel. It stabilizes the high-performance austenitic structure, which is essential for high-performance applications, particularly ones subjected to extreme temperatures or aggressive chemical environments. Stain nickel stainless steels are extensively applied in construction, automotive, and chemical industries where durability and reliability are crucial.

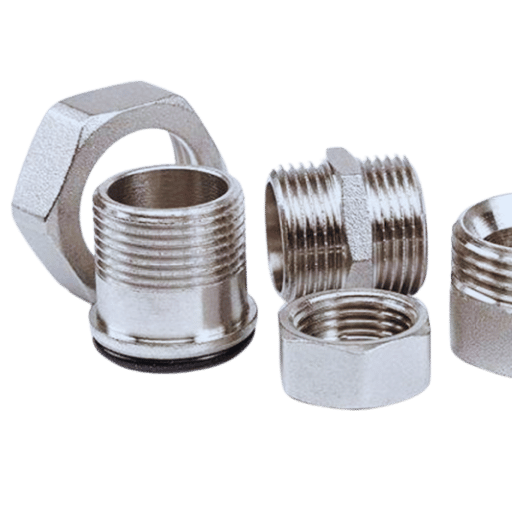

Exploring Electroless Nickel Plating: How Does it Compare?

Understanding the Electroless Nickel Plating Process

Electroless nickel plating is an autocatalytic chemical process that results in the deposition of a uniform coating of nickel-phosphorus or nickel-boron alloy on a substrate. This differs from traditional electroplating in that the process does not utilize an external electrical current. The deposition is conducted through a controlled chemical reaction, which makes the processes highly effective for coating complex geometries and areas that are difficult to reach. The information and data regarding the electroless nickel plating process are provided below:

Key Components

• Nickel Source:  Primary sources are usually nickel sulfate or nickel chloride.
• Reducing Agent: Usually sodium hypophosphite but can also be borohydride for nickel-boron coatings.
• Stabilizers: Used to avert random decomposition of plating solution in electroless plating.
• Complexing Agents: Contribute to the stability of the bath to protect it from the superfluous deposition of graphite.

Operating Conditions

• Temperature: Ranges from 85 to 93 degrees centigrade.
• pH Levels: Kept at 4 to 6 for effective results.
• Duration: Deposition rates vary, but average 0.3 to 0.5 mil/hour.
• Deposit Thickness: Varies per application request but ranges from 0.1 mils to several mils.

Typical Applications

• Corrosion Resistance: Provides exceptional protection under highly severe conditions such as marine or chemical.
• Reliability: Protection against severe bombardment increases surface hardness ideal for components for friction or abrasive traffic.
• Dimensional Accuracy: Even complex surfaces receive uniform deposition, ensuring close tolerance for precision components.
• Electrical Conductivity: Provides some benefits in electronic and electrical appliances.

Environmental and Safety Considerations

• Removal of dangerous operational electrical requirements.
• Less harmful to the environment compared to traditional plating processes if waste disposal methods are adhered to.

This method has no parallel flexibility which makes it suitable for a wide range of industries such as aerospace, automotive, medical devices, and manufacturing tools.

Benefits of Electroless Nickel in Industrial Applications

Corrosion Resistance

• In harsh environments, corrosion is a major problem, but electroless nickel plating is proven to provide some of the best corrosion resistance, especially in those hostile environments.
• Industry statistics suggest that salt sprays do not significantly degrade electroless nickel coatings for over 1000 hours, which is exceptionally beneficial.

Uniform Coating Thickness

• Even in cases where there are complex and irregular geometries, the auto-catalytic process ensures that the coating that is produced is uniform throughout the process.
• By minimizing that uniformity, Electroless nickel minimizes finishing and additional machining, thereby reducing production costs.

Hardness and Wear Resistance

• Electroless nickel coatings are too hard to be abraded with most tools and can achieve hardness levels of above 1000 Vickers after heat treatment and they are extremely resistant to abrasion.
• This ensures that the components have an extended life while existing in high-friction environments, making them easier to sustain for longer periods of time.

Improved Lubricity

• Compared to other coatings, electroless nickel has a superior smooth finish, enabling further enhancement in lubricity.
• Lowering friction in moving components makes systems more efficient, making them useful in areas with high energy demand.

Dimensional Stability

• Critical components undergo processes that greatly vary in precision, but the processes to deposit coating is adaptively precise, ensuring that there is good control over dimensional stability.
• Electroless nickel is suited for components that require high precision, such as those in the aerospace or medical industries.

Chemical Resistance

• Electroless nickel has proven to be very effective at resisting a wide range of chemicals and various acidic environments, showcasing its versatility and superiority.
• Being suitable for chemical processing equipment and aggressive substances, it broadens the horizons to numerous applications.

Adaptability with Different Materials

• The method can be used with steel, aluminum, copper, and even non-metals like plastic.
• This adaptability makes it suitable for use in different industrial sectors.

Electric Conductivity

• Electroless nickel is not as good a conductor as pure metals such as copper, but it still has sufficient conductivity for many uses.
• It is widely used in electrical contacts, connectors, and printed circuit boards.

Economic Advantage

• The lack of electrical apparatus and the decrease in post-coating machining lead to remarkable savings.
• Electroless nickel plating decreases downtime because of its durability and low maintenance requirement.

Visual Charisma

• The coating offers an industrial component a bright, uniform finish that adds to the appearance.
• Furthermore, the tarnish-resistant bright surface ensures aesthetic durability for a longer time.

All these advantages indicate the significance of using electroless nickel to meet tough industrial requirements with high efficiency, effectiveness, and low cost.

Comparing Electroless Nickel with Traditional Nickel Plating

It is evident that the unique chemical deposition process of electroless nickel plating has  a violet impact on traditional nickel electro plating. Traditional electro plating uses current to perform its operation; however, with electroless nickel plating, an autocatalytic reaction is used in place of an electric current. This process can offer coverage on complex geometries and internal surfaces that electroplating struggles with.

One of the performance advantages of electroless nickel plating is the precision of the application of the deposit. Unlike other forms of plating, edges and corners do not have an accumulation build-up. With regards to corrosion resistance, electroless coatings offer the utmost protection due to their capability to dense and continuously barrier themselves in highly acidic and alkaline conditions. The average amount of phosphorus included in the nonelectric nickel allows for the specific tailoring of properties, making these coatings suitable for the oil and gas industry due to their high corrosion resistance.

In addition, when compared to as-deposited conventional nickel plating, electroless nickel has superior hardness. When heat treated, electroless nickel coatings can reach hardness levels as high as 950 Vickers (HV), which greatly surpasses electroplated nickel coatings that usually have a ceiling value of 500 HV. This enhancement in hardness allows electroless nickel to be used in high-wear applications, particularly automotive and aerospace parts.

As previously noted, traditional nickel plating is useful for many purposes but also has drawbacks. It usually has difficulties with consistency over irregular surfaces and may need to include cathode fixtures to obtain full coverage. Furthermore, the use of electric currents in electroplating leads to deposition rate discrepancies, which can be costly in some situations.

Electroless nickel plating technology has matured in efficiency and offers favorable long-term maintenance costs as a result of its durability and infrequent need for reapplication. Additionally, it allows for a greater degree of freedom when protective coatings are needed on complex parts, eliminating the necessity of redesigning components for electrode position while convenience adds the potential for cost savings.

These elements explain why, in industries that require exceptional quality finishes, corrosion resistance, and dimensional accuracy, electroless nickel plating is their first choice, making it more advantageous to use than traditional nickel electroplating.

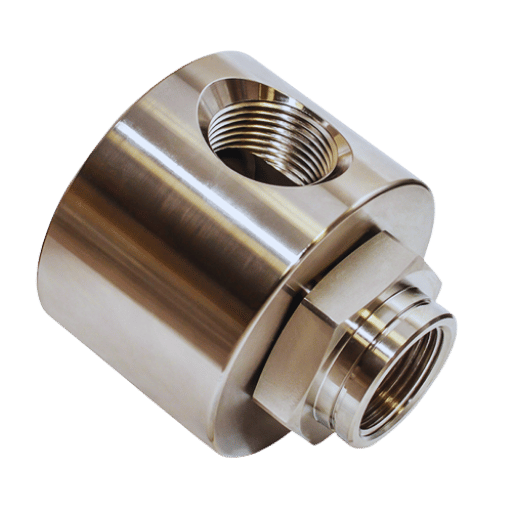

How Does Corrosion Resistance Differ?

Corrosion Protection in Electroless Nickel vs Stainless Steel

When comparing electroless nickel plating with stainless steel, their differences stem from how each performs corrosion protection and how they fare in different environments. Electroless nickel plating protects against corrosion using an impermeable barrier and provides a uniform, self-passivating coating to the substrate; the coating’s high phosphorus content, which is often 10-12% in aggressive chemical environments, is effective when exposed to acidic or alkaline materials. This feature makes it ideal in petrochemicals, aerospace, and marine industries where there is a need for superior resistance to crevice corrosion, pitting, and oxidation.

On the contrary, stainless steel relies on the passive layer, which is self-established through the corrosion of chromium oxide and is capable of self-repairing. This passive layer gives good corrosion resistance in aqueous environments but makes the alloy vulnerable to chloride-induced stress corrosion cracking or pitting in more extreme environments with higher salinity and temperature. Take, for example, a316 stainless steel, which is frequently found in marine environments because of its molybdenum content. Its PREN value is around 24 and is significantly above the pitting resistance of electroless nickel-plated steel with high phosphorus content.

From field data and laboratory studies, it appears that high-phosphorus electroless nickel plating components could endure environments with salt spray or chemical vapor exposure up to 85°F (30°C) for extensive periods of time. Such components are durable but, like stainless steel, require constant cleaning and maintenance to prevent surface corrosion over time.

In summary, select electroless nickel plating or stainless steel based on specific application requirements. For applications needing superlative corrosion protection in aggressive environments and precision coating on complex geometry, use electroless nickel. Use stainless steel for structural components that are moderately corroded and have less exposure to chemicals. Knowing these material properties helps industrial designs perform optimally and enhances their longevity.

The Importance of High Phosphorus Electroless Nickel in Corrosive Environments

Due to its exceptional resistance to chemical attack, high phosphorus electroless nickel plating is a vital option in corrosive environments. I appreciate its ability to provide a consistent electro-deposited, non-porous coating that protects components subjected to strong acids, alkalis, and other aggressive agents. Moreover, its low friction and high strength make It reliable for further safeguarding critical parts, especially in the oil, gas, or chemical processing industries. This makes high phosphorus electroless nickel a prime material for applications that require longevity and optimal performance.

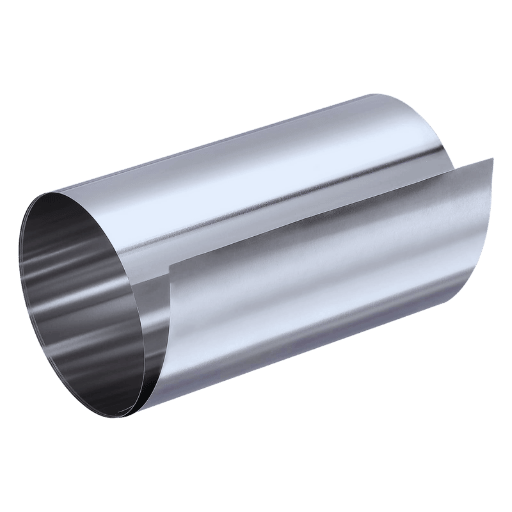

What are the Applications for Nickel-Plated Steel?

Industries Benefiting from Nickel-Plated Steel

Oil and Gas Industry

• In the oil and gas industry, components such as valves and downhole tools made from steel are nickel plated to increase their corrosion resistance and durability. The protective coating is beneficial in extending operational lifespans while also minimizing maintenance costs, particularly in aggressive working environments.

Chemical Processing Industry

• Handling highly reactive materials such as acids and solvents requires the use of nickel plated steel in the Chemical Processing industry because iot prevents systems from degrading. The uniform non porous coating further enhances safety and integrity of the system over time.

Aerospace Industry

• Extreme oxidative environments and elevated temperatures can be easily endured by nickel plated steel, making it an optimal material for use in Aerospace components. Its resistance to corrosion combined with strength allows for efficient application in parts, engine components, and even screws.

Automotive Industry

• In the Automotive industry, parts that make up the fuel, hydraulic, and exhaust systems would require the use of nickel plated steel as they undergo rigorous wear from the extreme operating conditions. The coating provides higher resistance to corrosion, improving the performance and durability of the system.

Electronics Industry

• Besides being electrically conductive, the corrosion resistance of nickel plated steel makes it a prime choice for use in sensitive parts around the device. Connectors and circuits can be reliably employed for optimal performance while ensuring longevity of the device.

Manufacturing of Medical Instruments

• The biocompatibility of nickel-plated steel and its ability to endure purification makes it indispensable to the medical field. It is often used in surgical instruments, implants, and diagnostic tools due to its strength and resistance to blunting over time.

Marine Industry

• Nickel plating serves as a barrier that protects steel from corrosion which makes it useful within the marine industry that suffers from constant exposure to salt water and humid conditions. It increases the reliabiliy of ship components, offshore structures, and other associated machinery.

Textile Industry

• Textile machinery receives aggressive wear and tear and is prone to the use of reactive chemicals. To combat these chemicals, stronger and more durable nickel-plated steel spindles and rollers are crafted that have an extended useful lifespan.

The ability to manipulate and take advantage of the remarkable features of nickel plated steel proves why these industries require such advanced coating technology. It greatly increases material efficiency, reduces downtimes, and makes sure costs are kept to a minimum.

Advantages of Electroless Nickel-Plated Steel

Exceptional Ability to Withstand Corrosion

• The case of steel with electroless nickel plating proves how well some materials can resist corrosion. The uniform coating structure protects against hostile environments like exposed acidic solutions, seawater, and even industrial-grade chemicals. Research indicates that electroless nickel coatings boasting a high phosphorus content can survive salt spray testing for nearly 1000 hours without much corrosion damage.

Additional Resistance to Wear

• The surface of electroless nick plated steel is hard, thus forming a coating that is very resistant to wearing away. This wear resistance character makes the coating ideal for high-friction processes, significantly reducing the rate of mechanical wear on the parts of a machine, such as shafts, gears, and bearings, improving their operational lifespans for 3-5 times in comparison to uncoated materials.

Coating of Different Parts with Nickel Plating

• Unlike electrolytic plating methods, the electroless nickel plating method achieves a uniform thickness for the coating even on complex geometries and irregular surface shapes. These automatic processes ensure that intricate parts, such as threads and deep recesses, receive the coating, resulting in higher precision as well as performance.

Minimization of Friction Losses

• The low-friction surface of electroless nickel plating helps with energy losses in mechanical systems, as efficiency is improved. This feature is especially useful for moving parts of machinery and tools, as it greatly reduces the amount of lubrication needed and therefore operational expenses.

Retention of Dimensional Accuracy

• The reduction of the substrate material during the electroless plating process is extremely minimal, which preserves the dimensional accuracy. This benefit is essential to the industries engaged in tight toleranced manufacturing, for example, medical instruments and precision tools.

Improvement of Alluring Appearance

• The appearance of steel components is enhanced when Electroless nickel is used due to the smooth, bright and uniform finish. This improvement is far more valuable in the cases where appearance is paramount, for instance, in consumer electronic devices or even decorative industrial components.

Unit Cost Effectiveness

• Electroless nickel coatings are less expensive over time due to minimal maintenance, repair, and replacement costs associated with the durable and long-lasting coatings. This is particularly beneficial for industries that require reliable material performance in harsh operating environments.

All these benefits of protection and performance for critical applications make Electroless Nickel-Plated Steel the material of choice in a wide variety of industries.

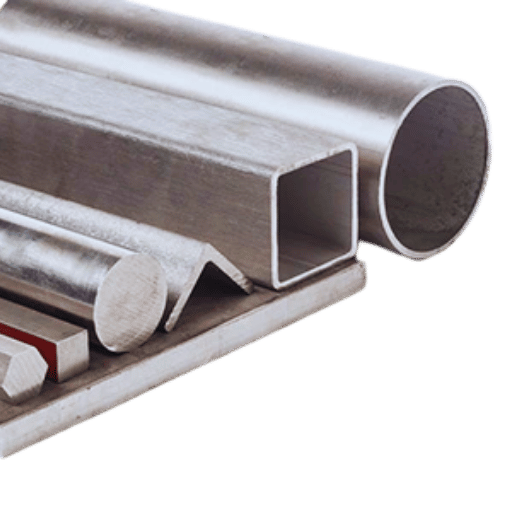

Which is Better for Surface Finish and Durability?

Surface Finish: Aesthetic Implications

Compared to other surface finishes, electroless nickel coatings shine in terms of consistency and luster. The internal processes of deposition guarantee that the layer laid onto the surface is free from any form of distortion, such as pits or contour irregularities. Research shows that electroless nickel plating usually attains roughness values (Ra) of approximately 0.1–0.2 micrometers, which is highly desirable for industries that have a strong focus on aesthetic value of the product.

In addition, the coating is customizable and highly reflective, meaning it can be formulated to have either a matte or a bright finish. Industries like automobile and consumer electronics opt for electroless nickel because it improves the craftsmanship of components while adhering to stringent design limitations. For example, research suggests that the presence of bright electroless nickel coatings increase the perceived value of a product particularly in the luxury market where product appeal is crucial for consumer purchasing behavior.

Moreover, the technology provides exceptional aesthetic value because of the strong adhesion properties of the coatings, which enables them to retain their integrity even on surfaces which have complex geometries. The coating is both functional and visually appealing. The combination of durability and elegance makes electroless nickel the superior choice for applications which demand high surface quality and aesthetic excellence.

Longevity and Corrosion Resistance of Electroless Nickel vs Stainless Steel

In comparing electroless nickel and stainless steel with regards to their longevity and corrosion resistance, both materials have some merit depending on their use case. Electroless nickel has superior corrosion resistance in highly acidic or alkaline environments because of its coating, which functions as a barrier layer. It works quite well in protecting complex geometries or intricately designed components. Stainless steel is initially corrosion-resistant because it contains chromium; however, its best performance is seen in neutral or mildly corrosive environments like water or air. Stainless steel, in comparison, will likely be more prone to pitting or crevice corrosion in aggressive chemical environments.

Electroless nickel is often chosen for applications needing uniform corrosion protection on all surfaces, particularly in the oil and gas or chemical processing industries. On the other hand, stainless steel is better suited for cases where the primary concern is structural integrity and mechanical strength, such as in construction or food processing equipment.

Frequently Asked Questions (FAQs)

Q: What is Electroless nickel plating of stainless steel?

A: Electroless nickel plating of stainless steel is a coating process that applies nickel-phosphorus coating on stainless steel components using a chemical reaction rather than an electrical current. This process has advantages such as providing a Uniform deposit that improves wear, corrosion, and friction resistance.

Q: What are the advantages of electroless nickel plating over stainless steel?

A: Corrosion resistance, more even deposit of coating, variability of thicker coating, and deposition on complex geometries are just some of the advantages of Electroless nickel plating over stainless steel. Moreover, it helps in controlling the rust formation on stainless steel.

Q: How does nickel plating on stainless steel prevent rust?

A: Nickel layer on stainless steel serves as a cap that isolates the metal from outside elements that would trigger rusting. The oxygen and moisture are blocked access from reaching the stainless steel surface that is rust prone because it is nickel plated.

Q: Can electroless nickel plating be done on austenitic stainless steel?

A: Of course, electroless nickel plating, works well for austenitic stainless steels. This type of stainless steel is most popular due to its high corrosion resistance and fair mechanical properties which makes it good candidates for nickel plating processes.

Q: What issues might occur on stainless steel after nickel plating?

A: Some common issues that might arise include light rusting at plating defects, poor adhesion if the surface is not cleaned thoroughly, and incomplete coverage because of insufficient immersion time in the plating bath.

Q: What is the difference between finishing stainless steel and plating stainless steel with electroless nickel?

A: The polishing for electroless nickel stainless steel is usually done by applying a passivation process which makes the surface resistant to corrosion in addition makes it more appealing in appearance. For plating, it makes use of the nickel-phosphorus alloy which acts as a source of additional protection and wear resistance aside from the stainless steel finish.

Q: Is there any differences between plated steel and stainless steel?

A: Yes, plated steel is defined as steel that has a different metal, for example nickel, coated onto it to add to its strength and corrosion resistance. Stainless steel has the ability to resist corrosion on its own because of the presence of chromium, but can still be plated to make it even better.

Q: How does electroless nickel plating improve the fabrication of sporting rifles made of stainless steel?

A: Electroless nickel plating improves the fabrication of sporting rifles made of stainless steel because it offers greater wear as well as corrosion resistance, ensuring that the firearm remains functional and dependable in a wide range of environmental conditions.

Q: How does one go about nickel plating stainless steel?

A: Nickel plating of stainless steel requires cleaning the stainless steel surface to eliminate contaminants, placing the steel in a plating bath of nickel-phosphorus solution, and using chemical means to apply an even layer of nickel through electrodeposition.

Q: Is it true that aluminum and steel surfaces can both be exposed to electroless nickel plating?

A: Yes, both aluminum and steel surfaces can indeed be exposed to electroless nickel plating. The technique is acceptably flexible, meaning it can be used on many materials, thus improving their properties, for example, making them less prone to oxidation and increasing surface hardness.

Reference Sources

1. Study of Electroless Nickel Plating on Super Duplex Stainless Steel for Lithium Ion Battery Cases: The Electrochemical Behaviour and Time of Plating

• Authors: Byung-Hyun Shin et al.
• Published: 5 March 2024
• Summary: In this study, the authors analyze the electroless nickel plating of Super Duplex stainless steel (SDSS) SAF2507 used in the fabrication of casings for lithium-ion batteries. The research reports that SAF2507 continues to have corrosion resistance, as well as strength retention, at higher temperatures than the conventional AISI304. The study subjected the samples to 1000 °C heat treatment to stimulate precipitation of a secondary phase and then, later, performed electroless nickel plating. Findings revealed that the plating was uniform, and electrochemical behavior was favorable after 180 seconds, indicating that SAF2507 is more advantageous than AISI304 in plating for battery cases. The techniques used in the study include open circuit potential, potentiodynamic polarization, electrochemical impedance spectroscopy, and scanning electron microscopy for plating state and corrosion behavior examination (Shin 2024 et al.).

2. The Effect of the Secondary Phase on the Electroless Ni Plating Behavior of Super Duplex Stainless Steel SAF2507 for Advanced Li-Ion Battery Case

• Authors: Byung-Hyun Shin et al.
• Published: March 1, 2024
• Summary: This research deals with the consequences of the secondary phase on the electroless nickel plating of SAF2507. The research focuses on the materials’ electrical conductivity, strength, and corrosion resistance which is necessary for lithium-ion battery cases. The authors performed heat treatment of SAF 2507, followed by the electroless nickel plating; then, the plating behavior concerning time was analyzed. The results showed that the secondary phase had a plating rate like that of ferrite, whereby complete plating was observed at approximately 180 seconds. The methodologies used were phase analysis using FE-SEM, EDS, EPMA, and XRD to analyze the plating durations(Shin et al., 2024).

3. Effect of the Plating Time on Nickel Electroless Coating Properties Deposited on the Super Duplex Stainless Steel UNS S 32750

• Authors: Dohyung Kim
• Published: June 1, 2022
• Summary: This work addresses the impact of electroless nickel plating on wear resistance and the nickel-plating ability of super duplex stainless steel (SDSS) UNS S 32750. The work confirms that electroless nickel plating improves the wear resistance and passivation layer of SDSS, which can be applied to saw wires. The methodologies included electrochemical tests to measure the functionality of the plated SDSS(Kim, 2022).
