Discover the Power of High-Performance Heat Sink Fins

Maintaining optimal working temperatures in modern electronic devices ensures maximum productivity and long-term durability. Among the many cooling solutions available in the market, high-performance heat sink fins are revolutionary in improving heat dissipation. In this article, we will delve into the intricacies of heat sink fins, their design, their operation, and the drastic influence they have on thermal management in high-power applications. This guide will equip engineers trying to increase system reliability, as well as decision-makers analyzing new cooling systems, with the important reasons why these advanced components are vital in transcending the limits of performance.

What Are Heat Sink Fins and How Do They Work?

Heat sink fins are custom-shaped parts created for the purpose of depleting heat from systems and devices with electronics. They accomplish this objective by expanding the area that is available for the heat to be dissipated. Typically fashioned out of conductive metals like copper or aluminum, sink fins absorb heat by conduction and release it to the surrounding environment by means of convection. The process helps sustain the desired temperature for the proper functioning of the system, which improves reliability and prevents overheating in high-power applications.

Understanding the Heatsink Basics

Ensuring safe operation within certain temperature bounds, a heatsink works to regulate heat stemming from electronic components. It’s achieved by moving the thermal energy away from the source, in this case, a CPU or power transistor, and towards the surrounding air. If left unchecked, the overheating can lead to degraded performance, system destabilization, and, in extreme cases, hardware failure. The design and material selection of a heatsink is, therefore, of utmost importance in sustaining the lifetime and credibility of an electronic system.

Mechanism of Heat Transfer in Fins

Fins enhance heat transfer by increasing the surface area exposed to the environment. The increase in area allows for easy thermal exchange with the environment. Fins increase the rate of heat transfer by conduction, convection, and, in some cases, radiation. The first step involves the conduction from a heat source, which, in most cases, is transferred from an operational component, like a microprocessor that has a very high temperature, to the base of the fin. From that point, conduction moves to the length of the fin, and it accomplishes distribution on the surface.

Convection is equally important to the propagation of heat from the fins to the surrounding air. In natural convection systems with no external assistance to enhance airflow, dissipation of heat is governed by the temperature difference, the geometry of the fin, and the coefficient of the medium surrounding it. Contrarily, aided convection utilizes fans or blowers to enhance airflow over the fins, which notably improves thermal efficiency. The most commonly used materials for construction are aluminum and copper because they have high thermal conductivity, and being metallic, they can easily be structured into parts with great mechanical strength.

The use of pin fins or louvered fins is one of the most recent advancements in thermal management. For example, studies show that pin fins with larger spacing and an optimized height-to-diameter ratio can achieve up to 20% improvement in heat transfer relative to planar traditional fins. CFD simulations have also been useful in modeling flow and thermal behavior, allowing for tailored heat sink design particular to a given application. These advancements suggest that new material science and engineering principles have to be considered in modern thermal management systems.

The Role of Fin Heat Sink in Cooling

A fin heat sink is extremely important in cooling because its design increases the surface area for heat dissipation. This surface area enables a higher transfer of heat from the components to the surrounding air. The design of the fins permits airflow, which allows for effective heat removal through convection. Such fin heat sinks made of aluminum or copper disperse heat quickly due to their high thermal conductivity and prevent overheating of the components which ensures top system performance.

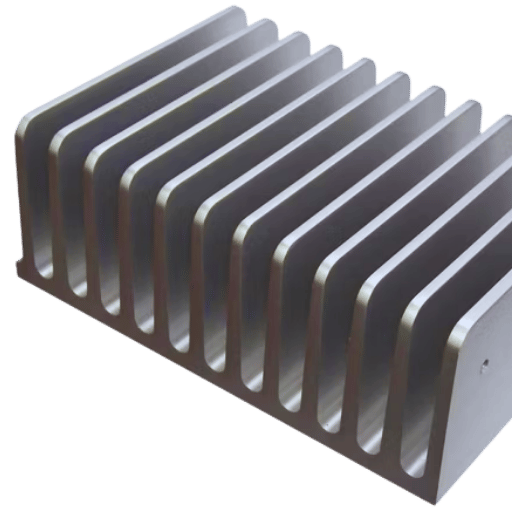

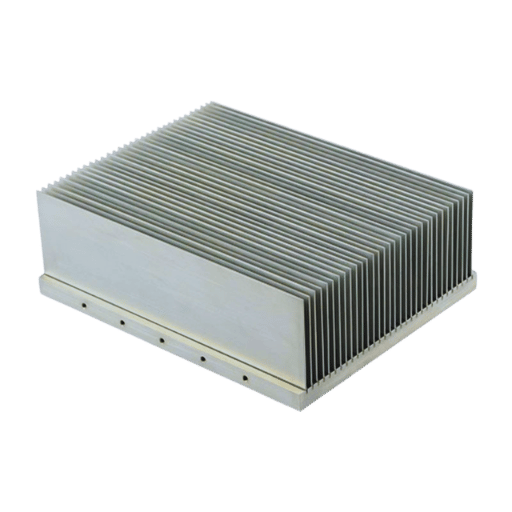

How to Enhance Thermal Performance with Fins?

Maximizing Heat Dissipation Through Convection

To enhance the convection process, a few prerequisites need to be met. These factors are equally important in ensuring that there is no Thermal Bottleneck in the system.

Fin Design and Geometry

• Fin Density: Increasing the number of fins increases the dissipating surface area available. However, overly dense fins may restrict airflow and reduce heat exchange rates.
• Fin Thickness: While thicker fins may enhance durability and robustness, they may also limit the total number of fins that can be mounted. This would greatly reduce the surface area recoverable.
• Length and Height: Total surface area is increased with increased length and height of the fin. However, these increases can reduce structural integrity to some degree depending on the material used.

Material Selection

• Fins must be made from materials that enable the most thermal energy to be conducted, for only then can the rest of the air surrounding the fin be heated.
• Aluminum (205 W/m·K): Low density, low cost, and excellent thermal conductor.
• Copper (385 W/m·K): It has superior conductivity; however, it is also more expensive than Aluminum, for it is heavier.

Airflow Management

• The convection efficiency increases proportionally to the amount of air that is flowing over the fins. This air can be supplied by external fans or can be passively pulled through the system.
• Laminar Flow: Zonal flow helps in improving the cooling rate. Streamlined fin designs help with laminar air flow.

Ambient Temperature

• Heat transfer is improved with the use of external cooling systems or air conditioning in high-temperature environments because it increases the dissipation of heat. Increased ambient temperatures enhances the temperature gradient.

Surface Treatment and Coatings

• The use of coatings that increase emissivity, such as black anodized finishes, protects the material surface from degradation by the environment while improving radiation efficiency.

Environmental Factors

• Corrosion and the accumulation of dust can lower the efficiency of the heat sinks. Inspections such as cleaning guarantee long-term performance of the material.
• Corrosion-resistant coatings aid in mitigating the effects of humid or saline environments that cause faster degradation of materials.

Industries can greatly improve the thermal performance of fin-based systems by addressing these issues, which leads to better temperature control while increasing the life span of the systems.

Importance of High Fin Density

Fins are vital for increasing the cooling efficiency of thermal management systems; they need to be spaced close enough densely to permit effective airflow without obstructing air circulation. There is a limit, however, since plugging too many fins into space will impede effective cooling through airflow. More fins mean larger areas of surface are available for heat exchange, and this complex design provides better thermal management performance without the need to increase the volume of the system package in highly thermal compact systems. Balancing an optimal fin density supply and surface area with airflow obstruction is crucial to guarantee dependable cooling regulation.

Exploring Aluminum Heat and Copper Options

Two metals that are commonly utilized in thermal management applications are aluminum and copper. Aluminum’s lightweight structure, low cost, and reasonable thermal conductivity make it a go-to in designs where weight and budget are important considerations. On the other hand, copper can be used for systems which has so much thermal performance in terms of conductivity and heat capacity because it has superior thermal conductivity and heat capacity compared to aluminum. For certain applications, aluminum is more easily machined and is more corrosion resistant than copper, while copper is more advantageous when subjected to high heat applications, although it is relatively heavier and more expensive than aluminum. With each metal having its advantages and disadvantages, the decision between the two comes down to the performance targets, environmental conditions, and budget allocated for the specific system.

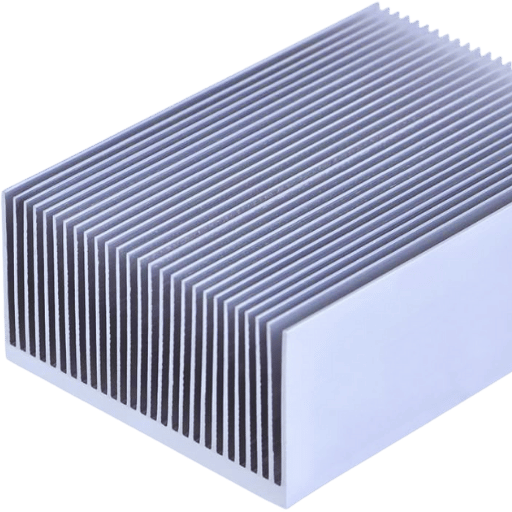

What Are the Types of Skived Fin Heat Sinks?

Overview of Skived Fin Heat Sinks Technology

As an improved method for heat sink manufacturing, skiving has unlocked new frontiers in thermal management.  A skived fin heat sink is one with fins cut directly from metal blocks, usually copper or aluminum. Specialized tools are used to carve the fins to ensure close spacing, high density, and maximized surface area for increased heat transfer. There is no solder joint that would otherwise impede the flow of heat. Electronic circuit boards and power modules have a higher power density than previously imaginable due to the absence of connected devices. As a result, these devices outperform traditional desktop computers while maintaining a low form factor. Their seamless construction guarantees strong thermal conductivity and durability, making skived fin heat sinks a reliable option for managing thermal load in critical systems.

Benefits of Using Skived vs. Extruded Fins

Improved Thermal Performance

• Skived fins execute superior heat dissipation when compared to extruded fins due to thinner fin profiles and tighter fin spacing. The enhanced surface area contributes directly to thermal efficiency, thus making skived fins applicable in areas with high cooling demands.

Improved Design Flexibility

• It is difficult to achieve complex and compact designs needs with extrusion processes, but the skiving process enables this ease. For example, skived fins can be made with higher fin density so that confined spaces are occupied with superior heat transfer capabilities.

Improved Material Utilization

• Having skived fins removes copper’s most common restrictive material failings in extrusion processes, which often are confined to extruded die limitations. If manufacturers use skived fins, they can utilize copper in greater quantities, which results in the production of strong and efficient heat sinks.

Improved Durability and Structural Integrity

• Because skived fins do not require bonding processes like extruded fins, skived fins are single piece structures. This ensures greater mechanical integrity and eliminates the chances of separation or failure during harsh thermal cycling.

Scalability for High-Volume Production

• Skiving is a sophisticated, adaptable process which can be implemented to automate high volume production with maintained quality. This tendency makes skived fins very appealing for industries which demand consistent and high-level performance cooling solutions.

Improved Customization Options

• Skived fins are customizable to meet the specific demands of the application where the skived fins will be used, such as skiving fin height, thickness, and spacing. This allows engineers to maximize the heat sink design for optimum performance and efficiency for a broad range of applications.

Thermal Conductivity Comparison

• Research shows that skived fins outperform standard extruded fins by almost 30% in tested thermal performance. This edge is especially important for high-power electronic devices requiring heat to be removed quickly or for other high-power-density environments.

Considering the highlighted benefits of the skived fins compared to extruded, their implementation is more advantageous in terms of thermal efficiency, durability, and structural flexibility for sophisticated thermal management systems.

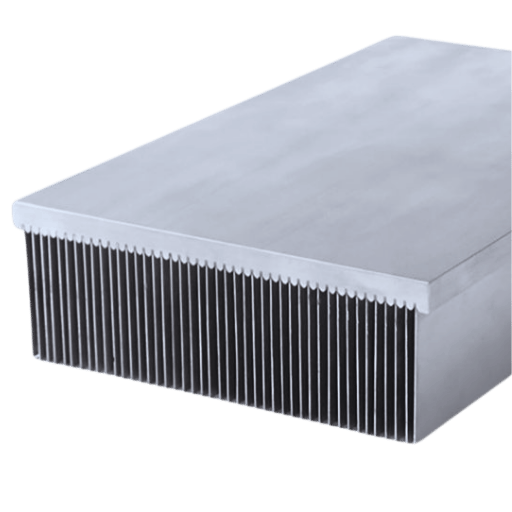

How to Choose the Right Cooling Solution for Your Applications?

Evaluating Thermal Resistance Needs

Establish the maximum temperature limit your device can withstand, along with its operational heat output, to assess thermal resistance needs. Make sure your cooling solution can maintain safe operating temperature limits by calculating the heat dissipation needed. Your application’s thermal conductivity, airflow, and surrounding temperature should be considered. Choose options with lower thermal resistance to improve the device’s heat transfer efficiency and performance stability.

Application-Specific Recommendations

High Power Electronics

Power amplifiers and processors are classified under high power electronics, and require the use of sophisticated thermal management techniques. It is advisable to use heat sinks with good thermal conductivity materials, such as aluminum or copper. There may also be a need for active cooling devices, such as forced-air or liquid cooling, in order to meet the increased heat dissipation requirements.

• Example Data: Airflow rates of 20-50 CFM would be paired with heat sinks which have a thermal conductivity above 200 W/(m·K) and would be sufficient to reduce operating temperatures by 15-30°C.

LED Lighting Systems

LED lighting systems have a distinct requirement whereby cooling aids must be incorporated in order to extend LED service life and maintain luminous output. Passive cooling strategies, including aluminum fins optimized heat sinks, or thermally conductive PCBs, are effective. More severe environments may require active cooling to be implemented in passive designs.

• Example Data: For a 10-15 W dissipation rate, passive cooling designs would allow the LED temperature to remain below 85°C for adequate function.

Automotive Electronics

Automotive electronics are required to have cooling solutions that are robust enough to deal with harsh environments. For ECU and battery management system (BMS) applications, liquid cooled cold plates with TIMs have better thermal performance. Such products still need to adhere to the guidelines of AEC-Q100 automotive standard.

• The supplied example states that liquid cooling systems for automotive applications can keep system temperatures around 60 degrees while dissipating heat loads of 100-300 Watts.

Telecommunication Equipment

Servers, base stations, and other telecommunication devices are not only potent but need to operate virtually non-stop which makes thermoregulation necessary. Advanced vapor chamber heat sinks and phase change materials (PCMs) provide superb thermal management in dense environments. High-powered fans significantly increase cooling by forcing air through the system and alleviating hotspots.

• Example Data: PCM layers at 2-4 W/(m·K) with vapor chambers attain higher thermoregulatory efficiency by reducing thermal resistance below 0.1 degrees Centigrade per watt.

Industrial Automation Systems

Automation of industrial devices can in some cases be more robust and, as a rule, thermoregulation and reliability are among the most important features. Sealed liquid cooling systems or heat piped systems offer reliable thermal management while increasing overall system robustness. Effective materials need to be effective within low and high temperatures.

• Example Data: In industrial conditions, sealed liquid cooling systems with cooling fluid flow rates of 0.5-2.0 L/min and thermal loads of 50-200 Watts are commonplace.

These recommendations ensure performance requirements are met through adequate thermal regulation while tailoring them to specific application needs.

Factors in Selecting Bonded Fin Heat Sinks

In order to accomplish the desired thermal performance in bonded fin heat sinks, a number of technical factors need to be evaluated, including:

Material Thermal Conductivity

The selected constituents of the fins and base have great implications for the heat sink’s performance. Copper and aluminum are the most common choices due to their extremely high thermal conductivity. Copper, for instance, has a thermal conductivity of about 400 W/m·K, whilst aluminum has roughly 205 W/m·K. In this regard, copper may be preferred for more demanding thermal applications, although aluminum provides a lightweight solution.

Fin Configuration and Density

The heat transfer rate is influenced by the spacing and configuration of the fins. Increased surface area is covered by dense fin configurations, and thus, more heat can be transferred to the surrounding air. On the contrary, high-density may cause increased airflow resistance which depends on whether the cooling method requires high capacity fans or optimized natural convection designs.

Conditions of The Environment Relevant to the Application

Bonded fin heat sinks have to be designed to meet the relevant environmental conditions of the application. For example:

• Ambient Temperature: The ambient operational temperature has a direct bearing on the heat sink performance indicator.
• Airflow Availability: Dissipation of heat by forced airflow systems can be improved but may require performance-improvement bonded fins featuring airflow channels aligned to maximize efficiency.

Mechanical and Structural Aspects

Methods of bonding and structural integrity are essential for industrial functionality concerning longevity and reliability. For instance, while epoxy bonding methods are effective for providing strong thermal conduction within bonded heated parts, excessive thermal cycling can diminish the bond over time. Other methods such as soldering and brazing may be better suited to high-stress environments.

Dimensional and Mass Limitations

Compact system designs require greater thermal capacity from smaller dimensioned heat sinks. Bonded fin options provide flexibility in design enabling the manufacturer to reduce the size of the heat sink without degrading its performance. For example, certain portable electronics are usually designed with heat sinks weighing less than 0.5 kg.

Economic Efficiency

When choosing bonded fin heat sinks, cost versus efficiency criteria must be met. Greater thermal conductivity materials, such as copper, come at a higher price, but may increase efficiency by decreasing the required number of components. Less expensive aluminum heat sinks are adequate for low demand thermal loads, but are not cost effective at higher loads.

These factors are the trade-offs that ensure the selection and design of bonded fin heat sinks in different industries is treated with thermal performance, reliability and effectiveness with regards to the intended application.

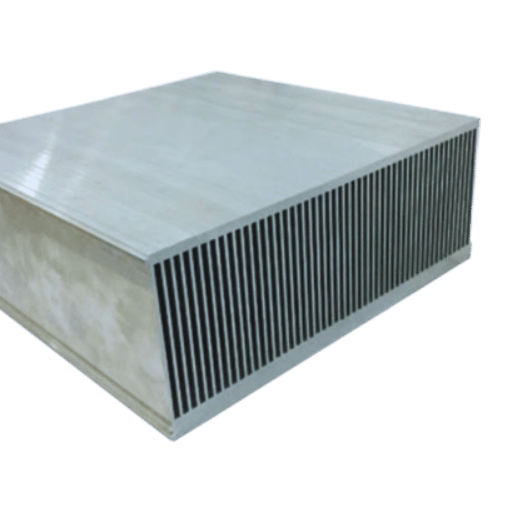

Why Are Fin Heat Sinks Ideal for High-Power Applications?

Understanding the Thermal Management Solution

At the outset, bonded-fin heat sinks are ideal for high-powered applications due to their capability of adequately dissipating the heat produced by electronic components, which prevents any possible thermal damage and maximizes performance. Their design possesses improved airflow, as well as maximized surface area, which enhances heat transfer. These incorporate materials such as aluminum and copper, which possess high thermal conductivity and are comparatively cheaper. These heat sinks are a dependable, low-cost solution for the management of the high thermal loads usually met in power electronics, servers, and industrial equipment.

Applications in Electronics and Automotive

Power Electronics

• As inverters, converters, and power amplifiers a part of power electronics, these systems utilize bonded fin heat sinks. They operate at high temperatures and need cooling due to heat generation. The use of high thermal conductive materials such as aluminum and copper makes cooling easier. For example, bonded fin designs in high-power inverters are capable of withstanding thermal loads of over 500W without fail.

Data Centers and Servers

• Data centers and servers run round the clock leading to high heat generation. To maintain temperature stability for high-performance computing components, processors included, bonded fin heat sinks are used. Efficiency under heavy workloads is ensured with a typical bonded fin heat sink’s ability to achieve a thermal resistance of 0.1°C/W, which translates to low system resistance.

Automotive Electronics

• Automotive applications, including electric vehicle (EV) powertrains, battery management, and LED lighting, utilize bonded fin heat sinks because of the ability to manage large thermal loads with ease. For instance, EV powertrains need thermals solutions to dissipate heat from parts that produce power over 1 kW. Bonded fins provide dependable performance and long life which is an added benefit.

Industrial Equipment

• Robotics and other motor-driven machines are examples of heavy-duty industrial machinery, which usually employ bonded fins heat sinks to deal with the heat produced by electronic parts. These heat sinks are specially designed to meet and exceed the thermal load dissipation requirements within the rigid and rugged environments typical of industrial applications.

Telecommunications Equipment

• Bonded fin heat sinks are used in telecommunications equipment like signal processing units and base stations, where there is a certain thermal management that needs precise attention. They support devices with thermal loads between 200 to 300 watts and keep working temperatures stable due to high efficient designs.

The wide array of applications of bonded fin heat sinks is a clear testimony of its versatility and importance in the electronic and automotive systems industries.

Advantages of Heat Spreaders in High-Performance Settings

In high-performance systems, heat spreaders manage the heat derived from the system components to ensure stable operations and optimal performance. Some primary proprietary features are:

Prevention of Localized Heating

• Heat spreaders enables even propagation of heat across electronic components to avoid overheating, consequently increasing the life of the devices.

Maintained System Reliability

• In high power applications, heat spreaders enable the devices to be operated at lower mean temperature by reducing thermal resistance, thus ensuring reliability.

Compatibility with High-Power Devices

• Optimally designed to cater for the thermal requirements of high power systems, this devices are perfectly suited for use in data centers, aerospace systems, and high-end computing platforms.

Material Versatility

• Tailor-made from copper and aluminum, heat spreaders offer flexibility in meeting specific thermal conductivity and weight requirements for most design objectives.

The features listed above offer a high degree of trust in the device’s ability to sustain the efficiency while increasing the reliability of performance in electronic systems.

Frequently Asked Questions (FAQs)

Q: What are high-performance heat sink fins?

A: High-performance heat sink fins are components that facilitate convective heat transfer through convection, achieving efficiency in the heat transfer. These fins find application in various industries for the cooling of power electronic devices, gaming consoles, and other equipment with high heat dissipation rates.

Q: How do heat sink fins play a crucial role in cooling electronic devices?

A: Heat sink fins have a crucial role by increasing the surface area, which enhances heat transfer convection. This improves the cooling of electronic devices like power electronic components and gaming consoles.

Q: What are extruded heat sinks, and how do they differ from other types?

A: Extruded heat sinks are constructed from pieces of aluminum by pushing them through a die to form a specific shape. They are inexpensive, have low thermal resistance, and are primarily used in high-power device cooling applications.

Q: Why is the base plate important in heat sink design?

A: The base plate is important because it is the interface between the heat sink and the electronic part, enabling the latter to absorb and spread heat. This facilitates the movement of heat through the fins.

Q: In what way does the design process for high-performance heat sinks take into account different application needs?

A: This step involves pre-emptively designing and customizing the heat sinks to suit higher temperatures and lower thermal resistance applications, which allows for optimum cooling of high-power and thermoelectric devices in different industries.

Q: What are the advantages of the folded fin heat sink?

A: Folded fin heat sinks have prolonged effectiveness in spreading the heat and are useful in small spaces. Their configuration with many parallel, narrow-spaced fins enhances the surface area for contact, facilitating better convection and thermal performance.

Q: What are air-cooled heat sinks, and what are their primary functions?

A: Air-cooled heat sinks extract heat from a device by utilizing ambient air. They are commonly found in devices that do passive cooling like in rectifiers and other power electronics. They are very useful and economical for several industries.

Q: How does heat sink assembly alter performance?

A: Effective completing of a heat sink increases both the surface area and alignment with the electronic part that has to receive heat transferred, which is essential for heat management. If a heat sink is incorrectly assembled, its thermal performance can be negatively impacted, leading to overheating of some components.

Q: What benefits are provided by skived heat sinks?

A: Skived heat sinks possess no joints which makes them thermally superior due to ease of achieving optimal fin density and height. This provides enhanced heat dissipation, which is important in high-performance applications.

Reference Sources

1. Hydrothermal Performance Analysis of Microchannel Heat Sinks with Embedded Module with Ribs and Pin-Fins

• Authors: Chunquan Li et.al
• Journal: Applied Thermal Engineering
• Date of Issue: 2023-02-01
• Citing Reference: (Li et al., 2023)
• Abstract: This paper studies a microchannel heat sink that has additional ribs and pin fins. The research attempts to design the component in a way that enhances it’s heat transferring capabilities. The authors performed Computtaional Fluid Dynamics (CFD) simulations in order to evaluate thermal and flow performance of the heat sink under various operational conditions.
• Methods: The study was conducted with CFD modeling to simulate the thermal and hydraulic performance of the microchannel heat sink. Different designs of ribs and pin fins were analyzed to find their effect on heat transfer rates and pressure drops.

2. Liquid Cooling of Microelectronic Chips using MEMS Heat Sink: Thermohydraulic Characteristics of Wavy Microchannels with Pin Fins

• Authors: Anas Alkhazaleh et al.
• Journal: International Journal of Theromofluids
• Date of Issue: 2023-02-01
• Citing Reference:  (Alkhazaleh et al., 2023)
• Abstract: This paper presents the study of microelectronic chip cooling through pin cooled wavy microchannels. The purpose of the study is to improve how the heat sink performs without increasing it’s dimensions.
• Methodology: The authors researched the efficiency of wavy microchannels with pin-fins using experimental and numerical methods. Measurement of pressure drop and heat transfer coefficients were included in the study for various flow conditions.

3. Impact of Air Natural Convection and Combined Droplet-Shape Pin Fins and Plate Fins Heat Sink: A Numerical and Experimental Study

• Authors: R. Deshmukh, V. Raibhole
• Journal: Numerical Heat Transfer, Part A Applications
• Date of Publication: 2023-04-07
• Citation Token: (Deshmukh & Raibhole, 2023, pp. 975-1000)
• Summary: This study examines the performance of a heat sink that merges the cooling effects of a drop-shaped pin fin and a plate fin under conditions of natural convection. This study intends to determine the best configuration for cooling the system effectively.
• Methodology: The authors designed both experimental and numerical approaches for performing thermal analysis of the heat sink structure. They tested a Business approximation model for natural convection against the experimental results.

4. Dasar geometris dari pin fin untuk meningkatkan proses pendinginan pada microwave heat sink

• Authors: Omar A. Ismail et al.
• Journal: Internasional Journal of Thermal Sciences
• Publication Year: 2023
• Citation Token: (Ismail et al., 2023)
• Summary: This work analyzes the mechanical design of pin fins located on microchannel heat sinks towards improving cooling efficiency. The objective of this work is to improve the efficiency of heat transfer by improving the design of the pin fins.
• Methodology: In this study, authors performed CFD simulations to analyze the cooling effectiveness of different designs of pin fins. The optimization procedure consisted of changing the size and orientation of the pin fins to get optimum cooling results.

5. CFD studies on thermal performance augmentation of heat sink using perforated twisting and groove pin fins

• Authors: M. R. Haque et al.
• Journal: Internasional Journal of Thermal Sciences
• Publication Year: 2022
• Citation Token: (Haque et al., 2022)
• Summary: This study aims to enhance heat sink thermal performance using perforated, twisted, and grooved pin fins. It aims to find the designs that yield the highest heat transfer and the least pressure drop.
• Methodology: The authors carried out CFD simulations to determine the thermal and hydraulic performance of different pin fins. The study compared the effectiveness of different configurations, considering the heat transfer coefficients and the pressure losses.
