Nylon Machined Parts: Exploring the Role of Nylon Plastic in Machine Parts

The advent of machining components made from Nylon plastic has simplified the manufacturing process. Additionally, nylon is highly versatile and strong in nature, which allows engineers to achieve streamlined results across many different industries. Its usage extends from aerospace components to industrial equipment. Nylon plays an important role in modern engineering because it is easily machined into precise components. This article will highlight the significance of nylon in machined components by discussing its properties, advantages, and impacts on modern-day manufacturing. In the end, you will understand the necessity and importance of nylon as a material in different industries.

What Are the Properties of Nylon That Make It Suitable for Machine Parts?

Nylon has some key properties that do well for machined parts:

• Durability: Nylon has great mechanical strength and can endure significant stress and wear over time.
• Light Weight: In spite of its strength, nylon is light in weight which accentuates the efficiency of components in a variety of applications.
• Low Friction: It has a naturally low coefficient of friction, ensuring smooth operation in moving parts while minimizing wear and prolonging lifespan.
• Resistance to Chemicals and Moisture: Nylon is free from corrosion caused by oils, solvents, and various chemicals, exhibiting low water absorption in most applications.
• Thermal Stability: It retains its properties under a wide range of temperatures, providing reliability in high-heat and cold environments.

These wide-ranging attributes render nylon an ideal material for precision machined parts throughout various industrial sectors.

Understanding Nylon’s Mechanical Properties

The fact that nylon is a suitable engineering material in different industries is amply supported by its impressive mechanical properties. This segment provides further details on the same:

• Tensile Strength: Based on its grade, nylon can withstand a tensile strength ranging from 7,000 to 12,000 psi, which is exceptional. As a result of its high tensile strength, nylon is capable of withstanding a lot of stress before it deforms or fails.
• Elasticity And Flexibility: The material demonstrates excellent flexibility with an elongation at break, typically around 20% to 60%. Such high elasticity enables it to absorb shocks and impact without fracturing.
• Hardness: The tough yet moderately soft quality makes it suitable for applications that require wear resistance. Hence, Nylon serves to have a perfect balance between toughness and rigidity.
• Abrasion Resistance: Because of its robust structure and low coefficient of friction, Nylon performs exceptionally well under frictional forces and doesn’t wear out even with extensive use.
• Impact Resistance: Nylon also proves to be a tough polymer as it efficiently absorbs shocks without breaking or cracking even at extremely low temperatures.

Due to all these factors, nylon is preferred over other materials for more sophisticated applications like gears, bearings, and structural parts.

Examining Nylon’s Chemical Resistance

Nylon is quite useful in industrial and engineering functions because it exhibits effective chemical resistance to damage from a range of substances. It is structurally resistant to oils, greases, and most organic solvents, helping it retain its structural integrity in harsh environments. It is important to note, however, that nylon is susceptible to strong acids and bases, as well as some oxidizing agents, which will cause degradation and loss of strength. The combination of chemical resilience and its mechanical properties guarantees nylon’s reliability in numerous operational conditions.

The Role of Tensile Strength in Nylon Parts

The consideration of tensile strength becomes fundamental to understanding the mechanical functionality of nylon parts, particularly those requirements that are geared towards high durability and load bearing. The tensile strength of a material denotes the amount of stress that it can endure when being pulled or stretched before a breakdown takes place. This property suggests that nylon has a broad scope of applications, which include gears, ropes, conveyor belts, and even automotive components.

Impressive tensile strength values are seen in Nylon 6 and Nylon 6/6, along with impressive variants of the two. For instance, the unfilled state of Nylon 6/6 has a tensile strength of about 12,000 psi (pounds per inch), which, with glass reinforcement, can reach nearly 25,000 psi. This attribute permits the inclusion of reinforcing materials making it possible for nylon to meet the demanding standards of engineering applications such as in heavy machinery and in structural components.

With that said, the consideration of environmental factors such as moisture absorption does have a slight effect on the tensile strength of nylon. Being hygroscopic in nature, Nylon absorbs moisture from the air and this reduces tensile strength and rigidity. However, the material is highly dependable in many areas because of the internal flexibility and toughness that counteracts the effects of moisture.

The wide range of applications for the tensile strength of nylon makes it a vital building block for engineering advancements. Engineers can modify the Nylon base for demanding applications ranging from inexpensive consumer products to sophisticated industrial tools. These traits render nylon an essential material in contemporary engineering.

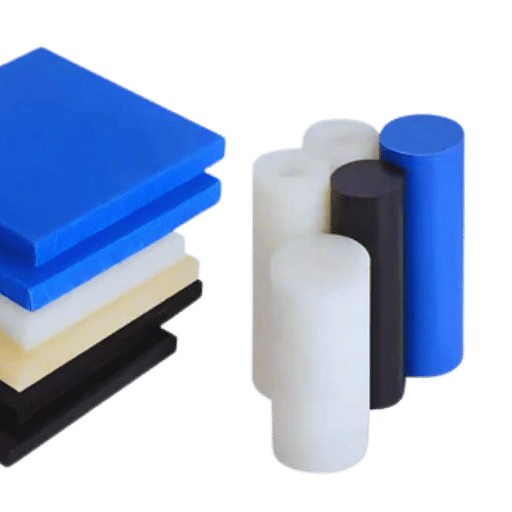

How Is Nylon Used in Machine Parts?

Applications of Nylon in Bearing and Wear Components

All types of industries prefer Nylon material for bearings and wear components because of its remarkable properties, as can be seen below:

Bushings and Bearings

• The production of bushings and bearings using nylon is common practice due to its remarkable wear resistance and low coefficient of friction. These attributes counter excessive heat generation and prolong the life span of components in most high-speed rotating systems.

Gears and Sprockets

• Apart from metal, nylon gears are quite lightweight and provide quieter services. Its self-lubricating characteristics, along with the material’s damping capabilities, efficiently reduce maintenance needs. Data also indicates that nylon gears can achieve a weight reduction of more than 50%int steel gears without losing their operability.

Rollers and Wheels

• Due to their great work holding capability, nylon rollers are used in conveyor systems and other industrial machines. Their resistance against chemicals and moisture makes them long lasting in hostile environments.

Wear Pads and Strips

• Used in construction and on heavy equipment, wear pads made of nylon are effective in friction and damage reduction on the sliding surfaces. This ultimately leads to improved equipment life and reduced repair costs.

Seals and Gaskets

• Because of nylon’s remarkable elasticity, it can serve as seals and gaskets in fluid dynamic systems, withstanding immense pressure while still functioning effectively.

These uses indicate how cost effective and essential nylon is in enhancing performance and making the entire mechanical and industrial systems more reliable.

Exploring Nylon’s Use in Automotive Industry

When it comes to automotive engineering, nylon is one of the most important components because it is light, resistant to wearing and chemicals, and durable. Some applications are as follows:

Engine Components

• Nylon is used for items like air intake manifolds and timing belt covers, with the materials’ heat resistance and strength enhancing engine performance alongside decreasing vehicular weight.

Electrical Systems

• Because of its excellent insulating properties, nylon is the preferred material for connectors, cable jackets, and fuse boxes, which aids in the reliability and safety of the electrical system.

Fuel System Components

• Nylon’s resistance to oils and fuels provides outstanding performance in fuel lines, fuel tanks, and vapor lines while assuring longevity and efficient services.

These applications capitalize on nylon’s attributes to improve fuel economy, lower emissions, and improve the effectiveness of modern cars.

Nylon’s Role in Mechanical Durability

Nylon has been noted as beneficial in various consumer and industrial tasks for its remarkable mechanical strength. Due to its excellent impact resistance, high tensile strength, and wear resistance, nylon is perfect for components that undergo repeated mechanical strain. Research has shown nylon materials can endure a significant amount of tensile stress, approximately ranging from 75 to 90 MPa, depending on the grade offered and the amount of reinforcement provided.

In the same way, its low coefficient of friction is useful in gears, bearings, and bushing and contribute to its effectiveness in these domains. As an example, nylon gears have been noted to drastically decrease the wear as well as the heat produced in mechanical systems which increases adjust operational life and decreases maintenance cost in comparison to its metal counterparts. Additionally, the fact that nylon can withstand the extremes of -40°F to 248°F guarantees the material retention of useful properties after prolonged exposure to extreme environmental conditions.

The provision of glass or carbon fibers to the nylon’s base material makes reinforced nylon composites that amplify the mechanical performance of its base material. Such nylon composites are able to withstand as High as 200% greater impact resistence and three times greater stiffness making them ideal for use in heavy industrial machinery and automotive structural parts. The blend of strength and flexibility that nylon provides proffers bespoke solutions, enabling sustained performance for multiple applications.

What Are the Common Applications of Nylon in Manufacturing?

Injection Molding Techniques for Nylon

The methods applied in injection molding for nylon include heating nylon pellets until they melt and injecting the molten material into a custom-built mold under pressure. The reason for this method being popular is its overall efficiency and its ability to make highly complex parts with great accuracy. Some of the crucial factors include having controlled heat application to avoid material degradation as well as having optimized injection speed to avert warping. Common applications comprise fasteners, gears, and other automotive parts that definitely require a high amount of accuracy in terms of design and robust functionality.

CNC Machining Processes for Nylon

CNC machining is one of the most productive methods for creating nylon parts in the computation of accuracy and repeatability. It involves the use of computer control to operate tools mills, lathes, and routers which shape nylon parts to the specifications of the design file. The nylon’s machinability is in part determined by some of its characteristics like: high tensile strength, abrasion resistant, and low melting point compared to metals.

CNC Machining Services Inc., what should you consider when machining nylon? When the machining of nylon is done, the choice of tools and cutting speeds, as well as the control of temperature, are all factors that must be taken into account. Sharp edges tools that are polished tools should be used to mitigate friction which could likely cause the material to melt or deform. Cutting speeds are generally between 200 and 500 surfaced feet per minute (SFM), depending on the nylon used. Tools used during the machining process, such as drills or end mills, are cooled using cold water, coolant, or even compressed air. The coolant aids in removing heat and does not alter the material.

The use of nylon in the automotive, aeronautics, and electronics industries is primarily driven by the material’s machinability into complex parts with close tolerances. For instance, the manufacture of pneumatic and hydraulic bushings, rollers, and insulators is done by CNC machining due to the material’s high strength to weight ratio. Moreover, nylon grades with low moisture absorption, like Nylon 6/6, are ideal for usage in special applications that require stable dimensions and high mechanical properties.

Nylon’s Adaptability in Engineering Plastics

The adaptability of nylon’s application as an engineering plastic comes from its mechanical strength, chemical resistance, and thermal stability. Its properties can easily be modified for different purposes, for example, glass fibers can be included to boost strength and lubricants can be added to increase wear resistance. Such properties make nylon ideal for the production of gears, bearings, fasteners, and other components that require high precision and durability in operational conditions.

How do you request a quote for nylon parts?

Factors Affecting Price and Quote Estimation

The estimation of pricing and quotes for nylon components depends on several specifications. To begin with, what specific grade of nylon is required? Does the nylon need reinforcement by leveraging glass fibers or lubricants? These two aspects definitely affect pricing. Secondly, the material usage and the sophistication involved in the manufacturing process are determined by the size and complexity of the part being manufactured. Finally, the amount of orders placed along with any alterations, such as precision machining or surface polishing, also affects pricing. This is what I quote as relevant information regarding the application and special requirements for estimating precision.

Ensuring Quality and Specifications in Nylon Parts

Nylon components manufacturing is concerned with quality assurance through careful selection of raw materials, state-of-the-art manufacturing methods, and extensive testing. Nylon is extensively used in construction owing to its strength, resistance to heat, and thermal stability in various sectors such as automobile, aerospace, and consumer products. As with any product, manufacturers need to control product reliability using standards such as ISO 9001 and ISO 1043 for quality and material designation, respectively.

The use of modern practices like injection molding and CNC machining increases accuracy and repeatability in the manufacture of components. Depending on the complexity of the design of the part, tolerances up to ±0.05 mm can be accomplished using modern equipment. Moreover, quality assurance also includes coordinate measuring machines (CMM) and various inspections alongside tensile strength measurements, Nylon 66, a common industrial polymer, for instance, has a tensile strength of around 80MPa in normal conditions.

Maintenance of moisture uptake is one of the environmental aspects controlled to aid the preservation of material characteristics. The inherent specific character of nylon getting pre-drained before further processing is undertaken eases the changes in performance. On the other hand, surface treatments in combination with incorporated UV stabilizers can also be provided for the polymers used in more extreme hostile environments.

Lastly, nurturing communication among the stakeholders is essential. If material specifications, functional loads, and operating environments are provided early in the design stage, then the final parts are likely to exceed the application demands at economic costs.

Why Choose Nylon Over Metal or Other Plastics?

Comparing Nylon’s Wear Resistance and Impact Resistance

Nylon is preferable to metal and other plastics because of its excellent wear and impact resistance. Nylon’s structural toughness enables it to withstand repeated mechanical impacts without cracking or deforming, thus making it highly suitable for application with dynamic loading. It also provides excellent resistance to abrasion, which increases the service life of components that are subjected to friction or surface contact. In contrast to metals, nylon is lighter and does not corrode, and it also outlasts many other types of plastics in weight, toughness, and adaptability to harsh conditions. These traits make nylon a highly reliable and economical choice for efficient applications.

Nylon’s Dimensional Stability vs. Other Materials

Precision applications that require strict dimensional stability when selecting a material for use need to consider thermoelasticity and strength. In comparison to other materials, the performance of nylon in this regard is commendable. As compared to its competitors, nylon requires very little heating to undergo expansion. For example, the coefficient of linear thermal expansion (CLTE) value of nylon is about 80 x 10⁻⁶/°C which is significantly better than that when compared to most conventional plastics like polyethylene (PE), which tends to exceed 200 x 10⁻⁶/°C. Furthermore, it is able to withstand high temperatures for long periods of time without loss of shape during machining.

Other materials with a very low absorption rate, such as nylon, which normally averages around 1.5 to 2.5 in 50% or more relative humidity, further enhance metrological dependability in the event of critical hygroscopic moisture. Compared to other polymers, nylons like glass-reinforced nylon twelve and other advanced grade types have better water uptake resistance. Nylon offers less thermal conductivity than metals, which reduces dimensional shifts caused by temperature changes, unlike what’s seen in metals.

Due to all of these, it makes nylon fibers a suitable option for use in the automotive, aerospace, and industrial machinery to name a few. Industries where constant reliability and tight tolerance is a necessity.

Benefits of Nylon’s Elasticity and Flexibility

Stamina Towards Tiredness

• Because of its elastic nature, nylon has the ability to suffer stress and strain repeatedly without enduring any permanent changes to it’s structure. Which is why it is used for parts that are to be on gears, hinges, and snap-fit connectors because these parts have constant motion and cyclic loads on the them. Research has shown that nylon can retain over ninety percent of its tensile strength even after thousands of flexural cycles take place.

Impact Can Be Absorbed

• The flexibility in nylon contributes to the effective impact forces’ absorption and dissipation. For instance, If we consider unfilled nylon, its Izod impact strength is about 3-12 kJ/m2, depending on what grade it is as well as multiple other processing conditions. Such a property makes it less prone to fractures in sudden loads as compared to regular structural and protective applications.

Can Withstand Varying Temperatures

• Nylon has the ability to remain elastic across a big range of temperatures, usually between -40 degrees to 100 degrees for standard grades. High performance nylon variants are able to exceed this range even further, maintaining elasticity and toughness in extreme operating environments.

Mechanical Properties Customization

• The flexibility of nylon could be modified by changing its composition by adding plasticizers, fillers or reinforcements such as glass fibers. For example, glass-filled nylon shows large improvements in flexural modulus while exhibiting less elongation at break, making it suitable in applications where rigidity and flexibility are important.

Vibration and Noise Dampening

• Nylon is elastic and able to absorb shocks and dampen noise. This is the reason why nylon is widely used in automotive parts, for instance, in bushings and in engine mounts. This not only makes them last longer but also makes them easier to use.

Lightweight Durability

• Because of its flexibility, low density ( 1.1 1.2 g/cm³), and excellent nylon provides strength-to-weight ratios, it is sturdy. This combination is useful in aerospace and robotics, where low bulk and high durability are critical to performance and efficiency.

Because of the elasticity and flexibility, nylon is mechanically reliable and usable in a wide range of strenuous applications ensuring performance and durability decades into the future. These traits remain making it a premier in engineered design as well as industrial scale production.

Frequently Asked Questions (FAQs)

Q: What is nylon, and why is it used in machined parts?

A: Nylon is the most prominent thermoplastic polyamide, which is a type of plastic polymer and is highly utilized across the globe . It is common in machined components owing to its superb mechanical properties such as strength, toughness, and resistance to wear. Over many traditional materials, nylon has numerous advantages, thus its increased adoption in numerous sectors.

Q: What are some common uses of nylon in machine parts?

A: A variety of machine components such as gears, rolling parts, bearings, bushings, and washers often utilize nylon. It can also be found in structural parts, electrical insulators, and in several cases, it serves as a substitution for metal components. Parts with low friction but high durability demands, nylon is preferred because of its low bearing and wear characteristics.

Q: How does nylon compare with other engineering thermoplastics such as PEEK or acetal?

A: Nylon is an excellent engineering thermoplastic, albeit having properties different from PEEK and Acetal. Its strength is reasonable and it can withstand considerable wear and chemicals, but it will not endure as high temperatures as PEEK nor the dimensional stability offered by Acetal. Ultimately, the selection of these materials will be determined by the scope of the application.

Q: What are the advantages of using nylon for machined parts?

A: Garmenting the machined section has another advantage which is adding increased nylon acoustic dampening, along with possessing lightweight, excellent vibration absorption, and corrosion resistance. It is also relatively easy to work with, increases dimensional stability for precision parts, and has the added function of replacing metal components in numerous cases where it could lower costs while increasing performance.

Q: Are there different grades of nylon available for machining?

A: Yes, there are several common grades of Nylon available for machining, such as, Nylon 6, Nylon 6/6, and Nylon 12. All the thing grades vary in their characteristics. Some grades have specific features due to the addition of some materials like glass fiber or molybdenum disulfide that enhance certain properties. The specific grade to be selected is determined by the features that are needed for the particular use.

Q: How does the machining process for nylon differ from that of metals?

A: There are some methods specific to working with metals that cannot be used when working with nylon. Unlike metals, nylon possesses lower melting points which means it is more malleable during machining. It is necessary to employ dull cutting tools during the machining process, as well as lessen the amount of produced friction and heat that would cause the nylon to deform. Because of these factors, the process of cutting metals is usually slower hence results in greater wear of the tools.

Q: Is it possible to substitute machined nylon parts for machined metal parts in any application?

A: Though nylon can replace metal parts in several cases, it is not suitable for all. Any application that demands precise electrical, extreme temperature, or excessive structural strength will not be easy with nylon. The metrics for each need to be analyzed to verify if nylon can work as a substitute for metal.

Q: How do I know which type of nylon I should use for my machined parts?

A: The right choice of nylon grade can be determined based on its structure, the chemicals that it will come in contact with, the temperature that it will be exposed to, and the required mechanical properties. This is a very specific need, so consulting a professional or a reputable supplier who contributes in helping select the need is recommended.
