Mastering Laser Cutting Aluminum: Unveiling the Fiber Laser Revolution

Exceptional durability is merely a byproduct within the lightweight structure of aluminum that has already become a cornerstone material for different industries, the automotive and aerospace industries being the most notable ones. Despite all this, cutting and machining remain an issue on their own because of the numerous challenges associated with its precise detail. This is photo fiber laser technology, a revolutionary innovation that has transformed the traditional methods of cutting aluminum, and now allows them to be accomplished with the utmost precision, speed, and efficiency. The purpose of this blog post is to take a closer look at the astonishing world of laser cutting aluminum, with a diagrammatic undissection of how fiber lasers utilize technology to revolutionize greatly the traditional means of doing things. From the science behind this advanced technology to the vision of its practical applications and outstanding benefits, this guide will assist the reader in realizing the steps and gaining the wisdom necessary to make the most out of fiber laser systems.

Can Aluminum Be Cut with a Laser Cutter?

Indeed, a laser cutter can be used to cut aluminum. For cutting aluminum, fiber laser systems are the most efficient due to their accuracy and capability to cut reflective metals. Such lasers result in precise cuts with minimal distortion to the material, making them useful for many industrial purposes. However, optimal results require the right settings and equipment.

Understanding the Basics of Laser Cutting Aluminum

The effectiveness of fiber laser systems drives precise aluminum cutting with lasers. These lasers are incredibly productive when cutting aluminum since they can implement equipment-damaging processes on reflective materials. Clean and precise results depend on the optimal settings of the laser power, cutting speed, and gas help such as nitrogen or oxygen, depending on the desired finish. Ensuring that the material surface is clean is also a prerequisite that must be met to improve the cutting quality.

Types of Lasers Suitable for Cutting Aluminum

Fiber Lasers

When cutting aluminum, lasers that employ fiber technology are exceptionally efficient due to their beam quality and energy consumption. Because these lasers work at shorter wavelengths (about 1 µm) they are suitable for more reflective materials like aluminum. Fiber lasers provide excellent cutting accuracy and speed. For instance, a 3kW fiber laser with the capability of cutting up to 10mm thick aluminum sheets, does so with clean edges.

CO2 lasers

Although CO2 lasers are normally less effective than other lasers for reflective surfaces, they have been the default choice for aluminum cutting. Their working wavelength is close to 10.6 µm which means providing a protective enclosure around the laser is critical to avoid damage from beam reflection. CO2 lasers yield good results when cutting thicker aluminum materials, but only with proper calibration and maintenance of the system. For example, slower speeds yield better results when cutting up to 20mm thick aluminum sheets as opposed to fiber lasers.

Disk Lasers

Disk lasers are the cutting-edge version of fiber and CO2 lasers. They offer exceptional flexibility and high power outputs. Disk lasers perform well with intricate geometries and thinner sheets of aluminum and can cut reflective materials without damaging them due to advanced energy distribution and cooling systems.

Diode-Pumped Solid-State (DPSS) Lasers

DPSS lasers are precision devices developed to be used in very specific and efficient cutting applications. While less prevalent than fiber or CO2 lasers, DPSS systems are becoming more popular in industries that call for extremely precise cutting of reflective materials like aluminum. They are ideal in the thin micro-fabrication works and when applied to layers of aluminum in micro-thin wafers.

While considering a laser type that will be used in cutting aluminum, one must take into account material thickness, cutting speed, and the nature of the work being done. As it stands currently, the market is dominated by fiber lasers due to their high efficiency and versatility which makes them the most desirable for industrial applications.

Advantages of Laser Cutting Over Traditional Methods

Accuracy and Precision

With laser cutting, the level of accuracy and precision offered is superb, and the tolerances can even go as low as ±0.01 mm. This accuracy is especially useful in cases where highly intricate designs or complex geometries are required to be made, which does not get fulfilled by traditional means like mechanical cutting.

Efficiency and Speed

The speed and efficiency of laser cutting are unmatched and it operates much quicker than the traditional techniques, especially for thin to medium-thickness materials. For example, the fiber laser can cut through a 1mm thick aluminum sheet with incredible speed. It can achieve a cutting speed of over 10 meters per minute, which allows for a significantly shorten work time along with a larger production volume.

Versatility in Material Cuts

Metals, wood, plastics, and even ceramics – laser cutting can work with these and other materials. It also surpasses mechanical cutting in flexibility and cutting capabilities by processing with reflective materials such as copper and aluminum using specialized technological settings.

Reduced Waste of Materials

With laser cutting, the wastage and the kerf width increased, while the efficiency of the raw materials used increased significantly. This leads to cost reduction and a more sustainable method compared to the traditional techniques.

Non-Contact Process

The non-contact characteristic of laser cutting indicates that neither direct physical contact nor interaction occurs between the machine and the material. This makes it less likely for one to experience tool wear or material distortion than one may when using practices such as punching or saw cutting.

Reduced Need for Post-Processing

Since laser cutting yields clean edges and smooth surfaces, processes such as sanding or deburring which are usually done during traditional methods of cutting are no longer necessary. This is a step further in improving overall workflow efficiency.

Cost-Effectiveness

The initial purchase of laser cutting equipment may require more capital, however, it may lead to a lower long-term operational cost because material waste is minimized, production speeds are heightened, and maintenance is considerably lowered compared to conventional ways.

Automation and Integration

Modern laser cutters are considerably automated and can be placed onto production lines with the integration of CAD/CAM software for quantitative control. Increased automation minimizes variabilities in outcome, reduces human error, and enhances productivity over time.

This is why most industries such as aerospace, automotive, electronics, and manufacturing which require high efficiency and precision, prefer laser cutting over other methods.

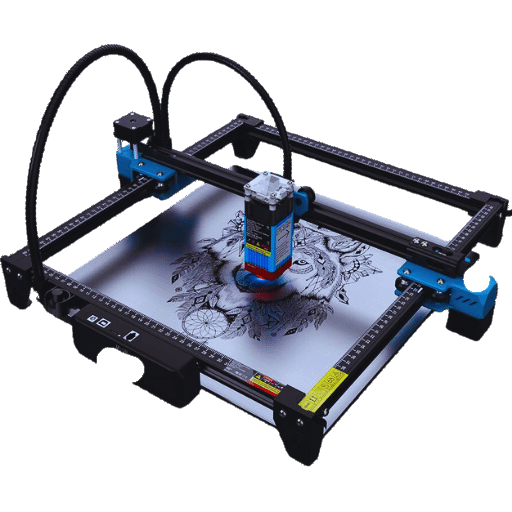

What Type of Laser is Best for Cutting Aluminum?

Fiber Laser: The Go-To Choice for Aluminum Cutting

The best choice for cutting aluminum is fiber laser, due to their incomparable efficiency and cut accuracy. Fiber lasers cleanly and accurately slice through materials while wasting very little. In addition, reflective materials like aluminum benefit from fiber lasers because they do not suffer as much from beam reflections that interrupt the cutting process. Furthermore, these lasers cut faster than other types, and are, therefore, more useful in many industries that rely on precision and productivity.

CO2 Lasers vs. Fiber Lasers for Aluminum

While analyzing CO2 lasers and fiber lasers concerning cutting aluminum, one must take into account its efficiency, cost of operation, and compatibility with the material. The CO2 laser type which creates the beam through an electrically stimulated mixture of gas, has been dominant for most thicker aluminum sheets. However, the laser optics system needs adequate servicing regularly, which increases the cost of operation.

Nonetheless, fiber lasers, which utilize optical fibers with rare earth elements as a power source, have numerous beneficial features Fiber lasers often have an edge with regard to beam quality and energy concentration due to the presence of doped materials. For instance, these lasers perform better than the CO2 type concerning the rate and quality of cuts on thinner sheets of aluminum such as 1- 2 mm. Research has shown that fiber lasers can cut aluminum sheets under 3mm thick at a speed of three to four times higher than the CO2 laser. This makes Fiber lasers ideal for industries that require high speed and accuracy.

In gaining a better perspective on energy efficiency, fiber lasers offer a better performance compared to CO2 lasers. A 35-45% fiber laser energy efficiency shows a stark contrast to CO2 laser efficiency at 10-15%. When lasers become more energy efficient, this lowers electricity usage, therefore reducing operational costs over time. Also, fiber lasers are less susceptible to damage caused by beam reflections as CO2 lasers are, which makes CO2 lasers more unreliable when dealing with reflective materials.

When dealing with power levels, CO2 lasers still have an edge when cutting through aluminum thicker than 10mm due to their cutting process fully relying on thermal energy distribution. Despite this fact, high-power fiber lasers that have hit the standard of 12-20kW power marks have been bridging the gap and are in many cases able to compete with and surpass CO2 systems for such situations. The overwhelming popularity of these advanced lasers has led me to believe that this gap will only continue to narrow as technology progresses.

In the end, the decision between the two lasers for cutting aluminum will depend on the requirements of production. While CO2 lasers stand at the forefront for their high-thickness applications, fiber lasers are better in terms of productivity and efficiency for cutting thinner aluminum with better-quality edges.

Laser Power Requirements for Effective Aluminum Cutting

It is the thickness of the aluminum and the intended cutting speed that define the requisite laser power for aluminum cutting. When cutting thin aluminum sheets, usually less than 1/8 inch (3 mm) in thickness, a fiber laser in the range of 1 kW to 2 kW will provide precise and fast cuts with minimal challenge. When performing cutting operations on medium-thickness aluminum between the 1/8 inch (3 mm) and 1/4 inch (6 mm) range, a power range of 2 kW to 4 kW is frequently cited to achieve process efficiency with good edge quality.

For high-productivity manufacturing environments, a laser power of at least 4 keV is essential when cutting thicker aluminum plates, greater than 1/4 inch (6mm). The best results for cutting aluminum, up to 30 mm thick, are with modern fiber lasers with power outputs exceeding 12 kW. These lasers offer high efficiency and low costs for energy and reduction of heat-impacted zones.

The gas used during a laser cutting affects the laser’s operational power. For example, nitrogen assist gas requires more power than oxygen because it does not produce an exothermic reaction. But nitrogen cutting does provide better edge quality with no oxidation, which is useful when aesthetic or post-fabrication processes are required for oxidizable materials that are hard to cut.

With new advancements in laser technology including better beam quality and new ways to deliver power, manufacturers are now able to make clean cuts at lower power settings. This saves energy and lowers costs. While selecting an appropriate power level for a cut, production requirements, material thickness, and cut quality should be measured to optimize power and cost.

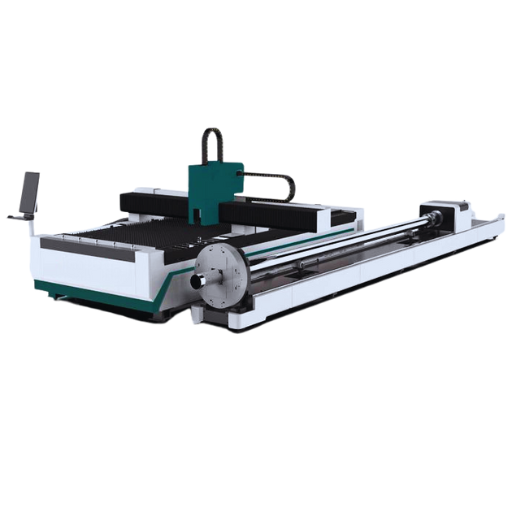

How Does the Laser Cutting Process Work on Aluminum?

The Science Behind Laser-Aluminum Interaction

Aluminum’s high reflectivity and ability to conduct heat govern its interaction with laser beams. Its surface tends to reflect a significant amount of laser energy, which makes it necessary to use either high-power CO2 lasers or fiber lasers if the material is to be penetrated. In raw form, aluminum’s reflectivity can go as high as 92%, making the challenge of sufficiently utilizing laser systems that have lengths optimized for aluminum processing around 1 micron for fiber lasers.

Furthermore, aluminum possesses a thermal conductivity of roughly 235 W/m·K, indicating that heat is lost swiftly and evenly through the material. This property makes it a necessity to deliver a focused high-energy laser to ensure cutting temperatures are sufficient to melt or vaporize the material completely. In order to improve edge quality and precision, auxiliary gases such as oxygen or nitrogen are typically used. Nitrogen gives a clean edge that is free of oxides, and oxygen helps in cutting thicker sheets because of an exothermic reaction, although it has the downside of oxidizing the surface finish.

Recent developments in laser-cutting equipment have tackled these issues as well. For example, manufacturers now use beam shapers to enhance the intensity distribution across the laser spot to achieve better absorption and cut quality. Other methods such as high-speed aluminum piercing and real-time monitoring of the cutting process also help minimize other defects, especially during high-speed operations. For aluminum, the cutting speed depends on the material thickness and the output power of the laser, but a six-kilowatt fiber laser can cut three-millimeter thick aluminum sheets at speeds up to fifty inches per minute.

These innovations together with exact process control demonstrate that laser cutting has become an indispensable means of aluminum machining with a good combination of productivity, precision, and flexibility for multiple industrial applications.

Step-by-Step Guide to Laser Cutting Aluminum

Choose the Correct Laser Type

Selecting the proper laser system is imperative for favorable results in cutting aluminum. Generally, fiber lasers are preferred because they can cut reflective materials such as aluminum more efficiently. For cutting aluminum sheets of different thicknesses, it is best to use a fiber laser with a power rating of 6 kW or more. Weaker lasers might be enough for thinner sheets; however, more powerful systems guarantee speed and accuracy for thicker materials.

Clean up the Aluminum Parts

Before starting the job, you must make sure that aluminum parts are cleaned of oils dirt, and debris. Contaminants on the surface of the material may influence how well the laser can cut into the aluminum, resulting in defective final products. The material needs to be cleaned up by certain means, such as wiping it down with isopropyl alcohol.

Adjust the Parameter Settings of the Equipment

Based on the thickness of the aluminum sheet, program the fiber laser cutter to optimize the cutting quality. As an example, cutting rates for a 3 mm aluminum sheet with a 6 kW fiber laser usually falls between 40 to 50 IPM. Slower cutting speeds will be necessary for thicker sheets, as will increases in assist gas pressure to ensure clean cuts.

Select the Proper Assist Gas

Using the right assist gas can improve cut quality and aid in heat removal. When cutting aluminum, nitrogen is usually preferred as it produces a pure edge free of oxidization. Remember to set the pressure appropriately to the material’s thickness; higher pressures are usually needed for thicker sheets.

Adjust the Focal Point

To achieve the best energy concentration on the material surface, the laser focal point needs to be precisely calibrated. If it’s misaligned, it may result in poor cut quality or low cutting effectiveness. Employ automatic focusing capabilities or manual controls to adjust the focus based on the material and cutting needs.

Perform a Test Cut

To identify problems with adjustment settings before performing large-scale production, conduct a test cut on a small portion of aluminum first. While you can adjust the speed, heat, and assist gas setting, doing so until you reach a large-scale production level is not recommended.

Start the Cutting Process

Once all settings have been perfected, you can begin the cutting process. During the process, look out for other anomalies, such as excessive or insufficient heating or material cut quality, which may require a change in parameters.

Post-Cutting Procedures

Following the completion of the cut, examine the edges for accuracy and quality. Deburr and cleanse the cut edges to make certain that no burrs or residue is left. In cases where utmost precision is needed, extra finishing steps such as polishing or deburring may be required.

Safety and Maintenance

When working on a project, the safety equipment to consider includes gloves and safety goggles. Ensure that the space is well-ventilated and the laser cutter is safely operated. To increase the longevity of the piece, ensure that the assist gas lines are functioning, the lenses are cleaned, and the machinery is properly calibrated as this is vital for the regular maintenance of the machine.

With modern advancements in laser technology, the procedures noted above have made it possible to cut aluminum with high precision, speed, and most importantly, consistency, which is essential to meet the ever-changing requirements in today’s industrial applications.

Factors Affecting the Cutting Quality and Speed

Multiple critical aspects can affect cutting efficiency and speed when using a laser cutter, especially when working on materials such as aluminum. These components encompass the properties of the material, the power provided to the laser, the speed of the cutting, the type and pressure of assist gas, and the degree of focus attained. Adequate scrutiny of each aspect using the most recent information helps enhance the operational aspects.

• Material Properties: The cutting of aluminum has the following properties: its reflectivity and thermal conductivity. The reflectivity of the laser light is large, And thus a significant amount of the laser energy can be reflected instead of being absorbed which reduces the ability of the cutter to cut. A high-power laser or special coatings can overcome these concerns. The thermal conductivity also has an impact on the rate at which energy is dissipated. The utilization of energy has to be controlled so that the dissipated heat does not cause poor edge quality or incomplete cuts.
• Laser Power: In cutting aluminum, it is commonplace to require a higher-power laser; this becomes more pronounced as the sheets get thicker. As an example, a 6 kW fiber laser is suggested for cutting materials whose thickness is 10 mm or more. He provides speed and precision too. The powered systems take more time to cut thicker materials.
• Cutting Speed: The link between cutting speed and quality is highly dependent on material thickness, especially when it comes to surface finishing. High cutting speeds have a positive impact on productivity but can lead to surface roughness and incomplete cuts if not properly matched with available power and assist gas pressure. In contrast, well-calibrated fiber laser cutters deliver smooth cuts with no burrs, enhancing the quality of the cut.
• Assist Gas Type and Pressure: Fulfillment of the cutting parameters is determined not only by laser speed and power but also by the type of assist gas used. For aluminum cutting, nitrogen gas is most often employed to avoid oxidation and provide cleaner cuts. The pressure of the assist gas affects the dross formation and the precision of the cut edge. Evidence suggests that for aluminum gas pressure range of 8 to 12 bar gives better results for industrial applications.
• Focusing Accuracy: The quality of the cut is highly dependent on the degree of focusing of the laser. For each material type and thickness, there is an optimum point where the laser beam would be focused. Out-of-focus or misalignment (low-quality focus) results in poor cutting quality with excess jagged edges and heat-affected zones. Improved autofocus features in modern laser machines can greatly enhance precision and versatility during the operation.

Through the combination of these aspects along with the development of laser cutting technology, greater cutting quality along with optimized speeds will be achieved and adjusted to their particular application requirements.

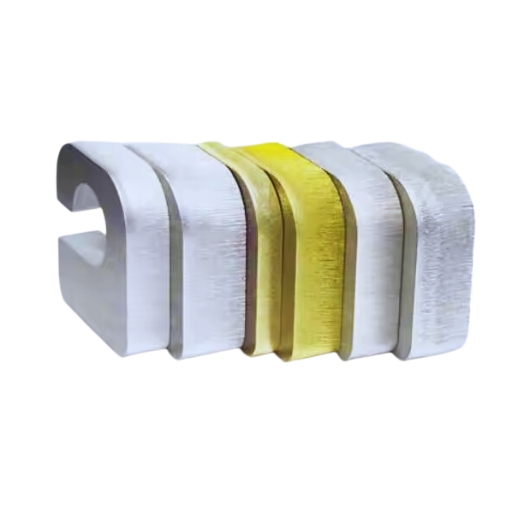

What Are the Limitations of Laser Cutting Aluminum?

Maximum Cutting Thickness for Aluminum Sheets

Usually, the maximum cutting thickness of aluminum roads is dependent on the specifics of the aluminum as well as the power of the laser cutter. For average industrial laser cutting equipment, aluminum sheets are precisely cut to a thickness of half an inch (12.7 mm) with a guarantee of reliability. Although water jet and plasma cutting become increasingly efficient above this thickness, it is possible to exceed this limit with higher-powered laser systems. Attaining ultra-clean cuts at maximum thickness relies heavily on machine calibration alongside the utilization of assist gases like nitrogen.

Challenges in Cutting Reflective Aluminum Surfaces

The reflective and thermally conductive properties of aluminum surfaces create obstacles to effective laser cutting. The cutting procedure has to be carefully monitored as the reflection of light could cause deflection of the laser beam, cutting proficiency, and harming the laser equipment. Moreover, because of the rapid heat dispersion, there are instances of inconsistent cutting and insufficient penetration. To alleviate the problems stated, comprehensive calibration of the machine along with the implementation of a setup for reflective materials and application of anti-reflective coatings can be employed.

Safety Considerations When Laser Cutting Aluminum

Taking care of safety measures is crucial during the operation of laser cutting aluminum so one can avoid unwanted risks. All operators need to put on the necessary personal protective equipment (PPE), for this case, goggles will protect eyes from damages caused by lasers and therefore must be worn at all times. Proper ventilation is crucial in getting rid of harmful vapors resulting from the cutting process alongside tiny fragments of metal while the work is being done. Getting rid of potentially harmful reflections from the laser beam is very important so the equipment as well as the staff is safe. Check-ups made on the machine enable safe use and lower chances of breakages to be made easier. Make sure to follow the provided checklist of safety rules, training guides, and other such devices by the producer so chances of negative outcomes occurring are reduced to a minimum.

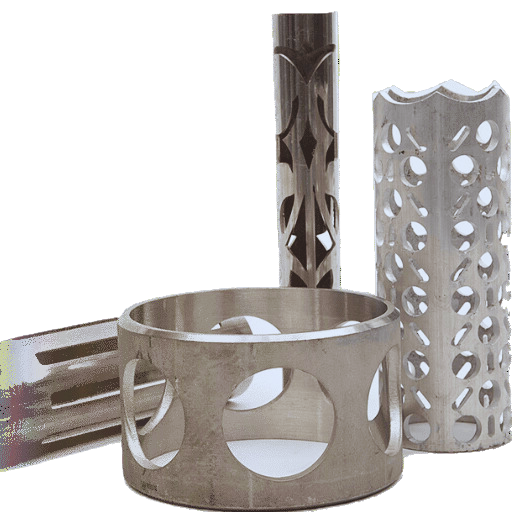

How to Optimize Laser Cutting for Different Aluminum Grades?

Adjusting Laser Parameters for Various Aluminum Alloys

It is critical to account for a material’s reflectivity, thermal conductivity, and thickness when changing the laser settings for different aluminum alloys. Monitor the cutting speed and laser power concurrently; use slower speeds and greater power for thicker or more reflective alloys. Decrease the power and increase the speed for thinner materials in order to mitigate the chances of overheating or warping. Remember to always adjust the focus height and use either nitrogen or air as an assist gas; this will ensure precision and oxide-free edges. Optimal performance and quality results from testing and fine-tuning the parameters for each alloy.

Techniques to Improve Cut Quality and Precision

To enhance the quality and accuracy of cuts, I pay special attention to both beam alignment and optical cleanliness, as these factors contribute to homogenous results. In addition, I modify the power and speed of the cuts to the particular material and thickness being worked on. It is also important to use the correct assist gas, for example, nitrogen helps to achieve a sharper edge. Machine parts are checked and serviced on a routine basis to ensure there is no downtime during operation. With these adjustments, I can achieve almost exact results with precision and quality.

Troubleshooting Common Issues in Aluminum Laser Cutting

In the case of aluminum laser cutting, I look for incomplete cuts first together with power and focus settings. Then, I check for proper nozzle height and if the assist gas pressure is sufficient for the material’s thickness. I also check for gas types or laser parameters to reduce oxidation and discoloration. Apart from the mentioned edges, I also check for dirty optics and worn edges that I fix using regular maintenance. By paying close attention to these parameters, I can improve the quality of the output relatively easily.

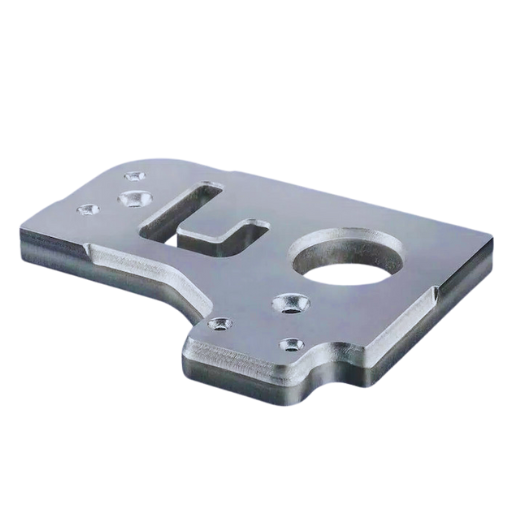

What Are the Applications of Laser-Cut Aluminum?

Industries Benefiting from Laser-Cut Aluminum Parts

The application of laser cutting technology in aluminum parts manufacturing has had a tremendous impact on a wide variety of industries because of the precision with which these parts can be produced as well as the ability to produce them efficiently and economically.

Automotive Industry

In the auto industry, laser-cut components are important for the production of lightweight yet strong components like brackets and heat shields, as well as decorative panels. The use of aluminum results in significant decreases in weight, which improves fuel economy and reduces emissions. Recent reports from market analysts suggest that over the period from 2023 to 2030 the global automotive aluminum market will grow at a compound annual growth rate (CAGR) of more than 8% because of the continuing need for sustainable vehicle designs.

Aerospace and Aviation

Aerospace, as well as other aviation industries, use laser-cut aluminum for bulkheads and weldment structural components. In these applications as well as in fuselage panels, the combination of accuracy and low weight of the material is critical. Other noted advantages include being in service in hostile climatic conditions due to the aluminum’s resistance to corrosion. Reported figures show that the introduction of new laser cutting technology resulted in increased performance of up to 30%, which has improved the efficiency of aerospace manufacturing processes.

Electronics Sector

Producers responsible for electronic devices make laser-cut aluminum parts, including enclosures, heat sinks, and even circuit board substrates. Aluminum’s astonishing thermal conductivity and machinability are essential when considering modern electronics, especially consumer electronics as well as renewable energy. Given the shift towards electric vehicles as well as the rollout of 5G, the aluminum market for electric laser cut parts will most likely boom.

Construction and Architecture

For builders and architects, laser-cut aluminum is preferred for roofing, intricate, decorative fa? ades, and panels. Such designs are possible because of the superior cutting skill lasers possess. Current estimates suggest that the architectural aluminum market is in the multi-billion dollar range, a figure which will only increase due to green building alternatives emphasizing the use of lightweight and recyclable materials.

Healthcare Equipment Manufacturing

The medical profession benefits from laser-cut aluminum parts for diagnostic and mobility aids as well as surgical instruments. With laser technology, precise cutting guarantees that even the most complex shapes adhere to the strictest regulations, driving medical technological growth.

In these sectors, industries continue to be influenced by the use of laser cutting technology with these advancements fused with aluminum’s already favorable characteristics providing enhanced product performance, reduced costs, and limitless design possibilities.

Innovative Products Made Possible by Laser Cutting

The unparalleled accuracy and customization offered by laser cutting technology have resulted in the creation of exceptional products at the lowest possible costs. One of the most prominent innovations is the use of laser cut aluminum components in the aerospace industry. These parts are lightweight, durable, efficient, and cost-effective. According to a recent report from industry experts, the global aerospace aluminum market is expected to increase by over 4% every year during the period from 2023 to 2030 due to the increased use of high-performance materials.

Another significant innovation is in the production of consumer electronics. Cooling fins, casings, and even circuit board elements are intricately created using laser-cutting techniques. Tight restrictions around the miniaturization of modern electronics and an emphasis on cosmetic appeal drive the need for extreme accuracy during each step of production. Recent research estimates that the market for consumer electronics will exceed $1 trillion by 2025, emphasizing the importance of advanced techniques like laser cutting in managing this growth.

Additionally, the renewables sector is no exception, especially concerning the making of frames for solar panels and other components of wind turbines. Such products require precision in detail to ensure maximum productivity and lifespan. For instance, the global capacity of solar energy is predicted to increase two-fold by 2030, thanks to the improvement in attention to suitable energy sources.

From the above examples, it can be deduced that the combination of aluminum’s properties and laser-cutting technology is allowing numerous industries to evolve with the market’s needs by designing and manufacturing sophisticated products.

Comparing Laser-Cut Aluminum to Other Manufacturing Methods

The use of laser cutting for aluminum has many advantages over other methods of its fabrication, such as mechanical cutting, punching, and water jet cutting. One key advantage laser cutting has over other methods is its accuracy. For instance, laser-cutting machines have tolerances of ±0.001 inches. With such high tolerances, it becomes possible to make complex designs and components that most traditional methods find difficult to achieve economically. A good example is the aerospace industry, which requires parts with many fitting requirements and is therefore very costly to produce. A minutia of tolerances becomes significantly important.

Another advantage that laser cutting has is the less waste in the material. In punching methods, the leftover material is often of no use and therefore increases the cost of material. On the other hand, the non-contact nature of laser cutting helps in the reduction of deformation and waste of material. This in turn lowers the operational costs. Studies show that companies that shift to using laser cutting have reported saving up to 30% on material costs.

Laser-cutting technology also utilizes speed as an advantage. Thin and medium gauged aluminum sheets can be cut slapdash without losing integrity. For example, modern fiber lasers can exceed over-cutting 1 mm thick aluminum sheet at sixty inches per second, not to mention the speed of mechanical or water jet cutters. This further allows for increased production and sales by industries that typically have high demand.

Moreover, laser cutting is far more versatile than other methods. Unlike mechanical cutting, which requires different tools to accommodate varying thicknesses or designs, laser cutting systems can be easily programmed to accommodate a wide range of geometries and material thicknesses. This greatly shortens setup times and eliminates the need for tool changes, resulting in a flexible, Figure-cost efficient, and streamlined manufacturing process.

Even though it is sometimes preferable to use waterjet cutting for thicker aluminum sheets due to the lack of heat impact, it does not provide the same level of surface smoothness and sharpness that laser cutting does. Research suggests that the edges resulting from a laser cut possess a Ra surface finish quality lower than 1.6 µm, which greatly diminishes the need for secondary finishing processes.

In general, laser-cutting technology offers a better solution than the traditional options for producing aluminum components in terms of precision, efficiency, material utilization, and versatility. Its increasing adoption across different industries looking to balance quality and costs throughout numerous processes explains the advantages.

Frequently Asked Questions (FAQs)

Q: Why can fiber laser cutting machines be termed effective for cutting aluminum?

A: Fiber laser cutting machines are effective for cutting aluminum because of their high-powered laser beam and how the machines can cut reflective materials. Working with a fiber laser source provides a more focused beam which produces faster cutting speeds and cleaner cuts with aluminum than CO2 lasers which is simply traditional.

Q: What is the difference in cutting speed when using fiber laser machines and other laser cutting technologies with aluminum?

A: The difference between CO2 lasers and fiber laser cutting machines is, that they offer significantly lower cutting speeds while using and working with Aluminum. It is for this reason that fiber laser machines are the preferred choice for cutting metal. The absorption rate with fiber laser beam and Aluminum is higher than usual, which means that material removal will be quicker which translates to productivity and efficiency boosts in metal cutting operations.

Q: What cuts the quality while laser cutting aluminum?

A: Numerous characteristics establish laser cuts’ quality regarding aluminum and they include the laser cut power range, the speed which is used while cutting, the thickness of the material, and the focus of the laser beam. The entire system should be finely tuned to make sure the energy from the laser is not wasted hence providing accurate cuts with the lowest available heat-affected zone and smooth edges.

Q: Can different thicknesses of aluminum be sliced using a fiber laser cutting machine?

A: A fiber laser cutting machine has the capability of slicing through different thicknesses of aluminum. Regardless of the thickness, in terms of the power of aluminum separation, a fiber laser can separate sheets of thinner aluminum and can cut plates with thicknesses above 25mm. This, however, heavily depends on the power of the laser and the machine used. Nonetheless, the speed at which lasers operate must be slower for thicker lasers, otherwise, they will lose cut quality.

Q: What is the most efficient laser power for cutting aluminum?

A: The parameters that define the most effective laser power include the material thickness and the speed at which it is cut. In general terms, for cutting operations that need above 1kw and up to 6kw, a fiber laser cutting machine that powers in that range would be ideal. For devices that require a higher power range from 4kw to 6kw, these are better suited for cutting thicker plated pieces of aluminum at higher speeds.

Q: In comparison to other metals, how does aluminum rank in terms of difficulty while laser cutting?

A: Out of most metals, aluminum is cut with a laser at a slower rate due to high reflectivity and thermal conductivity. The advent of fiber lasers has greatly eased the process of cutting aluminum in comparison to CO2 lasers. While most materials can be cut with lasers during the cutting process, aluminum is one of the materials that might need a more specific parameter set to be cut easily but is still easier to cut than copper or brass which are highly reflective as well as best known for their conductivity.

Q: Is it possible to use a CO2 laser cutting machine to cut aluminum?

A: Aluminum is most certainly able to be cut using a CO2 laser cutting machine, but the results are not the most efficient. Because CO2 lasers are not ideal for reflective materials such as aluminum, they suffer from a slow cutting speed, and poor quality, and can even harm the laser source. When cutting aluminum, Fiber laser cutting machines are better recommended due to their better efficiency and overall results.

Q: What safety measures should be observed with aluminum laser cutting?

A: Adherence to correct safety procedures when using lasers to cut aluminum is critical, such as wearing safety goggles of suitable laser wavelength in addition to other protective gear. It is also necessary to ventilate the area well to eliminate the fumes and debris caused during cutting. Moreover, additional care needs to be taken because aluminum is highly reflective and would easily reflect the laser beam if not positioned properly.

Reference Sources

1. An Experimental Study on The Infrared Water Guided Laser Cutting of 7075 Aluminum Alloy Using A Laser Machine

• By: Zebin Pan et al.
• Published On: August 31, 2021
• Description: The goal of this article is to evaluate the application of water guidance-assisted infrared laser technology to the processes of cutting and shaping the aerospace-grade aluminum 7075 alloy. The primary focus of this research is the impact of different laser parameters including, but not limited to: output power, linear cutting speed, and auxiliary blow pressure, on the quality of the cut, kerf width, and surface roughness.
• Methods: The authors conducted experiments to analyze the influence of the aforementioned parameters on the cutting performance. They measured the cutting depth and surface quality, concluding that the infrared water-guided laser cutting method significantly improves the cutting quality of aluminum alloys compared to traditional methods(Zhou et al., 2021).

2. A Study on Effectivity as Concerns Surface and Energy Efficiency Improvement of Fiber Laser Cutting of Aluminum Alloys in Varying Conditions of Hardness.

• Authors: Sattar Ullah et al.
• Publication Date: August 1, 2022.
• Summary: This paper studies energy efficiency and the quality of cuts achieved from fiber laser cutting on aluminum alloys with different hardened conditions. This study focuses on the need to improve cutting parameters so that a better surface is achieved with lower energy usage.
• Methodology: The authors conducted a set of experiments to analyze how different values of laser power, cutting speed, and other parameters impact the kerf quality and surface finish of the aluminum alloy. The study showed that surface and energy efficiency is significantly improved during the optimized parameters(Ullah et al., 2022).

3. Employing Dynamic Beam Shaping for Laser Fusion Cutting of Thick Aluminum Plates.

• With: Yu S Gorshkov et al.
• Date of Publication: 1st of November 2023
• Description: This paper is centered on the use of laser fusion cutting technology combined with dynamic beam shaping to improve the cutting of thick aluminum plates. The concept is to refine the cutting method by evaluating the impact of distinct beam shapes on the quality and efficiency of the cut.
• Methodology: The authors used different distributions of laser beam intensity and measured kerf width, surface roughness, and cutting efficiency to analyze the effectiveness of the different distributions. It was concluded that dynamic beam shaping greatly improves the processes of cutting thick aluminum materials with lasers (Kardan et al. 2023).

4. An exhaustive analysis of the effect of laser cutting parameters on the surface and kerf quality of metals.

• Authors: Muhammad Alsaadawy et al.
• Publication Date: 15th December 2023
• Summary: This review paper covers a range of studies about the influence of laser cutting parameters on surface and kerf quality of metals like aluminum. It elaborates on the most important determinants of the laser cutting process and suggests optimizations that can be made to enhance these parameters for better cutting results.
• Methodology: The authors undertook a review of various studies on the impact of laser power and assist gases on the cutting quality of aluminum and other metals. The authors, integrated the results of different tests conducted to elaborate on the laser cutting process and its associated challenges. (Alsaadawy et al., 2023, pp. 1039-1074)
