Is waterjet cheaper than laser?

Out of the many available options within precise cutting technologies, laser, and waterjet cutting are some of the most common today. Besides unique advantages, both cater to various industries with different needs and requirements. However, selecting the best option for your project requires a detailed understanding of their capabilities, strengths, and limitations. This blog will comprehensively analyze the differences between laser and waterjet cutting concerning material compatibility, precision, speed, cost, and environmental effects. By the end, you will have an informed perspective on both technologies, which will significantly help you with your next project.

What are the main differences between laser cutting and waterjet cutting?

The mechanisms, capabilities, and functions of laser cutting and waterjet cutting differ fundamentally. With laser cutting, a laser beam vaporizes or melts materials, achieving impressive speed and precision, especially with thinner metals or nonmetals such as plastics. However, heat distortion limits it to thicker and more reflective materials.

Waterjet cutting, in contrast, employs a mixture of water and abrasive particles under a high-pressure stream to cut various materials like thick metals, glass, and composites. It cannot create heat-affected zones as a cold-cutting process, making it perfect for sensitive materials. It is true that waterjet cutting is slower and is, in general, more expensive than laser cutting, but it does have a fumes-free cutting that is excellent versatility. Understanding these differences is crucial for selecting the correct method based on specific project needs.

How do the cutting processes differ?

Precision, speed, and material compatibility are defining factors when comparing laser and waterjet cutting. I believe laser cutting is faster and more precise when working with thin materials, making it exceptionally suited for industries requiring detailed designs. It, however, tends to perform poorly during the cutting of thicker, heat-sensitive materials, creating heat-affected zones. Meanwhile, water jet cutting performs far better than laser cutting when dealing with thicker metals and composites because there is no heat damage. It is slower than laser cutting and usually more expensive but more adaptable and cleaner as there are no hazardous fumes. Ultimately, the choice depends on the project’s unique specifications and limitations.

What materials can each method cut effectively?

Laser cutting is quite effective on thin to medium-thick materials like carbon steel, stainless steel, aluminum, wood, acrylic, and plastics. It possesses high precision and can manage tolerances as tight as millimeters, allowing it to create intricate designs. However, for anything thicker than 20mm, the cutting quality begins to drop significantly due to the creation of heat-affected zones.

Contrarily, waterjet cutting can cut a wider variety of materials remarkably well, ranging from thick metals up to 200 mm, composites, ceramics, glass, and even stone. There is no edge distortion since there is no heat, meaning it’s very suitable for layered or heat-sensitive materials. The accuracy of waterjet cutting is at laser cutting level, within ±0.1 mm, which is further dependent on the material’s thickness and type. More so, abrasive waterjets further increase performance when cutting more complex materials such as titanium and hardened steels.

Which method offers greater precision and accuracy?

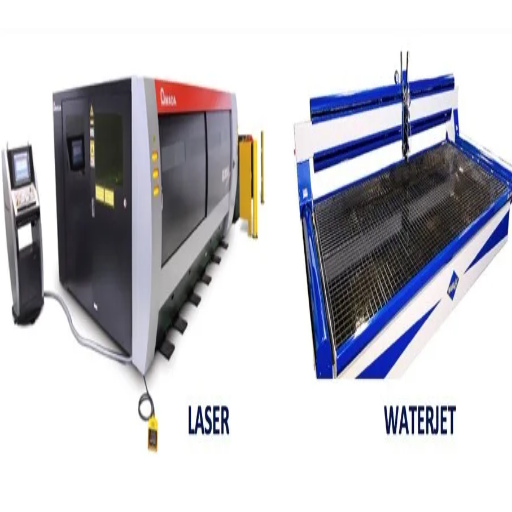

How do the costs compare between laser and waterjet cutting machines?

It is common knowledge that laser cutting machines have a far lower initial cost than water jet systems for small, entry-level models. However, operating a water jet is costlier, mainly because they incur expenses for abrasives, water, and frequent maintenance. The same could be said about laser cutting; however, they tend to have lower ongoing expenses while working on thin materials because they use less consumables and electricity. A closer look at the matter reveals that the specific context of a case determines its cost-effectiveness, which includes but is not limited to, the type of material, volume produced, and precision needed.

What are the initial investment costs for each technology?

How do operating costs differ between laser and waterjet cutters?

Due to their distinct needs, maintenance expenses may vary significantly from a laser cutter to a waterjet cutter. Laser cutters, for instance, almost always have lower operating costs when put alongside a waterjet machine. This is because lasers mainly require electricity and gas, which can be obtained through assisted consumables. Fiber lasers are much cheaper to operate because they are more energy efficient and require little upkeep. Typical power usage varies based on the cut material and the laser type, ranging from 5 to 15 kW.

On the other hand, waterjet machines tend to have a higher operating cost because of the abrasive consumables like garnet, increased water consumption, and greater power consumption to operate the high-pressure pumps. Abrasive use alone varies from 0.5 to 1.5 pounds per minute, with the pump power usage reaching 30 to 50 kW. Also, the upkeep costs for components exposed to high-pressure water in the waterjet systems are comparatively higher than maintenance on laser cutters.

In conclusion:

Laser Cutters: Operating electricity and assist gas ranging Power consumption ~5-15 kW.

Waterjet Cutters: Using abrasives, more water, and more power leads to higher operating costs. Power consumption ~ is 30-50 kW; abrasive use ~ is 0.5-1.5 lbs/min.

Which method is more cost-effective for different production volumes?

When assessing waterjet vs. laser cutters for the production volume, comparing cost-effectiveness requires much thought into factors like maintenance needs, operating expenses, type of materials, and the speed at which the unit can produce goods. Here is an overview:

• Low Production Volumes (Prototype or Custom Jobs):

Waterjet cutters seem helpful for custom jobs with low production volumes. These cutters can cut an immense variety of materials—composites, metals, stone, glass, and even plastics—without causing heat distortion. Their versatility suits low-volume custom jobs. They have slower cutting speeds, and their abrasive material cost falls in the $0.20-0.40 per pound range. For that reason, waterjets are more effective for specialized, low-quantity production than high-volume manufacturing.

• High Production Volumes (Standardized Products):

Laser cutters yield the best results with significant production, especially with thin stainless steel or sheet metals. Their lower operating costs and the ability to cut at breakneck speeds (for thin metals around 20-70 inches per second) make them perfect for streamlined mass production. Reflective metals and thicker sections are some materials that laser cutters have restrictions towards, but these do not severely impact the unit’s efficiency.

Technical Parameters Comparison:

Parameter	Laser Cutter	Waterjet Cutter
Cutting Speed	Faster (up to 20-70 in/s for thin materials)	Slower (material/thickness dependent)
Material Thickness	Optimal for <0.5 inch metals	Can exceed 6 inches
Material Versatility	Metals only struggle with reflective ones	It cuts virtually any material
Operating Cost	Lower (electricity, assist gas)	Higher (abrasives, water, energy)
Power Consumption	~5-15 kW	~30-50 kW

Laser cutters are more cost-effective for high-volume production of thin, consistent materials. In contrast, waterjet cutters are better suited for lower volumes, thicker materials, or diverse material processing. Users should weigh their specific production requirements against these factors to choose the most suitable cutting method.

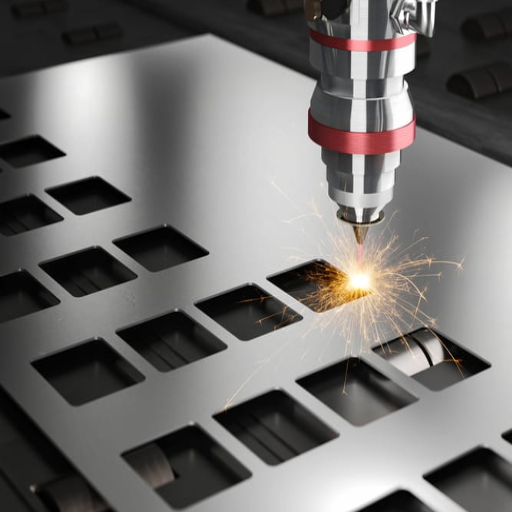

What are the advantages and disadvantages of laser cutting?

Benefits of Laser Cutting

Precision and Accuracy: Laser cutting can produce highly detailed designs with small tolerances, making it stand out from other cutting methods.

Speed: Compared to other cutting techniques, it is much quicker, particularly with thin sheets of material.

Versatility: Proficiently works with various metals, plastics, and textile materials.

Minimal Waste: The laser beam is focus which ensures material usage is maximized, hence minimal wastage occurs.

Clean Cuts: Edges are left smooth and do not require additional processes to achieve finishing.

Drawbacks of Laser Cutting

High Initial Cost: Equipment and high-power lasers can be expensive, and the recurrent maintenance cost can add up.

Material Limitations: It is less effective when working with excessively thick substances or reflective surfaces like aluminum.

Energy Consumption: It uses large amounts of electricity, most notably for more extensive operations.

Potential for Heat Damage: Heat zones can arise in sensitive materials and produce an undesirable effect.

Skill Requirement: Proper software and machine training is essential for operators to use the machine efficiently.

What are the key benefits of using a laser cutting machine?

Exceptional Precision and Accuracy: Laser cutting provides excellent precision, allowing for highly intricate designs with tolerances as tight as ±0.001 inches. This guarantees clean and precise outcomes.

Flexibility: It works with many materials, such as metals, plastics, wood, and ceramics, making it ideal for many industries.

Great Productivity: CO2 or fiber lasers cut at much higher speeds than other methods, cutting up to 1000 inches per minute, depending on the thickness of the material.

Sustainability: The accurate cutting technique results in low material waste, reducing production costs and aiding sustainability.

Self-Operating: Many machines have built-in CNC (Computer Numerical Control) capabilities, allowing production to be automated and repetitive with limited human interaction.

No Secondary Finishing Requirements: For thicker materials, smooth edges are created without further finishing processes.

Reduced Tool Wear: With this approach, there is no need for physical tools for contact cutting, so there is no tool wear. This results in lower maintenance costs and increased equipment life.

These benefits make laser-cutting machines essential for industry prototyping and modern manufacturing processes.

What are the limitations of laser cutting technology?

What makes the rest of the disadvantages worth concern is, echoing the advantages, laser cutting technology boasts some impressive features:

Initial Investment: Compared to traditional methods of cutting materials, the cost of a laser cutting machine adds up, especially if you are considering industrial-grade machines, which range between $10,000 and $500,000. Setting up the machines requires significant investment, so one must be prepared.

Material Limitations: The same laser beam that can be very effective when destroying wood, metal, and some plastics may struggle when reflecting materials such as copper and aluminum; in fact, these metals dramatically worsen the efficiency of the cutting as well as damage the equipment, as they possess the ability to reflect laser light.

Thickness Constraints: There are ideal ranges for thickness for effective laser cutting, and while many materials vary around the range of work, anything too thick would make the process difficult. For instance:

CO2 lasers can cut through metals with a thickness of up to 20mm without any problems.

Fiber lasers can go a little further, cutting materials up to 25mm thick, but like most processes, the speed and quality will decrease the denser the material.

Maintenance and Operating Costs: There are always some hidden operational costs, and lasers are no different. Even though laser cutting is a non-contact method, it must be regularly maintained. The cooling systems and mirrors add more expenses to the already costly lasers. Naturally, higher energy consumption equals higher operating costs.

Safety Concerns: When cutting processes are performed, specific lasers emit outstanding amounts of light and fumes that may be hazardous to one’s health. This means the operator may also need to be protected with a proper ventilation system.

Bulging: Using thin or delicate plastic sheets makes them sensitive to heat. Hence, laser cutting can result in swelling that magnifies with the decrease in the accuracy of work.

To maximize the effectiveness of incorporating cutting-edge technologies in mobilizing investments, it is necessary to study their sufficiency borders.

How does fiber laser cutting compare to traditional laser cutting?

Fiber lasers have a clear edge over traditional CO2 lasers regarding efficiency, cutting speed, and maintenance. Unlike the CO2 laser, which has a state-of-the-art design that achieves 10-20% efficiency, fiber lasers can convert up to 70-80% of their input energy into cutting power. This translates to much lower energy usage and operational expenses.

Fiber lasers are unmatched when looking at the laser cutting of thin steel or aluminum sheets. These specific lasers can cut 6-millimeter-thick stainless steel and aluminum three times faster than CO2 lasers. A fiber laser can cut a 1-millimeter stainless steel sheet at around 40 meters a minute, while a CO2 laser does not surpass 15 meters a minute. The exception is if the material is very thick, where CO2 lasers may give slight advantages in specific applications.

Fiber lasers are unrivaled in terms of precision and maintenance. They boast a shorter wavelength of 1.06 microns instead of CO2’s 10.6 microns, which increases their effectiveness when cutting highly reflective metals such as aluminum, copper, and brass. Moreover, they require minor routine servicing, as mirrors or gas refills are not utilized, while CO2 systems must have those fundamental components. This results in increased uptime and reduced expenses in the long run.

Fiber laser cutting seems to be the best option for applications demanding energy conservation, rapid processing, and flexibility, such as hard metal processing. However, CO2 laser systems may have an edge in niche specialized cutting and thick non-metal applications.

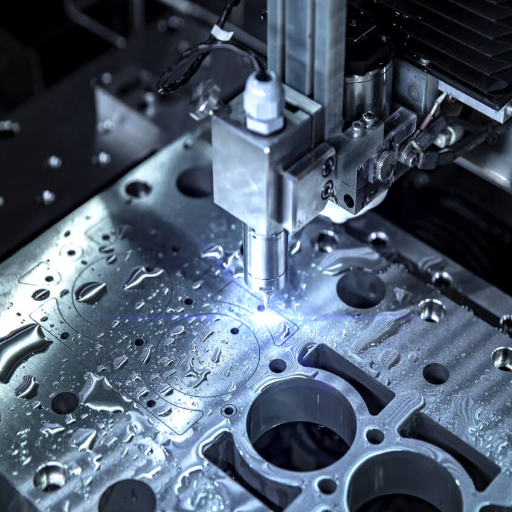

What are the pros and cons of waterjet cutting?

Pros

Adaptability: Cut metals, ceramics, glass, and composites without changing the material.

Cold Cutting Process: There are no heat-affected zones (HAZ), which maintains structural integrity and eliminates distortion or warping.

Accuracy: Achieves cutting with great detail and smoothness, eliminating the secondary finishing process.

Eco-Friendly: Utilizing water and abrasives means minimal hazardous waste is produced compared to other processes.

Cons

Lower Cutting Rates: Waterjet cutting lags significantly behind plasma and laser cutting when cutting metals.

Greater Operational Expenses: Expenses are incurred from abrasive material and water treatment.

Limitations on Thick Materials: Cutting certain thick materials may not be as efficient or precise as other, more commonly used materials.

Needs More Calibration: More maintenance and proper calibration are necessary for maximum operational efficiency, which may result in more significant downtime.

What are the main advantages of waterjet cutting?

Waterjet cutting is eco-friendly and precise. However, it also has its cons, such as cost and efficiency. First, the process is highly versatile regarding the machine’s specifications and components. Metal, glass, stone, and even composites can be cut through, no matter how complex or rough the material is. Second, waterjet cutting delivers exceptional precision, often achieving tolerances as tight as ±0.003 inches. It is best for complex designs.

Furthermore, there is no heat-affected zone, and the material’s structural integrity is preserved. Lastly, operators and the environment are kept safe because the process avoids oil, chemicals, and hazardous fumes. All these benefits offer waterjet-cutting services for numerous industries and applications. Water jet cutting is a precise, eco-friendly, and cost-effective euthanizing service while being relatively simple and easy to operate.

What are the drawbacks of using a waterjet cutter?

As exemplified, there are differences that the operator must compromise for cheaper solutions. For one, the water jet cutting method is the slowest for thick materials compared to other methods. Efficiency is impacted by pieces larger than 50mm in width, which are considerably slower to refine than any other method. The additional costs of water jet cutters and their installations range from $60k to $300k.

Repairs are needed for the waterjet nozzle and high-pressure water pump because they wear down over time due to the abrasive materials used during cutting. Additionally, waterjet cutting is wasteful as it uses enormous amounts of water and subsequent abrasives, which endlessly increases operational charges and creates ecological issues if used irresponsibly. Finally, the technique is unsuited for projects with ultra-fine tolerance, as it can only achieve a tolerance of ±0.005 inches (±0.127mm). Because of this, the approach is not suited for ultra-fine applications. All these points need careful consideration as to whether waterjet cutting fits your purposes.

How does abrasive waterjet cutting differ from pure waterjet cutting?

The two techniques, abrasive and pure waterjet cutting, are distinguished in terms of the materials that can be cut and the technique employed to achieve the cutting. The method uses a stream of water under very high pressure for pure water jet cutting, which may go up to 60,000 psi, as it is most effective for rubber, foam, textile, and thin plastics. Abrasive waterjet cutting differs from abrasive pierces like garnets within the water stream. This extends the range of materials that can be cut, including complex and dense materials like metals, ceramics, composite, and stone.

With the right equipment, abrasive waterjet cutting can achieve tolerances around ±0.003 inches (±0.076mm) with a material thickness of up to 12 inches or more and is very economical around intricate design precision. While pure waterjet cutting has lower operational costs due to the lack of abrasive materials needed, its limited capacity for cutting more complex materials restricts its uses. These techniques are applicable across various industries because they are environmentally friendly and do not produce hazardous fumes or excessive heat during cutting.

Which cutting method is faster: laser or waterjet?

Laser cutting is commonly faster than waterjet cutting, particularly on thinner materials. The cut edge of the material is usually clean and smooth. It is called a focused beam cutting. Waterjet cutting can process almost any material, but the cutting speed and precision are less than that of a laser cutter because it erodes material using high-pressure water mixed with an abrasive substance. Unlike laser cutters, waterjet cutters are slower, but they are much more versatile. As with anything else, there are exceptions, as the specific cutting speed is affected by the type of material and its thickness that is being processed.

How do cutting speeds compare for different materials?

Various materials and aspects of the materials significantly affect the cutting speed. Laser cutting of metals like thin stainless steel or aluminum has higher speeds than cutting thicker materials. The speed ranges between 40 to over 300 inches per minute (IPM) in proportion to the laser’s thickness and power. Low-density and low melting point materials, such as plastic and acrylic sheets, can be cut at higher speeds and go beyond 400 IPM.

Waterjet cutting is slower than other methods, yet it can be used on various materials and thicknesses. For example, a 1-inch-thick piece of stainless steel could be cut at 10-20 IPM. Softer materials, like foam or rubber, can be cut much faster, sometimes up to 150-200 IPM. Remember that waterjet cutting speeds vary based on the abrasive flow rate, water pressure (usually 50,000-60,000 PSI), and the material’s hardness.

In the end, the effectiveness of any method will depend on the intended accuracy, edge quality, and the particular characteristics of the material. Both methods have their benefits based on their different uses.

What factors affect the cutting speed of each method?

Type of Material and Its Hardness

More complex materials, like titanium and tungsten, require more cutting energy, reducing the cutting speed. On the other hand, aluminum and rubber are softer, making them easier to cut, raising the cutting speed.

A material’s characteristics determine its cut parameters, such as the rate of feed and pressure settings.

Abrasive Flow Rate (Waterjet Cutting)

Using too much or too little abrasive will impact the speed. Increasing the quantity of abrasive pumped into the water will improve the waterjet’s ability, but going above the limit will cause waste and lower accuracy. For example, an increase from 0.5 to 1.0 lbs/min of abrasive might be wasteful.

Water Pressure (Waterjet Cutting)

For standard waterjet cutting, pressures of 50,000 to 60,000 PSI are used. Higher pressure improves the rate of cutting speed for thinner materials, while sharp edge quality is maintained during cutting.

Plasma Arc Power (Plasma Cutting)

In plasma cutting, cutting power ranges from 20 to 400 amps. The speed is directly proportional to the amount of power supplied. Thicker materials have a higher power demand and achieve quicker cuts, but they become less accurate.

Material Thickness

Both methods suffer from reduced cutting speed with increased thickness. To achieve optimal cutting distance and power supply parameters, these methods require a change in approach.

Cut Quality Requirements

Greater edge precision and a lower kerf will result in a lower speed, which is necessary to achieve the accuracy needed in fine details or fragile materials.

Every factor contributes significantly to enhancing speed and quality, which is why the specified cutting method should yield optimum results for the application.

Which technology offers better throughput for high-volume production?

Laser, plasma, and water jet cutting are the most popular methods in a competitive production environment. Each type of cutting technology has certain advantages and disadvantages. Still, in most cases, laser cutting has the highest throughput for high-volume applications due to its speed, accuracy, and automation ability.

Laser Cutting

Speed: Regarding lasers, cutting speeds for aluminum or steel start at 20 m/s per minute for gentle materials. Laser cutting is ideal for materials with thin to medium thickness.

Precision: Laser cutting can achieve tolerances from ±0.1mm for high repeatability tasks.

Automation: With advanced Robots and CNC systems, laser cutting is compatible with fully automated systems, allowing for no process downtime.

Best Suited For: Precision high-volume applications are best suited for high-detail automotive or electronics industries.

Plasma Cutting

Speed: For mild steel, plasma cutting ranges from 10-16 m/s while working with medium to thick gauged steel.

Precision: It is less accurate than laser cutting, with tolerances of ±0.2 and ±0.1mm, but it is suitable for heavy-duty work.

Cost Efficiency: Commonly used for large-scale industries due to its operational and upfront cost efficiency while managing thicker materials.

Best Suited For: In construction, shipbuilding, and other industries, cutting heavy metals is best targeted.

Cutting Waterjet

Speed: Compared to the laser and plasma options, this type of cutting is a lot slower because it uses 5 to 8 meters per minute as a speed, which is dependent on the material type and thickness.

Precision: The type of precision achieved is excellent, with tolerances of ±0.05 mm or even better, making it ideal for heat distortion-sensitive materials.

Material Versatility: Can cut many different materials, for example, composites, stone, and glass, with no thermal damages incurred.

Best Suited For: Specialized cuts on non-metal or heat-sensitive materials like in the aerospace industry or other custom fabrication projects.

Summary of Technical Parameters

Technology	Max Speed (m/min)	Precision (Tolerance)	Material Thickness (Optimal)	Key Strengths
Laser Cutting	Up to 20	±0.1 mm	Thin to medium (3-25 mm)	Speed, automation, intricate designs
Plasma Cutting	10-16	±0.2 to ±1 mm	Medium to thick (6-50 mm)	Cost-efficient, high material removal
Waterjet Cutting	5-8	±0.05 mm or better	Wide range (up to 300 mm)	Heat-sensitive and complex materials

For high-volume production, laser cutting often provides the best combination of speed and precision, making it the preferred choice for industries prioritizing throughput and quality. However, plasma and waterjet cutting may outperform in specific scenarios involving thicker materials or non-metal applications.
