How much does waterjet cutting cost per hour?

Water jet cutting is a quick, precise, and complex manufacturing procedure that may benefit many industries. However, companies or individuals must conduct cost analyses to utilize this technology effectively. To clarify pricing, it is necessary to study setup, operational expenses, and material costs comprehensively.

This article assesses the components of water jet cutting costs, highlighting maintenance, abrasive, energy, and, most importantly, machine operational costs. Furthermore, we will examine how the material’s type and thickness affect the price and how expenses can be altered. We will also analyze water cutting against other cutting strategies to provide fundamental knowledge of this technology. This guide is intended for complete novices and budget tenders who want to make better decisions.

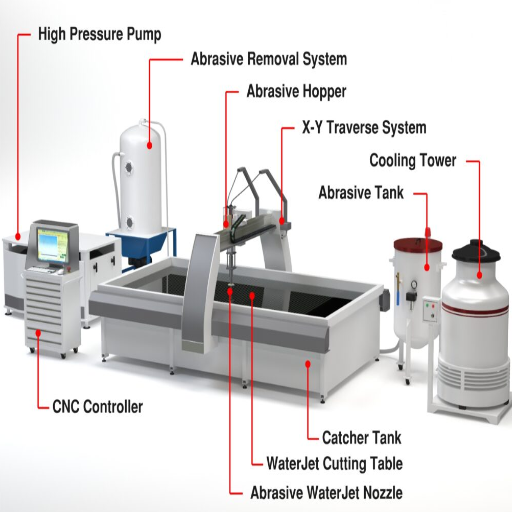

What Are the Key Factors Influencing Waterjet Cutting Costs?

It is possible to observe how different aspects affect the total cost of waterjet cutting services. The first segment is that operational and maintenance services such as pump performance, nozzle life, and upkeep constitute a sizable share of the total cost. Second, and perhaps most importantly, the type and amount of abrasive material used is costly compared to higher quality abrasives or an increase in amount. Third, and one of the more significant cost drivers, is energy use, especially for the high-pressure waterjet system, which needs a lot of electricity. Finally, the material’s type and thickness determine the cutting speed and ease. More complex materials make everything more time-consuming and resource-intensive. All these variable factors can be controlled to manage cost while still being effective in the cutting.

Understanding the Operating Cost of a Waterjet System

My approach to a waterjet system’s operating expenses considers four aspects essential to maintaining efficiency while managing finances. For energy consumption, I ensure that the cut power of my system matches its optimized requirements because high-pressure systems, if not taken care of properly, can escalate expenses. Moreover, the material type and thickness being cut are factors I focus on as they considerably affect working speed and resource expenditure overall. Lastly, I try to balance maintenance with abrasive consumption because these expenses are recurring. With thoughtful adjustments, I can save a lot without detrimental effects on cutting accuracy. If taken into account properly, these factors help me manage expenses more efficiently.

The Role of Abrasive Waterjet Cutting Cost in Total Expenses

To concisely outline abrasive waterjet cutting costs, consider these points:

Material Properties

Hardness: The more abrasive the cutting material, the longer it takes to cut, dramatically increasing costs. Examples include more complex materials such as titanium and stainless steel.

Thickness: Thicker materials require slower feed rates, so more time needs to be allocated.

Technical Parameters:

Cutting speed is reduced by approximately 20-40% for hard materials, depending on the hardness level.

Feed rates: These figures can drop as low as 1-4 inches/minute for thicker materials.

Abrasive Usage

The types and amounts of abrasives used significantly affect operating costs. The best garnet abrasives are expensive but increase the cut’s overall accuracy.

Technical Parameters:

The abrasive flow rate typically ranges from 0.5 lbs/minute to 1.5 lbs/minute.

Pump Pressure

The cutting speed will increase when there is higher pressure, up to 60,000 psi, but so will the wear on the equipment. This will raise maintenance costs. It will significantly depend on the material used and the exact nature of the work.

Technical Parameters:

The best pressure is typically 50,000 to 60,000 psi for most common materials.

Maintenance Expenses

Operating expenses span among regular checks of components, worn-out pump seals, and the nozzle, which, if canceled, would result in costly downtimes.

Technical Parameters:

For changes in the replacement intervals, the most recommended range for low—and medium-hard materials is between 20 and 100 hours of cutting.

Cutting Precision

When the required precision is higher, when tighter tolerances are required, the cutting speed must be slower, increasing the cost. The settings have to be meticulous.

One can achieve optimal settings in abrasive type, equipment, and material selection and lower performance without compromising quality.

How Does Cutting Speed Affect Costs?

The importance of cutting speed ranking, among other elements of operational efficiency and expenses, is self-explanatory. Higher cutting speeds can enhance productivity by reducing labor spent on machining. Still, faster speeds also tend to increase the erosion of machine parts such as nozzles or cutting tools, which increases expenditure for maintenance and replacement. Higher speeds have additional costs in terms of abrasives and energy.

On the contrary, lower cutting speeds lead to smooth equipment and tool abrasion along with optimization of tools, but they come with longer cycle times and loss of throughput. The balance between work speed and economy of operation is determined by the type of material to be processed, the type and amount of detail, and the type of equipment used. While soft materials such as aluminum can be cut at a speed of 4-6 inches per minute (IPM), harder ones like stainless steel require about 2-3 IPM for maximal efficiency. In addition, cost quality balancing can be preserved while changing parameters at water pressure, such as 50,000-60,000 psi, and abrasive flow as 0.5-1.0 lbs per minute.

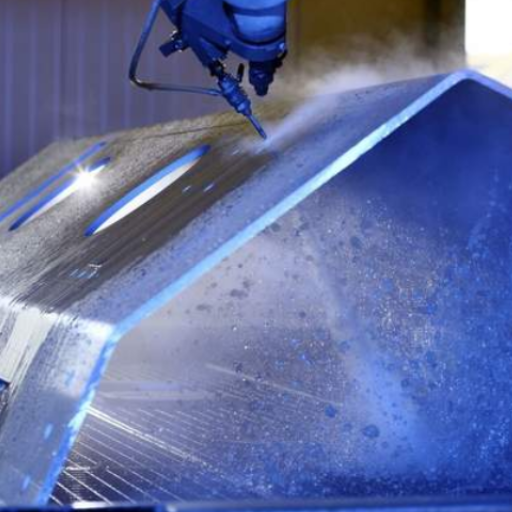

How to Calculate the Cost of Waterjet Cutting Per Hour?

To determine the hourly cost of waterjet cutting, there are key points that need to be considered:

Abrasive material spending – Figure out the expenditure on abrasive material, which must be calculated in pounds per hour. For example, if an abrasive flow rate is at 0.8 lbs per minute, it would change to 48 kg per hour, for which you multiply it by the cost per pound.

Water power consumption – Determine the amount of water and electricity that would suffice to allow the system to operate. High-pressurized systems consume more water and power, so check your machine specifications for accurate values.

Machine operation spending – Consider the depreciation and maintenance of the equipment. Usually, the manufacturer provides the average hourly operation cost for the rest of their machines.

Labor spending—Add the expenditure on the wages of the operator who handles the cutting process and is paid hourly.

Once these individual areas are summed, this would provide the complete tally of the hourly fees required for water jet-cutting tasks.

Breaking Down the Hourly Cost to Run a Waterjet

I break down abrasives, machine operation, and waterjet operator wages to determine how much it costs to operate a waterjet system per hour. The waterjet operator wage is the easiest to find, and the waterjet system is the most expensive aspect of my business. I estimate the hourly expense for waterjet usage and labor, giving me insight into forming better business decisions. The most affordable component of my operations is the system abrasives. Still, they are the most substantial contribution to my waterjet operating expenses, which is why they are the most cost-efficient element in the business.

Evaluating Cost Per Hour Basis for Different Materials

Before I determine the cost of utilizing different materials with my waterjet system on an hourly basis, I need to conduct a thorough evaluation of the following technical parameters:

The type of material and its thickness.

Level of abrasion. If the material is more complex, such as steel or titanium, more waterjet abrasives will be needed, increasing the cost per hour.

Cutting speed. A slower cutting speed is anticipated when the material is thicker or denser, resulting in longer operational times and higher costs.

Pressure usage. Depending on the material, some may require working the waterjet at the maximum pressure, increasing energy consumption.

Abrasive Consumption

Average abrasive usage rates vary depending on material properties and the cut quality needed, ranging from 0.5 to 1.5 pounds per minute. To calculate the hourly cost of abrasives, multiply this rate by the price of the abrasive material per pound.

Nozzle and Orifice Wear

If more complex materials are cut, the wear on nozzles and orifices accelerates. Depending on the material, these pieces generally have a 40 to 120-hour lifespan and need to be considered for maintenance cost allowances.

Energy Consumption

Energy costs are incurred due to the machine’s pressure and operating time. The pump horsepower rating determines the amount consumed each hour for water pump systems from 50 HP to 150 HP. To calculate energy expenditure accurately, multiply this sum by the region’s electricity tariffs.

Water Usage and Filtration

The expenditure on high-pressure water is system-dependent and usually ranges between 0.5 and 3 gallons per minute. The costing considers water collection and, when necessary, water treatment.

Labor Costs

Labor costs can arise from the impact of cutting efficiency, which depends on operator experience and the time spent setting up and altering. These costs should be added proportionally to hourly rates.

The information provided by manufacturers, previous logs, and the factors stated above can be used to formulate an accurate and flexible estimate of the cost per hour for different materials.

Analyzing Operating Cost Elements

While examining the operating cost components, it is necessary to focus on primary aspects such as maintenance, energy use, and consumable use. Here is a simplified summary based on the analysis conducted:

Wear and Tear of Tools and Equipment Used

Major Considerations

The tools used may last 50 to 200 hours. For example, Carbide tools can last 50 to 200 hours, while ceramic tools can only last 15 to 30 hours, although they are more effective in higher-speed operations.

Maintenance schedules allow for optimal performance by minimizing unexpected downtimes.

Concerns

Maintain a steady record of replacement cost per metric in proportion to the intensity of work done.

Energy Expenses

Major Considerations

Energy consumption is relative to machine use with a power rating given in kW/h. Most machines land within the range of 3-15 kMahon per hour.

Waterjet cutters and high-pressure pumps can consume a maximum of 37 kWh, and modern Fictive per PSI is 50,000 to 90,000.

Recommended Actions

Energy expenses can be calculated through local power rates and average working hours within a day.

Operational and Fluid Related Supplies

Notable Considerations

The consumption of waterjet abrasive material depends on the thickness of the material and the water being cut. It usually ranges from 0.5 to 1.2 lbs per minute.

Depending on the set flow, laser cutters can cost 3 to 15 dollars per hour to move gases such as oxygen or nitrogen.

Practical Approach:

Cutting speed and pressure settings should be adjusted to waste as little as possible without affecting productivity.

By combining strategic integration and refining the parameters, businesses can enhance the reduction of operational costs while keeping production standards in check.

Is Waterjet Cutting Expensive Compared to Other Methods?

Waterjet cutting is often viewed as costlier at first due to its equipment and water expenditures as well as operational costs like abrasives and electricity. However, when weighing everything, this could be advantageous in some situations. Waterjet cutting requires no further secondary finishing, saving labor and time. Moreover, its capability for precise cutting on varied materials increases its cost efficiency by reducing the wastage of materials. Compared to other approaches, such as plasma or laser cutting, the decision relies on the details of each project, including the type and thickness of materials and precision needed.

Comparing Waterjet and Laser Cutting Costs

Several parameters must be considered while evaluating the charges of waterjet and laser cutting. From my study, waterjet cutting tends to be more budget-friendly, while cutting thicker pieces or drilling different materials without additional steps. On the other hand, laser cutting tends to be less expensive with thin pieces and high-speed cutting, drastically lowering operational costs for lump-sum jobs. On the other hand, certain reflective surfaces or very thick pieces are challenging for the laser machines, while these are no problem for waterjet. This depends on your cut material, thickness, and how much accuracy is needed.

Examining Plasma Cutting Versus Waterjet

When comparing plasma cutting and waterjet cutting, it is essential to consider several technical aspects first to meet the project’s needs. Here is a brief breakdown of the newly emerging technology.

Max Thickness

Plasma is most efficient on metals less than 2 inches thick, although its efficiency drops when working with thicker materials.

Waterjet: Ideal for severing a wide range of materials, including various metals, stones, and composites with thicknesses of 6 inches and more excellent.

Material Matching

Plasma: Most suitable for conductive materials like steel, stainless steel, and aluminum.

Waterjet: Works well with almost every material type, including reflective and nonmetallic materials.

Precision

Plasma: Reasonable precision of about ±0.02 to ±0.03 inches, although edges often need post-processing.

Waterjet: This method is very accurate, with tight tolerances of around ±0.005 inches. It provides smooth edges and does not require secondary finishing.

Speed of Cutting

Plasma: Cuts thinner metals much faster and generally performs better in high-speed works with steel plates.

Waterjet cutting is quicker but generally slower than cutting with a plasma cutter because it uses abrasive materials, significantly thicker or more challenging materials.

Heat Affected Zone (HAZ)

Plasma: Where plasma cutting is used, a noticeable HAZ can potentially deform fragile materials and compromise structural strength.

Waterjet: As a cold-cutting technique, waterjet does not create a HAZ, thus shielding the material properties.

Expenses Incurred

Plasma Cutting: Normally lower due to cut speeds and equipment capital expenditures.

Waterjet: Higher due to low speed and spent materials such as abrasives and water.

In summary, plasma cutting excels in speed and cost efficiency for thin to medium-thickness conductive metals, while waterjet cutting is best for multi-purpose, accurate, and low-distortion processes.

What Are the Operational Costs Associated with Waterjet Cutting?

Water consumption, electricity, and maintenance must be accounted for alongside abrasives’ operational costs, which account for many expenses. Maintenance also includes fixing pumps and nozzles, alongside replacing worn-out parts. Often regarded as the most expensive method for cutting, waterjet cutting has higher operational costs than plasma cutting. However, the ability to cut a vast array of materials while providing immense precision and versatility makes it highly desirable for specific applications. Moreover, garnet and other abrasive materials are used at a constant rate directly influenced by cutting requirements.

Understanding the Cost of Running a Waterjet Cutter

When calculating the expenses of operating a waterjet cutter, it is paramount to analyze ‘the broad factors’ and the technical detail levels of their interdependent components.

Abrasive Consumption

As it marks its significance, operational expenditures account for abrasives such as garnet.

Abrasive consumption often comes between 0.5-1.0 pounds per minute of work for one cutter (depending on speed, material, and work thickness).

Garnet abrasive cost estimate Water Filters Systems: $0.25-$0.50 on average estimate.

Water Usage

Thus, pumping pressure directly affects water usage.

Average usage: 0.5-1.0 gallons per minute.

Long-term water expenses can be minimized by using water filtration/recycling systems.

Electricity Consumption

Electricity consumption is directly proportional to the amount of water being heated; the more water there is to heat, the more electricity will be consumed.

A typical jaw of a close-type high-pressure water pump for 60,000 psi working pressure consumes 30-50 kWh.

Different countries have different energy rates, but this is a specific monthly operational cost to account for.

Maintenance And Replacement Parts

Routine maintenance is vital for maintaining efficiency and precision throughout the process.

High-pressure seals, orifices, and nozzles are the typical components that need replacement.

Estimated replacement (depending on usage):

Nozzles: 150-300 cutting hours

High-pressure seals: 250-500 hours

Labor Costs

Specialized staff will be needed to prepare the material, load it, monitor it whilst it is running, and unload it when it is finished.

Streamlining these processes to minimize time taken per product will reduce labor costs.

Keeping track of these parameters and optimizing factors like material usage and maintenance schedules will help businessmen manage costs without sacrificing the precision and versatility of waterjet cutting.

Identifying Additional Costs in the Cutting Process

I look at several prominent aspects to evaluate the additional expenses incurred in the cutting process. To begin with, one of the most expensive seems to be energy consumption. Waterjet machines use considerable amounts of electricity and high-pressure water pumps, and that is just the start. Additionally, there is a charge per operation, which tends to vary. Second, the ongoing consumption of some parts, such as abrasive materials, generates continual expenses, the amount of which depends on the type of material and the complexity of the cutting process. Finally, possible delays due to maintenance services or parts substituting may incur additional costs, which are often masked. I schedule preventative maintenance to ensure the smoothest operations because it is always more effective than corrective maintenance. Considering these deductions, I provide effective cost control while optimizing production levels.

The Impact of Abrasive Per Usage on Costs

How to Use a Cost Calculator for Waterjet Cutting?

Employing a cost calculator to determine waterjet cutting costs necessitates careful planning when collecting data. Start by listing the input data like material type, thickness, cutting part geometry, and preferred cutting speed or quality level. Second, operational parameters like abrasive consumption, water and electricity, and machine operating time costs should be included. Some calculators let users add maintenance costs and labor expenses, too. After entering all required data, the calculator displays specific costs for each project part of an overall project fee, which enables cost analysis and budget resource allocation. This enables operators to make better decisions, improve workflows, and reduce investments.

Steps to Start Cutting with a Cost Calculator

Determine Material Specifications

Establish the material to be cut, such as its type (e.g., steel, aluminum, or glass), and its dimensions. Both of these parameters affect the cutting operations.

Technical Parameters: Material thickness (i.e., 0.5 – 2 inches), density, and hardness.

Define Part Geometry

To approximate the length and time needed for the cutting path, supply the dimensions and the amount of detail in the part, such as straight lines, curves, or more complex shapes.

Technical Parameters: Total cutting length (inches or mm) and geometry type.

Set Cutting Quality Requirements

Select the preferred edge tolerance, from crude cuts to excellent ones. This determination dictates the speed of cutting and the amount of abrasives selected.

Technical Parameters: Cutting precision range (for ex. Ra = 50 µin for high precision).

Input Machine Operational Parameters

Adjust specifics like water pressure, nozzle diameter, and abrasive flow rate to guarantee that the calculator gives the correct figures.

Technical Parameters:

Water pressure (for example: 50,000 – 90,000 psi)

Nozzle diameter (for example: 0.030 – 0.040 inches)

Abrasive flow rate (0.5 – 1.5 lbs/min).

Include Overhead Costs

Consider costs like labor, maintenance, and consumables to obtain an accurate estimate of operational expenditure.

Technical Parameters: Hourly Subcontracting Rates (such as $20 – 35/hr), yearly maintenance fees (for example, 10% of equipment cost/year), and energy consumption (for example, 5-7 kWh/hour).

Reviewing Outputs

After calculating resource consumption per custom-made part, review the calculator’s itemized output and total project costs. This information is usually presented in an easy-to-analyze format.

Using these strategies will guarantee your cutting workflow is well-structured, economical, and effective for achieving quality outcomes.

Interpreting Total Cost and Cost Per Minute Estimates

Practical cost analysis can generate valuable insights for decision-makers, especially about their cutting operations. Here are a few tips on how to interpret cost estimates:

Total Cost

This sum encompasses all the expenses for completing a project. In this context, total cost accounts for material, labor, equipment depreciation, and abrasive consumables. The total sum gives a reasonable estimate of the entire operation cost. Don’t forget to include all relevant factors, such as water pressure, nozzle diameter, and abrasive flow rate.

Key Technical Parameters:

Abrasive cost: $0.30 – $1.00/lb

Maintenance expense: $5 – $10/hour machine use

Labor rate: $20 – $35/hour

Cost Per Minute

Cost Per Minute measures the total operational expenditure from a time-based perspective. This indicates the rate of resource utilization efficiency during the cutting process. This value can be further analyzed with other parameters, such as nozzle diameter and abrasive flow rate, to determine how much resource efficiency can be maximized and cost minimized.

Important Technical Guidelines:

Machine run time (in minutes)

Electricity usage (e.g. 5 – 7 kWh)  Water expenses (e.g. $0.002 – $0.009 per gallon)

Examining both figures allows for identifying imbalances, facilitates optimizing the data-driven approach at the cutting stage, and guarantees that the project is completed on time, within budget, and with excellent quality. Tweaking various operational parameters will make the outcomes less expensive and more dependable.

References

Water jet cutter

Abrasive

Laser cutting

Leading CNC Metal Machining Provider in China

Frequently Asked Questions (FAQ)

Q: What is a waterjet cutting system, and how does it work?

A: A waterjet cutting system is a cutting machine that uses a high-pressure stream of water, often mixed with abrasive particles, to cut through various materials. The cutting head directs this stream onto the material, allowing for precise and versatile cutting. This cutting technology is known for its cold-cutting process, which prevents heat-affected zones in the material.

Q: How much does running an abrasive waterjet cutting machine cost?

A: The cost to run an abrasive waterjet cutting system varies depending on several factors. The hourly operating cost can range from $75 to $150 per hour. This includes the cost of water, abrasives (typically around 25 cents per pound), power, and wear parts. The overall cost also depends on the specific cutting time per project and the type of material being cut.

Q: How does waterjet cutting cost compare to other cutting methods?

A: Waterjet cutting costs are generally competitive with other cutting methods. While the initial investment in waterjet cutting equipment can be high, it often provides cost savings in the long run due to its versatility and precision. Compared to waterjet cutting, CNC laser cutting might be faster for thin materials but more expensive for thicker ones. A typical plasma-cutting machine may be less costly but offers lower precision and can cause heat-affected zones.

Q: What factors influence the cutting cost per hour for a water jet cutter?

A: The cutting cost per hour for a water jet cutter is influenced by several factors: 1. Abrasive consumption (about $36 per hour on abrasive) 2—water usage 3. Electricity costs 4. Wear parts replacement 5. Labor costs 6: material thickness and type 7. Desired cut quality 8. Maintenance expenses

Q: How does the waterjet-cutting process affect the overall cost?

A: The waterjet cutting process affects the overall cost through efficiency and precision. While the operating costs can be higher than other methods, the process often results in less material waste, fewer secondary operations, and the ability to cut a wide range of materials. These factors can lead to cost savings in the production process, especially for complex or high-precision parts.

Q: Are there any cost advantages to using a small waterjet cutting machine?

A: Yes, there can be cost advantages to using a small waterjet cutting machine. These systems typically have lower initial costs, reduced power consumption, and may use less water and abrasive. They’re ideal for businesses with lower production volumes or those working with smaller parts. However, they may have limitations regarding maximum cutting thickness and speed compared to larger systems.

Q: How does operating a water jet cutter cost compare to laser cutting?

A: The cost of operating a water jet cutter versus laser cutting depends on various factors. Water jet cutting often has higher operating costs due to abrasive consumption but can cut thicker materials and a wider range of substances. Laser cutting might be more cost-effective for thin metal plate cutting but becomes more expensive as material thickness increases. Choosing these cutting systems often depends on the specific application and material requirements.
