What is metal stamping?

Metal stamping is a highly resourceful and innovation-driven process for any company that believes in precision, versatility, and efficiency. It assists in every facet of manufacturing. This article explores various critical elements of metal stamping, such as techniques, tools, methods, and, importantly, the application of metal blanking, bending, and embossing. These facets will be explored in detail to understand why metal stamping is crucial to modern manufacturing.

In addition, the ins and outs of metal stamping, such as the materials used and their properties and importance, will not be left unexamined. Gaining knowledge of the operational workflow, quality control, and innovation efficiency will be a breeze for the readers. It does not matter whether you are a novice looking to gain some primary knowledge or an industry expert who needs a refresher; this guide will address all of your metal fabrication science and art needs.

What is Metal Stamping, and How Does it Work?

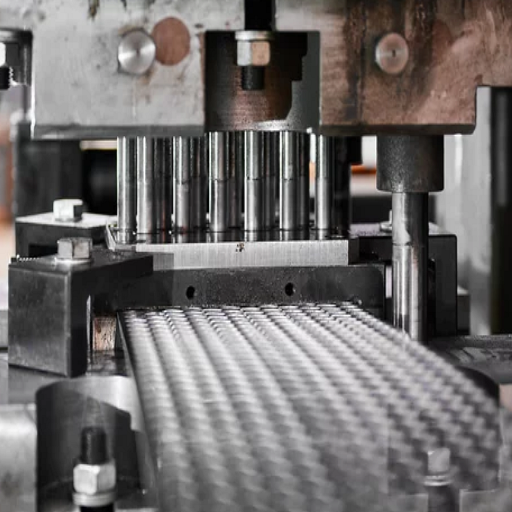

Metal stamping is a process that involves the transformation of raw sheets of metal into specific parts using a set of tools and dies. Specialized tools are used to punch, bend, emboss, and blank, and by using these techniques, metal products are completed. A stamping press that is hydraulically or mechanically powered exerts force into the die-molded metal sheet, which allows it to take complex designs of the die. It is a highly accessible and cost-effective method in mass production in the automobile, aerospace, and electronics industries because of its precision and speed.

Understanding the Metal Stamping Process

The metal stamping process contains specific stages to produce detailed parts from metal sheets. First, the stamping press is fed the material, which is then securely placed for accurate procedures. The press has set dies designed for specific tasks such as cutting, forming, or embossing, all done according to the project’s specifications. These complex tasks are completed with sufficient accuracy for mass production. The parts must be inspected to ensure they align with the dimensional and functional requirements. This process is efficient, scalable, and adaptable for creating components in diverse industries.

Types of Metal Stamping Techniques

Progressive Die Stamping

This technique completes a sequence of processes in the same die. A metal strip passes through the die, where successive actions of cutting, bending, and punching are completed one at each station until the product is formed. Progressive die stamping works best when producing large quantities of intricate and detailed components that need to meet strict quality standards. Important parameters to be considered are the material feed rate into the dies, the amount of tonnage, and the clearance, which has to be designed within the die according to the thickness and properties of the material used.

Deep Drawing

This is an essential method of metal forming for manufacturing parts with large depths, such as cans for drinks or car parts. The process consists of stretching a metal sheet with a punch into a die cavity, which is gradually shaped. Significant technical aspects comprise a draw ratio of less than 2.2 for a single draw, lubrication for less friction, and blank-holder force to prevent wrinkling during the drawing.

Blanking and Piercing

These two operations are frequently combined to cut holes or shapes from a metal plate. Blanking removes a specified material area, and piercing eliminates undesired parts. Essential aspects are tool and die alignment, die clearances (generally 5% to 10% of sheet thickness), and material hardness to ensure sharp edges and reduce tool wear.

Bending

Bending alters the shape of a metal sheet or strip to an angular or curved outline while the thickness of the material remains essentially the same. This process is predominantly employed to manufacture brackets, frames, and other types of enclosures. Important technical aspects are the bend radius (the minimum is typically equal to the thickness of the metal), spring back, and press brake angles for the desired degree of the bend and accuracy.

Coining

Coining is a high-pressure process to obtain fine features and smooth edges in a metal part. It improves the surface finish by eliminating the spring back and is ideal for aesthetics and function. Critical features include but are not limited to, the applied force (often over the metal’s yield strength), the tool geometry, and rigidly met lubricating conditions to prevent material degradation.

These approaches can easily cater to most of the technical adjustments in metal stamping, guaranteeing efficiency and exactness in manufacturing.

Key Components in Metal Stamping: Stamps, Dies, and Presses

There are three significant parts to fully automatic stamping processes: the die, stamp, and press. Each component has a bearing on efficiency and accuracy in the process:

Stamps

Stamps or tooling is the part of the specific piece, either manufactured or obtained, and utilizes the exact shape or form on the metal sheet. Its replication must be done accurately, which demands precision. The materials used for stamps are hardened steel or carbide to withstand immense forces and repetitive use.

Dies

Different types of stamping tools have the opposite function as dies. These tools keep the sheet metal fixed when a stamp presses it. Various kinds are blanking dies (used for cutting), drawing dies (used for shaping), and coining dies (used for details). Important detailed structures are die clearance, strength of material, and alignment precision to reduce wear and defects (Die clearance is set within the borders of roughly 10 to 20% of material thickness around the die.)

Presses

Presses exert the required force that stamps apart into a sheet and master die. The different applications use their types: mechanical, hydraulic, and pneumatic. Each requires specific force and speed differences suited for the particular task. The following parameters are commonly known:

Press tonnage: Depends on the hardness of the material being punched, the shape of the dies, and the intricacy of the metal design. The most common range remains at 10 tons to higher than ten thousand tons.

Stroke length is the distance the ram of the press moves, which commonly varies from 0.5 inches to 6 inches.

Press speed is measured using strokes per minute (SPM) and can differ significantly according to the material or tooling used.

Meticulous calibration of each component is essential for achieving performance and durability in manufacturing processes. Together with all the other primary elements of metal stamping, this guarantees the accuracy of producing highly intricate parts in significant quantities at reasonable costs and with dependable results.

What Are the Different Types of Metal Stamping Processes?

Metal stamping contains different process methods tailored for specific uses and design needs. These types can be categorized into the following types:

Blanking cuts a particular shape from a more significant metal sheet.

Piercing: This method works on the same principle as blanking. However, holes or openings are made in the sheet instead of cutting shapes.

Forming is applied to bend or shape the metal without removing material.

Deep Drawing produces seamless hollow shapes by stretching a piece of metal in a die.

Coining is an imprecise stamp-like process; the metal surface is compressed, producing detailed patterns or textures.

The selection of material properties, design requirements, and complexity features targets the industrial design intention and promotes the efficiency of the metal product fabrication process.

Progressive Die Stamping: Efficiency in Action

Excellent innovation exists within progressive die stamping because it is cost-effective and fast. Its main advantage is that it can complete multiple tasks—cutting, bending, and forming—with a single machine. This process is ideal when working with metals because it eliminates material loss during production and requires less worker supervision. The technology applied in progressive die stamping and its ease of implementation and adaptation make it applicable to various industries, such as automotive, electronics, or appliance manufacturing.

Deep Draw Stamping: Creating Complex Shapes

Deep draw stamping uses the same principles but serves a different purpose. It is used to create complicated components with depth using dies. Deep draw stamping pulls an uncut metal sheet into a die cavity with multiple progressive draws while retaining depth. Its strength and durability make it the preferred metalworking process for many industries, such as aerospace, medical equipment, and consumer goods.

Key Technical Parameters in Deep Draw Stamping:

Drawing Ratio: The optimal ratios are usually between 2.0 and 2.5 to ensure the material does not tear or wrinkle during forming.

Blank Holder Force: The blank holder force restricts the sheet metal’s wrinkle in a punch-and-die operation, retaining it in a position. It should be adjusted according to the material thickness and part geometry.

Material Properties: Aluminum, stainless steel, and copper alloys are suitable for metal constructions because of their ductility and capacity to be drawn without fracture.

Punch and Die Clearance: Clearances should be calculated accurately to allow proper material flow. They should be between 7% and 15% of the material’s thickness for optimum clearance.

Lubrication: To reduce friction and tool wear, lubricant of outstanding performance is needed during the entire procedure.

Deep draw stamping is often used to manufacture highly intricate parts and components for industries that require high precision. Such a process provides remarkable accuracy and consistency for most if not all, parameters of elaborate designs.

Transfer Die Stamping: Handling Large Parts

Die stamping can be utilized for intricate or sizeable components that alter as they move from one station to another. Unlike progressive die stamping, this method employs individual pieces transported from one station to another to different workstations attached to a transfer system. Moreover, transfer stamping methods can be helpful for overly intricate geometry parts and components more significant than the standard strip size.

Typical range of some of the key technical parameters are:

Material Amplitude: Depends on the specific part design and material characteristics. Usually, material amplitude ranges from 0.5 mm to 5.0 mm. Higher tonnage presses are required for thicker materials.

Press Amplitude: Typically, the press tonnage, without sufficient force for hardcore operations like forming, is set between 100 and 2000 tons.

Precision Of The Transfer: Exact positioning systems are imperative for flexing semi, rudimentary, and servos-driven stamps, transfers, and drawers.

Tooling: Common structures to perform multi-tool operations and rapid modification changes, such as single beam and modular multi-flexible tools. These tools, designed as one piece, integrate multiple modular-like shapes to form a consequence.

Cycle Time: Usually set between five to ten seconds with a limit on the complexity of operations for more significant parts, often maintained to meet the production needs.

This process is commonly used in the automotive, aerospace, and heavy machinery industries because it is flexible and capable of producing strong, quality components. Transfer die stamping is often most efficient when innovative automation, elite lubrication, and exact material handling systems are used together. When adjusted for the specific part and production volume, manufacturers can achieve unrivaled results while maintaining high quality and consistency.

How is Metal Stamping Used in Various Industries?

The process of metal stamping narrows and strengthens components for further functioning. It is an integral procedure while manufacturing numerous sophisticated and delicate parts, such as structural assemblies in the gun mechanism, aircraft brackets, engine internals, and MRI and CT scanners. It is also used, although less powerfully, in construction and medical sciences to manufacture specialized tools and fasteners. The process is even effective in the creation of day-to-day items. Because of its adaptability, metal stamping has become an essential procedure in manufacturing across the globe.

Metal Stamping in the Automotive Industry

Through metal stamping, the automotive industry has been able to achieve high precise levels of manufacturing. Machine-stamped parts, car body panels, engine parts, chassis, and structural reinforcements are just some of the components that can be manufactured using this process. In this industry, vehicles’ safety and fuel consumption are a top priority, so parts can be made lightweight and strong through modern stamping technologies. Furthermore, incorporating robotic automation, progressive die stamping, and advanced technologies has streamlined the manufacturing process. This also increases productivity since manufacturers can make complex heavy parts whilst ensuring consistency and quality.

Applications in Consumer Electronics

Stamping is key in crafting consumer electronics components to guarantee high-quality precision. Common uses comprise shells, brackets, connectors, and heat sinks for smartphones, laptops, wearable devices, and more. These components require tight tolerances to match the demanding design criteria of today’s electronics, usually around ±0.01 mm. Stainless steel, aluminum, and copper alloys are heavily used because of their superior strength, conductivity, and lightweight properties.

Specific advanced techniques, such as fine blanking and deep drawing, are also used to achieve the complex shapes and high strength-to-weight ratios demanded by consumer electronics. Moreover, anodizing or electroplating provides extra protection against corrosion and improves the products’ appearance. A proper blend of material science and engineering guarantees that stamped parts achieve the reliability and performance expected from high-tech consumer devices.

Metal Stamping in Aerospace and Defense

The aerospace and defense sectors rely on metal stamping, which is pioneering, precision-oriented, and durable. It is also trusted to guarantee reliability. Brackets, frames for aircraft, housings, and other structural components that can withstand extreme conditions and tremendous mechanical forces. Stamped parts in these industries require compliance with stringent quality standards that ensure tight tolerances and consistent specifications.

Aerospace and defense metal stamping uses aluminum, titanium, stainless steel, and nickel alloys due to their strength, lightweight, and corrosion resistance. Titanium alloys are well-known for their high strength-to-weight ratio. Stainless steel offers resistance to extreme temperatures and oxidation. As with many different types of metal stampings, progressive die stamping, and deep drawing are the standard processes used because they allow for the easy achievement of complex shapes without sacrificing precision.

Specific measures for aerospace and military-related projects may restrict tolerances exceeding ±0.001 inches, require a surface finish of up to 32 micro inches, and demand a material thickness between 0.001 and 0.250 inches. These specifications ensure the components can endure high pressure, high temperature, and vibrations experienced in flight or during operational activities. Furthermore, having AS9100 issued for quality management and ITAR compliance is often a requirement.

The use of new technologies, such as CAD and CAM software, along with modern cutting and finishing tools, also improves the productivity and accuracy of metal stamping for parts used in aerospace and military applications. Such improvements make production more efficient by minimizing wasted raw materials and ensuring that the manufactured components meet the exacting standards of these vital industries.

What Are the Benefits of Custom Metal Stamping?

Custom metal stamping is very useful for various industries, especially those requiring accuracy and quality, such as aerospace and defense. It achieves a high level of accuracy and repeatability that enables the manufacture of complex parts with tight tolerances. The process is economical for mass production because it reduces material and labor costs. On top of all, custom metal stamping is flexible, as it works with all metals and can produce complex shapes and designs. It also increases the speed of production, which is fantastic because it does not compromise any industry regulations or standards on quality and reliability.

Precision and Consistency in Part Production

In addition to those aspects, custom metal stamping enhances precision since very complicated shapes can be made by parting out steel sheets. Based on my experience, this method guarantees that high-volume productions have a low tolerance level in many attempts. Part classification is an economical approach, especially in an environment where minute parts creation is highly enforced. All these factors eliminate variability, ensuring that the production rate and regulations are met and, most importantly, that the desired outcome is achieved.

Cost-Effectiveness for High-Volume Manufacturing

The effectiveness of cost per unit in high-volume production is defined as the intelligent use of resources, streamlined processes, and economies of scale. Some key considerations are:

Material Selection Optimization

Choose lower-cost materials that provide value at the appropriate level.

Minimize scrapped components by accurate cutting and shaping.

Production Rates

Apply automated machinery to achieve targeted output levels.

Work to optimize productivity by reducing production cycles to less than thirty seconds per piece.

Energy Use

Use modern machinery to level energy usage to operational costs.

Reduce machinery monitoring and maintenance to the most effective levels of active power consumption.

Labor Costs

Reduce the labor force to a controlled number of skilled operators to increase accuracy and decrease active downtime.

Train the workforce to improve productivity.

Quality Control Measures

Implement inline checks to reduce the amount of post-production fixing to only what is necessary.

Achieve less than one percent defect levels to remain competitive while making a profit.

By examining these parameters, a target value can be set that minimizes costs while ensuring high-quality outputs, creating a more profitable and sustainable approach to manufacturing.

Versatility in Material and Design Options

The wide range of materials and designs allows manufacturers to serve multiple applications across industries. Typical materials include metals, plastics, composites, and ceramics, each with unique qualities suited for particular objectives. For example, aluminum and steel are significant metals with plenty of durability. Further, plastics are lightweight and flexible enough for complex designs. Composites are great for the aerospace and automotive industries because they are strong yet flexible.

Design options are also broad due to CAD and CAM, which use modern computers as tools. These modern computers allow precision customizations for prototype and full-scale production. Different applications impose different requirements, such as tensile strength, thermal resistance, and dimensional accuracy. For example:

Tensile Strength: Aluminum (310 MPa) vs. Steel (400–550 MPa)

Thermal Resistance: PTFE can withstand a temperature of 260°C, whereas ceramics can bear beyond 1,000°C.

Dimensional Accuracy: Tolerances of ±0.05 mm can be achieved through precision machining.

Manufacturers can increase sustainability, cost-effectiveness, and overall performance by providing competitive and innovative solutions.

How to Choose the Right Metal Stamping Service?

Knowledge and Skills

You should search for a service provider who has been in your business area for a long time and has handled similar materials and designs for your project. Expertise impacts where and how raw materials should be processed for precise and quality output.

Skills and Equipment

Check what resources the provider holds, including tools, type of stamping, and other equipment they can offer. Some modern devices can streamline the more complex aspects of the project while keeping the tolerances in check.

Selection of Materials

Ensure the provider has the materials to meet the project application’s durability, performance, and industry standards.

Options for Customization

An appropriate service provider can be somewhat flexible in the design and alter it to better accommodate specific project details without incurring excessive costs.

Management of Quality

Check for reliable measures the provider takes, such as quality control certifications and inspection procedures, to ensure consistency and sufficiency of outcomes (e.g., ISO 9001).

Customer Service and Delivery

Evaluate their delivery guarantee and how they plan to stay in touch with everyone involved throughout the entire process from start to finish.

Always consider these points to ensure that your project is completed by a metal stamping company with qualified employees to handle complex tasks.

Evaluating Capabilities and Equipment

To assess capabilities and equipment, I check the supplier’s collection of machines and technologies to determine if they fit the needs of my projects. I check if there is advanced technology, such as progressive die stamping and CNC machining, for greater precision and efficiency. Moreover, I will check to confirm that they can work with the required metals, including aluminum, stainless steel, and copper. Finally, I make sure that there are sufficient quality assurance measures in place, like in-house testing and compliance with industry standards, to ensure the dependability of the final products. These measures take time, but they are crucial in achieving my goals.

Assessing Quality Control Measures

In assessing measures of quality control, the following must be looked at:

Inspection Processes

Make sure that the manufacturer has adequate inspection procedures. These procedures include First-Article Inspection (FAI), Inspecting Units In Process (IIP), and final inspection. These measures guarantee that all products remain in specification during the manufacturing process.

Testing and Validation

Check if the facility has standard metal testing, such as tensile, corrosion resistance, and hardness. Stainless steel and aluminum should be tested according to ASTM A240 and ASTM B209, respectively.

Certifications and Standards

Compliance with certifications such as ISO 9001 for quality management systems or IATF 16949 for automotive manufacturing should be considered. Such certifications suggest a well-organized and dependable quality assurance system.

Equipment Precision

Inquire about the calibration of equipment and tools used. For instance, CNC machines for high-precision projects should demonstrate tolerances of ±0.001 inches.

Documented Processes

Use SPC to monitor production data variance in real time and ensure documented processes are available.

These steps can help determine whether a manufacturer’s quality assurance systems appropriately match your project’s technical and other requirements.

Considering Experience and Industry Expertise

Based on a manufacturer’s history and industry knowledge, there are several points to look out for.

Years of Operation

Look for manufacturers with a consistent business history—typically at least 5–10 years in business. This suggests stability, an understanding of production issues, and reliability.

Specialization in Your Industry

Confirm if the manufacturer has any experience in your line of business. An example would be the medical device industry, which has strict requirements such as an ISO 13485 certification, and the aerospace industry, which typically requires AS9100 certification.

Portfolio of Completed Projects

Review their portfolio for completed projects on similar ones. Ensure they have worked with identical materials and complexities your project requires.

Technical Capabilities

Review their equipment and equipment. For example, precision machining can use CNC machines with tolerances as tight as +/-0.0005 inches. Ensure these capabilities match your requirements.

Certifications and Compliance

Check their compliance with industry standards, such as ISO 9001 for quality management systems, ITAR for export controls, or RoHS for electronics.

Client References and Testimonials

Ask for references or case studies, and if possible, speak to former clients about their satisfaction with the manufacturer and its ability to meet deadlines and technical requirements.

If you pay attention to these aspects, the manufacturer you select will possess the required skills, expertise, and practical experience to fulfill your project’s parameters.

What Are the Latest Innovations in Metal Stamping Technology?

The most recent developments in metal stamping technology have improved manufacturing processes’ accuracy, ease, and range. Integration of servo-driven presses, in particular, has transformed the industry because they improve speed and force control, increasing accuracy and decreasing waste. Furthermore, high-strength materials and sophisticated tooling have made it possible to create complex designs accurately. New simulation software and IoT devices enhance production through real-time monitoring and predictive maintenance. These developments have improved the productivity and quality of metal stamping processes.

Advancements in Stamping Press Automation

In my opinion, new developments in stamping press automation have significantly changed the face of manufacturing. Accurate control over production parameters has been achieved through servo-driven presses, which, in turn, has assisted in eliminating waste while significantly enhancing accuracy in the resulting product. It is now also possible to design and machine complex models with high accuracy due to the new high-strength materials and more advanced level II and III tooling techniques. Also, new digital tools such as simulation-based software and IoT devices make it possible to observe interventions in real-time and forecast servicing requirements. These advancements aid in completing tasks more effectively to gain more productivity while ensuring the final component’s quality is acceptable.

Improved Tool and Die Materials

Using new tools and die materials has expanded the life and effectiveness of stamping operations. Typically, high-strength alloys such as tool steels with optimized tungsten, chromium, and vanadium compositions are used because they improve the working life of the tools and reduce wear. For example, AISI D2 and AISI H13 offer remarkable toughness in addition to their high hardness (up to 60 HRC), making them suitable for severe conditions. PVD coatings (such as TiN or AlTiN) and cryogenic processing also improve the material by enhancing wear resistance and reducing friction.

When choosing materials, factors such as a high yield strength of over 1400 MPa, exceptional fatigue resistance, and the ability to endure repetitive heating and cooling cycles must be considered. These changes can maintain part quality, reduce tool failure downtime, and improve production processes.

Integration of CAD/CAM in the Design Process

The combination of CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) transforms the design workflow to production by simplifying processes and increasing accuracy. CAD software allows engineers to create basic 2D and 3D models and optimize designs with enhanced accuracy and flexibility. Subsequently, these digital designs transition straight into CAM systems, which convert them into specific machining commands, thus streamlining the entire manufacturing process. Integrating CAD with CAM minimizes human errors, shortens time-to-market, and improves product quality.

The main advantages of integrating CAD/CAM are improved collaboration, prototyping speed, less material waste, and new levels of efficiency. The integration also guarantees high performance with CNC (computer numerical control) machines. In addition, CAD/CAM software supports the industry’s productivity by increasing complexity and enhancing repeatability in production runs. While implementing CAD/CAM systems, particular attention must be paid to their hardware compatibility, post-processor reputation, and general software usability.

Key considerations for the integration of CAD/CAM that require particular attention:

Design Precision:

The minimum tolerance capability for ultra-precise applications is ±0.005 mm.

3D model accuracy has a resolution supporting up to 0.01 mm.

Processing Compatibility:

CNC machine compatibility integrated with multi-axis support, including but not limited to 3-axis and 5-axis systems.

Executable post-processor configurations for particular manufacturing processes.

File Compatibility:

Interoperability with standard STEP, IGES, STL, and DXF files to facilitate processes between CAD and CAM.

Software that can run simultaneous complex simulations and renderings on multi-core processors alongside the GPU of a computer is required.

Industries stand to benefit significantly from CAD CAM integrations. Integrated design and manufacturing ensure more productivity, faster lead times, and superb product quality to meet current needs.
