What are the 7 steps in the stamping method?

Metal stamping comprises an essential manufacturing procedure extensively utilized to produce accurate and intricate sheet metal parts for different sectors, including automotive and aerospace. This blog aims to give comprehensive details of the seven essential procedures of the metal stamping process, explaining how raw sheet metal is transformed into components of excellent quality that can be used in various applications. Regardless of whether you are a manufacturer wanting to improve methods of production or a curious layman interested in industrial processes, this article will help you learn about every aspect of die design, finishing touches of components, essential techniques, challenges, and best practices that result in consistently good quality components. This procedural metallography will guarantee a strong understanding of everything metal stamping entails, its significance in the industry, and its applications.

What is the Metal Stamping Process and How Does it Work?

Metal stamping is a process of manufacturing that transforms sheets of metal into a desired shape and part using tools and presses. The process entails the insertion of a metal sheet into a stamping press with a die to cut, form, bend, and punch the material as per the specifications. It also consists of additional processes, including blanking, embossing, coining, and flanging, to achieve high precision and intricate designs. Due to its effectiveness, high level of precision, and capability to mass produce parts with uniform quality, the automotive, aerospace, and consumer electronics industries extensively use metal stamping.

Understanding the Metal Stamping Process

Metal stamping consists of shaping plain sheets of metal into certain forms through a stamping press and a range of specialized tools and dies. This is a high-precision and highly efficient process for industries requiring bulk production. Generally, the steps are broken down into significant parts, such as blanking, which involves cutting the raw material into a specific shape and size, and embossing, which provides a design or pattern. Final processes like coining adjust the process’s thickness while flanging puts bends and folds where necessary. Because of its ability to create complex and replicable designs at a reasonable cost, metal stamping is essential for producing automobile parts, aerospace components, and even electronic devices.

The Role of Sheet Metal in Stamping

Sheet metal is essential to stamping because it is versatile, durable, and adaptable. When selecting sheet metal, the specific properties of the material, such as tensile strength, ductility, and thickness, are considered. Common choices are aluminum, steel, or stainless steel based on the application’s requirements, such as load, corrosive elements, and strength.

The material thickness ranges between 0.5 mm to 6 mm for most cases, along with tolerances, which must be within ±0.1 mm for accuracy, are among the most critical variables. The material’s tensile strength, usually in MPa, determines the maximum force of stamping that the material can take without cracking. Typical values range from 200 MPa for aluminum to over 500 MPa for high-strength steel. Moreover, ductility, measured by elongation percentage (10-40%), is critical to facilitate deformation without failure. The balance of these parameters guarantees that the sheet metal will achieve the requirements of particular stamping operations for sheet metal quality and performance.

Key Stamping Operations Involved

The steps that compose stamping operations are precise below. They were produced in a way that allowed them to form, shear, and manipulate a sheet of metal as requested. Listed are the significant stamping operations:

Blanking

Firstly, punching out a pre-decided metal sheet is called blanking. It aids in creating the basic shape of the intended segment. The lift between the punch and die is the most crucial facet, usually 5-10% of the sheet’s thickness.

Piercing

This allows a punch to form cutouts or holes in the metal sheet. As with any process, attacking this from an alignment perspective will not yield the intended results. To ensure the apparatus does not wear out, a 10-20% clearance of the sheet’s thickness is needed.

Bending

As the name suggests, bending refers to deforming metal on a straight line to achieve a certain angle. Further aiding in this is the bend radius. To avoid the end, which is called cracking, it should be limited to a minimum of 1-2 times the thickness of the sheet. Lastly, Springback serves as an aspect that aids the creation of accurate angles.

Deep Drawing

The metal sheet is drawn into a three-dimensional shape using a punch and a die. This process stretches the metal sheet as a blank, air-draw, or free draw. The draw ratio, the blank diameter divided by the punch diameter, is one of the most critical parameters for the process. It is measured between 2.0 and 2.2 for standard materials to minimize the chances of ripping while ensuring formability. Having readily elongating materials, such as those with an over twenty percent elongation rate, is favorable.

Coining

Coining is a satisfactory detailing stamping procedure that helps obtain a detailed impression. A more significant load than the material’s yield strength is required to replicate a pattern accurately with minimal material spring back.

Flanging

Flanging or flared edges bend the sheet metal part’s edges to resemble a flange. The primary consideration here is the height-thickness ratio, which should not be greater than ten-to-one to keep the structure stable.

Controlling these processes and their parameters carefully enhances perfection while minimizing material waste and improving the durability of the final component.

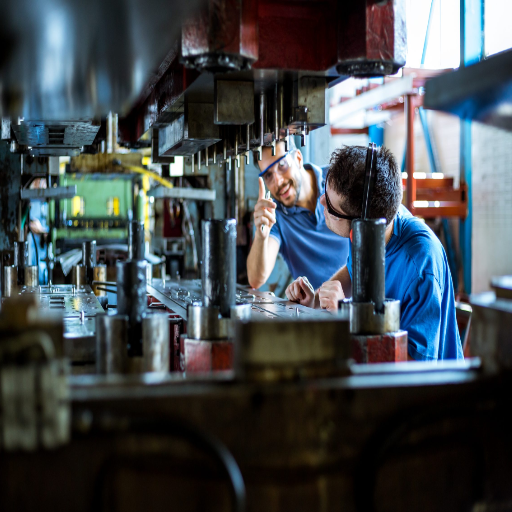

What are the Types of Metal Stamping?

There are different metal stamping methods suited to varying applications and needs. The primary ones are:

Progressive Die Stamping

This method involves a set of dies completing several processes within one press cycle. It is suitable for the mass production of detailed, intricate parts.

Transfer Die Stamping

All operations here are done sequentially, with the different parts moved among various workstations. This method is suitable for more prominent components or parts requiring multiple steps.

Four-Slide Stamping

In this method, metal is stamped and shaped using four sliding tools simultaneously, which aids in the quick and efficient production of parts with complex bends and shapes.

Deep Drawing

This technique is used for parts with deep diameters. It pulls a sheet metal blank into a die to produce seamless, hollow parts.

Such techniques allow manufacturers to produce various components accurately and consistently while reducing wastage.

Exploring Different Stamping Techniques

Of course! I’ll explain as much as I can about the stamping techniques that I’ve reviewed:

Is it possible to carry out complex geometries with the stamping techniques?

Indeed, four-slide stamping deep drawing and other stamping techniques can accurately and efficiently perform complex bends or deep parts.

Are these methods effective for mass production?

Absolutely. Stamping methods and techniques effectively speed up replication, which provides uniformity in each component produced, making them perfect for mass production.

What is the material-saving technique for these methods?

Stamping processes are made to conserve the excess scrap materials from the shaped and cut materials by precisely cutting them into shapes and using sheet metal efficiently.

If you have any further questions, I could provide more insights. Please do share!

Applications of Progressive Die Stamping

Progressive die stamping is a valuable manufacturing process in almost all industries. This process is beneficial for economically producing intricate and precise parts. Following are responses about some of the vital features of progressive die stamping.

How do the processes avoid material waste?

Like most die stamping processes, progressive die stamping uses die layouts and parts’ nesting to reduce material waste. Other factors, such as the thickness of sheet materials (usually between 0.2mm to 3.0mm) and the spacing of the punch and die, are also considered to target efficient material utilization and increase the amount of scrap saved. Furthermore, die design using CAD software enables manufacturers to trim down sheets to maximize material savings efficiently.

What industries are assisted through the use of progressive die stamping?

Automotive: Manufacturing stamping parts such as connectors, brackets, and engine components.

Electronics: Production of micro components such as terminals, housings, and sockets with significant accuracy.

Medical: Production of surgical instruments and precision medical devices.

Aerospace: Development of components that meet strict size, weight, and strength requirements.

What are the benefits of applying progressive die stamping?

The impressive production speed is one of the most tremendous benefits of progressive die stamping. Productivity increases quickly, with production cycle times going as low as 800 strokes in a minute.

High quality and precision are ensured, even with complex shapes and forms.

Cost savings through decreased labor efforts and waste generation are minimal.

Advanced die stamping allows industries to produce parts while maintaining stringent quality standards rapidly.

Comparison of Metal Stamping Parts

When making a comparison of metal stamping parts, there are a few things that need to be evaluated to ensure performance and cost-effectiveness:

Selection of the Material

Every type of metal has various properties, such as strength, ductility, and corrosion resistance. Some of the common materials used in metal stamping are:

Carbon Steel and Stainless Steel: High strength and durability; this is best suited for heavy-duty applications.

Aluminum: Lightweight and corrosion resistant, best suited for automobiles and aerospace components.

Copper and Brass: These are excellent conductivity and malleability and are widely used in electrical parts.

The Dimensional Precision of Tolerances

Metal stamping can meet tight tolerances from the material’s specifications and detailed part complexity, with acceptable ranges of ±0.001 to ±0.005 inches. Precision stamping, especially for intricate designs, ensures consistent quality.

Volume of Parts Produced

Progressive die stamping allows the creation of very complex shapes in a single process. Moderate complexities can be produced in molds with detailed shapes and lower lead times by lowering closing plans. Unfortunately, when considering complex structures, they become much more expensive and challenging to design.

Quantity of Production Being Created

For mass production, progressive stamping is cost-effective at high speeds, often 600-800 strokes per minute. Smaller quantities can use more straightforward methods like single-stage stamping, which are more affordable but less intricate and slower.

Surface Finish and Transitioning Operations

The surface finish of stamped components that come from a die and is later hinged upon by a coating or finishing procedure determines how well the die and the material used work. Take, for example,

Metal furnishings require a smooth post-process surface finish.

Electronics may have to be plated or coated for better conduction.

Cost considerations

Requirements pricing and every process are considered, from tooling and raw material expenses to operational costs. Cost determinations include material thickness, tooling precision, the precision needed, and more. In addition, progressive die stamping is one high-speed process that tends to lower piece-part expenditures for larger volumes.

The manufacturers consider each metal stamping process and material related to the production targets to find an optimal solution that addresses all pertinent aspects, including functions and economics.

How to Choose the Right Metal Stamping Design?

Functionality, manufacturability, and cost-effectiveness are primary factors when selecting the appropriate metal stamping design. Examine the part in question and its intended application and performance benchmarks. This is to confirm that the design will be structurally and operationally sound. In the materials selection stage, target the required strength, durability, and compatibility versus cost. Work hand in hand with the engineers to ensure the design can be produced efficiently using available tooling and manufacturing processes. Finally, the design must be corroborated through rigorous testing and prototyping to meet quality and budgetary objectives before final production.

Essential Elements of Metal Stamping Design

What materials should be selected for this design?

Material Strength: Depending on the purpose, choose materials with adequate tensile strength (mild steels = 250-600 MPa; high strength steels = 600-1300 MPa).

Durability: Choose a material that can endure wear and tear during the product’s lifecycle.

Compatibility: Choose materials compatible with other components for corrosion and thermal expansion.

How can manufacturing efficiency be optimized?

Tooling Design: Some complex parts can be cut using progressive or transfer dies to minimize handling time.

Machine Selection: Equipment should be suited to the thickness and type of material and have adequate press capacity (30-300 tons for most applications).

Material Utilization: Waste elimination strategies can be employed during blanking and nesting.

What are the critical testing and validation parameters?

Dimensional Precision: Ensure compliance to tolerances (for example, ±0.05 mm or ± as specified).

Fatigue Testing: Ensure the component will endure cyclic loading in the operational conditions.

Formability Testing: Determine the material’s capability without fractures occurring (Erichsen tests, formability simulations).

Addressing these questions with appropriate technical specifications will allow you to design something efficient and economical while complying with all operational and production limitations as efficiently as possible.

Factors Affecting Metal Stamping Design

Several vital elements regarding precision, time efficiency, and durability are considered when creating parts through metal stamping. Below are precise answers to the key queries:

Selection of Material:

Every material choice directly affects the stamped part’s overall strength, formability, and usage efficiency. Standard options include steel, aluminum, copper, and brass alloys.

Some critical technical parameters include ductility and tensile strength provided, which can reach 300-600 MPa for mild steel. Corrosion resistance is also a significant factor.

Geometry, Detail, and Part Relationships:

Advanced tooling is required for complex designs, and precision is also needed during manufacturing. In addition, features like ribs bends, and curves must be incorporated while considering the material limits to avoid cracking or warping.

Parts thicker than the minimum specification of 1.5-2 should be bend radius. 1.5-2 times the material thickness should always be recommended.

Durability and Design of Tooling:

Die and punches directly impact the quality of the part, so they should always be made with precise wear resistance and accurate tolerances. Hardened tool steels, like HRC 60+, are typically preferred.

About 5-10% of the material thickness is the acceptable clearance margin for the punch and die; this will aid in decreasing burring and ensuring better edge quality.

Operational Systems, Acceptance Criteria, and Production Volume:

Both tooling and operational systems must be durable to meet the demands for large-quantity production runs to achieve nominal costs.

Tolerances are application-specific, but for high-precision components, tolerances are commonly accepted as ±0.02 mm or per the design requirements.

Springback and Compensation:

Certain metals, such as high-strength steel and aluminum, spring back after forming. The effects of these metals can be minimized via simulation software and overcompensating in tooling design.

Calculations must be performed for springback angles. For example, increasing bend angles by 1-3° within forming operations can help compensate for spring back.

Advanced materials, design geometry, and tooling life considerations ensure that these optimal designs meet all stringent technical parameters for functionality, manufacturability, and cost efficiency. Meticulous verification and advanced simulation tools guarantee that design choices comply with the standards and operate optimally.

What is the Manufacturing Process Used in Metal Stamping?

Metal stamping is a process in which flat pieces of metal are cut and shaped into different designs and forms using presses and dies. Depending on the product type and utility, it usually consists of blanking, punching, bending, rolling, and embossing. In blanking, a flat piece is cut out from the main sheet. In punching design, patterns, and holes are created from the base sheet, and force is applied to shape the product in bending. Embossing is adding finer details or textures to the metal piece. Such processes are used in stamping to achieve incredibly intricate designs in bulk, lowering the per-unit cost. High consistency also comes with optimal selection of the materials and parameters for the equipment and the process.

Overview of Manufacturing Process Used

The approach we take in manufacturing is both flexible and efficient to a broader range of designs. The method that forms the centerpiece of the operation is metal stamping, whose operations include punching, bending, blanking, and embossing. This ensures that the desired components are achieved. Our focus is on high-quality materials and precision tooling to guarantee accuracy and consistency throughout production. Combining modern technology and strong system controls allows us to achieve high-volume production while reducing costs. The goal is to offer reliable and intricate components that meet various clients’ functional and aesthetic needs.

From Flat Metal Sheets to Finished Parts

The processes and procedures of constructing semi-finished products from flat-shaped metal sheets are a refined blend of processes crafted for high productivity and precision. The first step is material selection, which features stainless steel, aluminum, and brass due to their high strength and formability. The required sheets are placed into advanced metal stamping machinery, blanked, punched, embossed, and bent.

Key Technical Parameters:

Material Thickness: Generally, for industrial purposes, sheets have a thickness of about 0.001” and 0.250” (0.025mm to 6.35mm).

Tolerances: For designs, tolerances usually range between ±0.001” and ±0.005” (0.025mm to 0.127mm), guaranteeing good precision.

Press Capacity: Machines usually function at forces between 10 tons and 1,200 tons for intricate or high-volume designs.

Following the stamping step, deburring, heat treating, and surface finishing are secondary operations that further improve durability and aesthetics. Finishing options such as polishing, powder coating, or anodizing provide corrosion and beauty. Stringent quality inspections employing standards with tools such as coordinate measuring machines (CMM), optical scanners, and other means assure various industries, including automotive, aerospace, and electronics, that the final components will be functional and, more importantly, meet the exact specifications.

When you add machines, set parameters, and establish quality systems, the process is transformed from flat sheets into parts that provide repeatable and consistent results.

How Sheet Metal Stamping Transforms Raw Materials?

Through different methods of sheet metal stamping, raw materials are transformed into elements of great functional value. The procedure starts with feeding flat metal sheets into stamp presses that cut, bend, and form materials using custom dies. The material is formed into desired shapes without compromising structural strength, while secondary processes such as surface finishing and deburring enhance the durability and aesthetic appeal of the components. This method ensures that the raw materials are efficiently converted into quality parts that service various industries.

Role of Metal Fabrication in Stamping

To me, metal fabrication is one of the most critical aspects of the stamping process because it sets the stage for precision and reliability. This involves cutting, shaping, and assembling raw material parts into blanks that will be ready for the stamping operation. This not only ensures that the dimensions of the metal sheets are correct but also makes the stamped components trustworthy. Seemingly simple steps in the fabrication process can make the entire stamped product much more straightforward to manufacture and the whole process more cost-effective.

Steps to Form the Metal into Desired Shapes

Shaping the Metal Is Straight Forward

The first step in shaping metal is cutting it into the required dimensions. Depending on the material type and level of precision needed, techniques like shearing, laser, or plasma cutting can be used. For example, laser cutting is highly effective for obtaining delicate designs with tolerances of ±0.005 inches.

The Metal Is Also Bent

Then, the metal is bent at specific angles using machines such as press brakes. This operation is essential to obtain parts with particular configurations. Some of the standard bending parameters are the bend radius, which is equal to the material thickness, and the amount of force used in bending, which is determined by the tensile strength and thickness of the metal.

The Metal Can Also Be Formed

Forming can add intricate grooves or particular curve forms to the metal using stamping, rolling, or spinning. In stamping, for instance, high presses or dies placed onto the material mold the item into precise shapes that can be replicated. Essential factors to consider are die clearance, material thickness, and stamping force, which depends on the design. The force can range between 20 and 500 tons.

Join and Assemble

After fabrication, some parts must be joined mechanically by welding, riveting, or bolting. The type of welding to be used, e.g., MIG, TIG, or spot welding, is chosen based on the materials to be joined and the required joint strength. For example, thin metals and those that need much finishing work are best welded using TIG, while thicker metals are welded using MIG because it’s faster.

Surface Finishing

The last stage is to ensure the metal is smooth, corrosion-resistant, and aesthetically pleasing. Sanding, powder coating, or electroplating depends on the finish required. Powder coating is inexpensive and rugged, making it suitable for protecting equipment.

Completing these steps effectively while considering all the technical details leads to precision, functional metal parts with various uses.

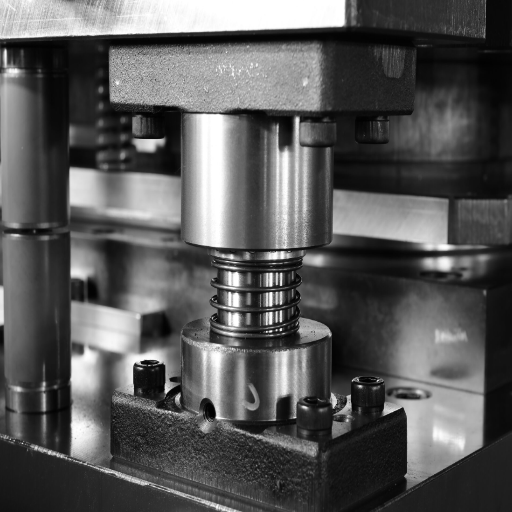

What are the Future of Metal Stamping Trends?

Emerging technologies and shifting industry needs dictate the future of metal stamping. Robotics and AI-powered tools are transforming production efficiency by increasing precision and eliminating mistakes. To fulfill the demand for fuel economy and environmental sustainability, lightweight materials such as aluminum and advanced high-strength steel are becoming common in the automotive industry. Sustainability practices like material recycling and energy-efficient processes are being embraced by manufacturers, which is also a prominent trend. Moreover, adopting IoT and predictive analytics facilitates more intelligent manufacturing, driving innovation and improving productivity. Collectively, these changes prepare the metal stamping industry for a greener, more efficient, and more advanced future.

Innovations in Metal Stamping Machines

As far as I know, metal stamping machines are modern and more sophisticated than previous ones because automation and innovative technologies have been added. Machines now include arms and AI systems that increase speed and accuracy and lower human error. Finally, high-speed stamping presses and servo-driven systems allow for faster production with great accuracy. Sustainability is also a focus of innovations for better energy utilization and efficiency. These advancements combine to meet the demands of cost-efficient, environmentally friendly, and high-quality manufacturing solutions.

Emerging Techniques in the Metal Stamping Industry

As the stamping of metals improves, new approaches enhance effectiveness, accuracy, and eco-friendliness. Most of the new ones are progressive die stamping, transfer dies stamping, and fine blanking:

Progressive Die Stamping is the best method for mass production because it sequentially combines punching, bending, and cutting into a single die. It is preferred for high-volume production runs because it reduces handling time and provides faster, more accurate results.

Transfer Die Stamping: Unlike progressive stamping, this method allows a machine to move the workpiece between stations. It has advantages over progressive stamping because it can shape more significant, complex parts and create multifaceted products, making it perfect for items that need many separate operations.

Fine Blanking: This method is perfect for the automobile and electronics industries because it combines compressive forces and cutting to produce parts with close tolerances and sharp edges. Fine blanking also gives a good finish to the part and allows for minimal material waste.

They include press force, die clearance, and thickness of the material. For these techniques, technical parameters can be divided into features:

Press Force: The power requirements for progressive die and transfer die stamping presses are between 20 and 1200 tons of force, depending on the dimensions of the part and the materials used.

Die Clearance: For the blanking die, adjustments of 0.01 mm to 0.1 mm are perfect for edge perfection and minimization of burrs.

Material Thickness: The complexities and challenges associated with these techniques range from as low as 0.1 mm for fine blanking to heavy-duty transfer stamping of up to 12 mm.

At the same time, the integration of laser cutting and stamping brings new possibilities for low-volume prototypes, allowing for increased flexibility and intimacy. These changes exhibit the industry’s desire to constantly be in sync with the market while remaining efficient and sustainable.
