How to Tell if Aluminum is Cast or Extruded: Understanding the Differences

Aluminum has different types, each having its own uses and characteristics, such as cast and extruded aluminum. The processes used in fabricating these two types differ, meaning each has certain advantages and disadvantages as well as differ structurally. Understanding the differences between both forms of aluminum will increase efficiency in any construction work, whether it’s in designing a product or even troubleshooting performance problems. This article is aimed at helping the reader discern the differences between these types of aluminum, allowing the reader to make sound and well-informed choices according to the needs at hand.

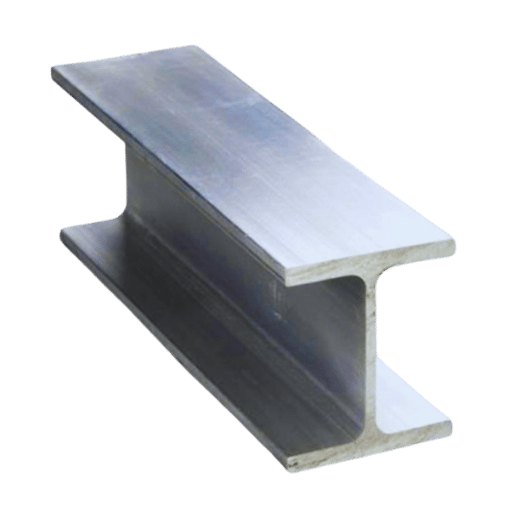

What is Cast Aluminum, and How is it Made?

Aluminum castings are specific parts made by pouring molten aluminum into a mold, which is allowed to cool and take the shape of the desired object. This is known as the casting process, which is famous for its efficacy in creating detailed shapes. Compared to other forms of aluminum, cast aluminum has a lower density and a slightly rough surface due to air voids forming during the cooling process. This type of aluminum is extensively used in the manufacturing of parts for automotive vehicles, machinery, cookware, and tools due to its high strength-to-weight ratio, outstanding corrosion resistance, and ability to serve multiple purposes.

How is Cast Aluminum Formed?

The creation of cast aluminum involves a procedure called casting in which molten aluminum is poured into molds to solidify. There are a number of prevalent casting styles, like sand casting, die casting, and permanent molding casting. In every case, the aluminum undergoes shaping using specially designed molds that serve particular undercuts and contours. After the aluminum cools down and solidifies, the mold is stripped off, and the cast component is machined to finish the surface or meet other specific requirements. As a result, cast aluminum parts may boast very complex geometric configurations, which saves time and resources during manufacturing and is helpful in various economic sectors.

The Role of Mold in Casting

Molds are a very important part of the mold-casting process as they provide the shape into which the liquid materials are poured to cool and solidify. The design and material of molds have a significant impact on the resultant quality, accuracy, and overall efficiency of the casting operation. Sand, metal, or ceramic are the most common materials used to manufacture modern molds based on purpose, needed strength, and thermal characteristics. As an example, sand molds are popular for elaborate, large-scale castings because of their economical and flexible nature while metal molds are best for mass production for accuracy and repeatability.

With the recent expansion in the field of molds, as an example, the 3D sand printer is able to print molds of very complex geometries in a shorter period of time than before. Reports suggest that there is a growing global use of 3D printers for mold-making, with an astonishing growth rate of over 25% projected until the year 2030, which indicates a shift towards more streamlined and sophisticated methods of manufacturing. Moreover, as a result of the innovation in treatments and coatings of the molds, the regulation of temperature within the molds has been improved which reduces the amount of shrinkage or porosity defects within the cast products. These comments emphasize the important functions that molds perform not only while forming plastics and metals into various products but also in improving the productivity and quality of the casting processes.

Common Casting Methods Explained

Casting is a rather flexible manufacturing process designed to form complex shapes of metals, polymers, and other materials. Here are some of the most common casting techniques and their associated progress and applications:

1. Sand Casting

Sand casting continues to be popular because of its wide application range as well as its economical nature while making large, intricate parts. New modifications of sand casting, due to innovations made in binder materials and 3d printed sand molds, have achieved remarkable improvements in finish quality and dimensional accuracy. Sand casting has large market shares in the aerospace and automotive sectors and the total sand casting market was estimated to be about $45 billion in 2022 and is projected to persistently grow with rising demand.

2. Die Casting

Die casting is known for producing parts in huge quantities at a relatively low price, having good finish and dimensional tolerance. Enhanced die coatings and alloys have improved die durability and resistance to thermal fatigue, greatly increasing die life. The process is automated to a high degree, which makes it suitable for construction as well as the electronic industry. Die casting is estimated to have a market value of $95 billion by 2030, which is a clear indicator of the procedure’s prominence in current manufacturing practices.

3. Investment Casting

Investment casting, also known as lost-wax casting, is well-known for its accuracy and ability to manufacture small, intricate details. Improvements to types of ceramic molds and even the introduction of 3D printing have automated production, allowing for quicker turnarounds and lowered costs. This technique is used extensively in the medical field, jewelry, and turbine construction industries, where there is always a growing demand for high-performance components that have intricate features.

4. Continuous Casting

Most typically seen in metallurgy, continuous casting is the most economical technique to produce consistent slabs, billets, and rods. The innovation of cooling systems and the new designs of molds have lowered the casting’s maximum speed while also decreasing the cracking and defects of the materials produced. Steel production is one of the most important uses of this technique, and it produced over 1.9 billion metric tons worldwide in 2022 alone, proving even more its necessity in infrastructure and construction.

5. Centrifugal Casting

Centrifugal casting is used for the production of cylindrical elements with higher mechanical properties. The application of modern spinning processes and better-quality mold materials has lowered the level of contamination while raising the quality of the end product. This process is often needed to manufacture pipes, bearings, and bushes, especially in the oil and gas, and marine industries.

6. Vacuum Casting

Vacuum casting is still the most preferred method for manufacturing high-precision components with reactive metals like titanium and nickel alloys. Recent advances in vacuum systems have lowered operational costs and improved output quality. In the medical and aerospace fields, this method enables the production of ultra-strong, void-free parts for critical medical implants and aerospace components, which, in turn, is essential for meeting important engineering requirements.

Once castings are understood and their usages defined, manufacturers can effectively choose the appropriate method that will accomplish the desired goal, both economically and performance-wise.

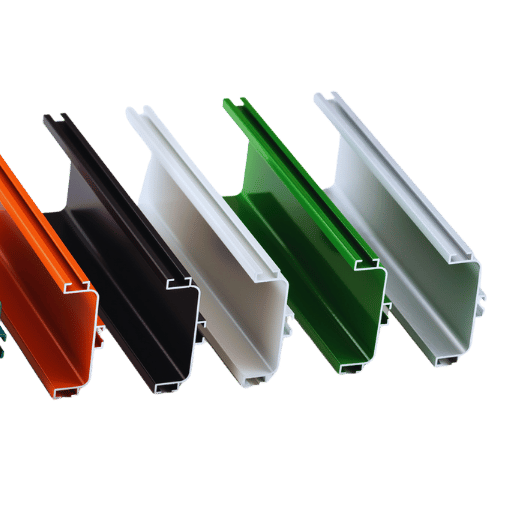

Understanding Extruded Aluminum: The Process Explained

What is the Extrusion Process?

The extrusion method is a form of construction where, in most cases, aluminum is compelled to pass through a dye in order to form objects of a particular cross-sectional shape. The method includes pre-heating aluminum so that it is easier to process, then forcing it through a044 die with the aid of a ram or a hydraulic press. As a result, extruded aluminum can be produced in uniform shapes, which are also light, strong, and versatile, thus ensuring its widespread use in construction, transport, and electronic industries for frames, panels, and tubes.

The Importance of Aluminum Billets

Extrusion begins with aluminum billets; therefore, their quality is directly linked to the quality of the final product. Specifically, these cylindrical blocks are solid billets of molten aluminum cooled after being poured into specific molds. The mechanical properties of an aluminum billet’s strength, thermal conductivity, and resistance to corrosion and damage are profoundly influenced by its purity.

An aluminum alloy is extensively used for different parts manufacturing, and more than 65 million metric tons is extracted worldwide each year, showcasing the advanced demand across the globe. They also play an important role in construction of robust yet lightweight parts and components for vehicles which is essential in the aerospace and automotive industries to enhance fuel consumption and curtail emissions.

In meeting the criteria for modern engineering’s higher-grade materials, these advancements are straightforward and focused on. Homogenization and grain refinement to the original billet casting stand greatly increase expected extrusion results with increased quality of the initial ingot peculiar.

Applications of Extruded Aluminum Products

Extruded aluminum products are used in a number of industries due to their flexible nature, being lightweight, and having high corrosion resistance. I have listed these applications in detail with further comments on their relevance and effects below:

Automotive Industry

• Structural components: Extruded aluminum is used to manufacture lightweight frames, crash management systems, and chassis components. This reduces the vehicle’s weight, improving fuel efficiency by approximately 8% for every 10% reduction in weight.
• Heat Exchangers: Aluminum has a great thermal conductivity which makes it ideal for use in radiators, condensers, and coolant batteries in both internal combustion and electric vehicles.

Aerospace Sector

• Aircraft Structures: Extrusions are crucial in fuselage panels, wing frames, and other interior components as they are durable and lightweight which improves fuel economy.
• Spacecraft Components: Aluminum extrusion is notable for their frames and structural housing for satellites because of their ability to withstand extreme temperatures and space radiation.

Construction and Architecture

• Building Facades and Frames: Aluminum is used for curtain walls, doors, window frames, roofing systems, and many more. They can last over 40 years and at the same time, provide aesthetic value to the building.
• Infrastructure Projects: Bridges, rail tracks, and pedestrian walkways are made with extruded aluminum due to their strength and ability to resist changing environmental conditions.

Electric and Power Transmission

• Conductors and Bus Bars: Because of its limited resistivity, aluminum is selected for transmission lines and energy distribution systems in a region.
• Solar Panel Frames: Extruded aluminum frames are both light and corrosion-resistant, contributing to renewable energy applications by providing rigid support to photovoltaic cells.

Consumer Electronics

• Device Casings: Used in smartphones, laptops, and tablets for stylish appearance, durability, and heat dissipation.
• Heat Sinks: Aluminum extrusions are vital components of cooling systems for CPUs, power supplies, and many other electronic parts for dependable performance.

Renewable Energy

• Wind Turbines: Offshore structures like nacelles and rotor blade supports are constructed from aluminum due to its high strength-to-weight ratio and resistance to corrosion.
• Hydropower Systems: Dams gates, turbine systems, and water channels are constructed from extruded parts.

Transportation Systems

• Railways: These are used for the outer shells of high-speed trains, components of subway systems, and interior parts to cut down on weight without compromising the strength and safety of the construction.
• Marine Applications: Extrusions of aluminum for use in boat hulls, decks, and offshore platforms, which are lightweight and resistant to corrosion from saltwater.

Through these uses, it is evident that extruded aluminum aids the development of contemporary industries by equipping them with lightweight, strong, and flexible materials. These applications highlight the vital role of aluminum extrusions in driving innovation and sustainability globally.

How to Identify the Difference Between Cast and Extruded Aluminum?

Exploring Surface Finish Characteristics

To be able to distinguish cast and extruded aluminum with regard to their surface finishes, consider these traits:

• Cast Aluminum: In most cases, it is rougher and more uneven due to the casting roughens. It may have a few tiny pockmarks or a grainy surface as casting, which has molten aluminum being poured into molds, is prone to imperfections.
• Extruded Aluminum: Usually, feature a smoother and more uniform surface which is attained from the extrusion process. Aluminum is pushed through a die. This results in cleaner edges and a more uniform finish which is ideal for detailed work.

Having a look at these surface features can help identify whether the aluminum was cast or extruded quickly.

Examining Cross-Section Differences

The distinctions in cross-sections between cast and extruded aluminum are remarkable when looking at their manufacturing processes. Cast aluminum usually has a relatively less regular or uniform cross-section due to its greater voids or porosity. These imperfections in density cause the tensile strength of the material to be lower, which makes it unsuitable for highly structural applications. The voids result from the cooling and solidification of molten aluminum during the manufacturing processes, which makes cast aluminum more porous and less dense.

Extruded aluminum is composed of materials that have internal voids, which results in low porosity and a high density. The extrusion process further improves the material’s properties by compressing the material and forming a continuous profile with great cross-sectional uniformity. It is because of these traits that extruded aluminum exhibits optimal tensile properties, which are the reasons why it will be able to endure greater loads. More so, controlled extrusion allows the creation of more elaborate cross-sectional shapes for more stringent engineering design purposes.

Studies indicate that the yield strength of extruded aluminum consistently exceeds that of cast aluminum, as the estimated average strength is generally between 30,000 and 90,000 psi and changes depending on the alloy used. On the contrary, the estimated strength of cast aluminum depends greatly on alloy composition alongside the casting technique, which results in lower estimates of 20,000-45,000 psi. Such differences in the cross-sectional structural characteristics exhibit the need to evaluate the material’s performance, which depends on the bearing loads and design details.

Testing for Corrosion Resistance

While assessing the resistance to corrosion, I would perform tests like salt spray (ASTM B117) and electrochemical tests to analyze the material’s response to controlled environmental conditions. In addition, I would analyze the alloy constituents as well as the protective films to measure their corrosion inhibiting efficiency over time. The results of these tests are essential in verifying that the material would perform to the required standards for its intended use.

The Role of Aluminum Alloys in Casting and Extrusion

How Do Aluminium Alloys Affect Manufacturing?

The use of aluminum alloys enables more efficiency in manufacturing operations because of their lightweight, strong, and adaptable nature. These alloys also improve the efficiency of casting and extrusion processes because of their excellent malleability and thermal conductivity. The corrosion resistance of the alloys improves product durability, and the ability to recycle them makes their use eco-friendly. Choosing the appropriate alloy facilitates optimization of performance, cost reduction, and design flexibility in the automotive, aerospace, and construction industries – to name a few.

The Impact of Alloy Composition on Properties

The differing types of aluminum alloys possess distinct mechanical, thermal, and chemical properties as a result of their elemental composition. Other elements like silicon, magnesium, copper, and zinc are integrated into the alloys in specific amounts that can achieve desired properties for intended uses. For one, Silicon improves castability as well as wear resistance, while magnesium improves strength and corrosion resistance, making it beneficial for high-performance components.

The current state of affairs indicates that aluminum alloys with 4-5% magnesium content have the ability to resist hostile marine environments while having tensile strengths of 300 MPa and above. In the same way, silicon alloys with 3-7% magnesium have also been found to have improved resistance to heat and dimensional stability, enabling their use in making engine parts and other components exposed to higher temperatures. Zinc alloys, in contrast, increase the strength-to-weight ratio, becoming essential in aerospace designs as they have tensile strengths above 500 MPa.

Thermal conductivity and machinability are also influenced by the specific alloy composition. For example, Si-rich alloys have thermal conductivities in the range of 150 W/m·K, which improves heat dissipation in industrial tools and equipment. Moreover, an increase in the copper content of aluminum alloys is found to improve their hardness and wear resistance in many high-strength extrusions, which is beneficial.

Shifting the balance in the alloy mix enables the manufacturers to design materials with exact specifications and properties for strength, weight, corrosion, and thermal performance. This customization transcends traditional boundaries and enables the fabrication of aluminum alloys to be used in different innovative solutions across industries for the progression of design and engineering.

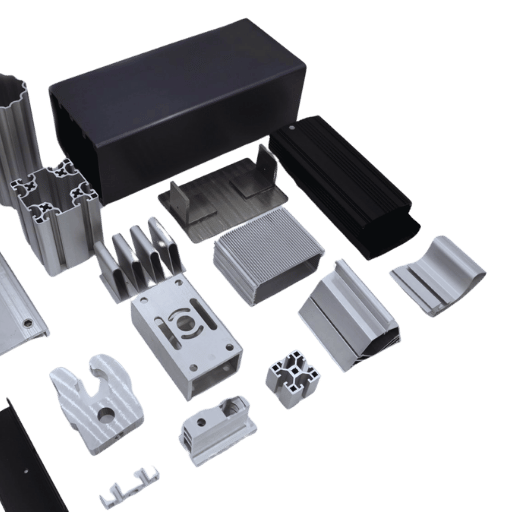

Comparing Manufacturing Techniques: Which is Better?

Advantages of Die Cast Over Other Methods

Precision and Accuracy

• The accuracy of die casting is exceptional, with tolerances sometimes reaching ±0.002 inches (0.05mm) depending on the designed features. This level of accuracy minimizes secondary machining operations, leading to savings in both time and costs.

Efficient Production Rates

• Die casting is significantly more efficient compared to sand or investment casting. The high-speed casting capabilities enable the rapid production of thousands of parts that have minimal variation.

Complex Geometries

• The die-casting technique permits the incorporation of intricate details and features that would be difficult or even impossible using other methods. Thin wall features, undercuts, and intricate curves can be produced with high consistency.

Material Efficiency

• Die casting suffices waste by employing near-net shape manufacturing. A larger portion of the starting materials is incorporated into the end product, and unused materials are easily recyclable, generating savings and preserving the environment.

Durability and Strength

• Die cast components tend to be stronger and more durable than parts produced using other techniques. This is due to the faster solidification of die-cast parts resulting from high pressure which improves mechanical properties such as tensile and yield strength.

Improved Surface Finish

• The surface finish of die-cast parts is smoother compared to other types of cast parts, achieving 1-2µm. This eliminates the need for further finishing steps and enhances the cosmetic appearance of the components.

Material Flexibility

• Die casting can utilize a broad selection of alloys, including aluminum, magnesium, and zinc. These materials can be lightweight (aluminum), provide corrosion protection (zinc), or have a high strength to weight ratio (magnesium), thus serving diverse applications.

Large Amounts Cost Advantage

• Die casting has initial tooling costs which could be perceived to be expensive, but there is an overall cost efficiency for mass production due to reduced labor, material use, and simplified manufacturing processes.

Precision and Quality Assurance

• With thorough automation and supervision of processes, die casting has outstanding repeatability, which is ideal for mass production. Each unit produced is practically the same in dimensions and characteristics, allowing uniformity in quality in every batch.

Thermal Conductivity and Heat Resistance

• Aluminum and magnesium, which are die-cast alloys, have remarkable thermal conductivity as well as high resistance to heat. They are useful in applications where heat has to be dissipated quickly, such as in automotive and electronic components.

Faster Production Speed

• The cycle times for die casting can be anywhere from under a second to a few minutes, depending on the size of the component. This activity enables a fast manufacturing process, making die casting an undeniable choice for processes with stringent deadlines.

Taking into consideration these factors, die casting is still the favored method of manufacturing for the automotive, aerospace, and consumer electronics industries that require high accuracy, high strength, and economical prices.

Why Choose Extruded Aluminum?

Lightweight, strong, and versatile extruded aluminum has become a preferred material for many industries. It is created through the forcing of aluminum through a die, which is useful in construction, automotive, and consumer products and gives it a specific cross-section. Here are the primary benefits of using extruded aluminum:

High Strength-to-weight Ratio

• The strength, along with relatively low density is present in aluminum extrusions greatly which enhances the low, yet structurally robust components. This makes it very useful in the transportation sector, where components are weight sensitive. The use of aluminum extrusions in automotive chassis, for instance, can reduce the overall weight of the vehicle by 50% while maintaining safety and performance.

Corrosion Resistance

• Aluminum rust and corrosion resistance capability is enhanced due to the anodizing or powder coating finishing techniques. This protective oxide layer allows use in harsh environments or marine appplications as aluminum is used for an airplane fuselage, control surfaces and other modern aircraft components such as structural elements.

Design Flexibility

• The extrusion process is capable of producing intricate and tailored profiles with close tolerances. This allows for the design of highly functional parts, such as those with wire channels or assembly features. This flexibility is advantageous for industries like construction and electronics that require the integration of many functions into highly efficient and lightweight parts.

Sustainability and Recycling

• Aluminum boasts exceptional sustainability due to its property retention when recycled. The energy spent recycling aluminum is only 5% when compared to primary aluminum production as well. Current statistics show that roughly 75% of aluminum that was produced is still in use, demonstrating its longevity and positive contributions to the environment.

Thermal and Electrical Conductivity

• Heat sinks, radiators, and electrical enclosures are made using extrusions of aluminum due to its excellent thermal and electrical conductivity. For example, extruded aluminum heat sinks are commonly found in LED lighting systems and electronic devices because of their efficient heat dissipation.

Cost-Effective Production

• Extrusion manufacturing is very economical and cost-effective, especially in large scale production. Compared to other options, tooling expenditure is low and material waste along with post-processing time is reduced due to the near-net shape production. This allowance assists industries in maintaining their cost control as well as achieving precision.

With its remarkable blend of strength, durability, and flexibility, extruded aluminum is particularly well suited to solve modern engineering problems in diverse sectors. In addition to meeting functional requirements, the ability of extruded aluminum to satisfy structural and aesthetic purposes makes it indispensable in contemporary manufacturing.

Evaluating Tolerance and Cool Factors

While calibrating tolerances and cooling factors for extruded aluminum, the following parameters are of considerable importance.

Dimensional Tolerance

• With regard to the profile’s geometry, extruded aluminum has offered the industry effortless control over his dimensional uniformity throughout the production runs. Tolerances that are achieved depend on the intricate details of the profile and its size, but tolerances do correlate with industry standards, and such standards are converted to millimeters (or portions of inches).

Thermal Management

• Also, the strong thermal conductivity possessed by aluminum enhances its capability to manage heat, which makes it useful in applications such as heat sinks and enclosures. Cooling performance depends heavily on proper design, especially on fin spacing and surface area.

The correct estimation of these factors gives manufacturers the possibility to guarantee the efficiency and reliability of extruded aluminum components for a variety of applications.

Frequently Asked Questions (FAQs)

Q: What is the difference between cast aluminum and extruded aluminum?

A: Cast aluminum is produced when molten aluminum is poured into a mold while an extruded aluminum is produced when heated aluminum is forced through a steel die. The difference is on how it is produced. Casted aluminum is able to form more complex shapes but it is weaker compared to the extruded aluminum which has constant cross section and stronger.

Q: How can I visually identify if an aluminum piece is cast or extruded?

A: Rougher surfaces that have parting lines visible are indicative of cast aluminum. Smoother surfaces with constant cross section along the length of the piece is indicative of extruded aluminum. There is less intricacy and more uniformity in the extruded pieces compared to cast pieces which tend to have more organic forms.

Q: What are the typical applications for cast aluminum vs extruded aluminum?

A: For decorative purposes and complex shapes such as engine blocks and cylinder heads, cast aluminum is used. Extruded aluminum, on the other hand, is used for heat sinks, window frames, and even car parts. When working with materials that require long and uniform cross-sections, extruded products prove to be more efficient.

Q: Can you explain the difference between extruded aluminum and rolled aluminum?

A: Certainly, there is a difference. Rolled aluminum is thinner due to it having been worked through a number of rollers, while extruded aluminum is shaped by forcing it through a die. Sheets and plates are rolled out of aluminum, while more complex profiles are made with extruded aluminum.

Q: What are the disadvantages of using casting as opposed to extrusion?

A: Compared to casting, aluminum extrusion is more efficient in terms of material wastage, surface finishing, strength-to-weight ratio, and possessing the ability to create intricate designs and cross sections. Extrusions are more economical as well when produced in bulk, regardless of the number of parts that share the same profile.

Q: Can you provide details on the amount of cast or extruded aluminum parts with regard to weight or volume?

A: Exceedingly large or even small cast aluminum parts are possible, in addition to several elegant shapes. The main limitation imposed on extruded aluminum is the size of the extrusion die and the extrusion press; however, cylindrical parts with set dimensions can be easily achieved. There are common restrictions: they are dependent on the equipment available at the time.

Q: Is it possible to use zinc to tell cast aluminum apart from extruded aluminum?

A: Alone, zinc content does not tell you much about whether the aluminum is cast or extruded, but it can give some hints. Cast aluminum alloys often have higher zinc levels to improve castability and strengthen the material. Extruded aluminum alloys usually have low zinc content because excessive zinc can cause problems in the extrusion process.

Q: What is the effect of the production process on cast vs extruded aluminum recyclability?

A: Both changes in processes affect the structural integrity of aluminum, which tends to be highly recyclable. However, cast aluminum is melted and poured, which may add more impurities to the aluminum, thus making it less recyclable. In contrast, extruded aluminum is more easily recyclable due to fewer additives and more uniform composition. Like most alloys, scrap aluminum must be sorted to maximize the value of the recycled material.
