Understanding Aluminum Extrusion: The Process to Extrude Aluminum Explained

The aluminum extrusion process involves the formation of specific cross-sectional profiles utilizing a die for a variety of industries ranging from automotive, aerospace, construction, and even consumer goods. The versatility of this method of transforming aluminum into precise shapes allows for its effective recycling, as well as enabling the manufacture of lightweight and robust parts with high adaptability. Furthermore, it aluminum is molded with high precision to meet exacting engineering and design requirements. What aids in the process of accomplishing these goals and why is this method of modern fabrication so widely accepted? This article provides in-depth details of the process of aluminum extrusion and provides readers with the understanding of its science and practical uses. It does not matter if you are a professional in an industry that uses aluminum extrusion or simply have the innate desire to learn more about its extraction and uses; there is something to learn for anybody and everyone.

What is Aluminum Extrusion?

Understanding the Concept of Extrusion

This process takes in a product or substance and outputs a shape based on the die’s specifications. In making an aluminum extrusion, the work material is typically in the form of a billet. A die or a tool with a specific cross-sectional shape, with some holes at the ends, is used to shape the object. This tool or die is heated to a temperature where the material becomes soft but not fully liquid. It is then placed in a chamber and put under immense pressure, which allows the material to mainly flow through the holes of the die. This entire method allows for extremely complex shapes to be achieved while still maintaining aluminum’s highly favorable strength-to-weight ratio. The result is a piece of aluminum with the cross sections of the die that can be used for virtually all purposes ranging from construction, automotive, and even all electronics.

How The Extrusion Process Works

To start the extrusion process, the aluminum so-called billet is heated to a specific temperature to make it plastic-like and yet solid. The aluminum is then positioned into a container where it is pressed through a steel die using a hydraulic system. At this point, the aluminum is shaped to fit the die which leads to the production of an extruded piece with a distinctive cross section. Afterward, the aluminum is chilled, afflicted with a pull to remove any distortion, and trimmed to the predetermined size. Lastly, depending on the application requirements, the aluminum piece is treated with anodizing or painting. The most notable advantage of this approach is its speed and precision in creating intricate designs.

The Role of Aluminum Alloy in the Process

Aluminum alloys hold great importance in the extrusion process owing to their distinct sets of attributes. The alloys’ superb strength to weight ratios, ability to resist corrosion, and superb malleability render them highly favorable for crafting intricate, durable profiles. The particular alloy utilized in the extrusion determines the end product’s strength, thermal conductivity, and even the surface finish. The 6000 series alloys are common because they represent an acceptable compromise between extrudability and performance for numerous applications including construction and automotive industries.

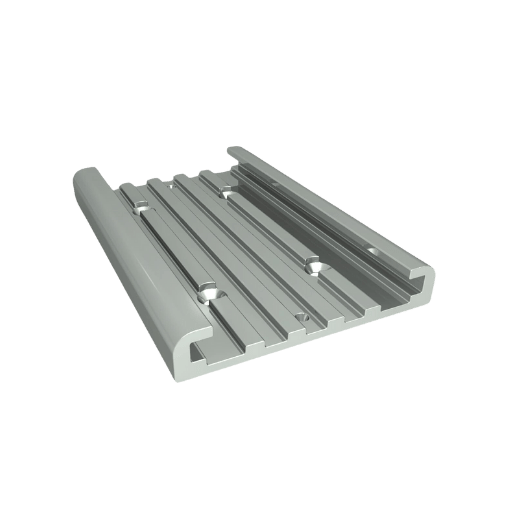

How Is Aluminum Extrusion Done?

Uses of Aluminum by Extrusion in Different Sectors

The versatility and properties of extruded aluminum make it easy to use in a variety of industries.

1. Construction Industry: Aluminum extrusion is used for window frames, structural supports and curtain walls because of light weight, high strength and corrosion resistance.
2. Automotive Industry: The extensively extruded aluminum is necessary in the production of lightweight chassis, vehicle body panels, and engine parts to achieve improved fuel economy and overall vehicle performance.
3. Electronics Industry: Heat sinks and enclosures as components capitalizing on aluminum’s thermal conductivity are produced by aluminum extrusion.
4. Aerospace Industry: It is used in the structures of the aircraft such as fuselage and wings where the ratio of strength to weight is very important.

These applications demonstrate the material’s adaptability across diverse sectors, making it an indispensable resource in modern industries.

The Role of Aluminum Extrusions in Current Manufacturing Processes

Aluminum extrusions are of great importance in current manufacturing processes because they are lightweight and durable. Their flexible properties allow for a systematic and custom manipulative design for components with specific dimensions and intricate shapes. Also, aluminum’s high strength to weight ratio makes it a preferred material for applications where structural integrity is crucial, but excessive weight cannot be tolerated. Furthermore, the material’s corrosion resistance boosts its attractiveness by lowering maintenance costs and improving the lifespan of the product. These features make aluminum extrusions an indispensable tool in several fields such as construction, transportation, and electronics.

A Detailed Description of the Steps Involved in the Aluminum Extrusion Process

The Steps Involved in Fabricating the Aluminum Billet

As is the case with very important steps in the extrusion process, fabrication of the aluminum billet contributes greatly to the entire procedure. The aluminum billet, which is usually cast from aluminum alloys, is heated to a certain temperature, usually between 750°F and 900°F. Softening the material allows it to retain the most beneficial metallurgical properties, while also making the extrusion process more efficient. The surface of the billet is inspection for blemishes and, if everything is alright, goes underneath heating. This stage of the extrusion process is essential for a effective extrusion, owing to the prevention of issues related to quality and longevity of the product.

Usage of the Die and Press in Extrusion

The die and press alter the shape of the block into that of a prism, and the prism is then shaped into the end profiles by the shaping machines. Monitored sensors to measure the temperature, pressure, and movement are installed, which is essential for maintaining high-level quality control and minimizing defects within the finished product. This approach is essential for ensuring efficiency and quality, allowing the end product to sustainably conform to all requirements set for it and, as such, minimizing the need for repairs or adjustments.

Finishing Techniques: Anodize and Powder Coating

Anodizing and powder coating are known to be some of the most popular aluminum profiles finishing techniques, each unique in its advantages.

Anodizing addresses and enhances the corrosion resistance property of aluminum by growing a thick oxide layer on its surface. This layer is able to be dyed in numerous colors, while the metal’s natural look and feel are preserved. This method works best for processes that need strength, weather resistance, and beauty such as architectural and consumer goods.

In contrast, powder coating forms an even thicker, more uniform protective layer. It entails the application of dry resin and pigment paint that is heated afterward. The versatility of this technique enables a wide range of colors, textures, and finishes, while still maintaining a long lasting and scratch resistant product. It is common in automotive, industrial, and decorative applications.

Regardless of the applied method, the treatment of aluminum always improves its functional properties as well as its aesthetic features, the choice depends mostly on the specific requirements of the application.

Considerations in the Design of Aluminum Extrusions: Dos and Don’ts

Designs for Profile Cross Sections: Considerations to Make

Profile cross sections are critical to the use and manufacturability of an aluminum extrusion. Every profile’s design must attempt to maximize the use of material and ensure structural soundness as well as the operational parameters. Considerations that must be included are the required shape, symmetry, and wall thickness. In most cases, walls of uniform thickness are preferred because they cooling during extrusion and minimize the chance of defects. Where possible, symmetry improves manufacturability and diminishes the internal stress of the material.

Besides, to allow for efficient production and assembly, tolerances and corner radii allowances should be incorporated. Incorporation of grooves, channels, and even hollow sections as parts of the cross section serves the purpose of increasing the scope of the profile while limiting the increases in material expenditures. Cross sectional profiles can, therefore, be adjusted to suit particular needs by striking a balance between complexities of design and ease of production.

The Importance of Corrosion Resistance

Corrosion resistance is critical because it affects the life cycle of different materials in different fields. Corrosion resistant materials are less likely to deteriorate while coming into contact with environmental conditions such as humidity, harsh chemicals, or very high and low temperatures. This ensures the durability of the structure, lowers maintenance expenses, and reduces the chances of failure in construction, transportation, and sea industries where aluminum is widely used. Using corrosion resistant materials is beneficial in increasing efficiency and promotes improved designs over time.

Working with the Aluminum Extrusion Design Guide

The Aluminum Extrusion Design Guide is critical when trying to understand how aluminum extrusions can be utilized in different applications. Using the guide, engineers and designers are able to:

• Optimize Designs: Understand how to exploit the adaptability of aluminum extrusion in order to build lightweight, inexpensive, high-performance parts across certain applications.
• Assure Better Material Choice: Learn relevant information on alloys, coatings, and finishes which improve corrosion resistance and structural performance of the product.
• Increase Manufacturing Productivity: Learn important matters on extrusion tolerances and tooling which can enhance production efficiency.
• Achieve Cost Savings: Learn how to control material costs alongside manufacturing efficiencies to ensure meeting the budget without sacrificing quality.

The guide offers an integrated approach to allow rational choices throughout all the steps of design and manufacturing processes.

The Importance of Custom Aluminum Extrusion In Business

Why Custom Designs Are Important To Businesses

Custom designs create unique extrusions because of the flexibility they offer, which makes certain application specifications achievable. Features such as precise dimensions, elaborate shapes, and other advancement features, which might be unattainable with regular options, can be achieved with custom options. Additionally, custom designs use less materials, facilitate easier assembly, and increase cost efficiency. This degree of customization guarantees that the final outcome meets the required structural, aesthetic, and performance parameters without any challenges.

Meeting Specific Requirements in Fabrication

Custom aluminum extrusions are so versatile that manufacturers are able to meet very specific fabrication needs quickly and accurately. Custom extrusions can be designed with features such as internal cavities, jaw dropping grooves, and other specialized mounting features. Progress in extrusion technology enables more intricate shapes to be produced with their precise tolerances reducing machining later and simplifying the fabrication process. The lightweight strength, corrosion resistance, and recyclability of aluminum further confirm its status as an extraordinary fabrication material. Using these advanced techniques and custom configurations allows manufacturers to improve production efficiency, minimize lead times, and ensure greater consistency in the final product.

The Benefits of Custom Aluminum Solutions

In particular custom aluminum solutions have a lightweight yet robust durability which makes them multifunctional. Custom aluminum extrusions make sure that parts are designed to fit the requirements of specific projects. The lightweight nature of the material simplifies handling, aids in cutting costs, and with great corrosion resistance, my projects have extended lifespans. The recyclability of metals such as aluminum cuts down on environmental impact without compromising on quality. Customizations aid in eliminating unnecessary expenses and precision production which aluminum makes ideal for my uses.

Frequently Asked Questions (FAQs)

Q: What is aluminum extrusion and how does it work?

A: Aluminum extrusion is the process of forcing aluminum material through a die to create shapes or profiles. It is like squeezing toothpaste out of a tube. This manufacturing process is very important because it enables the creation of complex cross-sections, and it is used in most industries because of the benefits and versatility of the extrusion process.

Q: What are the different kinds of shapes that can be created through aluminum extrusion?

A: Aluminum extrusion is capable of producing complex shapes such as solid, hollow, or semi-hollow profiles. For a given application, Product Designers can also be able to develop bespoke extrusion profiles. Some of the frequently used shapes are bars, tubes, angles, channels and a host of other more advanced cross-sections that are aluminum specific.

Q: What are the main types of aluminum extrusion processes?

A: Direct extrusion and indirect extrusion are the two types of aluminum extrusion processes. In the case of direct extrusion, the die is pushed through the aluminum billet, while in the case of indirect extrusion, the die moves against the stationary billet. Both methods have their strengths, and they are employed according to the unique needs of the extrusion profile that is being produced.

Q: The effects of the extrusion die on the product end results?

A: The most important aspect of the extrusion die is that it shapes and specifies the desired dimensions of the final product aluminum profile. The tool is designed with a cross-section opening of the extrusion aperture. When aluminum is pressed through the opening die, it is extruded in the shape of the opening creating the extrusion profile.

Q: The treatment process of aluminum post extrusion?

A: Subsequently, the aluminum profile is quenched which means its cooled down rapidly to retain the structure. This then goes through an aging step, which can be natural or artificial. The aging process refines the overall tensile strength of the aluminum. Other extrusions may also benefit from additional strength which can be heat treated for other properties to be achieved.

Q: What’s the preferred use of aluminum extrusions and why?

A: Aluminium extrusions have a number of profound benefits because even a sufficiently large structure comprised of several components is still simple in assembly and strong, performs well against corrosion, has good thermal and electric conductivity, and allows simpler formation of complicated shapes in one step. In addition to these advantages, long pieces of uniform cross-section can be manufactured with minimal cost which is very useful when needing to use them in construction, automotive, and other industries.

Q: What distinguishes the aluminum extrusion process from other metalworking operations such as machining and casting?

A: The aluminum extrusion process is less demanding than other forms of metalworking such as cutting or engraving specific designs on the base metal. With the extrusion process, it is possible to achieve detailed intricate shapes in a single step. Moreover, it has superior surface finish as well as the ability to manufacture long lengths of materials with constant cross-section. This efficiency increases productivity while keeping the expenses low which is highly beneficial in many industries.

Q: What does a manufacturer of aluminum extrusions do and in which sectors are those products used?

A: Different extrusions are utilized in different sectors including construction for windows, doors, and structural components, transportation for automotive and aerospace parts, electronics for heat sinks, enclosures, solar energy panel frames, as well as consumer goods furniture and appliances. Due to the adaptability and characteristics of aluminum extrusions, they can be employed in many different industries.
