PEI Machining: Unlocking the Potential of Polyetherimide for High-Performance Applications

Polyetherimide (PEI) is a type of engineering thermoplastic with excellent mechanical, chemical, and thermal properties that stands out in the field. These characteristics make polyetherimide a highly sought after material in demanding industries such as aerospace, automotive, electronics, and medical devices. Yet, to fully exploit the benefits of PEI, precision machining processes are vital. This article discusses the processes involved in PEI machining, its benefits, challenges, and applications across many industries. With these understood, the manufacturers accomplish higher level end results and expand the innovation frontiers within the most sophisticated PEI based applications.

What are the key properties of PEI and its machinability?

Understanding PEI Plastic and Its Features

Polyetherimide (PEI) is primarily used for its unique attributes such as outstanding strength, high rubber-like elasticity at room temperature, and thermal stability, while also being a high performing thermoplastic. What makes it stand out is that it is self-extinguishing and gives off very little smoke. Polyetherimide is also resistant to many chemicals which is beneficial for more tough conditions. Because moisture absorption is low, and dielectric properties are consistent, it is well suited for electrical applications.

How Does PEI Compare to Other Thermoplastics?

Against other thermoplastics, PEI is well known for its cost effectiveness which surpasses that of other high end thermoplastics like PEEK and PPS as they do not cater to such competitive pricing. The cost is lower than other general-purpose polymers, for example ABS, which is compensated for by the polymer’s strength, dimensional stability, and thermal resistance. In spite of slight impact resistance comparison to PEEK, the price makes PEI a more suitable candidate where affordability and performance needs to be balanced.

What Different Types of PEI Are There And Their Uses?

Each PEI grade fulfills a certain need, giving it a specific use. The standard grades of PEI that are not filled are unfilled and they find a wide usage in the electrical and electronics industry due to their superior insulating capabilities. The Glass fiber reinforced PEI grades are stiffer and stronger which makes them ideal for structural parts in aerospace and automotive industries. Greater grade of PEI with wear-resistance is used in industrial applications with high friction, such as gears and bearings. Moreover, FDA compliant PEI, as well as medical grade PEI, is used in medical technology for the fabrication of instruments and devices which need to be sterilized. This extensive range of applications allows PEI to meet the needs of diverse industries that value quality and precision.

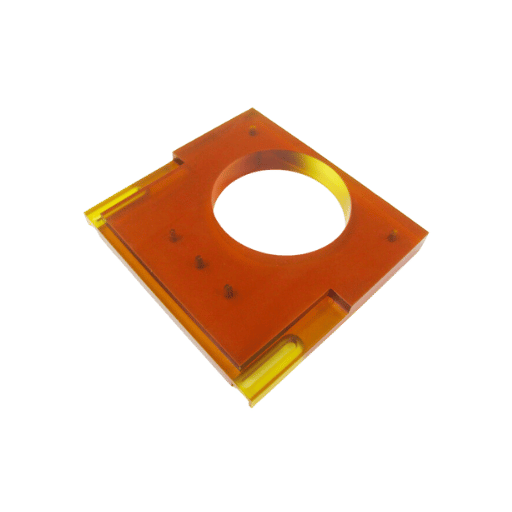

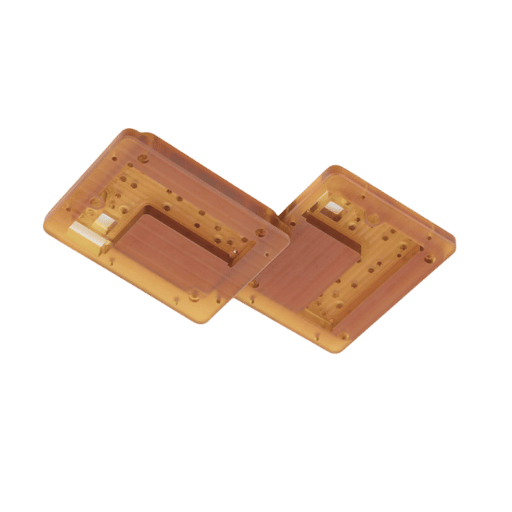

How does CNC machining work for PEI materials?

Overview of CNC Machining Processes for PEI

The CNC machining process for PEI (polyetherimide) is complex due to its substantial strength, rigidity, and thermal resistance. It typically starts with a CAD model that is subsequently translated into the required machine instructions. Common processes are milling, turning, and drilling, which all take place on powerful CNC machines which can achieve tolerances between ±0.005” to ±0.001” depending on the part specifications. In addition, PEI’s stiffness requires high speed and highly accurate cutting tools in order to avoid damaging the material.

Choosing the Right Cutting Tools for PEI Machining

Selecting the correct cutting tools is critical to ensure efficiency and avoid material wastage during PEI machining. Tools made of carbide or polycrystalline diamond (PCD) are preferred due to their high wear resistance and performance under elevated temperatures. The ideal cutting parameters include:

• Cutting speed: 80–120 m/min
• Feed rate: 0.10–0.30 mm/rev
• Spindle speed: 5,000–10,000 RPM (depending on tool geometry and part dimensions)

These settings help mitigate issues like tool wear, excessive heat generation, and poor surface quality when machining high-performance PEI.

Tips for Achieving Optimal Surface Finish on Machined Parts

Achieving a high finish quality on polyetherimide (PEI) demands proper management of machining and post-processing operations. Attention should be given to the following:

• Sharp tooling must be used: Ensure tools are serviced so they can maintain low levels of friction and avoid burn marks on the parts.
• Application of coolant: Apply air or mist as coolants to control temperature since PEI has a low thermal conductivity.
• Minimized machining forces: Employ cutting speeds and feed rates that are comparatively lower to avoid surface damage during passes. Concentrate on lighter passes.
• Secondary finishing: Components that tackling surface roughness Ra < 1.6 μm require greater finishing such as post-machining sanding or polishing to improve their aesthetic appeal should be greatly eased.

By adhering to these recommendations and having a disciplined control of the machining environment, manufacturers will be able to make quality PEI components which meet demanding criteria of the industry.

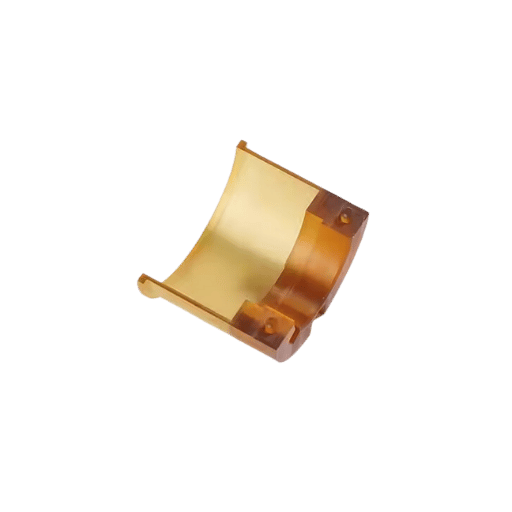

What are the benefits of machining ULTEM?

Exploring the Different Grades of ULTEM

The trade name for polyetherimide (PEI) polymers is ULTEM which functions well in distinct applications due to its different grades such as ULTEM 1000, 2100, and 2300.

This general purpose grade unfilled grade, ULTEM 1000, is suitable for being used in medical devices, insulators, and high-performance components since it possesses great mechanical strength, dimensional stability, and high resistance to heat.

Glass filled ULTEM 2100 is typically used on structural components where stiffness and thermal stability is crucial Unlike lower grades, this one has improved creep resistance that make it more durable.

Suspended in ULTEM 2300 are 30% glass fibers, which give it greater mechanical strength and rigidity than its predecessor ULTEM 2100. Because this grade performs well under severely high stress situations, it is ideal for use in aerospace and industrial applications.

Advantages of ULTEM in Aerospace and High-Temperature Applications

Because of its remarkable features, ULTEM is often used in aerospace and high-temperature applications. Its continuous-use temperature surpasses 170 degrees Celsius (340 degrees Fahrenheit), while its glass transition temperature (Tg) is about 217 degrees Celsius (422 degrees Fahrenheit). These features enable ULTEM components to endure extreme thermal and environmental conditions while maintaining structural integrity. In addition, ULTEM demonstrates desirable properties such as flame resistance, low smoke emission, and compliance with strict safety requirements in the aerospace industry like FAR 25.853.

Mechanical Properties and Chemical Resistance of ULTEM

ULTEM features a unique combination of strength and resistance towards chemicals:

• Mechanical Properties: ULTEM can withstand a tensile strength of up to 20,000 psi and flexural modulus of up to 480,000 psi. These values would be 15 psi lower for unfilled grades. Furthermore, glass-filled types such ULTEM 2300 have even higher strength.
• Chemical Resistance: ULTEM is resistant to hydrocarbon, alcohol and the majority of acids, although sodium hydroxide and other strong bases will damage it. Such traits make ULTEM functional in many aggressive chemical environments.

Its unique attributes such as robust mechanical performance, thermal stability and resistance against chemicals make ULTEM suitable for the aerospace, automotive, medical and electronic industries.

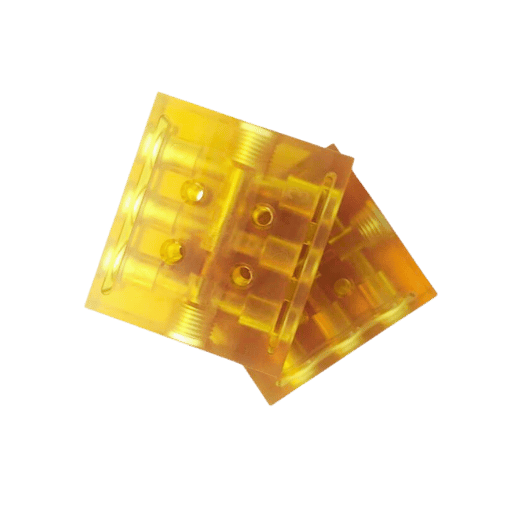

What challenges arise during PEI plastic machining?

Common Issues with Dimensional Stability and Tolerances

The dimensional and tolerance control while machining PEI (ULTEM) plastics tends to be extremely difficult. Size changes can occur if the temperature during the machining processes is changed, due to the material’s thermal expansion properties. Moreover, PEI’s rigidity makes the material stress sensitive during the cutting phase. Therefore, without proper management, the material can easily change during cutting. This issue can be managed by employing specialized cutting tools and controlling the environment conditions.

Control of Heat During The Machining Process

Even though PEI is thermally resistant and can withstand heat, the heat generated during machining can still affect the material. Poor use of feed rates and worn tools create excessive surface friction that, in turn, causes localized melting of the material and thermal stress, which can lead to surface defects. To counter this, a combination of cooling, sharp carbide tools and effective machining parameters must be employed to prevent thermal deformation and produce effective material.

Impact Resistance and How This Affects the Process of Machining Functions

Even though PEI is moderately resistant to impact, it nonetheless influences my attitude towards machining. When cutting or drilling, there is a danger of microfractures or chipping away of edges and thinly walled portions due to excessive impact. Also, In order to reduce any stress-induced defects, I focus on techniques like gradual feed rates, selection of appropriate tools, and proper tool geometry as well as careful clamping. Such considerations enable me to precision-machine PEI components that meet rigorous industry demands.

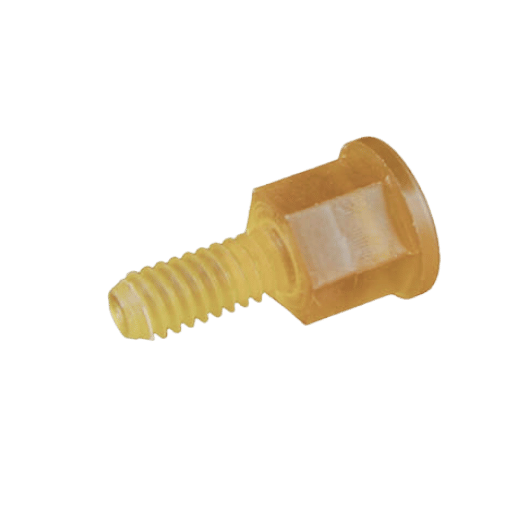

How to select the right PEI grade for your project?

Factors to Consider When Choosing Between Different Grades

Choosing the correct PEI grade for a given appliacation requires a careful assessment of the materials mechanichal properties, its environment of application, and expenses incurred. PEI grades are available in unfilled and fiber filled forms, both of which have their unique features from a performance perspective. Thermal stability, mechanical strength, rigidity and wear or chemicals resistance are key important considerations. Likewise, the manufacturing method employed as well as the expected stress loads also help define the optimal grade.

The significance of determining mechanical strength and rigidity

Mechanical strength and rigidity is one of the rampant deciding factors when selecting the grade between different PEI grades. Weight unrestricted PEI grades boasts of having high rigidity with excellent dimensional stability and also possesses reliable tensile strength in applications where materials have to be lightweight. Fiber filled grades comprising of glass or carbon fibers are mechanically stronger and more rigid, as is often needed in high load and severe environment conditions. Understanding these properties shown above helps achieve design specifications as well as required material toughness.

Applications Suited for Unfilled Versus Fiber-Filled Grades

Unfilled PEI:

• Electrical Insulators – Due to its inherent characteristics, unfilled PEI is ideal for use in electronic components.
• Non-structural Aerospace Parts – Unfilled PEI is appropriate for those applications which do not emphasize strength due to its light weight and ease of machining.
• Medical Devices – Unfilled PEI is commonly employed in single-use and sterilizable medical instruments due to its ability to withstand high temperatures.
• Consumer Products – Unfilled grades are ideal for the manufacture of transparent food containers and other items that require food grade compliance.

Fiber-Filled PEI:

• Structural Aerospace Components – Components critical to aerospace functions are well supported by carbon-fiber and glass reinforcement that boosts rigidity and strength.
• Automotive Applications – Under the hood components are well suited for fiber filled PEI because of its superior thermal and mechanical strength.
• Industrial Equipment – Strain reducing brackets, housings, and gears are exceptionally well manufactured using high strength fiber filled grades.
• High-Performance Electronics – Challenging components and electrical connectors are adequately procured due to its strength and dimensional stability.

Knowing the distinctions, alongside the project cost and performance, helps in making the decision on the most optimal PEI grade.

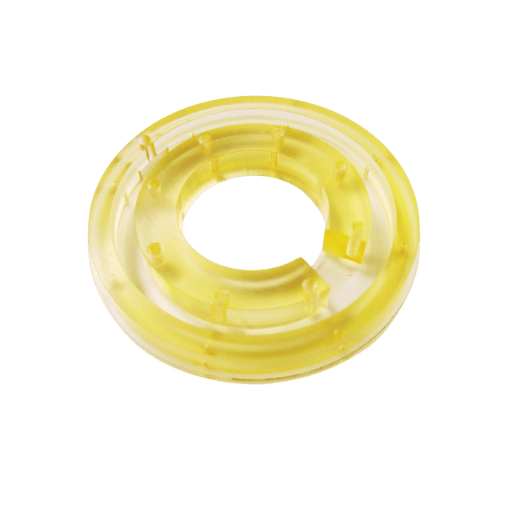

What are the future prospects of PEI and plastic machining?

Emerging Trends in High-Performance Thermoplastics

Cutting-edge industries are progressively seeking the customization of high-performance thermoplastics, such as PEI. One growing direction includes the creation of carbon fiber and nanotechnology containing blends and composites for strength improvement as well as enhanced thermal conductivity. An example for this is carbon nano tube infused PEI which has superior electromagnetic shielding properties. This is useful for aerospace and electronics industries. Moreover, sterilisable and long life functioning applications in the medical field are also seeing the rise of biocompatible grades of PEI. The evolution of these materials allow for lightweight, more sustainable, and higher operational temperature to meet modern engineering obstacles.

PEI Machining Technology Improvements

To fully leverage the potential of PEI, modern machining technologies focus on accuracy and material conservation. PEI’s high strength and thermal stability make it suitable for high-performance CNC machining with diamond plated tools. Cryogenic cooling and other thermal control methods are being implemented to reduce thermal damage while finishing up the surface. Improved softwere is used for process optimization which gives control on parameters like machining time, temperature, and routing which results in better machining processes. Such innovations are important for industries with high requirements for tolerances and strength, including aviation and electronics. Key technical parameters comprise cutting speed (10-30 m/min for unfilled PEI, 8-20 m/min for fiber filled PEI) and tool material (polycrystalline diamond or carbide are the best achieved results).

The Contribution of PEI to Sustainable Manufacturing Processes

Through its long product life span, excellent recyclability, and extreme flexibility, PEI helps to provide sustainable manufacturing practices. The reduced weight designs enabled by PEI result in lower energy use in transportation systems like automotive and aerospace. Stringent resistance to degradation assures further waste reduction over time, enabling longer product lifespans. Moreover, fiber-filled PEI grades can be mechanically recycled into secondary applications, which helps in supporting approaches that promote circular economy without marked degradation of mechanical properties. Also, the use of water-based cooling systems during machining operations represents the sustainable way of reducing the environmental burden. Eco-friendly designs of PEI show its versatility in furthering its contribution towards green manufacturing and indicate its increased importance in eco-friendly designs.

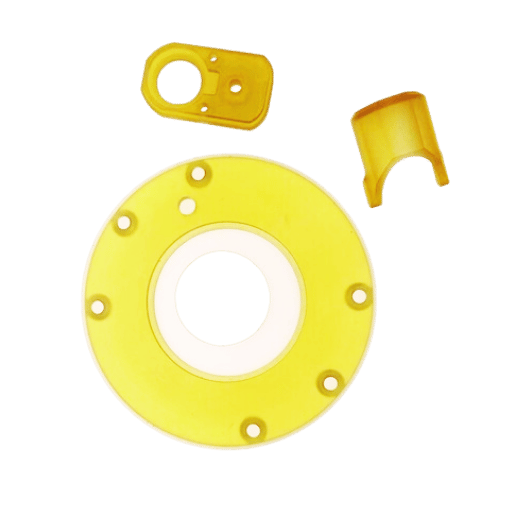

Frequently Asked Questions (FAQs)

Q: What are the machining properties of PEI?

A: Specifically, PEI (Polyetherimide) possesses a remarkable combination of mechanical and thermal properties that includes high tensile strength, flexural strength, and dimensional stability at elevated temperatures. These properties makes it suitable for machining in harsh environment conditions.

Q: What is Ultem and what is its relation to PEI machining?

A: Ultem is a trade name of a family of Polyetherimide or PEI thermoplastic polymers. It is well known for its high strength, flame retarding capabilities, and stability under high temperatures, making it a standard material for CNC machining services.

Q: What are the different grades of Ultem for machining?

A: Ultem 2100, 2300 and others are grades of Ultem that possess unique mechanical and thermal properties which makes them suitable for specialized uses in the aerospace and electronics industries.

Q: In comparison to other polymers, how does the machinability of Ultem rank?

A: Therefore Ultem is considered to have good machinability, though Ultem’s machinability under grade classification can differ. It requires specialized CNC machining services precision cutting, because of its toughness and high strength.

Q: Is Ultem applicable for use in settings where it needs to withstand fire?

A: Yes, Ultem specializes in resisting flames which makes it desirable in industries where fire safety is crucial. Properties of Ultem ensure that the material remains intact even under extremely challenging conditions.

Q: In what ways does glass fiber-filled Ultem aid in providing an advantage in its machining applications?

A: Glass fiber-filled Ultem fills additional polymer which in turn improves the mechanical properties of the base polymer. Thus, Ultem is ideal for applications that need extensive tensile and flexural strength boosting.

Q: In what ways do the mechanical properties of Ultem influence his use in machines’ interior components?

A: Toughness and great tensile strength are examples of Ultem’s mechanical properties which enables it to bear internal stress and wear. This drastically mitigates the risks of cracking and failing which greatly improves the lifespan of the components.

Q: Why does material choice matter when Ultem is selected for machining processes?

A: Material choice fundamentally impacts performance in machining processes. The appropriate grade of ultrasonic cutting tool for materials should be selected based on the mechanical and thermal properties of the specific Ultem grade sought for optimal durability, functionality, and efficiency of the end product’s attributes.

Q: What industries benefit from the utilization of Ultem in machining?

A: Ultem is advantageous in the machining field of many industries, especially in the aerospace and automotive and even in electronics. Its distinct characteristics allow it to serve in advanced multifaceted roles such as insulators and other structural parts.
