Unveiling the 3 Main Types of Laser Cutters: Choose the Right Laser for Your Cutting Needs

The precision manufacturing processes have seen extensive changes owing to the advancements made in laser cutting technology. While all laser cutters serve the same purpose, not all of them possess the same features. Selecting one that best serves your purpose requires careful analysis of several factors: efficiency, quality, and cost. In this article, we will discuss the three major types of laser cutters, highlighting their differences, use cases, and pros. Regardless if you have years of experience, or just starting, you will find the right information here to make the most appropriate choice for your projects.

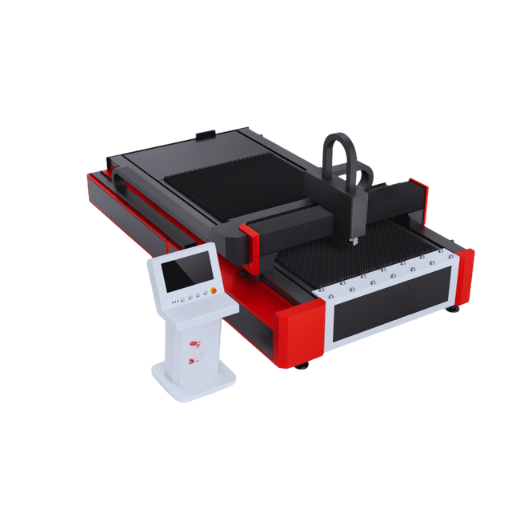

What are the three primary types of laser cutters available?

The three major categories of laser cutters are as follows:

CO2 Laser Cutters

Versatile CO2 laser cutters are perhaps the most popular of laser cutters. They can be used for cutting, engraving, and marking non-metal materials such as wood, acrylic, paper, and some plastics. They are also effective for some thin-coated metals.

Fiber Laser Cutters

Fiber lasers offer great precision with speed, making them especially suited for industrial applications. These lasers are suitable for cutting metals like stainless steel, aluminum, brass, and copper.

Crystal Laser Cutters (Nd: YAG and Nd: YVO4)

These lasers are better for engraving or cutting metals and ceramics, which is their most accurate use case. They can be used when fine detail is required for marking or engraving.

Deciding each type depends on the material and outcome desired, so each has different applications.

CO2 lasers: The versatile workhorse of laser cutting

Having been developed in the 1960s, CO2 laser technology is one of the most versatile in industrial manufacturing and is commonly utilized for cutting and engraving purposes. Their operation involves the electric stimulation of a gas mixture comprising carbon dioxide, nitrogen, and helium, which produces a strong infrared light beam. The material is then cut using a powerful light beam produced by these lasers that operate at a wavelength of 10.6 micrometers. Such a wavelength enables cutting through a variety of materials such as wood, plastic, glass, textiles, and mild and stainless steel.

The effectiveness of lasers makes them helpful and efficient in numerous operations. Modern CO2 laser systems are versatile and useful, and their power ranges from 20 watts for small tasks to several kilowatts for midrange work. Their supportive attributes allow handling of both precise and heavy complex work with ease. High-speed cutting along with high strength efficiency and low thermal damage make them ideal for effective and detailed work.

CO2 laser systems are estimated to enable cutting speeds of up to 300 inches per minute about the particular material and process thickness. For instance, they can cut 1/4 inch acrylic 10 times faster than some other laser technologies. The dependability and low cost of CO2 lasers make CO2 popular in the automotive, aerospace, signage, and packaging industries.

Moreover, CO2 lasers are well known for their flexibility. Many advanced systems can be integrated with computer numerically controlled (CNC) technology which allows for high precision and degree of automation. This flexibility means that CO2 lasers will remain, for the foreseeable future, the primary workhorse for manufacturers who want maximum efficiency and flexibility in their laser-cutting processes.

Fiber lasers: Precision and power for metal cutting

The metal-cutting process with fiber lasers is easy, efficient, and greatly productive because of the precision and energy output the lasers possess. These lasers utilize optical amplifiers in the form of fibers which help to focus the light beam to work with and cut multiple types of metals such as aluminum, steel, and copper. Due to these lasers offering low maintenance while still having an efficient use of energy, the operational costs are reduced. Because of the impressive efficiency and versatility posed by fiber lasers, they have become the preferred choice for industries predominantly focused on metal fabrication and manufacturing. In addition to these benefits, they also provide rapid processing speeds and accuracy, which makes them perfect for intricate design tasks and also for mass production.

Crystal lasers: Specialized cutting for unique applications

Nd: YAG (neodymium-doped yttrium aluminum garnet) and Nd: YVO4 (neodymium-doped yttrium orthovanadate) are types of crystal lasers used for engraving and cutting with precision. They utilize a crystal as the gain medium, above which light energy is converted into a mighty and focused laser beam. To meet extreme precision requirements, these systems are capable of achieving high peak power with excellent beam quality.

The versatility of crystal lasers includes compatibility with a diverse range of materials, which is crucial in the laser-cutting process.

• Crystal lasers have an operating range of 1064 nm (infrared light) and can also be frequency-doubled to produce a 532 nm (green light) output. This feature of versatility further enhances their effectiveness and performance among the three types of lasers present.
• Pulse Energy: The pulse energy capable of these lasers is ideal for high-precision micromachining and drilling due to being several millijoules.
• Repetition Rates: Micromachining crystal lasers can operate with high repetition rates from single pulses to several kilohertz. This increased option allows them to be tuned for specific cutting or engraving requirements.
• Compact Size: These systems are often compact owing to their design of crystal lasers, which makes them ideal for use in laboratories or industries that are space-constrained.
• Durability: Due to efficient cooling systems coupled with sturdy construction, crystal lasers provide exceptional life to the equipment even in harsh working conditions.

Crystals lasers are applied in:

• Electronics: High-precision cutting and engraving on circuit boards and microchips.
• Medical Devices: Manufacturing intricate medical instruments and implants.
• Aerospace: Engraving and cutting of lightweight materials used in aerospace components.
• Jewelry: Intricate engraving on precious stones and metals.
• Scientific Experimentation: Use in research laboratories for fabricating optical components or for conducting ultra-precision experiments.

Crystal lasers have no comparison in the performance of tasks that demand unmatched precision and are commonly found in industries where extreme accuracy and dependability are required. Such advanced parameters render it an essential device for contemporary innovation and specific purposes.

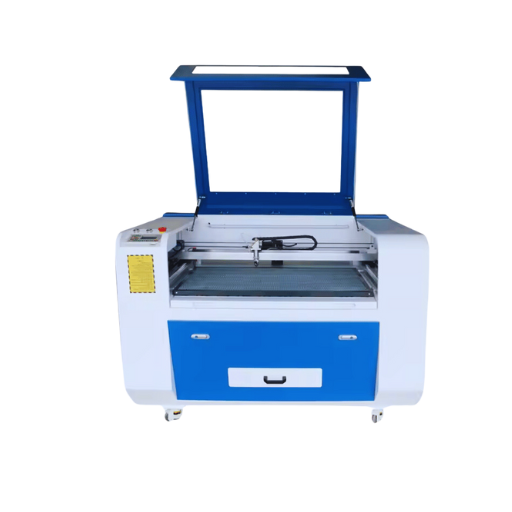

How do CO2 laser cutters work and what materials can they cut?

Understanding the CO2 laser-cutting process

A mixture of CO2 gas, Nitrogen, Helium, and sometimes Hydrogen is utilized in generating a high-energy beam which is then used in CO2 laser cutters. Mirrors and A lens focus this laser beam on the material that needs to be worked on. The beam generates incredible heat which vaporizes, melts, or burns the material, thereby allowing exquisite cuts. CO2 laser cutters have one of the broadest ranges of applications, as they can cut wood, glass, plastics, textiles, and even some metals. They are therefore extremely useful in crafting, manufacturing, and industrial processes.

Materials suitable for CO2 laser cutting

Over the years, CO2 lasers have made a name for themselves in cutting and engraving due to their versatility, speed, and high precision. This has made them an invaluable asset in many industries. Here’s an outline of the materials that are typically appropriate for CO2 laser cutting and some noteworthy details to consider for each of them.

Wood

Wood cutting and engraving are considered one of the popular types of laser cutting, where CO2 lasers offer the best precision among various cutting machines. Types of wood that are common include plywood, MDF, and natural hardwood. Due to the precision of laser technology, intricate designs can be cut which makes it especially popular for furniture production, crafts, and architectural models. Softer woods, such as pine may need less power to stop them from charring.

Acrylic is a type of material that can be used for cutting and engraving for many types of laser cutting machines because it is easy to work with.

Acrylic is one of the most laser-friendly materials because it is transparent and glossy. Its polish gives it a classy look. CO2 lasers do acrylic cutting and engraving with great ease because they achieve polished and flame-smooth edges which makes further post-processing unnecessary. Hence, it is highly preferred in signage and display cases or many other decorative items. Both cast and extruded acrylics can be used, although cast acrylic is better.

Plastics

PETG, foam board without PVC, and polycarbonate sheets are all types of plastic that can be processed with CO2 lasers, which is a type of carbon dioxide laser. Meanwhile, others like polyvinyl chloride or Teflon cannot be laser cut due to the hazardous fumes they give off. Always check the chemical composition of the plastic to ensure that it is safe and compliant with environmental legislation.

Textiles

Cotton, felt, leather, silk, and polyester can all be cut precisely with minimal fraying using laser-cut machinery. This allows for more creative freedom in fashion design, upholstery, and customized products. Along with speed, precision is easily achievable for the desired end product.

Glass

Unlike other materials, glass cannot be cut by CO2 lasers, but it can engrave glass surfaces. The laser gives frosted effects to the glass which is desirable for personalized items, from decorative panels to awards to etched drinkware. Alternative methods may be needed for cutting thin glass sheets.

Metals (Certain Types)

If sufficient CO2 power output is available, thinner metals like anodized aluminum, along with stainless steel, can be marked or etched. Fiber or YAG lasers tend to be better for deep cutting.

Foams and Rubbers

Specialized foams and rubbers like EVA foam and sponge rubber can be cut effortlessly with CO2 lasers. They are widely used in the manufacturing of packaging materials, protective padding, and gaskets. Make sure the material of choice does not produce hazardous fumes while being cut with the laser.

Paper and Cardboard

The exquisite detail achievable with invites, packaging designs, and prototypes can be carved out using CO2 lasers on paper and cardboard with unmatched efficiency. Due to the highly flammable nature of these materials, appropriate power levels need to be used to reduce scorching.

Every material possesses distinct chemical and thermal characteristics that will affect the behavior of the material when it comes into contact with the laser beam. To achieve the best quality cuts and engravings without damaging the material, it is crucial to change the laser power, speed, and focus accordingly.

Advantages and limitations of CO2 laser cutters

Benefits:

Superior Laser Cutting Accuracy

CO2 laser cutters have an unrivaled capacity for precision cutting and engraving with variances of ±0.01 mm. This makes them particularly suited for delicate designs and intricate patterns in different materials.

Wider Applications

Such devices are capable of processing various non-metal materials such as wood, textile, and glass, alongside plastics and acrylics. These features make them highly favorable in the manufacturing, crafts, and signage industries.

Maintenance-Free Contactless Cutting

With CO2 laser cutters, there is no physical engagement with the workpiece. This means that tools do not wear out, and there’s less chance of mechanical stress and damage to more sensitive materials.

Increased Efficiency

In addition to their vast range of applications, CO2 laser cutters have other advanced features like high operating speeds, which together lead to superior productivity; an example is the ability to cut acrylic sheets with a CO2 laser at speeds of 500 mm/s depending on the sheet’s thickness.

Flawless Edges and Cuts

The seals and edge finishing of numerous materials can be attained with next-to-no active intervention since the heat from lasers can melt and seal the edges.

Eco-Friendly

CO2 lasers, in comparison to other approaches, are more efficient because they produce a lower volume of waste and often do not require chemical treatments or additional physical processing.

Setbacks:

Limited Potential with Metals

Standard CO2 laser cutters have difficulty with reflective metals like aluminum and copper. Cutting of metals is usually done with high-powered fiber lasers and not with conventional CO2 systems unless they have gas assist options which most of the time are not available.

Material Limitations

Some materials like PVC when processed can emit fumes that are hazardous and therefore cannot be used. In addition, some materials have a heightened degree of flammability which necessitates advanced precautionary measures.

Significant Initial Expenditure

Obtaining a CO2 laser cutter is usually a significant investment considering they range from $5,000 to over $50,000 depending on the specifications which is a major drawback for hobbyists and small businesses.

Routine Maintenance and Operating Expenditure

To maintain desired performance, regular maintenance such as cleaning optics, replacing consumable parts like lenses and mirrors, and ventilation systems upkeep is essential. Also, operational costs increase with consumables such as CO2 gas.

Health Issues

CO2 lasers present risks for injury as a result of direct eye exposure to the laser and fumes emitted from materials as hazard inhalation. Armed with adequate safety equipment such as laser shields and air filtration systems can mitigate these dangers.

Energy Consumption

Compared to other methods of cutting, CO2 laser cutters are the most energy-consuming, especially with thicker or denser materials. For example, a 100W CO2 laser can consume up to 2 kWh during extended operations.

Users will make an informed decision regarding the feasibility of CO2 laser cutters after evaluating their project specifications and operational limitations.

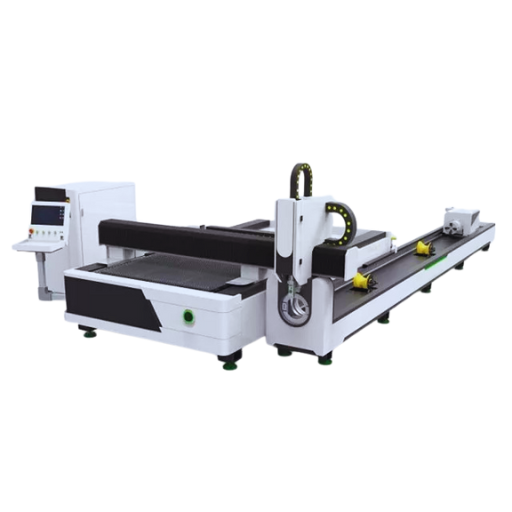

What makes fiber laser cutting machines ideal for metal fabrication?

The technology behind fiber laser cutting

A fiber laser cutting employs a system that is based on a laser beam that is generated and focused using a beam with a fiber optic cable that is doped with rare-earth elements such as ytterbium. This does the cable’s ability to utilize the laser’s highly focused light. Unlike CO2 lasers, fiber lasers are not dependent on gas mixtures, Thus, fiber lasers do not waste energy and only require low maintenance.

With the laser beam intensity delivered, fiber lasers can reach power levels sitting between 1kW to over 20kW introducing no limits in precision while cutting metal sheets made from alloys of stainless steel, carbon steel, aluminum, and brass. As a result, the fiber laser cutters are capable of achieving greater cutting speeds, for example when using thin steel sheets, And minimizing the heat-affected zone which lowers the chances of deforming the material.

The approximate wavelength of fiber laser technology at 1.06 micrometers is another benefit, as it is much lower than CO2 lasers’ 10.6 micrometers. It is easier for fiber lasers to be absorbed by reflective materials such as aluminum and copper, which makes fiber lasers ideal for many applications in metal fabrication. For example, in some industrial systems, the cutting of reflective surfaces can be performed without compromising the equipment with beam reflection.

In particular, fiber laser cutting machines are also popular among different types of laser cutting machines due to their lower operational cost. These systems are capable of converting up to 40% of the power they draw into effective cutting energy compared to the 10-20% efficiency of CO2 lasers. The improved energy efficiency, lower frequency of component parts, and reduced expenses ensure a more economical long-term strategy for industrial operations.

Comparing fiber lasers to other types for metal cutting

With regard to precision, speed, and cost-efficiency, fiber lasers have distinct advantages over CO2 and Nd: YAG lasers. The differentiating factor among these three types of lasers is the wavelength of generating light. The operating wavelengths of fiber lasers is around 1 micron, which is more efficient in absorption into metals than the CO2 laser’s 10.6 micron wavelength. This feature guarantees better energy use in the cutting process, making fiber lasers very useful for cutting reflective materials such as aluminum or copper which are difficult to slice without the beam being rejected or damaging the laser source.

Fiber lasers also excel in speed. When dealing with thin materials below 6mm, the cutting speeds are, at maximum, three times higher than that offered by a CO2 laser. For instance, a 3kW fiber laser can cut 1mm stainless steel at approximately 35 meters per minute, while a 3kW CO2 laser cuts such materials at a speed of 12-14 meters per minute. This increase in efficiency decreases production time and increases the output for industrial purposes.

Compared to CO2 lasers, which use mirrors and lenses that deteriorate with time, fiber lasers need maintenance. The solid-state structure of fiber lasers removes the need for these components which leads to lesser part replacements and downtime of the machine. When compared to Nd: YAG lasers, fiber lasers can incur greater beam quality which improves the cutting precision, therefore leading to lesser waste of materials.

The fiber laser systems, while more expensive from the outset, prove to be more cost-effective in the longer run due to savings on energy and lowered maintenance costs. For instance, the efficiency of fiber lasers is estimated to be about 40% while CO2 lasers only sit at around 10-20%. When taking these savings into account along with the increased performance, fiber lasers prove to be more sustainable than other lasers for modern metal cutting industries.

Benefits of using fiber laser cutters for sheet metal

• Speed and Precision: Fiber laser cutters provide the highest level of accuracy ensuring that the product has the cleanest and most precise cuts possible. These cutters also work much faster than others, improving productivity for many different applications.
• Energy Efficiency: Compared to traditional cutting means, fiber lasers consume less energy, lowering operational costs and reducing the negative environmental impact. This illustrates the advantages of modern laser-cutting technologies.
• Versatility in Materials: Fiber laser cutters can perform with a great variety of sheet metals, ranging from stainless steel to aluminum, and even brass.
• Low Maintenance: Fiber laser systems have lower parts counts which makes them less prone to mechanical failure which translates to less maintenance downtime and costs through the duration of use.
• Improved Safety: Modern designs come with features like cutting zones that are enclosed which guard against several operational safety hazards.

When should you consider using crystal or solid-state lasers?

Understanding crystal laser technology and applications

Crystal lasers, or solid-state lasers, make use of crystalline gain media like Yttrium Aluminum Garnet (YAG) with rare earth elements, neodymium (Nd), and ytterbium (Yb) as its constituents. Being highly efficient with exceptional optical properties the lasers are versatile in their applications. A detailed list of their features, advantages, and common use cases is presented below:

Key Features of Crystal Lasers:

High Power Density: Crystal lasers emit compact energy of a very high power output which makes them suitable for precision work.

Excellent Beam Quality: The produced laser beam is very coherent and focused which facilitates highly detailed and precision operations.

Pulsed or Continuous Operation: They can operate in both continuous-wave or pulsed modes for flexibility based on specific application needs.

Thermal Stability: Prolonged operational cycles are made possible by advanced cooling systems which maintain thermal stability.

Advantages of Crystal Lasers:

Durability: The crystalline material is robust providing resilience and long operational life making it durable.

High Efficiency: These lasers have low energy losses and hence good efficiency making them suitable for both industrial and medical applications.

Versatile Wavelengths: The doping elements in crystal lasers lead to varied output wavelengths which enable a wide range of tasks.

Common Applications of Crystal Lasers:

Industrial Manufacturing:

Laser engraving and etching for metals and ceramics.

Lidars for accurate distance measuring and mapping, as well as military range-finding and target designation.

For medical procedures such as precision eye surgeries like LASIK using Nd: YAG lasers, as well as cosmetic tissue and skin surgeries.

For particle dynamics studies with the use of ultra-short laser pulse as well as spectroscopy applications for material observation and analysis.

As a defense and aerospace application, the employment of crystal lasers in different technological fields offer high efficiency and precision, which makes these lasers invaluable. These different sectors will ensure the continuous development in the implementation of advanced technologies.

Comparing crystal lasers to CO2 and fiber lasers

It is essential to note that crystal lasers, CO2 lasers, and fiber lasers have distinct advantages depending on their application.

• Crystal laser devices are known for high accuracy and ultra-precision of longitudinal mode crystal lasers. Their capacity to manufacture ultra-short pulses makes crystal lasers the most suitable in industries that need micro precision such as medical and scientific domains. they work properly in a wide range of wavelengths.
• Crystal lasers emit laser radiation of high accuracy and ultrahigh depends on the unique features of CO2 gas laser. This type of laser unlike other fiber lasers is cost-effective and has a high level of effectiveness and is better employed in industrial-scale operations. It, however, does not have the accuracy of the crystal lasers. Non-metallic materials like; wood, plastic, and glass are easily engraved and cut with a CO2 laser.
• With superior energy efficiency, fiber lasers are widely used in industry for their ability to cut and weld metal as well as mark it. Unlike crystal lasers, they require lower maintenance and are more durable. This makes fiber lasers more suited for heavy-duty applications.

The choice between types of lasers mostly depends on the material that has to be processed, the level of precision that is required, and the operational efficiency that is needed. All these types of lasers have a specific niche where they perform most efficiently.

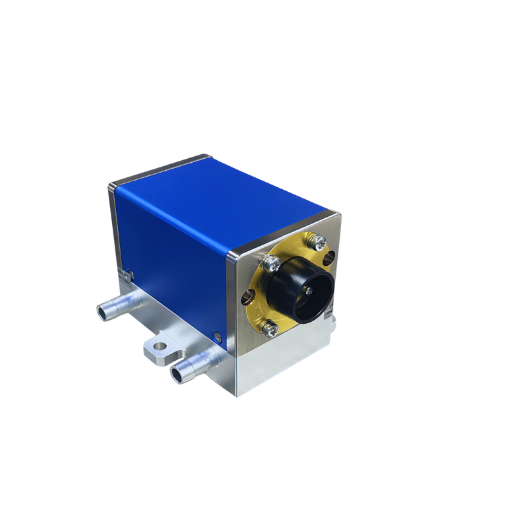

How do diode lasers fit into the laser-cutting landscape?

Introduction to direct diode laser technology

As the most energy and space-efficient option for laser cutting, direct diode laser technology is remarkably advanced. With direct diode lasers, light is produced right from diodes instead of relying on outside systems like crystals, or fibers which leads to energy waste. These systems are recognized and appreciated for having a high level of energy efficiency, low maintenance needs, and the capability to serve different types of cutting tasks. Although the signal output power is generally lower than that of some industrial laser types, modern technology enables the use of direct diode lasers for more precise and economical operations.

Advantages and limitations of diode lasers in cutting applications

Benefits of Using Diode Lasers

Energy Efficiency

In comparison to other types of lasers such as CO2 or fiber lasers, diode lasers exhibit exceptional energy efficiency and higher output with a typical efficiency of up to 60%. With diode lasers, a larger share of electricity is transformed into usable laser light.

Compact and Lightweight Design

Because there are no intricate optical parts involved, diode lasers have a minimal size footprint, allowing for portable or portable use in industrial applications. The compact size makes diode lasers perfect for portable and compact industrial facilities.

Low Maintenance Requirements

Because of its solid-state construction with no moving parts or delicate components, direct diode lasers suffer less wear and tear. Consequently, these types of lasers require low maintenance costs with unobtrusive Laser Cutting Equipment downtime.

Cost-Effectiveness

Diode lasers are especially efficient for low to medium-power applications due to their inherent simplistic design and low consumption of energy. Their relative cost structure makes them an effective solution for appropriate laser needs.

Precision and Flexibility

In addition, diode lasers are easily adapted to different types of materials making them versatile tools in the cutting process. They also provide excellent control and quality of the beam which makes them ideal for precision work such as cutting thin materials and intricate engravings.

Efficiency of Thermal Management

Due to lower heat production and better thermal management the system stability is sustained by diode lasers, which is important for use in industrial settings over long periods.

Diode Laser Limitations

Lower Energy Output

Diode lasers have lower power output when compared to other industrial laser systems. Even though new developments have made improvements in this area, alternatives to diode lasers will still be needed for high-power applications.

Appropriate material compatibility is essential in choosing a laser-cutting machine for a particular application.

The effectiveness of diode lasers is lower than the cutting efficiency of some alternative laser technologies such as fiber lasers, especially for metals with high reflectivity or large thickness.

Restricted Beam Quality with Increased Power Usage

For very power-demanding industrial applications, beam quality from lasers used at high power levels is difficult to sustain.

High Capital Costs

High-quality diode laser systems have low operating costs but depending on the application or degree of customization required, their setup cost can be high.

Considering these advantages alongside their limitations will allow management and engineers to make effective decisions concerning the intended cutting and processing tasks requiring utmost performance, least cost, and maximum usability.

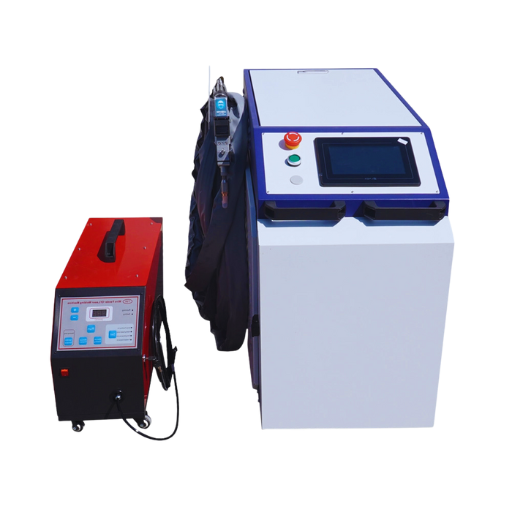

Which factors should you consider when choosing the right laser-cutting machine?

Matching laser type to your specific cutting needs

The choice of a laser-cutting machine largely depends on the material to be processed and the level of cutting accuracy required. Fiber lasers are more efficient and faster for cutting metals like aluminum, steel, and copper. On the other hand, CO2 lasers are more versatile and economical for cutting non-metal materials like wood, plastics, and glass. Also, take into account the material’s thickness. Cutting thinner materials is achievable with fiber lasers, whereas higher-power setups are needed for thicker materials. The cost-performance ratio must be attended to so that the machine is matched with production volume and accuracy needs. With all these considerations taken into account, it is possible to find the most appropriate laser technology for the job.

Evaluating cutting speed and precision requirements

Speed and accuracy are the two most critical factors in the measurement of a laser cutting machine’s productivity. Higher cutting speeds, for example, add to productivity by reducing processing time, but they cannot come at the cost of the accuracy of cuts in the laser cutting mechanism. Modern fiber lasers, for example, are capable of cutting thin materials, such as sheet metal, at speeds close to 60 inches per second while achieving tolerances of ±0.001 inches. Such precise laser cutters are, therefore, suitable for industries which have stringent requirements like aerospace and medical devices manufacturing industries.

On the other hand, when cutting thicker materials, such as steel plates greater than 10 mm, slower machines operating at higher power outputs may be necessary to achieve clean cuts with no burrs on the edges. A 6 kW fiber laser, for example, executes cuts on 10 mm mild steel at a speed of approximately 1.4 meters per minute which is reasonably fast and precise. Besides, advanced integration of software into machines enables automatic path strategy optimization which increases cutting effectiveness and decreases wasting materials. Evaluating your operational priorities will help choose a machine that meets the production and quality standards required.

Considering material compatibility and versatility

A laser’s effectiveness will depend on the properties of the materials in processing, as it is the case with fiber lasers that cut reflective materials like aluminum, brass, and copper because of their high absorption at shorter wavelengths. Fiber lasers cut 1-mm-thick aluminum at 40 meters per minute using a 4 kW machine which is very efficient compared to other lasers and showcases how these lasers dominate the market.

CO₂ lasers are best suited for non-metal materials such as acrylic, wood, and glass as these materials do not absorb fiber laser wavelengths effectively. For example, when cutting 10-mm thick acrylic sheets, CO₂ lasers at 150 watts lose their edge while cutting between 100 to 150 mm per second which results in smooth polished edges as they are cut.

Alongside the enhancement of multi-axis machining systems, flexibility is improved, allowing the manufacturer to work on intricate shapes on different types of materials. The hybrid laser systems that integrate fiber and CO₂ lasers now offer an accommodation for material change without loss of efficiency. Furthermore, automated features including real-time material identification and parameter changes guarantee the best cutting conditions for the appropriate laser cutter. Matching machinery requirements with the characteristic features of the material to be worked on increases productivity while ensuring set quality levels are achieved.

Frequently Asked Questions (FAQs)

Q: What are the different types of laser cutters available?

A: CO2 lasers, fiber lasers, and crystal lasers are the three main types of laser cutters. Each of these types of laser cutting technology is best suited to different materials for different applications, so they each have their own advantages and disadvantages.

Q: What is a CO2 laser and what is it best used for?

A: CO2 lasers are gas lasers that have carbon dioxide as the laser beam’s medium. CO2 lasers are incredibly versatile as they cut and engrave non-metal items such as wood, acrylic, plastic, fabric, and thin metals exceptionally well. CO2 lasers have become popular in many industries, such as sign-making, woodworking, and textile cutting.

Q: How does a fiber laser differ from other types of lasers for cutting?

A: Fiber optic cables doped with rare earth elements serve as the solid-state medium for fiber lasers. They are also incredibly efficient and have a fine beam produced at a high intensity. Fiber lasers are superb at cutting metals, even highly reflective ones, like copper and brass, and are great at precision cutting in the automotive and aerospace industries.

Q: Which materials are efficiently cut by crystal lasers?

A: Also referred to as Nd: YAG lasers, crystal lasers use the crystal as the lasing medium. They are efficient in cutting both metals and non-metals. In particular, crystal lasers are efficient in cutting and engraving metals, ceramics, and certain plastics. Jewelers, medical device manufacturers, and electronic industries often employ these lasers.

Q: What are the factors I should consider when selecting a suitable laser cutter?

A: In selecting a laser cutter, consider the types of materials that will be cut including the shapes’ thickness, cutting accuracy, production quantities, and cutter purchase price. Non-metals are best cut with CO2 lasers, fiber lasers are best with metals, and crystal lasers can do both. Consider the features and power of the laser-cutting equipment concerning your specific needs.

Q: Are different materials laser cutters can work on?

A: Yes, laser cutters work on a wide variety of materials, but the type of laser determines how good it will be. CO2 lasers cut organic and non-metal materials better. Fiber lasers are the best for metals and crystal lasers are mediocre for both types. It is best to tailor the laser type to the materials you will work with most often.

Q: What are the pros of cutting materials with a laser compared to other methods of cutting?

A: Laser cutting has several benefits compared to traditional methods of cutting. These include higher precision cuts with clean edges, the ability to cut more complex designs, and the ability to perform non-contact cutting. This results in very little contact with the material which lowers tool wear and material waste. It is also incredibly fast, especially for intricate patterns, and can quickly change between different materials and designs without needing to change tools.

Q: In what manner does the power of a laser cutter affect its functionality?

A: The performance of a laser cutter is cutting ability and speed, both of which are directly related to the power of the laser. More powerful lasers slice through thicker materials and work at a greater speed. For instance, a 150-watt CO2 laser can slice materials thicker than what a 40-watt CO2 laser can. Yet, not all cases require the most power, it depends on what your goals are. For thin materials or engraving, a less powerful laser is likely ample, and more economical.

Reference Sources

1. An overview of laser cutter pathing algorithms.

• By: Reinald, P. Vansteenwegen, D. Cattrysse
• Date Of Publication: 12 March 2016
• Overview: This paper proposes a survey of existing algorithms for the optimization of a cutting path in laser cutting processes. It does not explicitly state that there are three classes of laser cutters, but it does explain the functioning and efficiency of CO2 lasers, fiber lasers, and solid-state lasers.
• Procedure: The authors carried out an exhaustive review of the literature citing 82 documents to describe the existing cutting path algorithms and their use in laser cutting technology(Dewil et al., 2016a, pp. 1865-1884, 2016b, pp. 1865-1884).

2. Control Activities Regarding Waste Gases And Particles From The Operation Of Laser Cutters Used In The Automotive Textile Industry

• By: R. D. Ball, B. Kulik, R. J. Stoncel, S. L. Tan
• Published On: 12th November, 1986
• Overview: This paper presented at a conference analyzes the ecological consequences of laser cutting in the automotive textile sector, paying special attention to the kind of lasers in use (mainly CO2 lasers) and their dynamic features. It explains the pros and cons of cutting with laser cutters in juxtaposition to other methods of cutting.
• Methods: The research comprised laser cutting emission analysis and gas and dust-reducing control measures(Ball et al., 1986).

3. Emissions Analysis from CO2 Laser Engraving of Acrylic Plastics

• By: A. Muñoz, Jacob Schmidt, I. Suffet, C. Tsai
• Date Published: 22 June 2023
• Abstract: A review of the literature indicates very few studies have quantified the emissions products created during the CO2 laser cutting of acrylic plastics, and this study seeks to add to the operational understanding of CO2 lasers. These emissions might affect health and safety and may be important regarding the kinds of laser cutters and their uses.
• Methods: The authors employed real-time monitoring devices for estimating particulate matter concentrations and size distributions, and they analyzed and sampled gases (Muñoz et al., 2023, pp. 182–192; Tsai et al., 2023).

4. SensiCut: Speckle Sensing and Deep Learning Powered Material-Aware Laser Cutting

• Authors: Mustafa Doga Dogan et al.
• Published on: October 10, 2021
• Summary: The author proposes an innovative method of laser cutting by integrating material sensing for greater accuracy and efficiency in cutting. Although it does not classify laser cutters, it describes the principles of various lasers and their use in material processing.
• Methodology: The authors created a hardware peripheral for laser cutters that senses materials and incorporates cutting procedures with deep learning-powered material recognition automation(Dogan et al., 2021).

5. Leading Metal Laser Cutting Service Provider  in China
