Understanding the Differences: Cast Aluminum vs CNC Aluminum in Machining

When it comes to machining, the choice of material is a significant decision that directly affects how well the final product will be able to function, its longevity, and its efficiency. Two common materials, cast aluminum, and CNC aluminum, have very different characteristics that make them suitable for various applications. Thus, knowing their dissimilarity is vital for engineers, manufacturers, and designers who wish to improve their production processes and results. This article presents an in-depth comparison of cast aluminum versus CNC aluminum, considering their properties, advantages, and typical use cases. Ultimately, you will possess adequate information required for selecting appropriate materials when carrying out machine work on your item.

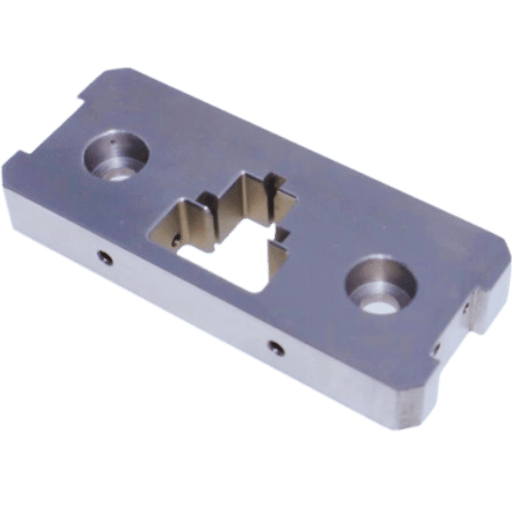

What is Cast Aluminum?

This is one of the types of aluminum, which is an alloy and is produced by the pouring of hot molten aluminum into a mold to form a given shape. It thus allows for complex designs that are difficult or impossible to make with other methods. Cast aluminum is widely recognized for its lightweight characteristics, anti-corrosion properties, and strength, so it can be used in different sectors like automotive components, cookware, construction parts, etc. The fact that it’s cost-effective and highly adaptable has made it a common material used widely across industries since it can be manufactured in large quantities at once.

Exploring the Casting Process of Aluminum

The aluminum casting process requires a number of vital steps that are guaranteed to maintain accuracy and state. In the first place, the raw aluminum is heated until it becomes a melt at high temperatures. After this, the melted aluminum will be poured into molds created in such a way that they give out their required shape. The different casting methods used in various applications are die casting, sand casting and permanent mold casting. Once cooled down and solidified, the aluminum part is removed from its mold and then goes through post-processing procedures like cutting, smoothening, or working on it using machine tools to arrive at the precise measurements specified for it. Such an approach allows for the production of long-lasting, lightweight components with intricate designs.

Applications of Die Cast Aluminum in Industries

Due to its strength, lightweight nature, and ability to conduct heat and electricity well, die-cast aluminum is widely used. The following applications cut across various sectors:

Automotive Industry

• In the automotive industry, die cast aluminum is used extensively for engine blocks, wheels, transmission housings as well as brackets. It has a light weight which contributes to increased fuel efficiency and little emission. Studies have shown that vehicle weight can be reduced by about 20% through replacement of traditional steel parts with aluminum resulting into energy savings across the product life cycle.

Aerospace Industry

• Die cast aluminum is employed in aerospace applications like airframes, landing gears, and avionics systems housing. For optimal fuel efficiency and performance objectives to be met lower aircraft weightage must be achieved while maintaining structural integrity using high strength-to-weight materials.

Consumer Electronics

• The electronics industry demands die-cast components for products like smartphones and laptops, among other gadgets. For instance, since it can dissipate heat when needed, electronics do not overheat, and it has a longer lifespan than many other metals, making it perfect for such uses. Additionally, its glossy finish plus durability gives off a sleek appearance, hence making it useful in creating thermal management systems and enhancing the designs of these products.

Telecommunications

• Manufacturers of electronic communication devices, including routers, transmitters, and antennas use die cast aluminum to make enclosures and housings. The main reason for using it is that it shields electromagnetic interference (EMI) hence maintaining signal integrity.

Construction Industry

• Aluminium die casting has a role to play in the production of structural parts such as window frames, door frames, roofing systems and hardware. It is preferable for construction materials that are durable and can be customized due to its resistance to corrosion and versatility in complex designs.

Healthcare and Medical Devices

• In the medical industry, precision instruments such as imaging equipment, surgical tools and portable diagnostic machines are made from die cast aluminium. It is light weight and can be moulded into intricate patterns which results in functional ergonomic medical solutions.

Energy Industry

• Renewable energy systems like solar panels and wind turbines use die cast aluminum extensively. This is because of its durability as well as the ability to resist environmental wear thus making it suitable for components such as turbine parts or inverter housings.

Industrial Equipment

• Die cast aluminum forms part of components like pump houses, gearboxes and motor casings used in heavy duty machinery among other industrial systems. Its preference in this sector arises from its ability to endure harsh environments plus frequent application.

Industries have been changed by die casting, which allows for the manufacture of intricate, light and enduring parts; Aluminum has been a leading innovative element due to its versatility. Even so, this material remains vital in man’s bid towards sustainable development and technological advancement worldwide.

Advantages of Cast Aluminum in Production Volume

High Efficiency in Production

• Thanks to its fast and repetitive molding capability, cast aluminum allows for shorter production time. According to figures, die-casting processes can make up to 120 casts each hour in high volume environments which maintains effectiveness in large-scale manufacturing.

Component Uniformity And Accuracy

• When it comes to accuracy, aluminum casting is the best since it minimizes extra machining. This accuracy enables manufacturing of many parts that are identical with minimum variance making it suitable for mass-producing industries like car making and electronics.

Affordability in Large Scale Production

• Large scale production is characterized by economies of scale when using cast aluminum. The overall costs of production diminish with increasing output volumes because of reusable molds and minimal material wastage.

Strongness and Lightness Of Design

• The right balance between weight and strength is provided by components made from cast aluminum. This property is especially ideal for industries that require light yet strong materials such as transportation and aerospace where thousands of parts are manufactured annually.

Renewability and Environmental Awareness

• For massive industrialization programs, large-scale use of aluminum is a sustainable option since aluminum can be recycled entirely. More than 75% of all aluminium ever produced remains in service today reducing raw material consumption through reduced carbon emissions during the course of high volume manufacturing process.

Versatility in Applications

• Various industries requiring high volume production such as automobile, building and construction and consumer sectors among others are going to be able to make use of cast aluminum because of its flexible design that can adjust to changes in shapes and sizes.

Companies will be able to achieve enormous cost savings levels while maintaining high quality standards in their large scale manufacturing operations through making the most out of these benefits.

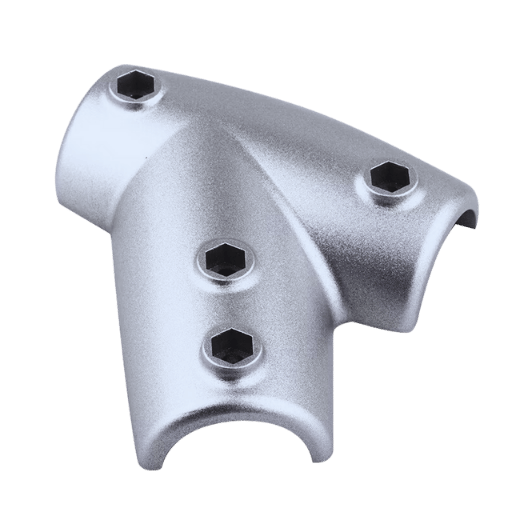

What is CNC Aluminum?

The Machining Process of CNC Aluminum

CNC aluminum machining is an accurate method of manufacturing that uses computers in numerical control (CNC) to make parts from this metal. By cutting away a solid block of aluminum, one gets the desired shape and dimensions specified by the design. For this purpose, there are different cutting tools that are controlled by software previously installed in them. The main stages involved in CNC aluminum machining include material selection, CAD modeling, CNC program generation and machining execution. The final products are highly precise components suitable for applications that require precision and consistency.

Role of CNC Machining in Metal Fabrication

Modern metal fabrication largely relies on CNC (Computer Numerical Control) machining as it offers unmatched precision, efficiency, and scalability. Hugely complex geometries with a tolerance level of as low as ±0.001 inches can be produced using this method hence providing parts of superior quality and consistency. Precision is very crucial in technologies such as aerospace, automotive, and medical which are sensitive to even the slightest deviations from their intended designs.

Another advantage is that CNC machining enhances high production efficiency during the metal fabrication process. By decreasing manual intervention in the fabrication process through automation, faster deliveries are made alongside improved reliability. For instance, advanced computer numerically controlled machines have almost zero downtime thus enabling them to produce more than traditional manufacturing methods ever would. Additionally, there is reduced wastage of material since CNC programs are optimized for making best use of raw materials.

CNC machining allows both prototype development and mass production in terms of scalability. Manufacturers can enlarge their operations without compromising quality by duplicating exact designs repeatedly. According to recent data, the global CNC machine market is expected to rise at a CAGR exceeding 5% until 2028 thus indicating increasing demand for this technology.

The integration of IoT and AI has further enhanced CNC machining since these technological advancements. Consequently, productivity gets boosted and errors reduced by allowing for real-time monitoring, predictive maintenance, and adaptive machining. Metal fabrication heavily relies on CNC machining due to its technical accuracy and automated efficiency, which in turn drives innovation across various sectors.

Benefits of CNC Aluminum Machining

1. Great Accuracy: The use of CNC machining in the creation of aluminum parts helps to achieve accuracy and geometric tolerances that are not easy to meet, as well as intricate requirements.
2. Increased Productivity: The use of auto processes helps to minimize the amount of time spent on set-up which consequently refine the speed of the production process which is ideal for any mass production.
3. Wide Application Range: The properties of aluminum being lightweight durable and corrosion resistant give its value across various industries including aerospace, automotive and electronics.
4. Quality Maintenance: Custom-made tools combined with CNC machining guarantee same quality of products manufactured in bulk.
5. Improved Cost Management: The reduction of the wastage of materials and cutting down on the time needed to produce a part resulted in the reduction of manufacturing costs.

Comparing Aluminum CNC Machining and Cast Aluminum

Key Differences: CNC vs Cast Aluminum

1. Precision: The CNC process does have better size and geometric tolerance which is advantageous in creating intricate design features. Variations in cast aluminum can be expected owing to the casting technique.
2. Surface Finish: A less amount of finishing is generally required for cnc parts as compared to the parts made from casting, where much more amount of finishing is required to achieve a somewhat similar finish. CNC machined parts have a smoother finish right off the CNC machine.
3. Strength and Durability: Cast aluminum has internal porosity which weakens the material and its mechanical features. Whereas, aluminum parts which are CNC machined are free from such porosity.
4. Production Volume: Medium or low production runs are best suited to the process of cnc machinings; however, for large quantities and mass production, it makes more economic sense to use casting as this cuts down the nitric machining time.
5. Material Properties: When more varieties of aluminum alloys are used, there is more freedom in terms of material choice, and such aluminum alloys can be used for casting in a similar manner.

Which is Better for Tight Tolerances?

As compared to casting, CNC machining is generally better in achieving tight tolerances for aluminum parts. Machine configuration and operation depend on the abilities of CNC machining to provide tolerances as precise as ±0.001inches. CNC machining does this by cutting tools through direct material removal from a solid block; thus, accuracy and uniformity are high.

On the other hand, variation possibilities in aluminum castings are fundamentally higher due to processes such as shrinkage, material flow and cooling rates. Despite advanced techniques like die casting, it is often very difficult for casting operations to meet extremely tight specifications where tolerances range between ±0.005 to ±0.01 inches. This necessitates secondary machining operations that cost more time and resources while refining cast parts.

For sectors needing precision components like aerospace robotics or medical device fabrication, CNC machining is favored because it can produce exact dimensional requirements with minimal post processing. Moreover, materials machined by a CNC have consistent integrity since there are no internal voids or any other structural irregularities usually connected with casting methods.

In the end, the choice to use CNC machining instead of casting for tight tolerances will depend on project requirements such as the allowable variance, cost constraints and production volume concerns. In cases where precision is a must, CNC machining stands as the best option.

Cost Implications: Aluminum is More Expensive

As a result of how it is made and its advantageous attributes like its ability to be strong and light, aluminum is often costlier than other available materials. The price of aluminum is determined by the energy-intensive extraction and refining methods as well as the demand in sectors such as aerospace, automotive, construction, etc. Nevertheless, aluminum’s reusability and potential for high performance often justify investments whenever these attributes matter most. On the other hand, different materials might be cheaper but may not have the precision or durability required for certain performance standards.

What are the Best Types of Aluminum for CNC and Casting?

Popular Aluminum Alloys in CNC Machining

Selected aluminum alloys are well-suited for CNC machining because of their strength, machinability, and versatility. Some of the most commonly used ones include:

• 6061: Excellent mechanical properties, high corrosion resistance and good weldability make 6061 a versatile choice for many precision applications such as automotive and aerospace components.
• 7075: Its exceptional strength-to-weight ratio has made it widely praised for its use in aerospace and military applications, where it is ideal for parts that operate under very high-stress levels.
• 2024: This alloy possesses better strength and fatigue resistance than other alloys hence is commonly used in structural or aerospace applications.
• 5052: It is renowned for its excellent corrosion resistance so 5052 finds an application in marine or chemical environments.

Each of the available alloys offer some unique advantages based on the specific requirements of various applications, balancing characteristics like cost, durability and functionality.

Top Cast Aluminum Alloys

• A356: A356 is well-known for its ability to cast, with good strength, corrosion resistance and is used in making automotive and aerospace parts.
• 319: This alloy has high wear resistance, and it is typically used for engine components and industrial equipment.
• 535: 535 is valuable for its excellent corrosion resistance plus weldability which makes it a suitable material for chemical environments as well as marine applications.
• 443: With remarkable ductility and corrosion resistance, 443 often finds use in architectural and decorative applications.

On the basis of particular application requirements, each of these cast aluminum alloys involves trade-offs between mechanical properties, corrosion resistance, ease of manufacture etc.

Factors to Consider When Choosing Aluminum Material

It is important to assess different parameters for optimum performance, affordability and manufacturability when choosing aluminum material for specific applications. Some of these considerations include:

Mechanical Properties

• The strength, ductility and fatigue resistance required by the alloy should be determined. For instance 7075-T6 aluminum has high tensile strength hence suitable for aerospace structures while other alloys such as 5052 are very useful in applications requiring better malleability.

Corrosion Resistance

• The corrosion resistance necessary is greatly dependent on the working environment. In marine applications, alloys like 5083 or 535 dominate because they perform excellently in saltwater conditions, whereas architectural uses may emphasize aesthetics with low-maintenance materials like those made from 6063.

Thermal and Electrical Conductivity

• Excellent conductivity marks Aluminum’s reputation. Alloys such as 1350 are often applied in electrical transmission lines due to their high electrical conductivity, while heat sinks used in heat dissipation might utilize alloys such as 1050 or 6061.

Formability and Machinability

• A lot of casting, extrusion machining or welding processes determine which alloy will be good enough. For example, when there are many parts that need machining; ease of processing makes it a favorite choice for most people especially where 6061 is concerned. Conversely, castable alloys are optimized for complex shapes as seen with A356.

Weight Problems

• Aluminum is light enough to be used in industries such as aerospace and automotive. Efficiency and fuel savings are strongly influenced by weight loss without sacrificing strength, so materials like 2024 and 7075 which have high strengths are commonly used.

Cheapness

• The cost of material and manufacturing should match project budgets. Expensive alloys may be required for high performance but a careful weighing of the lifecycle factors and durability can produce long-term savings.

Weldability

• Not all aluminium alloys weld equally well. Examples of alloys that show good weldability traits include 535 and 6061 which can be used for structural applications while others like 7075 may cause difficulties due to their susceptibility to cracking during welding processes.

A close examination of these elements will enable engineers or manufacturers to choose appropriate aluminum materials with desired properties that would meet specifications, thus ensuring durable and economical solutions in their specific applications.

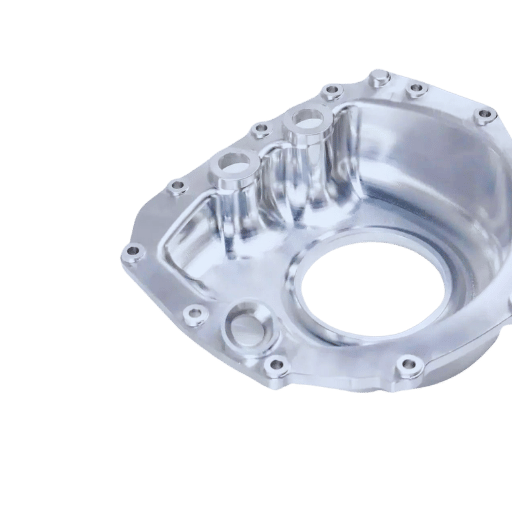

When should you use machined and cast aluminum?

Understanding the Requirements of the Machining Process

To determine when to use machined aluminum, it is necessary to consider the needs of a project and what levels of accuracy are demanded. Machined aluminum is apt for instances when there is a need for precise tolerances, complex detailing or customization. In this process, the design work involves cutting out solid blocks of aluminium which allows for higher precision and better flexibility. However, this can be slower and more expensive than casting.

For applications where low cost manufacturing and high production volumes are involved, cast aluminum is best suited. This method requires pouring molten metal into molds or dies before solidification leading to faster production rates hence less expensive when used in uniform component manufacturing at larger quantities. Nevertheless this method may not be as precise as machining.

Engineers can evaluate factors such as how intricate their designs will be, how accurately they want them made and the amount that they wish to spend so that they can identify the most suitable method of dealing with the aluminium in each case.

Considerations for Automotive and Aerospace Applications

When thinking about aluminum processing techniques for cars and aircraft, I address the peculiar requirements of each sector. The cost efficiency and scalability associated with the automotive industry make cast aluminum a favorite choice for items like engine blocks and wheels. It allows large-scale production while maintaining consistent results. When it comes to aerospace applications, where precision, strength and sophisticated structures are imperative, I give machining priority over anything else. This makes certain that the strict tolerance and reliability necessities are met in components such as structural fittings and aircraft brackets. Consequently, I guarantee optimal performance by tailoring my method to suit specific applications’ needs and ensure maximum productivity.

Durability and Corrosion Resistance

Its durability and natural resistance to corrosion has made aluminum very valuable. Generally, in most environments degradation is prevented by a protective oxide layer that forms on it. Its ability to withstand adverse conditions can be further improved by surface treatments like anodizing or coating for increased protection. This makes aluminum suitable for long-term reliability applications, especially in industries such as automotive and aerospace.

Frequently Asked Questions (FAQs)

Q: What are the Pioneering Weaknesses between cast aluminum and CNC aluminum?

A: The primary differences rest on their methods of production and their properties. Cast aluminum is produced by first pouring molten aluminum into a cast, and CNC aluminum is created from a solid bar stock utilizing tools of computer control. However, the mentioned processes allow for the mass production of cast aluminum, cutting down the costs. It is worth noting that cost-cutting due to mass production can sometimes be offset by the amount poured being cast together as it loses strength as a result. When compared to CNC casted parts, both have a faster printing rate but lack angle accuracy and a good surface finish. Thermally processed CNC nematic aluminum parts display stronger effectiveness and feature better component practicality.

Q: Which common aluminum alloys are present when CNC machining is used?

A: Other than aluminum, 6061 aluminum 7075 is also frequently used in the industry. Moreover, aluminum 2024, aluminum 2014, aluminum 5052, and aluminum 6063 have also started gaining popularity among machining industries. The use of all three sorts of alloys allows for a greater spread of applications as they can be utilized across various endeavors such as aviation, motor vehicles, and electronics due to the wide range of supervision and corrosion protection along with variance in strength combined with easy machining.

Q: In what way is the process of machining cast aluminum different from machined aluminum?

A: There are many methods by which cast aluminum can be produced, including sand, die, and investment casting. On the other hand, bar stock plates, which are made from CNC turning, lathering, and other processes, are machined into aluminum during the aluminum machining process. This indicates that ample material removal is not sufficient in procedures like casting, but additional precision and surface adaptions might be necessary afterward.

Q: Are there any benefits to using Machined Aluminium rather than cast aluminum?

A: Before answering in detail, I believe aluminum machining is cost-effective and offers a perfect strength-to-weight ratio. This means aluminum machining is reliable throughout the aviation industry; this is due to the interference in the pieces that aluminum gets split into after being reshaped. There is interference that allows the aviation pieces to be suitable with greater strength and flawless finishes.

Q: Are there any aluminum alloys that are difficult to cast but easy to machine?

A: No, only some aluminum alloys are more difficult to cast; aluminum alloys like aluminum 7075 are easier to machine. Such technology can be difficult to work within casts during aerospace applications due to hot cracking, and hence, the material is widely used in CNC machining where high strength is required. A380 or A360, on the other hand, are aerospace alloys with high silicon content, which makes them difficult to use during machining processes but are great to be used in casting.

Q: How does the surface finish compare between cast aluminum and machined aluminum?

A: Traditionally, machining has provided a much finer surface finish, especially when undertaken within tolerances for aluminum; however, machining does require a slightly rougher aluminum fabric due to the excessive heat exposure when undertaking casting. If the situation arises and the finish is required to be better than usual, then cast aluminum is generally excellent casting followed by a machining process to achieve the required finish. The general effect of both aluminum oxides is easy to manage when machining; however, it is rather difficult when casting aluminum components.

Q: What are the considerations in deciding which cast or machined aluminum is ideal for a project?

A: Whether the machined or the cast aluminum is chosen, it is paramount to consider the other variables such as the volume of expected production, cost of maintaining strength and accuracy, minimum tolerances and geometric features, and lastly, the detailing of the design. If the part is simpler in concept, cast aluminum would be ideal for high-set production runs; however, for low-quantity orders with complex machining test requirements, the machined aluminum might be more appropriate. Moreover, the finer details regarding the particular type of alloy, the purpose and environment of its use, and other features such as corrosion resistance and weldability all play deciding roles in the overall output.

Reference Sources

1. Re-Cast Aluminium 5083 versus Bulk Alloy Corrosion Behaviour Comparison

• Authors: Z. Kamdi et al.
• Journal: International Journal of Nanoelectronics and Materials
• Publication Date: December 27, 2024
• Key Findings:
• In this study, the corrosion behavior of aluminum 5083 in both bulk and re-cast forms is examined.
• Scanning electron microscopy (SEM), energy dispersive spectroscopy (EDS), and X-ray diffraction (XRD) were used for microstructure and corrosion characteristic examination.
• The outcomes revealed that the bulk alloy was more resistant to corrosive effects than the recasted machining chips thus confirming that casting techniques have a significant impact on the properties of materials(Kamdi et al., 2024).

2. Comparison of Surface Roughness between Aluminum Alloy AA7075 Machined with HSS M42 Tool and CNC Drilling using Titanium Nitride Coated Tool

• Authors: K. S. Kishore, D. Vinodh
• Conference: International Conference on Autonomic and Autonomous Systems
• Publication Year: 2024
• Key Findings:
• This report compares the surface roughness of aluminum alloy AA7075 when machined by different tools.
• Tool material type and coating are major factors that determine desired finishes during CNC milling; hence these must be considered by machinists while selecting tools for the workpiece used in practice.
• The tool selected affects the final finish quality of the produced part(Kishore & Vinodh, 2024).

3. Aluminium AA7075 Machined Using HSS M42 Tool and Novel Chromium Nitride Coated Tool in CNC Drilling: A Study of Material Removal Rates

• Authors: Kishore K. S., Vinodh D.
• Conference: International Conference on Autonomic and Autonomous Systems
• Publication Year: 2024
• Key Findings:
• This research is concerned with the removal rates of material when drilling aluminum alloy AA7075 using CNC machines.
• It points to how well different coatings increase machining performance when applied to a tool.
• The paper shows how production quantity can be maximized if appropriate process parameters are selected (Kishore & Vinodh, 2024).

4. Optimization of CNC Turning of Aluminium 6082-T6 Alloy Using Fuzzy Multi-Criteria Decision-Making Methods: A Comparative Study

• Authors: Samriddhya Ray Chowdhury et al.
• Journal: International Journal on Interactive Design and Manufacturing (IJIDeM)
• Publication Date: September 29, 2022
• Key Findings:
• This work demonstrates a fuzzy-based multi-objective optimization procedure for CNC turning processing variables in Aluminum alloy 6082-T6.
• This paper focuses on the effect of cutting conditions on the surface finish achieved and the rate at which material is removed during a machining operation.
• This study’s results indicated that innovative decision-making techniques would greatly improve efficiency during machining operations(Chowdhury et al., 2022, pp.1047-1066).
