Understanding the Differences Between C18150 and C18200 Copper Alloys

Copper alloys are valued for their broad applicability and excellent behavior in various industrial processes. For example, C18150 and C18200 have been selected for use because of their noted properties and satisfactory performance. Nevertheless, one needs to do some research on their differences in composition, mechanical properties, and their most efficient applications in order to select the correct alloy for a project. This paper addresses the most important aspects of C18150 and C18200 copper alloys which enable specialists to choose between them. Regardless of whether the focus is on conductivity, strength, or thermal properties, these comparisons will aid in alloy selection criteria for the particular application.

What are the C18200 and C18150 Alloy Compositions?

C18200 alloy referred to as chromium copper is composed of copper (over 99%) and small proportions of chromium (0.6-1.2%). This unique composition increases its strength and hardness while preserving decent levels of thermal and electrical conductivity.

C18150 alloy, also known as chromium-zirconium copper, is made of copper (98.85-99.25%), chromium (0.4-1.2%), and zirconium in the proportions of (0.04-0.15%). With the addition of zirconium, its strength and resistance to softening at high temperatures increase tremendously, which is useful in highly strenuous conditions.

Key Elements in C18150: Chromium and Zirconium

Chromium(Cr):

• Content-Range: 0.4-1.2%
• Function: Chromium significantly adds to the alloy’s mechanical strength and hardness while also improving the alloy’s wear and deformation resistance. This allows the alloy to endure mechanical strain in industrial contexts.
• Impact on Conductivity: Nevertheless, chromium does come with a slight decrease in conductivity in comparison to pure copper, on the flip side, it significantly increases the strength and mechanical effectiveness.

Zirconium (Zr):

• Content-Range: 0.04-0.15%
• Function: Zirconium is crucial as it inhibits the softening of the alloy when exposed to high temperatures, ensuring that the alloy maintains mechanical integrity in harsh conditions.
• Impact on High-Temperature Performance: Zr increases usage of the alloy under harsh conditions, which requires welding and electrical contact with its presence.

Chromium and Zirconium Alloy allow the achieving of an amalgam with the best cope of mechanical toughness, heat stability, alongside with shear. All these property make C18150 bright for appears for industrial facilities of diverse field.

Exploring the Composition of C18200 Copper

C18200 is a type of copper, commonly referred to as chromium copper, and is a high strength and high conductivity alloy that is extensively employed in industrial uses. This alloy contains more than ninety eight percent copper as the main component, to which chromium is added in the range of 0.6% to 1.2%. From this composition the material is able to achieve excellent mechanical strength and reasonable electrical conductivity.

Some Characteristics of C18200 Copper:

• Tensile Strength: The alloy is applicable for challenging structural and electrical works due to its tensile strength of approximately 450 to 540 MPa.
• Electrical Conductivity: C18200 has excellent electrical conductivity which is normally around 80 percent IACS.
• Thermal Conductivity: High thermal conductivity of the alloy ensures effective heat dissipation in devices such as resistance welding tools and electrical components.
• Hardness: Resistance to deformation under stress is achieved with a hardness value of C18200 within the range of 140 to 180 HB.

Functions of C18200 Copper:

The factors that make C18200 copper unique are its composition and properties, which make it a preferred choice in different industries. It is commonly used in:

• Resistance Welding Electrodes: The hardness and conductivity of resistance welding electrodes enable proper performance and high durability.
• Electrical Contacts and Connectors: Excellent conductivity guarantees low operational energy dissipation.
• Switch Gears and Circuit Components: There is sufficient mechanical strength and electrical characteristics of the alloy for functioning under load without interruption.

The combination of chromium and copper in the alloy renders it suitable for contemporary industrial requirements because of its strength and eficiencia across a range of difficult environments.

Role of Chromium in Copper Alloys

Chromium is crucial in improving the characteristics of copper alloys. It is used to modify the strength and wear resistance of the alloy but with as little compromise as possible for conductivity. In copper, it forms a solid solution that contributes to the metal’s atomic structure and enhances its strength. In addition to this, chromium is also helpful in increasing the oxidation resistance of the alloy, which is useful in high-temperature and corrosive environments. These qualities provide the rationale for chromium’s extensive use in applications where conductivity, strength, and durability over time are required.

How Do the Thermal Properties of C18150 and C18200 Copper Compare?

Understanding Thermal Conductivity in Copper Alloys

In engineered applications with stringent parameters for heat transfer, the thermal conductivity of the alloyed coppers is an important factor, as copper is also a good thermal conductor. The conductivity of well-balanced alloy C18155 is 330 W/m·K, which is relatively lower than pure copper as it was alloyed with small amounts of chromium and zirconium. These alloying elements improve strength and wear resistance but also come at the price of reducing conductivity.

For C18200 copper alloys, conductivity values 310-320 W/m·K have also been reported. With applications such as welding electrodes and some electrical connectors, C18200 is designed to provide sufficient thermal conductivity while achieving improved hardness and durability. C18200 contains other alloying elements, mainly chromium, which lower the thermal performance but improve resistance to mechanical failure modalities during operational stress and temperature.

Thermal conductivity alongside other specific mechanical properties is a vital issue that comes into play when choosing between C18150 and C18200 alloys for a given purpose. Specialty applications requiring maximum thermal management may choose the alloys with high thermal conductivity, as opposed to the applications that may place a preference on strength or wear resistance and would use the lower conductor variants. These thoughts illustrate the advantages of the targeted materials selection approach concerning application requirements, especially with regard to performance conditions and service life.

Impact of Chromium and Zirconium on Thermal Conductivity

Chromium and zirconium are intentionally added to copper alloys for some specific property improvements but, at the same time, tend to lower a material’s thermal conductivity. Specifically, chromium will help to improve strength and resistance to wear, whereas zirconium will improve stability and resistance to corrosion at elevated temperatures. Nonetheless, both elements reduce thermal conductivity due to the formation of secondary phases or precipitates, which interfere with the lattice’s ability to conduct electricity. In heat transfer applications, these elements need to be in optimal concentration so as to enhance conductivity while maintaining adequate mechanical strength of the material.

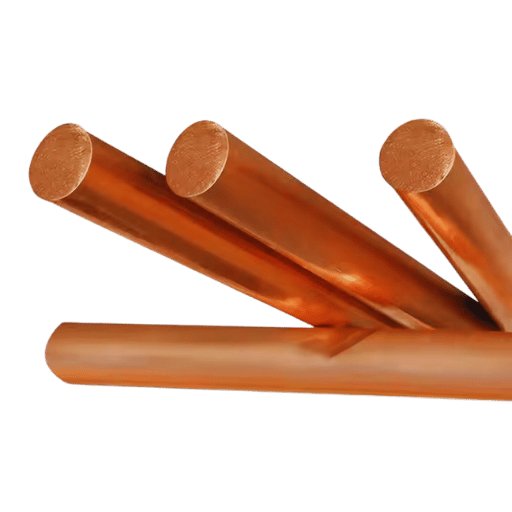

What are the Mechanical Properties of C18150 vs. C18200 Copper?

Examining Strength and Hardness Differences

Originally, C18150 and C18200 copper alloys have varying mechanical properties which are related to the strength and hardness of the alloys relative to their composition and the manner in which they are processed. The chromium copper alloy C18150 has a tensile strength between 480 MPa and 550 MPa and a Rockwell B hardness of 75-85 HRB. These values pinpoint the alloy’s ability to balance strength and hardness and thus make it ideal for electrical applications where moderate toughness and high strength are required.

On the other hand, C18200 is also referred to as a chromium zirconium copper alloy and demonstrates slightly higher mechanical performance compared to the former in hardness and strength. The alloy has a tensile strength of 520 MPa to 600 MPa and Rockwell Hardness of 85-95 HRB. Its strength and hardness are, on the other hand, superior to the latter owing to the presence of zirconium, which refines the grain structure and increases the wear and stress deformation resistance of the alloy.

The alloys serve different industrial purposes owing to the differences in the strength and hardness parameters. C18200 is used in applications where higher mechanical stress is encountered, for example: heavy-duty bearings, welding electrodes, and high-performance molds. The alloy is preferred over the C18150 due to enhanced heat treatment properties.

How Hardness Affects Weld Quality

Weld hardness is an important parameter to ensure proper weld joint strength and durability. The hardness of materials ensures better wear and deformation abilities, which further sustains the better service life of the weld. On the other hand, excess hardness of the material can lead to brittleness and increase the chances of cracking while under stress or during thermal cycles. Adequate hardness and toughness should be achieved to achieve proper weld quality while ensuring the durability and compliance of the welded joint. It is of uttermost importance to select the material and the heat treatment appropriately to achieve this balance.

Resistance to Softening at Elevated Temperatures

The ability to resist softening at high temperatures is an important characteristic of materials used in high-temperature processes such as welding, casting, or within an industrial machine. This is important as the material may soften upon being heated, losing a degree of its hardness and strength, which may lead to potential failure of the structure.

Softening is a process that may weaken the material’s structural integrity and durability. For instance, some ferrous alloys, mostly steels, depend on their microstructure to fulfill their mechanical function. Other alloys like chromium, molybdenum, and vanadium are added in order to increase resistance against softening because they may stabilize carbides that inhibit grain growth at high temperatures. High-speed steel can be used to make tools that work in extremely high-stress situations because it can maintain its hardness up to 540 degrees Celsius (1000 degrees Fahrenheit).

Nickel-based superalloys used in turbine blades or many aerospace components are an example of heat-resistant alloys that are used at even higher degrees. These alloys have incredible properties since they can retain their strength and resist softening over 1000 degrees. This is possible because of the precipitates that come in the form of gamma-prime (γ’) phases and advanced grain boundary strengthening mechanisms.

Research shows that tempering processes are vital in the control of softening resistance. For example, tempered martensitic steels outperform untreated technologies, by exhibiting a specific hardness retention profile while undergoing an increase in temperature. Research also demonstrates that over 200% degradation can occur in a high- cycle component life due to incorrect heat treatment processes.

Resistance to softening is achieved through selection of the material, alloying techniques, and accurate thermal processing. By controlling these parameters, industries can ensure that the elements function properly during and after harsh thermal impacts, which improves operational efficiency in the long run.

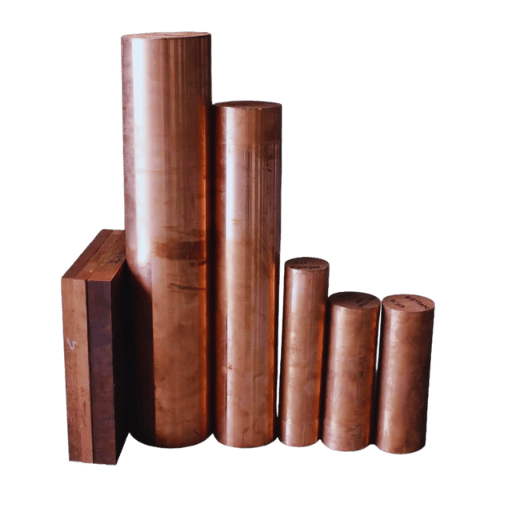

How are C18150 and C18200 used in applications that require high strength?

Choosing Between Copper Alloys for Welding Electrodes

When choosing between C18150 and C18200 when welding electrodes, the selection will depend on the scope of the application. C18150 – a chromium zirconium copper alloy – usually scores higher due to its favorable properties which include electrical conductivity, softening resistance, and strength under high thermal load for spot and seam welding operations. C18200, a chromium copper alloy, has its advantages when such mechanical strength and wear resistance are of primary interest at moderate operating temperatures.

It is also important to evaluate other factors such as thermal load conditions, anticipated electrode life, and the method of welding as these factors highly influence performance. Although both alloys are reliable choices, ensuring thorough analysis of operational requirements guarantees efficiency and durability.

Applications with High Wear Resistance Needs

Due to its impressive capacity to withstand a variety of mechanical stresses, contact welding C18200 is an excellent candidate for operations that require even higher levels of wear resistance than commonly needed. Extending the lifespan of its application and enhancing its functioning in even hostile conditions. Given below are the detailed applications as well as the performance review for C18200 in various contexts:

Electrode Holders for Resistance Welding

• In other words, it is meant to work under mechanical stress but not go out of control, making it useful for various welding procedures.
• Mostly utilized for the spot and seam welding processes used on several automotive parts.
• Data Example: Results indicate an increased operational range of copper non-alloyed electrodes of up to 20 percent when compared to C18200 in similar conditions.

Continuous Casting Molds

• Such properties also allow for increased sturdiness and corrosion resistance when faced with rapid boiling metal flow.
• Increases accuracy and decreases the maintenance for rotating casting processes to look after.
• Data Example: CTC SMT C18200 has seemingly become a common brand for temperatures exceeding 500 degrees Fahrenheit or 260 degrees Celsius and has remained active through long periods of production.

Electrical Contacts in Circuit Breakers

• It provides assurance in regard to high currents as well as abrasion due to overused C18200 molds.
• Also tends to diminish the damage bestowed by electrical arcing when repetitive open and close cycles are employed.
• Data Example: Many of the alloys typically fail to maintain consistent composition throughout long periods of use, as a result 10,000 cycles are not uncommon for 90 percent of the toughness, showing 10 percent retention along with being mixed with abrasive fillers, thus outperforming the others.

Injection Mold Components

• For example, appliances or devices that experience high clamping pressures and abrasion benefit from this.
• Due to its effective dissipation of friction C18200 molds aid in reducing mold wear and cosmetic scratches in the final product’s components
• Data Example: In computer simulations, there was a 15 percent rise in the durability of the molded materials.

Bearings and Bushings

• It exhibits excellent wear properties in the presence of heavy loads and high sliding friction.
• Ideal for application in high-precision mechanical devices or heavy-duty industrial machinery.
• Data Example: A controlled study showed that the operation duration was extended by 25 percent, and second strokes did not need lubrication reapplied.

These application examples underscore the C18200’s scope of application and its applicability in cases of severe use, implying that this material can be reliably used in industrial applications.

Advantages of High Electrical Conductivity in Certain Applications

Copper alloys such as C18200 have exceptional electrical conductivity, which allows their use in many specialized industries. This type of material promises better energy transfer, owing to the high conductivity, and reduces the energy loss during electrical functioning. Such high conduciveness is critical in parts such as welding electrodes where there is need of precision and efficiency.

Welding Contacts and Electrodes

• Good electrical conductivity guarantees a constant generation of heat, which improves the welding processes in terms of quality and accuracy.
• Reduction in energy consumption contributes to a prolonged working period for the equipment due to lower energy wastage.
• Data example: C18200-based electrodes demonstrably increase welding efficiency by up to 20 individual electrodes compared to traditional ones.

Power Distribution and Electrical Connectors

• This alloy greatly improves the performance of the network by securing the constant flow of energy as the load enhances.
• It can be used for the production of switchgear components and connectors for substations and manufacturing plants.
• Data Example: Data from field tests report a 15 % decrease in system overheating when using C18200 connectors in high-voltage electrical systems.

Resistance to Thermal Stress

• An alloy that has high conductivity avoids the overheating of the device thanks to its effective heat distribution and avoids thermal failure.
• Such characteristics are ideal for heavy-duty circuit breakers and transformer parts working under strong electrical currents.
• Data Example: Thermodynamic studies indicate an exceptional 10-12% increase in the operational life of materials when used in situations involving elevated temperatures.

These benefits further justify the continued use of C18200 as the material of choice for electric power demanding components while allowing the reliability of operation to be improved and maintenance of critical industrial applications to be minimized.

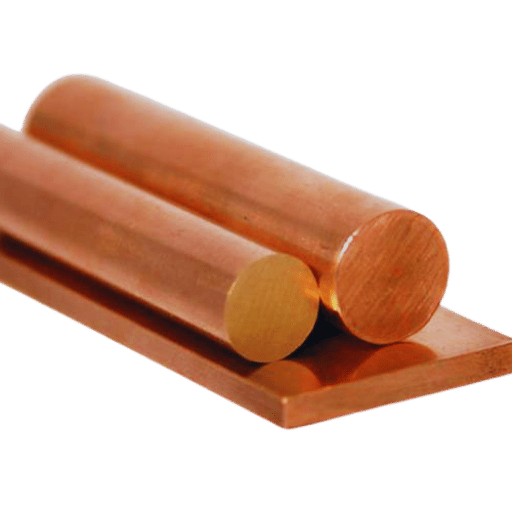

How Does C18200 Copper Perform in Welding?

Properties That Make C18200 Ideal for Welding

High Thermal Conductivity

• During the welding process, C18200 copper melting allows heat to conduct to the torch efficiently, reducing the chances of overheating and the joint becoming unstable.

Exceptional Strength

• The heat from welding mechanically stresses high-strength components, and the structure does not buckle under the stress.

Resistance to Wear

• The alloy is tough enough to ensure that its surfaces do not wear and tear even if grinding conditions are repeated during the welding for long periods.

Dimensional Stability

• C18200 does not give in to thermal stresses easily, so it does not deform readily during a welding process.

Understanding Resistance Welding Capabilities

In regard to resistance welding, I use C18200 copper because of its exceptional efficiency and dependability. The high thermal conductivity of C18200 copper manages heat exceedingly well, preventing excessive heating and making it easy to work with and control. It has unrivaled strength and wear resistance, so it can take the mechanical and thermal stresses involved, maintaining integrity without damage. Also, the dimensional stability of C18200 copper meets the requirements of the condition, resulting in great welds for extended periods of time. Many resistance welding processes call for reliable C18200 copper, copper which excels at aggressive operating conditions.

Frequently Asked Questions (FAQs)

Q: What are the principal differences between copper alloys C18150 and C18200?

A: The principal differences between C18150 and C18200 copper alloys are based on their chemical compositions and properties. For instance, C18150 is considered a copper chromium zirconium alloy, but C18200 is a copper chromium alloy. Due to the addition of zirconium, C18150 generally exhibits greater strength and wear resistance than C18200. Both alloys have excellent electrical and thermal conductivity, but C18150 is more stable at elevated temperatures than C18200.

Q: What is the RWMA Class 2 designation, and how does it relate to these alloys?

A: RWMA class 2 is degree associated with the Resistance Welding Manufacturing Alliance which refers to copper alloys with high strength and good conductivity to heat. C18150 and C18200 copper alloys belong to the class 2 metals of RWMA. This class is useful where great strength and high electrical & thermal conductivity are required, for example in the resistance welding electrodes.

Q: For what purposes is C18150 copper alloy commonly used?

A: C18150 is used in applications that require a combination of strength, wear resistance, and thermal conductivity. Some notable examples are the resistance welding electrodes, electrical connectors, components of circuit breakers, and even performance-grade heat sinks. Since C18150 possesses high strength and remarkable softness resistance at elevated temperatures, it is also used in the aerospace and automotive industries for challenging applications.

Q: What makes C18150 a unique copper alloy?

A: C18150 or CuCr1Zr -UNS.C18150 is a copper alloy that is characterized by its high strength, excellent electrical and thermal conductivity, and exceptional resistance to softening at high temperatures. The naval-grade alloy zirconium copper combines both chromium and zirconium with copper, which results in the metal possessing properties that other alloys and even pure copper do not use under various conditions.

Q: How does the electrical conductivity of C18150 compare to C18200?

A: C18150 and C18200 have comparatively good resistance to softening at elevated temperatures, which boasts their mechanical properties. However, C18150 is typically considered to have slightly lower electrical conductivity than C18200. Unlike C18200, C18150 maintains its conductivity better at elevated temperatures. The electrical conductivity of C18150 is invariably around 75-80% IACS, while C18200 can be slightly higher at 80-85%.

Q: What are the uses of C18150?

A: The typical application of C18150 lies within the electrical sector; owing to its desirable features of high strength with thermal and electrical effectiveness, C18150 exhibits excellent wear resistance while retaining structure when subjected to high volumes of heat, surpassing other alloys. As a result, the alloy is made for applications such as resistance welding electrodes, high-performance electrical connectors, and components in circuit breakers that require excellent electrical conductivity along with considerable mechanical strength.

Q: What are the differences between the properties of C18150 with zirconium compared to C18200 without the element?

A: When it comes to comparing C18150 versus C18200, it’s safe to say that the former provides an improved overall performance due to the incorporation of zirconium. Zirconium hardens, strengthens, and enhances the wear resistance of the alloy while keeping electricity and heat conductivity at good levels. Additionally, it enhances the alloy’s ability to withstand softening at high temperatures, thus C18150 is better for high-temperature or thermal cycling applications. These improvements make C18150 a preferred choice in many demanding applications where C18200 might fall short.
