Understanding the Basics of Sheet Metal Fabrication

Sheet metal fabrication is essential in the manufacturing realm because of its crucial role in creating parts needed in various industries like automotive and aerospace. From the construction of lightweight frameworks to precise enclosures and the manufacturing of complex shapes, this process remains значним cornerstone of modern-era production technique. The aim of this article is to clarify the concepts, methods, and practices of sheet metal fabrication for the readers in a deliberate and methodical way. These fundamentals will help us remove the complexities from the process while drawing attention to factors that we often overlook and prepare us with the much-needed insight that helps us value the influence sheet metal fabrication processes have on our daily consumables and even specialized undertakings. Be ready to discover the main components that define the contemporary sheet metal manufacturing processes and the amazing tools and technologies that go together with them.

What are the Types of Sheet Metal used in Fabrication?

The classification for metal sheets used in fabrication revolves around three principal materials:

Steel

• Steel is one of the most common materials used due to permanance and versatility offered. It is frequently subdivided into carbon steel, stainless steel, and galvanized steel. Carbon steel is renowned for its hardness and durability while stainless steel is well known for corrosion resistance. Galvanized steel has additional protective rust coating of zinc.

Aluminum

• Aluminum is widely accepted as one of the most lightweight materials which makes it easy to move around. Industries such as automotive, construction and even aerospace makes use of aluminum due to its corrosion resistance. Besides these perks, aluminum is also recognized for its superb conductivity when it comes to thermal and electric.

Copper and Brass

• The use for copper is most common due to its appeal and level of conductivity offered. It is one of the copper’s properties of copper that makes it the most sought-after metal for electrical wiring. Brass, an alloy made out of copper and zinc, is mostly used for decorative purposes or situations with low friction needs.

These materials are selected based on their mechanical properties, cost and compatibility with the end use requirements of the project.

Common Metal Materials in Sheet Fabrication

The selection of materials for sheet metal fabrication is quite broad and ranges from the most basic to complex phases of fabrication due to the fact that each material is chosen for its characteristics and appropriateness for a specific application. Some of the more commonly used materials, along with their technical parameters and fields of application, are given below:

Aluminum

5052 and 6061 alloys are common examples in which aluminum is used for sheet fabrication because of its lightweight, high value of corrosion resistance, and multifunctional purposes. For example, aluminum 5052 has outstanding resistance to marine environments, and 6061 has good strength-to-weight ratio and machinability. The densities of aluminum are approximately 2.7 g/cm³, thus making it favorable in the aerospace, automotive, and electronics industries.

Steel

Metals used in sheet fabrication include steel in the carbon steel and stainless steel family. Steel is one of the most popular. The most common types of steel are carbon and stainless steel.

• Carbon Steel: Carbon steel possesses a combination of high strength and low cost. The carbon content in carbon steel determines it classification in to low, medium, and high. There is a lot of difference in grades also since low carbon steel average tends to have a tensile strength of 400 – 600 MPa.
• Stainless Steel: For harsh circumstances, 304 and 316 grades are preferred due to their impressive durability. For instance, 316 stainless steel is fitted with molybdenum, which further increases its resistance to both pitting and crevice corrosion, thus making it ideal for chemical and marine environments.

Titanium

Titanium definitely takes the prize for having the most outstanding strength-to-weight ratio and for being extremely heat and corrosion-resistant. The two most commonly used grades are Grade 2 (pure titanium) and Grade 5 (Ti-6Al-4V alloy). Sectors like aerospace, medical device manufacture, and auto propulsions are some of the industries where titanium is used extensively. With a density of 4.5 g/cm³ and tensile strength of up to 1,400 MPa, titanium is often the go-to metal when it comes to high-performance requirements.

Galvanized Steel

Galvanized steel is a combination of carbon steel with an applied coating of zinc, which protects it from corrosion. During the galvanizing process, the coating of zinc becomes an anode, which is very beneficial to the steel underneath it. Through this process, galvanized sheets are made, which are perfect for outdoor applications such as roofing, fencing, and providing structural support. The two major methods used are hot-dip galvanization and electro-galvanization, both of which apply coats that have a certain micron thickness.

Brass and Copper

Copper’s alloys, such as brass, have and continue to serve important functions in some precise industries. Copper is very critical in the electronics industry because of its roughly 59.6 × 10⁶ S/m electrical conductivity. As a copper-zinc alloy, brass is also utilized in jewelry, low-friction component parts surfaces, and for machinable parts that require high strength.

The choice of an appropriate material for sheet fabrication is based on a combination of mechanical strength, thermal properties, resistance to corrosion, and cost. Further development in metallurgy and fabrication processes increases the versatility of these materials for their use in many modern industries.

Various Types of Metal and Their Properties

Steel

• Composition: Iron and carbon alloy, frequently refined with the addition of manganese, chrome, or nickel.
• Properties: Steel is categorized into subtypes such as mild steel, stainless, and high-carbon steel, all of which have individually distinct attributes. Steel has high tensile strength, flexibility, and durability.
• Applications: Used in Construction for Reinforcement, in the Automotive Industry for frame and other components, and in tool manufacturing.
• Data Example: Stainless Steel, tensile Strength: ~515 MPa, Mild Steel Yield Strength: ~250 MPa.

Aluminum

• Composition: Alloy of Aluminum with elements such as Copper, Magnesium, and Silicon or pure aluminum.
• Properties: light weight, high resistance to corrosion, and good thermal and electrical conductivity.
• Applications: Aerospace uses parts, Transportation and Packaging (Cans, Foils), and Electronics.
• Data Example: Density 2.7 g/cm³, Ultimate Tensile Strength of Aluminum 6061: 310 MPa.

Copper

• Composition: Pure copper or copper alloys which include bronze (copper-tin) and brass (copper-zinc).
• Properties: Excellent electrical and thermal conductivity with ductility and corrosion resistance.
• Applications: Used in electrical wiring, plumbing, and industrial machinery.
• Data Example: Conductivity of Pure Copper: ~100% IACS, Yield Strength of Hard Copper: ~210 MPa.

Titanium

• Composition: Titanium mixed with other metals makes titanium alloys. Common metals used are Vanadium or Aluminum.
• Properties: High strength-to-weight ratio, corrosive resistance, and biocompatible.
• Applications: Used in medical implants, aerospace components, and chemical processing equipment.
• Data Example: Density 4.5 grams per cubic centimeter, Grade 5 tensile Strength: ~950 MPa.

Brass

• Composition: An alloy of copper and zinc or an alloy of copper and zinc.
• Properties: Highly malleable with great cosmetic appeal, good corrosion resistance, and attractive visibility.
• Applications: Musical Instruments and other decorative items, including plumbing accessories.
• Data Sample: Yield Strength (Mild Brass) ~ 200MPa. Corrosion Rate in Saltwater (Low) ~0.002mm/year.

Stainless Steel

• Composition: An alloy of Iron, Chromium, and commonly Nickel or Molybdenum.
• Properties: High corrosion resistance, strong and durable, easy to maintain.
• Applications: Kitchen appliances and tools, medical apparatus, and construction parts.
• Data Sample: Chromium <10.5%, Tensile Strength (Austenitic) ~600MPa.

Nickel Alloys

• Composition: Mainly nickel, but combined with other elements like chromium, molybdenum, and iron.
• Properties: Very good heat and corrosion resistant and ideal for extreme surrounding conditions.
• Applications: Turbine engines, chemical processing plants, components for marine engineering.
• Data Sample: Melting Range (Nickel 200) ~ 1435-1446 °C, Tensile Strength (Monel 400) ~ 550 MPa.

These data points and properties highlight the great deal of capabilities that varying metals and alloys provide enabling their wide use across different industries and spheres.

Choosing the Right Sheet Metal Material

Your selection of sheet metal material should be based on these other important considerations.

1. Application Requirements: Identify whether the material needs to be incorporated into a structural, aesthetic, or functional part as well as consider if such features would be hostile to the environment like corrosion or heat.
2. Material Strength: Check the required project’s tensile strength and durability as well as the operating stresses the metal would be subjected to so that it may be feasible.
3. Cost Efficiency: Striking a balance with material performance and cost would provide an optimum exercise which would meet the technical issues in addition to being economical.
4. Machinability: Determine how simple or complex the cutting, shaping, and welding processes are to the material in order to meet the set production schedules.

With those factors tailored in mind for your particular project, it will now be easier and quicker to choose the appropriate sheet metal material.

How Does the Sheet Metal Fabrication Process Work?

The Initial Cutting Process

The first step in sheet fabrication is to cut the material into particular sizes and shapes according to project requirements. Norm cutting techniques comprise shearing, laser cutting, and plasma cutting. Shearing is predominately used for straight cutting, whereas laser and plasma cutting are used for more detailed work. The method to be used will be based on the type of sheet metal, its thickness, and the required precision. These actions guarantee the surfaces are ready for the next processes of fabrication.

Core Fabrication Techniques

Fabrication involves the modifying, combining, and finishing of tangible assets with the utmost accuracy. It includes the fabrication of metals, which has specific processes to follow so that the end product is functional and cost-effective at the same time.

Bending

Bending is one of the primary methods for changing the form of a sheet of metal without breaking it. It can be done by the use of press brakes which requires force to be applied in order to set an angle or a curve. Current days press brakes use Computer Numerical Control (CNC) systems which increases accuracy and can operate with tolerances of ±0.05 mm. This support in the bending of automotive panels, brackets, and their enclusures.

Welding

Welds are crucial in assembling the fabrication of parts as they combine every part of a component into the whole component. There are several approaches to welding, for instance, MIG (Metal Inert Gas) and TIG (Tungsten Inert Gas) welding, which both have their pros and cons. TIG provides higher accuracy and is preferred with thin metals. Med is more accost effective when mass production has to be done. The strength of welding is also strong and is measured by how much tensile strength there is, which depends on the material and processes, but for industrial purposes, it is usually above 500 MPa.

Punching and Stamping

In essence, Punching focuses on making holes or openings by means of a punch die on the metal. Other operations, such as embossing, flagging, and coining, fall under the general description of the process of stamping. All these methods are very fast in terms of the time taken to complete the part, which can go down to 1-2 seconds per part. Stamping presses with forces ranging from 20 to 10,000 tons are used to accommodate varying material thicknesses, which enables the production of intricate components.

Finishing Processes

When the various levels of shaping or assembly are done, then they can be finished by powder coating, anodizing, or electroplating to become more appealing while increasing their durability. Besides, powder coating is famous due to its corrosion protection, with test data proving that salt spray durability surpasses 1,000 hours under ASTM B117 testing. Anodizing is a finish that is commonly applied to aluminum for aesthetic and corrosion-resistant features.

Employing these essential techniques provides manufacturers with the ability to produce high strength components for different functionalities like telecommunications, construction, and aviation and guarantee efficiency and adequate performance.

Finishing with Powder Coating for the Final Product

Used widely on aluminum and steel components, powder coating is a finishing technique that is both efficient and durable. It consists of applying a dry powder onto the surface and curing it under heat, forming a protective layer. This technique provides excellent smoothness and uniformity, corrosion resistance, and impact and wear protection. Moreover, powder coating is eco-friendly as it produces waste and zero harmful solvent emissions. Its versatility allows it to be used for the automotive, construction, consumer goods, and other industries powder coating, making it suited for multiple uses.

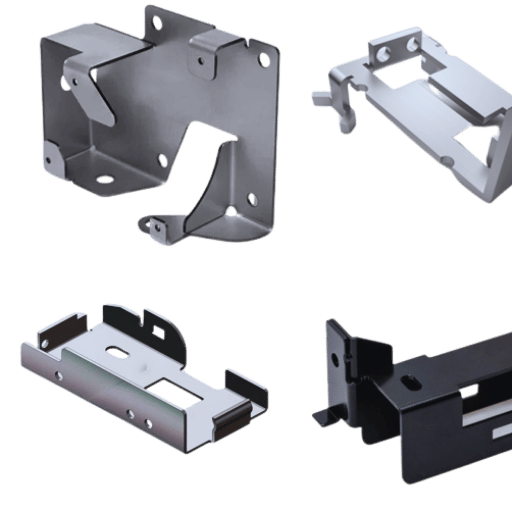

What are the Applications of Sheet Metal?

Understanding Applications of Sheet Metal in Different Industries

With its use across diverse industries, sheet metal has developed a reputation for being a durable, adaptable, and cost-efficient material. A broad overview of its applications in different sectors is described below:

Automobile Industry

• By using sheet metal, manufacturers are able to produce car bodies, panels, and chassis.
• With high strength-to-weight ratios, thin sheets meet the requirements of robust but lightweight designs.
• Industry numbers suggest that around 70% of cars are built using sheet metal components.

Construction Industry

• In construction, sheet metal is commonplace in roofing, siding, structural components, HVAC ducts, gutters, downspouts, drainages, and skylights.
• Galvanized steel and aluminum are also used for roofing due to their superb weather resistance and longevity.
• Advancements in modular construction are also driven by the precision-cut and prefabricated parts made using sheet metal.

Aerospace Industry

• Aircraft skins, Fuselage panels, and internal structural components of the aircraft are made using lightweight aluminum and titanium sheet metals.
• In construction, sheet metal is used to improve fuel efficiency and aerodynamic efficiency.
• An extra layer of processing for resistance against extreme pressures and temperatures is added to aerospace-grade sheet metal.

Electronics Industry

• Used for enclosures, panels, and frame fabrication, sheet metal loosens the constraints on the design and integration of various electronic devices.
• In the consumer industry, the requirements for durability and electromagnetic shielding in computers, servers, and telecommunication systems are met using sheet metal.

Consumer Goods Industry

• Home appliances, kitchen equipment, and furniture are made using strong yet malleable sheet metal.
• For instance, stainless steel sheet metal is quite popular in the manufacturing of refrigerators, ovens, and even sinks owing to their aesthetic value and resistance to corrosion.

Energy Sector

• Critical for the manufacturing of blades for wind turbines, solar panel mounts, and oil pipelines.
• The development of fabrication processes for sheet metal has aided the efficiency and accessibility of renewable energy systems.

Medical Equipment Manufacturing

• Commonly found in the construction of surgical instruments, equipment cases, and even the furniture of hospitals.
• This sector is highly focused on adaptability and the ease of sterilization, which makes it vital for use in sheet metal.

Such matters put emphasis on the value of sheet metal in different fields or industries. Its properties of strength, malleability, and customization are some reasons why innovation and efficiency continues to rise.

The Role of Sheet Metal Parts in Modern Design

Sheet metal parts have become increasingly important in modern design because they can be designed in many different ways, are very durable, and are inexpensive. They permit the design of strong and light components most needed in the automotive, aerospace, and building industries. Their flexibility of design permits the fabrication of complex shapes with the use of CAD and CNC machining. Moreover, the ability of metals to be recycled gives sheet metal a sustainable design aspect that is environmentally friendly without affecting functionality or performance.

Exploring the Advantages of Sheet Metal in Fabrication

Why Sheet Metal Fabrication is a Preferred Choice

The unmatched flexibility, accuracy, and dependability of fabrication make it an ever-foreferred choice. In my view, its ability to accomplish complex designs while sustaining structural integrity renders it essential in virtually every industry. Moreover, the cost efficiency and recyclability of sheet metals makes them economical and consturctional without sacrificing anything, making it ideal for sustainable design.

The Durability and Versatility of Metal Structures

Due to their excellent flexibility and strength, metal structures form the core of a broad spectrum of industries and applications. The following are the most important information and facts concerning the benefits that distinguish them:

Superb Strength-to-Weight Ratio

• Steel and aluminum are some of the metals that have great strength and low weight. This means that the structures made out of them are not only robust but also lightweight. Steel beam, for instance, possesses a tensile strength of over 400 MPa, so it is extensively employed in bridges, buildings, and heavy machinery.

Resistance to Corrosion

• Galvanization of antifouling paints or alloys such as stainless steel drastically increases the corrosion resistance of metal structures. For example, stainless steel steel is made out of over 10.5% chromium which prevents rust due to the protective oxide layer it forms.

Durability

• Long-lasting serviceable life in comparison with wood or plastic structures is noticeable in metalwork. Structural steel with little maintenance will last for more than 50 years, so in the long run, the expense is greatly reduced.

Design Flexibility

• With metal, complex architectural and engineering designs can be executed due to its easy cutting, shaping, and joining capabilities. Welding, laser cutting and bending techniques are some which provide precision fabrication and intricate design.

Recyclability

• Aluminum and steel, like other metals, are completely recyclable without losing their characteristics. Estimates suggest that more than 80% of structural steel is recycled, which helps in the realization of sustainable development goals.

Resistance to Heat and Fire

• Numerous metals, particularly steel, have good resistance to high temperatures and are, therefore, useful in areas requiring fire safety. Steel is said to retain its structural integrity until approximately 1,100°F (593°C).

Cost Efficiency

• Some metals have a high upfront cost, but their long lifespan and low maintenance result in reduced expenses in the long run. The use of prefabricated metal pieces also cuts down construction time and further improves project budgets.

These attributes collectively underscore the critical role metal structures play in modern construction, engineering, and manufacturing, providing dependable and sustainable solutions.

Who Provides Sheet Metal Fabrication Services?

Identifying Skilled Metal Fabricators

When looking for proficient metal fabricators, focus on businesses that have deep industry knowledge, accompanied by a portfolio and correspondingly positive customer reviews. Look out for certificates like ISO 9001 that show compliance with quality management systems and verification of the specialist polyester the fabricator holds in the scope of your project. Besides, verify the presence of advanced technology and methods for the desired level of accuracy and uniformity. The most dependable telltale signs are good communication, timeliness, and attention to detail throughout the duration of the project.

Choosing the Right Fabrication Services

Selecting the right sheet metal fabrication service providers requires a balance between technical processes and reliability. As a starting point, evaluate the fabricator’s technological assets such as CNC (Computer Numerical Control) machines, laser cutting systems, and state-of-the-art welding equipment, as these contribute to their level of sophistication and efficacy. Moreover, you should check their proficiency in working with different metals like stainless steel, aluminum, and carbon steel so that the company will be able to meet the unique needs of your project.

Industry analysis suggests that the global sheet metal fabrication market was valued at approximately $17.7 billion by the end of 2022 due to engineered solutions for automotive, aerospace and construction industries. This observation reiterates the need to collaborate with a fabricator who is knowledgeable on trends and innovations within the industry since these will invariably affect the quality and sustainability of all fabricated parts.

Moreover, check the supplier’s logistics capabilities, such as managing bulk orders, meeting delivery deadlines, and performing quality control during the production process. Businesses that offer comprehensive services, including design consultation and post production activities, usually bring out the most value. Subsequently, ensure that the company adheres to set industry policies and regulations, which guarantees that ethical and sustainable practices are employed during manufacturing processes. Emphasizing these factors will assist in attaining both operational effectiveness and product quality.

Frequently Asked Questions (FAQs)

Q: What are the most common techniques for fabricating sheet metal?

A: The most popular fabrication approach for sheet metal is to cut, bend, form, and weld. Shears, lasers, and even plasma cutters can do the cutting. Metal bending is the creation of angles and curves in flat sheets of metal. Forming techniques such as stamping and deep drawing are used to create specific shapes. Welding is joining two or more parts together. These methods are universally applied to produce a large variety of fabricated parts from sheet metal.

Q: Which industries utilize sheet metal fabrication techniques the most?

A: Sheet metal fabrication is utilized by almost all industries. For instance, automotive industry uses it for manufacturing body panels, HVAC systems for ductwork, appliances for casings, computer industry for enclosures, and construction industry for architectural features like roofing and siding. It is also extensively used in aerospace for aircraft structures, construction for building components, and consumer goods manufacturing for items such as kitchen and furniture. Due to the wide range of industries that depend on construction and modern manufacturing, sheet metal fabrication is increasingly important.

Q: What are the key considerations in sheet metal design?

A: Any sheet metal design will factor in numerous design details. These will be the choice of material in regard to stiffness, weight, and resistance to corrosion; manufacturability, which will check if the design can be manufactured; tolerances of the design and precision of the final product; cost; and purpose of the part. Designers also have to bear the constraints of different fabrication methods, as well as features such as bend radii, holes, and tabs. The design also has to deal with the stress concentration and how the part will assemble with the rest of the parts in the final assembly.

Q: What are the most common materials used in sheet metal fabrication?

A: The most known materials in sheet metalworking are mild steel, stainless steel, aluminum, copper, and brass. Mild steel dominates because of its cheapness and flexibility. Stainless steel is preferred because of its resistance to corrosion and good aesthetic features. Aluminum is preferable because it has a low density, and its strength-to-weight ratio is indeed good. Copper and brass are often used due to their conductivity as well as other decorative properties. The material to be used will depend on the application, strength, weight, corrosion resistance, and price.

Q: What are the different types of sheet metal fabrication processes?

A: There is a great variety of processes involved in sheet metal fabrication, which include cutting, bending, forming, and joining. The different types of cutting include shearing, punching, and laser cutting. Bending processes are press braking and roll forming, and forming techniques are stamping, deep drawing, and spinning. Welding, riveting, and adhesive bonding are stronger methods of joining other than them. Sheet metal fabrication also encompasses other processes like finishing and deburring in addition to the ones already mentioned. Every process of fabrication is selected based on the project’s parameters, how the material behaves, and what outcome is expected.

Q: How do I choose the right sheet metal fabricator for my project?

A: Choosing which sheet metal fabricator to work with depends on several key factors. Choose a fabricator who has previously completed your type of project in your industry because they will understand it better. Determine what equipment, processes, and materials they use, as well as their processes to ensure quality, accreditations, calendars, estimates on production volume, and references. Also, consider that such a firm may be accompanied by design and prototypes and that they communicate well. There is no doubt that a reliable fabricator will offer suggestions on design for manufacturability, as well as reasonable suggestions on cost.

Q: What are the advantages of sheet metal fabrication over other metal manufacturing processes?

A: One of the primary advantages of sheet metal fabrication over other processes is its ability to manufacture complex shapes and parts. These can be made at relatively low cost for small and large production runs alike. Compared to casting or machining, sheet metal fabrication yields lighter-weight parts. It enables quick prototyping and simple design modifications. The processes are often very efficient, as many steps can be automated. Moreover, the fabrication of sheet metal results in lower waste and pollution than other subtractive manufacturing methods. This makes it more environmentally friendly in many instances.

Q: What are the typical surface finishes for sheet metal fabrication?

A: These types of finishes include but are not limited to powder coating and plating, which includes methods such as zinc plating or chrome plating, painting, anodizing for aluminum parts, brushing or polishing, and texturing. Each finish serves a different aesthetic, practical, or protective purpose. Plated finishes will tend to be more visually appealing to the average consumer due to their corrosion and wear resistance. Additionally, anodic finishing improves the strength and appeal of the component while achieving the same end results, enhancing the desired attributes like painting, brushing, and polishing. Ultimately, the finish chosen is determined by the intended purpose of the part, the environmental conditions to which it will be exposed, and overall design expectations.
