Copper Fabrication: Unlocking the Secrets of Sheet Metal Mastery

From Industrial construction to electronics, copper fabrication is integral at the crossroads of art and engineering. In terms of usability, copper construction sheet metal stands out from the competition because of its resistance, conductivity, and reliability. In this blog, we will explore the details of copper fabrication and uncover the hidden secrets behind perfecting the craft of sheet metal manipulation. If you are a professional who wants in-depth detailed information or a beginner with zero knowledge looking for a basic explanation, this article will present every detail of tools, techniques, and practices that are crucial for mastery in copper fabrication. Get ready to traverse the union of inventiveness and artful accuracy that gives rise to the ageless copper.

What Are the Different Types of Copper Used in Fabrication?

Copper used for fabrication is generally divided into three main categories:

1. Pure Copper – It is copper of high purity that is also termed as electrolytic tough pitch (ETP) copper. It is highly prized for its tremendous conductivity and resistance to corrosion. This type of metal is mostly utilized in electrical works, plumbing, and even in decorative works.
2. Copper Alloys – These consist of mixtures of copper with other metals such as zinc, which forms brass, or tin to form bronze. Alloys are selected due to their greater strength, toughness, durability, or beauty depending on the project at hand.
3. Oxygen-Free Copper – This type has undergone special treatment to extract nearly all the oxygen, enhancing its conductivity. Oxygen free copper is best suited for highly electrical and somewhat pure applications.

Each type has its specified importance and uses in fabrication which makes it simpler for the manufacturers to decide the best appropriate material for the particular work needed.

Exploring Various Copper Alloys and Their Properties

1. Bronze – A supple combination of copper and tin, recognized for its strength, corrosion and rust resistance, and durability. It is the preferred material for marine hardware, bearings, and bushings due to its ability to withstand extreme environments.
2. Brass – Strong, malleable, and low friction alloy of zinc and copper, which is especially prized for it malleability and strength. This alloy is widely used in the production of plumbing tools, decorative pieces, and even musical instruments.
3. Phosphor Bronze – Alloy containing copper, tin, and a minute proportion of phosphorus, which enhances its wear and fatigue durability. This combination makes it applicable in springs, electrical connectors, and bearings.
4. Cupronickel – Copper and Nickel alloy with ample resistance against wear and corrosion. Used to make coins, marine components, and even heat exchangers due to its stability in seawater.

Such alloys are beneficial in achieving certain functional objectives, making them reliable and versatile for a wide range of commercial and industrial applications.

Choosing the Right Copper Sheet for Your Metal Fabrication Needs

Use these criteria and factors when choosing a copper sheet for metal fabrication:

1. Application Requirements – Determine the intended purpose of the fabricated part. For instance, electrical components are best suited with pure copper because it has exceptional conductivity. On the other hand, mechanical components benefit from stronger and more durable alloys such as brass.
2. Material Thickness – Select thickness in accordance with structural requirements and how easily the component may be formed. Additional strength is provided by thicker sheets, however, advanced tools may be necessary for shaping.
3. Corrosion Resistance– Copper alloys such as cupronickel have far superior corrosion resistance compared to copper.
4. Workability – Check the softness and hardness of the material to guarantee it matches your requirements for the fabrication process, which may include bending, cutting, welding, etc.

Choose a copper sheet that fits the technical requirements as well as the environmental needs to make use of the product for longer and better.

The Role of Oxide in Copper Sheet Metal Fabrication

Oxide impacts copper sheet metal fabrication since it affects the material’s surface and performance properties. In copper, the oxide layer must be controlled because it influences conductivity, solderability, and coatings adherence. In the case of oxidation, cleaning methods and control measures have to be applied to assure the quality of the copper work without creating other complications.

How Does the Copper Fabrication Process Work?

Understanding the Copper Fabrication Process

The procedure of fabricating copper includes several important steps to process copper and make it useful for various purposes. In the beginning, copper goes through a purifying phase, which, in most cases, is done by electrolysis for a more refined and cleaner form of copper. Once this phase is complete, copper is melted, poured into different shapes like plates, rods, or sheets, and then cast. The next mechanical steps in the manufacturing chain are extrusion, rolling, or drawing, which improve the shape and other features of the material. These materials undergo final procedures of surface treatment, heat implementation, or other means of finishing to boost how the materials will perform, including improving the copper’s strength, ductility, and corrosion resistance.

From Bend to Finish: Steps in Copper Sheet Metal Fabrication

Copper sheet metal fabrication consists of numerous steps, each of which is systematic and precise to ensure that the end product meets industrial standards.

1. Cutting and Preparation

Fabrication begins with cutting the copper sheets into specific shapes and sizes. Today’s advancements in technology make use of laser cutting, plasma cutting, and CNC systems. These techniques are not only accurate but also guarantee minimal raw material wastage. Now, CNC machines can handle precise measurements and tolerances as close as ±0.005 inches, which is highly sought after in industries that prioritize precision.

2. Bending and Forming

Bending can be accomplished through a process called air bending, where a press brake applies force to change the geometry into set angles and curves. For thick copper sheets, hydraulic and servo press brakes give up control with increases of up to several hundred tons, allowing easier manipulation of the material. These methods, especially software-assisted forming, help reduce errors in the process.

3. Joining and Assembly

Often, copper sheets have to be jointed with other elements or materials, and this can be done by welding, soldering, or brazing. Copper is often welded using TIG (Tungsten Inert Gas) welding as it produces clean and strong welds. Diffusion welding and ultrasonic welding are also effective on thin layers of copper, as these methods greatly reduce the energy needed to weld.

4. Surface Treatments

Surface treatments are done to enhance the quality and the lifespan of the product. Oxidation and corrosion are guarded against by such processes as electroplating, passivation, and coating. Current advancements include nanocoatings, which, while not interfering with the copper’s conductivity, allow for better resistance to environmental strains for a longer period of time.

5. Quality Assurance and Testing

Fabricated copper sheets are put through a stringent quality test process to ensure they meet the workmanship standards. Non-destructive testing (NDT) methods like ultrasonic and radiographic inspections help deal with internal defects without ruining the product’s integrity. Furthermore, tensile and hardness testing confirms the mechanical properties of the product meet the desired standards.

6. Final Customization

The last step is tailoring the copper sheets to various applications. Stamping or engraving for branding or utility could be done. For electrical and thermal uses, treatments designed for maximum conductivity or heat dissipation are applied. The automation boom has greatly sped up this part of the process and decreased cycle times on large projects.

Copper sheet fabrication is a training activity, improving with every technological and methodology innovation. These innovations increase productivity and further improve material properties to meet the stringent requirements of construction, electronics, and renewable energy.

Key Machines Used in Copper and Metal Fabrication

CNC Milling Machines

• CNC (Computer Numerical Control) machines are primary tools in the specialized industries responsible for the precise cutting, shaping, and drilling of copper sheets and other metals. These machines are very precise in their operations and are capable of producing complex geometries. As a result, they are crucial to the aerospace and electronics industries, among others. Modern CNC milling machines have tolerances of as little as ±0.001 inches, which is an exceptionally high value.

Hydraulic Press Brakes

• Hydraulic press brakes are machines generally used for the bending of metal sheets with programmed levels of force. Their operational scope is magnified by the adoption of programmable back gauges that aid in the specific control handles thicknesses of between 0.5 mm and more than 10 mm. Their tonnage capacities range from 50 up to more than 1000 tons. They are especially suitable for working with copper and heavier alloys.

Laser Cutting Machines

• For the clean and precise cutting of metal sheets, laser cutting is by far the most effective technology available. This is done with the aid of a powerful laser beam that can move effectively with speeds of up to 100 inches per minute. This form of cutting does not waste material, making it very economical and efficient, lowering production costs. They are perfect for intricate designs as well as high volume production runs.

Rolling Machines

• Rolling machines are required when metal sheets need to be formed into either a cylindrical or curved shape. They apply even pressure across the entire piece of material which forms pipes, tubes, and curved panels. Most rolling machines are automated and can accept a sheet thickness of 20 mm and width of 3000 mm.

Plasma Cutting Machines

• Plasma cutting machines cut through metal using a plasma arc which reaches high temperatures. These machines perform best on thicker materials and are capable of cutting up to 50 mm in copper and other metals. Their rapid cutting speeds makes them ideal for heavy-duty application usage.

Wire EDM Machines

• Wire ED(M) machines allow users to cut intricate profiles on harder metals such as copper alloys with exceptional precision. These machines use wire charged with electricity to erase material, which gives cutting accuracy with tolerances as fine as ±0.0001 inches.

Shearing Machines

• Shearing machines cut sheet metal in a straight line along the grain. These machines operate optimally with materials approximatively 25 mm thick providing clean cuts regardless of the amount of deformation. This type of machine is ideal for high-production environments.

Punching Machines

• Punching machines utilize dies to stamp holes or cut shapes in metal sheets. Modern CNC punching machines can do over 600 hits in a single minute. These machines create ventilation grids, circuit board casings, and intricate design patterns.

Annealing Furnaces

• These furnaces are crucial in heat treating copper to allow internal stresses to be relieved and ductility improved. The machines operate at varying temperatures, ranging from 600 and 1,200 degrees F. With these machines, copper is prepped for further processing, or obtaining certain mechanical properties.

Metal Finishing Equipment

• Surface prep or refinement is done by polishers, grinders, or sandblaster machines. As such, they smooth out copper surfaces or prep them for subsequent coatings. Many of these systems are automated and batch-processed, which ensures quality.

All machines in this group provide for rational, easy, and accurate copper and metal fabrication. These machines are essential and the copper and metal working industry will continue to rely on them for the fabrication technology.

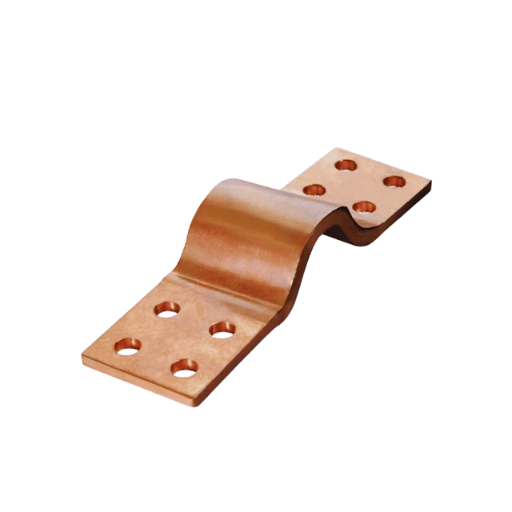

Why Is Copper a Popular Material for Sheet Metal?

The Malleability and Ductility of Copper

The ductility and malleability of copper serve to increase its value as it can be shaped and formed into different configurations of sheet metal whilst maintaining structural integrity. Malleability permits copper to be pressed or rolled into thin sheets, while ductility allows it to be transformed into wires or other elongated configurations. These attributes, together with the high thermal and electrical conductivity, make it possible to employ copper in construction, electrical systems, and manufacturing.

Corrosion Resistance and Durability of Copper Metal

Because of its excellent corrosion resistance and durability, copper is of great importance to numerous companies across numerous industries. The impressive corrosion resistance of copper is due to its capability of forming a protective layer of copper oxide called patina, when oxygen is available over a long period. This layer serves as an anti-oxidant shield that guards the resulting metal from degrading. Similar to many healthcare appliances, copper does not rust because it is a non-ferrous metal, which makes copper suitable for applications that demand long-term reliability.

As presented, copper is reliable as it has impressive resilience, even under mechanical abuse from marine or industrial regions where there are high levels of salts, chemicals, or atmospheric pollutants. For example, in plumbing systems or roofing works, copper can outlive more than 50 years due to its low corrosion and wear resistance compared to other alternative materials. Moreover, specific alloys like brass or bronze have enhanced stress corrosion cracking and pitting, making these materials last longer in harsh environments. This multifunctional attribute quality combination reinforces copper’s applicability in sustainable construction, renewable energy systems, and other advanced technologies which are increasingly demanding strong materials.

Copper’s Conductivity for Electrical Fabrication

Copper is one of the most used materials for electrical fabrication because it is very electrically conductive. It conducts electric currents with very little energy loss which makes it ideal for wiring, circuits, and electrical components. Its electrical conductivity, which is only surpassed by silver, alongside its durability and ease of fabrication, guarantees that copper will be the material of choice for dependable and efficient electrical systems across industries. Copper’s conductivity, alongside its versatility, ensures that it remains critical for use in the later stages of electronics manufacturing, as well as in power generation and transmission.

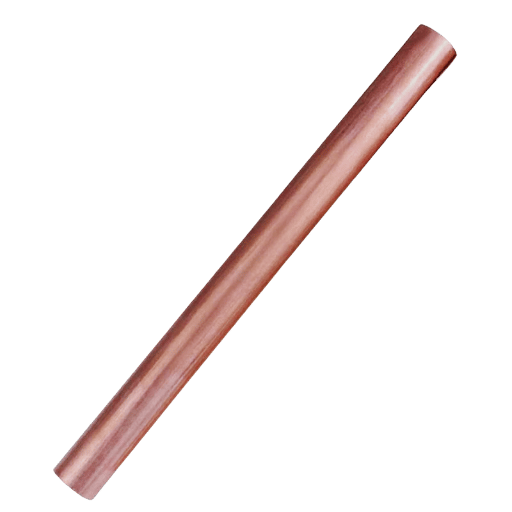

How Can You Optimize the Recycling of Copper Scrap?

Effective Methods to Use Copper Scrap in Fabrication

Processes Involved in Melting and Refining Materials

• Copper scrap can be utilized in fabrication through melting and refining processes. Quality scrap is charged into furnaces where it is melted and refined by removing impurities with fluxing techniques. The molten copper is then poured into required shapes, such as billets and sheets which are useful for industries. Studies reveal that recycled copper is able to retain approximately 95% of its original properties which can be processed while and that waste is minimized.

Electrolysis Methods

• For the cases that require extra attention to purity, electrorefining processes can be employed. Scrap copper is placed into an electrolyte solution so that it can be dissolved and separated from impurities. This method is useful for cases that need ultra pure copper, for example, electronics manufacturing. Using electrolysis is a good way of ensuring a constant material standard quality.

Producing Copper Alloy Metals

• Copper scrap is commonly combined with other metals like zinc and tin to make alloys such as bronze and brass. Using copper scrap in alloy production reduces the need to use raw copper ores and adds to environmental and economic pros. For instance, scrap copper is most often used by the brass industry, which greatly reduces the carbon emissions that result from manufacturing.

Classification and Separation of Copper Scrap

• Proper classification of copper scrap greatly affects efficiency use. High-grade copper scraps like bare bright copper are used directly without extensive refining, while lower-grade scraps undergo elaborate treatment processes to isolate the usable copper content. The use of advanced separation technologies such as eddy current separators and optical sorting can increase recovery rates by up to twenty-five percent, improving the economic attractiveness of scrap.

Cold Forging and Intermediate Direct Use

• Some forms of copper scrap like copper rods and strips can be directly cold forged to shape to use in production processes. This method reduces the time and energy spent on other processing. Manufacturers of electrical connectors and plumbing fixtures tend to greatly benefit from this solution.

Optimization of Environmental Impact

• The use of copper scrap optimizes the environmental impact of growing copper production. The recycling of copper uses up to 85% less energy compared to primary extraction, therefore, reducing greenhouse gas emissions. Estimates suggest that in 2022 alone, recycling copper was able to save approximately 8.2 million metric tons of equivalent carbon dioxide emissions, showing how significant scrap optimization can be in sustainable fabrication methods.

This will ensure that industries get the most from copper scrap, lower production expenses, and work towards a greener tomorrow all while still utilizing the material’s functional capabilities.

Benefits of Recycling Copper in the Metal Fabrication Industry

Energy Savings

• The energy needed for copper recycling is drastically lower than that required for extracting and processing ores to obtain copper. Recycled copper requires approximately 15% of the energy needed for primary copper production, resulting in significant economic and resource savings.

Reduction in Greenhouse Gas Emissions

• The Carbon footprint of industries that rely on recycled copper is substantially lower, as they reduce greenhouse gas emissions. Once copper is recycled, it generates an avoided emissions value of approximately 8.2 million metric tons of CO2 equivalent every year, which mitigates climate change on a global scale.

Conservation of Natural Resources

• Recycling copper helps slow down mining operations that extract copper ore, preserving natural resources. This approach also reduces the destruction of habitats along with the environmental damage caused by mining.

Cost-Effectiveness

• Manufacturers no longer need to pay high energy costs or raw material costs while using copper scrap as the final product’s quality is not compromised, further improving industry competition.

Waste Reduction

• Because copper recycling reduces the amount of scrap material that ends up in landfills, copper recycling enhances the circular economy within the metal fabrication industries by boosting industrial waste reduction.

Circular Economy and Sustainability

• Recycled copper reinforces the tenets of a circular economy during production, as it helps materials preserve utility and value for multiple life cycles. This promotes the long-term sustainability of the businesses and the environment.

Properties of the Material Do Not Change

• Recycled copper does not lose its properties and remains conductive, malleable, and strong. This makes copper excellent for different metal fabrication processes across industries, as there is no compromise on the quality of the end product.

The implementation of an effective recycling system within the industry will make it possible to achieve economic gains while protecting the ecology. These steps greatly help in the creation of balance in the sustainable industrial system development.

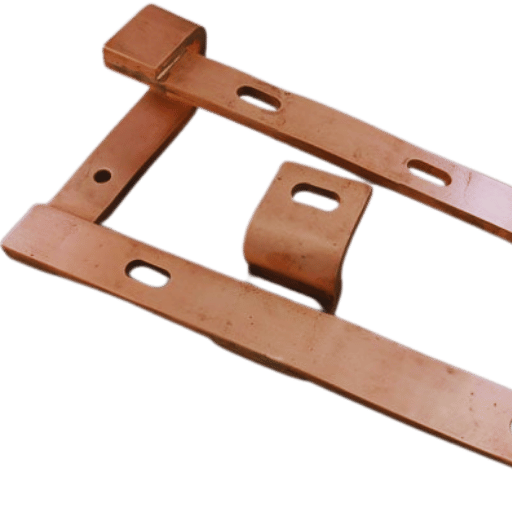

What Are the Best Finishes for Copper in Sheet Metal Fabrication?

Understanding Patina and Its Effects on Copper Sheet

Patina is a natural coating that forms on a copper surface over time due to its interaction with the environment in terms of air, moisture, and other chemicals, such as pollutants. This natural layer usually manifests in green or blue hues, which are typically linked to the patinaed copper. Though the patina changes the coloration of the copper, it also acts like a shield that stops the copper from corroding further, thus increasing its durability. Patina is also an aesthetic feature or functional problem that can be artificially accelerated or removed with controlled techniques. Managing and modifying patina is crucial in the fabrication of copper sheet metal to achieve a specific purpose in design and function.

Applying Protective Coatings to Enhance Copper’s Lifespan

To prevent oxidation, corrosion, and environmental wear, copper’s appearance and existence needs to be preserved using protective coatings. Common coatings include clear lacquer, wax, and polymer sealants which all have unique advantages depending on the case. For instance, clear polyurethane coatings are highly popular because of their durability, UV resistance, and transparency, allowing the copper to be visible while preventing it from the effects of weathering.

The recent breakthroughs in nanotechnology allowed the development of nanoscaled coatings, which create a moisture and dirt-rejecting invisible barrier over the copper surface, significantly reducing tarnish. Research indicates that depending on the environmental conditions, these coatings can increase the lifespan of copper by up to 50%. Furthermore, the anti-corrosion integrated inhibitors are highly useful in industrial places where copper is subjected to chemicals and high temperatures and humidity.

In some industries like roofing or architecture, periodic maintenance coupled with high performance coatings makes sure the copper surfaces do not lose their structural integrity and remains polished for decades. Although protective coatings are very important, it is essential to choose them to specific environmental factors and intended use in order to meet project specifications and ensure long-term durability.

Frequently Asked Questions (FAQs)

Q: What makes copper a good choice for sheet metal fabrication?

A: Copper is ductile. It can be hammered in to thin sheets without breaking and is thermally and electrically conductive. Copper also is resistant to corrosion. Metals such as copper are a requirement in the aviation as well as automotive industry. This is due to its vast usage in the electronics and construction industry, making these minerals highly valuable.

Q: What are some common copper fabrication options available?

A: Common processes for copper fabrication include metal rolling, bending, stamping, and custom shaping. These are the basic operations taught in trade courses and used in manufacturing industry where simple applications such as sheets are combined or complex mechanics parts are fabricated. Advanced processes of copper fabrication are achieved by utilizing advanced machinery such as bending machines which make it easier and faster to obtain the desired shape.

Q: How can copper be made into different shapes and forms?

A: Copper can be shaped with processes like rolling, bending, stamping, and hammering. These methods employ different processes of altering the grain of the copper, making it possible to cut flat sheets as well as curved or even complicated forms. There is a variety of shapes and dimensions possible, so it is easier to use them in different projects.

Q: What are some unique properties of copper that make it suitable for fabrication?

A: It is highly ductile, meaning it can be drawn into wires and hammered into other forms without breaking. Ductility makes it much easier to work with and has a wide range of applications. Additionally, it conducts thermal and electrical energy exceptionally well, which makes it ideal for situations where heat transfer is needed, or electrical grounding is required. Copper also has naturally occurring antimicrobial properties that allow it to be used in medical facilities and food processing plants.

Q: Are copper nails a good option for fastening in fabrication projects?

A: Copper nails can be optimal for certain specific fabrication projects, especially those done outdoors where the elements of moisture or corrosion might be an issue. They do not rust and can be attractive. Yet, it’s always good to keep in mind that copper nails do have their downsides, which include being much softer in strength than the steel counterpart, meaning they would not be ideal in high-stress situations or where the maximum holding power is a must.

Q: How does copper compare to other metals like steel or aluminum in fabrication?

A: Copper certainly has some benefits over steel and aluminum. It is more ductile than both of them, which makes it easier to form into shapes. It also possesses better electrical and thermal conductivity. That said, copper is softer and more expensive than steel, which can make it difficult to use in some structural works.

Q: Can copper be fabricated into half-round shapes?

A: Copper does lend itself to being formed into half round shapes quite easily. This is usually achieved through a technique known as roll forming, where the flat sheets of copper are sequentially bent into a semi-circular shape. Half round copper is often integrated into architecture in the form of gutters and roofing accents, as well as decorative moldings.

Q: How pure is the copper used in fabrication projects?

A: The purity of copper in fabrication projects is not constant and depends on the specific need. Most commercial copper products will have 99.9% copper because it gives a good balance of attributes. For more specialized applications, like those in electronics that need greater purity, copper with 99.99% or purer is available.

Q: What is the importance of copper in the use of grounding strips and electrical work?

A: Thanks to its excellent electrical conductivity, copper is essential in electrical work as well as in the use of grounding strips. Its often used in grounding strips which help in channeling electric current to the ground without danger to equipment and human beings, thus preventing electric shocks. In addition, the low resistive features of copper makes it very useful in so many different components as well as wires of electricity.

Q: What steps should I follow to begin a copper fabrication project?

A: To start off with a copper fabrication project, the first and most important step is to get in touch with a fabrication company. They will take you through the design stage, aid you in deciding the gauge and type of copper you require, and suggest the most suitable fabrication processes that can meet your specific expectations. We are here to help! Feel free to contact us and let us know how we can assist with your copper fabrication project.
