Understanding the Principle of Extrusion: A Deep Dive into the Extrusion Process

The extrusion process is one of the most essential and versatile manufacturing techniques, shaping countless materials into precise, functional forms. One notable mention is that the construction and automotive industries need complex profiles and everyday uses like pipe and food product extrusion. However, looking deeper into its multifaceted nature raises the question: How does it precisely achieve such versatile functionality? This paper will delineate the technical details of the extrusion procedure and its various application techniques and give reasoning for its prominence in contemporary manufacturing innovations. Suppose you are a member of this field or even just interested in the logic defining the products of your daily life. In that case, this lengthy paper will augment your appreciation for the science of the extrusion process.

What is the Extrusion Process?

Shaping a material by forcing it through extrusion dies of a desired cross-section is termed extrusion, a manufacturing process. It is widely used with metals, plastics, and even ceramics. The extrusion process usually begins with heating or softening the material before pushing or drawing through the die. With further refinishing and processing, the desired shape can then be achieved. Using extrusion has high value due to its efficiency, versatility, and ability to produce precision complex shapes.

Key Components of the Extrusion Process

1. Die: Its configuration finalizes the shape of the material that will be extruded. The Die is made to specific standards to ensure accurate and precise analysis.
2. Extruder: This principal mechanism introduces the material into the system. Extruders usually comprise a barrel, a screw component, and one or more heating components for softening the working material.
3. Feedstock: It is the basic substance which, during extrusion processing, can differ from application to application (for example, metal kits, plastic granules, or ceramic cylinders) used in the extrusion process.
4. Cooling System: This system solidifies the extruded product after it leaves the die. After cooling, the material retains the desired shape.
5. Puller: The purpose of Draw is to control the speed of the drawn material from the die so that it is drawn evenly and consistently; too slow will cause deformation, while too fast will cause irregularities.
6. Cutting/Finishing Equipment: This equipment subdivides the extruded material to the desired length and performs secondary processing if required.

How is a Polymer Extruded?

Extrusion of polymers concerns the production of the parts with constant cross-section by heating and shaping the polymer substances. It starts with putting polymer granules in a barrel with a heating jacket, which are heated by mechanical stirring (shear) and a temperature increase. Afterward, the polymer is pushed out of the extruder into a die of a desired profile. Initially, the solidified structure is cooled by a cooling apparatus. The final product is then cut at the proper shape and length by combining cutting and finishing tools while being pulled out of the machine at a desired rate. This technique is predominant in fabricating pipes, films, sheets, and others, termed continuous polymer products.

Steps in the Extrusion Process

1. Feeding the material: The raw polymer is introduced into the extruder’s hopper and begins to convey towards the barrel.
2. Melting the polymer: The heating of the barrel and the application of mechanical shear allow the polymer to be transformed into a liquid as it progresses along the barrel.
3. Shaping: The liquid polymer is passed through a die to achieve the desired shape or cross-section.
4. Cooling: The freshly extruded part is cooled using water or air to allow the polymer to harden and solidify, thus becoming structurally stable.
5. Pulling and sizing: The shaped and cooled part is drawn through a sizing or calibration device to attain the desired shape and dimensions.
6. Cutting and finishing: According to the required standards, the part is trimmed or sliced to length and subsequently completed, constituting the final product.

Implementing these steps guarantees that the final produced polymer parts are highly quality and manufactured cost-effectively.

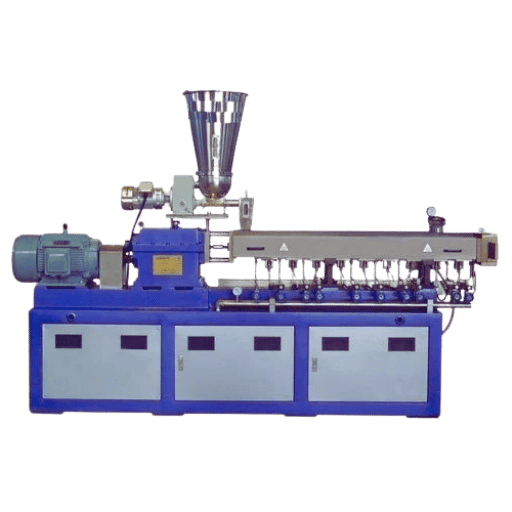

How Does the Principle of Extrusion Work?

The Role of Friction and Compression

In extrusion, friction, and compression are useful for material movement and shaping. Heat-seeking the screw to spin against the barrel causes friction which begins to soften the material. Increased resistance within the extruder from the die being shaped puts pressure on the material, guaranteeing that It is melted and shaped. These material characteristics allow for trim flow and exact control over the end product.

Understanding Material Extrusion

Material extrusion is when raw material pellets or powders are processed by pushing them through a heated barrel and a die to form a desired shape. Achieving the right shape requires controlling the flow, heat, and pressure to soften, melt, and precisely shape the material. This process is widely utilized for manufacturing pipes, films, and other continuous shapes in industries dealing with metals and plastic materials. Moreover, this process is highly efficient and accurate, making it essential for modern production.

Importance of Melt Temperature

Melt temperature is essential in extrusion and thermal processing, as it significantly determines the end product’s quality, uniformity, and mechanical functioning. The material’s melt temperature should facilitate a controlled and steady flow through the die without creating issues such as visible surface inconsistencies, incomplete filling of the set molds, or deterioration of the material.

For example, the plastic extrusion procedure changes the ideal melt temperature with the specific polymer. For Polypropylene (PP), the melt temperature is around 365°F to 410°F (185°C to 210°C). The melt temperature is much higher for Polyethylene Terephthalate (PET), about 500 to 550 degrees Fahrenheit (260 to 290 degrees Celsius). Operating within the approximate set ranges facilitates ease of flow, while exceeding these ranges results in thermal degradation due to the breakdown of the molecular structure, reducing the strength and appearance of the final product.

On top of that, high melt temperatures can cause resin oxidation, resulting in discoloration and lowering its molecular weight. On the other hand, too little heat can lead to incomplete melting, creating poor characteristics and inadequate mechanical performance. Modern industry employs sophisticated machinery with accurate thermal control to tackle these issues. Such precise control guarantees that the heat is uniformly distributed across the barrel wall and die zones. Doing this increases production efficiency while decreasing the amount of material wasted and the quality of the finished product.

What Are the Types of Extrusion?

Differences Between Hot Extrusion and Cold Extrusion

The fundamental difference between hot and cold extrusion is temperature; both processes differ in their melting point and heat treatment of the material.

Hot extrusion is executed at high temperatures, often more than the material’s recrystallization temperature. These strategies allow for easier deformation of the material, lower chances of work hardening, and smooth flow during the process. This technique uses high-room-temperature metals, such as aluminum and steel.

Cold extrusion occurs at ambient temperature and higher. Due to strain hardening, this method can improve mechanical properties like strength and hardness. It is mainly used on softer metals such as aluminum, lead, or tin, but it allows for better finishes and tighter tolerances.

The material used, the desired properties of the finished item, and the extrusion technique are among some factors that need to be analyzed when choosing between hot or cold extrusion.

Exploring Impact Extrusion

Impact extrusion is a manufacturing process predominantly employed to form hollow or semi-hollow shapes. These shapes can be made from aluminum, tin, or lead. This technique involves striking a metal slug with a punch at high speed and pressure. This move forces the material to flow around the punch and into a die. The result gives you a part that boasts superb dimensional accuracy and smooth surface finishes. Impact extrusion is preferred over other processes due to its efficiency, which results in rapid production capabilities with minimal waste. This makes it particularly suitable for producing aluminum cans, tubes, and small housing.

Common Extrusion Methods Used in Industry

1. Direct Extrusion: In this technique, a material is pushed through a die on the same axis as the applied force. This method is prevalent because it efficiently produces solid, hollow, and semi-hollow profiles of varying complexity and is simple.
2. Indirect Extrusion: In this technique, the die moves toward the stationary billet, minimizing friction and material waste. It fabricates parts with uniform cross-sections, such as pipes.
3. Cold Extrusion: This technique is performed at room temperature and is designed to fabricate components with powerful strength and excellent finish, which are utilized when precise tolerances are necessary.
4. Hot Extrusion: As the name suggests, this technique uses elevated temperatures. It is best suited to robust materials that are difficult to shape, such as high-strength alloys. This method also increases the material’s plasticity while decreasing the required force.
5. Hydrostatic Extrusion: This approach applies a pressurized fluid to assist in extrusion of the material, this makes the flow of the material uniform, and reduces defects while making high precision work easier.

All of these techniques are to be chosen according to the properties of the material, specifications of the product, and efficiency critical to industrial processes, as they all have different advantages and disadvantages.

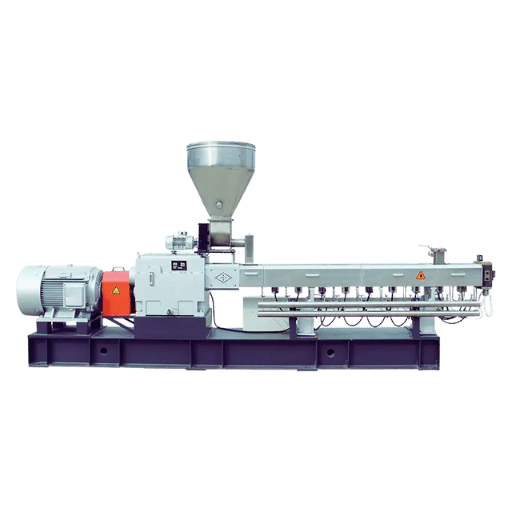

What Role Does Extrusion Equipment Play?

Components of an Extruder

An extruder is formed with all its most essential parts: the barrel and the extrusion dies.

1. Barrel: Contains the material while the material is being worked on to ensure proper pressure is maintained.
2. Screw: Moves inside the barrel to move, compress, and melt the material into a mixture.
3. Hopper: Introduces the raw material to be processed into the barrel.
4. Die: Converts the material into a proper shape at the end of the extruder.
5. Heating System: Maintains the ideal temperature for the processing of the material.
6. Motor: Turns the screw to relocate the material to enable processing.

For each component, the leading roles required to achieve an effective and accurate extrusion process can be achieved.

Innovations in Screw Design

New developments in the screw design have been directed towards efficiency, better mixing, and increased variability of materials. Notable enhancements are:

1. Barrier Screws: Aid in the separation of molten and un-melted materials, which helps in increasing the consistency of melting while saving on energy.
2. Mixing Elements: Special mixing zones enabled within highly homogenous multi/complex elements help achieve uniformity.
3. High-Performance Coatings: Coating with abrasive elements has a longer life, toughened screws compared to others, and still functions appropriately under hotter or abrasive conditions.
4. Modular Screw Designs: Variations of these serves specific needs, unlike standard screws, which are restricted to one function. Customization is possible for particular materials or processes, easing manipulation by manufacturers with different uses.

It reduces material management and improves quality, speed of production, and extrusion process efficiency, which have a positive impact due to these improvements.

Maintaining Optimal Screw Speed and Shear Rate

Keeping screw speeds and shear rates perfect is very crucial for achieving material quality and proper extrusion during the process. Manipulation of screw speed depending on materials and corresponding processes is required to avoid overheating or particle degradation. Overly excessive shear rates can damage material, especially sensitive polymers, and too low can result in poor mixing and melting of materials. Real-time monitoring of processes alongside the use of screw designs catered to the material’s behavior allows manufacturers to achieve the desired setpoint. This enhances product quality while minimizing the destructive impact on machine parts.

How to Optimize Extrusion Line for Efficiency?

Managing High Temperature and Residence Time

Maintaining high temperature and residence time is essential to prevent degradation and consistency of quality; however, monitoring these measures is equally as important. Thermal decomposition occurs at high temperatures, and excessive residence time may increase the chances of oxidation or cross-linking of some polymers. Careful monitoring of barrel zone temperature control and high-precision calibration dwell time based on the material’s thermal stability can help optimize these parameters. Achieving consistency is essential; thus, more advanced temperature control systems and regular equipment calibration can also aid in this mission. Proper screw design alongside proper fill levels in the barrel enables easier regulation of residence time and thus decreases waste which increases overall process efficiency.

The Significance of the End of the Extruder Configuration

Proper design of the extruder die at the end of an extruder session is vital in achieving the target quality and efficiency standards. I, for example, focus on product shape and consistency and use the appropriate die design with the required shape. Defect ratios can be minimized with properly designed dies by reducing pressure drops. In addition, I make sure that the downstream cooling systems are appropriately regulated to control solidification rates and liquid plastic deformation. I constantly assess the alignment of these parts to avoid any process interruptions in extrusion. Thus, I can maintain the desired quality standard in outputs.

The Melt Temperature Effect on Product Quality

As with many processes, the melt temperature has a critical role in the extrusion process, as too low or too high temperatures may significantly degrade the final product quality. When melt temperatures are set correctly, uniform material flow can be achieved, reducing the chances of internal stresses, warping, or surface inconsistencies. The material properties and overall product appearance suffer when melt temperatures are too high. In contrast, low temperatures may result in incomplete melting of the material, leading to blockages and poor homogeneity. Staying within the recommended melt temperature range improves product quality consistency and production efficiency.

Frequently Asked Questions (FAQs)

Q: What is the working principle of extrusion in the manufacturing process?

A: Using a die, extrusion transforms raw material into a specific shape. This is accomplished by forcing either molten or solid material through a die at high pressure, using either a ram or screw pump. The industry defines extrusion shaping as forming objects by forcing material through a specially shaped opening.

Q: How are pellets utilized in the extrusion process?

A: One of the most common raw material forms is pellets, which are loaded into the extruder barrel and heated until they melt. This molten material is then forced through the die to form the extruded part.

Q: What are the available methods and types of extrusion methods and techniques?

A: There are several types of extrusion techniques, including hot, cold, and warm extrusion. Each has different parameters, such as the temperature of the extrusion and the material used.

Q: How does the extrusion process create a desired shape?

A: In extrusion, shape is created by the material having to pass through a die with a specific form. At this point, the material cools and retains the shape cast from the die.

Q: Which materials are amenable to production via the extrusion process?

A: Various products, including metals, polymers, ceramics, and foodstuffs, can be produced using extrusion. Each product has its process parameters, which must be followed for optimal results.

Q: How does the extruder barrel function in the extrusion process?

A: The extruder barrel is the portion of the extruder that contains a screw or a ram that moves and compresses the raw material. It also preheats and melts the material before being forced out of the die to be extruded.

Q: Define metal extrusion. What is its place in the manufacturing process?

A: Metal extrusion is a process of manufacturing by which some metal in its raw form is pushed through a die to produce items with a particular cross-section. It can create uniform and strong components such as pipes, tubes, and even other structural parts.

Q: In what function does the metering section operate in the extrusion process?

A: The metering section of the extruder screw is responsible for the flow control of the molten material for particular parts of the extrusion process. It allows the achievement of part distribution overhead of the die, which is critical in producing the best-extruded parts.

Q: Give examples of process parameters and explain their relevance in extrusion.

A: All of the numerous parameters defined by a machine, such as temperature, the pressure exercised, as well as the speed of the machine’s components and their respective revolutions, are termed process parameters. These parameters are responsible for the extruded item’s quality and proportions.

Q: How is extrusion applied to generate complex shapes?

A: The extrusion application involves producing complex shapes using dies with different complex cross-sectional shapes for detail work. Due to the flexibility of the extrusion process, parts with detailed and multiple design features can be constructed.

Reference Sources

1. “Numerical Optimization of Damage in Extrusion Processes”

• Authors: Fabian Guhr and colleagues
• Publication Date: September 17, 2023
• Summary: This research aims to mitigate damage in rod extrusion by optimizing the extrusion process. The authors used numerical damage optimization methods to determine parameters corresponding to minimum damage. They offered a short insight into the academic use cases for damage optimization, proposing a methodology with commercial software (Abaqus FEA) for industrial applications of frictional contact problems.
• Methodology: The study used FEA to model the extrusion process and measure the different parameter effects on damage integration (Guhr et al., 2023).

2. “A Review of Processes Modeling for Polymer Extrusion”

• Authors: M. Hyvärinen et. al.
• Published on: June 1, 2020
• Summary: The review addresses the modeling of extrusion processes, especially for polymers. It integrates and consolidates process design, machine design, process parameters, flow models, and flow analysis while critically assessing the role of modeling in enhancing extrusion efficiency and product quality.
• Methodology: The authors conducted a literature review on extrusion modeling, focusing on the analytical and empirical methods used in this domain (Hyvärinen et al., 2020).
