Mastering the Art of Reaming: How to Achieve the Perfect Reamed Hole

Reaming is an important process in machining which entails the creation of smooth, precise, and accurately sized holes in different materials. Reamed holes can be found in engineering, manufacturing, and metalworking, but all of them can only be achieved with a thorough appreciation of the tools, techniques, and conditions involved. The purpose of this article is to discuss in depth the different elements that affect the reaming process such as tool selection, compatibility of materials, and other recommended procedures. Understanding these principles will improve the machining skills of professionals, guaranteeing accuracy and dependability in each situation.

What is a reamed hole and Why is it Important?

In engineering, a reamed hole is defined as a hole made of precise and specific dimensions, surfaced smooth and having high tolerances of accuracies. In other words, a reamed hole is a highly accurate cylindrical cavity machined by a cutting tool known as a reamer. This specific hole is critical to the workings of assembly lines or precision component manufacturing where accuracy and repeatability are crucial. Any errors this vicinity can lead to issues with proper function, alignment, or structural robustness due to deviations.

Understanding the Remeing operation

A properly executed reaming operation contains several components, such as the workpiece material, tool quality and type, as well as environmental parameters like spindle speed, feed rate, and the application of coolant. These workpiece parameters ensure accuracy and precision are met alongside the appropriate surface finish. Deviations from a pre-determined relative tool position can cause lack of dimensional accuracy. Moreover, high speed steel and carbide tipped reamers increase tool life as they provide form under improved cutting conditions. Ensured tool maintenance also guarantees them for longer periods of time.

The Importance of Tolerances in Reaming

Reaming tolerances are critical because they directly influence the accuracy and precision of the final hole dimensions. When tolerance is well controlled, the hole’s size, roundness, and surface finish are favorable, which contributes to the fit and function of the components. This is important for any components that require high accuracy machining like aerospace and automotive components. Observing tolerances reduces the possibility of problems related to assembly, performance, or failure of the parts.

The Variety of a Reamed Hole Compared to a Drilled Hole

A reamed hole can be defined in comparison to a drilled hole as a more advanced variation owing to its accuracy, dimensions, and surface finish. A few pointers supporting this explanation are:

Reamed Hole: Reaming standard tolerances is ±0.001 inches or better in most cases, which makes It acceptable for processes of strict dimensional accuracy.

Drilled Hole: The holes fabricated with a drill have tolerances of around-±0.005 inches which is a result of the drill bit’s grade and material.

The Average Subsurface Roughness of a Drilled Hole Ra:250-500 microinches.

The Average Surface Roughness of a Reamed Hole Ra:32-125 microinches, which makes exquisitely smooth surfaces in comparison to drilled holes.

Usability:

Reamed holes are thought to serve general purpose use like sub assemblies which do require high accuracy.

Reaming of holes is critical for some high precision operations such as for alignment pins, press fits or cases where the assembly’s surface finish impacts its effectiveness.

Material Removal:

Reamed holes entails extracting minor portions of material (0.005 – 0.015) post drilling, which allows for more accurate control of the final drill hole diameter.

The incorporation of these modifications throughout history has made reaming the semi-finish machining operation of choice in high-precision manufacturing, particularly in engineering, aerospace, and medical engineering industries.

How to ream a hole effectively?

Process of Hole Reaming

Choose the reamer based on the workpiece material and required surface finish. Confirm that the reamer type (hand or machine) and dimensions are correct for the task.

• Drill pilot holes that are smaller than the final diameter. Ensure that the hole being drilled is smooth on the mm surface, free of burrs or pieces of waste material.
• Make and keep the alignment of the reamer and the axis of the hole with a high degree of accuracy. Misalignment leads to problems with the reaming process and may even damage the tool or the workpiece.
• With the right material, use a cutting fluid or lubricant per the requirements of the tool. It extends the life of the tool, and decreases the friction while enhancing surface finish.
• When reaming with a machine, use low speeds of cutting, approximately 30%-50% of the speed used for drilling. Maintain proper and gradual feed rate to achieve smooth cutting.
• Limit vibration and ensure sturdy setup. Do not apply too much force on the reamer, or else this will lead to excessive hole enlargement.
• Finally, clean the hole and inspect it to ensure there is reaming accuracy in diameter, surface finish, and alignment.

The above steps enable achieving holes that seamless and very precise to meet industrial requirements and quality standards using reaming.

Choosing the right reamer for the job

Pickign the correct reamer requires consideration of different aspects that could affect performance and precision. The following are some primary factors with the necessary particualrs and data:

High-Speed Steel (HSS): Good for general purposes and softer materials such as mild steel. Has a reasonable amount of lasting durability.

Carbide Reamers: Greater for tougher materials such as stainless steel or titanium. Renders excellent wear resistance and keeps a sharp cutting edge for a comparatively longer period of the time.

Cobalt Steel: Provides adequate toughness in conjunction with heat resistance for a high temperature job.

Chucking Reamers: Widely use in CNC machines, these reamers operate in rigid arrangements and are suitable for precise work in short blind or through-holes.

Hand Reamers: Suitable for more manual work, these feature a tapered end which serves to assist cuffing in an orderly extension.

Adjustable Reamers: Provide various different sizes which can be set but these require particular attention for set results.

The intended bore tolerance should approximately correspond to reamer size. Tolerances can commonly range from H4 to H7 (ISO fit standards) and deviations can also be very low, for example +/- 0.0001 inches for fine surface finishing.

Spiral Flutes: Suggested for processing the soft, ductile materials as these improve the evacuation of the chip and clogging.

Straight Flutes: Best suited for machining stiffer more brittle materials where more vibration should be controlled.

TiN (Titanium Nitride): Improves wear resistance and surface hardness.

TiCN (Titanium Carbonitride): Better cutting performance of abrasive materials.

AlTiN (Aluminum Titanium Nitride): Excellent heat resistance for high-speed operations.

The recommended rotation speeds and feed rates vary with the material to be used and the type of reamer. For example, Steel (Low Carbon) utilizes 60 to 100 SFM (surface feet per minute). While Aluminum uses approximately 200 to 400 SFM and Stainless Steel approximately 30-50 SFM (carbide tools suggested).

Proper lubrication, soluble oil or synthetic coolant, aids in enhancing tool life and finish quality.

These calculations together with some application-specific data can guide operators in effective reaming and addressing accuracy requirements in an industrial environment.

The reaming process involves a number of controls such as parameters and tool choices that must be exercised in the installation phase. The following are instructions or values that are most often cited in industries:

The aim of gauging averages is to ensure that the reamer is correctly aligned to the hole for desired tolerances otherwise misalignment ensures that hole diameters are not uniform or tools are worn out prematurely. The error limit in alignment should be around 0.001 to 0.002 inches depending on the application.

The durability and performance of a reamer is influenced by its material composition in correlation to the workpiece materials. For instance, consider the following examples:

High-Speed Steel (HSS): Used for general purposes. Lower and medium-strength materials are very appropriate.

Carbide Reamers: Required when machining of hard alloys, stainless steel, and abrasive materials is necessary.

Cobalt-Alloy Reamers: Perfect for extreme temperature machining due to their heat resistance.

Allowance also defines surface finish and dimensional accuracy, which is also determined from the material that is left for reaming after drilling. Common values are:

Steel (Low Carbon): 0.005-0.010 inches

Aluminum Alloys: 0.003-0.007 inches

Hardened Materials (>40 HRC): 0.002-0.005 inches (with carbide reamers)

The combination of cutting speed (surface feet per minute) and feed rate (inches per revolution) greatly impact the productivity of reaming operations:

Typical Feed Rates:

Aluminum and Brass: 0.004-0.012 in/rev

Low-Carbon Steel: 0.002-0.008 in/rev

High-Strength Alloys (e.g., Titanium): 0.001-0.003 in/rev

As mentioned earlier, cutting speeds vary greatly from material type to material type.

Lubrication mitigates friction, ameliorates surface texture, and prolongs the lifespan of tools. For important reaming operations, the commonly used coolants are the following:

General-purpose soluble oils.

Synthetic coolants for environments with high cleanliness and thermal stability.

Operators can increase efficiency, gain tighter tolerances, and meet superior surface finish standards with the incorporation of accurate information into the reaming process in accordance with these precise directions.

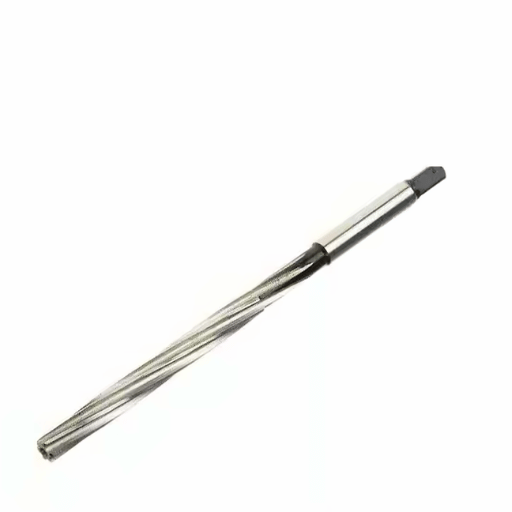

What types of reamers are available?

Reamers of Varied Types and their Uses

• Features: These tools are made with a tapering lead for manual guiding and gradual cutting.
• Uses: Used for light duty reaming and fine-tuning work on pre-drilled holes in timber and metal.
• Features: These are straight-fluted or spiral-fluted tools used with automatic machines.
• Uses: Useful in the finishing of previously made holes of very fine dimensions.
• Features: They are to be chuckered in a machine tool; has straight or spiral flutes.
• Uses: Used in lathes and drill presses for reaming existing holes to desired dimensions.
• Features: Reamer heads that can easily detach from an arbor for flexible and economical use.
• Uses: Ideal for reaming holes of large diameters in most production applications.
• Features: They have a gradual taper designed to fit specific dimensions of cone shaped holes.
• Uses: Mostly used in the fitting of taper pins or in the making of taper holes.
• Features: Have adjustable blades for finishing holes having different diameters.
• Uses: A good match for materials having irregular holes of different sizes is this one.
• Features: Made of carbide to increase its life span and withstand wearing out.
• Uses: Good for use on rigid substances and at elevated speeds where accuracy is critical.
• Features: They have an adjustment feature to allow for a change in dimension due to wear.
• Uses: For specific jobs, these enable accuracy at repeat processes with respect to measurements.

By choosing the correct reamer types for certain tasks, operators can maximize tool life, as well as accuracy and efficiency.

When to apply a solid carbide reamer

Solid carbide reamers are employed in tasks that require utmost accuracy, great durability, and high performance under adverse conditions. They are particularly effective on stainless steel, titanium, and hardened alloys where wear and cutting efficiency matters the most. Below are important facts and figures associated with the application of solid carbide reamers:

• Material Hardness Supported: Up to 65 HRC makes them ideal for machining very hard materials.
• Typical Tolerances Achieved: ±0.001 mm or better, therefore exceptional control over dimensions is possible.
• Cutting Speeds: More than 200 meters per minute depending on the type of material being worked on.
• Tool Life: Considerably longer than HSS reamers due to superior wear resistance.
• Coolant Requirements: Requires adequate coolant supply for continuous operations to control temperatures and precision.

These attributes render solid carbide reamers the tool of choice in aerospace, automotive, and medical manufacturing industries where precision and efficiency is crucial. Correct choice of the tool and its application further ensures its durability and effectiveness.

Tailoring reamer dimensions for particular applications

As with most engineering workflows, reamer size customization involves measurement and material considerations to ensure overall workflow productivity is achieved. Presented below are major considerations and metrics which need to be taken into account:

Diameter Range: Depending on the application, reamers can be produced on a scale of 0.1 mm to over 50 mm.

Tolerance Levels: Common precision tolerances with reamers are normally H7 and H6, which enable accurate control of part dimensions for highly defined precision applications.

Material Options:

Solid carbide reamers are fit for those applications where high tool life and wear resistance is a must have feature.

HSS reamers are more economical and can be used for lower demanding applications, thus giving greater flexibility.

Coatings Available:

TiN (Titanium Nitride): Enhances durability while decreasing frictional force exerted during use.

TiAlN (Titanium Aluminum Nitride): Due to its heat resistance, it is appropriate for high speed applications.

Diamond Coating: Best suited for composite material machining and also of nonferrous parts.

Helix Angle:

Available in both straight and spiral designs.

Spiral reamers, particularly the ones having 5° to 20° angles allow better chip removal in tough to process materials.

Attention to these parameters will guarantee that the reamer is designed for efficient and effective application with regards to achieving tool life maximization and high quality finishes.

How does the reaming operation differ from drilling?

Examining the differences between reaming and drilling techniques

Reaming and drilling are separate machining processes, each of which has a specific role in accuracy manufacturing. Drilling refers to creating a hole within a workpiece and is usually a preliminary task. It uses a drill bit that rotary cuts the material, but can leave some nonuniformity or roughness in the hole. Reaming takes place after a hole is drilled; it is a finishing procedure. A reamer is used in reaming to refine a pre-existing hole by improving the surface finish and the accuracy of its diameter. Reaming differs from drilling in that it only extracts a small volume of material, eliminating excess within a range of 0.1 to 0.5 mm. This ensures tighter measurements and smoother surfaces. While drilling is more focused on removing material, reaming enhances precision and quality. Reaming serves as an important operation in high-performance components due to the precision involved.

Advantages of reaming in comparison with drilling

Reaming has many opportunities to drill such as better tolerance, enhanced surface finish, and improved dimensional accuracy. It is best for precision demanding operations as reaming implements optimal smoothing of non-perfect holes made by drilling and equalizes their size. That is why reaming is so important in industries where the components’ reliability and performance are critical.

Difference of Boring and Reaming

Both boring and reaming are machining processes that involve the alteration of holes. The two processes however have very different objectives. Boring is performed on a pre-drilled hole to make it larger and to fix problems of misalignment or inaccuracies from the drilling cycle. It is usually done using a lathe and a milling machine, in which single-point cutting instruments increase the size, position, and shape of the hole. Reaming on the other hand, is the last step of finishing the hole and its primary purpose is to achieve close tolerances of dimensions and good surface finish. Reaming mostly takes place after a hole has been drilled or bored, using multi bladed tools to accomplish the desired accuracy. While boring allows an operator to custom fit the diameter of the hole, reaming maintains the standards needed in high quality work, particularly in automotive, aerospace, andmanufacturing industries.

What role does cutting fluid play in reaming?

Importance of cutting fluid in achieving a smooth surface finish

With respect to reaming, cutting fluid can be considered necessary, as it helps to remove heat, lower friction, and make cutting smoother. It also minimizes heat flow, preventing tool and workpiece thermal expansion, which could be detrimental to dimensional accuracy. In addition, it serves as an oil in cutting, assists in tool wear, and enhances tool life.

Some investigations show that cutting fluids can enhance surface finish up to 25% more than dry reaming operations. For example, in one analysis of the reaming processes of stainless steel, a water soluble cutting fluid yielded a surface roughness of 1.2 µm Ra instead of 1.6 µm Ra for dry processes. Furthermore, cutting fluid facilitates chip removal during reaming, and these chips often lead to scratches, tool chatter, and other defects. These effects highlight the need for appropriate cutting fluid selection, including those with low viscosity and high cooling capacities, depending on the material being machined and the parameters under which the tool is operated.

Types of Cutting Fluids for Various Materials

Machining fluids are best chosen based on the fluid to be infused as well as the machining activity clawed on the material. Here is some useful advice:

• For Steel and Stainless Steel: Due to the cooling effect, water-soluble fluids are commonly used along with their capability to prevent overheating during machining. The use of chlorine or sulfur additives can boost lubricating capabilities for tougher alloyed materials.
• For Aluminum: Semi-synthetic or synthetic fluids are recommended for aluminum. These fluids stop the adhesion of the material to the tool and lessen the thermal deformation caused by the extremely high conductivity of aluminum.
• For Titanium Alloys: A high-performance synthetic fluid with great coolant capability is a must while working on titanium since titanium is known to hold in quite some heat, which in turn makes both the tool and the workpiece susceptible to ample wear.
• For Cast Iron: Fluids with good flushing action are recommended while working on cast iron in an attempt to aid in the removal of the very abrasive chips whilst preventing surface damage.
• For Non-Metallic Materials: For composites and plastics, light oil or an air blasted cooling device may work well enough depending on the operation as well as the composite in question.

Using the proper cutting fluid enables an increase in machining efficiency, prolongs tool life, and improves the workpiece’s quality. It is equally as important as consulting data sheets for the fluid along with machining guide rules for the specific material to guarantee optimal results.

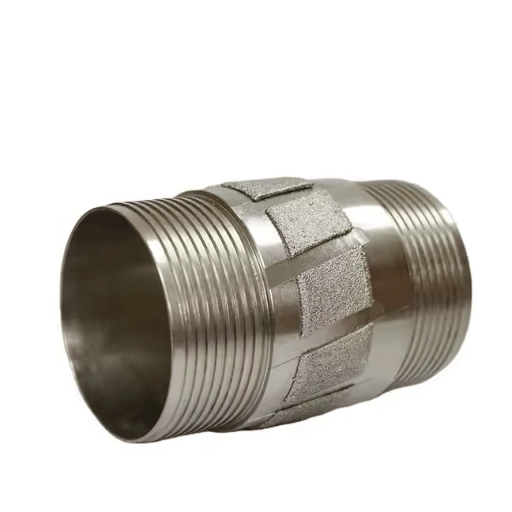

How to handle oversized or undersized reamed holes?

Oversized holes problems along with adjustments

Feed rate, misalignment, and tool wear are some factors which can lead to oversized reamed holes being made. Ensure good condition of the reamer and check for wear. A lower feed rate allows for better control of material removal, and the reamer’s alignment with the hole should be checked for tapering. Also check the material’s properties for any interference with the cutting process and adjustments should be made to the cutting fluid in order to help reduce workpiece thermal expansion. Useof a slightly undersized reamer with a finishing pass helps to provide tight control over the dimensions of the achieved workpiece.

Problems associated with undersized holes and their solutions

Insufficient reamed holes might be a result of tool diameter being absent, or not enforced enough tolerances, or conditions outside of the reaming are too relaxed. A good starting point when trying to fix the undersized reamed holes is confirming the accuracy of the tool diameter with the use of a micrometer or precision measuring device. Be sure that the reamer is set to the correct specifications regarding the desired hole. The same logic applies to the reaming as it does to the machining tolerance data provided, they need to check if they are compatible with the material and process because their absence will lead to the tool being ineffective.

Additionally, confirm that spindle speeds and feed rates correspond to the proper values for the specific material. As an example, the machining speed and feed rates for aluminum alloys are around 300-500 RPM and moderate, while tougher materials like stainless steel require slower speeds of 100-300 RPM to mitigate tool deflection. Use high quality cutting fluids to minimize friction and heat build-up that may lead to reamer binding and eventually result in undersized holes. Finally, check the fixture setup to make sure that the workpiece is firmly clamped to prevent movement during the reaming operation.

Frequently Asked Questions (FAQs)

Q: What is the main objective of reaming in the machining process?

A: Reaming is an accurate machining operation that can be performed either manually or using CNC machines. Its primary objective is to enhance the diameter of the previously drilled hole to a specific dimension. In this process, a multi-point tool called a reamer enhances an already existing hole to a high surface finish and takes only a minimal quantity of material from the surface of the hole.

Q: How does reaming differ from boring in machining?

A: They both work towards the same general goal, the processing of a hole in material, but they sell vapors varying types of machining. Boring is done when a hole already exists but there is a need for an increase in diameter while machining lowers the final diameter and increases precision level on existing surfaces making the surface smoother in its finish.

Q: Why is it necessary to pre-ream a hole?

A: Preliminary hole preparation is important to set the machine and the workpiece in the proper position. The initial step for the reamer would be chamfering the hole. A center drill does not cut as deep as a drill so the hole has a very clean entry and less run out. That means the reamer can function accurately for making holes with specific dimensions.

Q: What role does the bushing have in obtaining a close tolerance on a reamed hole?

A: A bushing, for example bronze bushing, serves to support the reamer so that it is properly aligned and held in place while being cut. It assists in directing the reamer thus preventing the appearance of oversized holes and maintaining close precision tolerance.

Q: What steps can a machinist take to guarantee a hole that has been reamed is the correct size?

A: In order to guarantee a hole that has been reamed is the correct size, a machinist should take a caliper and check the size of the hole being reamed. The workpiece’s setup has to be inspected including the position of the workpiece within the vise and whether there is runout, in addition to having the proper reamer for the hole.

Q: What basic reaming errors are the most common?

A: Some basic errors committed during reaming are use of a dull reamer, applying excess force, or wrong material infeed rates which usually ends up into oversized holes with bad surface finish. Proper alignment of the reamer and use of spot drill or chamfer to get the hole ready are steps that help avoid these problems.

Q: How does hole size impact the reaming procedure?

A: It is the size of the hole before reaming which dictates how much of the material now needs to be removed. One very important requirement during the drilling of the first hole is that this has to be drilled a little smaller than this hole’s diameter so that the right amount is being chipped away by the reamer to make this hole deeper and wider to the required dimensions.

Q: What problems could arise from uncontrolled speed and feed during the reaming procedure?

A: For the reason that tool life can be severely diminished and accurate diameter can be achieved, speed, as well as volume of feed, have to be paid attention to while reaming. Higher than optimal speed or advancing the work piece through the tool too quickly can cause overheating which, in turn, results lower hole quality and higher diameters than required, while performing those at too slow speed would result in more roughness on the finely cut surface.

Q: What points must one keep in mind while reaming a threaded hole?

A: When doing reaming on a threaded hole, it is imperative that the reamer does not nick the already existing threads. Having a reamer with the proper shank diameter and having the workpiece properly fixed will help in preserving the threads while attaining the needed bottom of the hole finish.
