The Ultimate Guide to CNC Milling Alternatives: Discover Cost-Effective Solutions for Your Manufacturing Needs

CNC milling is one of the most valuable and accurate production methods available today; however, it is not always practical and cost-effective for every project needing this type of work. If you are challenged with small production volumes, budget constraints, or specific material requirements, researching the available options can help meet your project’s fulfillment expectations. In this text, we will look at various CNC milling economical alternatives and discuss their advantages, disadvantages, and context of best usage. From the more ‘traditional’ to the more ‘modern’, well delve into the facts that will allow the reader to strike a proper balance between the quality required, the efficiency employed, and the money spent. Read further…to improve your goal attainment without worrying about the performance or value.

What are the main alternatives to CNC milling?

1. Laser Cutting and Engraving: CNC milling has its own advantages that must be considered for specific projects. This is great for fine work on plastics, wood, metal, and other such materials. This method of cut or engraving works with a focused laser beam which is highly accurate and efficient for detailed projects.
2. Water Jet Cutting: Makes use of highly pressurized water streams, often with mixed abrasive materials, to cut through various materials very quickly. It is beneficial for heat-sensitive items as it avoids thermal distortion.
3. 3D Printing (Additive Manufacturing) involves layer upon layer of plastics, resins, or metals to build objects. This technology benefits complicated designs, prototypes, and tailor-made parts.
4. Manual Milling: A cheaper alternative for simpler projects or those without the need for advanced automation. Although requiring more operator involvement, small-scale production can still achieve good results.
5. Plasma Cutting: This technology is helpful when cutting through steel, aluminum or any conductive material. An accelerated jet of hot plasma makes this method an effective way to make quick cuts on thicker materials.

3D printing: A versatile option for prototyping and small-scale production

The additive manufacturing 3D printing technology has made mass production more efficient due to its capacity for complicated shapes and functional parts. This development is important for the supplementary processes of traditional milling. This process uses the layering technique of construction where the base ingredient can be metal, plastic, ceramics, or composites and is derived from the digital model. Additive manufacturing is most commonly admired for its broad possibilities for developing complex geometrical shapes that are quite impossible to achieve using regular fabrication methods.

According to a recent survey, the 3D printing business reached an estimated $17.4 million during 2023, and further estimates predict that the industry will receive a CAGR of over 20% for the following years. The boom in demand from the aerospace, healthcare, and automobile industries is believed to be doing so. For instance, 3D printing technology is employed in the aviation industry to make components that are light in weight to decrease the waste of material and enhance the engine’s effectiveness. On the other hand, in the health sector, this technology has made it possible to design and manufacture personalized medical devices, prostheses, and bioprinted tissue.

Di la notevole vantaggio della stampa 3D e’ la possibilità di ridurre i tempi di approvvigionamento. Le tecnologie di produzione conventionale richiedono un lungo tempo di attesa per la realizzazione di attrezzature e operazioni di messa in servizio, mentre nella stampa 3D, la successiva configurazione stampa consente ad un prodotto di superare test più velocemente rispetto alla manifattura. Questo risulta utile nella prototipazione, in cui le aziende possonorealizzare rapidamente modelli e dettagli lavorati per valutarli prima della produzione in massa. Inoltre, la produzione di parti su richiesta elimina la sovrapproduzione e il conseguente aumento dei costi di stoccaggio.

Lo sviluppo dei materiali e delle tecnologie di stampa, come la stampa a più materiali e l’uso di materiali riciclabili sostenibili, permette di espandere ulteriormente gli utilizzi della stampa 3D. Per la produzione su piccola scala, la Variabilita’ della stampa 3D e’ insuperabile, poiche’, infatti, i produttori sono in grado di soddisfare le richieste di mercato di nicchia o di produrre articoli molto specifici senza sostenere costi elevati di struttura. Questa caratteristica unita al continuo aumento della velocita’ ed alla possibilità di variabilità dei materiali rende la stampa 3D una tecnologia di grande impatto e versatile nel moderno processo manifatturiero.

Laser cutting: Precision and speed for 2D designs

industries have widely adopted laser cutting as a process of great speed and accuracy, especially for 2D designs. It uses a focused laser beam to cut difficult shapes and contours effortlessly with great precision and can carve out any design requiring high detail levels. The positioning accuracy in contemporary laser cutters can reach a remarkable +/- 1 thousandth of an inch, which makes it greatly beneficial for industries such as aerospace, electronics, and jewelry, where such details are a necessity.

One of the primary benefits of laser cutting technology is its efficiency. Advanced systems can achieve a cutting speed of upto 1000 inches per minute, depending on the material and its thickness. This substantially increases the productivity levels on the shop floor. The cutting of metals, plastics, wood, and composites with a thickness from 1 millimeter to above 10 millimeters is easily accomplished through laser cutting. This attribute facilitates using this technology in designing prototypes, producing small quantities, and manufacturing large-scale products.

The efficiency of laser cutting processes has advanced largely due to the recent innovations in machinery such as fiber lasers. Fiber lasers are far more advanced than CO2 lasers because they utilize optical fibers as a medium, giving them enhanced energy efficiency and higher cutting speeds. For instance, fiber lasers work with over fifty percent more efficiency than their CO2 counterparts, which greatly lowers operational costs and energy consumption. Such advancements concern placing laser cutting as a primary tool for efficient and cost-effective manufacturing processes.

Waterjet cutting: Ideal for thick materials and intricate shapes

Cutting with a waterjet is a method of customization and detail that involves utilizing high-pressure water along with an abrasive material in order to achieve a multitude of cuts in dense materials, including stones, metals, or thick composites. Waterjet cutting ensures the structural soundness of the material being cut, as it does when cutting through thick metals or stones. The precise nature of water jet cutting ensures that no heat is produced, thus making it an ideal method for working with materials that can warp or deform when heated. Using these waterjets is bound to improve efficiency in any industry that requires cleavage to very precise specifications.

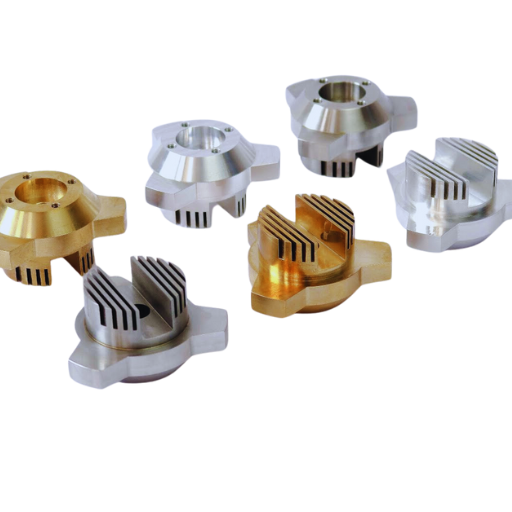

How does 3D printing compare to CNC milling?

Advantages of 3D printing over CNC milling

• Design Flexibility: 3D printing technology allows me to design and fabricate intricate shapes and structures that are difficult or impossible through CNC routing. This is also helpful in customization, and fast prototyping eliminates the long indexing and retooling.
• Material Efficiency: 3D printing differs from CNC milling, which is a shaping process. 3D printing is an additive process that removes less material, making it significantly more cost-effective and greener.
• Lower Production Costs for Small Batches: 3D Printing is more cost-efficient for low-volume production, as CNC milling has a much higher initial expense due to the tools and setups required. However, I do not consider setting up molds or tools economical for smaller-scale projects.
• Faster Prototyping: Prototyping periods are shortened due to the ability to modify the design quicker. Components can often be manufactured within a matter of a couple of hours, while CNC milling has longer setup, tool changes, and machining intervals.
• Wide Range of Materials: Advanced 3D printers can work with almost all types of materials, including but not limited to plastics, resins, metals, and composites. This makes innovation possible in various fields, including medical and aerospace engineering.
• No Tooling Required: Unlike CNC milling, 3D printing technology does not require intricate and costly cutters and specialized fixtures or templates, which lowers the overhead expenses and lead time significantly.
• Personalization down to the minute details: 3D Printing makes it possible to create exceptionally detailed elements, such as internal channels or lattice structures, that would be rather tricky to manufacture with CNC milling.
• Integration into digital workflows is important in determining how CNC milling stands against its competitors. There are no hurdles with 3D printing. It goes well with software made for digital designing. Changing from CAD to tangible items is a pretty straightforward process where no additional programming is needed, just like in CNC milling components.

Additional Material

• Industry estimates state that material waste during 3D printing is over 95% more efficient than 50-60% elimination in CNC milling.
• Wohlers Associates conducted a survey in 2019 that indicated a remarkable decrease of up to 70% in time taken for 3D modeling and prototyping compared to regular forms of manufacturing.
• Tooling and material waste are considerably minimized during custom, 3D printing of low-volume manufacturing. This makes such techniques over 50% cheaper.

Limitations of 3D printing compared to CNC milling

The constraints, advantages, and applications of 3D printing technology are undoubtedly many, but some limitations do exist when it comes to milling with a CNC machine. These limitations will invariably affect the choice of capture that needs to be manufactured.

• CNC milling operates at different material scales, including strong metals and composites. This is not always the case with 3D printing, which uses polymers, several metal forms, and stronger resins as primary materials. For instance, the CNC method is more suited for processing aerospace-grade titanium than 3D printing.
• 3D printed objects, unlike those manufactured by CNC machines, largely appear rough, uneven, and unrefined. They also need several processes to get the surface polish required. A CNC machine can work with a tolerance of up to ±0.0001, while 3D printed parts, on the other hand, have a tolerance of around ±0.005 to ±0.01, negatively impacting other applications.
• When it comes to prototyping and low-volume production, 3D printing has a distinct advantage, but for large-scale production runs, CNC machines are more effective and economical. However the more the batch size increases, the more unviable 3D printing becomes, oftentimes falling to several hundred units. This is caused by the slower part by part process as well as the higher operational price that prolonged production raises.
• Mechanical Properties: Components obtained with the aid of CNC milling usually possess excellent mechanical properties such as strength and thermal and fatigue resistance. This is because the unmachined blank is usually a solid object during CNC milling, and there is no weak layer-by-layer material deposit either. For example, the strength and rigidity of 3D printed parts is much lower than that of injection molded and CNC milled parts.
• Build Volume Restrictions: The working volume of each 3D printer is fixed, limiting the size of parts assembled in one print. On the other hand, large-scale CNC machining is more accommodating since it is possible to change the size of the machine to work with larger stock parts.
• Cycle Times: Parts can take longer to manufacture than 3D printed ones, especially with small, complex, dense geometries. However, when CNC milling is practical, the resultant components can be much faster. This may include the machining of softer materials or when multiple components require machining.

It is important to understand these constraints when feasibility analysis is carried out. 3D printing does have the advantage of creativity and flexibility, but CNC building is irreplaceable if strong mechanical performance, good surface finishing, and high precision tolerances are needed for many industries.

Cost Comparison: 3D printing vs. CNC milling

I always say that the decision between 3D printing and CNC milling depends on the desired production rate and the part’s complexity. CNC milling is much more efficient at higher production rates, is cheaper, and works better with bulk parts. 3D printing is much better suited for intricate designs or low-volume production due to decreased preparation and setup time and less material waste. Lastly, I would like to emphasize that all additional costs and necessary post-process steps must also be considered when deciding.

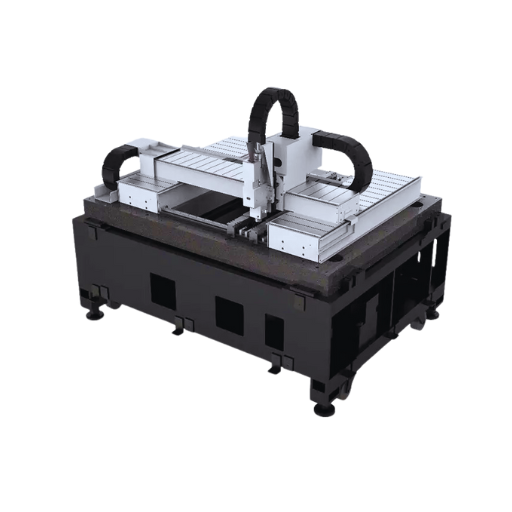

What are the benefits of laser cutting as an alternative to CNC milling?

Speed and precision of laser cutting technology

This method achieves tolerances as tight as ±0.001 inches, offering exceptional accuracy for even the most complex designs. The method used harnesses the power of highly focused laser beams to extend the applications of laser technology. One of its most significant advantages is speed; laser cutting systems can work through thin materials, such as sheet metal, at greater than 20 meters per minute, drastically reducing the production time compared to traditional methods such as CNC milling. Moreover, enhanced energy efficiency and cutting speeds have been obtained through fiber laser technology for metals such as stainless steel or aluminum. Another significant advantage is that it permits the creation of sophisticated geometries that do not require several setups for machines. This, in turn, enables production processes to be uninterrupted. Along with the additional benefit of cutting waste and the need for excessive post-processing, laser cutting has emerged as a reliable solution that can be relied upon for an array of industries, from automotive to aerospace.

Materials suitable for laser cutting

Laser cutting, as a versatile method, can be used with different types of materials with distinctive characteristics and applications. The commonly used materials include:

Metals

Laser cutting is one of the most effective methods for cutting metals such as aluminum, stainless steel, carbon as well as titanium. By using either CO2 or fiber lasers, it is possible to cut metal of thickness between 20-25 mm with precision. Newer high-power lasers have made it possible to cut thicker metals, like mild steel, whose thickness is above forty mm, while cutting nonferrous metals like aluminum or titanium up to 20-25 mm.

Plastics

In advertising and product design, acrylic (PMMA), polycarbonate, and ABS are popular choices for laser cutting applications. For example, acrylic is perfect as it makes polished edges directly during the process of cutting, thus eliminating the need for further touch-up work. PVC is not suggested for laser cutting as it emits dangerous fumes.

Wood and Wood Based Materials

Laser cutting is widely used on plywood, MDF, and solid wood for furniture, signs, and artistic pieces. These materials are normally available in thicknesses of 2 mm to 30 mm, depending on the power of the laser and the wood type. Due to the high accuracy of the laser systems, intricate details can be engraved without any additional tools.

Textiles & Leather

Lasers can be utilized for the cutting or engraving of materials like fabrics (nylon, polyester, FDA-approved cotton), as well as both natural and synthetic leather. This technology is widely employed in custom fabrics for the fashion industry and upholstery and automotive applications where precision edges and intricate patterns are required, along with CNC milling of more complicated workpieces.

Glass and Ceramics

Laser systems, like ultrafast or specialized laser cutters, can engrave or cut Thin Glass or cut “green” and “bisque” ceramics. Some materials, such as tempered glass, are tough to cut. However, they can be used for precision engraving to achieve decorative or industrial purposes.

Foams and Composites

Thin materials such as polyethylene foam and glass-reinforced plastic (GRP) are lightweight and are widely used in packaging, aerospace, and engineering applications. Lasers cut and etch using a cutting tool, allowing for clean edges and less material deformation, which is essential for performance parts.

Additional Considerations

Materials suitable for laser cutting are chosen due to the following parameters: application, thickness, and thermal properties. Some materials have minimal compatibility, such as reflective metals or foaming substances that produce harmful gases during and after being cut or etched. These materials should be handled with care and need specialized equipment. No matter the selection criteria, optimum cutting efficiency, quality, and reasonable manufacturing processes will always benefit from the material selected for laser cutting.

When to choose laser cutting over CNC milling

When high precision, detailed designs, or fine finishing is needed, Laser cutting is best suited for such situations, especially with thin and nonmetal materials. It outperforms in cases where there is a need for maximum material efficiency, rapid production, and tight tolerances. Moreover, laser cutting is far superior to CNC milling in terms of making small features and detailed patterns that are difficult to make with CNC. With laser cutting, minimal post-processing is needed in most cases where reflective metals and heat-sensitive materials are not an issue. In contrast, CNC milling is more appropriate for thick parts and components that require three-dimensional contours.

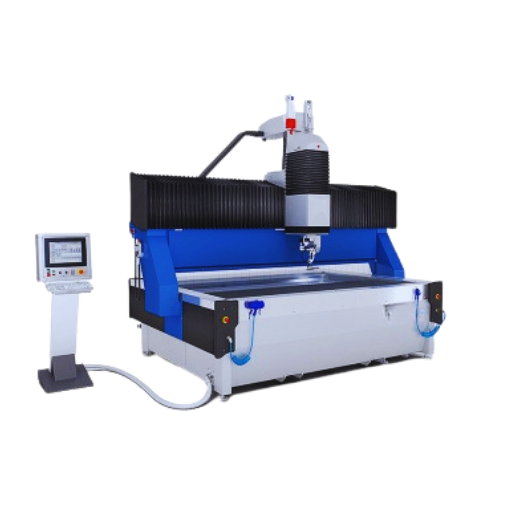

Is waterjet cutting a viable alternative to CNC milling?

Advantages of waterjet cutting for thick materials

Works On Nearly Every Material

Waterjet cutting technology is extremely flexible as it can process materials such as metals, composites, ceramics, stones, and more. There is no limit to what can be cut regardless of type or hardness, which broadens its industrial applications in the processing of disparate and thick materials.

Cold Cutting Process

One great advantage of waterjet cutting technologies is that while cutting, there are no heat-affected zones (HAZ) that could alter the material properties of the item. For instance, metals such as Aluminum and titanium are prone to thermal distortion ,but water jet-cutting technology works without damaging these expensive metals.

Superior Thickness Capabilities

Water jet cutting has been reported to work with a wide array of thick materials, often more than what laser cutting or even CNC milling machines can handle. This makes it ideal for fabricating heavy equipment and parts that are up to 12 inches (300 millimeters) thick.

High Precision and Clean Edges

To add up, the high-pressure water jet stream coupled with abrasives provides great precision to the cut, which reaches as tight as ±0.003 inches (±0.08 mm). This reduces the secondary processing needed, especially for intricate or heavy components.

Minimal Material Wastage

Due to the narrowing of the kerf for water jet cutting, this method minimizes materials’ wastage. This greatly enhances profitability when cutting expensive raw materials like stainless steel and titanium.

Environmentally Friendly

Unlike plasma cutting or laser cutting, this method does not emit harmful fumes or other toxic byproducts. Moreover, the used water, as well as abrasives, is recyclable, thus decreasing the environmental impact.

Suitable For Laminated or Multi-Layered Materials

Unlike other methods, waterjet cutting easily cuts multi-layer or laminated materials. For instance, this method easily cuts glass-reinforced plastics and multi-layer composites.

Reduced Tool Wear

Waterjet cutting is not contact-oriented, eliminating the concern of tool wear. This means that there would be a good cut, and maintenance expenses would be reduced over time.

This broad range of advantages makes water jet cutting stand out as the more robust option for thicker material cutting in various industries like aerospace, construction, or heavy equipment manufacturing.

Comparing precision and tolerances: Waterjet vs. CNC milling

Waterjet Cutting vs CNC Milling and their Accuracy Levels CNC milling and water jet cutting differ in precision and tolerances depending on the type of work. Water jet cutting is normally done with tolerances of ±0.003 to ±0.005 inch. This is more than appropriate for water jet cutting as this is efficient for designs that require precision on many materials. These tolerances may slightly differ from the machine’s quality and the thickness of the material.

In contrast, CNC milling can work with tolerances as high as ±0.001 inch. These precise measurements are useful in producing components that demand tight tolerances, such as those in the aerospace and medical industries. CNC milling could, however, have long setup and/or post-processing times for more complicated geometries.

These methods of manufacturing parts are very reliable, however laser cutting is best suited for intricate designs while robust workpieces fit for CNC milling. Water jet cutting provides an advantage in flexibility, and water jet’s material utilization suffers from low thermal effects, while CNC milling material use is best suited for projects that require extremely high accuracy workmanship.

Cost considerations for waterjet cutting

To compute the cost of waterjet cutting, several specific factors need to be assessed. One of them is the operation of the cutting machine, which includes expenses on water, electricity, and the upkeep of motors with its CNC milling configurations. The operational costs will vary between $20 to $40 per hour, depending on how powerful and efficient the machine is. Furthermore, considering the abrasive materials primarily used in abrasive waterjet cutting increases the cost considerably. Garnet abrasives are estimated to fall within the price range of $0.20 to $0.30 per pound, and the total consumption of these abrasives is determined by the cutting speed and time set for the process.

Waterjet cutting also depends on other professional expenses, which add to the cost. In many cases, waterjet machines permitting automation will increase labor expenses because this type of work is not easily performed. That is precisely why the labor cost will depend profoundly on how complex and time-expensive the work is. Parts of the machine, like the nozzles and the orifices, suffer from wear and tear with time, so maintenance costs tend to differ.

Both the type of material and its dimensions influence cutting speed and cost. There is a concomitant increase in cost due to extended cutting times and more abrasive usage required for tougher materials like titanium or hardened steel. Ultimately, machining employs more cost-manageable options like thinner plastics or aluminum sheets for general purposes.

Lastly, the difficulty of the shape and the accepted tolerances can change costs within waterjet cutting. More elaborate features or tighter tolerances might require the cutting head to move slower or adjust more, increasing the total cost paid. Using these variables allows a firm to assess the cost based on the project requirements.

What role do CNC routers play as an alternative to CNC milling?

Similarities and differences between CNC routers and CNC mills

CNC routers and CNC milling machines are two advanced tools that are designed to cut and shape various materials in the most accurate manner possible, while performing different functions due to their mechanical structure and operational principles.

Similarities

• Precision and Automation
• CNC routers and CNC mills are both capable of achieving high levels of accuracy and repeatability thanks to CNC technology. Automation increases the production rate of more complex designs with less human involvement, which reduces error.

Material Compatibility

• These machines can cut and shape metals, plastics, composites, and even wood, making them useful for the aerospace and furniture industries, among others.

CAD/CAM Integration

• Both devices integrate CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software that allows the user to create machine-readable 3D instructions for intricate geometries.

Differences

Design and Structure

• CNC routers are used to cut softer materials, for example, wood, foam, and plastics, and are constructed using lightweight gantry designs, which enable the machine to operate at higher speeds over larger work areas. In comparison, CNC mills are built using more rigid and heavier frames, which can endure the cutting stresses of harder materials, particularly metals.

Cutting Speed and Accuracy

• Due to lower resistances, CNC routers work at high speeds, making them highly efficient for engraving and shaping non-metallic materials. However, CNC Mills, although slower, is better at precision work with tighter tolerances, usually around ±0.001 inches for intricate metalwork.

Tooling and Spindle Power

• CNC routers operate on motors that are less powerful than their mill counterparts because they do not process as intense materials. Instead, they operate on lighter tools with less power, improving efficiency. Conversely, CNC mills work on higher torque motors, allowing effective processes on dense materials like steel and titanium.

Applications and Workpiece Size

• Larger projects such as sign engraving or cabinetry require lighter materials, enabling CNC routers to work at faster rates. Meanwhile, their mill counterparts are used for smaller components with high precision, commonly in the automotive and medical industries.

Trends in the Market and Cost Analysis

When making a choice between a CNC router and a CNC mill, one must not disregard its design requirements and market trends. To illustrate, the use of routers over mills has been incrementing in prototyping and rapid production systems due to their cost effectiveness and scalability. Mills, even though they are more expensive, will always remain important to industries where precise accuracy and material robustness is required. New developments in hybrid spindles and multi-axis capabilities further separate the blurs and add some flexibility to the machines that can perform it all.

These project-specific attributes make it possible for companies to increase productivity and system performance by choosing the correct CNC system, whether it is a milling machine or a different type.

Applications where CNC routers excel

CNC routers are multi-functional machines that have applications in many industries that depend on speed, variety, and scalability. Below is a list of industries with a particular focus on where CNC routers truly shine:

Furniture Industry

With the use of CNC routers, a wide range of complex furniture designs can be manufactured. From custom cabinets to tables and chairs, CNC routers can detailed engraving, produce strong joints between furniture parts, and even achieve mass production. This makes the whole engraving/jointing process more efficient and less time-consuming.

Creation of Signboards

One of the most sought-after skills of a CNC router is the ability to cut and engrave materials, irrespective of how varied the materials are. Such a skill comes in handy in making signboards from acrylic, wood, or even aluminum. Using a CNC router, any 2D or 3D sign can be made with the highest precision and care, which is always required in commercial and promotional billboard advertising.

Building Components

The CNC router’s ability to make extended cuts allows it to be used for decorative panels, crown moldings, and other more intricate design features. It is also popular among wood, MDF, and other construction material sculptors for its precise carving capabilities.

Creation of Models and Prototypes

Due to their rapid production time and flexibility, modeling and engineering businesses take advantage of CNC routers when creating prototypes or scale models. The capabilities of these systems make them very effective around soft metals, plastics, and foam, allowing easy manipulation and faster concept testing and visualization.

Components for Marine and Automotive Applications

CNC routers are superior in producing various panels, dashboards, and even molds for automobiles and boats, which use lightweight materials like plastics, fiberglass, and carbon composites as these components are easier to work with.

Art and Other Personal Touches to A Product

CNC routers have complex applications for milling, such as carving, creative designs, and other detailed pieces, which allows artists and decorators to unleash their creativity. Such works are complex and unique, so CNC routers bring great flexibility to such projects.

Work on Cladding and Facades

CNC routers are essential in the cutting of external surface building materials like aluminum composite panels (ACP) and other types of cladding. This cuts down the risk of shifting and assures accurate positioning and placement.

Packaging Industry

CNC routers can quickly die-cut templates and brands and designs onto the packaging materials. This is especially useful when doing custom work or designing prototypes where speed is necessary.

Educational Purposes and Training

CNC routers are regularly used in schools to improve student training in various manufacturing processes. Machine-programmed systems demonstrate CAD-to-CAM work, helping students better understand concepts.

Mass Customization

The focus on the individual and the purchase of more unique items forces the integration of CNC routers in mass customizations. These items include engraved wooden cutting boards and whistles, name plaques, or other extraordinarily different custom-tailored home decorative items.

CNC routers are more efficient than traditional tools, making them universally attractive for projects involving intricate designs. They can easily cut wood, plastic, composites, and even soft metals at a speedy operational rate. Because of their limitless possibilities, CNC routers have become a requirement in countless sectors.

Cost-effectiveness of CNC routers for specific projects

Having the capability to automate labor-intensive processes allows CNC routers to save time and money when performing compound cuts. Fewer hands are needed to operate these machines, further driving down costs. Additionally, CNC routers can rapidly manufacture many components or customized pieces while maintaining the same quality. This can be very useful for companies that need to save on expenditures while remaining efficient. Moreover, using this one multipurpose machine instead of separate devices for every specific function saves on equipment costs, especially with the inclusion of end mills for milling purposes. Cost efficiency is, however, the primary reason CNC routers benefit projects that require scale and a high degree of precision.

How can injection molding be an alternative to CNC milling for large-scale production?

Benefits of injection molding for high-volume manufacturing

One of the most popular methods of high production is injection molding. This method is popular because it is able to create countless identical parts with the same quality every time. This method offers multiple benefits, including rapid production, which significantly increases output rates. It reduces the excess material used, as much of it is able to be recycled. Injection molding also becomes affordable on a larger scale due to the production costs decreasing with higher quantities manufactured. This makes it best suited for the industries that need precise instruments that have a uniform shape and are highly durable.

When to transition from CNC milling to injection molding

Shifting from CNC milling to injection molding is driven by the desired production quantity, intricacy of the component, and the budgetary allocation for the project. Custom-designed parts with specific configurations and prototyping are easier to achieve with CNC milling, which is ideal for the low-volume category. However, once the production quantity crosses the boundary of 10,000 to 20,000 units, injection molding is more economically friendly due to its cheap cost per individual unit.

The intricacy of the component also dictates the shift to injection molding. It is easier to manufacture complex shapes with detailed and precise features by injection molding. The custom-made molds that are crafted for the process guarantee each piece is identical and structurally strong, making it easier than CNC milling for large quantities. In addition, the injection molding process produces less waste than other manufacturing techniques which makes it easier for the company to meet eco-friendly standards.

The analysis of costs carried out in the industry tends to show that the tooling costs of investment with injection molding can be recovered on large-volume work projects. For example, the polymer matrix composite demonstrates that although purchasing a mold can cost between US $5,000 and US $100,000, this expense is compensated because the cost per unit is significantly lower in larger production runs. On the other hand, for CNC milling, the per-unit cost does not decrease or maybe even higher due to the time consumed for setup and machine work.

Small-volume design work, where one expects multiple rounds of revisions, may make CNC milling a more practical and cost-effective option initially. On the other hand, businesses that expect demand in the market and expect to increase supply or increase production to mass levels will gain by switching to the injection molding process at the point where demand is sufficient to offset the tooling costs and where scaled levels of the economy will be realized.

Cost analysis: Injection molding vs. CNC milling for mass production

When comparing cost efficiency between injection moldings versus CNC milling for mass production, there are a few key things that need to be analyzed. These include but are not limited to investment cost, per unit cost, production volume, and lead time. Typically, injection molding will have higher costs because of the need for specialized machinery. For instance, the cheapest mold will cost anywhere from $5,000 to $15,000, and more complex molds or multi-cavity molds could reach $100,000 or more. However, when suppling units in the thousands or millions, the per unit cost drops drastically to as low as $0.10 to $0.50 per unit. This drastic drop makes injection molding ideal for high-output demand scenarios.

CNC milling, in contrast, has high initial setup costs which start from $20,000 to $60,000. However, these actually serve to be quite beneficial as CNC does not need specialized tools. Per unit spent on CNC also tends to be higher, costing $10-$50 depending on the material used, how complex the unit is, and how long the cycle takes. But this particular strategy benefits low-volume production and prototypes where speed and flexibility reign supreme. Unfortunately, mass production becomes inefficient when using CNC milling due to the high cost and time consumption required for each unit.

One more factor to keep in mind is delay. The time from design to market can be significantly increased as injection molding has to produce parts before tools for production can be made, and that can take weeks. Conversely, CNC milling enables businesses to have parts designed and produced nearly immediately after the completion of their specialized designs, as no tooling is required. At scale for mass production, though, the speed advantage is lessened because the machining is less efficient.

In the end, it becomes a question of weighing particular options regarding the volume of business one hopes to undertake, the equity involvement one wishes to make, and the sustainability part one hopes to achieve when selecting areas of investment with regard to the use of CNC milling versus other methods. For high-volume production of identical components, injection molding is the best option, and for lower volumes and higher variability, CNC milling is the preferred option.

What factors should be considered when choosing an alternative to CNC milling?

Material compatibility and limitations

Material compatibility is directly related to the feasibility and effectiveness of the manufacturing process and, hence, is an important consideration when choosing an alternative to CNC milling. Different processes have their advantages and limitations in terms of material requirements. For example, there are injection molds that are excellent for thermoplastics like polypropylene (PP), polyethylene (PE), or acrylonitrile butadiene styrene (ABS) since these polymeric materials can be heated to a sufficient level wherein they can easily flow into the molds. Unfortunately, these materials do not work well with metals or ceramics, which are better suited for metal casting or even sintering.

With respect to additive manufacturing, for example, in 3D printing, the range of usable materials is quite broad, from polymers to metals and even composites and bio-materials. However, it should be noted that some of the properties, such as tensile strength, heat resistance, or surface finish, might not be perfect compared to those materials that are conventionally processed. One such example is that while titanium alloys that have been 3D printed have excellent strength-to-weight ratios; the alloys do require post-processing for better structural integrity.

Alternatives to CNC milling, such as laser cutting or water jet cutting, offer a broader range of material compatibility. However, these processes have limitations regarding edge finishes and tolerances, which are often less refined than those of CNC-milled parts, particularly when the components require intricate designs or tight tolerances.

Assessing all these factors guarantees that every material type and its mechanical, thermal, and chemical characteristics are perfectly suited for the process used to ensure efficient production without any structural damage through inappropriate pairings that involve higher costs.

Production volume and scalability

The ability to produce a scalable additively manufactured product at a reasonable price is crucial to fulfilling the ever-increasing demand in the market. Additive manufacturing techniques, including 3D printing, work efficiently with low to moderate production volumes and are helpful when custom products or rapid prototypes are needed. However, as production volumes increase, the per-unit cost-effectiveness of 3D Printing diminishes to traditional manufacturing techniques.

On the other hand, CNC milling and routing processes are more efficient at higher production volumes since they require less operator oversight to achieve output quality. Once the parts for the CNC machines are made, the cycle time for repeatable parts is very fast, which makes these machines perfect for the mass production market when integrated with automation technologies such as robotic part-loading arms.

One of the world’s most powerful scaling manufacturing methods remains injection molding, with its capacity to make millions of identical units at unmatched speed and precision. The latest data suggests that when production volume surpasses 10,000, Injection molding cost per unit drops tremendously, resulting in a favorable decision. However, for low-volume production runs, the high upfront cost of building a mold limits the cost efficiency.

Certain technologies, such as stamping and laser cutting, are outstanding when it comes to scaling up production for sheet metal fabrication. For instance, stamping is perfect for industries that have high production output. With a single die, stamping can churn out thousands of parts quickly. While stamping is preferred, laser cutting requires moderate scaling but provides great detailed design precision.

Companies are adopting hybrid techniques that combine various methods with advanced automation systems to make processes more productive through scale. This increases the production output while improving monitoring and predictive analyses. Companies utilizing these new Industry 4.0 solutions can change the production levels in real-time as per the current market demand, ensuring lower wastage and better efficiency.

Precision requirements and tolerances

Precision engineering is critical for setting expectations regarding the tolerance measures professionals use in CNC milling compared to other affiliations. Setting tolerances helps industries differentiate the accurate dimension from the acceptable dimension, and these measurements can be specified in inches or microns. In high-precision engineering industries such as aerospace and medical devices, tolerances can stretch to as tight as +/-0.005 millimeters, and this is to ensure consistent and reliable performance.

In CNC machining, tolerances are measured with precision, and improper decisions can lead to malfunctioned or problematic assemblies, which impact the project’s operational efficiency and product safety. Laser cutting and CNC milling, alongside rigid quality control measures, ensure accuracy in the work process and techniques. Coordinated measuring machine tools have excavated yearned precision and tolerances verification, making these techniques crucial for today’s industrial processes.

Frequently Asked Questions (FAQs)

Q: How can the price of CNC milling machines be reduced?

A: 3D printers, laser cutters, CNC routers, and manual milling machines are some low-cost alternatives to CNC milling machines. In some instances, they possess similar capabilities and perform certain activities at a lower cost or are simpler than traditional CNC milling machines.

Q: What is the difference between 3D printing and CNC milling as manufacturing processes?

A: It should be noted that 3D printing is an additive method, while CNC milling is subtractive. For instance, using this technique to produce complex geometric shapes or prototypes can be less expensive and have lower material wastage. Yet again, another factor that should be considered is the accuracy of dimensions, which may depend on the distance between two lines. Thus, it is preferable to use a metal material for metals, especially if there are several options available in terms of surface finish. Regarding production volume, materials costs will significantly impact those rates during that process depending upon their nature and type of requirement.

Q: What benefits does using a laser cutter instead of a CNC milling machine provide?

A: In certain cases, laser cutters have several advantages over CNC milling machines. Regarding 2D cutting and engraving alone, they are usually faster, produce less waste during production, and can cut through a larger array of materials, such as plastic and wood. Furthermore, laser cutters require less effort to set up; their operational costs are much lower than other types of equipment in this category. Nonetheless, 2D or shallow 3D work is all they do while lagging behind when it comes to material removal like their counterparts —CNC milling machines.

Q: What is the difference between a CNC lathe and a CNC milling machine?

A: CNC lathes are computer-controlled tools for machining, just like CNC milling machines. However, they are used for different purposes. They are known for their ability to create cylindrical objects by spinning materials against cutting tools. Mostly, it makes symmetrical and round items with it. Meanwhile, a CNC milling machine is equipped with rotating cutters that remove materials from stationary work pieces, which permits a greater variety of shapes and features in three dimensions—the decisive factor on whether to use either lies in the parts you want to produce.

Q: Are there other ways to make cuts on a metal block apart from CNC milling?

A: Yes, in some cases, manual milling machines may serve as cheaper alternatives for CNC milling machines. Manual mills require more skill and time to run but have lower upfront costs and simple maintenance systems. This makes them useful for low-volume production or one-offs. It is also a good way to learn basic machining skills, including the programming used to cut metal blocks in g-code. Nevertheless, they are not as accurate, reproducible, or automated as their CNC counterparts.

Q: What role do CAD/CAM tools play in alternative forms of CNC milling?

A: Many alternative CNC milling methods rely heavily on Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software. These are required to create parts and make tool paths for different devices like 3D printers, laser cutters, and CNC routers. With CAD/CAM software, it is usually possible to obtain complex shapes and high accuracy even when using simpler or less costly machinery, which is essential to many alternatives to CNC milling techniques.

Reference Sources

1. Additive Manufacturing & 3D Printing

• Article: “3D Microfluidics Fabrication with 5-axis CNC Micro Milling” (Modarelli et al, 2024)
• Key Findings: Using 3D printing, it has been possible to construct microfluidics with elevated resolution and high aspect ratio microfluidic channels. An alternative method has employed a micro-milling machine achieving sub-μm bidirectional repeatability and machinable features less than 20 μm, which together enable a high work volume.
• Methodology: Commercially available products and custom-built parts were used to design and construct the 5-axis CNC micro-milling machine. It was tested to make additional geometries of thin wall microfluidics that are defined by the PDMS channels for nonplanar surfaces.

2. Laser Cutting and Stereolithographic 3D Printing

• Paper: “Validation of Simple Fabrication Techniques for PDMS Microfluidic (Bio)Reactors” (Vogt & Rosenthal, 2022)
• Important Results: We validated laser cutting, fused layer 3D printing, stereolithographic 3D printing and CNC milling as alternative methods of mold fabrication for PDMS microfluidic devices. From all methods, CNC milling proved to be the most dependable method for casting molds.
• Methodology: Various approaches for constructing the molds were tested for their precision and retention of the microparticles inside the PDMS microfluidic devices.

3. Hybrid Kinematic Structures for High-Speed Milling

• Paper: “THE CONCEPT OF HSC MILLING MACHINE WITH HYBRID KINEMATIC STRUCTURE APPLICATION” (Poppeova et al., 2011)
• Key Findings: A hybrid kinematic structure HSC milling machine is developed as an alternative to CNC machines. The hybrid kinematic structure combines the advantages of serial and parallel features. The great kinematic independence of the two bases leads to high positioning dynamics and orientation flexibility.
• Methodology: The small-scale prototype of the hybrid kinematic milling machine was designed, built, and tested for functional verification and educational and training purposes.

1. 4. Leading  CNC Milling Service   Provider  in China
