Mastering Metal Casting: The Ultimate Guide to Die Cast Parts & Processes

Modern manufacturing has benefitted tremendously from die casting owing to its precision, efficiency, and scalability. A die caster’s capabilities can be fully utilized when producing sophisticated parts for the automotive industry or robust components for the consumer electronics industry. The promising results of die-casting are evident in the quality and performance achieved. This guide is aimed at helping you master the craft of metal casting, with emphasis on die-cast parts and processes. Understanding how the technique functions, its advantages, principal uses, and proper implementation are essential to achieving the best outcomes. This article aims to teach both die-casting novices and veterans to make the optimal use of the provided knowledge.

What is Metal Casting and How Does it Work?

A manufacturing technique termed metal casting includes pouring molten metal into a mold, which determines the final product’s shape. The mold, which generally can be made from sand, metal, or ceramic, sets the shape and dimensions of the output. The mold is removed afterward, revealing the intricate part, which needs no further machining after the metal has molten, solidified, and cooled. Metal casting is widely used because of its capability to manufacture products with intricate geometries with great accuracy. It is also one of the most common ways of producing industrial and aerospace components because of its versatility. Engine parts, structural components, machinery, and other construction materials are produced using this method in the automotive, aerospace, and construction industries.

Understanding the Casting Process

The casting procedure has numerous important steps which must be taken to produce quality pieces. The initial step involves making a pattern outlining the shape of the end product. This pattern will then be fabricated into a mold, usually utilizing sand or other tough materials. To produce the mold, a certain amount of metal is put into a furnace until it melts, after which the metal is poured into the mold cavity. After the metal hardens, the mold is separated, and the raw piece undergoes a finishing process, which involves cleaning and checking for any abnormalities. Following this methodology guarantees precise duplication and can be used in a wide range of industries.

Types of Casting Methods: Sand Casting, Investment Casting, and More

Sand Casting

• The most prevalent casting method is sand casting, which is favored for its economical value and flexibility. This involves creating a mold from a sand mixture, which is then filled with molten metal. This method is widely employed for producing large components, including engine blocks and parts for industrial machines. Sand casting can accommodate a variety of metals, such as aluminum, brass, and steel. The time needed to prepare the mold is about 24 to 48 hours depending on the complexity of the mold.

Investment Casting (Lost Wax Casting)

• Investment casting has the ability to achieve great detail and accuracy which makes it perfect for small and delicate components such as jewelry and turbine blades. The procedure involves covering a wax pattern with a ceramic slurry, forming a mold. After the ceramic sets, the wax is removed, and the cavity is filled with molten metal. Investment casting is often successful at tolerances of around ±0.005 inches which is beneficial for precision work.

Die Casting

• This technique is often used for the high-volume production of components with thin walls and complex geometrical shapes, like automobile and electronic parts. Depending on the surface finishes and dimensional accuracy required, secondary machining may be required, although die casting typically needs this aid minimally. This involves inserting a steel mold into a die-casting machine, from which molten metal can be poured under high pressure.

Centrifugal Casting

• A rotating mold is used in centrifugal casting to spread molten metal components. When power is supplied to spin the mold, centrifugal forces apply to force the molten metal to the outside, spreading it evenly. For cylindrical pieces like pipes and rings as well as essentials in aerospace and heavy construction machinery, lack of impurities and high durability make this technique valuable.

Permanent Mold Casting

• In permanent mold casting, a reusable metal mold is made out of iron or steel, which guarantees durability as well as precision. Because of these, this method is reliable for the high and medium-volume production of gears, cookware, and automotive parts. Sand casting is mostly used, but this method lowers porosity while increasing strength and other mechanical properties.

Shell Mold Casting

• Shell mold casting captures the functional principles of sand casting but utilizes an enhanced mold comprised of a resin-bonded sand mixture. This results in improved surface finishes and higher dimensional precision. Shell mold casting is often used in the automotive and machinery industries for small to medium-sized components.

Continuous Casting

• Continuous casting is most commonly used in steel, aluminum, and copper production. It is characterized by the pouring of molten metals into a mold while it is open at both ends. As the molten metal moves through the mold, it solidifies, and the completed product is discharged. This method improves consistency and works best in producing sheets, bars, and billets because it is a high-speed process.

Every method has its pros and cons, thus working best at certain applications based on the requested production amount, materials, and size specifications.

The Role of Mold in Metal Casting

The mold in metal casting serves as the backbone that gives shape to the molten metal while it solidifies, and it dictates the geometry, surface, and structural quality of the product. Depending on the casting method and material, molds, which are sand, metal, or ceramic, are made with the ability to endure extreme temperatures. Constructing the proper mold enables the perfect size and shape with the least amount of imperfections, thus aiding in the overall effectiveness of the product.

How are Die Cast Parts Manufactured?

The Die Casting Process Explained

The die-casting process can be described as forcing a sufficient quantity of molten metal into a mold cavity under high pressure. It is highly valued for its ability to produce complex shapes with tight tolerances, high accuracy, and top-notch surface finish all in one. Elaborated below is the process of die casting:

1. Preparation of the die: The die itself can be divided into die cover and ejector die. These components are usually made out of steel due to its weldability, formability, and responsiveness to heat treatments and precise engineering processes, which give them the exact shape of the part. Prior to the casting process, a release agent is also applied on the die’s surface to enhance ease of removal of the cast part in addition to increasing the die’s lifespan.
2. Melting the metal: The metals used in die casting zinc, aluminum, magnesium and copper alloys. The metals are placed in a furnace comprising 1 to 1.5 kilowatts with the temperature set between 1200 to 1450 degrees Fahrenheit (649 degrees C to 788 degrees C) for aluminum and 786 degrees Fahrenheit (419 degrees C) for zinc. While the metal is molten, it is crucial to maintain the desired levels of the mixtures for quality assurance.
3. Injecting Molten Metal: The process begins with the pouring of molten metal into the die cavity using a hydraulic press or plunger. Afterward, the metal is subjected to a pressure of anywhere between 1,000 psi and 20,000 psi. The high pressure minimizes the presence of porosity while ensuring the complete filling of the mold within the intricate features of the metal.
4. Solidification and Cooling: Immediately when the injected metal touches the cooler die walls, it begins solidifying. Solidifying ensures the metal maintains its shape. Moreover, systems are also present to diminish the chance of warping or other structural flaws through pole form distribution of cooling.
5. Part Ejection: Once the metal has cooled completely and the die opens, ejector pins are used to extract the cast parts out of the mold. Great caution has to be taken to ensure no finer details break off while maintaining the correct dimensional structure.
6. Trimming and Finishing: Trimmed elements such as flash and sprues are cut off and the rougher sections are then sanded, coated, or ground down to improve the aesthetics or the structural integrity of the part.

Advantages and Data Behind Die Casting

Particularly from the standpoint of a business having to spend less to get more, die casting is beneficial due to both its rapidity and its cost-effectiveness. Straight from the die casting industry, die casting has the potential to manufacture thousands of parts every hour, with aluminum die-cast parts achieving tolerances up to ±0.005 inches (0.13mm). In addition, aluminum makes up at least 80 percent of die-cast components produced in the world, and this is attributed to the metal’s favorable weight-to-strength ratios and corrosion resistance.

Modern die-casting machines utilize real-time monitoring and automation, which helps maintain quality thanks to technological advancements. For instance, the application of vacuum-assisted die casting has been found to reduce gas porosity by up to 50%, considerably enhancing the structural strength of the final product. Innovations like these are what keep the die-casting industry moving forward and continue to earn its place as one of the dominant methods of manufacturing in the automotive, aerospace, and electronics industries.

Benefits of Die Casting in Creating Complex Shapes

High Dimensional Accuracy

• Parts cast from dies are produced to very precise dimensions, often to within ± 0.005 inches. The need for secondary machining is mostly eliminated, which lowers production costs and lead times.

Complex Geometries

• The process is most suitable for shapes that are generally too complicated to be manufactured by other means. Undercuts, thin walls, and compound curves are all possible features that can easily be incorporated into the design.

Consistent Quality

• Quality of manufacture is drastically improved because wrought die-casting equipment offers consistency for each cycle of production. Modern technologies such as automated controls allow manufacturers to achieve uniform quality components with little to no variation, which is crucial for end-use applications.

Fast Production Cycle

• A single cycle of casting can take from 2-3 seconds to complete, depending on the size of the part, which means die casting has high production rates. It is very effective in the mass production of complex shapes and is economically efficient.

Material Versatility

• Die casting can be performed using an extensive variety of nonferrous metals and alloys like aluminum, zinc, and magnesium. These materials possess good characteristics with high strength-to-weight ratios, enabling optimized performance for complex parts.

Enhanced Surface Finish

• Die-cast components achieve smooth surface finishes with average roughness (Ra) values as low as 0.8 micrometers. This enhances productivity by eliminating extensive finishing processes like polishing.

Reduced Waste

• Die casting employs high-pressure methods to reduce scrap while maximizing material usage. Research indicates that die casting processes can achieve a material utilization rate of up to ninety-five percent, which helps in sustaining manufacturing.

Strength and Durability

• Die-cast components possess remarkable mechanical properties, such as high tensile and impact strength, as well as low weight. The use of magnesium and aluminum alloys provides strong but lightweight components ideal for intricate, high-performance designs.

With unmatched speed, accuracy, and a remarkable range of design capabilities, die casting continues to be the go-to solution for producing complex and dependable components in various industries.

Materials Used in Die Casting: Zinc and Aluminum

The use of materials zinc and aluminum are renowned for diecasting owing to their properties and versatility features.

While zinc has a low melting point, making casting energy efficient way, it can also achieve intricate and complex parts with tight tolerances for components. Zinc is also corrosion resistant and improves the aesthetic value of products post-plating while having ductility, enabling long-lasting products. As a result, zinc alloys like Zamak 3 and Zamak 5 offer mechanical strength coupled with cost-effectiveness, making them the preferred choice.

Aluminum, on the other hand, has A356 and A380 alloys that are corrosion-resistant as well, offering extreme thermal and electric conductivity. Their lightweight and strength make them enablers of sleek and robust constructions while achieving peak performance in areas such as aerospace and automotive. The ability of aluminum to solidify quickly increases its casting efficacy, improves metallurgical structure, and enhances mechanical strength.

These materials’ use in automotive, electronics, and construction industries is the reason the global demand zone for zinc and aluminum die-casting materials is increasing. Progress in alloy development and casting technology is enabling these materials to be designed for more demanding performance needs while also being cost-effective and environmentally friendly.

What are the Advantages of Using Die Casting Services?

Efficiency in high-volume Production

Die casting is ideally suited for mass production because of its quick and accurate output of uniform and precise parts. It reduces material losses, minimizes additional machining, and guarantees consistent quality for extensive products. This caters particularly to sectors with high demands, like automotive or electronics parts production, which require intricate components with stringent tolerances.

Achieving Good Surface Finish in Die Cast Parts

In die-cast parts, achieving a qualitative surface finish is critical not only from an aesthetic perspective but also from an operational one in regard to functional use. The surface finish in die casting is influenced by several factors including material composition, mold design, process characterization, and post-processing operations.

The surface finish is primarily influenced by the melt flow rates into the cavities. For example, an accurately machined and polished mold surface will allow a molten metal to more completely fill the mold cavity. For example, high-grade tool steel with polished cavities will have fewer flow lines as well as be much smoother. In addition, PVD and ceramic mold coatings improve surface finish by preventing molten metal from sticking to the mold.

Injection velocity, pressure, and temperature are also deemed as process parameters. For instance, optimal injection flow rates will result in more uniform metal step filling and minimize cold shuts. It is known that preheated die surfaces, combined with adequate lateral lubrication, can prevent porosity from internal voids and improve surface texture. In the case of aluminum alloy castings, a temperature range of 670F to 750F (354C to 399C) is desired for greater uniformity of surface finish.

For improving surface finishing, post-casting operations such as polishing, vibration finishing, or shot blasting are implemented. For stricter applications that require mirror-like surfaces, advanced methods like chemical polishing or laser ablation have been adopted. Furthermore, surface coatings such as anodization or powder coating improve esthetic value while increasing durability.

To assess the surface quality, the average roughness (Ra) value is the most important parameter. For die casting, a Ra value of 0.8 µm is achievable with no additional secondary finishing techniques. By employing optimum technology and constant supervision, manufacturers are able to guarantee surface finishing on all products for various purposes.

Cost Effectiveness of Custom Die Casting

Due to the reduction of materials and exceptional parts accuracy, custom die casting is recognized as one of the most cost-effective manufacturing processes. It’s one of the most efficient ways to cut production costs because its level of automation cuts labor costs while maintaining quality control. Advanced machinery enables cycle times as short as 30 seconds for smaller components, leading to increased productivity and output.

The ability to utilize materials in die casting is exceptional, with scrap rate margins as low as 2-5%, as the excess material can be recycled back into the process. Compared to conventional machining, the use of die casting does not incur a significant material loss with cutting, especially intricate designs. Additionally, reduced wear and tear on the molds increases the lifespan, which decreases the cost per unit over time and makes it more economical for mass production.

Data from various industries indicate that compared to other production techniques, die casting guarantees a competitive edge by maintaining tighter tolerances which eliminates many secondary machining operations. Mold life for aluminum alloy parts exceeds 50,000 and can reach over 100,000 shots depending on process conditions, resulting in lower tooling costs per part. Moreover, a reduction in assembly and processing steps attributable to the incorporation of complex geometries and surface finishes into the casting further decreases manufacturing costs.

Automotive, aerospace, and electronics industries all benefit from custom die casting because of its unmatched accuracy and versatility. The integration of low-weight materials, like aluminum and magnesium alloys, has also enabled lower shipping and energy costs. Therefore, companies utilizing custom die casting are able to lower production costs while satisfying the need for strong, lightweight components.

How Does Aluminum Die Casting Differ from Other Methods?

The Specifics of Aluminum Casting

The remarkable balance of strength, lightness, and cost in aluminum die-casting sets it apart from other die-casting methods. For me, the process is unique in terms of the ability to create complex and high-precision features with close tolerances, which is suitable for sophisticated components. Furthermore, corrosion resistance, coupled with excellent thermal and electrical conductivity makes aluminum even more versatile than other casting materials. In summary, these benefits of aluminum die casting stand above the rest for industries that require high-quality performance at optimized costs.

Comparing Aluminum Alloys with Other Alloy Types

The eco-efficiency of aluminum alloys in the engineering sector is one of their most significant benefits when compared to other types of alloys. By way of example, alloys containing aluminum have a density of approximately 2.7 g/cm³, which is significantly lower than the 7.8 g/cm³ average for steel alloys. The exceptional strength-to-weight ratio of aluminum alloys enables their use in aerospace, automotive, and construction industries aiming at improved fuel efficiency through weight reduction.

Aluminum alloys are also more beneficial for outdoor or marine applications due to their outstanding corrosion resistance from naturally formed layers of oxide that moisture and other environmental contaminants cannot penetrate. This protects carbon steel from corrosive elements, but some form of coverage is still often necessary.

Aluminum alloys are also better thermally and electrically than many other alloys. For instance, aluminum alloys have a thermal conductivity of 150 – 235 W/m·K. For electronic housings, heat exchangers, and thermal management devices, they are the prime candidates. In contrast, stainless steel has a thermal conductivity of around 15W/m·K, making aluminum alloys ten times more effective regarding heat exchangers.

Even with their benefits, aluminum alloys are still weaker than titanium or hardened steel when it comes to extreme hardness or wear resistance. For instance, titanium alloys are efficiently used in places where great strength is required owing to their unparalleled durability and tensile strengths exceeding 1,000 MPa compared to the aluminum alloys’ tensile strength of 200 to 400 MPa. On the downside, this strength is accompanied by greater material cost and density which usually results in the aluminum alloys dominating the market when it comes to cost and sustainable materials.

In the end, the balance of strength, weight, durability, corrosion resistance, cost, and the alloy chosen all depend on the scope of the project. The versatility and efficiency of aluminum alloys in various technical applications show their unprecedented usage in modern engineering making them a favorable choice.

Applications and Benefits of Aluminum Parts

The primary reason Aluminum parts are used in numerous industries is their lightweight features, corrosion resistance, and affordability. Aluminum parts have several applications and advantages which are discussed below:

Applications of Aluminum Parts:

Aerospace Industry

• Aluminum is used in aircraft parts such as fuselages, wings, and structural frames.
• There are benefits such as reduced weight, which improves fuel economy without compromising the strength of the structure.
• Aluminum-lithium alloys are often used because of their improved strength-to-weight ratios.

Automotive Sector

• Used in engine blocks, transmission housings, and body panels.
• Uses in electronic cars (EV) battery cases are increasing.
• Due to the lightweight nature of aluminum, fuel economy and emissions are positively affected.

Construction Industry

• Used in windows, doors, roofing, and structural supports.
• Aluminum is better than steel due to its corrosion resistance in different climates and flexible appearance.
• Aluminum extrusions offer more for custom structures than any other materials.

Marine Engineering

• Considered for shipbuilding hulls, decks, and superstructures.
• The durability in saltwater for blue marines allows for excellent corrosion resistance.
• The use of Aluminum reduces weight which enhances vessel performance and efficiency.

Electrical and Electronics

• Common in heat sinks, wiring, and enclosures for electrical components.
• Its lightweight nature simplifies transportation and installation.
• Dissipation of heat is ensured due to high thermal conductivity.

Packaging Industry

• Used in Aluminum cans, foils, and containers for food and beverages.
• Ensures a lightweight, environmentally friendly, and recyclable solution.
• Aluminum packaging ensures the material’s integrity is preserved and has a long shelf life.

Renewable Energy

• Found in frames of solar panels and parts of wind turbines.
• Combines high energy efficiency with lightweight and durable materials.
• Promotes sustainability with recyclable materials.

Benefits of Aluminum Parts:

• Low Density and Lightweight – Roughly 2.7 g/cm³, which is much less than steel or copper, leading to great weight savings.
• High Corrosion Resistance – In harsh environments, aluminum endures due to the protective oxide layer that forms.
• Excellent Thermal and Electrical Conductivity – Great aluminum applications are used for heat energy dissipation and electric energy transmission.
• High Recyclability – An environmentally conscious choice because aluminum is 100% recyclable without quality loss.
• Ease of Fabrication – Reduces manufacturing complexity because it can be machined, forged, extruded, or cast easily.
• Strength-to-Weight Ratio – Provides structural support while reducing overall weight.

In conclusion, it is aluminum’s widespread use in modern engineering and product devices and its unsustainable nature that stands off as the primary material of concern.

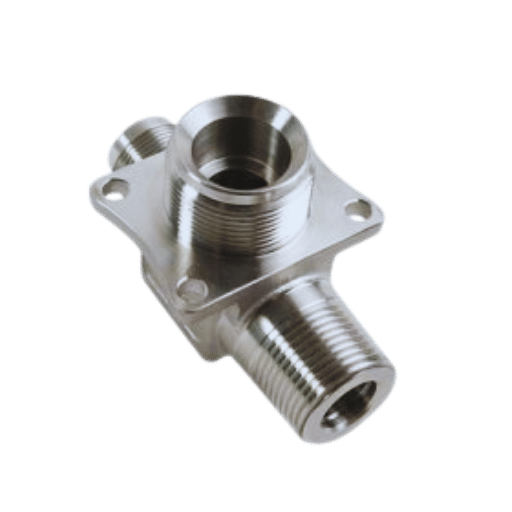

What Factors Influence the Choice of Casting Service?



Assessing Metal Casting Standards and Requirements

The following criteria require critical judgment while checking on metal casting standards and requirements:

1. Material Specifications: Review if the metal or alloy selected possesses the requisite mechanical, thermal, and chemical attributes for its intended use.
2. Dimensional Accuracy: Ensure that the predetermined tolerances and surface finish requirements are within acceptable limits to aid assembly and functionality.
3. Compliance with Other Industry Standards: Evaluate conformance with applicable standards, E.g., ASTM, ISO, SAE, and maintain precision.
4. Production Volume: Select a suitable method of casting, be it sand, die, or investment casting, depending on the anticipated production volume and cost-effectiveness.
5. Environment and Performance: Analyze the temperature, corrosion resistance, and wear conditions that the cast part will have to endure during operation.

Like any other managed process, decision-making becomes a project in its own scope and must interact with all the artifacts constantly.

Choosing Between Cold Chamber and Hot Chamber Die Casting Techniques

Casting is one of the most complex processes in construction. Here, liquid metal is poured into a die to manufacture very detailed pieces quickly. A manufacturer must choose from two available options: cold chamber die casting or hot chamber die casting. These available options have clear contrasts; knowing them will certainly help in the selection of the best fit according to the material and efficiency of an operation.

Cold Chamber Die Casting

Cold chamber die casting works best for metals having high melting and boiling points, such as aluminum, magnesium, and copper alloys. This method requires pouring the liquid metal into a cold chamber manually or through a machine before it gets thrust into the mold through a piston. For the process to mold the metal withstanding higher thermal stress, the transfer of molten metal into the chamber slows down the process time a bit.

• Benefits: materials and parts that require high durability for extreme environments, corrosion resistant, and robust and durable.
• Common Uses: Automotive parts, parts of the aircraft, and Industrial machinery.
• Performance Metrics: Aluminum is well known for having an excellent strength-to-weight ratio and resistance to corrosion; the temperature during the casting process varies anywhere from 1150°F(621°C) to 1200°F(649°C). It is one of the materials common in cold chamber casting.

Hot Chamber Die Casting

Hot chamber die casting is a more suitable approach for metals with lower melting points like zinc, pewter, and certain magnesium alloys. This method is characterized by the metal reservoir being part of the machine which enables direct injection of the liquid metal into the mold without requiring any external movement. This improves the cycle time significantly.

• Advantages: Improved production efficiency, shorter cycle times, and reduced material wastage.
• Typical Applications: Small medical components, decorative hardware, and consumer electronics.
• Performance Data: Zinc alloys, commonly used in hot chamber casting, have remarkable wearability and fluidity, with melting points of approximately 787°F (419°C).

Key Considerations

The decision between cold chamber and hot chamber die casting is driven by the melting point of the material, dimensional tolerances, production quantity, and required mechanical properties. While hot chamber casting is favorable for small-scale, low melting point applications, cold chamber casting is more efficient in providing strength and durability for severely challenging operational environments. In any case, improvements in die-casting technology have increased the precision and scope of materials for both methods, increasing production efficiency.

Through the understanding of project-related material courses and operational limitations, the manufacturers can identify the most efficient, economical, high-quality die-casting method to meet the project requirements.

Considerations for Custom Die Casting Solutions

Material Selection

The selection of the correct materials is important for optimal performance and life cycle in custom die casting. This applies particularly to aluminum and zinc alloys as they have the best strength-to-weight ratio, are resistant to corrosion, and are easily cast. Along with that, it is crucial that the materials selected meet the mechanical, thermal, and dimensional specifications of the part in question.

Tooling Design

Precise, efficient tooling design is fundamental to increased productivity. Proficient dies within the design dramatically decrease defects, improve surface finish quality, and enable higher production volumes. The tooling quality is influenced by upkeep responsibility and the proper control of temperatures to guarantee the prolonging of the quality of tools used.

Cost Optimization

Finding a middle ground in the budget whilst still achieving performance targets necessitates that the manufacturer consider the scale of production, material, and cycle time. Automation provides flexibility by improving systematic efficiency with diminished direct labor costs over time, thus making it a cost-effective option for mass production runs.

Frequently Asked Questions (FAQs)

Q: What is die casting and how does it work?

A: Die casting refers to a metal casting process involving the forcing of molten metal into a mold cavity under high pressure. This method is used to produce metal parts with even complex shapes alongside precise dimensions. The process usually encompasses nonferrous metals such as aluminum, zinc, and magnesium. Injecting the liquid metal into the steel dies that serve as molds is achievable through the use of die-casting machines. Die Casting is achieved through injecting liquid metal into steel dies which act as reusable molds. These processes are made possible through the use of specialized die-casting machines.

Q: What are the advantages of die casting compared to other metal casting methods?

A: Some of the casting advantages are propounded as its ability to possess high volume production capability, excellent dimensional accuracy, smooth surface finish, and an advantage of producing parts having complex geometries. In mass production, die casting advantages are more pronounced in comparison to other non-ferrous methods such as sand molded casting or lost foam casting. Other advantages are thinner walls and remarkable details in the final product.

Q: What kinds of die-casting machines are on the market today?

A: In the market, hot and cold chamber machines are the most common die-casting machines. Hot chamber die-casting machines are appropriate for low melting point metals like zinc alloys. For cold chamber die-casting machines, higher melting point metals such as aluminum are used. The type of machine that will be utilized will depend on the metal to be cast and the production volume.

Q: What is zinc die casting, and what are its applications?

A: Casting zinc alloys into particular shapes is referred to as zinc die casting. It is well-known for making medium to small-sized parts with a very good surface finish and very good dimensional accuracy. In automotive, electronic, and hardware industries, zinc die-cast parts are very popular due to their strength, corrosion resistance, and ease of plating or painting. Some examples of its uses are electronic enclosures, decorative automotive parts, and hardware components.

Q: What Makes Casting Aluminum Remarkably Different from Casting Other Metals in Die Casting?

A: Die-casting aluminum presents a few distinct benefits. The melting point is lower than most metals, so production cycles are quicker. Producing strong, lightweight parts helps in the automotive and aerospace industries, too. However, cold chamber die casting machines are required for aluminum die casting because their melting point is relatively higher than both zinc and magnesium.

Q: What are The Most Important Considerations in Designing Parts Intended For Die Casting?

A: In designing parts for die casting, some considerations include choice of materials, wall thickness, draft angles, and parting lines. Consider the ease of part removal from the die to avoid undercuts or complex geometries needing additional tooling. Also think, what’s the part size? Die casting is best suited for high-volume production of small to medium parts, so these dimensions should be considered.

Q: In what ways does die casting differ from sand casting in their production rate and the quality of the output?

A: Die casting typically has faster production speeds and greater accuracy in measuring features than sand casting. While sand-molded casting accommodates larger components and a broader selection of metals, die casting is more adept at forming small, highly detailed objects with better surface quality. Die casting is more economical for large-scale production, whereas higher-cost sand casting is more economical for small-scale, less complex shapes.

Q: What are some of the common post-casting operations for die-cast parts?

A: The most common post-casting operation is to separate the casting from the mold and then trim it, machine it, polish the surface, and apply heat. Others may require additional steps such as sharpening edges, applying a shine, or painting to meet the expectations for an end product. Based on what the die-cast components will be used for, they may also be plated, anodized, or treated in other ways to improve their functional or decorative value.

Reference Sources

1. Efficient Deep Learning Technique for Imaging Defects of Casting Parts X-ray

• By: Lingyu Xue and others
• Journal: Measurement Science and Technology
• Publication Date: June 24, 2022
• Citation: (Xue et al., 2022)
• Key Findings:
• Designed a deep learning approach for defect-recognition in digital radiography images.
• Constructed a label-contaminated dataset containing 18311 DR images and inclusions.
• Achieved higher mean average precision with a modified YOLOv3 model (YOLOv3_EfficientNet) competitively achieved much lower inference times and storage costs.
• Research Methods:
• Applied a deep learning paradigm for object detection.
• Used augmentation methods to vary the defect’s shape and prominence.
• Utilized depth separable convolutions to deploy the model onto embedded systems for lower power computation.

2. Grinding and Cutting Technologies and Machinery for Chilled Casting Parts of Bulky Dimensions

• By: Meng Wang and others
• Journal: Chinese Journal of Mechanical Engineering
• Publication Date: July 28, 2022
• Citation: (Wang et al., 2022, 1-9)
• Primary Points of Discussion:
• Provided a review of different grinding and cutting processes of multi-scale parts of the caster.
• Detailed the developments of equipment and other methodologies to enhance machining operations.
• Research Methods:
• Performed wide breadth analysis of known technology and machinery through literature.

3. Joint Structural Optimization and Process Guarantees in Implicit Modelling of Casting Components

• Journal: Materials
• Date of Publication: July 1, 2021
• Citation Identifier: (Rosnitschek et al., 2021)
• Main Findings:
• Introduced an approach for automating the creation of die-casting components that are both structurally and procedurally optimized.
• Demonstrated major gains in fabrication efficiency and mechanical effectiveness relative to the manual approaches.
• Methodology:
• Integrated topology optimization with process assurance simulation.
• Establish evaluation criteria for the assessment of design proposals.

4. Designing Elements for Machined Castings Using Topology Optimization of Structural Assemblies

• Authors: Junyuan Zhang et al.
• Journal: Proceedings of the Institution of Mechanical Engineers: Part B Journal of Engineering Manufacture
• Publication Date: July 27, 2021
• Citation Token: (Zhang et al., 2021, pp. 401−412)
• Key Findings:
• Presented a design approach of a manufacturable casting part by means of topology optimization.
• Enhanced capability of casting parts moldability constraints and overall casting parts manufacturability.
• Methodology:
• Used a vector method with the Heaviside function for the moldability constraints definition.
• Validated the proposed design method through numerical example completion.

5. A Novel Automated Method of Casting Parts Allowance Machining Evaluation

• Authors: Yongzhuo Gao et al.
• Journal: International Journal of Computer Integrated Manufacturing
• Publication Date: November 2, 2019
• Citation Token: (Gao et al., 2019, pp. 1043−1052)
• Key Findings:
• Created a novel automated methodology for evaluating machining allowances of casting parts.
• Solved difficulties concerning casting defects and unmapped circumstances.
• Methodology:
• Applied point cloud registration technology for machining allowance evaluation.
• Accounted enveloping and localization datum as constraints.

6. Metal casting

7. Metal

8. Casting
