Ultimate Guide to Plastic CNC Machining: Techniques and Best Practices

Due to its accuracy and adaptability, plastic CNC machining is used to manufacture parts in various industries such as healthcare, automotive, and electronics. The development of new technologies in material science and machining techniques has tremendously increased the production of precision plastic parts. Here, we will explain the techniques, tools, and practices relevant to plastic CNC machining, which we believe and which many practitioners, engineers, manufacturers, and designers say help achieve the best outcomes. This information resource is directed towards practitioners of all skill levels, whether new or experienced, aiming to solve issues related to time efficiency and productivity. The intention of this document is to show the possible uses and benefits of plastic CNC machining for different business applications.

What is Plastic CNC Machining?

CNC machining of plastic is a type of machining that employs both a computer and a tool as its main components to compress and slice parts of a plastic workpiece in order to achieve a predetermined shape. This method achieves precision and repeatability in the manufacturing process which enables the production of complex parts along with tight tolerances. The most common plastics that are used in the machining process are ABS, polycarbonate, and nylon because they are strong and flexible. The use of CNC machining is predominant in the prototype and small to medium-volume production endeavors in the automotive, aerospace, and medical industries. It facilitates the achievement of desired quality and efficiency standards, thereby improving application performance.

Understanding the Basics of Plastic

Plastic is a man-made substance from completely or partially synthetic materials and is composed chiefly of polymers. Being light in weight and tough, as well as flexible in use, it is an important raw material for various industries. Generally, plastics are divided into two types: thermoplastics, which soften when heated and can be reshaped multiple times, and thermosetting plastics, which, after being molded, can set in a permanently hard form. Their flexible nature makes them useful in medicine, machinery, building, and even in packaging, which is why they are so cost-effective.

The Role of Machines in Plastic Fabrication

The incorporation of technology and machines into the production of plastic products has resulted in the efficient and accurate fabrication of plastic products. The invention and use of highly efficient machines like injection molding machines, extrusion processors, and thermoforming machines have led to the advancement of plastic industries. For example, injection molding machines are well known for their ability to form even the most intricate shapes with extreme precision and consistency. They are designed to use molds along with high-pressure systems to inject molten plastic into specific molds. These machines are particularly important for mass production in the automotive, consumer goods, and healthcare industries.

Equally important are the extrusion machines which serve the task of producing continuous plastic products in pipe, sheet, and film form. Different types of thermoplastics can be used in their production, making them versatile, especially with the new and improved designs that are being used, making it possible to increase the speed of production and decrease the waste of material. Advancements in these machines make it possible to better control wall thickness, layering of material, and surface finish, which are essential for many modern applications.

Recent industry information reveals that the global injection molding machine market is expected to surpass 20 billion dollars by 2030, demonstrating a growing dependence on automated machinery for plastics processing. In addition, new fabrication machines are now equipped with automated robots, AI powered controls, and energy saving features – all of which increase productivity with less impact to the environment. Aside from reducing manufacturing time, these developments also improve the accuracy and quality of the final products which is vital for the growth of technology in plastic manufacturing.

Machining Process: How it Differs for Plastics

Plastics and other polymers are machined differently than metals due to having lower melting temperatures, being thermally sensitive, and being more ductile. When it comes to cuts being made to plastic, as opposed to working with metals, slower cutting speeds and lower feed rates must be utilized to stop overheating and warping from occurring. To avoid causing damage to the material being worked on, precision tools are fashioned from carbide. Due to plastics being more susceptible to deformation under pressure, proper clamping techniques need to be employed. Taking all these aspects into account, one can deduce that the machining of plastics is distinctly different from other types of machining and is complex in nature.

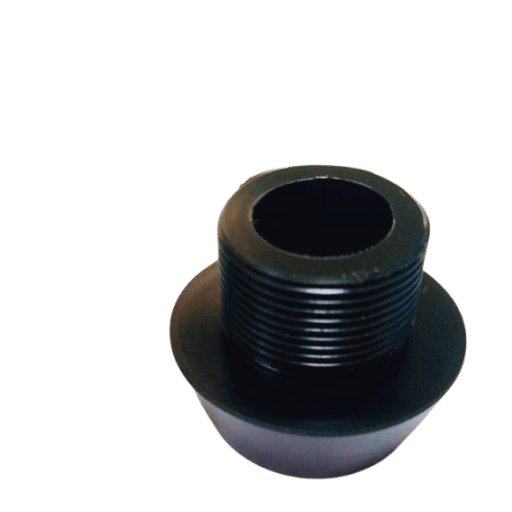

How Can You Achieve an Ideal Surface Finish on Plastic Parts?

Importance of Surface Finish in Plastic Machining

The significance of surface finish in plastic machining cannot be overlooked since it significantly impacts the functionality, aesthetics, and performance of the final component. Better surface finish leads to reduced friction, increased wear resistance, and improved optical clarity of the part when required. It is especially relevant in medical devices, automotive, and semiconductor industries, which require high precision along with a flawless aesthetic appeal.

An ideal surface finish can only be gained through the rigorous control of the machining process and its parameters. For example, the use of tools with polished edges and well-designed cutting angles greatly reduces surface roughness. Current figures show that for high-performance plastic parts, meeting industry standards with a roughness average (Ra) of 0.2 to 0.8µm is commonplace. Besides that, controlling feed speeds and spindle speeds are equally important in order to avoid generating chatter marks or thermal damage that could ruin the finish.

Material selection is still another important consideration in attaining the surface finish of interest. For some types of plastics like PTFE and acrylics, surface dullness can be a problem due to their nature. These problems, however, can be addressed with the employment of high-speed machining and coolant applications. Surface finish can also be improved, and uniformity in production can be achieved with post-machining processes like polishing and chemical treatment.

In the end, an exacting approach on achieving surface finish, in plastic machining, is required to address functional needs, improve product lifecycle, and the overall look of the product.

Tool Choices for Optimal Surface Quality

The choice of tools is one of the most important factors in aiming for a greater surface finish in the plastic parts machining process. The following sections outline the relevant tools and their considerations for the best possible results:

Carbide Tools

• Description: These are high efficiency tools with excellent toughness and durability. Their sharpness is retained over prolonged periods of usage and they work effectively while machining harder plastic materials.
• Advantages: It provides good edge retention, heat resistance, and low tool wear.
• Best Applications: High-speed machining, working with close tolerances.

Diamond-Coated Tools

• Description: Tools with cutting edges coated with industrial diamond to increase cutting efficiency and durability.
• Advantages: Exceptional resistance to wear, lower adhesion of plastic to the tool, longer life with extended use.
• Best Applications: Plastic composites that are abrasive, batch production.

High-Speed Steel (HSS) Tools

• Description: Affordable and adequate for machining of softer plastic. Good balance of stiffness and flexibility which is required.
• Advantages: Economical when compared to carbide or diamond-coated tools, easily resharpened.
• Best Applications: Prototype parts, low batch production.

Router Bits

• Description: Broadly defined cutting instruments designed to perform routing or shape the plastic coarse surfaces. It comes in a spiral, straight, multi-fluted, and many other configurations.
• Advantages: Outstanding quality of cuts with minimized chattering and vibrations.
• Best Applications: Edge trimming, contouring.

Polycrystalline Diamond (PCD) tools

• Description: Extreme hardness and precision tools made with diamond particles mechanically bonded to a cemented carbide substrate.
• Advantages: Exceptional machinability, tool life, and superior surface finishes.
• Best Applications: Intricate geometries, high-rigidity plastics.

Cutters with a Low Helix Angle

• Description: Designed to cut softer plastics with minimal deformation and cutting force.
• Advantages: Decreased chipping and deformation of plastic material.
• Best Applications: Moderately tough and flexible plastics.

Single Flute Cutters

• Desription: A user-friendly tool that has a single cutting edge resulting in an easy and quick chip ejection along with reduction in heat accumulation.
• Advantage: Increased surface roughness, less heat, and faster cutting speed.
• Best Applications: Heat-sensitive plastics, thin wall sections.

Cutting Tools with Chip Breaker Features

• Description: Specially designed tools that efficiently break off chips during machining.
• Advantages: Better surface quality and material removal rate.
• Best Applications: Plastic with larger and tougher properties, high-feed operations.

Data from industry studies suggests that machining plastic is greatly influenced by tool geometry and material. Comparing coated diamond tools and uncoated tools while having the same working conditions shows that with the coated tools the surface roughness is improved by 60% with the use of diamond tools. Therefore, productivity and quality can be achieved with optimal tool selection.

Key Factors: Spindle Speeds and Feed Rates

Two of the most important parameters in the machining of plastics processes are spindle speeds and feed rates. The feed rate, described in millimeters per minute or inches per minute, relates to the distance that the plastic material travels toward the cutter, while the spindle speed, measured in revolutions per minute (RPM), specifies the rotation speed of the cutting tool. The above parameters, collectively, determine the efficiency of machining, the quality of surface finish, and the longevity of the tool in use.

New Innovations show that many plastics, depending on the material type and machining application, tend to experience the best results within the spindle speed of 2,000 to 20,000 RPM. In high-speed machining of thermoplastics, for instance, spindle speeds applied toward the upper limit of the range are very advantageous in reducing heat and improving the surface finish.

While feed rates should work in conjunction with the spindle speed, the recommendable range for most plastics lies between 0.05 to 0.5 mm/rev. Softer feed rates tend to work better when applied to materials like polyethylene that are more susceptible to melting and deformation, whereas higher feed rates are more useful with polycarbonate that is tougher. Research shows that these two factors are often misused in combination, causing too much wear on the tool, excessive heat, and errors in the created product.

Finding the right balance requires examining factors like the properties of the material, tool shape, and the environment in which the cutting happens. For instance, during the machining of softer plastics, it is optimal to have a high spindle speed and low feed rate to protect surface quality. However, more rigid plastics may respond better to mid-range spindle speeds and moderately higher feed rates to minimize excessive tool wear. These parameters also need to be adjusted in real time due to alterations such as the condition of the tool or particular design details of the material.

What Machining Methods Work Best for Plastics?

Comparing Various Plastic Machining Methods

When choosing a machining technique for plastics, it is important to consider the material properties, required tolerances, and functional purpose of the part. Below, we take a closer look at some of the most common methods of plastic machining.

CNC Milling

• CNC milling has gained popularity because of its versatility and precision when machining different types of plastics. Both homopolymers and copolymers that are thermoplastics as well as thermosetting plastics can be CNC milled. Parts that have intricate geometrical shapes and high tolerances can also be efficiently milled. Proper tooling results in good surface finish. Spindle speeds between 10,000 and 20,000 RPM can be used in these processes depending on the hardness of the material. Coolant can be applied when necessary to minimize heat accumulation.

CNC Turning

• CNC turning is used for the production of cylindrical parts of plastic such as rods and bushings. This method is able to produce high precision plastic parts with an economical gadget as the rotational cutting action is incredibly useful in large scale production. Common practice entails the use of softer cutting speeds coupled with manipulated feed modes to avoid deforming softer plastics.

Laser Cutting

• Laser cutting is best suited for intricate designs or thin plastic sheets. These tools are not in contact with the part being machined so tool wear is minimal. Laser cutting is optimal for tough plastics such as acrylic and polycarbonate. These lasers do have heat affected zones which makes them less than ideal for thermally sensitive plastics like polypropylene.

Drilling

• Drilling is a common method for making holes in plastic parts. It is ideal for drilling holes in plastic with specialized drills made for plastic to elude problems of cracking and melting. For softer plastics, slower feed rates, together with sharp drill angles, produce clean, burr-free edges.

Routing

• Routing is one good alternative method, for the procedures of cutting and shaping of larger plastic parts. These types of materials are easily worked with the use of high-speed routers intended for polycarbonate and acrylic materials. The main principle is to maximize the spindle speeds and the tool paths in order to reduce the heating effects caused by cutting tools.

Sawing

• Sawing can be used for rough cuts on thick plastic sheets or blocks. Primary tools for this process are the circular saws, and band saws. While cutting, it is better to use blades with low pitch teeth to maintain edge quality and prevent the edges from melting during the process.

Waterjet Cutting

• Water jet cutting refers to cutting by using pressurized water for thermoplastics. This is done with the aid of highly pressurized water, often mixed with abrasive particles that slice through the material without generating heat. It is best for thermally sensitive materials because no warping or melting will take place. This technique is preferred where clean cuts on laminated or composite plastics are needed.

Ultrasonic Machining

• Ultrasonic machining is defined as removing material by means of high or low-frequency vibration of the tool resting on the work piece together with an abrasive medium. It is mainly used on specialized engineering plastics which possess specific detail features and a high quality surface.

Every machining technique has its specific features according to what is needed from the application. For example, laser cutting and waterjet cutting are superior for detailed designs, whereas CNC milling and turning are unmatched in accuracy and consistency. Any chosen method must take into account the manner in which the material will respond, functional limitations, and efficiency in terms of expenses.

Factors Affecting Machining Method Selection

Economically, technologically, and in terms of material, there are a number of factors that affect the choice of a machining method. Some of the primary factors include surface finish requirements, material characteristics, dimensional accuracy, production volume, and costs.

Material Features

• Machinability is affected by many feature properties such as a material’s hardness, brittleness, and thermal conductivity. Machinable metals such as titanium and the hardened steel require robust cutting tools and processes, like CNC milling or electrical discharge machining (EDM) for precision. In contrast, softer metals such as aluminum or plastics can be shaped using CNC machining or laser cutting which are less intensive.

Dimensional Accuracy and Surfaces Finish

• EDM and precision grinding are some of the methodologies employed to achieve high tolerances and smooth surface finishes. For instance, CNC milling is limited structurally and can only provide tolerances in the range of ±0.001 to ±0.005 inches, while EDM can achieve tolerances of around ±0.0001 inches. Finally, laser cutting allows detailed designs to be made, but depending on the material used, further processing may be needed to meet surface finish requirements.

Production Volume and Lead Time

• The implementation of automated and repetitive functions such as CNC machining greatly increases the accuracy and volume of high-batch production. On the other hand, waterjet cutting and additive manufacturing are best suited for prototypical as well as low-batch production since they facilitate a smooth transition from the design stage to the finished model.

Thermal and Structural Considerations

• Processes such as water jet cutting and cryogenic milling become more relevant than laser cutting when keeping the material intact is a priority, as the latter often relies on cold working methods that can damage the material due to excessive heat.

Cost Efficiency

• Wasted materials and energy consumed by operating machinery are additional determinants of the economic feasibility of any given machining method. Although laser machining is far more accurate than others methods and minimizes material loss, the equipment costs can be substantial depending on the scope of operations. In contrast, water jet cutting is less precision oriented offering wider applicability and lower wearing of the equipment, thus rendering it significantly cheaper for different materials.

By evaluating all of these elements, engineers as well as manufacturers are able to improve the quality of components produced while ensuring optimum efficiency and cost effectiveness in the selection of machining methods.

Special Considerations for Thermoplastics

It is critical to consider thermal sensitivity and low melting points when machining thermoplastics. Cutting tools that generate a lot of heat can lead to softening, deformation, or poor surface finishes. To avoid these outcomes, sharp-edged cutting tools with slow cutting speeds and feeds should be utilized. In addition, good cooling methods for air or mist can help lower the heat generated by the machining. Choosing an appropriate tool material, such as carbide or coated tools, enhances tool life and provides better accuracy due to lower friction. These factors are essential when machining thermoplastics to achieve the best results.

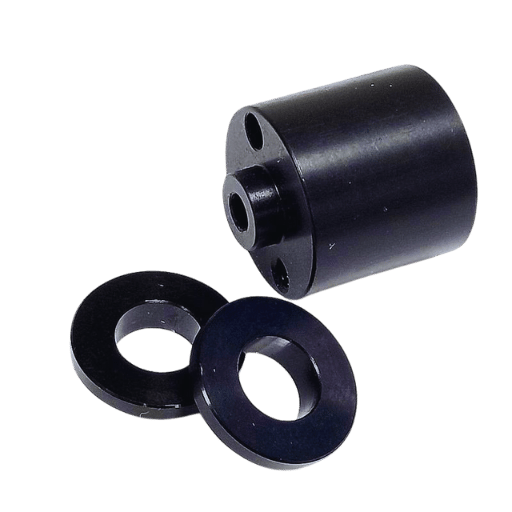

How to Maintain Dimensional Stability in Machined Plastic Parts?

Managing Thermal Expansion in Plastics

When machining components from plastic, thermal expansion is one factor that requires special attention due to the high CTE of plastics in contrast to metals. This phenomenon indicates that economically viable materials undergo more dramatic changes in volume due to heat when compared to metals. To achieve level best results, the challenge of thermal expansion must be addressed to ensure none of the components are distorted in size.

Plastics are estimated to have a CTE value of anywhere between 20 × 10⁻⁶ to 200 × 10⁻⁶ per °C, depending on the type of polymer. For example, polyethylene (PE) and polypropylene, along with other less rigorously accepted options, have higher CTE values when compared to engineering-grade polycarbonate (PC) and polyetheretherketone (PEEK). These differences pose a challenge as engineers must determine the selection of the materials based on the anticipated Operating temperature range.

Thermal expansion can be managed in a number of ways. One design option is to introduce compensatory tolerances that provide relief to draw-downs in size that may occur when subjected to heat. Take for instance, assemblies that are made out of metal and plastic parts. They might have to use specialized interfacing designs such as allowing holes and slots to be made larger than necessary to reduce any tension or strain that could cause misalignment due to differences in expansion.

Plastics enhanced with fibers, such as glass or carbon fiber polymers, tend to optimize the performance of the base polymer due to their low thermal expansion coefficient. For example, with glass fiber reinforcement, the thermal expansion for nylon can be lowered by 50%, allowing the enhanced nylon to be thermally stable. Using reinforced materials is particularly beneficial when precision and stability are needed at higher and lower temperatures for certain applications.

Finally, the thermal conditions that surround the process and the machining operation require careful management. Substantial control of the ambient temperature of the machining shop’s environment gives an edge in terms of reducing the changes in dimensions during machining processes. Internal stress relief post-process annealing is also an advantageous approach in reducing the deformation of the item due to increased heat over a long period of time. Together with carefully selected material and design optimization, all are the steps to ensure that the plastic parts are reliably functioning in highly thermally active environments.

Strategies for Consistent Tolerance

Balancing tolerance in plastic parts calls for integrated material choice, production technique, and environmental management. First, choose materials that have a low thermal expansion coefficient and high dimensional stability to reduce variability. Apply precision and repetitive CNC machining and injection molding techniques. Also, careful management of environmental factors such as temperature and moisture during production and storage aids in reducing dimensional variation. If all of these methods are used, manufacturers will be able to achieve stringent tolerance requirements.

Techniques for Reducing Frictional Heat

To minimize frictional heat, I would concentrate on the installation of high-quality lubrication systems to prevent surfaces from coming into contact with one another; this will allow for smoother interaction between the components. Selecting low-friction surface materials and performing adequate surface treatments, such as coating or polishing, will also be important to lower wear. Moreover, improving alignment and removing non-essential friction components through optimized component design would be necessary. The thermal effects of friction in the course of operations could also be further controlled through the use of heat-resisting materials or cooling systems.

What Are the Challenges of Milling Plastic?

Overcoming Common Milling Plastic Issues

When compared to metals, milling plastics comes with its own difficulties, such as lower melting points, high elasticity, and susceptibility to deformation. Being able to resolve these challenges is paramount in ensuring accuracy while reducing defects in the end product. Below are the most frequently encountered challenges in milling plastics and possible solutions:

Material Melting Due to Heat Accumulation

• Issue: Unlike metals, plastics have lower melting points. As a result, excessive friction during milling can be detrimental, as it can lead to rapid generation of heat which can cause the material to melt.
• Solution: Employ sharp cutting tools to mitigate the transfer of heat, use high-speed with low-feed cutting methods, and deploy cooling systems to dissipate heat effectively. Introducing a proper cooling system can decrease temperature spikes by 30%.

Tool Wear and Dulling

• Issue: Plastic with fillers which consist of glass and carbon fibers are abbrasive and consequently increase tool wear, this leads to a reduction in precision and an increase in surface roughness.
• Solution: Use of diamond or carbide coated tools is recommended as they have higher resistance to wear. Carbide tools tend to have a longer lifespan compared to high-speed steel tools when machining abrasive plastics, lasting 3-5 times longer on average.

Deformation and Warping of Material

• Challenge: Several plastics are susceptible to warping since they are elastic materials and tend to deform under the cutting pressure.
• Resolution: Support the workpieces firmly to restrict movement during the process, and apply optimal cutting forces using sophisticated tools geometry.

Chipping and Brittle Fractures of Hard Plastics

• Challenge: The edges of hard plastics such as acrylics and polycarbonates are vulnerable to fracturing or chipping during cutting operations.
• Resolution: Use sharp plastic cutting tools, reduce the speeds of cutting, and climb milling technique should be used for mitigation of chip formation.

Poor Surface Roughness Finishing

• Challenge: Surface roughness may not be acceptable because of incorrect tools, feed, and less fluid.
• Resolution: Use advanced engineering clean tools with a polished cutting edge, perfect feed rate and cooling lubricant or air to clear adjacent chips.

Chip Troubles

• Challenge: The alterations of plastics create long and thin chips which may block the tool and slow down the milling processes.
• Resolution: Integrate tools with effective chip-breaking geometries, ensure improved evacuation through the air under pressure, and apply spiral flute cutters as chip extractors.

By tackling these problems strategically, automakers stand to improve efficiency, accuracy, and consistency in the milling processes for plastics. The incorporation of these solutions into the milling workflows comes with higher quality output and extended tool longevity.

Plastic Milling Safety and Maintenance Tips

Like all processes that incorporate plastic milling, regular maintenance and adherence to established safety protocols are crucial for achieving an efficient and safe workflow. Using the right tools and equipment, as well as handling materials appropriately, lets one mitigate risks while extending the life expectancy of the tools. Below are recommendations that are provided in detail:

Safety Measures in the Workplace

• One should make it a habit to put on the right PPEs, such as protective spectacles, gloves, and dust masks, to shield oneself from airborne particles from plastic and sharp chips that may cause injury.
• Ensure that all components of the machine have an appropriate guard before it is switched on to protect against the dangers of moving parts.
• Maintain a workspace that is uncluttered and tidy to reduce chances of incidents that result from tripping on cables or mismanagement of materials.

Fume And Dust Control

• Milling some plastics can cause the generation of dust and fumes, especially with overheating of thermosetting materials. The fumes that get generated from this process pose a risk to human health and require people to mask themselves. Ensure all procedures for ventilation, be it HEPA filters or local extraction units, are adequately housed to contain and air filters that need to be airborne.
• According to research, well-designed systems for controlling dust can filter out more than 85% of dirtier air particles that pose danger.

Tool Care

• Periodically check cutting tools for signs of wear or damage. Subpar tools not only affect the surface finish, but overly dull tools increase heat, which risks distorting materials or breaking the tools.
• Establish a lubrication system which can be effectivelly integrated. When tools are cooled and lubricated adequately, they can last 40 percent longer, which minimizes the amount of time spent on maintenance.

Material handling and storage

• Plastics can be changed by moisture and UV light before the milling stage. So, store these materials in a dry, moisture proof air condition to keep their shape.
• Make sure sheets or blocks are adequately fastened so that they do not vibrate or move during machining. Failure to do so can cause inaccuracies during machining and can possibly wreck the tools.

Machine Calibration and Regular Checks

• Along with the regular maintenance of the machine, i.e., alignment of the spindle and leveling of the table must be done to ensure smooth working and efficiency.
• Periodically calibrate CNC machines to maintain tight tolerances, ensuring dimensional accuracy and repeatability. For example check every 500 hours machine is in operation, especially higher quality machines.

Emergency Procedures

• Design and provide staff with instruction for emergency shut down strategies which help with voltage or tool failure situations. This can minimize possible damage and accidents.
• When working with machinery that create a lot of friction and have a chance of starting a fire, ensure an electrical or chemical fire extinguisher is, within reach.

Through the implementation of safety policies and regular upkeep, the producers can maximize output and ensure a safer place for employees. Better health of the operators coupled with reduced deterioration of machinery and product quality control add to the cost efficiency of these measures.

Choosing the Right Cutter for Plastic Milling

It is crucial to focus on tools meant for soft, unworked, nonmetallic materials when considering the cutter for a plastic mill. The single flute and O flute cutters are most appropriate because they remove chips and heat. With plastics, heat buildup can cause both melting and deformation. They use cutters with sharpened edges and polished flutes to minimize material finish stress. Also, correct spindle speed and feed rate must always be adhered to. Otherwise, there is a risk of overheating. Manufacturer’s specifications must always be considered to ensure their correctness with the type of plastic being milled.

Frequently Asked Questions (FAQs)

Q: What is plastic CNC machining, and in what ways does it differ from other machining processes?

A: Plastic CNC machining refers to the process of plastic cutting using computer-controlled machines and is different from other machining processes in that it is specialized for plastics which have lower melting points, weaker tensile strength, and different structural characteristics compared to metals. This guide to machining plastics aims at providing information on the proper procedures so the end results are always of high quality.

Q: What are some essential aspects to note during the drilling of plastic materials?

A: Drilling plastic materials requires attention to some key issues. 1. Drill bits should be sharp with a tip angle of 118° and 9° to 15° lip clearance. 2. The feed rate should be low; 0.005 inches per turn is advisable. 3. Melting and dimensional precision should be maintained using coolant. 4. To decrease the heat developed, step drilling should be used with bigger diameter holes. 5. A rotating drill would increase the temperature of the plastic before it reaches the drilling tip, which could damage the material.

Q: What is the interrelation between the use of coolant and plastic CNC machining operations?

A: Plastic CNC machining operations would be impossible without the use of coolant. It is useful in diffusing heat because the melting point of plastics is considerably lower than that of metals. Good use of coolant ensures that the machine does not melt the plastic, guarantees the achievement of the correct dimensions, and enhances the quality of surface finish. It also aids in chip removal, which is especially necessary in the deep hole drilling or in other intricate machining processes.

Q: What are the most common turning operations in plastic CNC machining?

A: Some of the common turning operations in plastic CNC machining include: 1. Facing: to make flat surfaces at right angles to the axis of rotation. 2. Cylindrical turning: to minimize the diameter of the workpiece. 3. Taper turning: to make conical surfaces. 4. Internal/external threading. 5. Grooving: To form a recess or cut-off Nothin. When performing these operations, it is very important to achieve correct speeds and feeds to prevent the melting and deformation of plastic components.

Q: What are some key fabrication guidelines for achieving high-quality machined parts in plastic CNC machining?

A: Important guidelines for achieving precise and well-fabricated plastic components are: 1. Employ sharp and well-grounded cutting tools. 2. Make use of ideal cutting speed and feed rate. 3. Manage proper removal of chips to reduce chances of being re-cut. 4. Apply coolant to eliminate excess heat. 5. Be mindful of the certain characteristics of the plastic, like thermal expansion or chemical resistance. 6. Where possible, create components with even wall thickness. 7. Make appropriate allowances for uniform clamping bound without part deformation.

Q: Can you elaborate on how the choice of plastic material impacts the CNC machining process?

A: One’s selection of the plastic material greatly determines the CNC machining process. Different types of plastics possess different types of hardness, thermal conductivity, and even resistance to chemicals. For instance, softer types of plastic need slower cutting speeds lest it melts, while harder types are machined quicker. Some plastics suffer from stress cracking, especially the amorphous ones, requiring much more care in cutting force and tool geometry. The material choice also affects other attributes of the part, such as strength, toughness, and stability in dimension.

Q: What mistakes should one avoid during plastic CNC machining?

A: Some mistakes include: 1. Using excessive cutting speeds that risk melting the plastic. 2. Forgetting to cool parts properly, which can cause deformation due to overheating. 3. Having blunt or wrong type of cutting instruments. 4. Not caring about proper fixturing, which may cause distortion in parts. 5. Not considering machining the material while keeping its thermal expansion in mind. 6. Not caring for some of the plastics needing stress relief from machining. 7. Using the required characteristics for the final application, such as chemical and insulating, and ignoring the material used.

Reference Sources

1. Optimization of Energy Efficiency in the Machining Process of Wood Plastic Composite Materials

• Authors: Zhaolong Zhu et al.
• Journal: Machines
• Published On: 28 January 2022
• Citation Marker: (Zhu et al., 2022)
• Summary:
• This research is concerned with the improvement of energy efficiency in the spiral milling of wood plastic composites (WPC) materials.
• Response surface methodology was developed to model the energy efficiency and the conditions of milling process which serves to establish the parameters.
• Key findings include:
• Power efficiency is positively correlated to milling depth.
• The spiral angle and feed per tooth have a non-monoecious character.
• The best conditions for up-milling of WPCs were found to be 0.1 mm per tooth feed, 1.5 mm depth of cut and 70° angle of spiral.
• The study cites those parameters as most significant for energy efficiency and surface quality in industrial applications.

2. Rotary Ultrasonic Machining of Carbon Fiber Reinforced Plastic Composites: Influence of Ultrasonic Frequency

• Authors: Hui Wang et al.
• Journal: The International Journal of Advanced Manufacturing Technology
• Published On: 19 July 2019
• Citation Marker: (Wang et al., 2019, 3759 – 3772)
• Summary:
• This paper is aimed at studying the effect of ultrasonic frequency in the rotary ultrasonic machining (RUM) of CFRP composites.
• This research uses experimental procedures to relatively examine the effect of distinct ultrasonic frequencies on the performance of machining processes.
• Key findings suggest optimal parameters of ultrasonic frequencies should be set when machining CFRP composites to improve surface finish and cutting forces.

3. Title: “Cryogenic Machining of Carbon Fiber Reinforced Plastic (CFRP) Composites and the Effects of Cryogenic Treatment on Tensile Properties: A Comparative Study”

• Authors: S. Morkavuk et al.
• Publication Date: August 1, 2018
• Citation Token: (Morkavuk et al., 2018)
• Summary:
• This study is aimed at understanding the machining of CFRP composites through cryogenic techniques with special attention given to the cryogenic treatment of these composites and its effect on tensile properties.
• The method includes a comparison of tensile tests done before and after cryogenic treatment.
• Findings indicate that cryogenic machining enhances the tensile strength of the composite material while minimizing the wear on tools, thus, increasing the ease of machining CFRP materials.
