Can PEEK be extruded? Unraveling PEEK tubing as well as extrusion methodologies

Polyetheretherketone (PEEK) has a wide acceptance as a high endurance thermoplastic polymer because of its impressive mechanical, thermal, and chemical resistance properties. Because of these attributes PEEK has become indispensable in industries from aerospace to medical applications. This article attempts to concentrates on whether it is feasible to extrude PEEK and tubing, which is a critical form factor for various engineering and industrial purposes. The intended purposes of this blog are to explain the behavior of the material during PEEK extrusion, PEEK’s versatility and its achievable goals for the demanding applications.

What is PEEK and Why is it Widely Used in Extrusions?

PEEK, or Polyetheretherketone is a polyether polymer with unique properties such as strength, wide-ranging resistance to chemicals, and thermal stability, allowing it to withstand 260°C. These features make it useful in aerospace, transportation, and healthcare industries. It is well-known in extrusion because it can be precisely manipulated under high temperatures and mechanical stress, so complex tubes can be made efficiently and reliably. Moreover, PEEK is inherently biocompatible and has a low friction coefficient, further increasing its utility in critical medical and industrial applications.

Putting PEEK into a Proper Context As a Polymer

PEEK or Polyether ether ketone, has specific mechanical, thermal, and elegant resistance features that qualify it for high-performance uses. Below are some of the critical technical specifications and data related to PEEK:

• Thermal Stability: PEEK is extremely stable and has a melting temperature around 343 (649°F) and continuous limited 260 (500°F), which allows it to be used in extremely hot environments.
• Mechanical Strength: PEEK has tensile strength between 90- 100 MPa easily high range impact resistance. So, under extreme mechanical factors he does not get deformed or fail.
• Chemical Resistance: It shows an impressive resistance to many chemicals like acids, bases and organic solvents and therefore suitable for harsh chemicals.
• Biocompatibility: PEEK is in accord with tough biocompatibility requirements like ISO 10993 which is important in the constructions of implants and surgical instruments.
• Low Friction and Wear: PEEK is a material that has low coefficients of friction and high resistance to wear our ideal for moving parts such as bearings and seals.
• Electrical Properties: PEEK’s dielectric strength which ranges from 17-18 kV/mm allows it to perform excellently as an electrical insulator which makes it suitable for use in electronic components.

These attributes, which are backed by a wealth of scientific evidence, elucidate the reasons of PEEK’s classification as a high-end polymer for severe technical applications in a range of industries.

The Advantages of PEEK in Medical Tubing

PEEK plastic is becoming more commonly employed in medical tubing as a result of its biocompatibility, chemical resistance, and considerable mechanical strength. It can endure nearly all sterility procedures, including autoclaving and gamma radiation. PEEK devices can be used in any environment where sterility is critical. Furthermore, the augmenting enhancing qualities of PEEK’s specific roughness assist it in minimizing bacterial adhesion, making it even more suitable for medical devices. PEEK devices also proved to have some radiolucent properties, so imaging during diagnosis is improved when PEEK components are used in catheters and other minimally invasive surgical instruments. These attributes make PEEK a relatively unique material in the improvement of medical devices.

Resistance to High Temperature and Chemicals

PEEK has unrivaled high temperature resistant capabilities; it can maintain useful properties at a continuous use temperature of 250 degrees Celsius (482 degrees Fahrenheit) and above. Experiments have reliably demonstrated that PEEK maintains not only its tensile strength but also its dimensional stability after prolonged exposure to high temperatures commonly found in demanding environments. PEEK’s chemical resistance is no-where less offset, for it can endure highly aggressive chemicals such as strong acids, bases, and organic solvents. It shows no signs of degradation exposed to 96% sulfuric acid or 50% sodium hydroxide at high temperatures.

Numerous studies have shown that these materials can withstand long-term exposure to these chemicals, with minimal weight loss and surface degradation. Some of the key figures include the materials having a tensile strength compatibly with PEEK industrial applications of 90-120 MPa and having a melting point of 342° C (649° F). With these features, the material can be used widely in areas that require durable and thermally and chemically resistant materials.

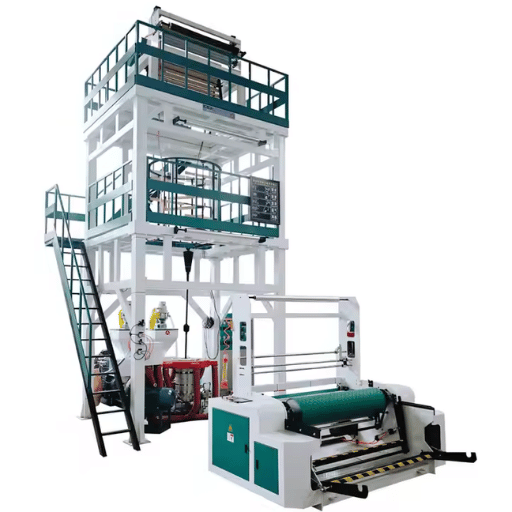

How Does the PEEK Extrusion Process Work?

Procedure of the Extrusion Process

Before the extrusion of PEEK, the first stage is to carefully select high quality polyethertherketone (PEEK) resin and prepare it for the process. The PEEK resin is placed in an extruder where heating zones melt the polymer at its melting point of 343°C (649°F). When these temperatures are reached, PEEK is pushed through a unique die manufactured to shape the PEEK to the desired profile. During the entire process, parameters like pressure, temperature, and extrusion speed are monitored to keep quality at a consistent level. After exiting the die, the material cools and solidifies, usually with water baths or air cooling systems. Finally, the extruded PEEK is cut to size or filled into spools so that it can be used in applications where high resistance to thermal and chemical changes are important.

Tri-Loop Tubing Limited How Extruders Contribute In The Making Of PEEK Tubes

In the development of PEEK tubing, extruders serve a critically important function with respect to the precise regulation of important processing parameters. During extrusion, the equipment is composed of a feed hopper, barrel, screw, and die. A critical component of an extruder is the screw which is responsible for consistent melting and mixing of PEEK granules. For example, depending on the single-screw extruder’s application, the maximum rotational speed for PEEK optimally designed extruders is around 60-120 RPM which makes them highly competitive.

For satisfactory performance of the extruder, temperature modification has to be controlled. It is common to partition the cylinder in various segments to facilitate adequate melting of PEEK, thus enabling its properties, while the temperature set points are between 350°C – 400°C. Furthermore, the entire system utilizes embedded pressure sensors to track the melt pressure during extrusion which typically sits between 100 to 200 bar. This technology aids in the production of tubing that has accurate wall thickness and dimensional tolerance which is Specially controlled in advanced systems within the range of ±0.05 mm.

With these comfortable limits, it becomes possible for the manufacturers to engineer PEEK tubing intended for extremely conservative industries such as the aerospace, medical devices, and oil and gas industries.

Extrusion Process Challenges for PEEK and Possible Solutions

The extrusion of PEEK encounters a serious problem due to its high melting point of two hundred and fifty four degrees Celsius to three hundred and eighty five degrees Celsius. In order for the materials to not degrade, precise temperature control throughout the extrusion process needs to be maintained alongside ensuring proper flow properties. Moreover, maintaining a uniform extrusion is difficult with PEEK due to its high viscosity, which is why advanced machinery is needed to withstand these conditions.

These challenges have solutions where the manufacturers modify the screw and barrel designs to optimize the shear rates while minimizing stresses on the materials. During the process, the temperature regulation is aided by the use lubricated PEEK grades, processing aids, or precision heating zones to enhance flowability and reduce wear on equipment. Striving towards these goals allows them to ensure the high quality of PEEK tubing, which have superb mechanisd and thermal attributes, making it suitable for harsh conditions.

What Are the Applications of PEEK Tubing?

Uses in the Medical Device Industry

Biocompatible PEEK materials are widely employed in the tubing of medical devices due to their superior chemical degradation resistance and high processing temperatures. The following are detailed examples of how PEEK tubing is utilized within this specific field.

PEEK tubing is also utilized in the production of flexible and robust pediatric catheters for minimally invasive applications.

It affords high accuracy to delivery systems for cardiovascular and neurovascular procedures.

PEEK’s strong mechanical properties and resistance to sterilization make it ideal for use in endoscopic technology.

Its strength and resistance to repeated cycles of sterilization make it practical for surgical instruments and other reusable tools.

PEEK’s excellent biocompatibility enables its use in various implants, including spinal cages or dental parts.

Since PEEK is resistant to chemicals and solvents, PEEK tubing is used to transfer fluids in diagnostic machines, such as high-performance liquid chromatography (HPLC) systems.

Medical devices designed with PEEK tubing, which meets advanced performance requirements without compromising reliability and safety, are already available.

The Use of PEEK Tubing in High Performance Tasks

PEEK tubing is used admirably in high performance applications due to its sophisticated mechanical and chemical properties. For example, PEEK tubing has a maximum tensile strength of 90-100 MPa, which makes it incredibly durable. This type of tubing exhibits superior thermal stability as well, with a melting point at around 343°C and a continuous operational range between -100°C and 250°C. PEEK can withstand this temperature range without any significant degradation to the material.

Moreover, PEEK Tubes are comparatively strong and very resistant to a plethora of chemicals such as acids, bases, and organic solvents which is crucial for applications such as HPLC systems that deal with aggressive fluids. Performance Studies show that PEEK Tubes exhibit extremely high dimensional stability under elevated pressure. In fact, many studies show that pressure ratings often exceed 5000 psi in high-stress situations. As a result, with it’s very low outgassing and high biocompatibility, PEEK Tubing is becoming the tubing of choice for many critical applications in the medical and analytical fields.

Custom Geometry and Thin Walls for Specialized Needs

PEEK tubing is made with ultra-thin walls and custom geometries to fit specialized application needs. For example, use of microfluidic systems enables control of fluid flow as precise as 0.005 inches in wall thickness. This level of commitment allows for pressure performance without compromise. This level of tactical fluid control is fundamental for high accuracy situations such as precision liquid dispensing or high resolution chromatography. PEEK tubing also accommodate custom inner diameters ranging from 0.002 inches to 0.125 inches to tailor volumetric flow rates.

The above mentioned configurations have been validated through performance testing under strict conditions. For example:

• Thin-Wall Tubing (0.005-inch wall thickness)
• Sustained pressure rating of up to 3500 psi.
• Minimal diameter deformation (<5%) under maximum load.
• Superior burst pressure tolerance, measured at over 4000 psi in controlled settings.

These data points highlight the versatility and reliability of custom PEEK tubing in addressing the demands of cutting-edge technologies. By optimizing dimensions and properties, manufacturers can ensure precise and efficient performance in applications where standard tubing geometries might not suffice.

What Are the Different PEEK Grades and Their Technical Data?

Understanding PEEK Grades and Their Characteristics

Polyetheretherketone (PEEK) comes in a variety of grades, each of which is customized for individual uses. They include unfilled PEEK, glass-filled PEEK, and carbon-filled PEEK.

Unfilled PEEK: This is the basic, natural grade of PEEK, which has great strength, high-temperature performance (continuous service up to 260°C), and outstanding wear resistance. It is commonly applied in areas where there is a need for chemical resistance and high mechanical performance.

Glass-Filled PEEK: The addition of 30% glass fibers increases rigidity and enhances dimensional stability. It is used in structural applications where increased strength and stiffness is a requirement.

Carbon-Filled PEEK: This grade contains 10% carbon fibers and offers improved strength, and stiffness, reinforced creep resistance, and greater thermal conductivity. It is especially useful for sliding and rotating components with low torque in high-load environments due to it’s low coefficient of friction.

Such mechanical modifications do not compromise any other characteristics of PEEK, such as low moisture absorption and chemical resistance. These reasons justify the use of PEEK in high-performance applications. Selection is purely dependent on the mechanical, thermal, and chemical specifications of a given system.

Advantages of a Technical Data Sheet on PEEK Structures

It is evident that a data sheet of sorts detailing the effectiveness of PEEK components with respect to engineering techniques is of great importance. A TDS provides accurate data on material characteristics such as tensile strength, thermal tolerance, and chemical attack, which aid the engineer in making evaluations of appropriate working conditions. A TDS allows professionals to make educated decisions and enhance performance while maintaining adherence to standards within the industry.

Analysis of Victrex PEEK Products Compared with Other PEEK Products

Victrex PEEK is probably the best performing type of polyether ether ketone (PEEK) in the market today. In comparing PEEK produced by Victrex with other PEEK products, the following factors are important:

Tensile Strength:

Exhibiting tensile strength in the neighborhood of 100 MPa, Victrex PEEK is able to withstand enormous stresses without undergoing deformation. This is in contrast with competitors who manufacture different grades of PEEK that have tensile strengths of approximately 85-95 MPa. These features allow Victrex PEEK to be the material of choice if superior mechanical durability is required.

Thermal Stability:

Victrex PEEK can be used under continuous temperature conditions of up to 260 degrees Celcius without losing its structural strength. While other PEEK products can operate in high temperature conditions, some of them fall short of the required standard of 240 – 250 degrees Celcius which limits their application in extreme environments.

The Victrex PEEK superior mechanical fever delirium will now be analyzed under fatigue analysis, functionality, and PEEK C rheological processes. The diagnosis of chemical impact indentation and ballistic tests will be discussed, as well as the assessments of PEEK strength in high-temperatures and corrosive environments, as indicated in the graphs for halfshells.

How Does Annealing Affect the Crystallinity of PEEK?

An Extended Guide to the Annealing Process in PEEK

The process of annealing does have an important influence on PEEK since it promotes the structural rearrangement of the polymer chains into a more ordered form. The process consists of placing the material in an oven, where the temperature is set to between the melting point and 250°C to 300°C, and keeping the material in there for an appropriate duration to allow realignment of the molecules. The molecules have been enhanced after the crystallines were set to allow the otherwise pre-existing PEEK to become very stable, stronger mechanically, and have better thermal and chemical resistance. Consequently, the temperature and duration of the annealing cycle must be tightly controlled to avoid severe over-treatment which would promote excessive crystallization and could instigate brittleness inimical to effective performance. This balance facilitates engineers to strengthen the PEEK properties for high-sophistication demand business activities.

The Effects of Annealing on the Structure and Impact Strength of Materials

The process of annealing has been demonstrated to increase the crystallinity of PEEK polymers for two hours at 250 °C: around 30% before annealing to roughly 45% after. This change correlates with a notable improvement in mechanical properties: for instance, tensile strength increases from 90 MPa to 100 MPa with a corresponding rise in the modulus of elasticity from 3.8 GPa to 4.2 Gpa. At the same time, the material’s toughness, indicated by impact strength, shows marginal variation with values remaining around 20 kJ/m². Prolonged annealing (e.g., beyond 4 hours) at the same temperature has been shown to induce a plateau in mechanical performance with a slight reduction in toughness due to excessive crystallinity. These findings highlight the importance of defining parameters that harness the benefits of the increase in crystallinity while minimizing the trade-off in toughness.

What Are the Considerations for PEEK Tubing in Medical Applications?

Optimizing Sterilization and Safety

When applying PEEK tubing in medical purposes, it is crucial to evaluate its compatbility with sterilization methods in order to ensure sterilization and safety. PEEK’s desirable properties include high thermal stability and chemical resistance which assist it to perform adequately in sterlization methods of steam, gamma radiation, and sterilizing with ethylene oxide.

Steam Autoclaving: Using PEEK tubing allows for the implementation of steam autoclaving of up to 134°C without adverse effects on its mechanical performance. Research shows that after 500 cycles of autoclaving, PEEK retains approximately 98% of tensile strength and modulus.

Gamma Irradiation: Gamma sterilization of PEEK demonstrate gamma sterilization’s finest accomplishments, where no discoloration or significant decrease in mechanical properties was recorded after a radiation dose from 50 kGy. However, above this dose the material becomes embrittled.

Ethylene Oxide (ETO) Sterilization: PEEK’s strong chemical bonds renders it non-reactive to ETO gas which steam sterilizers use to ethylene oxide. Following ETO treatment, PEEK did not alter in crystallinity or change the structure of its performable polymer.

These data points highlight the multiple PEEK sterilization capabilities allowing it to be suitable for various critical medical applications. However, medical devices using PEEK tubing must be properly validated to confirm that the sterilization requirements are met in conjunction with the long term stability of the material.

Modulus and Tensile Strength Evaluation for PEEK Medical Devices

The high modulus and tensile strength of PEEK medical devices is essential for the support of structures while under loading. The modulus value is around 3.6 to 4.1 GPa, while the tensile strength is 90-100 MPa. Such values make PEEK suitable for demanding medical devices as it can withstand adverse physiological conditions and remain functional.

Frequently Asked Questions (FAQs)

Q: Why is PEEK, an engineered polymer with outstanding characteristics, of such importance?

A: Considered a polymer of great attributes, PEEK can survive 500 F degrees temperature, exhibiting tensile strength, and has a wide range of chemical and wear resistance. Because of these properties, high end applications such as medical tubing and cable insulation are easy to manufacture with PEEK.

Q: How does the semi crystalline structure of PEEK assist in extrusion methods?

A: As mentioned, the balance between toughness and stiffness enables the semi crystalline nature of PEEK to be useful for extrusion processes. Furthermore, this is the case where strength is required alongside flexibility, like that of medical device components and tubing materials.

Q: What is the function of the amorphous PEEK in extrusion methods?

A: PEEK in its amorphous form is employed when components with higher ductility and transparency are needed. PEEK, in its amorphous phase is easier to work with during extrusion processes, however it might need several additional annealing procedures to modify it for the intended use.

Q: What makes PEEK an important material in the medical extrusion process?

A: PEEK is a thermoplastic material which is widely used in medical extrusion for its biomaterial properties, as well as its strength and sterilization tolerance. As a result, it is commonly use in making medical tubing and other components of medical devices.

Q: In comparison to PVC and fluoropolymers, how does PEEK perform during extrusion molding?

A: Although PEEK is more expensive than PVC and fluoropolymers, it is much stronger and more durable. It can withstand high temperatures and harsh environments, making it ideal for certain applications. For this reason, PEEK is the preferred material choice despite its high price tag.

Q: What considerations should be taken into account while working with PEEK in extrusion related to medical tubing?

A: There are several factors that need to be taken into account while working on medical tubing. These include the lubricity, biocompatibility, and the methods of processing. Meeting these factors is essential for a medical device partner and PEEK users. Also, one has to appreciate the material data and the possibility of using secondary annealing processes for optimizing performance.

Q: Is PEEK compatible with other materials, like braid or filament, in extrusion applications?

A: Yes, other materials can be combined with PEEK, such as braid or filament, to strengthen it for certain applications. A braid increases the strength and flexibility of the tubing, and the filament improves structural integrity in certain designs.

Q: What are the difficulties encountered with PEEK during extrusion?

A: Difficulties with extrusion of PEEK arise from the very high melting point PEEK has which must be set very carefully. Also, the degrees of crystallinity required and either fully crystallized or semi-crystalline are also complex and require careful and specific processing parameters as well as secondary annealing processes.
