Mastering Flange Production: A Comprehensive Guide to Manufacturing Processes

The processes underlying flange production processes are comprehensive in scope and complicated, rectangle-shaped features of flanges and their peripherals serve as unions for a multitude of components within a system — pipes, valves, pumps, and so on, all of which are essential elements integrated into a functioning system. Just like any other union, these attributes must be constructed with great attention to offer durability and safety, and aid in meeting rigid industry requirements. This guide intends to start from the basics and tackle the complex aspects of flange engineering by stratifying the processes, raw materials, and technologies integrated with their construction. For a veteran practitioner or a newcomer wanting to broaden their understanding of industrial processes, the manufacturing intricacies of flanges will provide different perspectives for consideration. Flanges serve as the connecting components among different pipe fittings and form the base of best practices, delimitations, advancements, and challenges in flange production.

What are the main types of flanges and their production methods?

Flanges are vital parts of the pipeline system and serve the purpose of joining pipes, valves, and diverse machinery. The categories of flanges produced are:

1. Weld Neck Flanges: Designed for high-pressure applications, these flanges come equipped with a prominent neck which serves towards better structural support. These pieces are fabricated by forging or machining to strengthen their longevity and overall durability.
2. Slip-On Flanges: Cost- efficient and straightforward, these readily available flanges can be slipped on a pipe and suitably welded. Slip-on Flanges are frequently produced through forging and casting.
3. Blind Flanges: These serve the purpose of sealing sections of pipes. Typically, they do not have any openings and are almost always used in blindness forgings for maximal durability under immense pressure.
4. Socket Weld Flanges: These are utilized on smaller bore, high-pressure piping systems where the pipe is fitted into the socket of the flange and welded. These are normally manufactured by forging and precision machining.
5. Threaded Flanges: These are suited for low-pressure applications. These types do not need welding as they fasten directly to the pipe by screwing. Often put together through machining processes.
6. Lap Joint Flanges: These pair up with a stub end. Their unique structure enables faster assembly and disassembly. Generally forged, these feature flexibility in maintenance and adjustment for systems that require regular changes.

Every flange type is designed for particular use cases while manufacturing processes like machining, casting, and forging help achieve the necessary performance and safety requirements.

Understanding forged flange manufacturing

Forged flange manufacturers shaped metal using great intensities of force to get a robust and long-lasting component. This technique optimizes the mechanical features of the flange such as strength and wear resistance for extreme temperatures and pressure. The process usually consists of first heating the metal to its recrystallization temperature before pressing or hammering the metal into a forge. After the form is created, the flange goes through precision machining which gives the flange the desired proportions and surface treatment required to ensure the flange bolts securely. Forged flanges are reliable and perform better when under stress, making them ideal for industrial use.

Cast flange production techniques

The fabrication of cast flanges begins with pouring molten metal into a pattern where it takes on the desired shape. It is possible to create complex designs and finer details more easily than other techniques. These cast flanges are usually made out of carbon steel, stainless steel, and alloy-installed steel depending on the particular use case.

Initially, a mold must be produced, typically made out of either sand or metal which forms the shape and size of the flange. After this molten metal is poured into the pattern and allowed to cool. After it has cooled enough, the casting can be taken from the mold to undergo a series of finishing operations including trimming, machining, and some heat treatment.

Cast flanges usually have lower strength and ductility because of the porosity and rough grain of bipolar cast metals. Due to the absence of stringent quality checks in the casting phase such as radiographic inspection and ultrasonic testing, flaws like shrinkage cavities and inclusions manifest.

The recent investments in casting technologies have enhanced the quality and accuracy of cast flanges. For instance, investment casting guarantees tighter tolerances, and design software enhances mold shapes. Cast flanges are used for many purposes including water systems, low-pressure pipes, and machinery, especially when accuracy, design variance, and cost-effectiveness are valued.

Weld neck flange fabrication process

Flange neck welds are produced using a systematic sequence of actions that, when combined, ensure compliance with quality and performance dictates. The process starts with the choosing of raw materials like carbon steel, stainless steel, or alloy steel, depending on the desired application and strength requirements. These materials are then thoroughly checked against predefined industry specifications such as ASTM and ASME.

The first stage is the forging stage where raw material billets are first heated to about 2200-2400 degrees Fahrenheit (or 1200-1300 degrees Celsius) to improve their moldability. A hydraulic press or hammer is then used to mold the billets to approximate shapes of the flange features. Additional forging heat treatments like annealing or normalizing may be utilized to bolster material strength and structural integrity.

After the forging is done, the flange is machined to exact outlines which enables fitting other components to the flange accurately. The Weld neck, the hub, and the flange face are all cut with the aid of computer-controlled machines referred to as CNC machines to ensure precision. The flange produced will have the retained key features, which include bore diameter, flange outer diameter, and bolt circle diameter which all together have specific tolerances provided by the industry standards. This would help ensure fitting with pipes and other relevant fittings during flanged joint assembly.

The weld bevel of the flange is one of its parts which has been designed in a manner to allow proper weld penetration and strength while attaching flange to the pipe. Specialized tooling is utilized to achieve an appropriate weld preparation angle. Corrosion resistance as well as the surface finish is improved by subjecting the treated flange after machining to surface treatments like shot blasting and pickling.

Weld neck flanges are post machined and the first step is testing and inspection for verification of quality and performance. This includes the measurement of all dimensions with calipers and micrometers, as well as the application of ultrasonic non-destructive testing NDT methods to internally check for flaws. Hydrostatic pressure testing is performed to see if the flange can withstand the stresses imposed on it while in operation.

Integrations in manufacturing such as the use of computer-aided simulations and the latest forging equipment have improved the accuracy and efficiency in the production of weld neck flanges. The resulting product is very dependable which makes it suitable for high-pressure and high-temperature uses in oil and gas, petrochemical, and power generation industries.

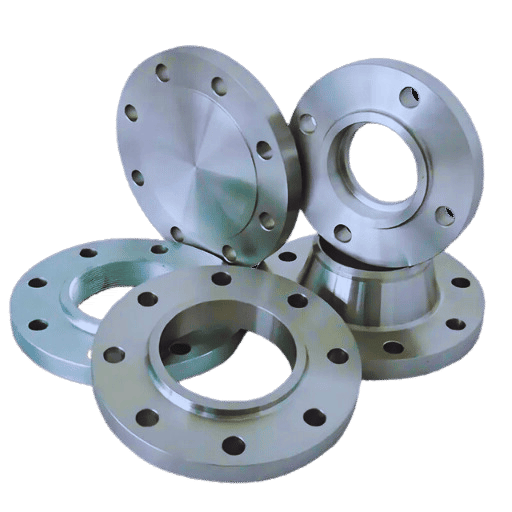

How does the raw material selection affect flange production?

Carbon steel vs. stainless steel in flange manufacturing

Whether to use carbon steel or stainless steel is a strategic decision that focuses on application needs like pricing, corrosion resistance, and mechanical attributes.

Carbon Steel Flanges

Due to the combination of tensile strength, wear resistance, and low cost, carbon steel flanges are common in many industries. They work well in high-pressure applications such as oil and gas pipelines and power plants. But carbon steel does not have natural corrosion resistance, and in many cases, protective coatings treatments are necessary to survive in hostile environments. Based on some industry insights, carbon steel flanges are quite commonly used in many industries due to their ability to sustain over 10,000 PSI in some high-strength applications.

Stainless Steel Flanges

Unlike typical flanges, stainless steel flanges are the best option in corrosive environments such as food production, chemical processing, and marine applications. The addition of chromium and nickel in stainless steel gives it a natural rust and corrosion resistance even in high temperatures. Stainless steel grades 304 and 316 boast the highest resistance to acidic and saline environments. Stainless steel flanges may be more expensive, but they greatly reduce maintenance costs and offer a longer lifespan. They can also perform in high-pressure systems, with some grades handling up to 7000-9000 PSI depending on the specific alloy and design which is highly impressive.

Comparison Considerations

As with most choices, there are a few factors that must be evaluated before choosing between stainless steel and carbon steel, such as the budget, operating environment, and temperature and pressure ranges. An example of this would be that in non-corrosive environments, carbon steel would be more affordable initially. However, in conditions with moisture or chemicals, stainless steel would be the better choice because of its lesser chance of failure is. Trends in the market are also showing a shift towards the increased use of stainless steel for applications that require strength alongside corrosion resistance because of the ease with which stainless steel can be processed regardless of its higher initial cost.

Both substances, ultimately, are important in the use of flanges, and a careful evaluation of the needs of the particular application is necessary to select the best one.

Alloy steel options for specialized flanges

Due to its superior mechanical properties such as increased strength, hardness, and resistance to wear and heat, alloy steel is utilized for specialized flanges. Common options include:

• Chromium-Molybdenum Alloy Steel (A182 F11, F22): Ultra-strong alloy steel which is useful in power plants and refineries where there are high-temperature and high-pressure applications because of its unmatched strength and corrosion resistance.
• Nickel-Alloy Steel (F5, F9): Used in the chemical and petrochemical industries due to their chemical resistance and capability to withstand extreme temperatures.
• Low-Alloy Steel: Used in moderate-strength applications that require some degree of resistance to harsh conditions.

These materials are selected based on operating conditions, for example, temperature, pressure, and exposure to corrosive substances. Their unique properties make them dependable for rigorous applications.

Impact of material choice on flange properties

The structural and mechanical properties of flanges are impacted greatly by the materials used in their construction. As a result, proper material selection becomes critical for proper performance in different industrial applications. Corrosion, thermal stability, and fatigue resistance are some of the key material properties. For instance, stainless steel flanges (SS316) have remarkable corrosion resistance in addition to high-temperature capabilities making them appropriate for marine and chemical applications which often deal with aggressive substances.

The superior strength and durability of Low-alloy steels make them a popular choice, achieving tensile strengths from 550 MPa to 690 MPa due to alloying elements like chromium and molybdenum. These steels are beneficial for systems operating at high-pressure or high-load conditions. Carbon steel flanges, on the other hand, are economical, but their lack of substantial corrosion resistance makes their application limited to lower-temperature environments.

It is reported that the yield strength of duplex stainless steel flanges exceeds 480 MPa, nearly doubling the yield strength of conventional austenitic stainless steels. This enables thinner flanges to be manufactured resulting in decreased material weight and costs without compromising safety or performance. To withstand extreme environments with high acidity or chlorine exposure, specialized materials like Hastelloy or Monel are required, offering exceptional durability but at a higher cost.

Choosing the right material is vital in ensuring that flanges are met with safety, operational, and economical requirements. Engineers have to assess key aspects like working pressure, temperature, medium features, and surroundings to correctly align the material’s properties with the specific requirements of the application.

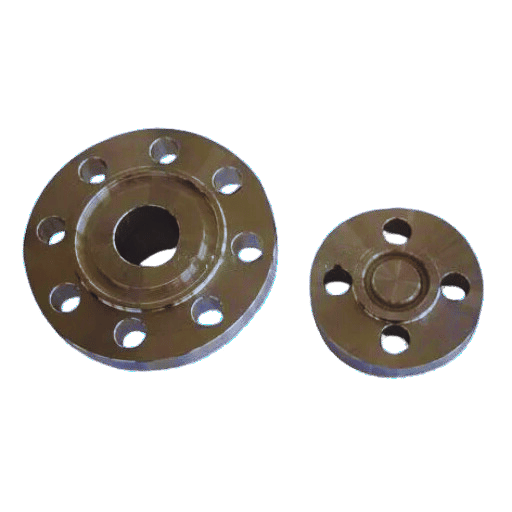

What are the key steps in the flange manufacturing process?

Forging process for high-quality flanges

The forging process starts by shaping the metal which is subjected to high pressure to increase its strength. For flanges to be of high quality, the most important steps are:

1. Selection of the raw materials: Depending on the application, the required metals are either carbon steel, stainless steel, or alloy steel.
2. Heating: The given metal is heated to attain a certain temperature whereby the metal can be reshaped but cannot change structurally.
3. Shaping: The heated metal is pressed or hammered into the desired flange shape so that there is uniformity.
4. Step number Cooling: This is the most crucial part of manufacturing flanges. Controlled cooling enhances the mechanical advantages of the product whilst improving the structural weaknesses.
5. Machining: This is where the forged product is polished to remove the excess metal and the flanges are turned at high speeds to give them the desired shape.

This type of forging creates flanges that can withstand high stresses making them suitable for tough tasks.

Machining techniques for precise flange dimensions

To obtain exact flange contours, I concentrate on the use of sophisticated machining processes like CNC (Computer Numerical Control) machining since it provides automated precision. Depending on the case, I also apply turning, milling, and drilling, to other parts of the flange design. In process control, it is important to sustain accurate dimensions with frequent checks to be in the necessary limits to specifications and quality.

Heat treatment and its role in flange production

I implement heat treatment into my processes to enable the enhancement of the mechanical components and the flange itself. I usually apply annealing and normalizing to make the flanges stronger, harder, or more ductile depending on what needs to be done, as well as quenching. These processes also help provide a more uniform grain structure which helps improve overall material performance and longevity under different working conditions.

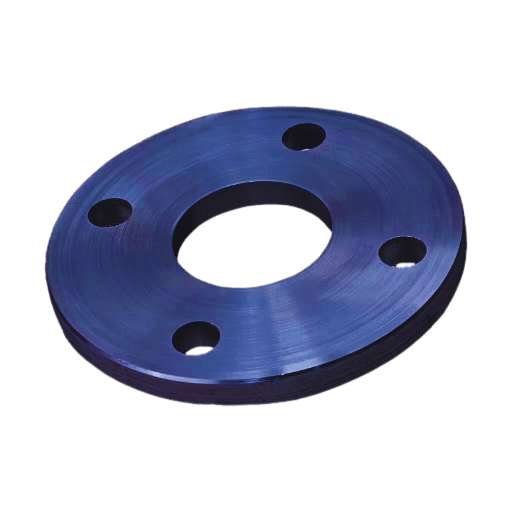

How do flange standards influence the production process?

Common flange standards and their requirements

Standards for flanges are crucial in defining compatibility, safety, and fluency in piping systems within various sectors. Different recognized flange standards include ASME, EN, and JIS, which all have details on the size, materials, and performance requirements of the flange issued.

ASME B16.5 (American Society of Mechanical Engineers):

This standard applies to pipe flanges and flange fittings for pipes with a nominal diameter from 1/2 inch to 24 inches. B16.5 specifies the pressure classes from 150 to 2500, and has material requirements, such as carbon steel, stainless steel, and alloy steel, for different environments. Hydrostatic pressure testing and temperature testing within the context of oil and gas or chemical processing applications are required for these materials to be deemed suitable.

EN 1092-1 (European Standard):

EN 1092-1 is the European standard for circular steel flanges with accompanying manufacturing and testing instructions. This standard, unlike ASME, incorporates nominal pressure PN6 through PN400. This standard also states flange face types in detail such as flat face (FF), raised face(RF), and others. Furthermore, EN 1092-1 places greater importance on the prevention of corrosion making it important in power generation and water treatment.

JIS B2220 (Japanese Industrial Standards):

The JIS flange standards are used primarily in Japan when dealing with the manufacturing processes of pipe flanges. Their nominal size range is between 10A to 1500A, with a pressure range of 5K to 63K. These standards focus on defining and aligning bolt holes and face types in such a manner that increases accuracy.… to help achieve connection interfaces that are leak-proof during filtration processes in chemical or shipbuilding plants.

API 6A (American Petroleum Institute):

This standard is specific to the oil and gas industry, especially for wellhead and Christmas tree equipment API 6A covers flange requirements on wellheads and Christmas trees. These standards require better performance on a pressure rating of up to 20,000 PSI and also include strict testing for extreme conditions such as increased pressure and temperature.

Different materials and testing requirements by the standard.

All standards specify material compositions, like those of carbon steel which are A105 and A182 for stainless steels. These materials are required to meet certain conditions. Non-destructive testing, such as ultrasonic or radiographic inspections, is required to find internal defects as well as hydrostatic tests to check tolerance under the pressure.

The implementation of the international flanges standards enables manufacturers to guarantee compatibility within the international marketplace while minimizing the chances of interference failures, therefore providing reliable solutions for intricate industrial needs.

Ensuring compliance in flange manufacturing

1. Following Recognized Standards: Adopt internationally accepted best practices like ASME, ANSI, and ISO for ensuring the safety, compatibility, and quality of the product.
2. Material Certificate: Employ only those materials certified as having passed the tests for their mechanical attributes, resistance to corrosion, and endurance.
3. QC Process: Apply strict protocols for quality control that include verification of dimensions, pressure, and non-destructive testing for the flanges.
4. Traceability: Create and manage a history for every flange relating to its material origin, manufacturing steps, and subsequent inspections.
5. Regular Audits: Perform self and external audits to check adherence to an established framework of rules and practices.

These critical core functions are vital for manufacturers to maintain quality and regulatory compliance while meeting customer expectations.

Customization options within standard flange production

Within the production of standard flanges, there is a degree of customization that allows the manufacturer to cater to specific application and industry requirements while still complying with regulatory provisions. The following is a list of customization options that can be implemented:

1. Choice of Materials: Flanges can be produced using various materials, including but not limited to: stainless steel, carbon steel, alloyed steel, non-ferrous metals, as well as aluminum and nickel alloys. For example, stainless steel is frequently employed due to its corrosion resistance in chemical and marine environments. Carbon steel has its benefits too, as it can be used for high-pressure applications due to its durable nature. Industry data shows that stainless steel, which is highly versatile and robust, makes up approximately 30% of flange production.
2. Changes in Dimensions: Standard flanges dimensions (ASME, EN, DIN, etc) can be aligned with piping for unconventional sizes or pressure ratings by extending hub lengths, modifying bolt circle diameters, and custom-making sealing faces to accommodate the unconventional piping faces.
3. Surface Treatment: Machined, polished, and coated surfaces are some finish techniques used for surface-treated flanges that meet set operational expectations and polished finishes are usually applied in food processing and pharmaceuticals to minimize contamination risks. On the other hand, anti-corrosion surface finishing techniques are needed in marine or chemical industries.
4. Specialty Coatings: Implementing protective coverings like epoxy, PTFE, or zinc galvanization improves a flange’s performance under extreme temperatures, aggressive chemicals, or high-pressure situations. Coating products increase their lifespan and operational safety.
5. Drilling and Tapping Options for flanges are generally regarded as having value-adding features for different applications.: Modification of bolt holes and addition of tapped holes allow for easier installation and use of non-standard configurations. These processes make use of precision-aligned drilled holes that serve to guarantee function.
6. Pressure Rating and Temperature Compatibility: Flanges, as with other components, can be modified to suit certain operational pressure and temperature ranges. Certain industries such as oil and gas, which operate in extreme conditions, often require high-pressure flanges that are classed up to 2500 and are designed to withstand harsh environments.

In offering these types of customizations, manufacturers stand to enhance the functionality and lifespan of flanges meeting the rigid modern industry demands from energy, and petrochemicals, to water treatment. Also, the use of new technology such as 3D modeling and precision machining allows for more design freedom without having to give up on compliance or quality.

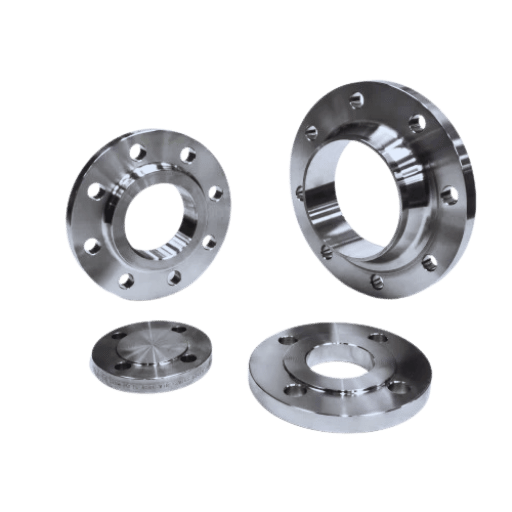

What quality control measures are essential in flange production?

Testing methods for flange integrity

Adequate functional performance and the structural soundness of flanges need detailed testing techniques to locate flaws and assure compliance with the minimum standards set forth by the industry. Different kinds of checks, both destructive and non-destructive, are carried out throughout production and assembly:

Ultrasonic Testing (UT)

Ultrasonic testing is one of the methods of non-destructive testing (NDT) used to locate internal defects of the flanges. It involves sending high-frequency sound into the material and analyzing its reflection. This assists in determining the presence of various defects that include cracks, voids, inclusions, etc. Oftentimes, UT is preferred because of its accuracy. Flaws as minor as 0.1 millimeters can be detected.

Magnetic Particle Inspection (MPI)

MPI is done to detect discontinuities on or near the surface of ferromagnetic materials. For flange components, a magnetic field is produced and fine particles of iron are sprinkled. When flaws are present, they disrupt the field and the particles tend to accumulate on the boundary which indicates the location of the defect along with its magnitude especially at the edge of the flange.

Radiographic Testing (RT)

The prefix indicates the employment of X-rays or gamma rays in producing an image of the inner structure of the flange. Cracks, porosity, and weld ruptures are some of the internal flaws that radiographic testing can show. The use of digital radiography enhances precision and reduces the duration of the examination because it can capture images with great detail while the work operations are at a standstill, leading to less downtime for the operations to be carried out.

Hydrostatic Testing

Hydrostatic testing ensures that flanges are capable of containing pressure. The pressurized water or another fluid is directed to the flange and held in place to see if the flange will pass the safety tests without leaking. Many industry standards, for instance ASME B16.5, outline the required pressures that need to be applied during these tests and they tend to be more than the usual operating conditions.

Visual Inspection

Visual inspection is one of the simpler, and often the first, steps in checking the quality of the flange. It focuses on measuring the part to check its dimensions, surface finishes, and welding seams, and check for obvious manufacturing defects against specification tolerances and limits.

Hardness Testing

Flange material’s hardness measuring is crucial to estimate their capability to withstand deformation and abrasion. More often than not, these materials are tested using Brinell Hardness Testing (BHT) or Rockwell Hardness Testing to ensure that the specified mechanical property requirements are met.

Simulations Backed with Finite Element Analysis (FEA)

Modern FEA-based simulation technology enables flange manufacturers to estimate how operational stresses will impact a flange’s response. Although this is not a hands-on testing method, computing is helpful in traditional examinations because it reveals areas that may have stress and failure problems in detail.

Key Standards and Data Summary

• Compliance with API and ASME: Flange testing is bound by certain parameters, such as ASME B16.5, B16.47, and API 6A, which define limits and characteristics of the materials, and the testing procedures that need to be done, which list employing nondestructive testing.
• Industry Statistics: Research reveals that 40 percent of operational failures are avoided through the use of Nondestructive Testing (NDT) methods such as Ultrasonic Tests (UT) or Radiographic Tests (RT) which is reported to guarantee greater safety and reliability.
• Guideline Pressures: In industries like oil and gas, hydrostatic tests are conducted at pressures roughly one and a half times the operational pressure which follows normal flange service conditions.

Manufacturers can achieve maximum assurance of quality control by these methods so that flanges are expected to operate satisfactorily or better in severe working conditions.

Surface finish and dimensional accuracy checks

The surface finish as well as the dimensional accuracy of a flange are critical to its performance and durability, especially for the high-pressure and high-temperature applications. Surface finish can be evaluated by various parameters like the Arithmetical mean roughness (Ra) and is often measured in micrometers (µm). For instance, ASME norms recommend a Ra value from 3.2 µm to 6.3 µm for some flange sealing surfaces so that the gaskets can seal effectively and the interface is optimal.

Surface accuracy assessments check the accuracy of the flange in terms of its size, shape, and tolerances against specified standards like ASME B16.5 or DIN EN 1092-1. Important dimensions such as the diameter of bolt holes, hub height, and thickness of flanges are usually checked using CMMs (coordinate measuring machines) which give accurate 3D measurements. Most industries use a common tolerance band of ±0.25 mm for typical flanges, although more stringent tolerances are necessary for some atypical applications.

Moreover, these are easily and accurately monitored digitally and by advanced surface profilometers thus non-destructively evaluating these parameters which assists manufacturers in adhering to strict quality design and control requirements. Following these guidelines ensures that the flanges will function optimally under severe conditions and maximize service life in essential systems.

Documentation and traceability in flange manufacturing

The effective documentation and traceability in the fabrication of flanges must comply with global and industry standards while assuring supply chain fidelity. Such documentation includes certificates of materials, results of dimensional inspections, records for heat treatment, nondestructive testing (NDT) documents, and others. For instance, MTRs serve an important purpose because they verify the chemical and mechanical characteristics of the flange’s materials, confirming so many requirements like that of ASTM and ASME standards.

Unique identification for each flange like heat number or batch number can normally trace back the component to its origin and processing history. Modern fabrication of flanges employs the use of barcoding, QR codes, or even Radio Frequency ID (RFID) tagging to make the parts easier to track throughout their lifecycle. The use of advanced ICT, particularly the integration of software with an Enterprise Resource Planning (ERP) system provides up-to-the-minute reports on production, testing, and shipping which improves operational visibility greatly.

Reports show that 40% of manufacturing downtime is attributable to inefficient tracking and documentation processes, emphasizing the necessity of implementing effective traceability processes. Traceability not only reduces disruptions but also improves audit outcomes, and speed of delivery, and supports quality programs. Furthermore, meeting traceability requirements ensures flanges are compliant with strict industry standards for oil and gas, chemical processing, and power generation where non-compliance can be hazardous.

Proper implementation of traceability measures allows manufacturers to increase competitiveness in the market by having better product quality, lower mistakes, and prove compliance to regulators.

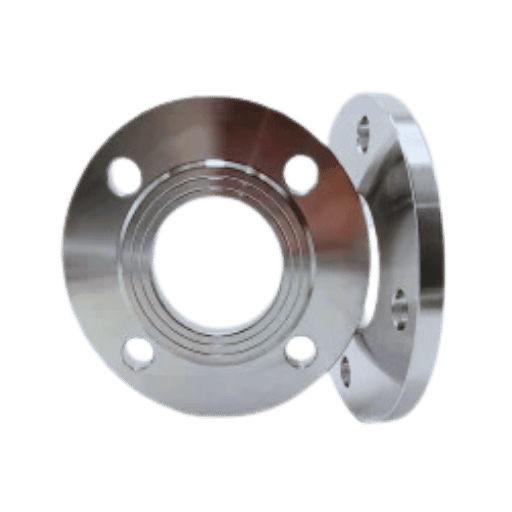

How do flange size and type affect the production process?

Manufacturing considerations for large-diameter flanges

The manufacturing of large-size flanges needs attention to the material, how it is machined, and what stress is applied to it. Because of size, these flanges need specialized machinery due to increased size and weight. The selection of the material is very important because it has to satisfy the required mechanical attributes and withstand deformation during flange construction. Uniform machining and proper heat treatment help in maintaining uniformity and accuracy while avoiding defects. Moreover, quality inspections, whether ultrasonic or radiographic, are necessary to ensure structural integrity and confirm that the flanges satisfy the American National Standards.

Production techniques for specialty flanges (e.g., blind, lap joint)

Specialty flanges such as blind and lap joint flanges have to be manufactured by following certain techniques to guarantee reliability and functionality:

Selection of Materials

The choice is made from high-grade carbon steel, stainless steel, or alloy steel depending on the application’s pressure, temperature, and corrosion resistance capabilities.

Machining and Forming

Cutting solid discs from a pre-forged slab accomplishes the manufacturing of blind flanges. These discs’ edges are then machined to the proper specification. Lap joint flanges are completed by machining and shaping a forged ring into a compatible configuration with the mating stub end.

Heat Treatment

Mechanical properties with residual stresses are achieved through heat treatment processes like normalizing or annealing.

Inspection and Trials

Inspections of dimensions, and non-destructive tests using ultrasound or magnetic particle testing, are completed to verify compliance with standards.

Application of these techniques guarantees that these specialty flanges will operate effectively in challenging industrial conditions.

Adapting production for different flange face types

Sealing performance and functional coverage of flange face types, including raised face (RF), flat face (FF), and ring-type joint (RTJ), hinge on the RF-specific machining processes performed on the flange face.

Raised Face (RF)

Typical feature of high-pressure design is the surface surrounding the bore being slightly raised to enable concentrating sealing pressure on the gasket.

Flat Face (FF)

In these types of applications, the perimeter of the face being machined is identical to RF. FF is used in applications where full contact with the mating flange is required.

Ring-Type Joint (RTJ)

A type of RTJ where the face has a precision groove machined to fit a metallic ring gasket. This type ensures no leakage under extreme pressure and temperature connection conditions.

All automated measurements for the dimensions and finish quality of these face types were performed to comply with industry standards. These modifications enhance the performance of the flange in terms of operational settings.

What are the latest innovations in flange production technology?

Automated flange manufacturing systems

Automated systems for flange production incorporate sophisticated robotics, high-precision CNC machining, and even production monitoring to automate the workflows. Such systems markedly improve productivity, minimize manual mistakes, and better the uniformity of flanges’ measurements and surfaced finishes. Automated material control, cutting and forming of required shapes, and predictive maintenance are some of the most important ones. With these innovations, manufacturers attain increased output while meeting the stringent quality requirements of the industry.

Advanced materials in modern flange production

Because of state-of-the-art materials, modern flange manufacture has advanced dramatically, allowing producers to exploit more rigorous requirements from different industries. Stainless alloys, titanium, and nickel superalloys (Inconel, Hastelloy) give excellent protection against corrosion, extremely high and low temperatures, and mechanical forces of strain. These materials are particularly important in oil and gas, petrochemical, and power generation industries in which flanges have to perform under abusive environments.

Developments in materials science have led to the introduction of composite materials and carbon fiber-reinforced polymers in flange manufacture. Those composites are great because of their very low weights combined with high strength, especially within the aerospace and marine fields in which the reduction of mass is critical. Recent statistics show that the use of duplex stainless steels in the production of flanges rose approximately 12% globally due to increased durability and cost-effectiveness against traditional materials.

The performance of flanges is further enhanced by superior treatments such as wear resistance, and extended service life. In a bid to meet high standards, manufacturers invest in research to study new materials which consolidate performance, sustainability, and cost-effectiveness removing the necessity of sacrificing quality for a broad spectrum of industrial requirements.

Sustainable practices in flange manufacturing

Flange production sustainability strives to minimize negative ecological consequences while preserving efficiency and quality. Primary strategies are the incorporation of production processes with high energy efficiency, like updated forging methods that use less energy and produce less waste. Also, the use of recycled and green alloys by manufacturers for product materials is on the rise to mitigate the products’ carbon emissions. The responsible use of resources during production is taken care of by water reuse systems and waste treatment plants. A growing number of companies are also carrying out lifecycle assessments to gain synergies in eco-design and assess their products from an environmental compliance perspective. All these measures aim towards more sustainable and efficient manufacturing processes.

Frequently Asked Questions (FAQs)

Q: What are the most common flange manufacturing methods?

A: The flange manufacturing process is most commonly accomplished through forging, casting, and machining. Steel and stainless steel flanges are usually welded on, as forging provides good mechanical properties. Casting is suitable for large flanges with complex shapes, specifically for cast iron flanges. Smaller flanges or those that are forged or cast need precise dimensional and surface machining to make them look appealing and that is what machining does.

Q: How is the flange production process typically carried out?

A: The production of flanges goes through a couple of different stages. Usually, a raw material like steel or stainless steel is chosen first based on its carbon and oxygen content. The flange itself is made by either casting, forging, or casting machining into shape; these types have properties that give them strength which always needs enhancement through heat treatment. On top of machining the surface, holes are also drilled for bolts and any threading if required. In the production of steel flanges, there are constant checks made to guarantee the produced flange is of the proper quality before it leaves the premises.

Q: What factors determine how a flange is produced?

A: The factors determining the production process of the flange include the material used, the size and shape of the flange, the application intended, and the production cost. These factors determine whether the flange will be forged, cast, or machined. For instance, simpler casted thick flanges or small strong forged flanges. In addition, the specific standards and specifications of the flange such as ASME or API requirements will also affect the production method and process.

Q: What are the different types of flanges that can be produced?

A: Different types of flanges can be manufactured to meet different needs in piping systems. For example, there are weld neck flanges, slip-on flanges, blind flanges, lap joint flanges, and threaded flanges. Each of these types has their function while joining the pieces of pipes together or closing the open ends of pipe pieces. For instance, weld neck flanges are preferred for high-pressure uses and slip-on flanges are more popular because they facilitate easier alignment with pipe fittings. Lap joint flanges are employed when low pressure systems require easy installation and removal while blind flanges assist in sealing the end of a piping system.

Q: What flange surface finishing processes are done during production?

A: Flange surfaces are generally finished with machining operations to obtain the desired level of smoothness and flatness. This usually consists of turning, facing, and in some cases, grinding. The finish is determined by the flange’s purpose and defined parameters. For instance, raised face flanges need extra machining to form the raised section. Surface finish is vital to guarantee proper sealing when the flange is mated with another flange or fitting within a piping system.

Q: What considerations are important when producing flanges for specific industries?

A: There are several considerations taken into account when flanges are produced for certain industries, these factors include material choice according to the operating environment, for instance, corrosion-resistant materials for the chemical industry, in addition to pressure and temperature ratings, compliance with industry requirements like ASME for power plants and API for oil and gas as well as special non-magnetic requirements for certain applications. For example, food processing and pharmaceutical industries may require stainless steel flanges due to their corrosion-resistant nature as well as an easy-to-clean surface which makes those flanges more hygienic compared to other homologs.

Q: How do manufacturers ensure the quality of produced flanges?

A: There are several ways in which manufacturers confirm the quality of the flanges, these include checks on the dimensions for size and tolerances, material tests for chemical and physical as well as non-destructive tests ultrasonic or magnetic particle inspection for internal flaws, addition to pressure testing for integrity. Inspections for quality control are carried out in different steps of the flange production process, beginning with the selection of raw material and culminating with a final inspection. A large number of manufacturers, Texas Flange or Elite Flange, for example, have constant surveillance and increasing of product quality system that ensures the constant quality of the product.

Q: What innovations are occurring in flange production processes?

A: There are many innovations in flange production such as the employment of new materials with better properties, like high-strength alloys for extreme conditions. There is increasing utilization of computer-aided design and manufacturing (CAD/CAM) technologies for enhancing the design and production of flanges. Applications of additive manufacturing (3D printing) are also being considered for the manufacture of complex or custom flanges, particularly for prototype or low-volume production runs. Also, automation and robotics are being introduced to the production line to enhance the productivity and quality of flange manufacturing.

Reference Sources

1. Title: Treatment of Comminuted Fractures of the Proximal Phalanx in Horses: 64 Cases (1983-2001)

• Authors: B. M. Kraus et al.
• Journal: Journal of the American Veterinary Medical Association
• Published On: 15 January 2004
• Cite As: (Kraus et al., 2004, pp. 254–263)
• Overview: The focus of this study is based on surgical treatment outcomes for the proximal phalanx of horses. The study analyzes the documentation available in the files and X-rays for information related to the type of fracture and treatment options and results. The results of this study show that moderate comminuted fractures can be repaired, but severely comminuted fractures have a reasonable chance of surviving.
• Research Design: This study was conducted through a retrospective review of 64 horses including their medical records and X-rays to evaluate the results of the treatment.

2. Title: Conservative Management with External Coaptation Technique for Treatment of a Severely Comminuted Fracture of the Proximal Phalanx in Holstein Friesian Cow (Scientific Report)

• Authors: Shafaey, E.A.E and others
• Journal: Not Given
• Publication Date: 2014-09-30
• Citation Token: (Shafaey et al., 2014, pp. 300-303)
• Summary: This is a report of a case of a cow that healed successfully after being managed conservatively for comminuted fracture of the proximal phalanx using an external coaptation technique. The cow improved significantly and was able to reach her prior production level.
• Methodology: The case study was done through clinical evaluation, radiographic examinations, and follow-up assessment evaluations towards the course of the healing process.

3. Title: Engineering of a miniature hand phalanx using porous casted polylactic acid-polyglycolic acid copolymer.

• Authors: S. Sedrakyan et al.
• Journal: Tissue Engineering
• Publication Date: 2006-09-22
• Citation Token: (Sedrakyan et al., 2006, pp. 2675–2683)
• Summary: The objective of this research is to analyze the effectiveness of a porous PLGA polymer in the tissue engineering of a hand phalanx. The data obtained suggests that bone and cartilage were formed successfully into the configuration of a small hand phalanx, thus validating the potential of using PLGA as a scaffold in bone tissue engineering.
• Methodology: The experiment consists of fabricating a PLGA polymer scaffold, implanting it into a mouse model, and performing histological analyses over time for evaluation of tissue development.

4. Flange

5. Gasket

6. Pipe (fluid conveyance)
