Unlocking the Secrets: Is PTFE Machinable with Precision Techniques?

Polytetrafluoroethylene (PTFE) is a thermoplastic resin whose chemical properties, coupled with low coefficient of friction and ultra-high temperature resistance, make it a key component in industries such as aerospace and medical manufacturing. With such wide spread use, one question comes to the forefront: Is it possible to machine PTFE with enough precision for it to be useful in high-performance applications? This article addresses the questions regarding PTFE machining by looking at the obstacles brought by its very peculiar properties, advanced methods, and PTFE machining capabilities. From gaining a basic understanding of PTFE’s machinability to refining your processes, this article caters to all those who need an understanding of PTFE’s precision machining capabilities.

What Makes PTFE an Ideal Option for Machining?

PTFE is perfectly suited for machining because of its properties. Its remarkable chemical resistance permits it to be used in severe environments. Its low friction coefficient guarantees smooth performance in low wear applications. Furthermore, PTFE possesses superb thermal stability, enabling it to withstand varying temperatures without losing its properties. Because of its durability, versatility, and these characteristics, PTFE is one of the most widely used materials for precision machining in different industries.

Understanding PTFE Material Properties

Polytetrafluoroethylene (PTFE) is regarded globally for its highly favorable material properties which make it usable in almost every field. Its resistance to non-reactive chemicals assures reliability in severely corrosive settings. Further, PTFE possesses an extremely low coefficient of friction, which reduces wear and increases the durability of mechanical systems. It is capable of performing throughout a variety of temperatures, from -328 degrees Fahrenheit to 500 degrees Fahrenheit (-200 degrees Celsius to 260 degrees Celsius), without suffering extensive damage. Furthermore, its ability to shield electrical currents makes it applicable in delicate circuitry as well. It is because of these attributes that PTFE has become one of the most useful materials in both commercial and industrial applications.

Why Use PTFE in Manufacturing?

Polytetrafluorethylene (PTFE) is a material of great interest to industry due to its effective functional properties and versatility in application. One of its benefits is notable as a PTFE coating’s non-stick surface and the very low friction coefficient (0.05 to 0.10) its surface has. This physical characteristic helps mitigate component wear and tear, enhances the efficacy of mechanical systems, and improves the durability of their parts.

Another equally important feature of PTFE is the very strong surface chemical resistance it has. Most acids, bases, and solvents will not produce any chemical reaction when in contact with PTFE, rendering it highly valuable when placed in surroundings with very corrosive elements. In addition, PTFE subjected to heat is unparalleled since it can be in continual work from -328°F to 500°F (-200°C to 260°C). Such capabilities enable the use of PTFE in areas subjected to high and low temperatures like aerospace, automotive, and cryogenic industries.

Biasing, on the other side, the unique self-lubricating characteristic, PTFE has the ability to electrically insulate, which is also very significant. PTFE has very high dielectric strength (typically greater than 60 MV/m), and therefore, it is used extensively for electrical wires and components insulation. In telecommunications and electronics industries, low dielectric constant, low dissipation factor PTFE is used for high-performance coaxial cables and printed circuit boards (PCBs) for telephone systems, intercoms, and computers.

Finally, PTFE has remarkable strength and longevity. It is capable of maintaining performance, even after extended exposure to the elements, due to its weathering and ultraviolet (UV) ray resistance. As a result, it has become a widely used material for seals, gaskets, and linings used in the petrochemical industry processes as well as in general industrial applications. PTFE’s multifaceted, non-stick, heatproof, chemically inert, and electrically insulating attributes make it the single most important material needed in modern manufacturing for innovation and improvement of processes.

Considerations for Choosing PTFE for Teflon Parts

The appropriate type of PTFE for Teflon parts should be selected by carefully understanding the application’s requirements. Make sure to check its thermal resistance and verify that the material can tolerate the operating temperature range. Assess its chemical resistance ensuring that it can be in contact with the chemicals. Mechanical features like tensile and flexural strengths must meet the requirements of the specific application. Moreover, check if the non-stick surface and electrical insulating features of the material are necessary for the application intended. Finally, the material’s performance and budgetary figure constraints must be included in the examination of cost and availability in order to ensure effectiveness. These considerations determine the appropriateness of PTFE for the component in question.

What Are the Best Techniques for PTFE CNC Machining?

Exploring Various Machining Processes for PTFE

Attributing precision and quality in the techniques of PTFE CNC machining is very feasible due to the highly effective processes involved. The most popular of these processes include turning, milling, and drilling. For the construction of smooth cylindrical shapes, soft turning is best. For complex geometries, milling is very effective. Drilling works best when precise holes need to be made without ruining the material. Because of PTFE’s low melting point, the control of cutting speeds and the temperatures of the tools can deform the material or create surface issues. To maintain the integrity of the material and achieve a precise, clean cut, sharp tools with coolant must be used.

How to CNC Machine PTFE Effectively?

One of the most important considerations when using CNC machine PTFE is the material’s very own characteristics and properties. PTFE has a low friction surface, high thermal resistance, and tends to be chemically inert, meaning it needs particular methods to achieve the right results. Below are some suggestions:

Parameters For Cutting And Tooling:

• PTFE is best cut at a speed of 150-300 meters/min and the feed rate must be set in a way that eliminates tearing and ragged edges. Sharp, uncoated, carbide tools will be ideal since they do not retain as much heat and do not dull quickly. Negative rake tooling is beneficial in avoiding deformation of the material.

Management of Temperatures:

• Controlling the temperature is another critical aspect since PTFE has a melting point of 327 degrees Celsius or 620 degrees Fahrenheit. In this case applying coolant during machining will avoid overheating, which can also lead to warping or discolored surfaces. Allowing air to flow freely over the cutting zone can also help draw heat away from the area.

Support Of The Material And Workholding:

• Soft jaw clamps and custom made clamps are ideal for holding the material as PTFE is soft and flexible and easily deforms as pressure is applied. For drilling operations and working on thin parts, backing supports are effective withhold the material steady so it does not distort.

Chip Disposal Protocols:

• Long, stringy chips produced by PTFE have the tendency to block and obstruct various processes of machining. They should be evacuated utilizing control features or periodic tool withdraws from the machine. A climb milling approach during milling helps to efficiently evacuate chips from the tool-path.

Surface Treatment Remarks:

• A balance between feed rate and surface roughness of the workpiece must be achieved. Surface roughness values of Ra below 0.8 µm (32 µin) can be optimally achieved with the right parameters ensuring professional grade surfaces. The surface should not be polished more than needed, as excessive handling will make the surface uneven.

These practices ensure that machinists will obtain the best accuracy and quality of PTFE components with the least amount of desirable properties lost during fabrication. Correct thinking ahead, modifying parameters, and learning about the given material guarantees good results in machining.

Top Tips for Achieving High-Quality PTFE Machining

Employ Sharp Cutting Instruments

• Generally, PTFE is a highly ductile material which requires the use of sharp cutting tools to avoid deformation. Better durability and sharpness when cutting can be obtained with carbide or diamond coated tools.

Regulate the Cutting Speed and Feed Rate

• Moderate feeding rates of 0.1 to 0.3 mm per revolution with low cutting speeds of 200 to 500 RPM are recommended. With high speeds, there is an increase in added surface or dimensional instability due to excessive heat.

Reduction of Heat

• Due to PTFE’s low thermal conductivity, overheating can occur during machining. Where applicable, employ coolants or cutting fluids alongside incremental passes to minimize bulging or distortion.

Manage Clamping Force

• PTFE requires a clamp with carefully controlled pressure to prevent deformation. Soft jaws or fixtures that apply pressure uniformly without damaging the surface should be used.

Allow for Thermal Expansion of the Material

• Due to PTFE’s great exothermic expansion, the machining tolerances the design is built around the need to be larger, especially when temperature differentials are quite significant.
• PTFE component machining requires post-annealing to remove any residual stresses and improve dimensional stability, so maintaining a temperature of approximately 200 to 250 degrees Fahrenheit during machining yields optimal results.

Prevent Reworking PTFE

• Repeated working on PTFE may weaken its structural characteristics. Strive to accomplish the target tolerances and surface finishes within the first machining cycle in order to mitigate the possibility of material stress.

Check Wear on Tools Frequently

• Because of PTFE’s corrosive action on some tool materials, check cutting tools regularly for wear or dulling. Regular tool changes preserved a high level of dimensional and surface quality.

With these parameters defined, it is possible to machine PTFE and obtain durable components while maintaining high standards in their quality for most machinists. Each step should be closely monitored in order to meet the set goals.

How to Overcome Challenges in PTFE Machining?

Troubleshooting Common Machining Issues

Material Deformation Because of Heat

• Generate less heat from cutting processes by employing sharp tools and reducing the cutting speed. Use coolants appropriately to control temperature for dimensional accuracy.

Stringy Chip Formation

• Increase the feed rates or change tool angles to improve chip breaking. Use soft metal or non-metal cutting tools for improved performance.

Surface Imperfections

• Check tool condition and sharpness regularly to avoid surface fade and ensure smooth cutting. Increase feed and speed of the machine to improve surface finish.

Difficulty in Holding Tight Tolerances

• Use clamps that securely hold the workpiece for machining. Do not use high clamping forces to avoid PTFE parts with softer materials from deforming.

Ensuring Precision in CNC Machined PTFE Parts

To CNC machine PTFE with precision requires modern machine capabilities, optimized tooling, and an environment that is controlled.

Thermal Expansion Management

• With PTFE having such a high degree of thermal expansion, electro-discharge machining should be done at a fixed temperature to avoid overheating. Precision manufacturing has a strong preference for climate controlled cooling systems.

Tooling Selection and Coating

• Doing so with softer cutting tools will more quickly fail because of PTFE’s chemical inertness and low hardness . There are more accurate cuts with diamond or carbide-coated tools. Soft polymers, in particular, showed improvements of 30% in tool life when cutting with diamond-coated tools. These tools shall also have polished cutting edges to improve surface roughness.

Chip Evacuation Efficiency

• The removal of contaminants and excess heat is crucial when it comes to high precision machining, and even more so when it comes to working with PTFE. A higher quality surface finish and enhanced chip removal can be attained by utilizing high pressure coolant systems and air jet technology.

Dimensional Stability Post Machining

• PTFE components are known to be dimensionally unstable over time hence machining is not recommended without some form of stress relief action. It has been shown that annealing was able to remove residual stress by 50%, which is useful when trying to maintain the integrity of the parts after they are machined.

Automation and Quality Control Systems

• Real time monitoring sensors coupled with AI planning integrated into modern CNC machines offer quality control capabilities that enable achievement of tighter tolerances, often within ±0.001 inches on even difficult to machine materials like PTFE. Any highly accurate production run relies on advanced software that calculates toolpath and compensates for material behavior in real time.

With the integration of these techniques, manufacturers are able to achieve the stringent standards for PTFE parts used in aerospace, medical devices and semiconductor industries, where accuracy and dependability are critical.

Using the Right Equipment and Techniques for PTFE

In order to achieve successful machining of PTFE, the equipment used must be built with low-friction and temperature-resisting materials. Sharp HSS or carbide tools work best for maintaining surface integrity. PTFE is prone to deformation and overheating, so low cutting speeds and low feed rates should be employed. A proper fixture setup that reduces vibration and supports the material’s base is required, too. Clean work environments free from contamination are also crucial to meet the stringent purity requirements found in the medical and semiconductor fields.

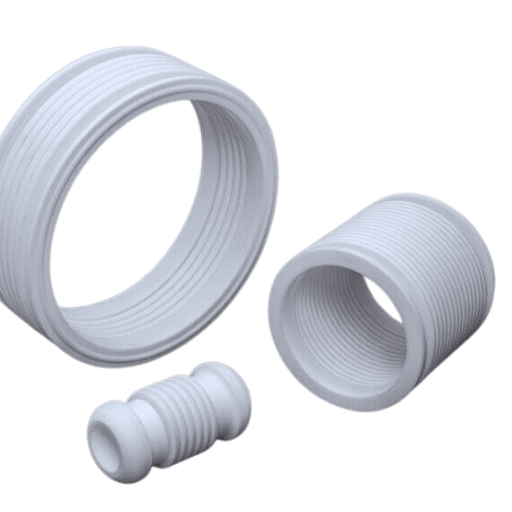

What Are the Applications of PTFE Machined Parts?

Industries Benefiting From Machined Teflon Components

Medical Sector

• The Polytetrafluorethylene (PTFE) industry is projected to expand by 6% every year following the increased use of high-purity PTFE in advanced medical applications, growing the PTFE medical market scope. Its non-stick tendencies, remarkable resistance to chemical attack, and biocompatibility make it a preferred choice for many machined components in the medical domain, while its wide use in catheters, sutures, surgical instruments, and medical seals showcases its adoption in the industry.

Aerospace Sector

• Due to the high demand and rapid expansion of the aerospace industry, the market for PTFE is expected to grow as well. PTFE offers unmatched resistance to chemical attack as well as high temperatures and works great for fuel system components, electrical insulation, gaskets, and parts. The aerospace sector is also increasingly adopting the use of lightweight and sturdy materials, fuelling the already high demand for PTFE and increasing its market share.

Semiconductor Sector

• The Polytetrafluorethylene (PTFE) industry is expected to grow at a rate parallel to technological advancements in the semiconductor sector due to the unmatched demand for PTFE components. Its application in integrated circuit manufacturing requires high chemical resistance and very low levels of contamination. It is needed in the reactive chemical processes for wafer carriers, seals, and chemical resistant tubing.

Machining Industry

• PTFE-integrated parts possess unrivaled low-friction and durability properties, making them a crucial component in seals, bearings, and gaskets in the automotive industry. With the shift towards EVs and the market’s need for parts with reduced maintenance, the use of PTFE in automotive systems is projected to grow tremendously in the upcoming years.

Chemical Processing Industry

• PTFE-integrated components are unmatched in their resistance to highly acidic, alkaline, or other corrosive materials, making them ideal for chemical processing. They are applied in pumps, valves, and pipe linings, ensuring safety and endurance even in harsh conditions. Due to the chemical industry’s reliance on robust materials, PTFE has become a go-to option that is constantly evolving as innovation expands its application.

Food and Beverage Industry

• PTFE makes food processing equipment lining, sealing, and non-stick surfaces possible. Its FDA compliance, along with its inert nature, allows it to come in contact with food, such as in conveyor belts, bottle cap linings, and seals. As the global market shifts towards hygienic and non-reactive materials, PTFE’s significance in this sector is sharply rising.

All industries mentioned here exemplify PTFE’s impact, revealing not only its versatility but also its critical role in enabling advances through its distinct properties.

Why Choose PTFE for Custom Teflon Parts?

The uniqueness of PTFE`s properties makes it outstanding for custom Teflon components. It is highly resistant to chemicals, making it trustworthy in corrosive environments. It tolerates high-temperature extremes very well. It has a low coefficient of friction, thus exhibiting excellent non-stick and anti-wear capabilities, which make it ideal for precision components. It is also safe for use in food and medicine because of its passive nature and FDA compliance. Those characteristics make PTFE a highly effective custom part PTFE across industries.

How Does PTFE CNC Machining Services Ensure Quality?

Choosing Reliable CNC Machining Services for PTFE

Picking out the appropriate CNC machining service for PTFE components is a vital undertaking that guarantees accuracy, quality, and efficiency in the production stage. Advanced and reliable providers, for example, make use of modern CNC machinery manufactured to address the specific characteristics of PTFE, including high flexibility and low melting point. The sophisticated nature of modern CNC equipment allows for very tight tolerances, which can be as exact as ±0.001 inches. This is crucial for high-performance industries such as aerospace and the medical device manufacturing industry.

Moreover, seasoned providers of CNC machining services already have established numerous production optimization schemes that increase efficiency in materials used, especially with expensive grade PTFE. Some of these providers have multi-axis machining capabilities that automate the production of custom-designed parts with complex geometrical shapes that serve particular functional purposes. Parts that require ISO 9001 demonstration focus on quality management, while food and medical applications necessitate FDA compliance.

Industry reports depict that there is an ever-increasing need for PTFE CNC Machined Components, and this demand is commonly utilized in some of the most important industries. As an illustration, the PTFE products global market was assessed to be around $2.5 billion in the year of 2022, and it is now anticipated that there will be considerable growth in the upcoming years. In order to achieve specific standards regarding increased performance, reliability, and compliance, teaming up with a cutting-edge technology-focused machining services provider is vital.

Ensuring Consistent Quality in Machined Teflon Parts

In order to obtain consistent quality in machined Teflon (PTFE) parts, precision machining operations must be performed with the aid of complex quality control systems. It is important to choose a machining provider that possesses ISO 9001 certification because that guarantees implemented standardized quality management procedures. Moreover, achieving acceptable accuracy and repeatability relies on the availability of high-precision CNC machines. Verification and validation of finished parts against predetermined criteria, which includes but is not limited to dimensional accuracy and surface finish, adds further assurance. For compliance with FDA regulations or other material use approvals, managing and documenting proper material handling procedures is greatly needed.

Frequently Asked Questions (FAQs)

Q: What is PTFE, and what role does it play in the manufacturing of teflon parts?

A: PTFE is short for polytetrafluoroethylene, more commonly known as Teflon. It is a type of synthetic polymer propaganda that is widely used in industries around the world. Further, in manufacturing, it is very helpful due to its exceptional characteristics, such as low friction, resistance to chemicals, and the ability to endure high temperatures. Because of these characteristics, PTFE is perfect for many parts of the automotive and chemical processing industries.

Q: Can you machine PTFE, and what benefits does machining teflon have?

A: Machining, for sure, is an apt technique. The benefits of machining teflon are the ability to sculpt complex designs instead of mundane fragments. The teflon components also have excellent dimensional stability and a superb surface finish. Additionally, machined PTFE parts can withstand a wide range of chemical exposure while also maintaining a low friction making them very versatile for many specialized applications.

Q: What is the best technique for manufacturing teflon parts?

A: The best technique for manufacturing teflon parts will depend on the specific needs of each part. With that said, CNC is a terrific option for machining teflon. PTFE-shaped pieces can be easily produced with CNC milling and turning. Some applications may also benefit from a selection of different techniques, like a CNC turn-mill which is perhaps the most efficient technique.

Q: What is the process of CNC machining for PTFE?

A: Like the other polymers, CNC machining of PTFE employs computer-controlled tools for cutting and shaping, which typically consist of CNC milling, turning, and drilling. The workpiece of PTFE is mounted on the machine where cutting tools remove parts according to a preset design. This sort of machinery guarantees that the required specifications of Teflon machined parts can be met due to the repeatability of the CNC technology.

Q: Are there any unusual tips that one must consider while doing PTFE CNC machining?

A: Indeed, there are various considerations for PTFe CNC machining, and because of its softness and amorphous characteristics, the right cutting tools and the correct speeds and feeds need to be used. Cooling measures must be in place to avoid excessive heat accumulation, as this can change the dimensions of the piece. It is also good to support the work fixture with some form of clamps throughout the machining process. Furthermore, the type of PTFE, whether virgin or filled with glass, will greatly influence the machining factors employed.

Q: What is the relationship between PTFE and different types of machining?

A: Each type of machining offers different benefits when working with PTFE. CNC Milling is great for complex 3D shapes and features, while CNC turning is perfect for cylindrical parts. CNC drilling can be used to put in accurate holes. Each method has a unique advantage, and the choice of method depends on the tolerances and geometry of the part. Sometimes, the most effective strategy for intricate part shaping in PTFE is a blend of approaches, like turn-mill machining.

Q: Is it possible to machine PTFE like any other form of plastic?

A: Yes, PTFE can be machined almost exactly like other kinds of plastic, but its special characteristics dictate it to be treated a bit differently. Compared to other forms of plastic, PTFE is softer and easier to deform, which alters saw-cutting parameters. In addition, its low thermal conductivity causes heat to build up due to poor ventilation while machining, increasing the chance of deformation. Because of this, while PTFE is manageable for plastic CNC machining services, these professionals must adjust their ideas when working with PTFE compared to standard plastic machining.

Q: What are the challenges associated with machining PTFE?

A: Although the machining process of PTFE is possible, it presents certain challenges. Its softness might not allow for fine detail work or tight tolerances. Due to its cold flow characteristics, PTFE can undergo dimensional changes, particularly when subjected to prolonged loading. Moreover, due to the delicate nature of PTFE machining, it tends to be more costly compared to other materials, and the processes can be more labor intensive.

Reference Sources

1. An Investigation of machinability in turning of PTFE using MRR and cutting energy as parameters to measure the performance.

• Authors: Jing Ni et al.
• Publication Date: 01 January 2013
• Journal: Journal of Manufacturing Processes
• Key Findings:
• This work examines the feasibility of PTFE workpieces during turning processes through material removal rate (MRR) and energy use during cutting.
• The authors received sample pieces to test the effect of all the studied cutting functions of PTFE in all processes of machining.
• The findings revealed the primary features of the machinability of PTFE, which are low cutting forces and high surface quality due to the ease of processing, which is very common for most precision parts.
• Methodology:
• The cutting forces, MRR, and surface roughness were measured using experimental test rigs for different machining conditions.
• The data indicates the results of the inquest regarding the cutting speed, feed rate, and tool shape on PTEF machinability(Ni et al., 2023).

2. The effect of the cut parameter on the machining performance of PTFE cutting. An Investigation

• Authors: Huimin Ying et al.
• Publication Date: 1 September 2023
• Journal: Journal of Manufacturing Processes
• Key Findings:
• This contribution investigates the effect of the cutting parameters on the machining performance of PTFE.
• The results of the research showed that the implementation of the correct form of cutting parameters yielded much better efficiency and excellent surface finishing of PTFE parts.
• The authors maintain the balance of tool use and cutting conditions with tool wear and its lifespan.
• Methodology:
• The authors devised a set of machining practices that changed every experiment’s speed of rotation, as well as the rate of feed and depth of the cut.
• They identify the cutting parameters required for the efficient machining of PTFE via statistical analysis of surface roughness and tool wear(Ying et al., 2023).

3. Developing and optimizing algorithms for the best surface quality and productivity of the turning process of polytetrafluoroethylene (PTFE)

• Authors: A. Azzi et al.
• Publication Date: 2022-09-28
• Journal: The International Journal of Advanced Manufacturing Technology
• Key Findings:
• This work formulates the model to optimize machining parameters for the best surface finish and productivity for turning PTFE.
• The work identified that the target material characteristics can be achieved by properly setting the cutting speed, feed rate, and tool combination geometry.
• Methodology:
• The authors have combined both experimental results and computer simulations to determine the impact of various machining parameters on surface roughness.
• Model predictive surfaces for optimizing the machining process were developed using response surface methodology (RSM)(Azzi et al., 2022, pp. 407-430).
