Unraveling the Principle of CNC Turning: A Comprehensive Guide

CNC turning is a fundamental machining process that plays a significant role in modern industry. In this case, manufacturing processes can achieve high precision and efficiency when using computer numerical control (CNC) technology for complex parts production with unmatched accuracy. This guide has been formulated to unmask the CNC turning principle, enabling readers to understand how it operates, its advantages, and how it is applied in today’s advanced engineering landscape. Whether you’re already a professional working within the industry or simply an enthusiast looking to learn more about some of the fascinating technologies that are shaping our world then, make sure that you read this blog post because it will offer you essential information regarding the mechanics behind CNC Turning Success such as tools used and innovations leading to its success. Furthermore, we shall discuss the crucial components of this groundbreaking process and why it is vital for excellent manufacturing.

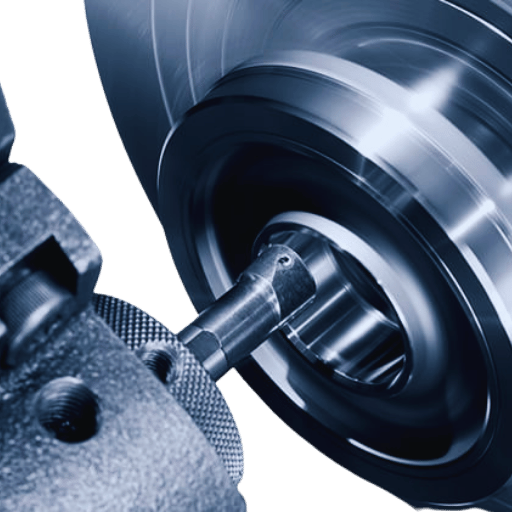

What is the Turning Process in CNC?

CNC turning is a practice of precision machining, in which a workpiece rotating at high speeds is shaped by a non-moving cutting tool to attain the desired shape. Such practices are usually carried out using computer numerically controlled (CNC) lathe machines that use computers to dictate and improve the accuracy of work done. The turning process removes material from the stock and creates circular shapes, cuts grooves or threads, or forms other features. With its swift delivery, high precision, and uniformity for large-scale production runs, it remains widely deployed in manufacturing.

How does the Turning Process Work?

The turning process primarily involves the workpiece rotating about its axis while a stationary cutting tool removes material to shape the part. The cutter is applied to specific points on the workpiece, and rotation provides the resulting cutting action. CNC lathes are often used to maintain accuracy in production with minimal variation in results. It involves holding onto the workpiece firmly, determining the cutting path, and cutting it off correspondingly to size or characteristic requirements. For instance, if someone needs symmetrical parts like shafts, cylinders, or threaded components of an item, they should use this method.

Key Components in a CNC Turning System

1. Spindle: The spindle holds and rotates the workpiece, providing the necessary movement during cutting. Therefore, it is essential to ensure stability and accuracy in machining.
2. Tool Turret: The tool turret contains multiple cutters, enabling the CNC lathe to change tools quickly and effectively as the machining processes progress.
3. Chuck: Chuck firmly grips the workpiece so that it does not move, thus enhancing precision in turning.
4. Control Unit: The CNC control unit evaluates programmed instructions (G code) and instructs the machine’s movements, achieving accurate cutting.
5. Guideways: These rails ensure smooth guidance of moving parts like the carriage and tool turret, ensuring accurate linear motion.
6. Coolant System: This system manages heat produced from material removal operation and ensures chips are removed from its vicinity to improve tool life surface finish and control temperature at the workplace.

These components work together to ensure precise, effective, and consistent results in CNC turning operations, mainly when advanced turning tools are used.

Understanding the Rotation of the Workpiece

The basic process of CNC turning is to rotate the workpiece, which is held in place by a chuck and spun at an assigned velocity, including CNC machining with high precision. The cutting tool cuts the material according to specific axes while it remains constant or moves along them due to the blanks’ rotation motion. Materials type, tool characteristics, and desired surface quality determine revolutions per minute (RPM) as the rotation speed is measured. Precise management of such spin guarantees standard processing outcomes and the best possible efficiency regarding tools.

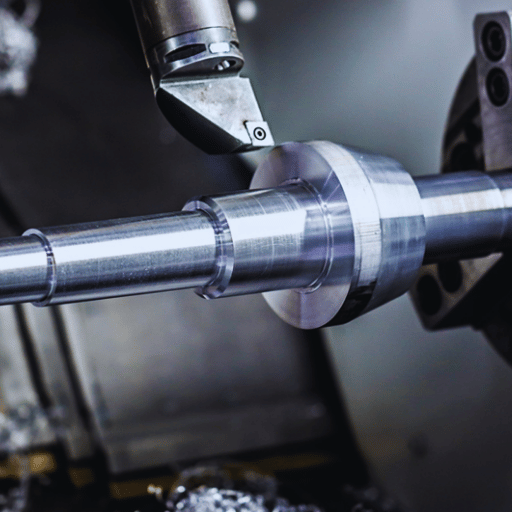

How Does a CNC Machine Operate in Turning?

What Role Does the CNC Machine Play?

Automated turning processes are critical for using CNC machines, which guarantee accuracy, consistency, and efficiency. These machines contain preprogrammed instructions that control the workpiece’s motion and cutting tool, eliminating human mistakes in high-precision manufacturing. CNC machines regulate parameters such as spindle rotational speed, feed rate, and depth of cut to ensure uniformity when making several parts at a time while reducing scrap loss and cycle time in machining operations.

Importance of Precision in CNC Turning

CNC turning requires precision, affecting product quality, operational capability, and production efficiency. High-precision machining ensures that parts meet strict tolerances, which is critical in aerospace, automotive, and medical device manufacturing. For instance, in aerospace applications, even slight variations from the required dimensions of a part can cause it not to perform or pose risks to its safety, thus emphasizing the need for exact measurements.

Improvements in this technology have made it possible to achieve machining tolerances as low as ±0.0001 inches, which was previously impossible using manual or CNC techniques. In addition to improving part integrity, the machines developed for ultra-precision turning to reduce defective products by around 30 percent, which significantly reduces costs, according to industry metrics. In addition, enhanced precision helps minimize material waste because accurate cutting leads to adequate consumption of raw materials, thereby making the process sustainable.

Precision is imperative when conducting CNC turning since it improves the fitting together of components during assembly processes. Innovations like multi-axis machining and real-time monitoring systems with continuous tracking capabilities on tool positioning and cutting conditions achieve this level of accuracy, ensuring the highest possible accuracy throughout the production process.

Key Features of a CNC Lathe

1. High Accuracy and Precision: CNC lathes use sophisticated programming to achieve constant accuracy, which ensures narrow tolerances and even production.
2. Multiaxis Capabilities: Supporting multiple axes eliminates the need for many setups by performing complex machining operations.
3. Automation Operations: Automated systems help in efficient production that is less prone to manual intervention or operational errors.
4. Real-Time Monitoring: The system integrates machining condition sensors and software to monitor performance and ensure tool longevity.
5. Versatility: It can work on various materials and part geometries, thus making it suitable for different manufacturing needs.
6. Easy Programming: User-friendly interfaces and standardized languages (e.g., G-code) make it possible to configure settings promptly before using them.

Exploring Turning Methods and Their Applications

What are the Various Turning Methods?

Different manufacturing needs can be met by various methods, each with advantages for precision machining. The most common turning methods and their uses are given below:

1. Straight Turning: This refers to removing material from a workpiece along its axis to create cylindrical shapes with equal diameters. They are commonly used in rods and shaft manufacturing as they ensure dimension consistency across the entire part.
2. Taper Turning: The process is applicable when there is a gradual variation in diameter across the length of the workpiece. This method is standard in producing items such as spindles, pins, and other machine parts that require variations in diameter.
3. Profile Turning: This technique allows intricate shapes to be machined on the workpiece. In industries such as aviation and automobile, which use custom-made parts, profile turning enables designs with many details to be made.
4. Thread Turning: Thread turning is focused on cutting external or internal threads; it is widely applied during the production of fasteners like screws, nuts, and bolts having threads. It should be noted that this procedure ensures accurate pitch as well as thread geometry, thus ensuring tight mechanical joining.
5. Facing: In this process, the axis of the workpiece will be machined, and a plane will be created at the right angles in that direction. Operating before other turning techniques are used to prepare the workpiece is essential.
6. Grooving and Parting: Narrow cuts are made into the workpiece during these processes or could be separated. Grooves are made for operational slots or lubrication, whereas parting is intended for precise sectioning.
7. Hard Turning: This process is an economical alternative to grinding when machining hardened materials. In finishing operations, the complex turning method achieves high precision and surface quality on difficult-to-machine materials such as tool steel.

Due to improvements in CNC turning technology, these methods can now be accomplished with unrivaled efficiency, accuracy, and repeatability, especially in producing lathe parts. Moreover, such factors as cutting tool material, feed rate, and spindle speed, among others, further enhance the turning process to meet the demands of diverse sectors, from automobile manufacturing to the healthcare sector.

How Do Turning Operations Differ?

The turning operations differ in their purpose, workpiece material type, and the level of accuracy needed. For instance, rough turning eliminates big chunks of materials, while finish turning ensures a smooth, precise exterior. This means that hard materials like hardened steel usually need special machining, such as hard turning, compared to less complex metals, which conventional methods can work on. Moreover, by choosing cutting tools feed rates or spindle speeds, each operation’s outcome and efficiency are influenced, thereby customizing the process based on industrial specifications.

Applications of Turning in Modern Manufacturing

Today’s most widely used manufacturing processes are turning operations, which usually exploit CNC machine tools to achieve the best results. They are crucial in producing components like shafts, housings, and fasteners with high accuracy and dependability. The automotive industry uses turning operations to produce engine parts and transmission elements. In contrast, the aerospace industry depends on it to make essential apparatuses such as turbine blades and landing gear assemblies. Also, medical device production relies heavily on turning since it enables the creation of surgical instruments and implants that are produced according to precise specifications. These examples illustrate the versatility of turning that brings about consistent quality results even in complex fields such as CNC machining services.

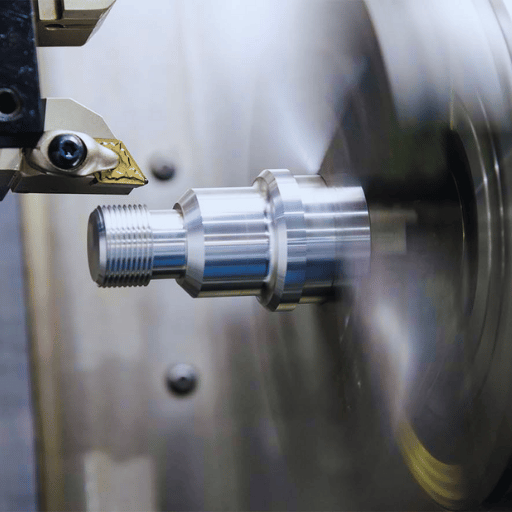

The Role of Modern Manufacturing in CNC Turning

How Has Modern Manufacturing Evolved?

The use of new technology, automation, and data integration have all significantly changed the face of modern manufacturing. At present, computer numerical control (CNC) turning machines have better, more sophisticated software that can be monitored online, leading to unprecedented accuracy and efficacy. Global CNC machine market analysis estimates it will reach $132.9 billion by 2030 due to increased demands for higher-quality outputs and streamlined production.

Incorporating Industry 4.0 technologies such as IoT sensors, AI, and predictive analytics has transformed manufacturing workflows. For example, IoT-enabled CNC machines record real-time performance data, which operators can use to forecast maintenance requirements and minimize downtime. This shift has seen an increase of up to 30% in operational efficiency across industries that embrace CNC machining services.

Besides, additive manufacturing, also known as three-dimensional printing, supports traditional subtractive processes like turning. Manufacturers can now produce intricate geometries through these techniques combined with CNC precision while reducing material wastage. Furthermore, contemporary manufacturing doesn’t only focus on one thing – productivity- but also on sustainability, whereby several corporations are moving towards greening by using energy-efficient facilities and recyclable materials, among others. These developments demonstrate how the manufacturing industry continues adapting itself to a fast-changing global economy.

Impact of Automation and Technology

Technological advances and automation have revamped industries through better efficiency, accuracy, and scalability. Automated systems eliminate human error, making manufacturing more efficient and allowing consistent quality control. Real-time data monitoring and predictive maintenance can be done using technologies like robotics, artificial intelligence, and IOT to ensure minimal downtime and optimized business operations. The productivity of these tools has been enhanced through their integration at a lower cost of doing business, making them crucial tools in the contemporary industrial sector.

What is Taper Turning, and When is it Used?

Understanding the Concept of Taper Turning

Taper turning is a machining process that creates a taper cone on a cylindrical workpiece by gradually reducing its diameter within a specific length. This is done by changing the position of the cutting tool relative to the axis of the workpiece either through compound rest on a lathe, offset tailstock, or special taper-turning attachments. The procedure has been useful in producing shafts, spindles, and fasteners, which require mechanical fittings or beauty aspects due to their tapered configuration.

Common Uses and Applications of Taper Turning

Taper turning is widely applied to create components that need precise tapered shapes due to their functions or use in assemblies. For example, I use this method when making device spindles requiring specified tapers for chuck assemblies. Another frequent application is manufacturing fasteners such as tapered bolts and pins that guarantee mechanical systems’ reliability with safe connections made. In the automobile and aerospace industries, where accuracy and dependability are essential, tapers play a significant role in making parts.

Frequently Asked Questions (FAQs)

Q: What is CNC turning, and how does it differ from other machining processes?

A: A single-point cutting tool removes material by rotating the workpiece to produce cylindrical parts through CNC turning. It is different from various other methods of machining, like milling, where the workpiece is fixed, and the machine rotates the cutting tool.

Q: How does a CNC turning center operate?

A: By staying strictly with high-precision (CNC) computer numerical control while at the same time rotating on a spindle, which allows for the creation of accurate diameters and convoluted geometries.

Q: What types of parts can be manufactured using CNC turning?

A: This type of technology permits products with accurate diameters and cylinder shapes, including those with knurling, threads, or grooves. This technique is commonly used in industries such as aerospace, automotive, and medical devices that require specific features and designs.

Q: What are the benefits of using CNC turning over manual turning?

A: Compared to manual turning, this practice offers minimum errors since it reduces lead time, making it suitable for mass production and complex parts. Increased efficiency and excellent manufacturing precision enable tight tolerances during its application process.

Q: What role does the cutting tool play in CNC turning?

A: During the CNC turning process, the cutting tool travels through an accurate movement that eliminates some materials from the spinning workpiece, giving it the desired shape. The tool setting is vital in achieving desired tolerances and design requirements.

Q: Can a milling machine perform tasks associated with CNC turning?

A: Even certain milling machines have heads that can rotate and perform elementary turnings like cylindrical. Dedicated turning centers provide better options for more complicated and efficient procedures.

Q: What sectors are prominent users of CNC turning services?

A: CNC turning services are commonly used in various industries, such as aerospace, automobiles, and medical equipment, where high accuracy, specific geometries, and very low tolerances are required. These processes allow for the production of fine parts with complex configurations.

Q: How does CNC turning to ensure high precision and tight tolerances?

A: This can be achieved through computer numerical control (CNC), which ensures the movement of tools accurately and consistently. The relationships created by this control, combined with the stability of the machine tool, will produce the desired machining outcomes.

Reference Sources

1. Analysis of Coaxiality Error and Optimization of Cylindrical Part in CNC Turning Process

• Authors: Ravichandra Rangappa et al.
• Publication Year: 2022
• Summary: This research deals with coaxiality errors in CNC turning and offers optimization techniques for minimizing these errors for cylindrical parts.
• Key Findings: The research has demonstrated the significance of maintaining coaxiality during CNC turning to guarantee the quality of finished parts. In addition, this investigation analyzed factors influencing coaxiality and methods for optimizing it.
• Methodology: The authors used experimental methods to measure errors in coaxiality and performed statistical analysis to identify significant elements that affected them.

2. Optimization of Machining Parameters in CNC Turning of Hybrid Metal Matrix Composites using Different Techniques: A Review

• Authors: Vaibhav Sharma, Ravi Butola
• Publication Year: 2022
• Summary: This paper evaluates different optimization approaches for machining parameters in CNC turning with special reference to hybrid metal matrix composites.
• Key Findings: According to the literature review, proper adjustments should be made to cutting velocity, feed rate, and depth of cut to improve the finish on the workpiece and material removal rate during CNC turning.
• Methodology: The authors reviewed existing literature and grouped diverse optimization methods such as Taguchi designs and response surface methodology.

3. CNC Turning Process Parameters Optimization for Surface Roughness of AA3003 using ANN Tool on MATLAB

• Authors: K. K. Sharma et al.
• Publication Year: 2019
• Summary: This study optimizes the CNC turning parameters using artificial neural networks (ANN) to achieve minimal surface roughness in AA3003 aluminum alloy.
• Key Findings: The research discovered that spindle speed, feed rate, and cut depth significantly influenced surface roughness. The ANN model successfully predicts optimal machining conditions.
• Methodology: In this study, the authors applied ANN and response surface methodology to assess how different parameters affect surface roughness by conducting a modeling experiments approach.
