An Introduction to Milling Aluminum: Mastering the Basics of Milling Aluminum

Aluminum is milled in several industries, ranging from aerospace to automotive, because of the metal’s distinct blend of strength, lightweight character, and multifaceted nature. Engineers and machinists need to master the techniques of aluminum milling to obtain accuracy and efficiency in production processes. The fundamentals of milling aluminum, including intricacies, will be demystified in this guide so beginners and experts can be catered to. It will assist you in improving your milling results by outlining essential machining parameters, tool selection, heat and chip removal challenges, and other practical tips. This article will help you whether you’re a novice, on the verge of refining your skills or seeking to broaden your scope of knowledge around successful high-quality aluminum milling projects.

What Makes Aluminum a Preferred Material for Milling?

Aluminum is one of the most preferred materials for milling because it is easy to machine, lightweight, and does not corrode easily. Its lower density compared to other metals facilitates its handling and machining, resulting in lower time and cost of production. Furthermore, aluminum exhausting heat during cutting lowers the probability of tool breakage while guaranteeing constant cutting efficiency. Due to these characteristics, Aluminum is well-suited for various industries such as transportation, aviation, and electronics. With a rapid increase in the use of formwork during the construction of high-rise buildings, the benefits have given it an edge compared to other metals.

Understanding Aluminum Alloy Variants

Aluminum alloys can be divided into wrought alloys and casting alloys. Wrought alloys can be physically transformed into sheets, plates, and extrusions while casting alloys can be melted and poured into molds to form intricate shapes. Each group of alloys is further subdivided according to their main alloying elements. The 2xxx series, for instance, has coppe for increased strength, and the 6xxx series has magnesium and silicon for good resistance to corrosion and moderate strength. Every alloy is tailored towards specific performance parameters to ensure maximum adaptability for numerous applications in different fields.

Ordinary Aluminum Types Used in Milling

Some aluminum alloys often utilized during milling processes are from the 6061, 7075, and 2024 series.

• 6061 Aluminum: This alloy’s good machinability, moderate strength, and corrosion resistance make it versatile and ideal for general milling.
• 7075 Aluminum: This high-strength alloy is extensively used in the aerospace and automotive industries because of its hardness and superior durability.
• 2024 Aluminum: This alloy is widely used for structural components of aircraft. Its high strength-to-weight ratio makes it suitable for demanding mechanical applications.

Milled parts are chosen based on mechanical properties, custom machining features, and application specifics.

Corrosion Resistance and Other Properties

Choosing materials exposed to water, chemicals, or extreme conditions requires special attention to corrosion resistance. Aluminum alloys like 6061 and 5052 have a natural oxide layer, enabling them to resist oxidation and corrosion. Such surfaces can be further protected with protective coatings or anodizing for increased durability.

In addition to these materials, aluminum alloys have other positive attributes, such as being lightweight, highly thermally conductive, and easily machinable. These features make aluminum alloys suitable for various applications, from aerospace to marine industries, where performance and longevity are equally crucial.

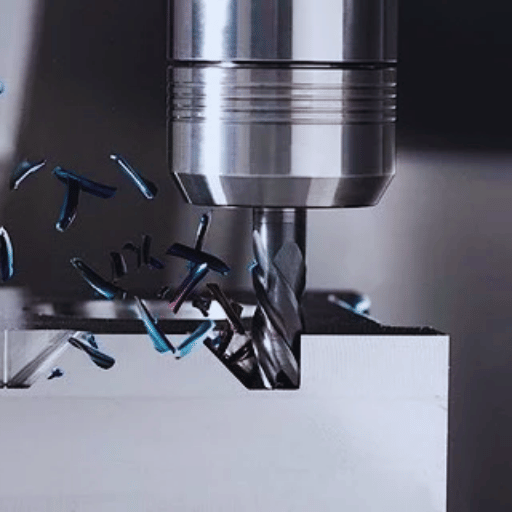

How to Set Up Your CNC Machine for Aluminum Milling

Choosing the Right Cutting Tool and End Mill

When choosing a cutting tool and an end mill for the milling of aluminum, consider tools designed for non-ferrous materials. Choose carbides or high-speed steel (HSS) end mills because these materials are more durable and heat-resistant. Tools with polished surfaces or surfaces coated with DLC (Diamond-Like Carbon) or ZrN (Zirconium Nitride), which reduce material adhesion and enhance material evacuation, should be selected. End mills containing 2 or 3 flutes are appropriate for unclogged aluminum cutting. Last, match the tool diameter and geometry with the required milling diameter and depth.

Optimizing Feed Rate and Cutting Speed

The efficiency, tool life, and surface finish of any milling operation depend on three fundamental parameters: cutting speed, feed rate, and the velocity of the cutting edge engaging the material. The feed rate is the speed of the tool moving across the material. To find the perfect balance between these two factors, one must understand the properties of the material used, the tools being utilized, and the machine’s capabilities.

The general recommendation for machining Aluminum is a cutting speed of 150 to 250 meters per minute (m/min) and a feed rate between 0.01 and 0.5 mm/tooth based on the tool diameter and temper of the material. High-speed machining (HSM) techniques allow higher cutting speeds exceeding 500 m/min for specific advanced tool-coated and high-performance machine tool applications. However, improper and unnecessary high speeds can result in thermal damage, excessive surface deterioration, and tool wear.

Nowadays, Most CNC machines have software incorporating adaptive feed control, which can alter feed rate and cutting speed in real time, depending on parameters such as tool load and cutting forces. Such systems optimally enhance the performance of machining processes while minimizing tool wear and maintaining consistent quality. Providing accurate input data for feeds and speeds and employing toolpath optimization strategies guarantees stable and productive machining action. Periodically checking documents like manufacturing handbooks or consulting with tool makers is crucial to customizing these values for particular uses.

Adjusting for Proper RPM and Depth of Cut

To find the accurate RPM (revolutions per minute), the spindle speed should be computed using this formula: RPM = (Cutting Speed × 4) ÷ Diameter, where Cutting Speed is particular to the machined item and is commonly estimated by tool suppliers or machining parameters.

In terms of depth of cut, the selection is based on parameters like the hardness of the material, tool rest, and machine performance. Generally, roughing operations permit greater depths of cut, while finishing operations necessitate shallow cuts. Refer to the tool manufacturer’s specification to reduce the odds of suffering undue wear or deflection. Always seek a balance of machining efficiency and part quality.

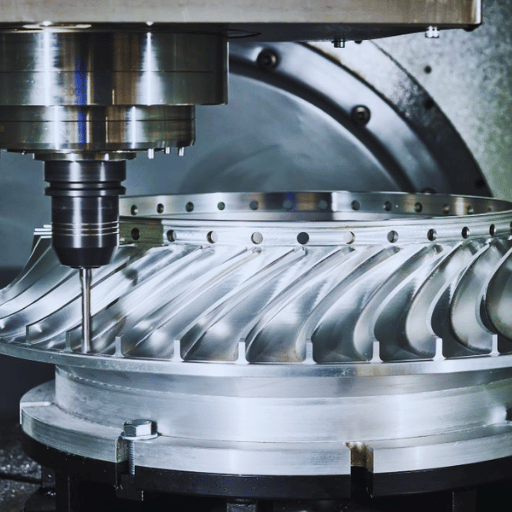

What Are the Best Practices for CNC Milling Aluminum?

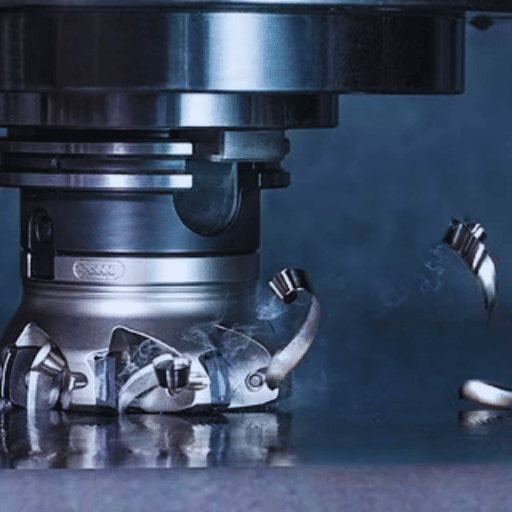

Ensuring Adequate Chip Clearance

To avoid overheating, damage to the cutting tool, and poor surface finish while performing CNC milling on aluminum, adequate chip clearance must be maintained. Use cutting tools that have larger flute spaces to enable efficient chip removal. Coolant systems like flood cooling or mist systems, which aid in removing the chips and simultaneously provide cooling to reduce heat buildup, can be used. Modify the cutting speeds and feed rates to retain a steady flow of chips and to avoid blockage in the machining area. Constantly check the machining operations for chip blockage to ensure the process flows smoothly.

Maintaining Cutter and Tool Life

Incorporating certain practices and maintaining key operational metrics, such as the number of flutes on cutting tools, can significantly improve their enduring performance. One of the primary factors influencing tool life is the heat associated with machining, which results in tool wear and even deformation. Coated tools, such as titanium aluminum nitride (TiAlN) and diamond-coated tools, have proven more durable due to lower friction and better thermal resistance.

Moreover, adequate tool geometry configuration is fundamental for preserving a cutter’s efficiency. Tools with sufficient rake angle and edge preparation are less complicated to cut, enabling less tool wear and improved product quality. Wear-resisting materials such as carbide or ceramic tools are also very beneficial for machining hard materials at higher speeds.

To safeguard against tool overload, the specified cutting parameters like feed rate, spindle speed, and depth of cut must be followed. For example, research indicates that modifying a material’s specific recommendations for spindle speed can lower wear by as much as 30 percent. Adjusting and replacing worn tools promptly helps maintain machining accuracy and efficiency. Predictive maintenance and reduced downtime are made possible by employing more sophisticated monitoring systems like vibration analysis and acoustic emission sensors, which enable earlier tool wear detection.

Achieving Optimal Surface Finish

Precise control of machining parameters is crucial in producing the best possible surface finish. The tool’s cutting speed, feed rate, and geometry must be tailored to the material being processed. Sharp cutting tools and proper lubrication can minimize surface roughness. Moreover, reducing tool vibration and employing high-accuracy fixturing guarantee consistency and quality. Regular monitoring and following prescribed machining procedures will help achieve optimum surface finish objectives.

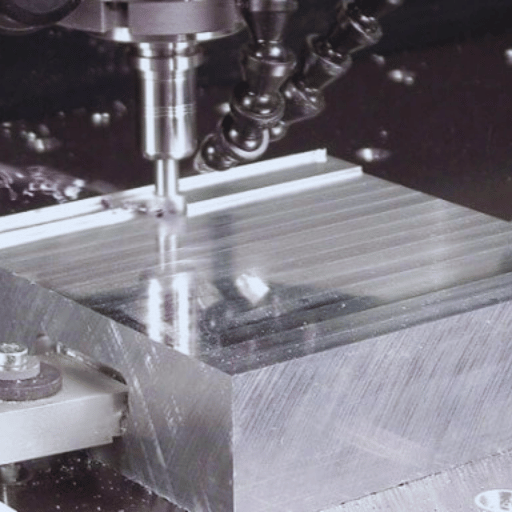

What Challenges Arise in Milling Aluminum Efficiently?

Addressing the Main Challenge in Machining Aluminum

Efficiency in machining aluminum is impeded by its adhesion to the cutting tools, which stems from its ductility and low melting point. Adhesion makes surface finish poor, increases tool wear, and causes inaccuracies in machining. The problem can be catered to using titanium nitride-coated tools that reduce adhesion. Proper lubrication or coolant application, along with optimal adjustments of cutting speeds and feeds, effectively reduces overheating while enhancing machining efficiency.

How Flute Length Affects Milling

Flute length is crucial to milling processes because it determines tool efficiency, machining time, and accuracy. Correctly set flute lengths for specific materials and applications result in optimal chip removal, lowering the chance of clogging and breakage. On the other hand, excessive flute length can jeopardize tool strength, inviting deflection and vibration during cutting. In turn, these actions can reduce accuracy and degrade surface finish.

For example, harder or high-precision applications require a narrower flute length because they give more rigid and substantial support. Lengthened flutes work best for softer materials like aluminum, which require higher chip removal rates. Studies show that a flute length-to-diameter ratio of roughly 3:1 appears optimal regarding rigidity and chip clearance efficiency and enhances machining performance.

Moreover, advanced geometries and tool coatings improve flute efficiency even further. TiAlN coatings enhance tool life and help withstand the heat from high-speed milling when combined with optimal flute lengths. The right adjustment of flute length, along with other factors, allows machinists to improve productivity without sacrificing the quality of the machinable parts.

Balancing Flute Length and Slot’s Depth

Striking the necessary correlation between flute length and slot depth is essential for precision machining. When machining deep slots, shorter flute lengths enhance rigidity, reducing tool deflection and vibration. However, extended cuts may require an increased flute length to access deeper, tighter, or recessed areas. Studies reveal that with slot depths greater than three times a tool’s diameter, excessive tool wear and breakage risks dictate the preference towards designed geometries or stepped milling methods.

Modern development regarding milling tools focuses on adding variable flute shapes to augment deep slotting performance. For instance, graduated depth flute tools are more competent in chip removal while retaining stability. Research suggests that applying high-performance coatings, such as diamond-like carbon (DLC), on such tools greatly increases their wear resistance for extended machining periods. The use of high-speed steel (HSS) or carbide tooling of matching flute lengths and slot depths increases surface finish efficiency and quality for machinists dealing with tough materials like titanium or hardened steels.

The selection criterion must include the material attributes, spindle machine power, cutting feedrate, and type of cooling employed. Using simulations along with application-specific information assists in obtaining accurate slot depth without damaging the tool, guaranteeing dependable and repeatable machining processes.

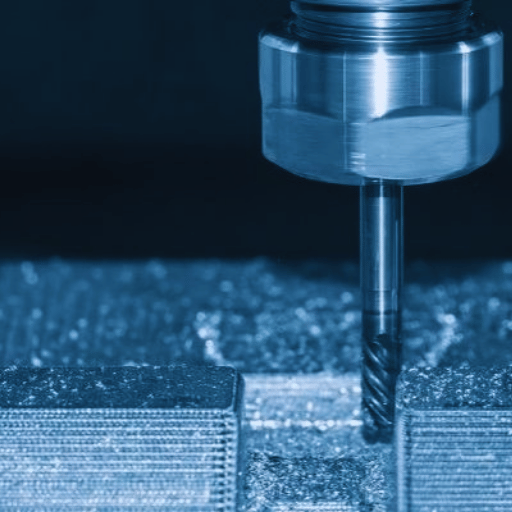

How Does the Milling Process Affect Aluminum Parts?

The Impact of Cutting Edge on Machinability

Cutting edges directly affect the machinability of aluminum parts because they determine how well the cut is made and the efficiency of material removal. For example, a sharpened cutting edge lowers the resistance during the machining process, therefore reducing friction and the chances of burr formation, improving surface finish. There is also a reduction in heat buildup from tools with optimized cutting-edge geometry, which is essential when machining aluminum with high thermal conductivity. Further improvement in chip evacuation and consistency is achieved using tools for aluminum, like polished fluted 3-flute end mills with ground edges. In conclusion, having an adequately maintained cutting edge is critical to precision, tool life, and part quality in the milling process.

Higher Helix Angles for Aluminum Milling

An advantage of higher helix angles in milling aluminum is that it greatly aids chip removal and decreases the diminishing cutting forces. Angled components result in an increased rotational cutting speed, enhancing the finishing touches’ smooth completion while minimizing potential surface damage. The reduction in vibration in this scenario improves stability and precision in machining. When tooling for aluminum milling, it is usually more effective to employ tools ground with a helix of 35° to 45° as there is a balance between the efficiency of removal and the quality of the achieved surface.

Enhancing Aluminum Parts Through Precise Milling

Accurate milling of aluminum components entails tools and cutting procedures that maximize accuracy and surface finish quality. Sharp cutting tools with coatings, such as titanium nitride (TiN) or diamond-like carbon (DLC), improve cutting efficiency and reduce tool wear. Adjusting feed rates and spindle speeds enables constant material removal without overheating the tool. Furthermore, proper lubrication and chip control enhance part surface quality and integrity. When aligned, these factors enable manufacturers to achieve accuracy and strength in aluminum components.

Frequently Asked Questions (FAQs)

Q: What are the fundamentals of milling aluminum?

A: To get accustomed to the concepts of milling aluminum, one must recognize the characteristics of aluminum, the tools needed, and the methods that need to be implemented. Aluminum is one of the easiest metals to machine, meaning it can be processed quickly as long as it is appropriately done. The key issue for aluminum milling is preventing chip welding and tool chatter from occurring too frequently while being as productive as possible.

Q: What kinds of aluminum are utilized in milling operations?

A: Two principal kinds of aluminum are utilized in milling operations: wrought and cast aluminum. The defining feature of both wrought and cast aluminum is that cast wrought aluminum has a comparatively coarse grain structure, which makes it less machinable. At the same time, wrought aluminum is more pliable and easier to work with and is used more often in CNC and automatic machining.

Q: What factors should one consider when selecting the right tools for machining aluminum?

A: While machining aluminum, it is essential to select carbide tools because they are rigid and accurate, although general-purpose cutters for aluminum should work fine. Tools with two flute geometry are preferred because they allow efficient chip removal. It is also imperative to match the flute length to the depth of the slot to prevent tool breakages and achieve the best physical cut possible.

Q: How does feed and speed impact the process of milling aluminum?

A: The feed and speed in aluminum milling are equally important. These variables must be controlled to machine aluminum optimally. Correct feed rates and spindle speeds help achieve maximum material removal rates while increasing tool life and reducing costs.

Q: Are routers suitable tools for milling aluminum?

A: A router can technically cut aluminum, but certain conditions must be met regarding cutting tools to eliminate tool chatter and poor surface finish. Most applications prefer a CNC or milling machine for more control and accuracy.

Q: What are the common challenges to efficient machining operations on aluminum?

A: Machining aluminum efficiently requires attention to surface finish, dimensioning accuracy constraints, heat concentration, and the risk of chip welding. Implementing coolants, modifying the tool path, and adjusting cutting parameters are some methods that can help alleviate these issues.

Q: Why is carbide the preferred tool material for aluminum machining?

A: Carbide tools are preferred for aluminum machining because of their stricter nature and cutting-edge retention at high temperatures. Moreover, it produces a better finish and helps avoid tool wear, which is excessively needed during high-speed aluminum milling, which makes it the favorite tool material.

Q: How important is the aluminum milling process for CNC and automatic machines?

A: The aluminum milling process is vital for CNC and other automatic machines as it ensures uniformity and precision, which are necessary for effective Aluminum manufacturing. Knowing how these factors work automatically helps the movement of tools, thereby increasing efficiency and decreasing time wastage.

Q: What factors influence the decision on the types of aluminum to be used on a project?

A: When selecting aluminum for a project, one must consider its strength, ease of machinability, and corrosion resistance. Cast aluminum is appropriate for more intricate features, whereas wrought aluminum is best for applications requiring precise machining and strength.
