Unlocking the Secrets of Grade 7 Titanium: What You Need to Know About This Remarkable Alloy

Titanium Grade 7 is an alloy of particular interest in the family of titanium metals because it possesses very high corrosion resistance and mechanical properties that can be compared with those of Grade 4 titanium. Titanium Grade 7, a B alloy, is known for its higher performance in severe environments. It is a key material for chemical processing, marine, and power-generating industries. But what makes this alloy so different, and why is there so much demand for it? This article sheds light on the distinguishing features, unique composition, and broad applicability of Titanium Grade 7, which explains why it is a game changer regarding innovation and strength. Whatever your interests are, be they materials engineering, designing, or innovative alloys, this guide will tell you everything you want to know about Titanium Grade 7.

What is Grade 7 Titanium?

Grade 7 Titanium is an alloy of titanium that, because of the added palladium, is superbly corrosion-resistant. This alloy is highly resistant to oxidizing and reducing environments, making it highly usable in chemical processing, marine, and industrial sectors. It also possesses the high strength, low weight, and excellent biocompatibility that titanium is known for, further improving its reliability in harsh conditions.

Understanding the Composition of Grade 7 Titanium

Grade 7 Titanium is an alloy made up of titanium and palladium. It contains about 0.12% to 0.25% palladium added to titanium. The corrosion resistance of this alloy is remarkably increased by the presence of palladium, especially in highly acidic or oxidizing conditions. This composition guarantees strength without excessive weight and superb robustness, which makes grade 7 reliable for chemical processing, marine engineering, and medical devices. These features combine to satisfy the need for an alloy that is both flexible and extremely stable in harsh conditions.

How Does Titanium Grade 7 Differ from Other Titanium Grades?

Titanium Grade 7 differs from existing grades in that it contains palladium, which enhances its corrosion resistance, particularly in aggressive environments like acidic or high-temperature ones. It has the same mechanical properties as Grade 2 titanium. However, Grade 7 can withstand oxidation and chemicals, making it advantageous for specific uses within the chemical and marine sectors. This unique characteristic sets it apart, offering unmatched durability in extreme conditions.

Applications of Titanium in Industry

Titanium is widely used in many industries because of its high strength-to-weight ratio, resistance to corrosion, and biocompatibility. In the aerospace industry, it is used for parts in aircraft manufacture, e.g., engines, frames, and even fasteners. These components have to be strong yet light. The medical field uses titanium for implants and surgical tools because they are nontoxic and integrate well with human tissue. Moreover, in the chemical industry and marine applications, titanium is used in heat exchangers, pipelines, and desalination plants because of its high corrosion resistance. These attributes make titanium the most critical material in the above industries.

Why is Titanium Grade 7 Known for its Corrosion Resistance?

The Role of Palladium in Enhancing Corrosion Resistance

The corrosion resistance of Titanium Grade 7 can partially be attributed to the noble palladium metal that augments its protective characteristics. Palladium is known to catalyze the establishment of the passive oxide layer on the titanium surface, which is quite stable. This process stems from reducing acidic environments like hydrochloric or sulfuric acid. This improved passive film has been noted to impart better resistance to pitting, localized corrosion, and other localized attacks on the metal and, therefore, renders a Titanium Grade 7 useful in highly corrosive environments.

Research indicates that palladium can inhibit corrosive degradation even in high chloride concentrations. This aspect outperforms other commercially pure titanium grades and is beneficial in corrosion environments like chemical processing, desalination, and power generation plants. With a composition of 0.12% to 0.25% Palladium, Grade 7 titanium exhibits some of the best qualities of titanium: increased corrosion resistance while maintaining mechanical properties. This unique formulation makes it suitable for prolonged exposure to harsh chemicals and affirms its popularity.

How Titanium Grade 7 Performs in Acidic Environments

Titanium Grade 7 is one of the best alloys concerning its corrosion resistance, especially when put up against hydrochloric acid (HCl) and sulfuric acid (H₂SO₄). This ability is contributed by adding palladium, increasing its overall strength against reducing and oxidizing acids. Studies have shown that Grade 7 has good structural integrity when exposed to extreme environments, exhibiting only a minimal material loss at a pH of 1.

For instance, Titanium Grade 7 has demonstrated an ability to withstand 20% HCl at high temperatures of 120°F (49°C) with corrosion rates lower than 0.1 mils per year (MPY). This means zero to insignificant corrosion when the metal is exposed to harsh chemicals. A similar endurance point was also discovered in Grade 7, where it survived at 40% sulfuric acid and under high temperatures and pressure in industrial applications.

Compared to other metals, this Grade focuses on strength, durability, and corrosion while losing minimal material. This allows Titanium Grade 7 to be the optimal metal choice for acid storage tanks, heat exchangers, and reactor vessels, which stresses materials’ durability. It is also very efficient in industries where maintenance is difficult because it is very efficient under extremely acidic conditions.

What are the Mechanical Properties of Grade 7 Titanium?

Comparing Grade 7 and Grade 2 Titanium

Grade 7 and Grade 2 Titanium possess familiar mechanical properties like weight-to-strength ratios and ductility, making them easy to work with. The major difference between the two stems from each’s ability to resist corrosion. Grade 7 has low levels of palladium, which significantly increases corrosion resistance in highly acidic environments, thus making it more useful in severe applications. On the other hand, Grade 2 Titanium is considerably less corrosion-resistant than Grade 7 due to the absence of palladium, making it more suitable for mild environments. Both materials are widely used, but the difference lies in their environmental and operational requirements.

Understanding the Mechanical Properties through Data Sheets

Comparative specifications such as tensile strength, yield strength, and elongation for Grade 2 and 7 Titanium can be found through extensive data sheets. Grade 2 or commercially pure Titanium boasts a tensile strength of approximately 275 MPa (40,000 psi) and a yield strength of around 170 MPa (25,000 psi) with an elongation of 20%-30%. Such properties make it suitable for various uses, from medical instruments and architecture to any other applications requiring strength and moderate corrosion resistance.

In contrast, Grade 7 Titanium contains palladium, which enhances corrosion resistance while offering more advanced mechanical properties. The tensile strength of Grade 7 is on par with that of Grade 2, measuring approximately 345 MPa (50,000 psi). The yield strength is slightly higher, at 240 MPa (35,000 psi), with an unchanged elongation ratio. These qualities and the ability to resist chemical breakdown in high-acidity or chloride-rich environments make Grade 7 so popular in industrial sectors like chemical processing and offshore installations.

These details prove the necessity of evaluating the requirements of a specific application, as one must understand how critical the selection of the correct Grade of Titanium is for operational efficiency and longevity in harsh conditions.

How Does Titanium Grade 7 Exhibit Excellent Weldability?

Weldability: What Makes Grade 7 Titanium Unique?

Grade 7 Titanium has improved weldability thanks to its specific chemical and structural properties. Incorporating palladium enhances corrosion resistance and provides considerable stability during welding operations, thereby reducing crack or deformation risk. This grade has uniform mechanical properties in welded joints, which makes it useful in applications where structural integrity is essential. In addition, its welding characteristics are adaptable to several welding techniques, such as tig welding, which is often applied in Grade 12 titanium bipolar industrial projects. This makes Grade 7 ideal for use in applications subjected to adverse weld conditions.

Techniques for Welding Ti Grade 7

To protect Grade 7 Titanium while welding, its various exceptional properties need to be monitored along with the integrity of the final structure. The most effective method for welding this alloy is TIG welding. It is one of the most commonly used methods as it minimizes contamination and allows for close control over heat input. This type of welding uses inert gas during the process, such as Argon or a mixture of argon and helium. These gases protect the weld zone from the atmosphere, causing oxidation, and, in return, make the weld of high quality.

Pre-weld surface preparation is very important as well. It is crucial to eliminate all contaminants, oxides, and oils because they can cause flawed welds and must be removed via mechanical cleaning or solvents. Oxygen is also a dangerous contaminant in these situations, so keeping it away from the weld area is crucial. To enhance the structural properties of Grade 3 titanium applications, the reverse side of the weld joints can be shielded using back purging techniques.

Titanium Grade 7 requires a low to moderate heat input to reduce the likelihood of distortion and cracking. The post-weld state of the alloy is stable and doesn’t require much treatment apart from controlled cooling to avoid sudden temperature drops.

Advancements in welding technology, such as automated systems and real-time monitoring, have further enhanced the prospects of consistent, defect-free results in working with Grade 7 Titanium. Such developments guarantee the utmost reliability of the material’s corrosion resistance and mechanical properties, even under intense industrial and marine applications.

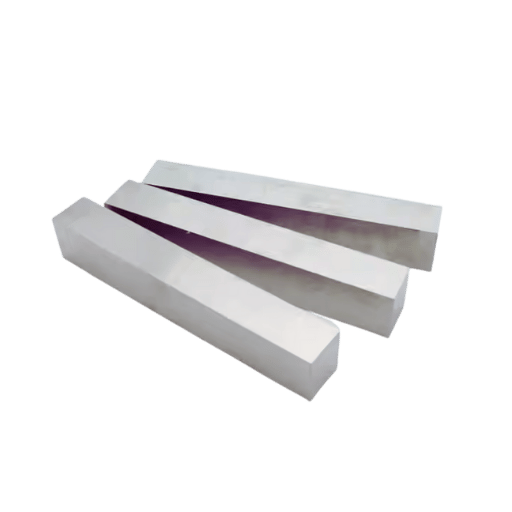

What are the Available Forms of Titanium Grade 7?

Common Uses and Applications of Grade 7 Titanium

Grade 7 Titanium is used widely in applications requiring corrosion resistance and strength. Its significant uses are fabricating equipment for chemical process industries, heat exchangers, and piping systems, especially in oxidizing or chloride-heavy settings. It is also appropriate for marine applications, such as saltwater desalination plants, because of its resistance to saltwater corrosion. Other typical applications are power generation plants and medical implants where biocompatibility and mechanical stability are most important, like grade 1 titanium. These attest to its dependability and versatility in severe operating conditions.

The Impact of Specification and Standardization

I believe the qualification and subsequent specification of materials, such as Titanium Grade 7, is essential for uniformity, safety, and performance across several contexts. These documents act as a complete guide for the manufacturer and consumer as to whether the material in question has the correct mechanical and chemical features needed for whatever the specific situation is. Standardization also assists in marking the roundness of production while promoting interoperability among systems, thus reducing risk and improving efficiency, especially for Grade 11 titanium. Other industries that demand intense focus would find it challenging to attain consistent and reliable results without these standards.

Frequently Asked Questions (FAQs)

Q: What is Titanium Alloy Grade 7, and what makes it unique?

A: This titanium alloy, R52400, incorporates palladium, forming the unique titanium alloy grade 7. This grade is unique owing to its durability against corrosion and usefulness in multiple industrial applications.

Q: What are the typical mechanical properties of Titanium Grade 7?

A: Corrosion resistance is a significant improvement over Grade 2, and it is also physical and mechanical. Besides being easy to fabricate, these materials are also easy to weld.

Q: How does Titanium Grade 7 compare to other grades of titanium, such as Grade 2 or Grade 5?

A: The mechanical features of Titanium Grade 7 pills resemble those of other grades, like Grade 2, but nuances like marvelous resistance to crevice corrosion and palladium incorporation set this alloy apart. In contrast, Grade 5 material is robust. Hence, it is widely used in space industries.

Q: Which industries commonly use Titanium Alloy Grade 7?

A: Titanium Alloy Grade 7 is used in the chemical processing industry because it resists corrosion in corrosive environments. It is also used in equipment such as heat exchangers and titanium grade 4 components that need durable metals resistant to reducing acids.

Q: Can I use Titanium Grade 7 in high temperatures? If yes, what is its typical use?

A: Titanium Grade 7 is highly resistant to heat, making it appropriate for areas with thermal extremes. It is often used where performance is needed in chemical and high-temperature conditions.

Q: What is the factor that makes Titanium Grade 7 resistant to crevice corrosion?

A: The resistance to crevice corrosion in Titanium grade 7 is primarily due to the alloy’s interstitial alloying of palladium, which provides better protection against corrosive agents, especially in reducing acids.

Q: What are the standards and specifications of Titanium Grade 7?

A: Titanium grade 7 has standards like ASTM B265 and ASME specifications, which are followed to ensure the quality and performance of the titanium alloys used for different purposes are met.

Q: In what ways does palladium improve Titanium Grade 7?

A: The corrosion resistance of Titanium Grade 7 is considerably improved by adding stainless steel, which reduces acid environments. Palladium is a stabilizer that reduces crevices and general corrosion of metals.

Q: Are there commercial applications for Titanium Grade 7?

A: Yes. Titanium Grade 7 meets the requirements for commercial applications. Its outstanding weldability, fabricability, and corrosion resistance make it a favorable choice for all industries that require high-strength materials.

Reference Sources

1. Basavaraju, H. R., Suresh, R., & Manjunatha, S. (2023)

• Title: Effect of Process Parameters on Material Removal Rate and Surface Characteristics in WEDM Machining of Titanium Grade 7 Alloy
• Key Findings:
  • With the help of experiments, the study’s authors found the relationship between various process parameters of the WEDM and the MRR and the surface characteristics of the Titanium Grade 7 alloy. The findings indicated that longer pulse-on times lead to higher MRR.
  • However, the authors noted the need to find the optimal pulse-off duration for maximizing MRR without sacrificing surface polish quality.
• Methodology:
  • The authors did a batch of WEDM machining experiments while changing the WEDM parameters and then measuring the MRR and surface characteristics via SEM for surface detail analysis(Basavaraju et al., 2023, pp. 19–28).

2. ATI CP Grade 7 Titanium (2021)

• Title: ATI CP Grade 7 Titanium
• Key Findings:
  • Palladium enhances the performance attributes of Grade 7 titanium alloy, specifically its corrosion resistance during chemical exposure. Thus, it is mechanically and physically equivalent to stainless steel in specific applications. Grade 7 titanium is unalloyed and has a 0.12%—0.25% palladium content.
  • It may be used in service applications above 425 °C (795 °F) and tolerates up to 540 °C (1000 °F) in short-term maintenance or standby situations. These characteristics make it useful in chemical processing or storage, particularly compared to stainless steel alternatives.
• Methodology:
  • The datasheet presents extensive information regarding the composition, physical parameters, elasticity, tensile properties, and degree of corrosion resistance of Grade 7 titanium(“ATI CP Grade 7 Titanium,” 2021).
