Mastering the Art of Machining Carbon Fiber: Tools, Techniques, and Tips

Carbon fiber stands out as one of the beloved lightweight materials that is gaining popularity in different sectors due to its unique strength-to-weight ratio in addition to its being flexible and durable. Despite their advantages, carving carbon fiber requires special tools, techniques, and an understanding of the material’s nature. This article acts as a further guide for experts who want to enhance their skill in operating and machining composites. From correct tool selection to advanced processes, guides, and avoidance of regular mistakes, this guide is crafted to ensure superior outcomes for its users. Irrespective of your experience in dealing with composites, this guide into machining carbon fiber will surely enhance your skills.

Which Machines are Most Suitable for Machining Carbon Fibre?

Selecting the optimal CNC Equipment for Carbon Fiber Components

It is very important to choose a CNC machine that is able to ensure rigidity, tolerance, and dust extraction while working on carbon fibre, and amongst those, a CNC machine with a stiff frame would be favourable as it would be able to reduce vibrations, allowing for clean and accurate cuts. Additionally, using routers that operate at high spindle speeds the use of specialized cutters for composites is also recommended. Furthermore, efficient dust removal is vital after machining as the small dust created from cutting the carbon fibre is harmful if it is inhaled and damaging to machines. In this case, 3 or 5 axis CNC routers are common machines of choice for carbon fibre machining, as these make it easy to switch tools depending on the type of part with needs to be created.

How Does Spindle Speed Affect the Machining Process?

The quality, effectiveness and accuracy of the machining process is directly affected by the speed of a spindle. Operations which require finer surface finishes as well as softer materials are best when higher spindle speeds are used whilst detailed surfaces are being cut as this improves detail and reduces tool marks. In contrast, harder materials and operations where heat generation needs to be kept to a minimum prefer lower spindle speeds as higher speeds overheat the tool and deforms the material. Proper balancing between the cutting performance, tool life and quality of the machined part is key, which makes finding the best speed of spindle critical.

Cutting Tools Popular Options for Accurate Cuts

Choosing the appropriate cutting tool is a very important consideration for precision and productivity in the machining operations. The following are important tools:

1. End Mills – Highly adaptable tools which are powerfully used in profile milling, slotting, and contouring. End mills are offered in various shapes and sizes for different cutting needs and materials.
2. Drilling Bits – Perform holemaking functions, drill bits are available in virtually all forms such as twist drills, step drills, etc that serve different dimensions and material needs.
3. Turning Inserts – Usually employed in lathes, these inserts have each cutting edge designed for a specific operation like facing, turning, or threading. Inserts which are coated or plated increases working life for hard materials.
4. Threading Tools – Employed for forming internal and external threads in materials to required precision, these tools are constructed in manual as well as machine styles.
5. Reamers – Often employed to finish holes that need precise dimensions, reamers provide high quality surface finishes while maintaining tight tolerances.

The properties of the material, the required finish, and the nature of the machining operation determines the selection of tools for effective performance and accuracy.

What Is The Best Way To Use Carbon Fiber Machining Tools?

Controlling the Feed Rate and Cutting Speed Optimize Machining Processes

Both tool and substrate features should be examined in an effort to tailor both feed rate and cutting speed when milling engineering plastics. Cutting speeds must be kept lower to help manage heat of the tool and to ensure longer tool life. Internal feed rates must also be controlled in order to avoid choking the cutting fibers, which will tender fraying. Using tools that have composite specific edges and coatings will help overcome these challenges. Control parameters in such a way that stress in the materials is neutral or positive and tools are doing work; this maintains composite integrity.

Benefits Of Diamond Tools Compared To Conventional Tools

Having diamond as part of the tooling allows for greater strength and accuracy as compared to conventional methods. Because of its large amount of hardness, much less wear occurs on the tools when these materials are being cut and machined. This leads to longer working life and lower maintenance costs. The improved edge retention translates into better performance with sharper cuts and less damage to the workpiece. Above all, the thermal conductivity of diamond tools allows to disperse heat and ultimately reduce the chance of resin damage in composites. These benefits offer ample reasons as to why diamond tooling is the right tool for use in advanced manufacturing where higher volume production is needed.

 The Importance Of Abrasive Routers In Machining Composite Materials

Abrasive routers are fundamental in machinists for composite materials due to the wide range of tasks and complexity of manufacturing that needs to take place. These routers are specifically designed with abrasive coatings or already embedded particles that, without experiencing great loss, can cut extremely tough composite materials. Routers also lower the chances of fiber pull out and surface damage, providing high quality surfaces on machined parts. In addition to this, the fact that routers are very resistant to heat and wear makes them indispensable in the aerospace and automotive industries where these two factors are extremely important.

What are the Challenges Associated with Cutting Carbon Fiber Sheet?

Abrasive Surface Finishing and Managing Delamination

The greatest obstacle in cutting carbon fiber is delamination due to the material’s construction. Delamination can take place when the cutting technique or tools employed are not particular which leads to the expansion of the layers, resulting in compromised strength of the carbon component within the composite carbon structure. Measures must therefore be taken to treat this issue by using abrasive routers or diamond blades as they reduce the amount of stress applied to the material. Ensuring the finishing is good while also achieving polishing requires the appropriate cutting speeds to be maintained along with tool geometry designed to suppress fiber pull-out boarding, while also having equal amounts of fraying. Continuous supervision and upkeep of the cutting tools goes a long way toward guaranteeing quality.

Addressing Carbon Fiber Dust: Safeguarding Equipment and Measures

The exposure of carbon fiber dust can have dire impacts on health which requires a solid strategy not only when it comes to personal protection but also regarding dust control. Operating carbon fiber composites are capable of suspending particles that can result in skin, eyes, and respiratory system irritation. With extended exposure, more serious health issues can emerge. For clean air ventilation systems are fundamental as they are effective in capturing fine dust particles using high-efficiency particulate air (HEPA) filters. Moreover, other localized extraction systems like fume hoods and downdraft tables can be used during cutting or machining processes to limit the possibility of air being contaminated with fine particles.

The use of personal protective equipment (PPE) is also essential in protecting the workers by limiting the amount of exposure. One of the most important PPE is the rest mask considering the fine particulate filtration, goggles, and gloves for the skin to prevent direct exposure. There is a need for employers to ensure that training on workplace cleanliness is prioritized as well as the correct use and practices of PPE. When increased safety measures are in place, anti-static measures must be put in place because carbon fiber dust is potentially dangerous within electrical systems. By utilizing PPE, engineering controls, and administrative strategies, the risk that carbon fiber dust carries can be mitigated.

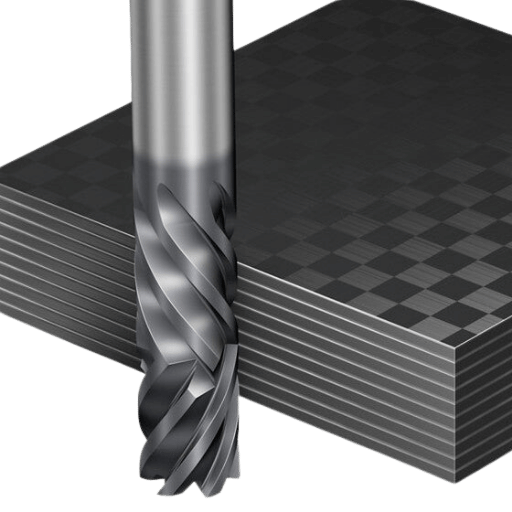

In what way can the tool life be extended while conducting operations on Carbon Fibers?

The Role of Coolants with Respect to the Cutting Efficiency of Carbon Fiber Parts

Enabling the use of coolant while machining of carbon fiber parts enables better tool life and improved cutting efficiency by greatly reducing heat generated during the operation, along with ensuring controlled wear on the tools used. The properties of carbon fiber cause it to be highly abrasive which requires a lot of cutting force and heat, both of which cause very quick degradation of tools, resulting in poor performance and higher costs for the company. Although standard coolant is not preferred due to the risk of damaging the material and contamination, some other methods such as misting systems or cold air coolant enable optimal management of heat without damaging the material. Such techniques improve the cooling abilities of the machines, thus prolonging the life of the tools used alongside ensuring better and consistent quality of machining.

Mitigating Abrasion And Wearing of Tools

It is essential to ensure that the correct tooling material is used in order to avoid abrasion and wearing during the machining of carbon fiber. The best options include tools with diamond-like coatings (DLC) as well as polycrystalline diamond (PCD) which offer exceptional wear resistance, providing great durability while traversing through highly abrasive materials. In addition to this, where the feed rates are maintained at their optimal levels, the cutting speeds should also be reduced to ensure lesser tool contact time and wear. It is equally important to frequently inspect the tools being used, in particular after major operations, and replace them if deemed necessary, in order to avoid poor performance and high degradation. Doing so enables the company to offer better machining efficiency and prolongs the life cycle of the tools used.

What are the Uses of Carbon Fiber Composite Materials?

Automotive Industry: Carbon Fiber Parts in High-Performance Automobiles

Carbon fiber is employed in the automotive industry, particularly for performance and luxury cars. This is made possible by the remarkably boosted strength to weight ratio of carbon fiber compared to conventional materials. Body panels, chassis components, and drive shafts are made of carbon fiber to enhance fuel economy as the overall vehicle weight is minimized. Moreover, the stiffness and toughness provide the structural integrity and control necessary for the vehicle to perform effectively, making it suitable for sports cars and other high-end models. Carbon fiber’s unusual properties, which resist corrosion and environmental exposure, guarantee long-term dependability. These factors explain why carbon fiber is regarded as one of the most advanced materials in automotive engineering.

Aerospace usage of carbon fiber reinforced polymers

CFRP composites have become essential materials in the aerospace sector because their strength-to-weight ratio surpasses other materials like aluminum and steel. These materials are widely used in manufacturing crucial parts of the aircraft structure like fuselage sections, wings, and tail construction. By decreasing the overall weight of the aircraft, CFRPs improve fuel consumption and range. Furthermore, high thermal resistance and greater tolerance to fatigue ensure performance and safety during strenuous operations. This makes CFRPs highly important material in aerospace engineering.

New Developments and Innovations in Conductive Fiber Applications

Conductive fibers progress a great deal owing to their interfacing with newer technologies such as wearable electronics, smart textiles, and flexible sensors. These include metal-coated polymer fibers and intrinsically conductive polymers that allow fabrics to transmit electrical signals effortlessly as supporting elements for health monitoring systems and responsive clothing. Further developments also concentrate on improving the conductivity, durability and flexibility of carbon fibers so that they can perform consistently under diverse conditions. In addition, the development of bio-compatible conductive fibers has broadened their use in the medical field, such as in implantable sensors and tissue engineering, emphasizing their role in novel material science.

Frequently Asked Questions (FAQs)

Q: What are the major differences between machining carbon fiber composites and machining metals?

A: The method of machining carbon fiber composites is very different from the techniques used for metal machining. Carbon fiber comprises long chains of interlocking carbon atoms, which makes it more abrasive and susceptible to delamination. With the absence of metal’s heat conducting capabilities, carbon fiber accumulates heat while being machined, which can cause problems. Tools and techniques need to be adapted in order to avoid harming the mechanical properties of the material and special care should be taken with respirators because the particles can be harmful. Furthermore, smoke control is essential because inhalation of the dust particles can cause damage.

Q: For machining of carbon fiber, what type of cutter is preferred?

A: The most suitable cutter for carbon fiber machining is usually a carbide cutter. These particular cutters are made durable enough to handle the constant wear and tear from the coarse nature of carbon fiber. Carbide cutters are crucial for cutting carbon fiber since they preserve their sharp edges much longer when compared to normal metal cutting tools. Diamond-coated cutters or cutters with poly crystalline diamond (PCD) are also good cutters for carbon fiber, especially when higher levels of performance are required. These cutters are extremely durable and maintain sharpness for extended periods, which offers great advantage in carbon fiber machining.

Q: What would really aid me in not having delamination while cutting carbon fiber sheets?

A: In order to help with delamination while cutting carbon fiber sheets, think about the following: Always remember to use cutting tools that are sharp and specially made from Carbide for composites, Also, maintain slower feed rates with a high speed spindle tool, Focus on proper planning of the tool path to reduce forces acting on the material, Employ sacrificial backing boards for additional support to the carbon fiber, also compression routers can be used while cutting through Distort cuts, Compression routers should also help for through cuts. Besides, there is also a need to clean cuts that generate minimum heat on the carbon fiber surface. Additionally, some advanced machinists apply special coatings or tape to the surface area in order to mitigate fraying and delamination during the cutting action.

Q: What is necessary regarding the precautions of safety to be observed when machining composites like carbon fibers?

A: When machining carbon fiber composites, the associated risks to health and safety must be considered at all times. A dust mask or respirator should be equipped to prevent inhalation of everything from carbon fiber particles to other noxious substances. Employ effective dust collection systems to reduce the concentration of particles in the atmosphere. Magnifying safety glasses and gloves should be donned to protect from the dangers of splintered fibers entering the eyes or the skin. Mechanical ventilation of the workplace should be organized. After the machining has been completed, the work area should be vacuum cleaned, with the HEPA filter attached. The area should never be washed with compressed air as it creates a mess by displacing dirt to other areas. Keep in mind the possibility of static accumulation and apply proper grounding measures.

Q: What are the recommended drilling speeds for carbon fiber composites?

A: To drill carbon fiber composites correctly, a moderate drilling speed is required in order to prevent heat accumulation and delamination. In general, the higher spindle speeds of about 3,000 to 6,000 RPM with low feed rates are preferred, but the specific speed is dictated by the thickness of the material and the size of the drill bit that will be used. For small diameter holes under six millimeters, the speeds can range up to 10,000 RPM. It is important to understand that one can never go wrong with starting off slow, and gradually working one’s way up. Further, employing a peck drilling method along with high quality carbide drill bits helps one achieve a smoother drilling experience without damaging the component.

Q: Is it possible to apply techniques of machining metals to turning carbon fiber?

A: Some conventional metal machining methods may be available for adaptation toward turning carbon fiber, but it is not advisable to make use of them as such. Certain aspects of machining carbon fiber are distinct, hence the necessity for appropriate adaptations of tools and methods. When turning, it is advisable to use tools specifically catered for composites, which are tipped with carbide or diamond. Increase the cutting speed and decrease the feed rates as compared to those used on metals. Use adequate cooling and dust removal. The axis of the lathe should be positioned in such a manner as to dampen vibration to a minimum because this could result in carbon fiber delamination. Also, cutting edges should be kept razor-sharp because it is almost impossible to machine and achieve good surface finish on carbon fiber materials with dull tools.

Q: In what ways does heat produced during machining impact carbon fiber? What are some strategies for controlling it?

A: Carbon fiber composites can be impacted by heat during machining, especially during the initial stages of workpieces. The important issue here is that too much heat does not get built up because the heat generated cansoften or damage the resin matrix, resulting in reasons such as delamination, warpage, or other alterations to the mechanical properties. To overcome overheating, use sharp cutting inserts with less friction to the composite such as special coated carbide tools. Use lower feed rates with higher cutting speeds to control the build up of heat. Avoid using water-soluble coolants, as some carbon fiber composites are hygroscopic. Use air as a cooling medium instead. However, tool paths for machining must also be programmed correctly to accommodate the heating of the cutting zones. Finally, use diamond coated tools due to their ability to remove heat more efficiently.

Reference Sources

1. Reduction of Tool Wear Using Directional Milling Based on Cutting Angle in the Machining of Carbon Fiber Reinforced Polymer

• Authors: Gyuho Kim et al.
• Journal: International Journal of Precision Engineering and Manufacturing
• Publication Date: 2023-09-02
• Citation: (Kim et al., 2023, pp. 1989–2008)
• Summary: The focus of this research is the effect of the angles of the tools on the wear of cutting tools while milling carbon fiber reinforced plastics (CFRP). A directional milling strategy was employed by the authors to identify the angle of cutting corresponding to minimum abrasion of the tool as well as maximum efficiency of the machining process. The strategy employed consisted of experimental test on measuring the tool wear rates at different conditions of cuti Ing. Results show that the setting of the cutting angle is of principal importance in the reduction of tool abrasive loss and increases the performance of the machining process of CFRP components with the aid of the abrasion resistant feature of the cutting tool.

2. The use of Artificial Intelligence techniques in Investigation and analysis of surface roughness in machining carbon fiber reinforced polymer composites must use to improve the precision of their work.

• Authors: T. Rajasekaran et al.
• Journal: Carbon Letters
• Publication Date: 2021-11-26
• Citation: (Rajasekaran et al., 2021, pp. 615–627)
• Summary: The research highlights the application of AI techniques on the analysis and estimation of surface parameters over CFRP composites parts during the machining process. The research comprised variations of machining parameters such as cutting speed, feed rate, and surface roughness, made measurements of the developed surface. The authors created AI models based off of certain machine learning algorithms, together with surfaces of composite materials like carbon ai enabled machining parameters optimization.

3. Tool Selection in Machining the Edges of Carbon Fiber Parts

• Authors: I. S. Bolotnikov et al.
• Journal: Russian Engineering Research
• Publication Date: 2022-11-01
• Citation: (Bolotnikov et al., 2022)
• Summary: This particular study is geared toward choosing suitable tools for cutting the edges of carbon fiber components. A detailed assessment of tool geometry and types was performed, with an evaluation of their wear resistance and the quality of the machining operation. The study provided evidence on the dependencies of tool material and tool structure on the tool’s performance and defect creation like delamination and fiber pull out during machining processes.

4. Wear evaluation of CVD diamond coated HSS drills used in the cutting of carbon fiber reinforced plastics (CFRP)

• Authors: E. Uhlmann et al.
• Journal: Journal of Machine Engineering
• Publication Date: 2020-06-24
• Citation: (Uhlmann et al., 2020, pp. 104–113)
• Summary: This research examines the operational efficiency of CVD camparison for diamond coated drilling tools while milling carbon fiber reinforced plastic (CFRP). The authors carried out relevant experiments on tool wear and quality of machined surfaces. The research outcomes reveal that the service life of tools and wear rates are greatly improved with CVD diamond coatings compared to traditional tool materials, making them effective for machining CFRP.

5. Current Trends and Issues in the Machining of Carbon Fiber Reinforced Polymer Composite Laminates

• Authors: J. Seo et al.
• Journal: International Journal of Precision Engineering and Manufacturing
• Publication Date: 2021-10-18
• Citation: (Seo et al., 2021, pp. 2027–2044)
• Summary: The latest progress and issues related to the machining of carbon fiber reinforced polymer (CFRP) composite laminates is covered in this review paper. The paper gives insights to the authors’ analysis on various tooling strategies and their effectiveness in high-quality machined surfaces by the use of specialized drill bits and milling tools. Greater attention is given to the geometry and materials of tools used for machining CFRP composites. More research effort needs to be undertaken to deal with these issues.
