Understanding Injection Mold Cost: Factors Affecting Plastic Molding Prices

Understanding the cost structure of injection molding is critical when planning a manufacturing project that incorporates plastic components. The pricing of injection molds varies greatly according to technical, design, and production requirements. From tooling to the type of material used for molding and the quantity to be produced, each of these considerations determines your investment. Molding plastics is a processed that is both intricate and multi-fathom. Losing focus of any step could lead to doubling your effort. Determining why the price of molds vary and figuring the lowest estimate where the work could reasonably be done is critical for a planned project. In this article, we will outline some of the aspects that are likely to affect the variation and offer tips for more effective financial planning as well. Regardless if you have been in the industry for quite some time or just recently started dabbling into the field, this document will target the ambiguity surrounding injection mold pricing. This way, you will be more comfortable when making your arrangements.

What Factors Affect the Cost Summary of Injection Molds?

How does Mold Material affect the cost estimates?

Injection molds are costly because they have many different sets of durability and machining complexity. Steel molds, for instance, are more costly and require considerable investment due to their complex structure. They are, however, suitable for high volume production. Aluminum molds, on the other hand, are reasonable in price, but They are compatible with low volume runs and simple designs because of their faster wearing out rate. When injection molding, one should weigh their material selection against their production expectations to make the most investment-efficient decision in the long run.

Cost breakdown considering the Mold Size

The size of the mold and structure affects its cost because of the construction materials, time needed, and difficulty level of manufacturing. Most raw materials are more expensive than matrix simple is the structure, thus the cost for raw blocks increases. In addition, larger molds usually require specialized machinery to aid in the fabrication and handling, which adds to the operating cost. To achieve optimal cost saving, it is essential to establish the minimum relevant mold dimension that capture the size and requirements of the intended end product.

Tooling Cost’s Contribution To Pricing Raw Materials And Products

The consideration of tooling cost is at the heart of the pricing of manufactured goods as it affects production scale and economics of the unit. Inevitably, the high investment needed in tooling will impact production stock, as the investment is driven upwards because it needs to be divided over the total amount of units produced. As an example, in the case of injection molding, the degree of efficiency achieved during production and the quality of output are both affected by precision and complexity of the tool components, cavity design, and material choice. Although advanced tooling incurs costs, it significantly increases the level of efficiency and decreases material waste leading to lower cost per unit during mass production. While accepting competitive rates, a company’s profitability is influenced by how they manage estimated production costs with anticipated tooling costs over the expected product life cycle. Technology in tooling also facilitates cost optimizations by making it more durable, precise, and reusable over several production cycles leading to efficient achieving of desired expenditures.

How to Manage Plastic Injection Mold Costs Effectively?

Material Cost Reduction Strategies

1. Component materials should be chosen with care. Repurposed or recycled materials may be considered to increase functionality while decreasing costs. Cost efficient materials should comply with design requirements invoking added attributes.
2. Material waste should be reduced. Expendable materials should be minimized through efficient mold design. The incorporation of runner and gates of low scrap ratio molds increase material efficiency. Post production scrap recycling also aids in minimizing overall cost.
3. Mutually beneficial partnerships can also be formed with dependable suppliers to obtain bulk purchase agreements. Long term partnerships allow for better prices coupled with a consistent level of quality.
4. Structural analyses should be performed on parts that need to have their wall thickness reduced. Thin walls should be utilized ONLY in regions that guarantee adequate structural integrity to withstand load bearing components.
5. Increased rate of material efficiency can be achieved through the consolidation of sole waste components. To achieve further enhancement, multi-functional single parts should be manufactured to reduce the number of required molds.

These strategies allow for improved material cost efficiency without deterioration to quality or performance.

Choosing between Steel Mold and Aluminum Mold

Choosing between steel and aluminum molds depends on important aspects like production volume, lead time, and design complexity:

1. Production Volume. Due to their durability and ability to endure multiple molding cycles, steel molds are best suited for high-volume production. Aluminum molds, on the other hand, are appropriate for low to medium production volumes since they are more cost-effective than steel molds, though, less durable.
2. Lead Time. Since aluminum molds require less machining time, lead times are consequently shorter. This is beneficial for fast prototyping or completing tasks within tight deadlines. Steel molds, on the other hand, are far more labor intensive to produce, but they are preferable for long-term manufacturing operations.
3. Complexity of the Design. Steel molds are ideal for intricate details or tight tolerances due to their greater strength and more precise capabilities. Aluminum molds can endure complicated tasks but may wear out faster when designed intricately over time.

Considering these factors, manufacturers can optimally choose the type of mold to be used while staying within budget and meeting their production requirements.

Advantages of 3D Printed Molds

1. Affordable for Prototype Development. The use of 3D printed molds assists in reducing the initial investment significantly. This makes it perfect for prototype development and production runs with limited volumes.
2. Expedited Manufacturing. Compared to traditional machining methods, molds made with additive manufacturing can be produced much faster, which improves the cadence of product development.
3. Freedom of Design. The use of 3D printing allows for detailed and sophisticated mold designs and shapes that would otherwise be expensive or difficult to do with ordinary processes.
4. Lower Material Waste. 3D printing offers more efficient methods of making molds as fewer resources are wasted when compared to traditional methods. This shifts the industry towards more environmentally friendly practices.
5. Flexibility in Production. Custom manufacturing of these molds is easy because they can be modified in accordance with the varying designs or production requirements without any complicated or time-consuming procedures.

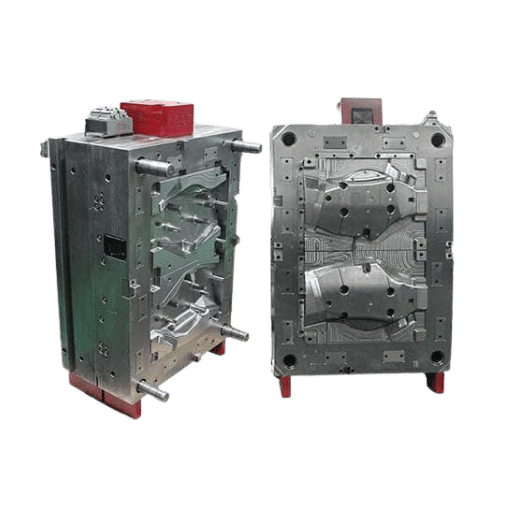

What Causes Fluctuations in Prices Pertaining to Injection Molding?

Elements Affecting Expense of Injection Molding

1. Material Category: Specialized or high-performance materials will likely cost more when compared to polypropylene and ABS due to their nature, so all raw materials and their types need to be considered before hand. In conjunction, the raw materials used will also greatly influence the price.
2. Mold Configuration: The use of advanced equipment and machinery is necessary for intricate designs or multi-cavity molds, increasing the cost due to the additional labor and longer timeframes required to execute.
3. Production Level: While higher production runs cause the expense per unit to drop, as a result of economies of scale, smaller runs work in the opposite manner owing to higher costs associated with smaller production runs.
4. Cycle Time: As the time per part is manufactured increases so does the operational efficiency lowering labor and operating costs. When desktop injection molding machines are used, a shorter cycle invariably translates to savings.
5. Further Spreading Activities: Production cost will be impacted by any additional procedures such as painting, finishing, or assembly depending on their complexity and instinctively, amount of time consumed.

Impact of complex molds on pricing

The influence a complex mold has on pricing is notable given the multifaceted considerations of both design and manufacturing. Usually, this type of mold comes at a cost in relation to the production cost. Aside from these considerations, such molds are usually fabricated using tight tolerances which take a greater amount of time to complete than simpler molds. Moreover, the initial expenditure on new tools usually increases. Such tools also need to be maintained and adjusted more frequently, which raises the long-term costs of production. On the other hand, such high costs can be rationalized if, as a result of them, these features are produced that are precise, intricate, and functionally advanced.

Implication of the Upfront Cost Analyzed

From the perspective of forecasting costs, the potential impact is larger than what meets the initial eye. For example, significant spending on precision-engineered molds upfront will dramatically increase efficiency while minimizing waste and maintaining consistent quality in the modules during the mass production phase. In turn, this will help save a lot of money in the long-term especially when calculating large production runs wherein the cost per unit, will without a doubt, decrease at a proportional rate. Apart from this, the finest molds are most often tough and consistent which means that the amount of repairs and replacement resources will be dramatically lowered, justifying the initial expense. Simply put, while the cost upfront appears to be unreasonable, due consideration of operational savings and further expenses within the product lifecycle phases is crucial. Making an informed decision weighs heavily on analysis of the benefits versus cost.

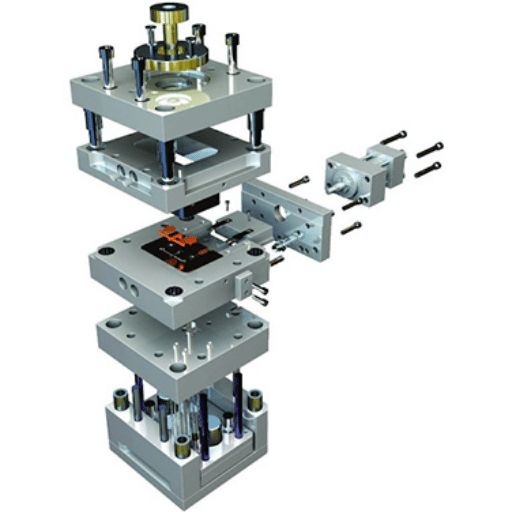

In What Manner Does Injection Mold Tooling Affect The Total Cost?

Significance of Utilizing Mold Base in tooling

The base of the injection mold tooling system is referred to as a mold base. It contains vital parts like the cavities, cores, and cooling systems. This component’s dissect involves providing structural support and maintaining alignment during the molding sequence. A good mold base guarantees stability as well as precision and enhances the efficacy of heat flow in the system. These features are paramount in eliminating wastes and ensuring that defect-free parts are produced. The selection of an appropriate mold base material also helps to reduce the rate of wear and abrasiveness on the tool, which limits maintenance costs as well as downtimes. As a result, the mold base is a component that affects the performance and economy of the entire injection molding process.

What is the Role of Insert Molding?

Insert molding is considered to be an advanced form of injection molding where the modified parts like metal inserts, other materials, etc., are placed within the mold cavity prior to injecting the liquid plastic. This technique serves to unite various components into a single integrated part and erases the necessity of secondary assembly procedures. The purpose of insert molding is to increase the usefulness and the strength of the components by merging the distinct material’s structural advantages. For example, it is widely used in the production of fasteners with threads, electrical connectors, and medical instruments that have metal parts embedded in plastic made by molding. This method provides improved bonding between materials, shortening the cycle time of manufacture, as well as improving the quality and consistency of the intricate designs. Furthermore, when considering the large amount of scrap that can be avoided with insert molding, it becomes more economical. This significant technique is used not only in plastic and metal production, but also in medical appliances, vehicles and electronic equipment.

Improving tooling in Rapid Injection Molding

The use of novel methods for mold fabrication has led to significant improvement with the complexity of molds in tool Rapid Injection Molding (RIM). Lead times are greatly reduced which results in faster ramping of designs with shorter time-to market cycles. The main benefit is the ability to create highly accurate and consistent prototype parts, or a low- to mid-volume production runs with minimal precision. Moreover, Rapid Injection Molding reduces material wastage and offers a better way of assessing product performance before full-scale production. This allows the manufacturer to be more cost-effective and agile in responding to market demands while ensuring product quality.

Estimating Costs for Components of an Injection Molded Plastic Product

Total Injection Expense Estimation

To determine the total injection costs for plastic injection molding, the following components must be taken into account:

1. Material Cost – Determine the direct unit cost of the raw material’s weight, then multiply it with the estimates of each piece’s weight including waste.
2. Production Cost – The hourly operating rate for the machine and the setup time added together, multiplied by the number of hours for production for each part should be estimated. Additionally, estimate the cycle time consumption for each part.
3. Tooling Cost – Calculate the expense for the mold creation which can be shared amongst the total pieces expected to be created.
4. Post Processing Expense – Estimate expenses if trimming, assembly, or finishing work is needed in addition.

All of these estimates aggregated and then divided by the total number of units produced suggest the cost of part and allows to effectively plan for production.

Allocating Mold Production Expense

The estimate allocated for mold production can include the following:

1. Design Expenditure – Expenditures allocated towards the design of the molds like CAD modeling and engineering analysis for mold design functionality are included.
2. Material Costs – The expense incurred in acquiring the raw materials needed for the fabrication of the mold, which is usually made of either steel or aluminum, depending on the strength and quantity needed.
3. Manufacturing Costs – These include the costs incurred in the process of machining, precision finishing, and assembling steps required to make the mold. Molds which are more intricate and have tighter tolerances tend to have higher manufacturing costs.
4. Maintenance Costs – Take into account the periodic upkeep required to ensure that the molds remain functional, especially during prolonged production runs.

Through the evaluation of these factors, it is possible to strategize mold investment management in order to efficiently respond to all requirements of the manufacturers.

Let Us Take A Look At The Expenses Related To An Injection Process:

When it comes to the expenses incurred while carrying out the injection molding process, the following attributes stand out:

1. Material Expenses – This encompasses the cost of mold as well as the polymer resin that is needed. It changes depending on the classification (thermostatics, thermoplastics, etc) and amount that need to be produced.
2. Cycle Time – The cycle duration has a direct relationship with the total incurred cost of production and needed labor. At times, the cycle time can be compacted in order to optimize productivity and cut down operational costs.
3. Machine Expenses – This incurs expenses from the primary rated capacity of the injection molding machine. More futuristic machines are more expensive to operate.
4. Tooling Expenses – This is the precise allocation of mold expenditures as pertaining to the volume of sales it is intended to produce. High-capacity units designed with complex multifunctional features require precise tooling and thus, significantly increase unit production costs.
5. Salaries – Depending upon the amount of physical work such as setup, human quality assurance, and post casting work is conducted, pays can vary significantly.

Without a doubt, it enhances how the manufacturer designs the injection molding process as operational expenses can easily be accounted for and production strategies streamlined.

Frequently Asked Questions (FAQs)

Q: In your opinion, what factors influence the estimation of injection molding plastic parts pricing?

A: The complexity of the mold, the mold material type (like steel injection molds), the size and number of parts to be produced, the plastic material type, and the injection molding equipment needs all affect the cost of plastic injection molding. Oftentimes the mold sets carry a high degree of final cost, because molds might be priced from a few thousand dollars to hundreds of thousands, depending on these conditions. Manually set molds are generally priced higher than pre-set ones.

Q: Can you follow up on the impact of the mold’s complexity on injection molding costs?

A: The intricate details and complexity a mold possesses has a very high impact on cost in injection molding. Custom designs is greatly increasing needs for further sophisticated molds that have greater than one cavity, slides, or even other advanced features. This necessitates high skill levels combined with significant time which leads to raising the price. Aside these molds will also be complex and time consuming to operate, leading to higher overall injection molding pricing.

Q: What is the cost range of a steel injection mold?

A: The price range of a steel injection injection mold may vary due to size and industry complexity. The steel injection molds used in industrial molding can range from about $10,000 to $100,000 and above. The price range is higher for hardened steel high volume production molds. For low volume production runs, simple molds could be manufactured at the lowest cost of $2,000 to $5000.

Q: How does choice of mold material affect the overall cost?

A: Depending on the material selection, the total cost is impacted quite dramatically. Steel injection molds are more expensive initially, but are suitable for high production volumes. On the other hand, aluminum molds are cheaper, but not as effective in terms of durability. The long term cost of the mold is also affected as it impacts maintenance, mold durability, and parts production run before replacement becomes necessary.

Q: What is desktop injection molding, and how does it compare cost-wise to industrial molding?

A: Desktop injection molding is a small-scale molding process using compact, office-friendly machines. A desktop injection molding machine is considerably less expensive than industrial equipment, with prices ranging between $5,000 and $20,000. The molds used for desktop injection molding are also cheaper and often cost between $1,000 and $5,000. While this makes it more accessible for prototyping and small production runs, it is not suitable for high-volume manufacturing compared to industrial molding.

Q: How does the production volume affect the cost of plastic parts in injection molding?

A: Production volume is closely related to the cost of the molded plastic parts in injection molding, and as volume increases, so does associated mold costs and therefore per piece cost precision. There are economies of scale, and with higher production volumes, there is a decline in cost per unit, because the single mold’s price is amortized over a significant number of parts. In other words, during a large production run, the cost of the mold is dwarfed when compared with material and operating costs. On the other hand, during a small production run, the mold price greatly inflates average per-piece price, so the cost estimate is heavily reliant on the mold’s cumulative cost.

Q: What role does the mold manufacturer or mold maker play in determining the final cost?

A: The mold maker is a key factor in determining the cost for injection molding. Their skill, effectiveness, and pricing tend to affect the cost of the mold, which is often the most important part of the expense. Skilled mold makers may be more expensive, but they also tend to produce more effective long-term molds. It is imperative to select a seasoned mold manufacturer that can meet the mold’s quality requirements whilst still remaining budget-friendly.

Reference Sources

1. Utilization of Additive Manufacturing for Batch Production Injection Mold Inserts

• Authors: Basel Alsayyed, Cameron J. Patterson
• Journal: Volume 2: Advanced Manufacturing
• Publication Date: November 17, 2024
• Citation Token: (Alsayyed & Patterson, 2024)
• Summary:
  • The article describes the significant expenses linked to conventional metal mold inserts for the injection molding of polymers, which constrain small complex order production runs. The authors attempt to find a less expensive solution in 3D-printed polymeric molds. They examine a number of materials, especially PLA and ABS, for producing mold inserts. The authors further claim that the injection molding of molds constructed from ABS and carbon fiber-reinforced polymers takes the lead in remarkable sustainability for minimal costs.

2. A Machine Learning Approach for Automated Cost Estimation of Plastic Injection Molding Parts

• Authors: Florian Klocker et al.
• Journal: Cloud Computing and Data Science
• Publication Date: April 13, 2023
• Citation Token: (Klocker et al., 2023)
• Summary:
  • This investigation offers an approach to machine learning which attempts to refine the precision of plastic injection molding cost estimations during the initial phase of product development. Different machine learning models were trained on a dataset comprising of injection molded components, and the models were trained using different methods of cost calculations. The results suggest that tree-based algorithms vastly improve upon the estimates provided by conventional methods by improving the accuracy of cost projections related to the injection molding operations. Consequently, this strategy may assist manufacturers in cost savings and improving their decisions about the design and production of the molds.

3. Sustainability Evaluation of Traditional and Additive Manufacturing for Mold Insert Application

• Authors: Jing Zhao et al.
• Journal: Volume 1: Additive Manufacturing; Advanced Materials Manufacturing; Biomanufacturing; Life Cycle Engineering
• Publication Date: June 17, 2024
• Citation Token: (Zhao et al., 2024)
• Summary:
  • This report carries out an assessment on the sustainability and economical effectiveness of conventional compared to additive manufacturing processes used in the production of injection mold inserts. The authors examine energy usage, costs of production, and the functional attributes of the mold inserts produced from both techniques. The results show that while traditional methods may be mechanically superior, additive techniques provide overwhelming benefits by significantly shortening lead times and indicating lower initial investments…Thus, it is a feasible option for a number of applications within the injection molding economy.

4. Development of a Rapid Tool for Metal Injection Molding Using Aluminum-Filled Epoxy Resins

• Authors: C. Kuo, Xingqiang Pan
• Journal: Polymers
• Publication Date: August 23, 2023
• Citation Token: (Kuo & Pan, 2023)
• Summary:
  • This research examines the employing of epoxy resin, filled with aluminum, in the fabrication of rapid prototypes for metal injection molding (MIM) tools. They analyze the expenses and efficiency of molds constructed from conventional materials against those created using the new resin. It has been demonstrated that the epoxy molds can be produced at around 30% lower costing than traditional methods with thorough efficiency for 1300 cycles of molding. This study explores economical possibilities for the injection molding processes, which improves the cost effectiveness of producing intricate features in metal components.

5. Heat Transfer During Solidification of Polyethylene Terephthalate (PET) in Injection Molding

• Authors: D. K. Nathan, K. N. Prabhu
• Journal: Transactions of the Indian Institute of Metals
• Publication Date: January 3, 2024
• Citation Token: (Nathan & Prabhu, 2024, pp. 1–7)
• Summary:
  • The objective of this paper is to examine the heat transfer processes that occur during the injection molding of polyethylene terephthalate (PET) for the purpose of mold design and cost analysis. The authors look at how temperature regulation impacts the quality of molded components and the entire injection molding system’s efficiency. The results indicate that improved heat transfer optimization will increase productivity and decrease expenses, thus demonstrating the more thermal control that is required in mold design.
