Unlocking Potential: 5-Axis CNC Machines – Applications & Costs Explained

The emergence of 5-axis CNC machines has transformed the entire approach towards complex machining task which altogether marks the advent of a new epoch in precision manufacturing. The versatility and efficiency that these machines offer is unmatched and allows the manufacturers to produce incredibly complex designs with exemplary quality and accuracy. But what exactly makes these machines so revolutionary, and most importantly, are they worth the investment? In this piece, we intend to answer these and many more questions while unlocking the true potential these machines have to offer as we explore their applications across the 5-axis spectrum, along with an analysis or pricing, upkeep and recurring costs. Regardless if you are a manufacturer looking to gain an upper hand in the market or to satisfy your curiosity in regard to the upcoming machining technology innovations, this guide will arm you with all necessary information in relation to the powerful and practical capabilities of the 5-axis CNC machines.

What does a 5-axis CNC Machine does?

Understanding the Basics of 5-axis Technology

A 5-axis CNC machine works by moving the part or cutting tool over five different axes simultaneously, which is the defining characteristic of the equipment. Instead of 3 Axis machines which work by moving in the X, Y, and Z axes, 5 Axis technology works on two additional axes—commonly known as the A and B axes. This greatly enhances the range of motion that can be achieved and thus aids in more precise and complex machining. More importantly, five axis machines can create highly complex shapes and designs with very little setup required. By eliminating the need for manual parts repositioning, 5 axis machines increases efficiency, accuracy, and consistency in every job. Because of this, these machines are crucial in the aerospace, automotive, and medical manufacturing industries.

Key Differences Between 3-axis and 5-axis Machines

1. Range of Motion. While 3-axis machines can move along the three linear axes—X, Y, and Z—with their work tools positioned relative to the workpiece, 5-axis machines, on the other hand, can also use A and B axes to gain a rotational movement. This lets them achieve more complex positioning.
2. Precision and Complexity: 5-Axis machines provide improved precision and are more advantageous for intricate designs since the requirement for repositioning errors is reduced. For 3-Axis machines, performing simpler geometries is an option, but complex parts may require multiple setups.
3. Effectiveness. The ability to machine several planes in a single operation is what makes 5-Axis machining inherently faster for advanced designs. On the other hand, 3-axis machines tend to take more effort and time to accomplish the same task.
4. Uses. Performing basic milling, drilling, and cutting tasks is the primary function of a 3-axis machine. 5-axis machines serve industries like aerospace and medical manufacturing that need fine details and tight tolerances.
5. Costs and Installation. 5-axis machines are usually more costly to purchase, operate, and maintain than 3-axis machines. However, their efficiency in high precision tasks makes them worth the cost.

The Impact of 5-Axis CNC Machines Across Different Industry Domains

The invention of 5-axis CNC machines has changed the landscape of several industries by making multi-level manufacturing processes possible alongside obtaining precision that can be termed as remarkable.

• Aerospace Industry: The production of aerospace components such as turbine blades, engine parts, and an array of other structural components is multi-faceted. These components have complex shapes and require high tolerances. The machining of structurally advanced components on the basis of Aerospace Engineering has a single set up for complex angles that is referred to as a work center. This increases production rate while preserving high standards of quality and safety, marking an advancement in the engineering industry.
• Medical Industry: CNC machines have bridged many gaps in the medical field allowing for prostheses and surgical instruments to be produced efficiently. The precision with which 5-axis CNC machines operate ensures that implants such as dental crowns and hip joints can be tailor-made for specific patients while ensuring compliancy with regulations.
• Automotive Industry: In the automotive industry, 5-axis CNC machines are mostly used for creating prototypes, intricate molds, and parts in the automobile engines. The employment of these machines drastically cuts the time it takes to develop a product while simultaneously guaranteeing that the automotive parts are both functional and durable.
• Energy Sector: In the 5-axis CNC machine, it is possible to manufacture precise components that are optimized for weather conditions. Such components are crucial for the turbines, wind generators, and traditional energy systems that rely on gas turbines. Such industry allows for solutions in renewable energy systems.
• Electronics and Semiconductor Industry: The ability of 5-axis CNC machines to operate with such precision is crucial for the manufacture of small components found in electronic and semiconductor devices so that these advanced technologies can work effectively and trustfully.

The use of the best modern software and sophisticated tooling additionally boosts productivity of top 5 axis CNC machines, allowing their extensive use in highly sophisticated manufacturing processes.

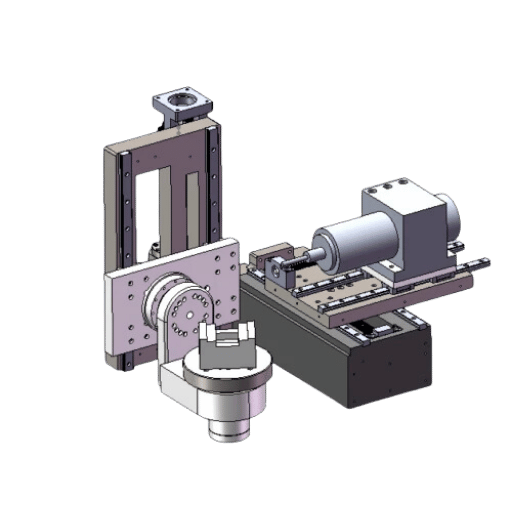

How Much Do 5-Axis CNC Machines Costs

What Influences the Selling Price of the Machine

The cost of a 5-axis CNC machine is dependent on the following key terms:

1. Size and Configuration of the Machine: The versatility of the machine and the sophistication of parts that it can machine are driven by the number of axes. E.g., 4 axis and 3 axis. – As additional specifications, such as precision or speed grade of the machine increases, the price also rises.
2. Company and Brand – There is a baseline cost attributed to the machine as it becomes more reputable with delivering quality tools and other devices.
3. Technological Software Components – Machines that have modern software automation and other supplementary functionalities almost always have a higher price tag.
4. Composition and Manufacturing Grade – There is a higher cost of production incurred when machines are constructed out of higher-grade materials and durable components, which is reflected in the price.
5. Extra Parts, Features, or Personalization – Custom fixtures or optional features like tool changers can inflate the final cost.

Taking all these factors into account will assist in selecting the appropriate machine that meets your necessity ranges within your desired price.

Assessing 5-Axis Machines Performance Versus Cost

Both pricing structures and performance models are vital when deciding which five-axis machine to purchase. Normally, the more expensive a machine is, the more it is equipped with features like faster spindle speed, higher precision, better axis engagement, and a pallet system. These traits are important for businesses that need active and complex machining or higher production rates.

Now, in the modern era, some machines mid-range in pricing are offering competitive performance due to innovation in engineering and software optimization. Certain factors like raw material cutting, tolerances, and production volume determine if a premium model is worth investing into. Furthermore, the maintenance expenses, software costs, and energy consumption also matter because they give value to the investment in the long run.

Investing in 5-axis machines involves the formulation of cost-effective models combined with adroit metrics ensuring single investments go a long way.

Ownership Costs and Five-Axis CNC Maintenance Expenses

The cost of owning five-axis CNC machines includes both primary and secondary expenditures. Expenses incurred upfront from the acquisition usually include payment, installation, and operator training. On a broader-scale, price ranges can greatly differ based on the features, brand, and size of the machine with advanced mid-range machines and high-end machines requiring a larger investment upfront.

A well-handled system will include periodic maintenance to ensure service can be delivered in the form of software updates, updating any hardware that experiences wear and tear, and meticulously servicing the system itself as necessary. As with any intricate piece of technology, devices need to be taken care of on a regular basis to prevent burdensome downtimes. Furthermore, the device’s efficiency, alongside its operational hours, can dramatically affect consumption energy as a recurring expense.

In order to ensure an effective machine’s operation over time, investment into mchines that reliably function over extended periods of time, are easy to maintain, and are compatible with legacy systems is essential in minimizing expences incurred from ownership.

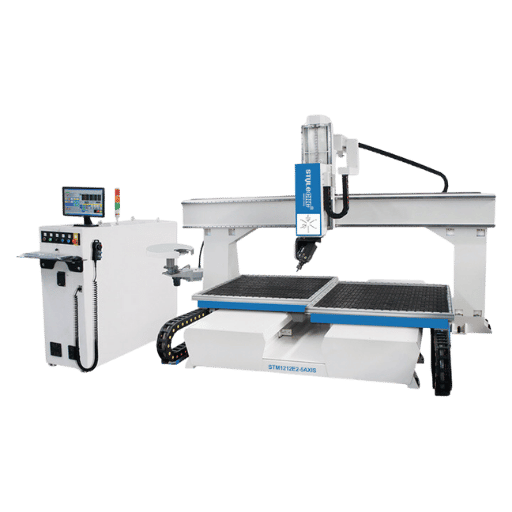

What Are the Advantages of a 5-Axis CNC Milling Machine?

Reduction in Errors, Greater Precision, and The Ability To Manufacture Complex Parts Efficiently

One of the most notable advantages that come with the use of a 5-axis CNC milling machine is its precision and ability to manufacture complex parts. Unlike traditional 3-axis machines, these machines are built around the concept of moving a cutting tool or a workpiece along five different axes simultaneously, meaning that it can now effortlessly make accurate cuts and geometric shapes that were previously impossible to achieve. This ability greatly reduces the chances of error and the need for multiple setups while ensuring consistency is maintained throughout the production runs. Due to their capability of creating detailed parts, they are perfect for industries like aerospace, automotive, and medicine where precision and complexity are of the utmost importance.

Primary Requirements for Improving Efficiency in Machine Shops

A multitude of aspects drives effectiveness in a machine shop. These may include constraints of the machinery available, the workflow processes, as well as the availability of skilled labor. For instance, CNC machines with 5-sided machining capabilities reduce setup time when a part is being made, which increases throughput. Organized workflow, such as the usage of lean manufacturing approaches, helps reduce bottlenecks and waste. Furthermore, a workforce that is properly trained is able to deal with a multitude of areas with all the proper supervision being done so productivity is maintained. These combined significantly increase operational efficiency and at the same time industry expectations for precision and dependability is upheld.

Elimination of Intervals of Setup and Workpiece Handling Activities

Intervals of workpiece handling and the setup process need to be reduced to minimalistic levels to maximize efficient production quality and output. With continuous enhancements in production processes, it would be ideal to use quick change tooling systems that aid in the ease of swifts between one tool and the other. The establishment of robotic arms or conveyor systems as forms of workpiece handlers also cuts down the manual input needed to greatly speed up the transition of processes. Also, the proper planning of the design of fixtures and modular workholding systems aids in reducing efforts as operators will be able to hold and secure parts better and more efficiently. Collectively, these strategies improve the production process while still upholding precision and reliability.

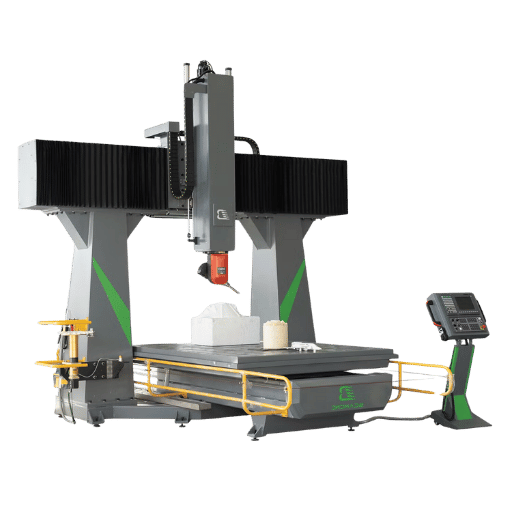

How to Choose the Right 5-axis CNC Machining Center for Your Needs?

Evaluating Different Types of CNC Milling Machines

As you assess the various CNC milling machines available, it is important to evaluate certain considerations that suit your needs. The primary types of CNC milling machines are vertical milling machines, horizontal milling machines, and 5-axis CNC machines.

• Vertical Milling Machines: These machines allow intricate work to be completed with great attention and accuracy which makes them useful for small to mid-sized projects that require versatility in drilling, engraving, and cutting.
• Horizontal Milling Machines: Heavy-duty and bulkier projects can be processed by these machines with the horizontal spindle design as they have faster material removal capabilities which makes them suitable for high-volume products.
• 5-axis CNC Machines: These machines are the most advanced as their workpieces can be moved along five axes. These machines help create very precise designs through the processes of contouring and multi-face machining which is why they are pivotal in precision-driven industries like Aerospace and medical devices manufacturing.

When making a decision concerning CNC milling machines, particularly those that incorporate 4-axis CNC machining, it is imperative to consider the detail level of your projects, production levels, and precision requirements. Evaluate these elements carefully before proceeding with your investment on an axis machine to guarantee that the chosen machine is useful in attaining your operational objectives.

Spindle, Axes, and More – Important Aspects to Focus On

A solid grasp of CNC milling machines is vital and factors like the spindle and axes system are very important in achieving top performance from CNC machines.

1. Spindle: In cutting, the efficiency, speed, and torque of a spindle directly affects the type of material that can be processed. Spindles operating at high speeds are appropriate for working with delicate materials, while high-torque spindles are suitable for strong materials such as steel and titanium. While using a spindle, precision during the operation must be kept in mind to manage spindle stability.
2. Axes: The more the axes, the more parts the machine can produce and to what extent. Three-dimensional machines can perform basic tasks with ease, while more complex ones require the use of 4-axis and 5-axis machines that can multi-direction cut and drill, as well as create complex geometric designs with ease.
3. Machine structural rigidity reduces vibrations during the cutting process, which in turn preserves the intended dimensional accuracy and increases the expectancy of tool life.
4. Advanced Controller: The interface and programming capabilities of the CNC controller defines the experience for the end user. With more developed controllers, adaptive machining and real-time monitoring while working is possible, which increases productivity greatly.

For the successful and reliable output of products over a long period of time, all of these factors must be managed for the best expected results.

Best Machine Shops And Business Recommendations

The top manufacturers of high-performance CNC machines are quite a number, as they offer innovation, superb quality, and exceptional precision. An example is Haas Automation that is well-known for providing cost effective solutions while blending reliability and functionality. This makes Haas Automation the go to option for both small and large machine shops. Another leading brand, Mazak, incorporates technology into their multi-tasking machines, which makes them great for complex production needs. DMG MORI stands out in precision engineering and 5-axis machining solutions, ensuring maximum accuracy when it comes to intricate geometries.

For machine shops that specialize in mid-range and high capacity production, Okuma is an industry leader when it comes to power CNC machines with user-friendly controls. Furthermore, Makino gets high recommendation on demanding aerospace, automotive, and die-mold applications due to their exceptional thermal stability and machining accuracy. Like other industry giants, they provide flexible and scalable options in tailoring the machines with specific manufacturing needs.

When creating or enlarging a machine shop, choosing a reputable company as a business partner guarantees longevity of the equipment, maximized quality production, and efficient throughput. In the end, the choice of a CNC machine brand rests on the application range, precision requirements, and volume of production of the machine shop. Policies on after-sales assistance and warranties should always be evaluated to improve efficiency in the long term.

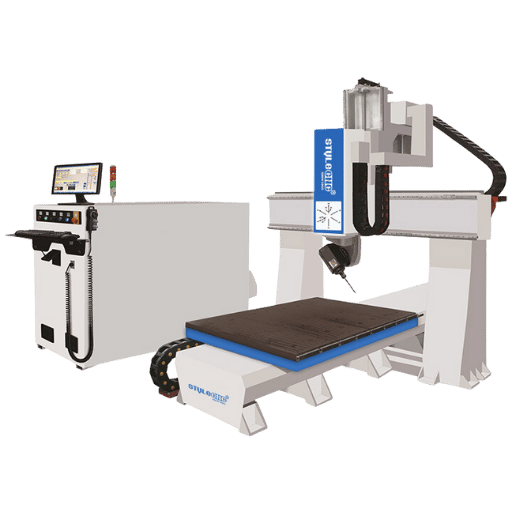

How Can a 5-axis CNC Machine Improve Your Manufacturing Process?

Universal Machining Capabilities Streamlineing Production

A 5-axis CNC machine enhances productivity substantially by permitting the machining of complex features on a part in a single setup.  The efficiency of a 5-axis machine eliminates several operations necessitating a single or limited tool cross-sectional area. The medical, aerospace, and other highly specialized industries that need elaborate features on parts owing to stringent design and finish requirements will substantially gain benefits from this. Unprecedented accuracy, adaptability, and efficiency come together with 5-axis CNC machining, which optimizes the production process, costs, and the end result.

Enhancing Precision In Producing Complex Shapes

The 5 – axis CNC machine is capable of producing complex shapes in detail because it eliminates the manual repositioning of the workpiece. This assures that every feature of the part is machined together, so that there are no cumulative errors from multiple setups. Furthermore, the machine’s ability to approach the workpiece from different angles allows for the seamless machining of underscuts and deep cavities . This technology is especially beneficial for the manufacturing of components where tolerances and consistency are critical in terms of quality and reliability within production runs.

Achieving Efficiency in Manufacturing With 4-Axis and 5-Axis CNCs

The complexity and precision of processes and components designed and manufactured can greatly benefit from the modern technologies implemented through 4-axis and 5-axis CNC machining. An example would be 4-axis CNC, which is exceptionally beneficial for tasks that make use of a rotated axis, such as the machining of cylindrical or other asymmetrical shapes. The 4-axis unit helps improve production speed while decreasing the amount of work that is done manually, achieving greater repeatability and accuracy. Meanwhile, the 5-axis CNC unit makes it possible to move along 5 different axes simultaneously which is something that is physically impossible for ordinary 3D machines. It is particularly useful for machining complex, integral parts in one arrangement in a setup because it virtually eliminates errors and saves time. With the aid of these technologies, manufacturers are able to satisfy intricate design challenges at supersonic speeds while still retaining a high level of quality in the final product.

Frequently Asked Questions (FAQs)

Q: What are the key applications of 5 axis CNC machines?

A: These machines are primarily used in the aerospace, automotive, and medical industries for the manufacturing of complex parts. They are best for parts with sophisticated geometries because they can machine multi-sided components simultaneously and create complex shapes with ease.

Q: How do 5-axis mills differ from 3-axis CNC milling machines?

A: 5-axis mills are equipped with additional movements, which are not present in 3-axis CNC milling machines. Instead of linear movements along the X,Y,Z axes, 5-axis mills have rotary motion on two additional axes, resulting in more intricate and efficient cuts. This feature eliminates the need for repositioning the workpiece several times during machining, which improves accuracy of the workpiece.

Q: What is the cost range for a 5 axis CNC machine?

A: 5 axis CNC machines prices vary widely due to differences in functionality, dimensions, and manufacturers. However, such machines typically cost between $200,000 and $500,000. More advanced models can cost beyond $1 million.

Q: What role does a trunnion table play in 5-axis machining?

A: Trunnion tables are known to be a type of additional fixture for CNC 5-axis machining centers that further facilitates the range of motion of the machine. It increases the range of motion by enabling further rotation along an additional two axes of rotation, thus allowing for more efficient machining processes.

Q: How does 4-axis CNC milling complement 5-axis CNC capabilities?

A: It is true that with 4-axis CNC milling users can rotate the workpiece along the horizontal axis in addition to the three standard axes, enabling more detailed features to be machined.  The fifth axis greatly expands the range of features that can be machined on a part, allowing even more intricate features to be machined with greater precision and machined in a single step, thereby increasing efficiency and reducing time.

Q: What are the advantages of using 5-axis routers over basic CNC routers?

A: As previously stated, 5-axis routers allow for a greater range of complexity of the machined features for example meticulous detailing. This, however, is not the only advantage. Moreover, they help cut down the number of machine arrangements that would otherwise be necessary.

Q: Is it feasible for a vertical machining center to operate as a 5-axis machine?

A: A vertical machining center can operate as a 5-axis machine having additional rotary and tilting features like a rotary table or a trunnion system. With these features, the vertical machining center is able to incorporate multi-directional machining for more complex parts.

Q: Which industries would get the most use out of 5-axis CNC machines?

A: Aerospace and automotive and medical device manufacturing in particular stand to benefit from 5-axis CNC machines because they are able to manufacture parts with deep complexities, optimize production runs, and achieve the high precision parts typical of these industries.

Q: What is the reasoning behind a company opting for a five-axis machine instead of a 4-axis machine?

A: By choosing a five-axis machine, a company can enhance the ability to work on more detailed components without having to reposition the workpiece. In consequence, lead timess are shortened and accuracy of parts is improved.

Reference Sources

1. Multi-criteria assessment methodology for remanufacturing conventional grinding machines into CNC machine tools
   • Authors: Ethar Mohammed Mubarak, Ali Zuhair Ridha, Z. Abdullah – experts in the field of axis machines.
   • Publication Date: 2024-11-30
   • Journal: Economics, Management and Sustainability
   • Citation Token: (Mubarak et al., 2024)
   • Summary: This study details a multi paradigm assessment approach that seeks to evaluate the process of remanufacturing the existing surface grinding machines into CNC machine tools with a z-axis and those without. The analysis of different remanufacturing options are analyzed within the framework of a model that contains cost elements, time, accuracy, reliability, complexity in processing shapes, and ergonomic factors.
   • Key Findings: The Index of Remanufacturability (RI) for remanufactured traditional surface grinding machines is between 0.637 to 0.999 for upgradability to a CNC configuratio of 2 up to 5 axes. Machines that were remanufactured on higher axes, especially those with a fourth axis, showed higher feasibility.
   • Methodology: Through analyzing machine tool remanufacturing experience and conducting a literature review, the authors used a multi-criteria assessment model which allows for diverse criteria to be weighted differently and alternative performance to be rated differently.”
2. Creation of a new CNC grinding machine capable of 3+2 Axis grinding of Profile Rotary Milling Cutters with added swivel capability for increased versatility.
   • Authors: M. Milutinović, Z. Dimić, G. Vasilić, Sasa T. Zivanovic, B. Kokotović, Nikola Slavković
   • Publication Year: 2022
   • Journal: Scientific Technical Review
   • Citation Token: (Milutinović et al., 2022)
   • Summary: This document illustrates the creation of a new machine developed for CNC grinding of profile rotary milling cutters utilizing 3+2 axes. The research emphasizes the economical benefits of the new machine against the conventional 5-axis CNC grinding machines.
   • Key Findings: While upholding high accuracy and quality in the produced tools, the renowned 5-axis CNC grinding machines are ten times more expensive when compared to the new machine, Profilator 100. The production costs of Profilator 100 are substantially lower.
   • Methodology: The authors completed a comparative study to determine how the new machine measures up to other existing 5-axis machines regarding cost, output production level, and efficiency of the machine working.
3. Such an increase in the range of motion permits more accurate and sophisticated machining, allowing for greater degrees of freedom for shape and design creation without excessive setup on a lathe or CNC machine.
   • Author: Mohammad Ikbal Hossain
   • Publication Date: 2022-01-27
   • Citation Token: (Hossain, 2022)
   • Summary: This investigation develops a novel production decision support system which integrates learning feedback during the selection of optimal cost machining processes for the case study of wind turbine blades manufacturing.
   • Key Findings: The study under consideration clearly highlights the necessity of the experienced CNC Programmers in selecting the most economical processes while the 3 axis and 5 axis CNC machines are being compared in the economy of usage.
   • Methodology: The study undertakes an analysis of the cost efficiency of various CNC machining processes, incorporating learning curves alongside the experience of the programmers into the model’s decision-making process.
