What Are The Machine Parts of a Milling Machine?

Summary Of The Important Parts of a Milling Machine

A milling machine’s parts are numerous, but its key components remain essential for its use:

1. Column and Base – The column forms the backbone of the milling machine while housing multiple components, and the base offers stability and support to the device.
2. Spindle – Precision and cutting process of the tool are defined and determined by the spindle’s motion which is the rotating component where the cutting tool is attached.
3. Table – The workpiece is held by the table which allows its movement during milling. Depending on the machine configuration, it can be adjusted vertically, horizontally, or through rotation.
4. Knee – The knee can move vertically enabling depth adjustments, supporting the table which ultimately performs the cutting process.
5. Saddle – The part that supports the workpiece’s horizontal positioning and is situated between the knee and the table is referred to as saddle.
6. Quill – The adjustable part allows the spindle to move vertically for more controlled drilling and cutting activities.

All parts are essential for improving the accuracy and efficiency of machining processes. Optimal machine performance is only possible through a balanced mix of maintenance and knowledge of how the machine parts work together.

Significance of Every Machinery Part

Every single part of a machine has a specific purpose that is vital to its overall functionality as well as accuracy in a manufacturing process.

• Base: Acts as a source of strength and support to the machine, eliminating chances of vibrations that may lead to inaccurate results.
• Spindle: Supplies the necessary rotary motion to the machine in order to efficiently carry out the cutting or drilling operations.
• Saddle: Allows for accurate horizontal movements of the machine to ensure the workpiece is in the desired location.
• Quill: Ensures accurate vertical movements of the machine to provide the operator with the needed depth of cut during the operation.

Knowing these elements and their functionalities enables operators to make full use of the machine and maintain predetermined quality standards in the completed work.

How Machine Parts Affect Efficiency

A machine’s performance hinges on the state and functionality of its vital components. Parts like the spindle, saddle, and quill are to be maintained properly to ensure precision and efficiency during operations. For instance, a maintained spindle is expected to provide constant rotary force which decreases error rates in cutting and drilling tasks. Similarly, the saddle’s efficiency in horizontal movements influences the placement of the workpiece thereby affecting the quality of the output. Lastly, a quill that operates smoothly provides for precision in vertical movements which will guarantee control over depth. To avoid wear, maintenance, downtime, and overperformance regular inspections of these parts must need to be performed.

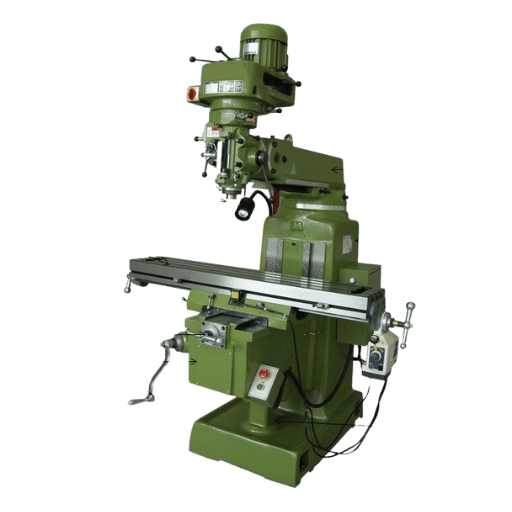

Why Is It Important To Understand How CNC Machines Work?

Every CNC Milling Has Its Own Set Of Meaning And Procedures

The basic operation of any CNC milling can be traced to a set of instructions- G-code. A CNC milling machine follows this code to command the movement of the cutting tool to various axes in order to achieve the desired shape of the material. To begin with, the procedure has three core points:

• Preparation: A model is designed on CAD (Computer Aided Design) which is further translated into a CAM (Computer Aided Manufacturing Program). The program outlines the tool paths and settings needed for the operation. The material, which is to be worked upon, is then fastened to the work table.
• Execution: The precision cutter rider is integrated with a CNC Machine, which understands and executes the G-code via managing the spindle of the machine together with the tool movement, in addition to the cutting speed. Motors transfer the cutting tool in the programmed X, Y, and Z coordinate so that the defined design on the base material is cut out.
• Continuous Monitoring: Throughout the entire process, accuracy and minimal errors are ensured with the help of sensors that check optimal alignment and position with respect to the speed of the tool.

With proper alignment, the procedure is simplified. For this reason, CNC milling machines play a big role in America; it has almost become a must have for the complex components manufacturers.

The Role of the Spindle in CNC Milling

The spindle serves a vital purpose in CNC milling as it powers the tool that makes the cut during the operation. It sets the cutting speed, applies the appropriate torque, and controls the accuracy of the cut. High-end spindles provide the required range of operations, precise and accurate cuts, and the capacity to work on parts with differing degrees of hardness. The spindle must be properly maintained and calibrated so that the machine uses operational energy efficiently and consistently performs high-quality machining.

Looking at the Feed Mechanism

The automation technology of the CNC milling process defines the cutting tool movement with respect to the workpiece so that the material removal occurs in a uniform and pre-established rate. It is one of the most critical factors in machining accuracy, quality of surface finish, and tool life. Modern feed systems use servo motors and ball screw assemblies to achieve precise linear motion, with some modern designs, supporting multi-axis movement for complicated shapes, even sophisticated designs. Some notable ones are feed rate, depth of cut, and material type combination of which enhances productivity but decreases tool and heat of generation in moderation. Incorporating these technologies leads to increased performance by changing parameters in real time based on the material and cutting conditions with no operator input. Regular servicing of the lubrication system and adjusting the alignment of the feed parts will maintain effective operation and acceptable quality of the finished products.

Importance of the Saddle in Milling Machines

Role of the Saddle in the Premise of Milling ProcessE

Saddle in milling machines serves as a crucial part that facilitates accurate movement of the workpiece in horizontal directions. The saddle is placed between the table and the knee and it provides controlled side movement on the Y axis. The saddle’s movements ensure that proper position and machining alignment are achieved. The saddle helps the table to move smoothly and stably and therefore, enables the user to carry out precise milling work that determines the final product’s quality. Just like in any other machine component, the saddle has to be maintained. There is a need to clean him and add lubricant to ensure that he operates alongside the machine with great accuracy and reduces the wear and tear effect.

Saddle’s Role in Positioning the Workpiece

Like it has already been mentioned before, the saddle is a critical intermediary too, and helps integrate modern positioning technologies in today’s milling operations. In DRO and CNC advance techniques of saddle  incorporates precise measurement devices, the saddle is able to do with many devices. These devices greatly assist the operator in achieving the precise placement of the workpiece by receiving positional information and carrying out the necessary automatic adjustments. Such integration reduces the operator’s burden drastically through the elimination of errors and, in the process, significantly boosts production efficiency. In addition, the use of linear scales  with finest graduations obliterates difficulty in the balance between range of movement and precision of intricate machining processes required for the optimal dimensional accuracy. Because of the traditional mechanical stability and new advancements in technology the saddle greatly enhances the performance in controlling the movement of automand to these.

What Are The Perks Of Using A Milling Machine?

Advantages Of Employing A Milling Machine In Production

In the manufacturing processes, milling machines provide numerous benefits making them one of the most useful tools in a number of applications.

1. Precision And Accuracy: It is possible for these machines to produce very precise and accurate parts that is critical for industries that need very tight tolerances.
2. Versatility: Metals, plastics, and composites, among other materials, can be machined on these machines, which can cut, drill, and shape all within one machine.
3. Efficiency: They can automate processes and fulfill sophisticated tasks very quickly which reduces the production time and increases overall profit.
4. Customization: It is possible for manufacturers to design and produce components according to particular design specifications which are very useful during mass and batch production.
5. Durability: Modern milling machines are designed for sustained use and can withstand aggressive machining making them reliable and consistent over time.

These advantages show how pivotal machines are, particularly in production industries that demand high standards of quality, precision, and efficiency.

Comparison of Horizontal and Vertical Milling Processes

Vertical milling machines are best suited for precision work like as cutting molds and making detailed cuts. The aligned vertical spindle enables the machine to drill with precision and detail. These machines also provide flexibility, therefore they are adopted in small scale manufacturing projects that require enhanced productivity. Such processes are often referred to as ‘milling’ as they add value to the output.

Horizontal milling machines are more efficient in large scale industrial operations. They also have an edge over vertical machines while making slots or grooves in tough materials. Due to their construction, horizontal milling machines are more efficient in cutting as they can operate several cutting tools at a time. Horizontal machines use more bulk power, therefore they are fitted where productivity targets will be at the highest.

The choice of which milling machine to use is based upon the different parameters precision, scale of operation, and the type of material. Both types are necessary and useful in the continuum of several manufacturing operations.

Advantages in Machine Tool Applications

Machine tools such as vertical and horizontal milling machines are multi-functional in terms of their benefits within manufacturing processes. An example of this is improved accuracy, where a high level of precision proportional to the shaping of materials ensures that quality is the same in every production run. They also boost efficiency by minimizing manual work and processing time, especially during bulk operations. In addition, machine tools are flexible and durable because they can cut, drill, and sculpt various materials like metals, plastics, and composites, making them ideal for different purposes. Furthermore, machine tools are dependable and robust, which reduce downtime while inexpensive in the long-term, highlighting its importance in industrial settings where work holding is pivotal.

Which Are the Essential Components of a Vertical Milling Machine?

Vertical Milling Machine Components

1. Spindle orientation: In a vertical milling machine, the spindle is set in a vertical position, which permits the cutting or drilling of material from above.
2. Worktable: It is a strong and firm adjustable worktable that holds the material which is being machined and can translate in horizontal direction in the X and Y planes positioning it accurately.
3. Cutting tools: These machines are fitted with different cutting implements that can perform a number of operations like drilling, boring, and contour cutting.
4. Knee and saddle: The knee consists of the worktable which can shift in the vertical direction to vary the depth of the cut, whereas the saddle allows movement in the Y direction.
5. Head assembly: Holds the motor and spindle mechanism which usually can tilt or swivel for better machining angles.
6. Control interface: Modern vertical milling machines have control panels that interact easily with users, which gives them the power to set the machine’s speed and feed with more accuracy than before.

Importance of the Vertical Positioning Screw

With regards to vertical machining centers, the vertical positioning screw or elevating screw is one of the more important operational components because it controls the movement of the knee in vertical directions. Additionally, the screw works in conjunction with the cutting tool to maintain appropriate height adjustments of the worktable. In addition to these tasks, it guarantees accuracy throughout the machining process, especially if the operation involves detailed parts. Recently developed screws utilize more advanced materials and engineering in order to increase their durability and decrease supportive structures’ backlash, which aids in overall improvement of precision. Periodic maintenance such as lubrication and alignment is necessary to take care of the screw mechanism to ensure that every piece of equipment works consistently over time and any wear and tear of the system is controlled.

Examining the Base and Column of the Vertical Milling Machine

A vertical milling machine has the column and base as very important structural parts. The base works as the support of the machine and takes in vibrations while providing a rigid frame for machining activities. In most cases, the material used to make the base is cast iron or any stiff material in order to enhance strength and limit movement. The base has a column that rests on it. The column houses the head of the machine and contains other parts such as spindle housing The assembly of all these parts ensures that the machine is able to operate accurately and as required for effective milling. Inspecting the ways for wear and damage would enhance the useful life of the machine.

Frequently Asked Questions (FAQs)

Q: What are the main parts of a CNC milling machine and their functions?

A: The parts of a CNC milling machine are base, column, knee, saddle, table, overhanging arm, and arbor support. The base supports the entire machine and contains the power feed unit. The column section contains the spindle that drives the milling cutter. The knee permits vertical feed motion and the saddle carries the table. The table holds the fixture and the workpiece. The overhanging arm stiffens the casting around the spindle and helps hold the spindle. The arbor support is used to hold the cutter and gives support to the spindle.

Q: How does a milling machine operate to remove material from a workpiece?

A: To remove material from a workpiece, A milling machine is able to do so using a rotating milling cutter which is the main accessory of any milling machine. The cutter itself is one of the most important parts of the mill, and it has a number of teeth that are arranged around it and which rotate with the cutter. Usually some material is cut off the work piece whenever it is brought into contact with the rotating cutter head.

Q: What kinds of milling activities can be executed with a CNC milling machine?

A: Besides the operations mentioned, CNC milling machines carry out additional activities like surface, groove, angular, cam, and thread milling. Each operation possesses a definite strategy or method of utilizing the milling cutters in order to achieve specific shapes and features on the workpiece.

Q: What tasks are performed using the t-slots in a milling machine?

A: The t-slots located on the face of the column and the table provide mounting points for the t-bolts that secure the fixture with the workpiece. This additional mechanical component ensures there is little or no unwanted movement of the workpiece during the milling operations.

Q: What is the contribution of the work power feed mechanism in improving the milling process?

A: The power feed mechanism allows the automation of tools and other numerous mechanical components that engage with the workpiece. This is done by moving the workpiece toward the milling cutter which is much more efficient. This is beneficial in mass production situations where precision and efficiency is very important.

Q: Which components perform the arbor support function in a power controlled milling machine?

A: The arbor support acts as a stabilizing and supporting unit for the milling cutter during its operation. This is especially true when long and/or heavy cutters are being utilized since deflection or vibration will result in inaccurate machining.

Q: Could you please expound on the application methods of the milling processes?

A: The application methods of the milling processes include choosing specific milling cutters and setting operational conditions that would enable achieving specific machining objectives. This also encompasses the changes in cutting speed, feed, and the amount of cut in relation to the material being worked on as well as the target shape of the workpiece.

Q: What is there to say about market prospects for CNC milling machines?

A: For the CNC milling machines, growth in the market is ever promising largely due to their capability to perform multi-dimensional operations. The aerospace industry, automotive industry, and the medical device industry are some that extensively use parts produced through CNC milling, which creates a need and fosters advancements in CNC technology.
